Master Young M.Y LJF 395nm UV Curing & Smoke Exhaust Cooling Fan for Phone Repair. 395nm fast curing wavelength, powerful smoke exhaust. Essential 2-in-1 tool for phone repair, rapid resin curing, smoke exhaust, and heat dissipation.
Option:
1. M.Y MY LJF UV Curing Cooling Fan (built-in battery).
2. M.Y Dongfeng UV Cure Fan (no battery).
M.Y LJF UV Curing Cooling Fan Features:

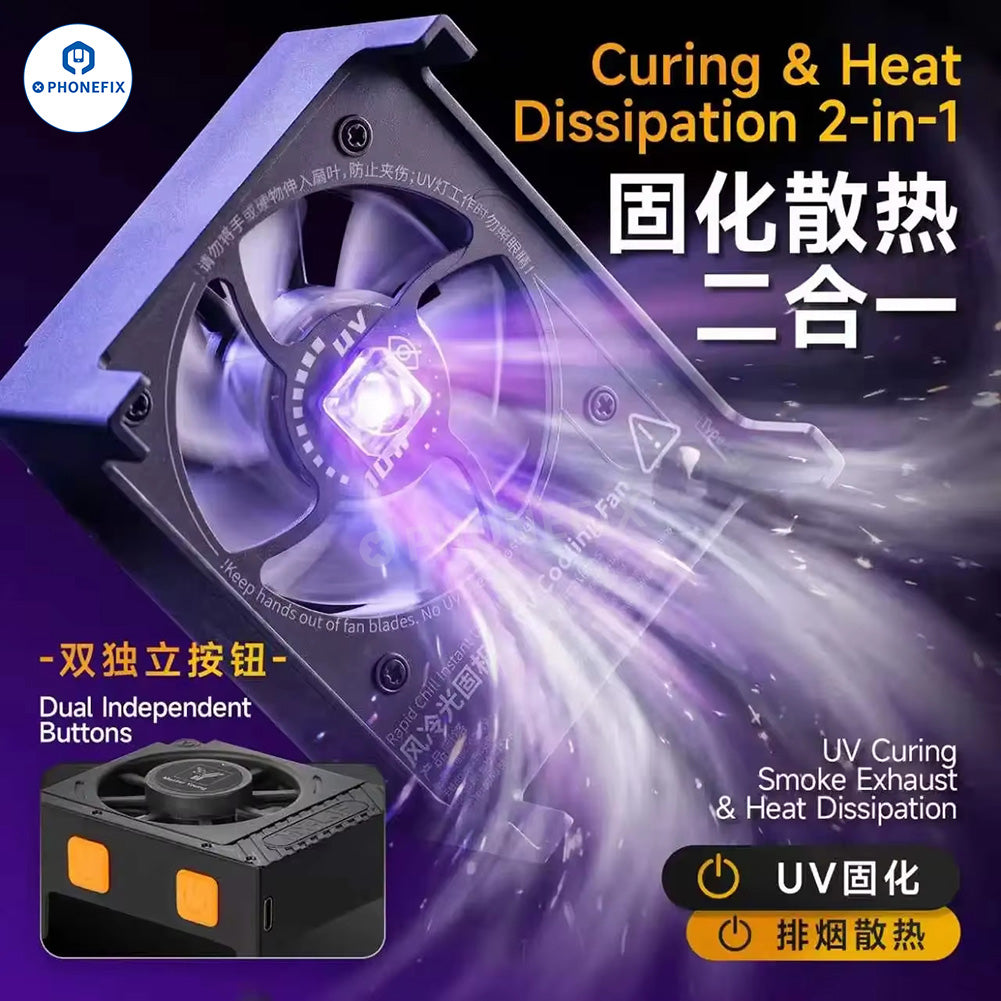

1. Features a 2-in-1 curing and heat dissipation design; UV curing and smoke exhaust/heat dissipation can work simultaneously or be controlled independently via dual buttons.
2. Equipped with a powerful brushless motor, providing stable smoke exhaust and cooling airflow while ensuring long-lasting durability.
3. Utilizes a 395nm fast-curing wavelength for high curing efficiency, especially suitable for UV glue and green oil curing.

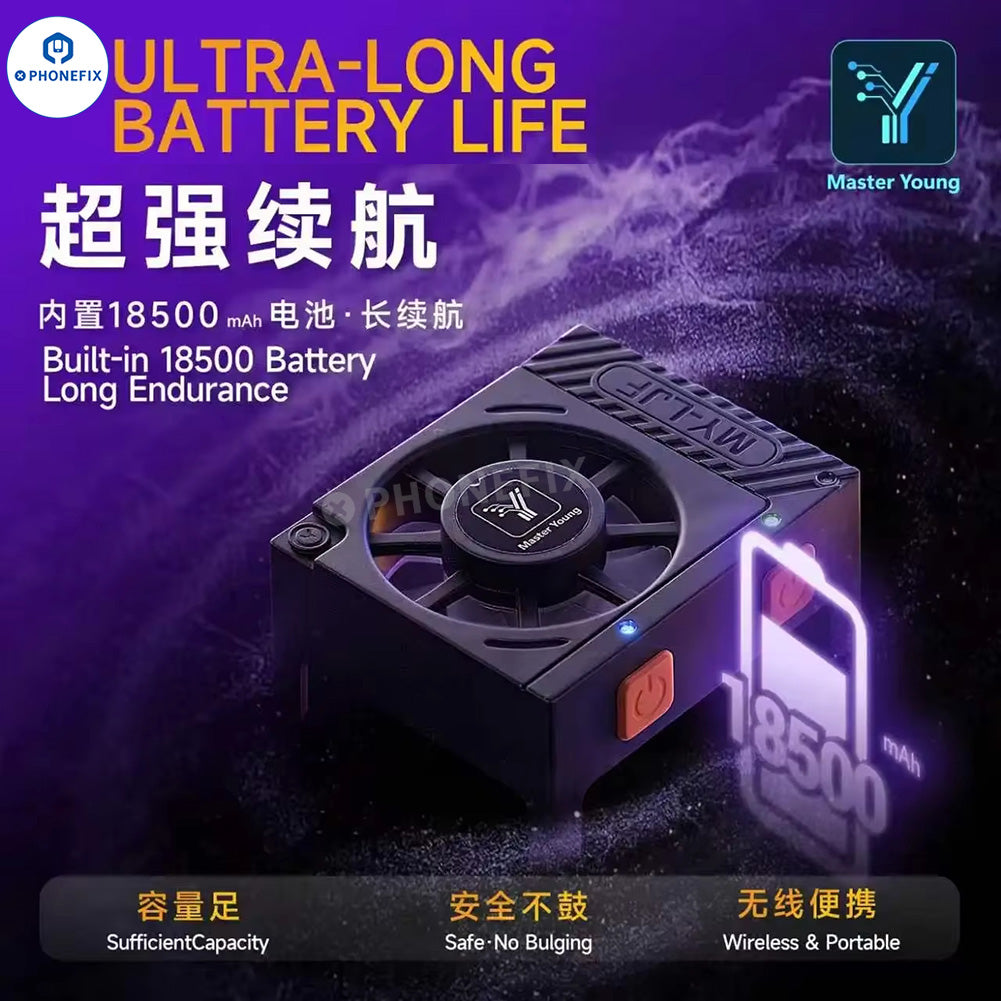

4. Built-in 18500 battery offers ultra-long endurance and supports wireless, portable operation, getting rid of cable tangles.

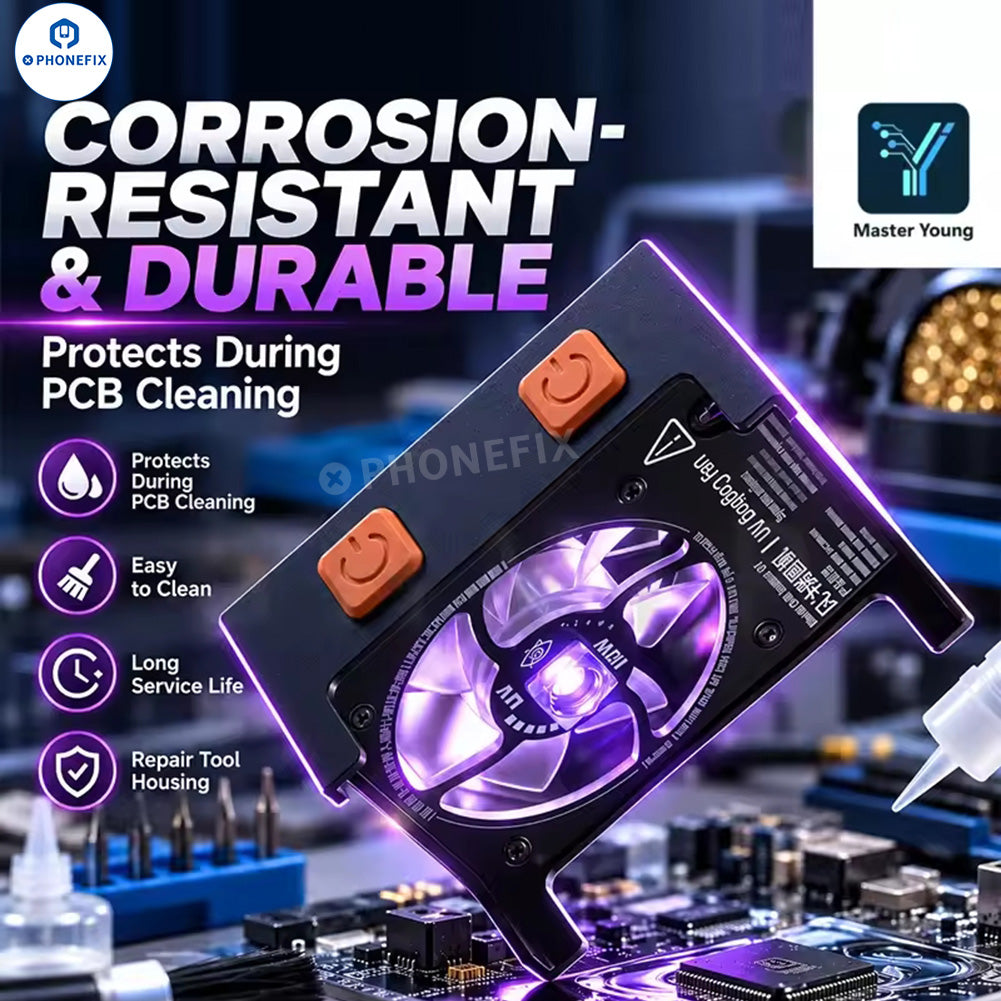

5. The shell is made of material resistant to PCB cleaning fluid, offering excellent corrosion resistance, easy cleaning, and a long service life.
6. Compact and lightweight overall design, high-temperature resistant, suitable for use in various complex repair environments.
M.Y Dongfeng UV Curing Cooling Fan Features:
1. 2-in-1 Functionality. Combines UV curing and smoke exhaust into a single, compact device, eliminating the need for two separate machines and greatly improving repair efficiency.
2. 40 High-Power UV Chips. Equipped with 40 strong UV LED chips emitting at a 395nm wavelength, providing rapid and effective curing for solder masks and adhesives.
3. Powerful Smoke Exhaust. The built-in high-speed fan quickly dissipates heat and exhausts harmful fumes away from the motherboard, ensuring a safer and clearer working environment.
4. Dual Independent Buttons. Features two independent control buttons for free mode switching: Fan-only mode, Curing-only mode, or Simultaneous activation for combined curing and fume extraction.
5. High-Temperature Resistant. Constructed from premium, high-temperature resistant materials that can withstand the intense heat generated during prolonged motherboard repair sessions.
6. Convenient Type-C Interface. Easily power the device using a standard Type-C cable. It can even be powered by a power bank, making it highly portable and perfect for mobile repair scenarios.
7. Rapid Cooling, The powerful fan motor ensures continuous airflow, rapidly cooling the PCB after soldering while curing the protective layer.

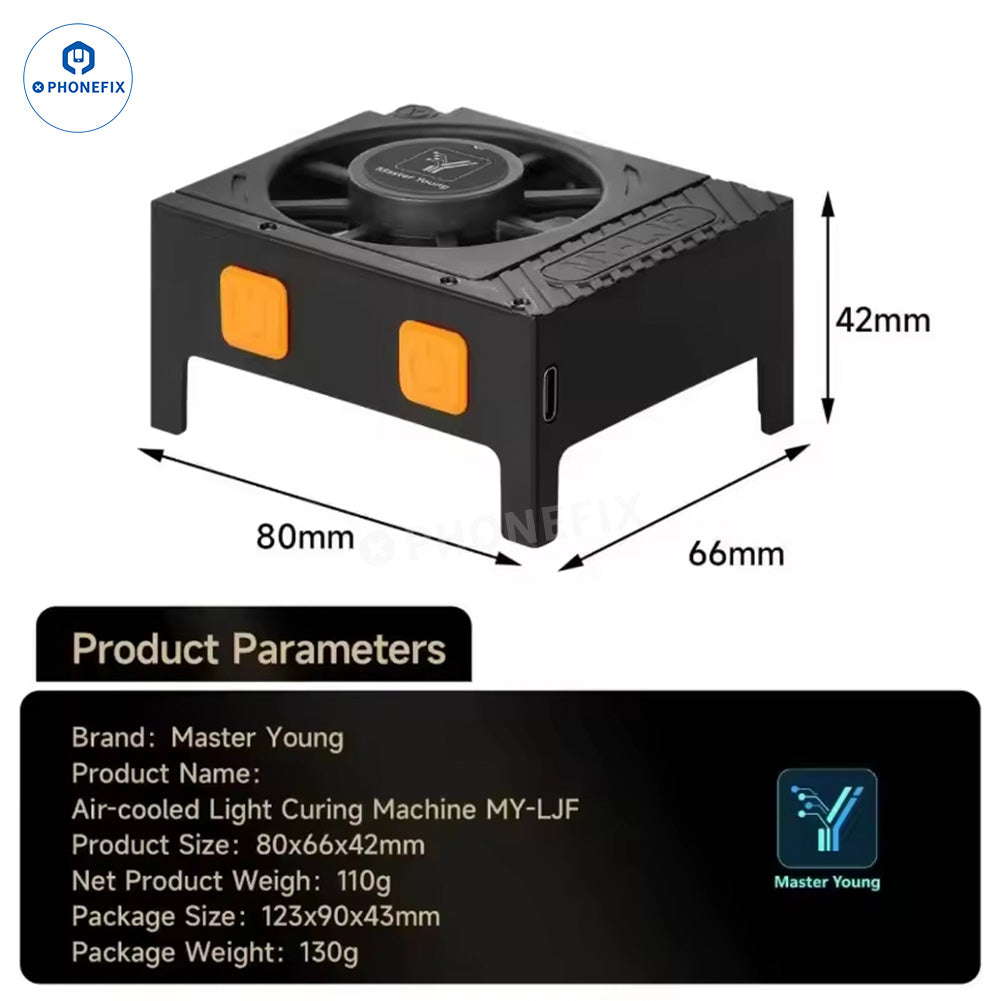

Product Parameters:
Brand: Master Young
Product Name: Air-cooled Light Curing Machine
Model: MY-LJF
UV Wavelength: 395nm
Battery Type: Built-in 18500 Battery

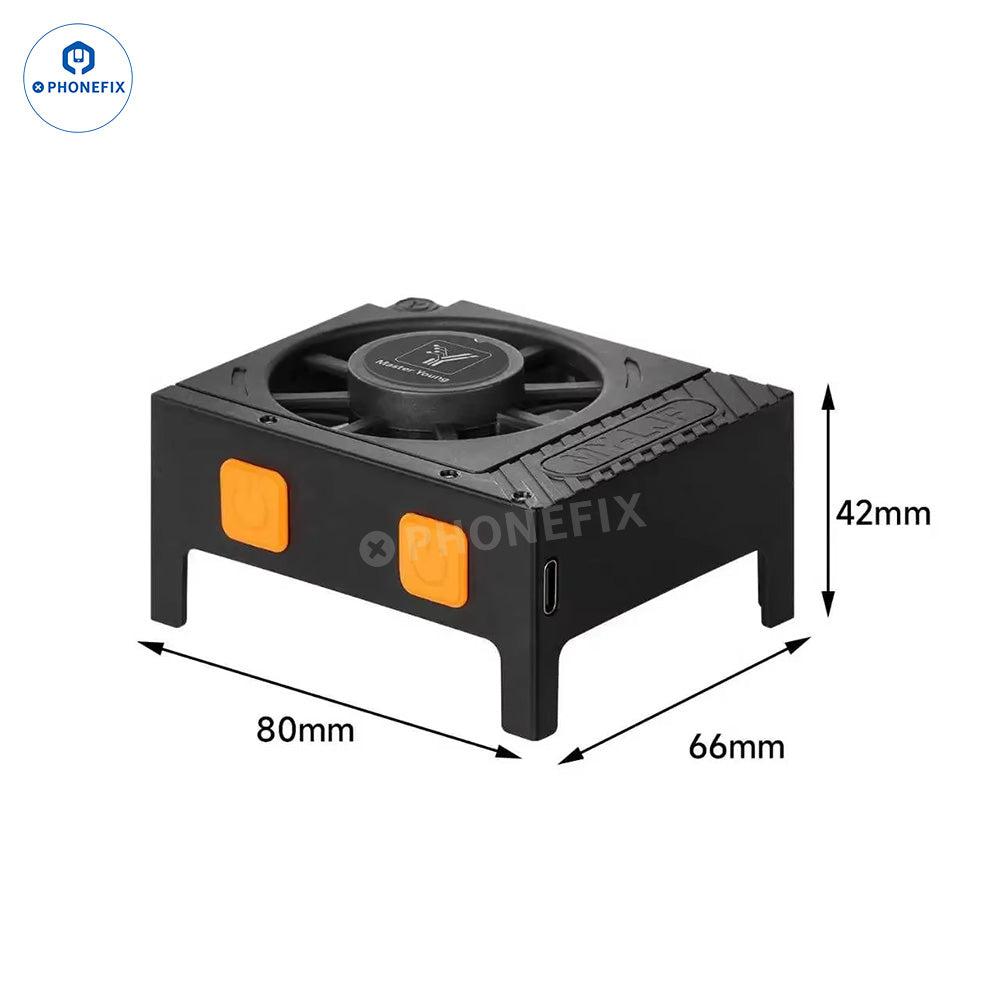

Product Size: 80mm × 66mm × 42mm
Net Weight: 110g
Package Size: 123mm × 90mm × 43mm
Gross Weight: 130g
Shell Features: Resistant to PCB cleaning fluid, corrosion-resistant, high-temperature resistant
Model: Dongfeng UV Cure Fan
UV Chips: 40 UV Chips
Wavelength: 395nm
Power Interface: Type-C
Product Size: 56 × 56 × 38mm
Package Size: 84 × 40 × 101mm
Gross Weight: 100g
Control: Dual Independent Buttons (Fan / UV / Sync)
Material: High-Temperature Resistant Material
Application: UV curing, PCB fume extraction, phone motherboard repair
