MaAnt F711 F712 F713 360° rotating heating separator for mobile phones/tablets 7-inch curved/straight screens separation, LCD frame removal, etc. MaAnt screen heating separator built-in powerful silent suction pump and intelligent temperature control system, three sets of memory temperature settings, suitable for curved and straight LCD screen separation and frame removal, non-destructive disassembly.
Option:

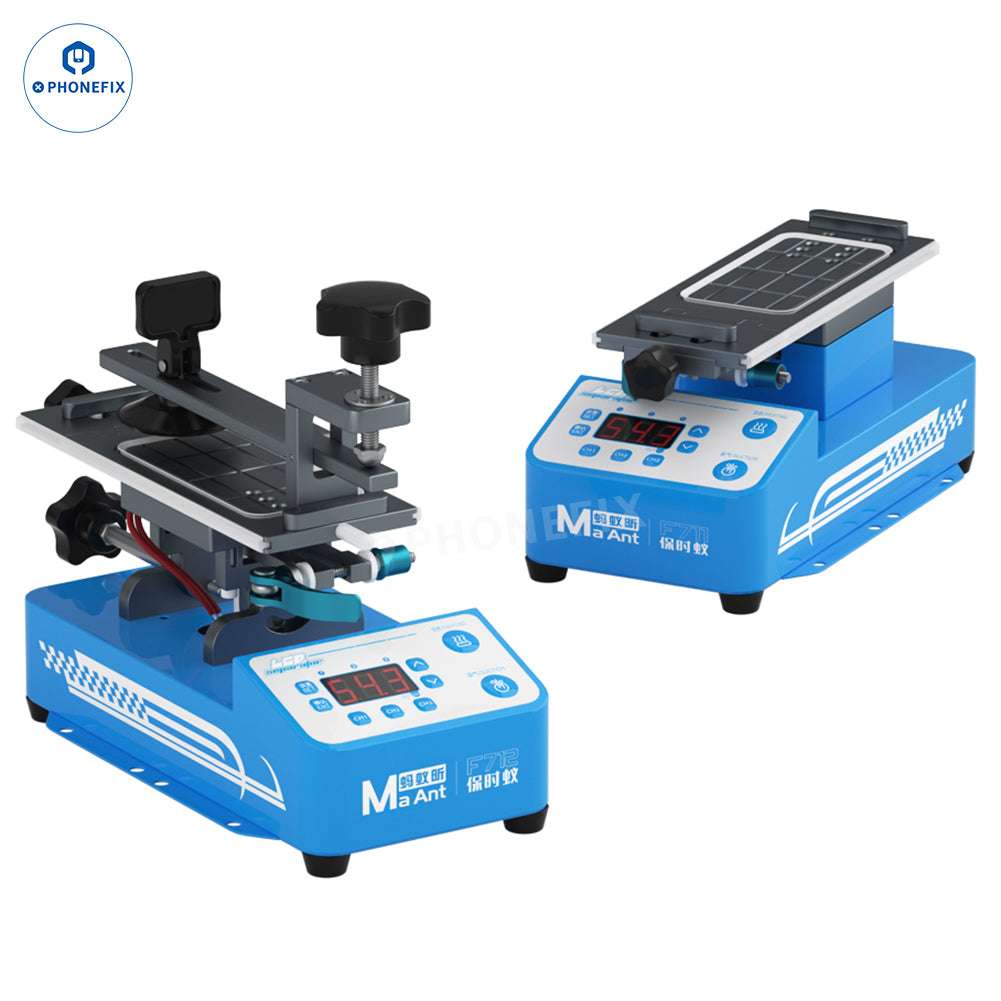

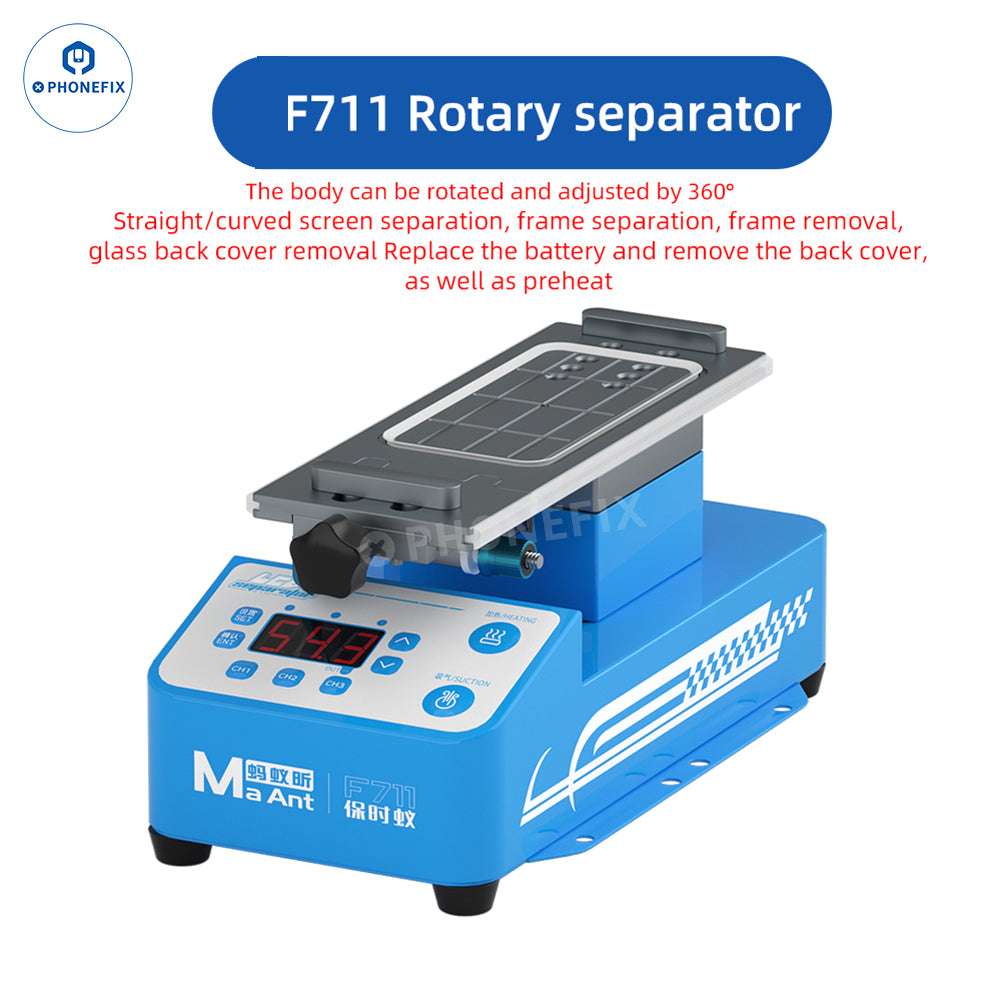

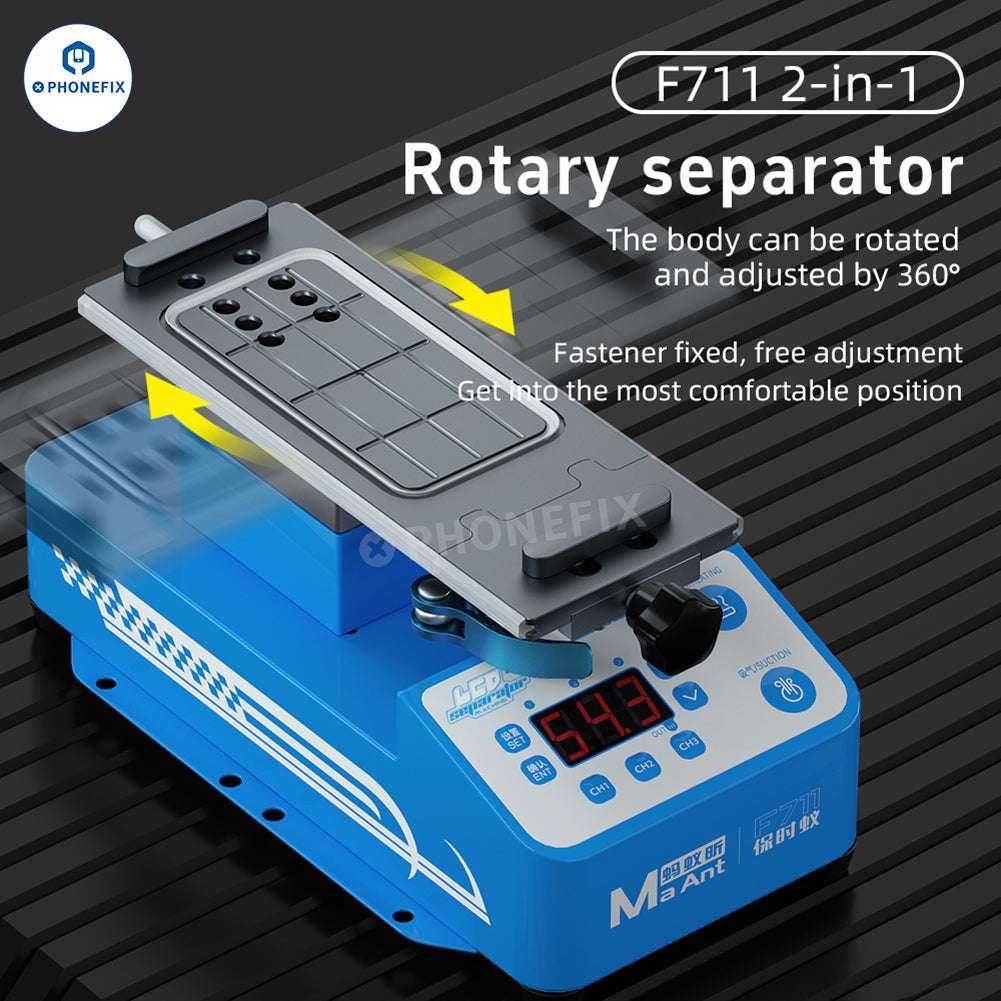

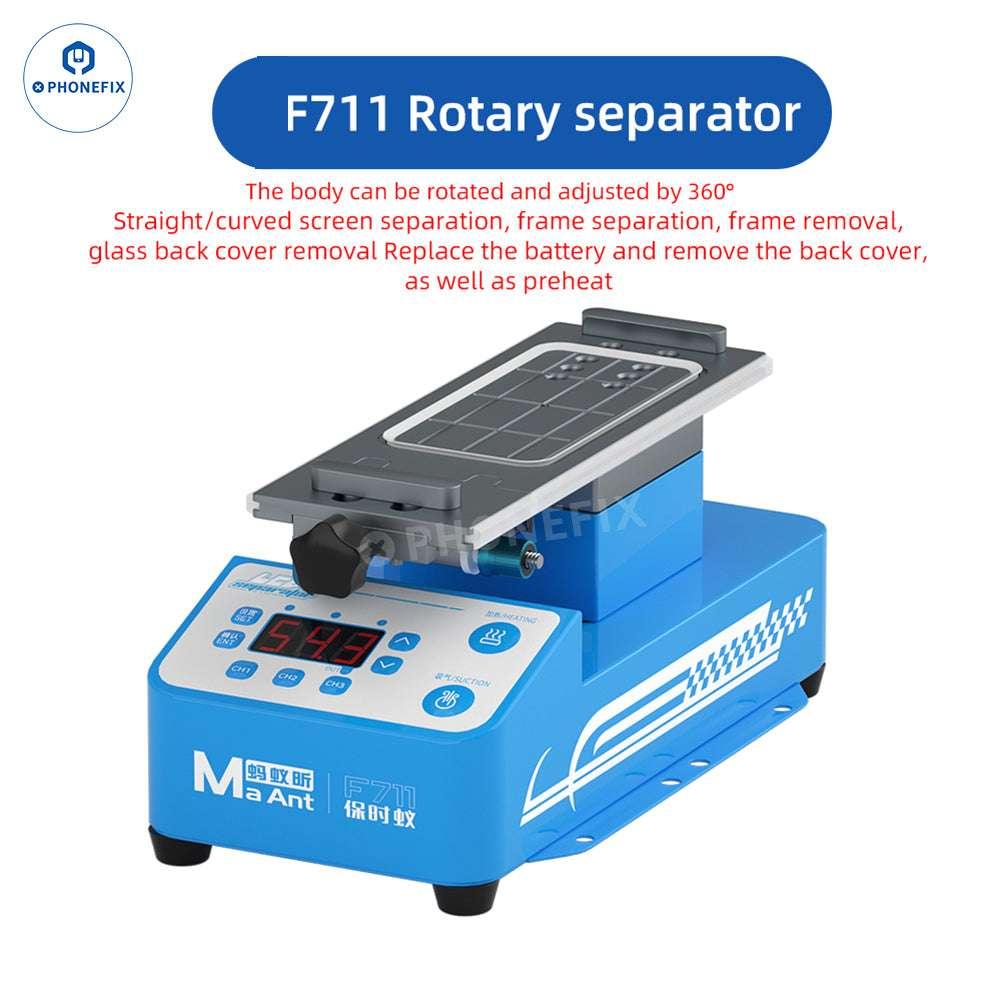

1. MaAnt F711 2-in-1 Heating Separator.

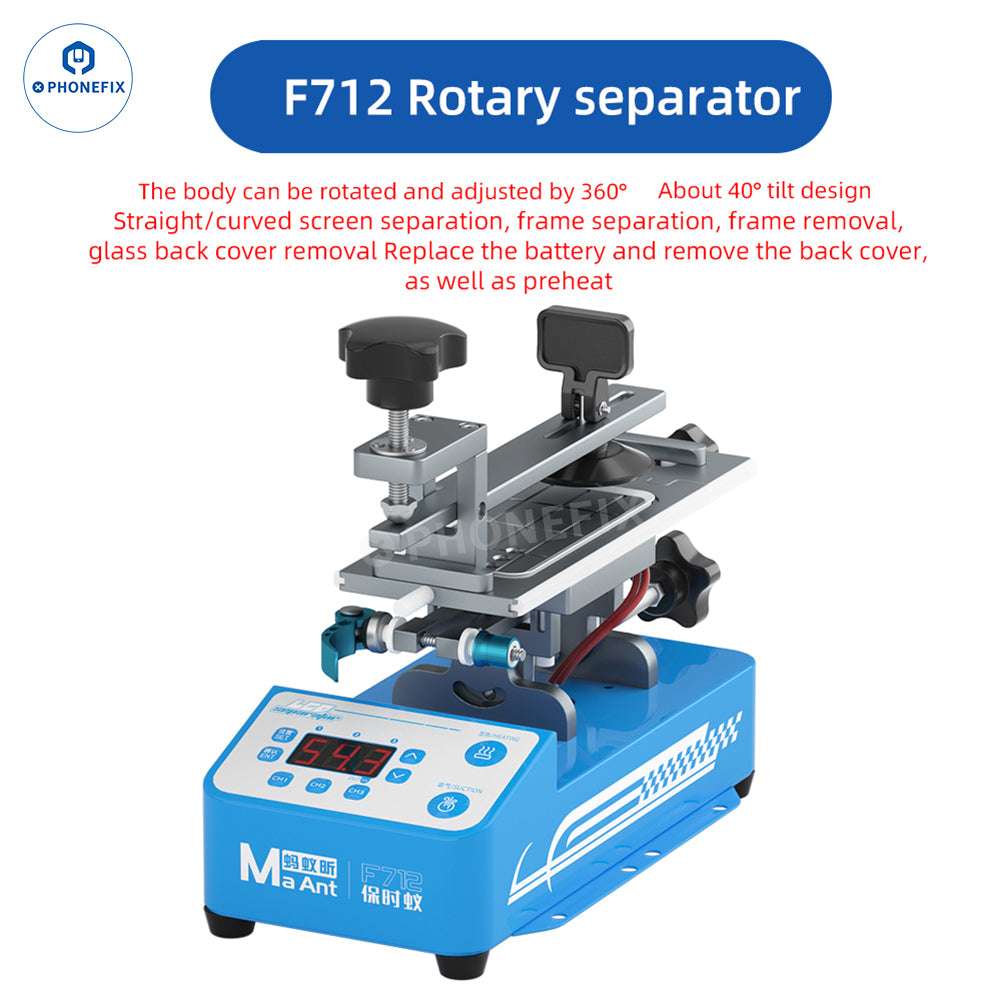

2. MaAnt F712 3-in-1 Heating Separator (with suction cup).
3. MaAnt F713 frame-free all-in-one machine.
MaAnt F712 Features:

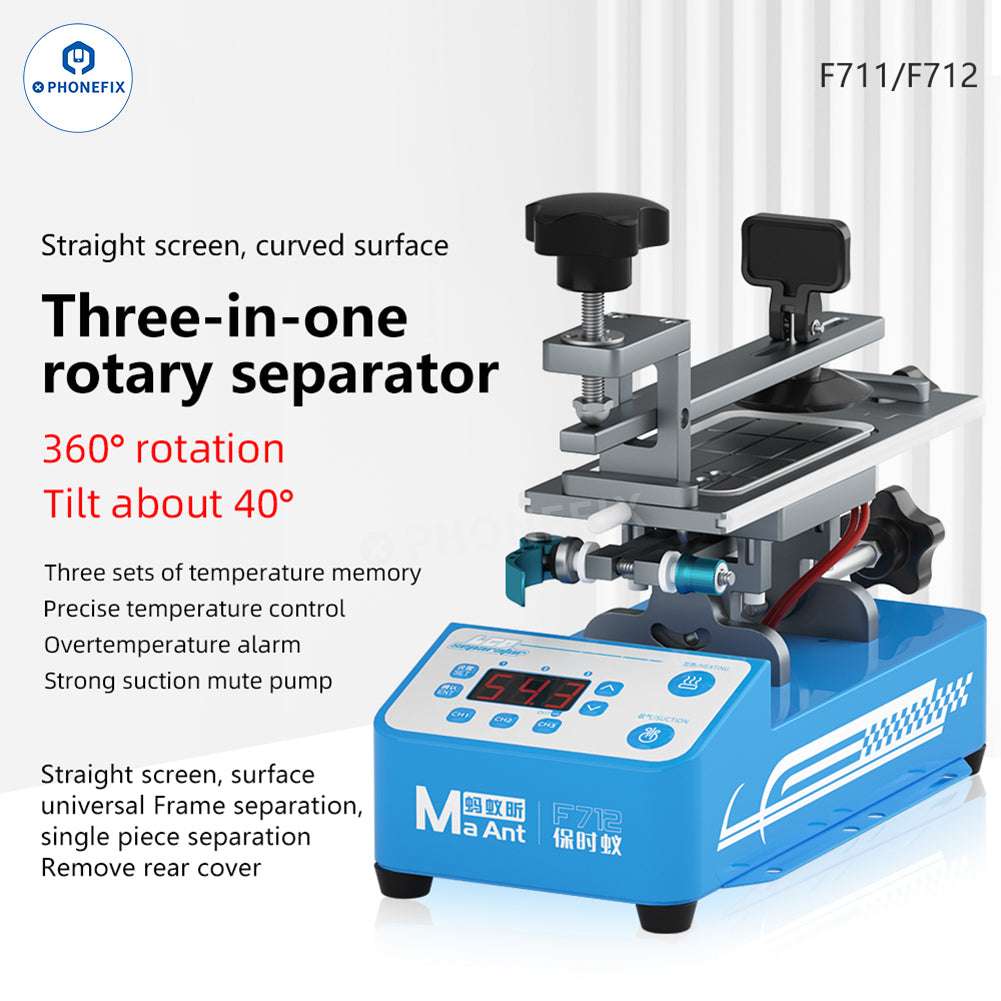

1. 360° rotation function, which can achieve flexible positioning during the removal process.
2. Equipped with three sets of temperature memory settings CH1/CH2/CH3, it can be precisely controlled according to different types of screens and adhesives.
3. Freely adjustable, suitable for straight / curved screen separation, frame separation, frame removal, glass back cover removal, battery replacement and back cover removal.
4. Over-temperature alarm: The integrated over-temperature alarm ensures that the device does not exceed the safe operating temperature, providing additional safety for the device and technicians.
5. Built-in silent suction pump: helps to firmly fix the device in place during the removal process, minimizing the risk of slips or accidents.

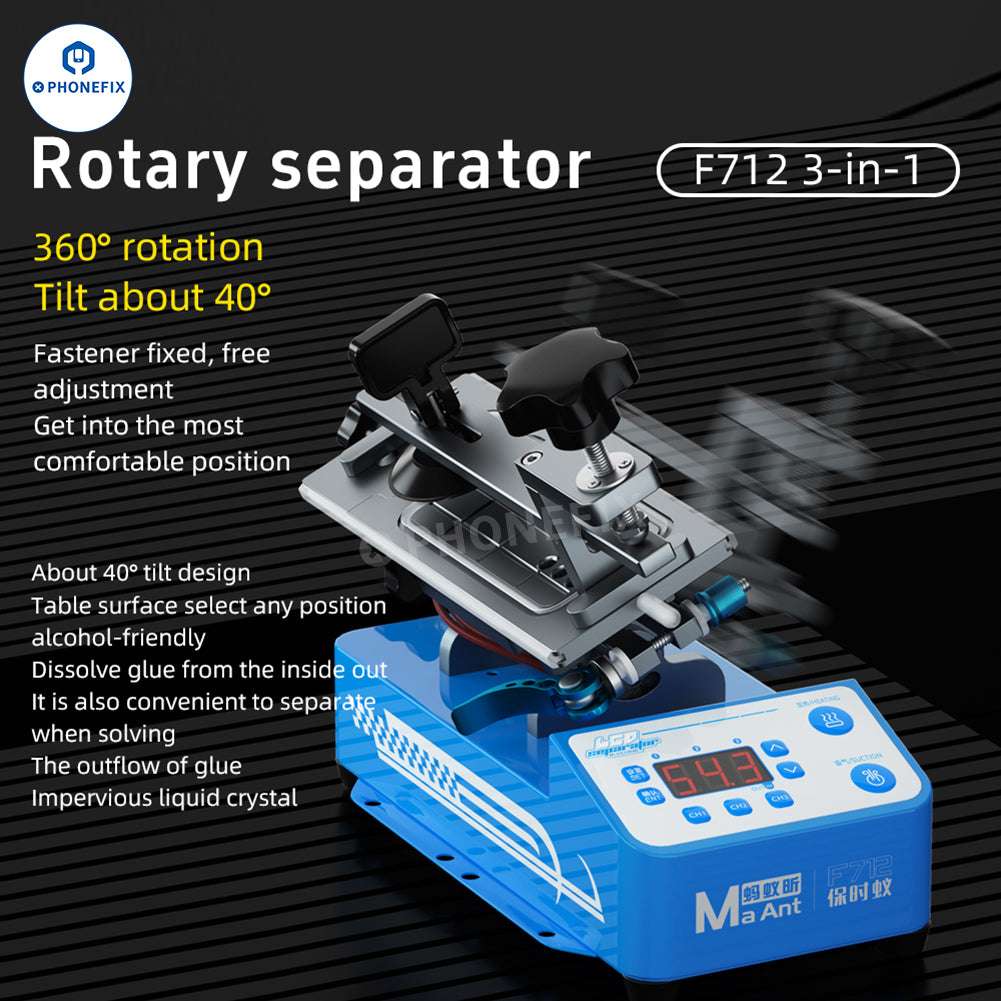

6. Tilt about 40°, choose any position on the table, easily immerse in alcohol, dissolve glue from the inside out, and facilitate the flow of degumming liquid when separating, without damaging the LCD.

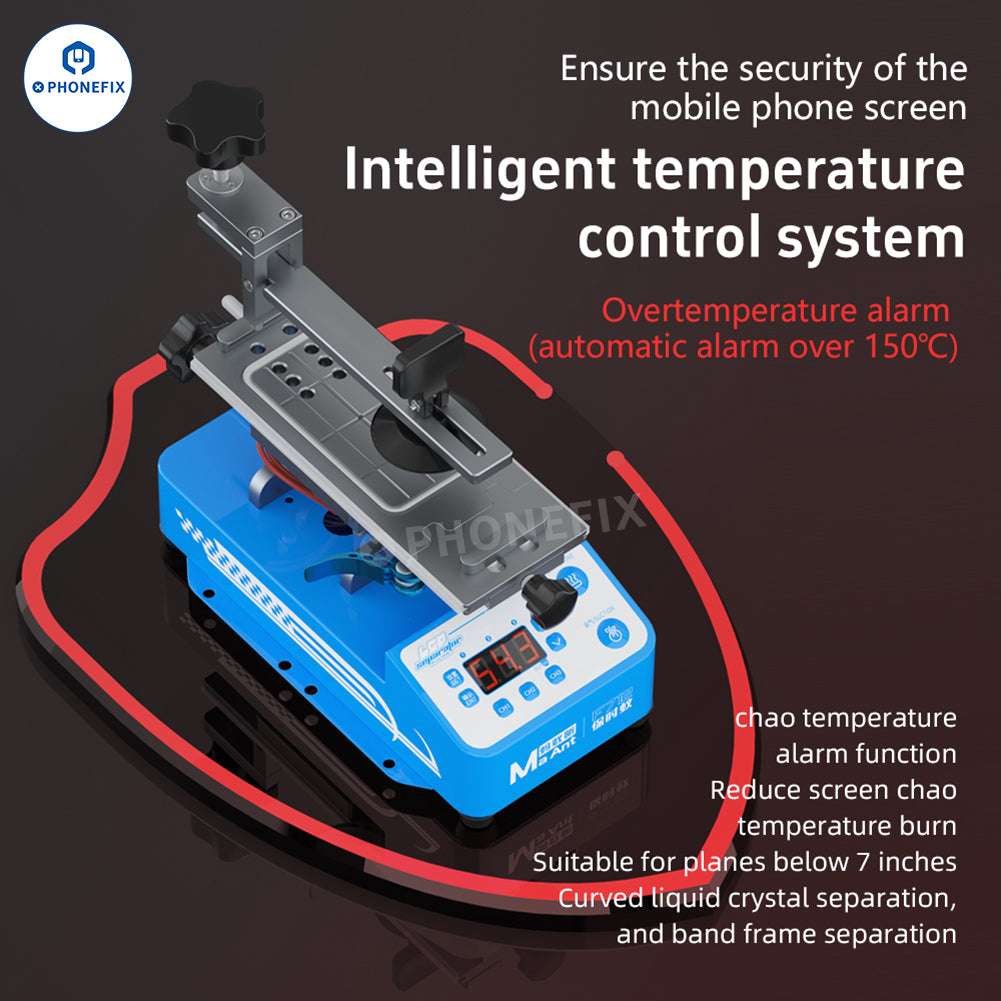

7. Intelligent temperature control system, automatic alarm above 150℃, suitable for tablets below 7 inches, curved LCD separation and frame separation.
8. The suction cup has a larger adsorption area and stronger adsorption force. With a silicone sealing ring, the suction force is increased by 50%.

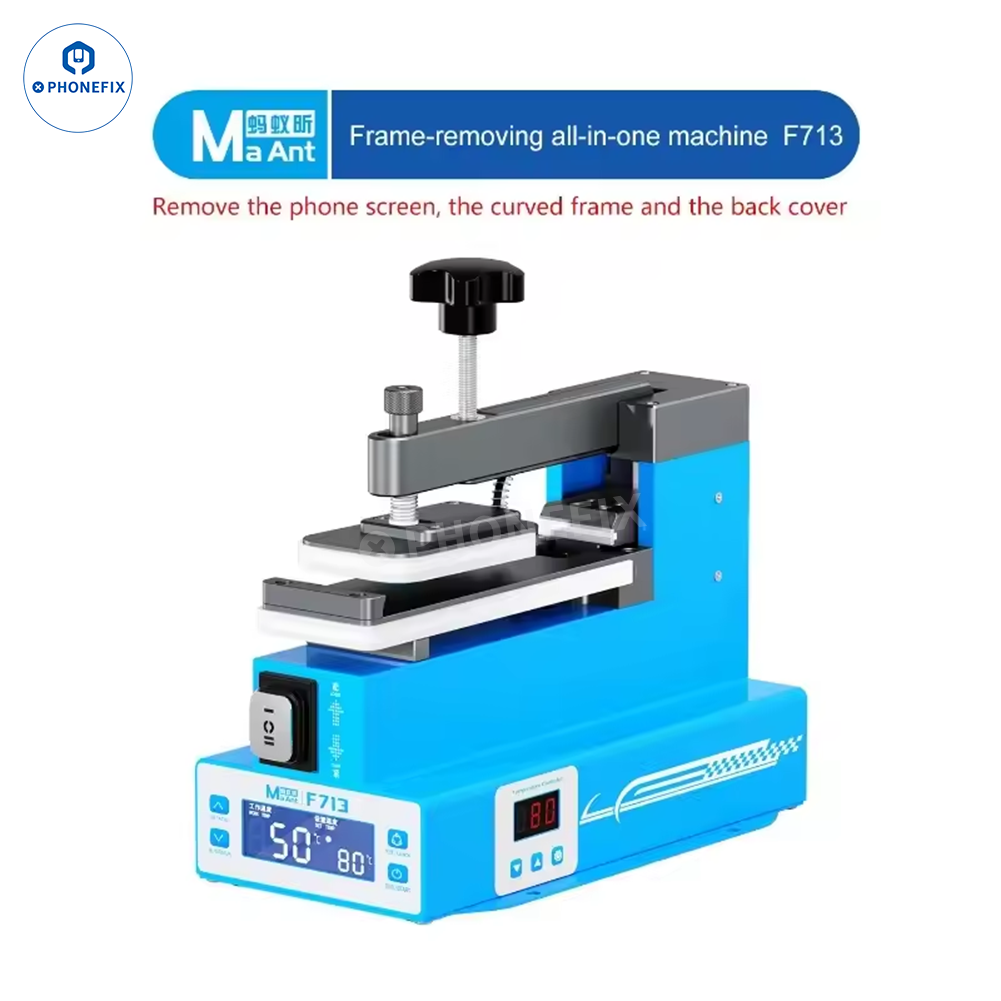

MaAnt F713 screen frame removal machine features:
1. One-Key Auto Clamping. Electrically controlled automatic clamping – fixes phone securely without shaking or shifting.
2. Curved & Flat Screen Support. Handles curved and flat screens – compatible with 99% of phones on the market.

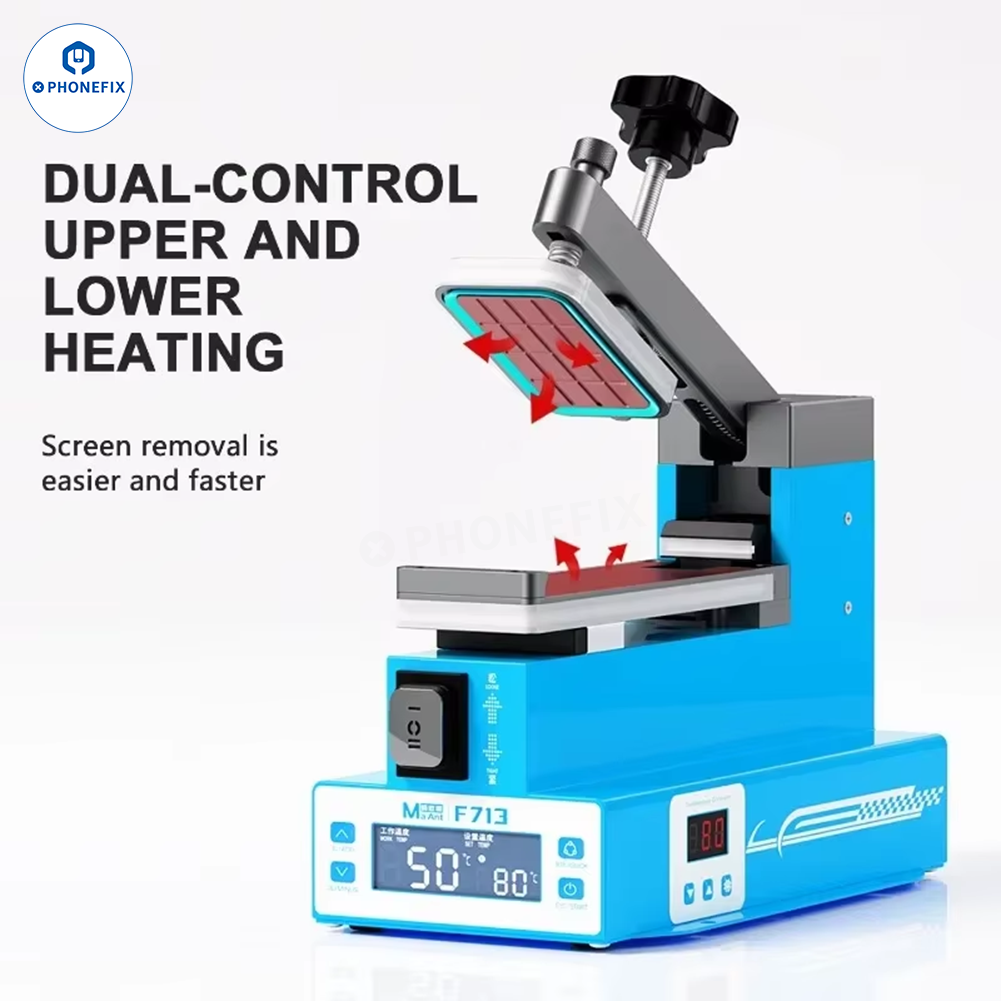

3. Double Suction Power. Dual Upper & Lower Heating. Faster, easier screen separation – even heating for consistent results.
4. Camera Protection Design. No-contact design protects camera modules regardless of phone model.
5. Adjustable Preset Temperature. Set your desired temperature – HD digital display for clear monitoring.
6. One-Click Fixing. Smooth Frame Removal.
Product Parameters:
Model: MAANT F711/F712 separator.
Voltage: 110V/220V.
Power supply: 400W.
Scope of application: Within 7 inches.
Temperature range: 50°C~120°C.
Net weight: F711-2.0kg / F712-2.4kg.
Gross weight: F711-2.5kg / F712-3.0kg.
Product size: F711-248*120*115mm / F712-248*120*125mm.
Package size: F11-310*185*175mm / F12-300*230*185mm.
Package List:
1 x Host.
1 x Silicone Pad.
1 x Power Cord.
