MaAnt micro thermal imager 2 generation infrared thermal camera mobile phone logic board fault detection tool. MaAnt microscope thermal imaging camera electronic circuit board fault location diagnosis analyzer.
Applications:
- Industrial inspection and quality control.
- Electronics/mechanical assembly.
- School research tool and scientific teaching tool.
- Printing and textile inspection.
- Medical analysis.
- Insect and plant dissection/observation.
- Jewlery inspection, etc.
Features:
- MaAnt 2 generation microthermal imager, quick positioning and quick, check with one key, focus precision adjustment, ultra-HD resolution, rapid location screening.
-

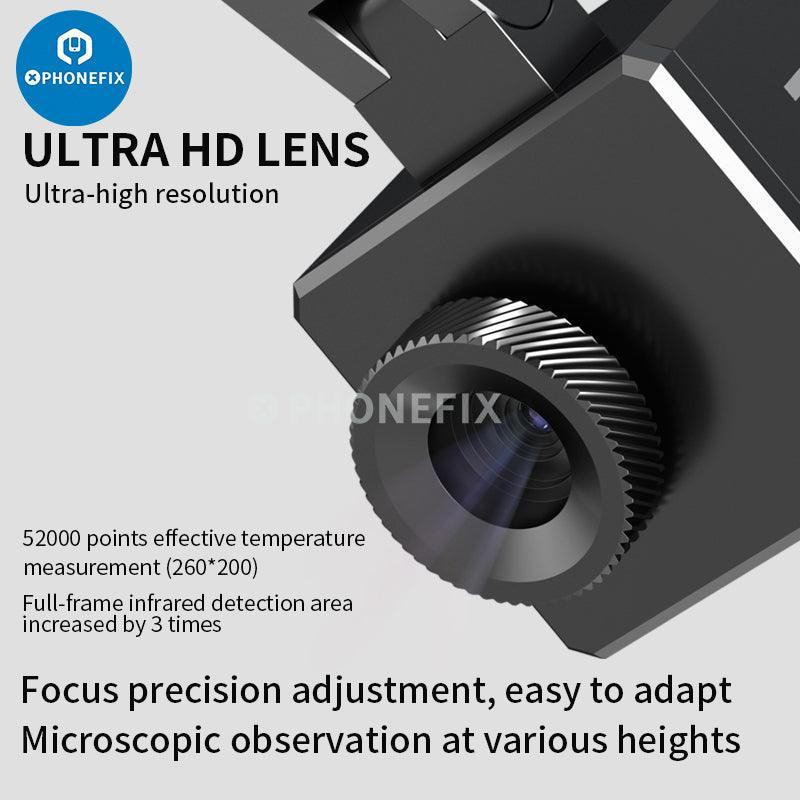

Ultra-High Resolution: 52000 points effective temperature measurement (260*200), full-frame infrared detection area increased by 3 times.
- Military-grade ultra high-resolution infrared lens, no need to see the light camera, clearly displays the outline of very small devices.
- Different motherboard thickness is different, to achieve a high definition, focusing effect, so that the image is clearer, imaging higher clarity.
- Connect the thermal imager to the computer through the Type-C data cable, install the MaAnt IR-Setup software.
-
Practical Design: Quickly adjust the direction of the lens, and use the supporting screw handle to loosen it, it can rotate up and down 360 and select the appropriate detection angle.
The upper and lower parts of the camera are adjusted at 45°, which makes it easier to adjust the Angle needed in the use.
-

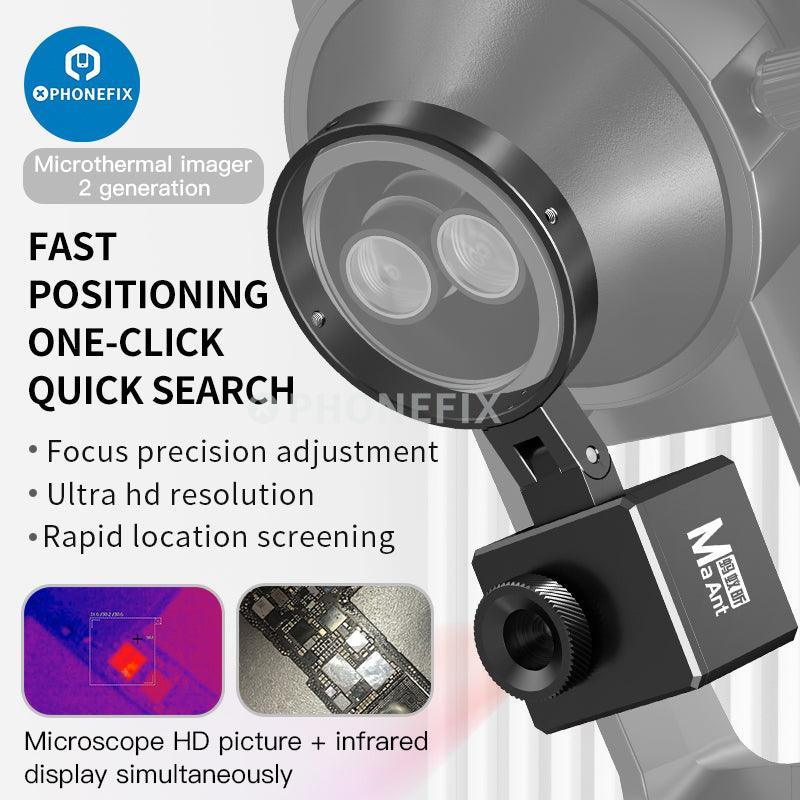

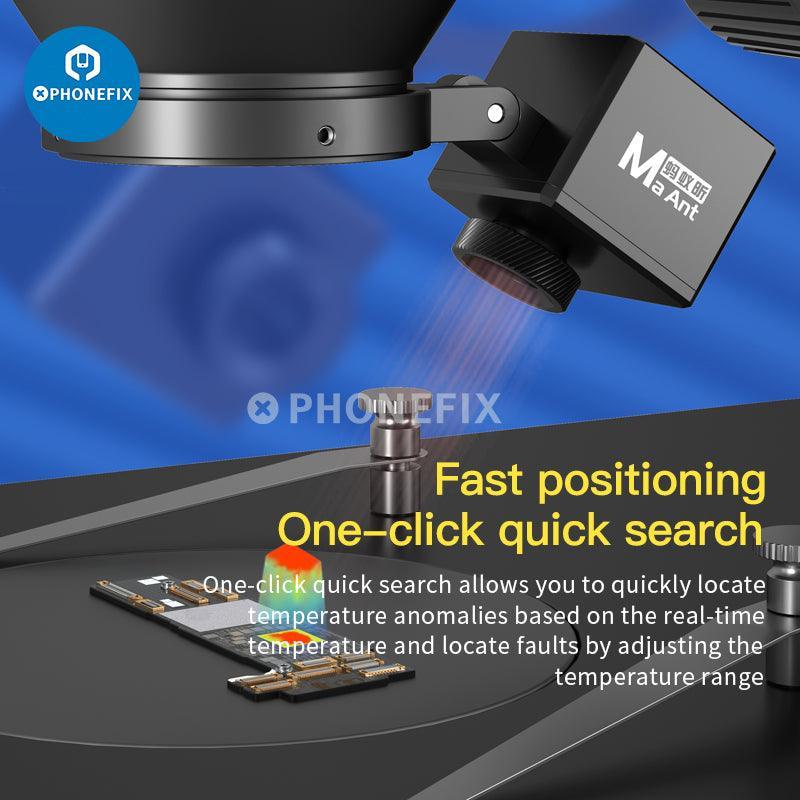

One-Click Quick Search: According to the real-time temperature quickly locate the temperature anomaly, by adjusting the temperature range, and troubleshooting the fault carefully.

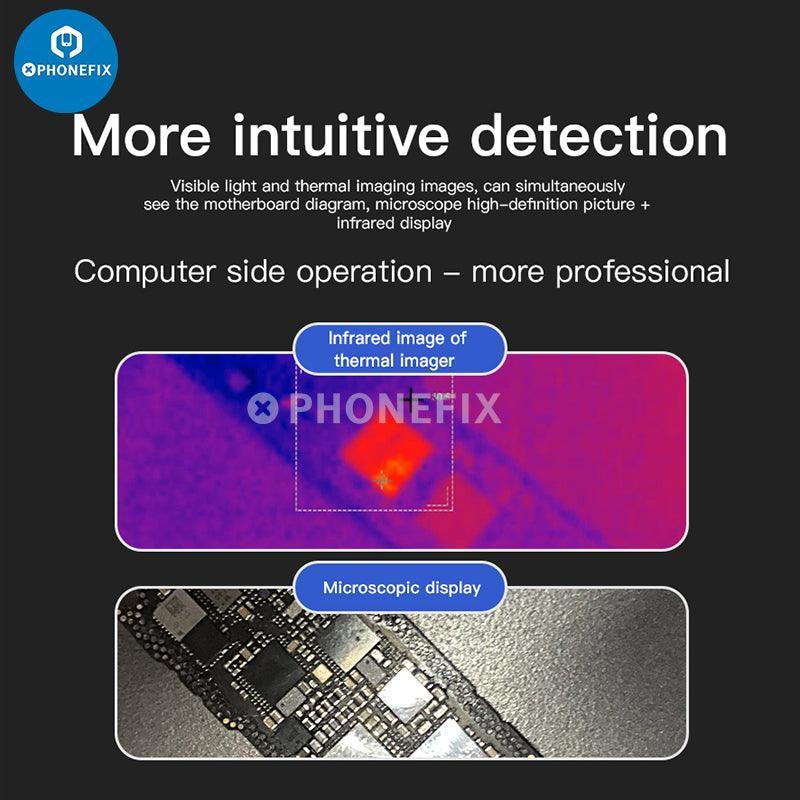

- Visible light and thermal imaging images can simultaneously see the motherboard diagram, microscope HD picture + infrared display simultaneously
- Save the actual temperature data in real-time, and view the data temperature anytime and anywhere.
- According to the analysis mode of circuit board fault maintenance, the short circuit point of the circuit board can be quickly located and the fault of leakage components can be found, the minimum current leakage can be detected at about 6mA.
- For the thermal field distribution mode of products and circuit boards, the 3D thermal field mode is more intuitive, and the 2D thermal field curve is more detailed.

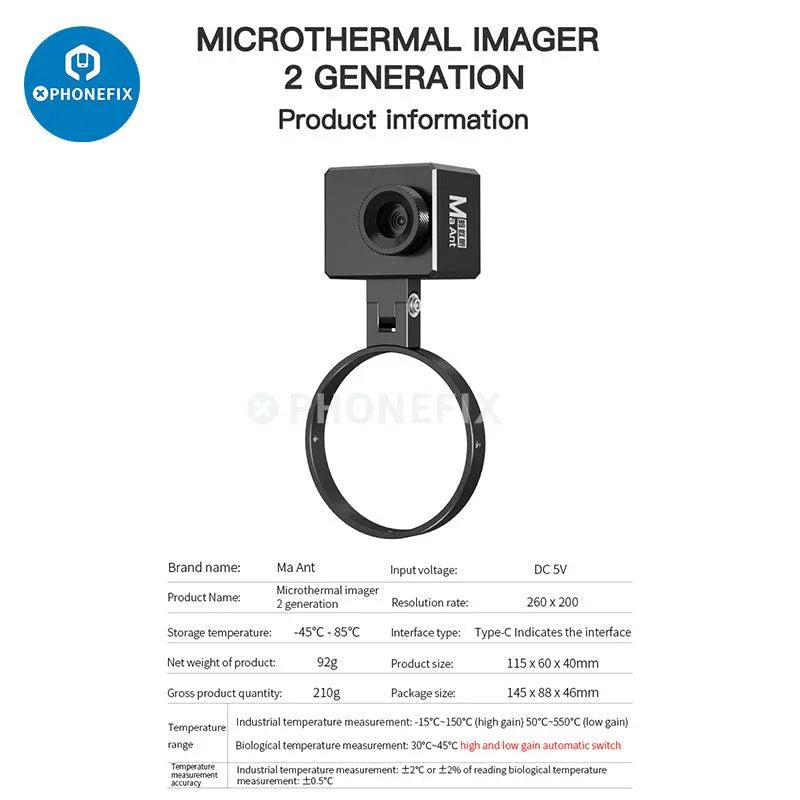

Specification:
- Brand name: MaAnt
- Input voltage: DC 5V
- Product Name: Microthermal Imager 2 generation
- Resolution rate: 260X200
- Storage temperature: -45-85℃
- Interface type: Type-C Indicates the interface
- Net weight: 92g

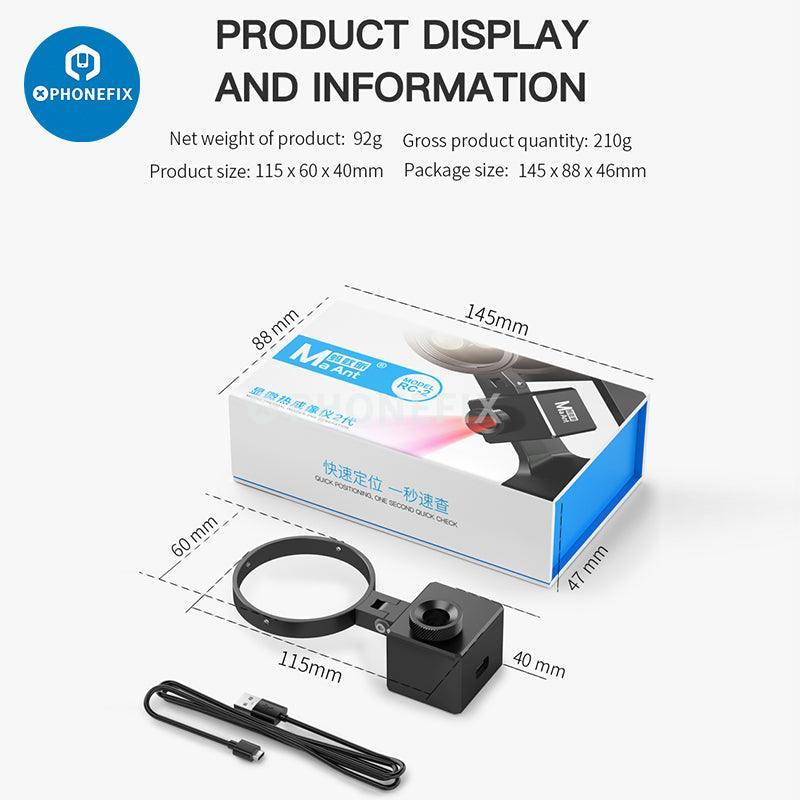

- Product size: 115*60*40mm
- Package size: 145*88*46mm
- Temperature range: Industrial temperature measurement: -15~150℃ (high gain), 50~550℃ (low gain); Biological temperature measurement: 30~45℃ high and low gain automatic switch
- Temperature measurement accuracy: Industrial temperature measurement: ±2℃ or ±2% of reading biological temperature measurement: ±0.5°C
Package Includes:
- 1 x Thermal Imager
- 1 x USB Cable
