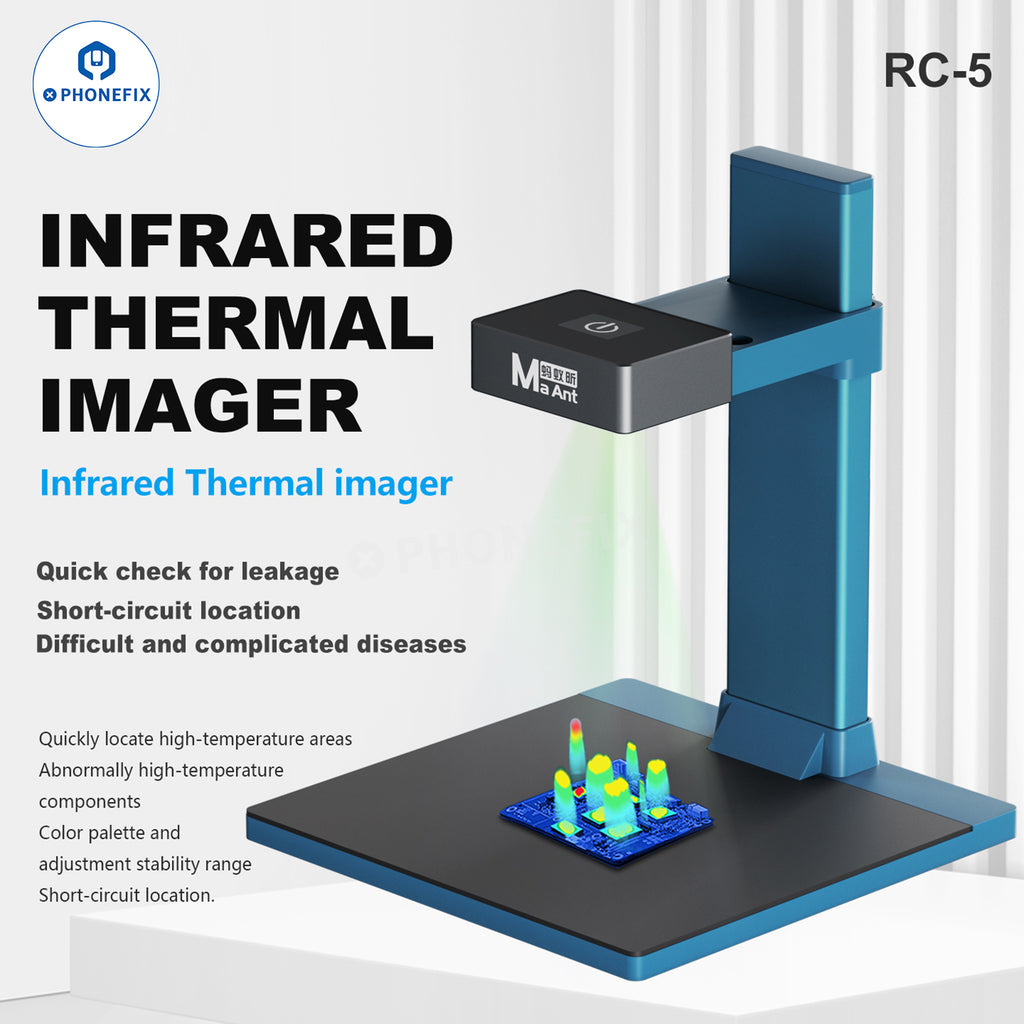

MaAnt RC-5 Infrared Thermal Imaging Analyzer 256X192 3D Thermal Imager is used for mobile phone motherboard short circuit and leakage diagnosis and location. MaAnt RC-5 thermal imager with a macro lens. Can be connected to a PC. 256x192 infrared resolution, fast leakage location and short circuit fault troubleshooting, 3D thermal field distribution analysis, suitable for phone motherboard troubleshooting.
Option:

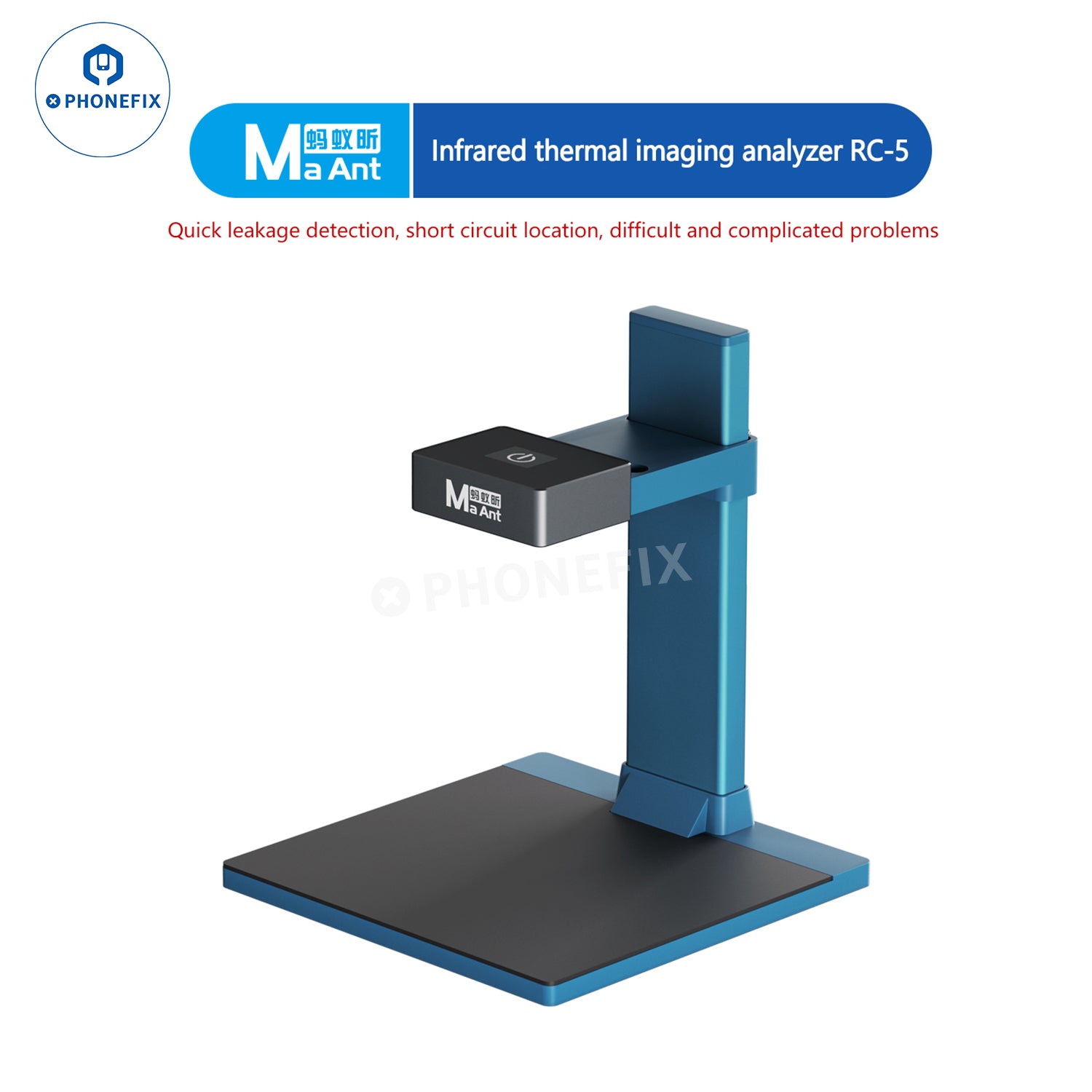

1. RC-5 Thermal Analyzer

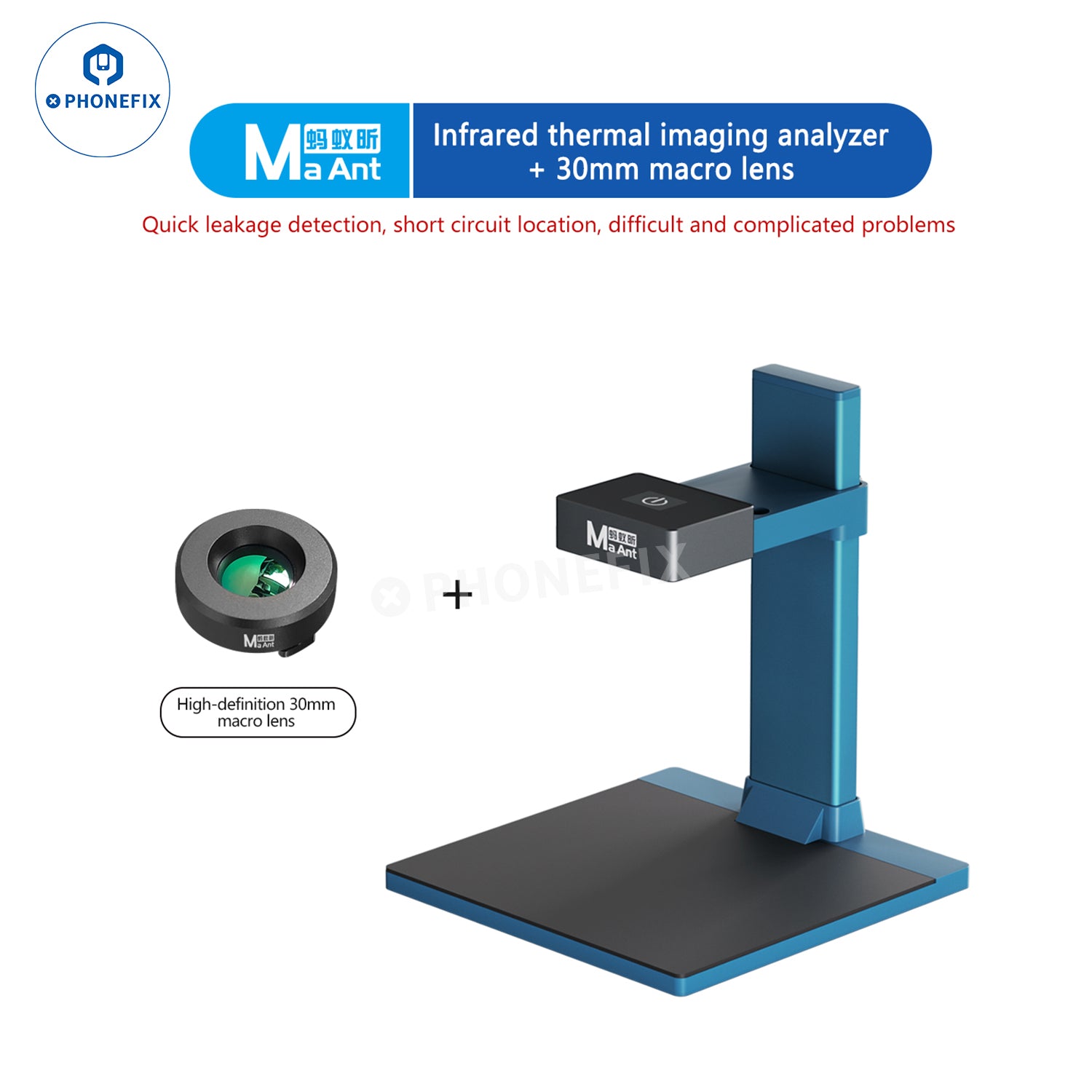

2. RC-5 Thermal Analyzer+30mm macro lens
Features:

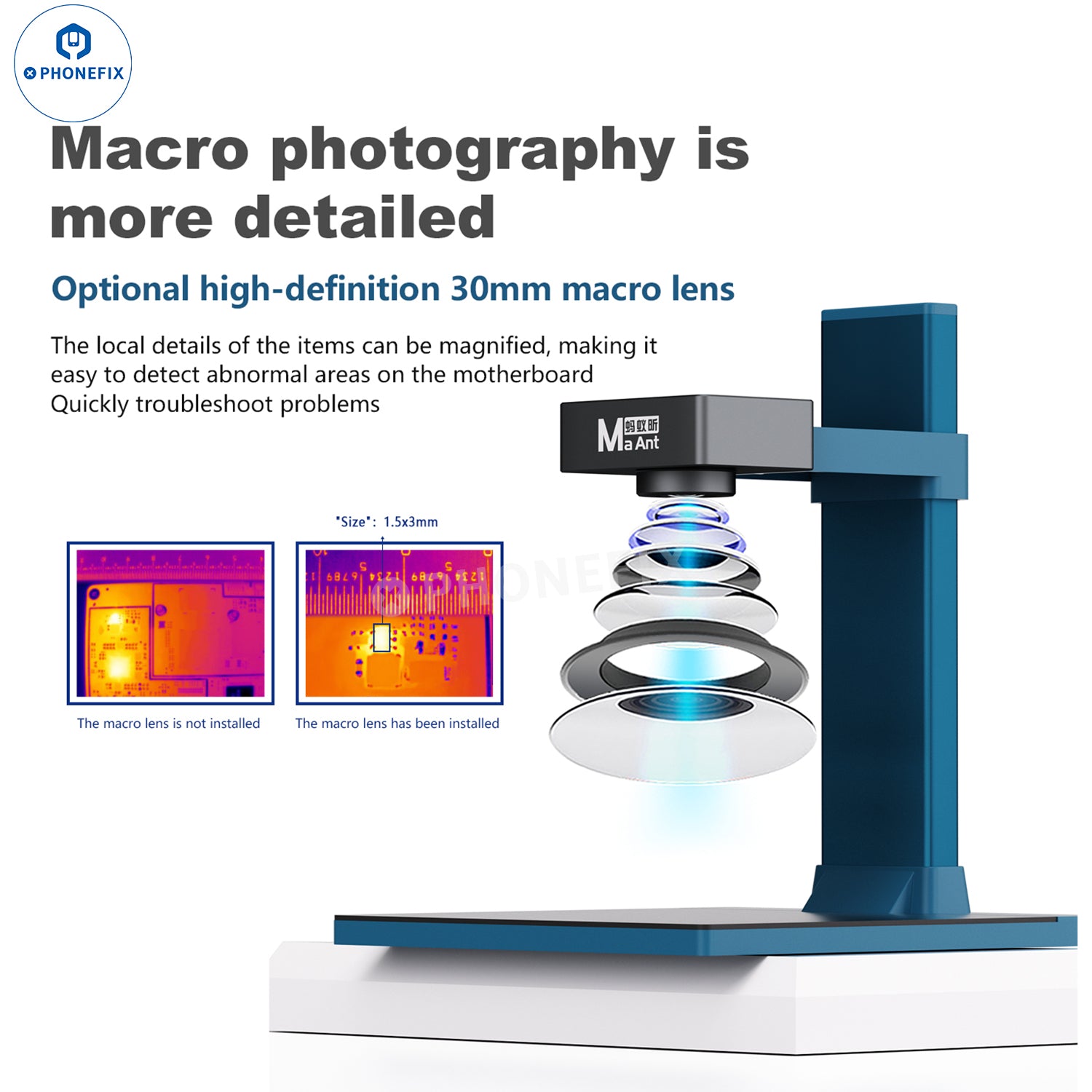

1. 256x192 infrared resolution and an optional 30mm macro lens clearly magnify details, making it easy to detect anomalies in delicate components such as motherboards.

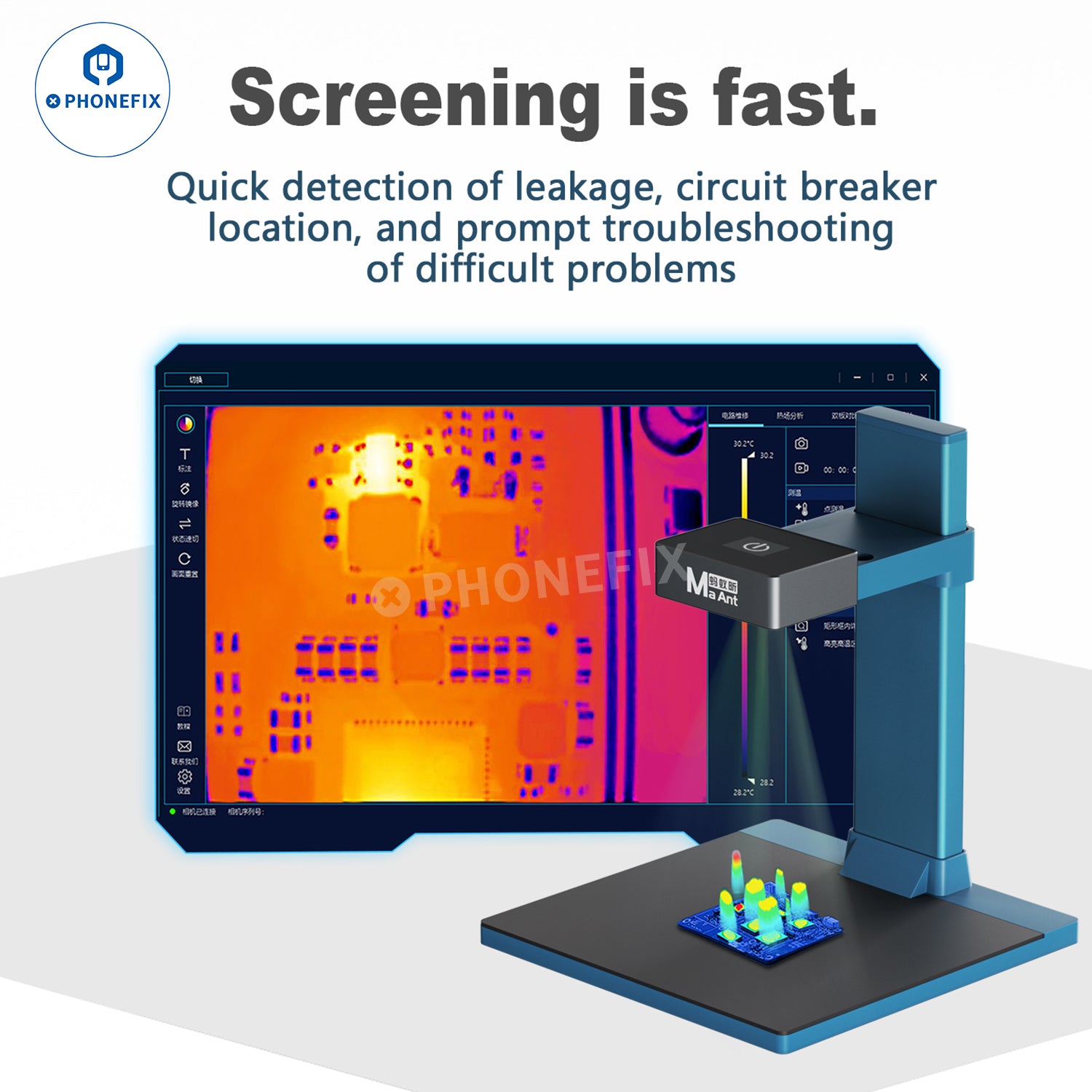

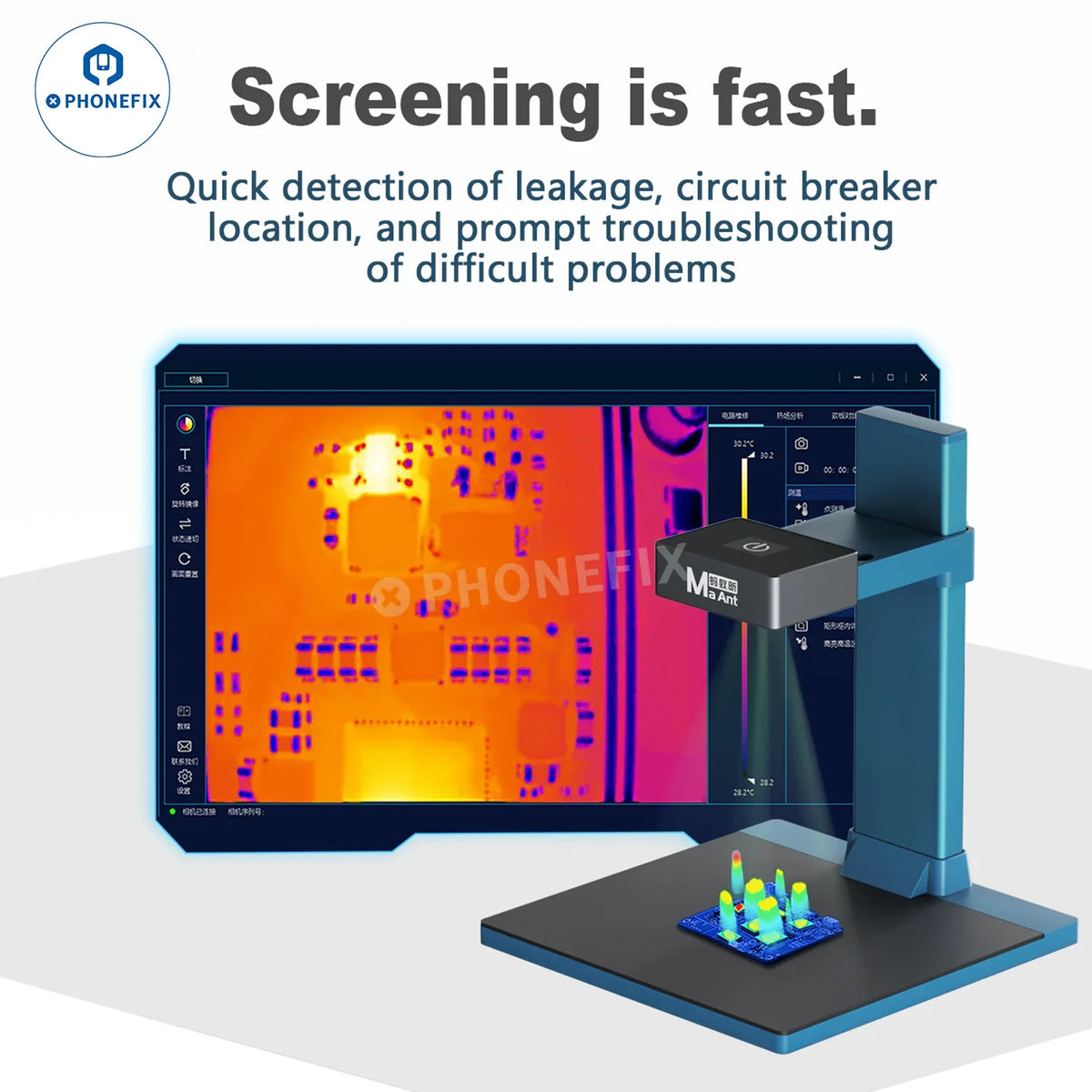

2. Milliampere-level leakage location and rapid short-circuit troubleshooting capabilities enable rapid detection of abnormally high-temperature components, making it a valuable tool for electrical safety inspections and repairs.

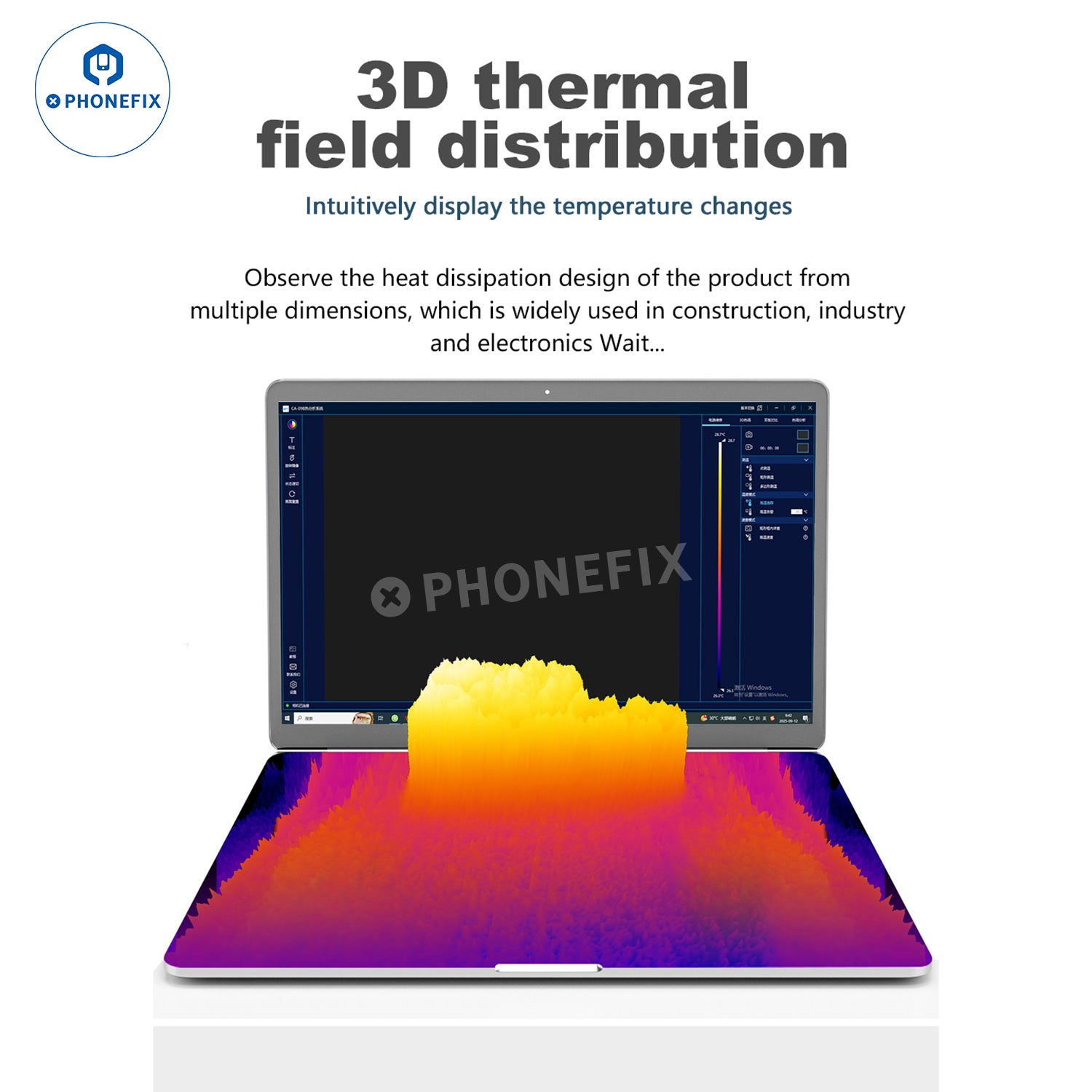

3. Multi-dimensional, intuitive display of temperature changes facilitates in-depth analysis of product heat dissipation designs, making it suitable for thermodynamic research in the industrial, electronics, and construction sectors.
4. Compatible with Windows 10 and above, it supports various professional modes, including dual-panel comparison, rectangular area analysis, and merging/differentiating curve comparison, for more efficient data analysis.
5. It supports setting temperature thresholds, with an audible and visual alarm (buzzer and flashing red border) when exceeding the temperature. The device is height-adjustable, allowing for close-up observation.
6. Designed with a high-temperature-resistant workbench, the device weighs only 425g, ensuring both durability and portability.
Product Specifications:
Product Name: MaAnt RC-5 Thermal Analyzer
Frame Rate: 25Hz
Measurement Distance: 3mm-15mm
Input Voltage: DC 5V
Storage Temperature: -20°C to 60°C
Resolution: 256x192
Viewing Angle: 56°x42°
Device Interface: USB Type C
Operating Temperature: 0°C to 50°C
Net Weight: 425g
Gross Weight: 624g
Dimensions: 150x 150x 174mm
Packaging Dimensions: 210x198x74mm
