MaAnt SU7 Straight/Curved Screen Laminating Machine and MaAnt T8 8-inch LCD Screen Defoamer Bubble Removal Machine for Mobile Phone Screen/Frame/LCD OCA Glue Bonding Lamination Bubble Removing. Built-in vacuum pump, one-click start, easy operation, effective screen refurbishment and repair.
Option:
1. MaAnt SU7 screen laminating machine.
2. MaAnt T8 bubble removal machine (screens below 8-inch).

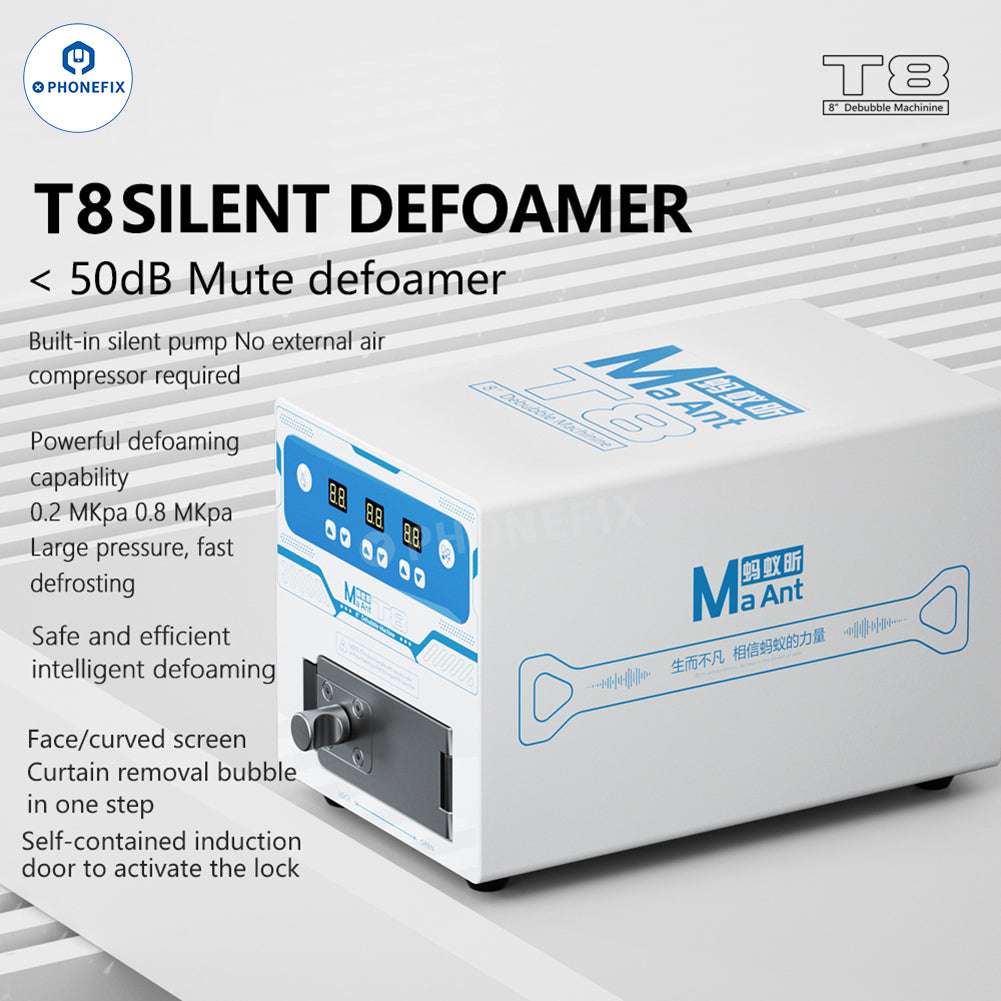

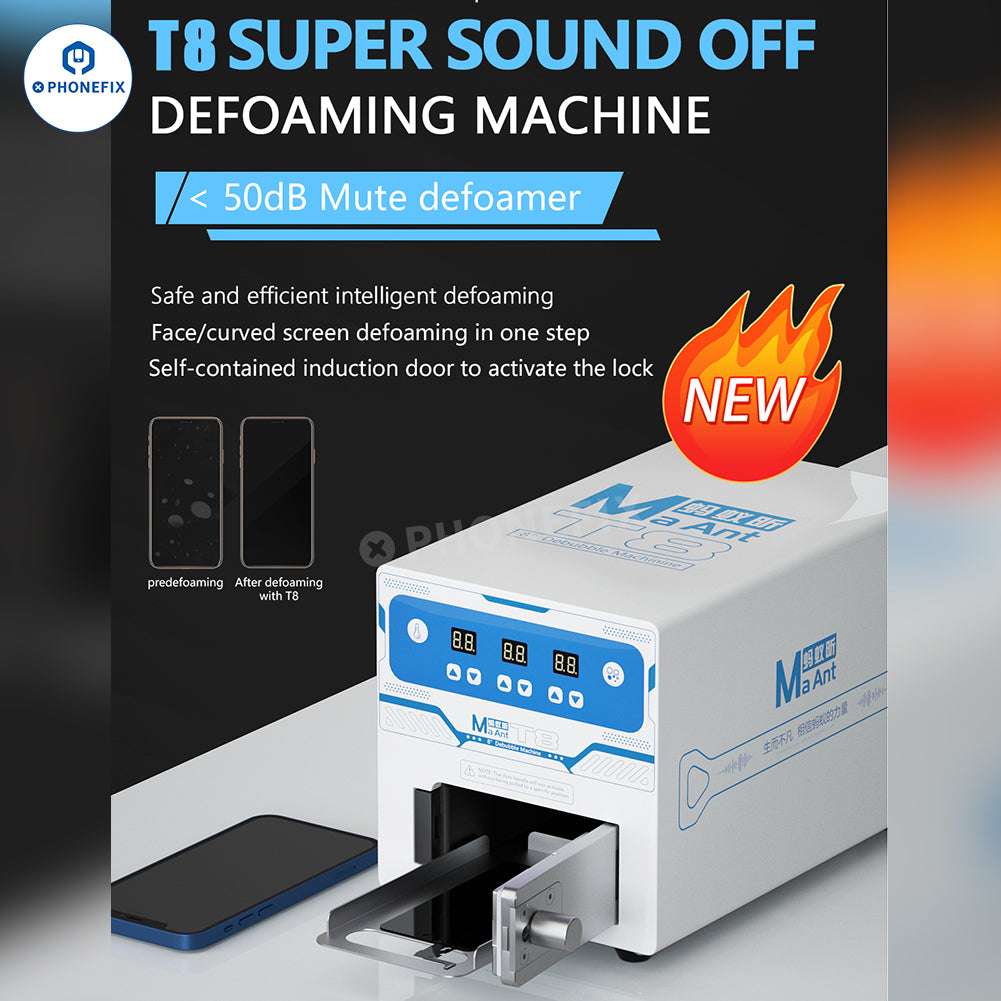

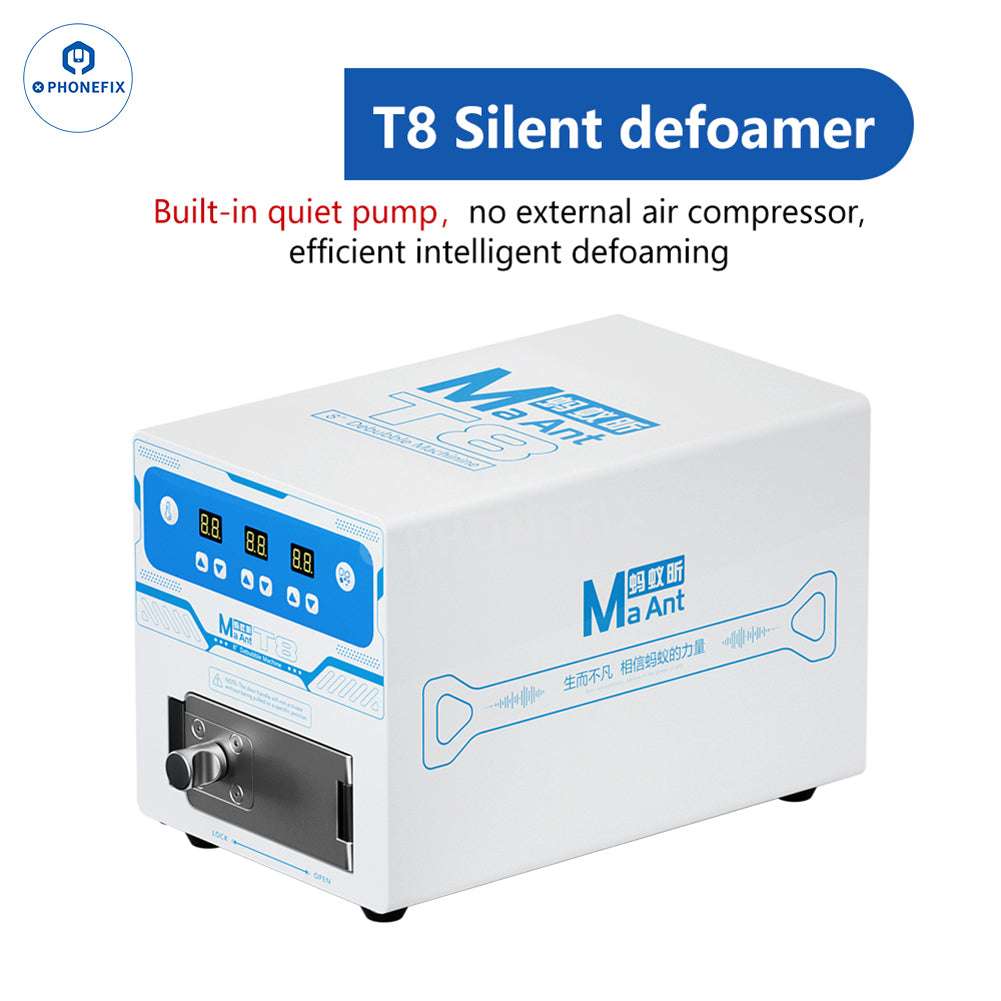

MAANT T8 Screen Bubble Removal Features:
1. It has 8-inch screen laminating and degassing functions, compatible with 99% of mobile phone models on the market, and can be used for straight screen/curved screen.
2. Built-in vacuum pump runs silently, and no external pump is required.
3. The noise level is less than 50db, and it comes with a sensor door start lock.

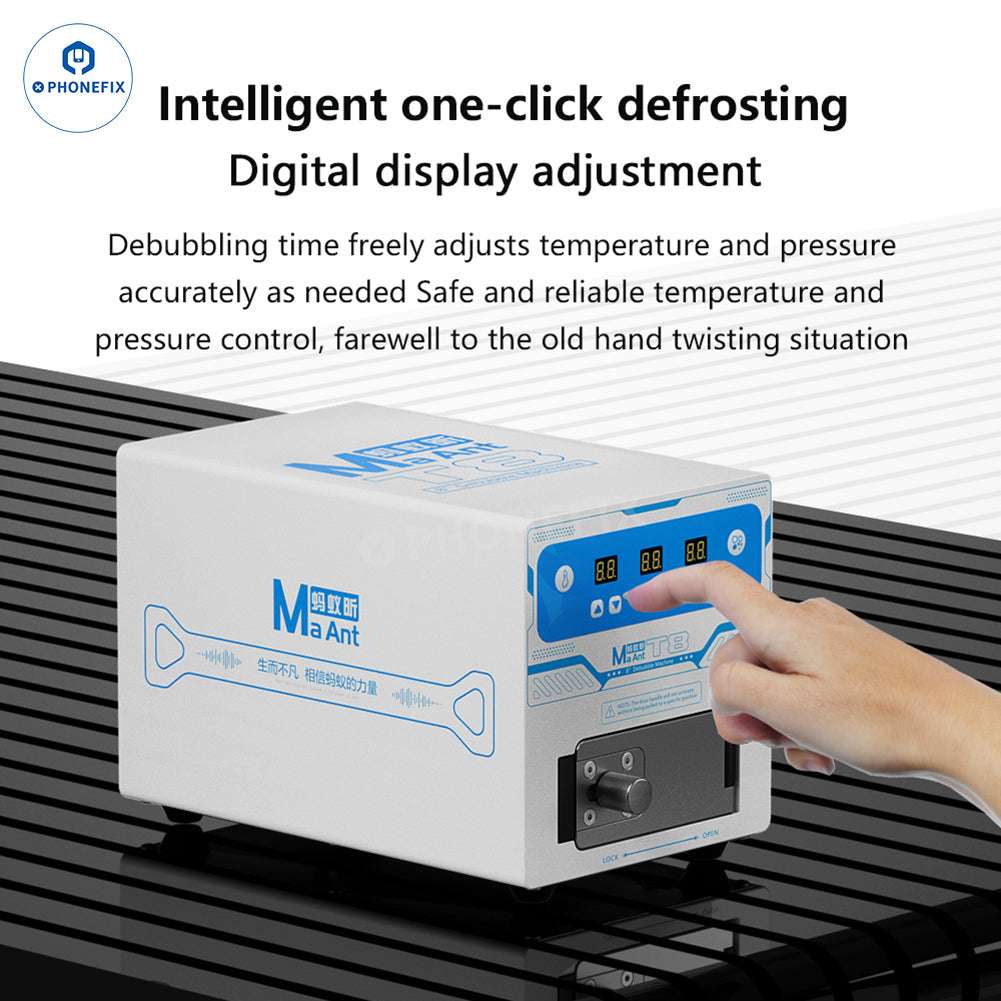

4. The temperature and pressure settings can be easily adjusted for precise control.
5. One-button start degassing function, simple operation. It has an independent sensor door that can activate the lock.

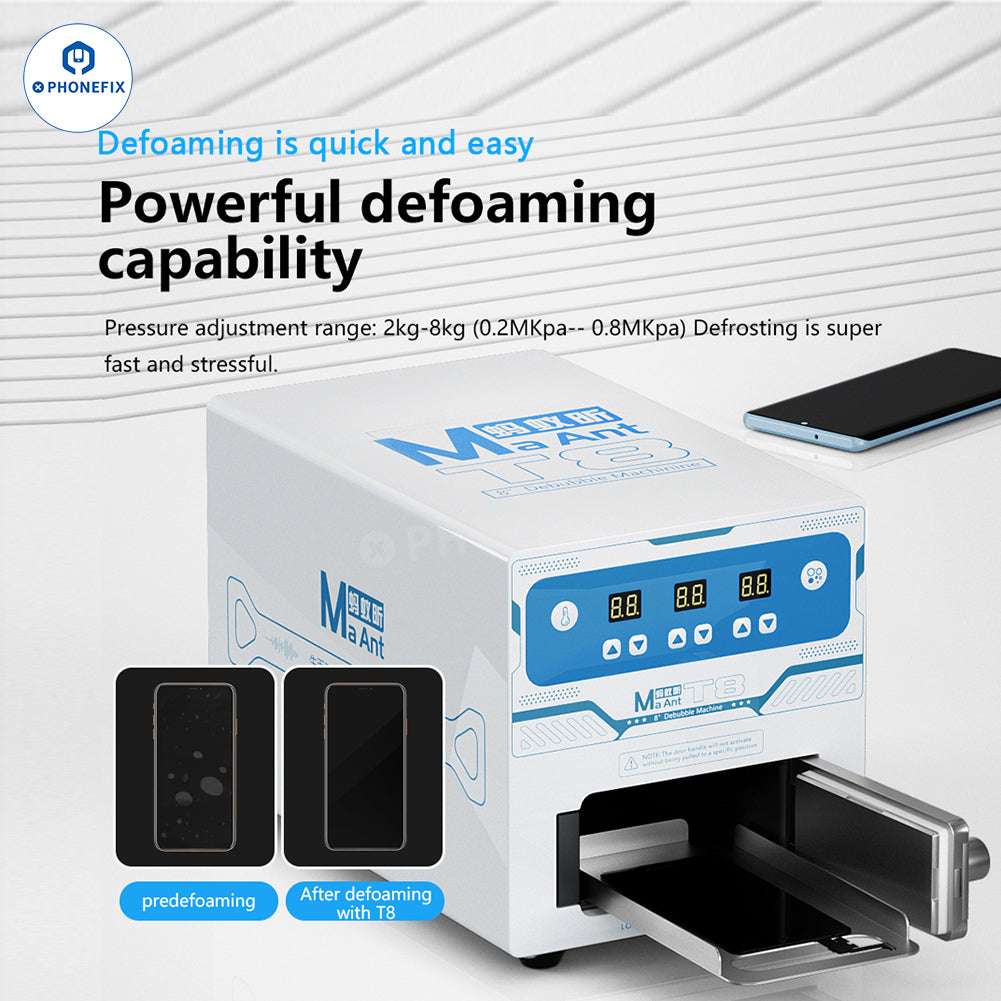

6. Super strong degassing ability, pressure adjustment range: 2kg-8kg (0.2MKpa~0.8MKpa).

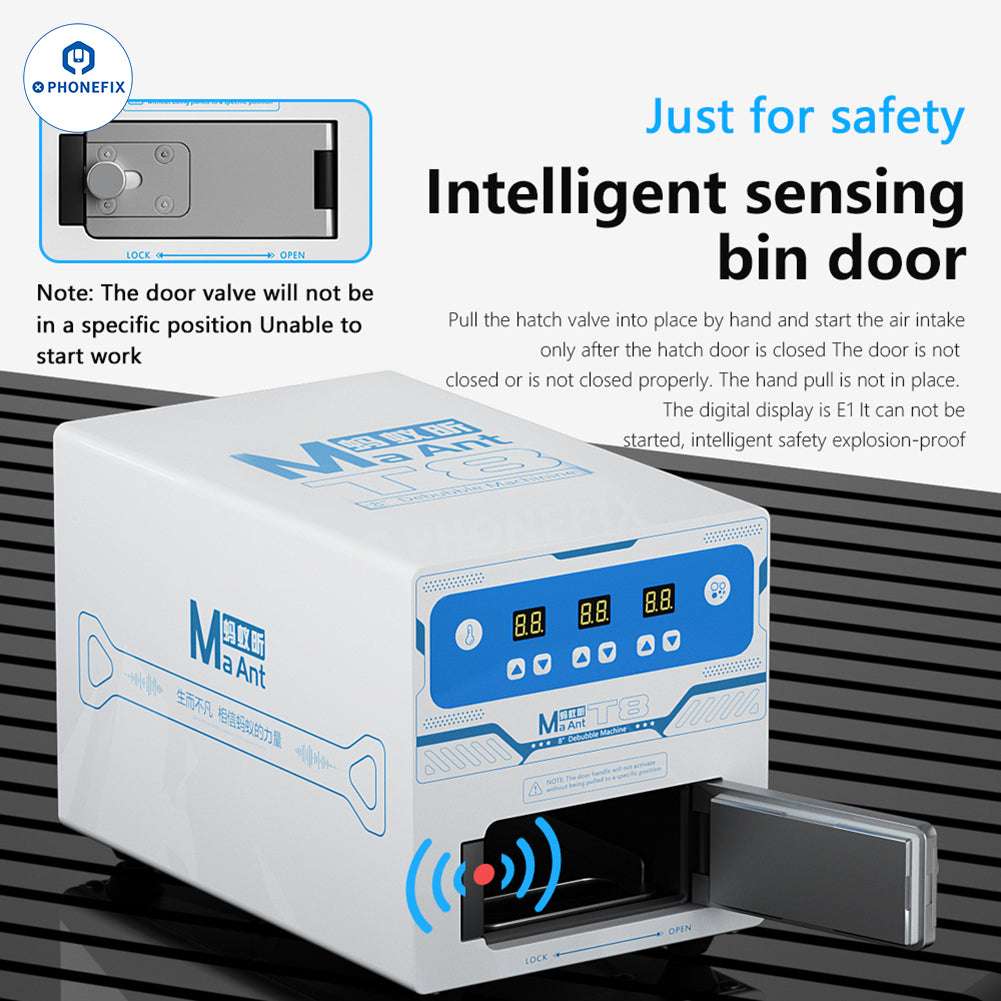

Note: The hatch valve will not start working if it does not reach a specific position. The hatch valve is manually pulled to the position and the hatch door is closed before the air intake starts. If the hatch valve is not closed or the hatch valve is not closed properly, the digital display shows E1, and it cannot start working.

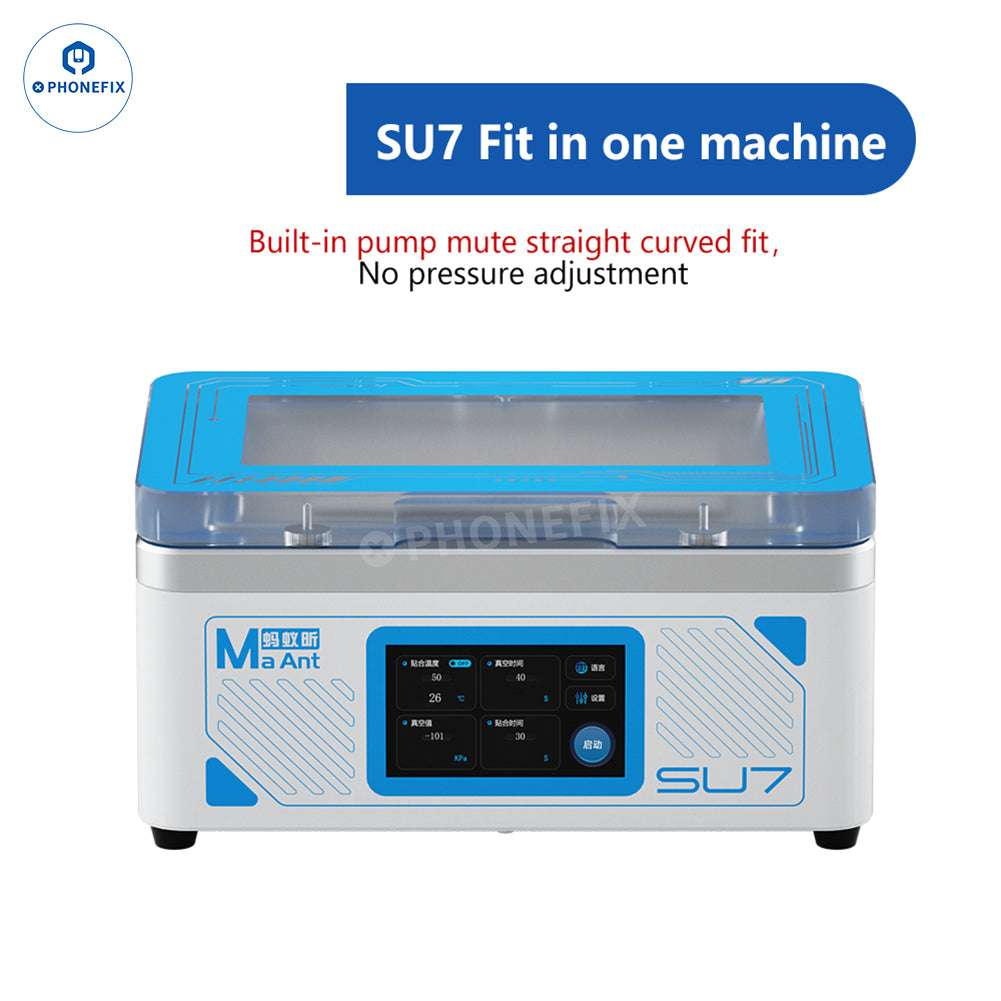

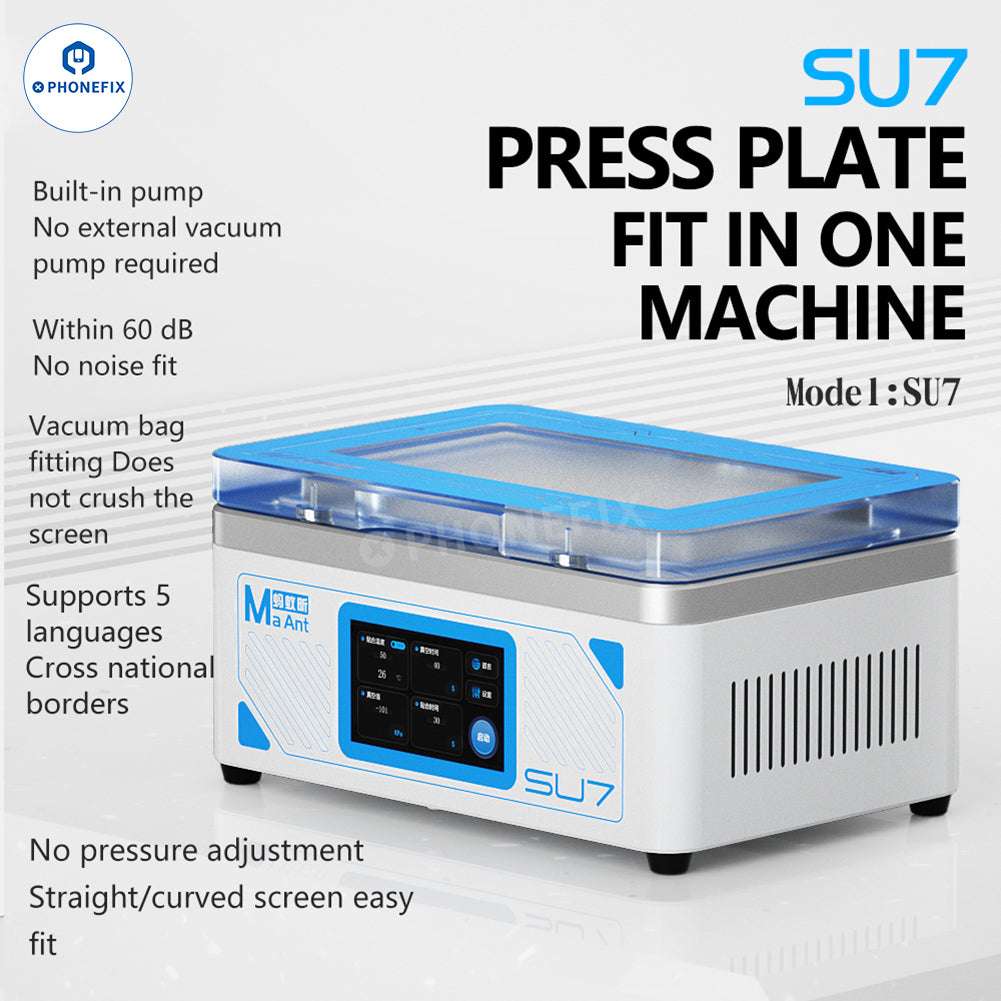

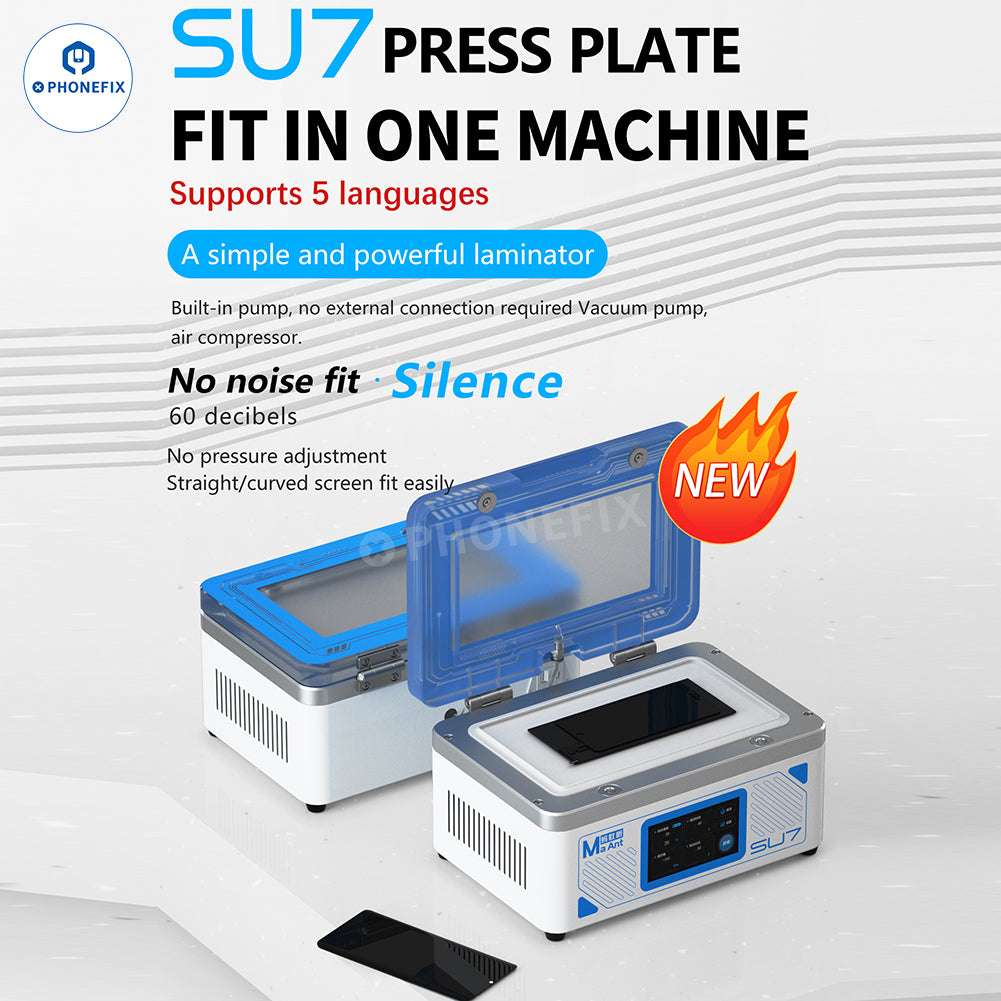

MAANT SU7 Screen Laminating Machine Features:

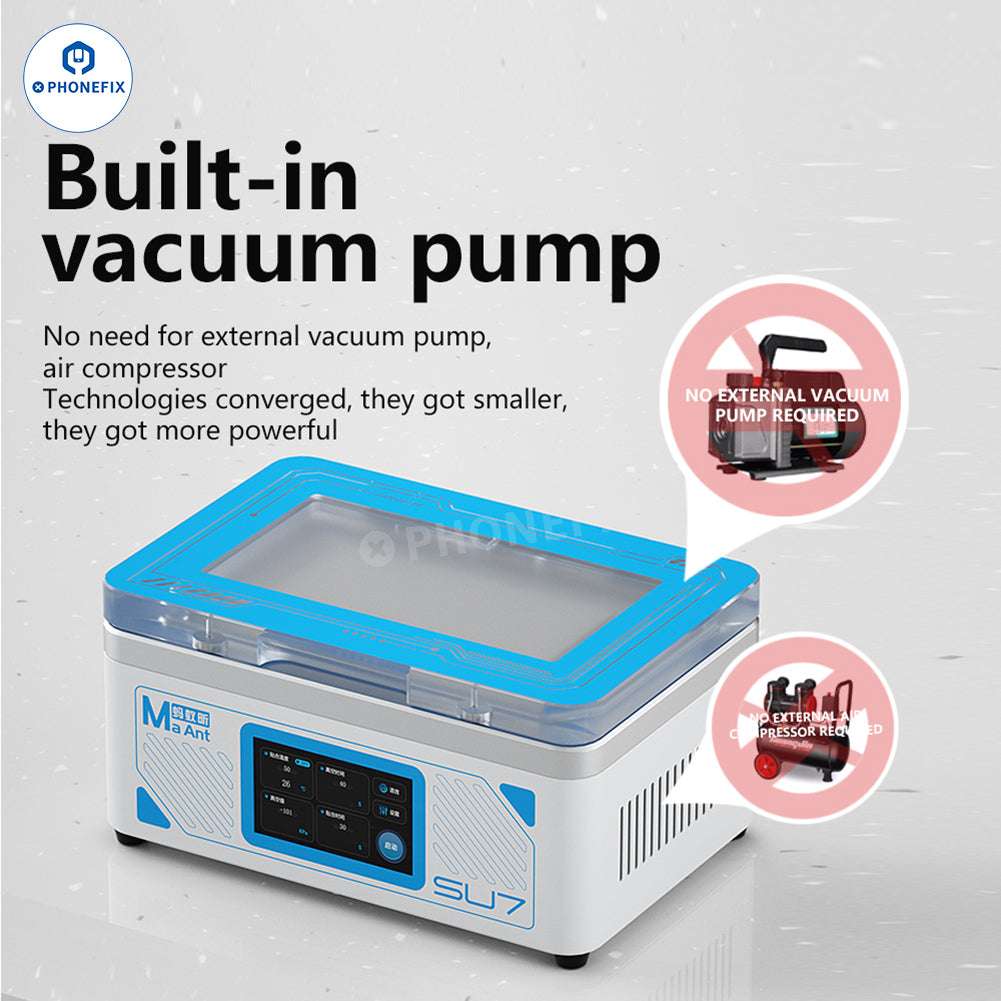

1. 7-inch vacuum laminating and degassing machine, with a built-in noiseless pump, no external vacuum pump or air compressor is required.
2. Supports straight screen and curved screen, and supports five languages: Chinese, English, Russian, Spanish, and Portuguese.
3. One-button installation operation is easy to use, and the lamination process can be started quickly and efficiently.

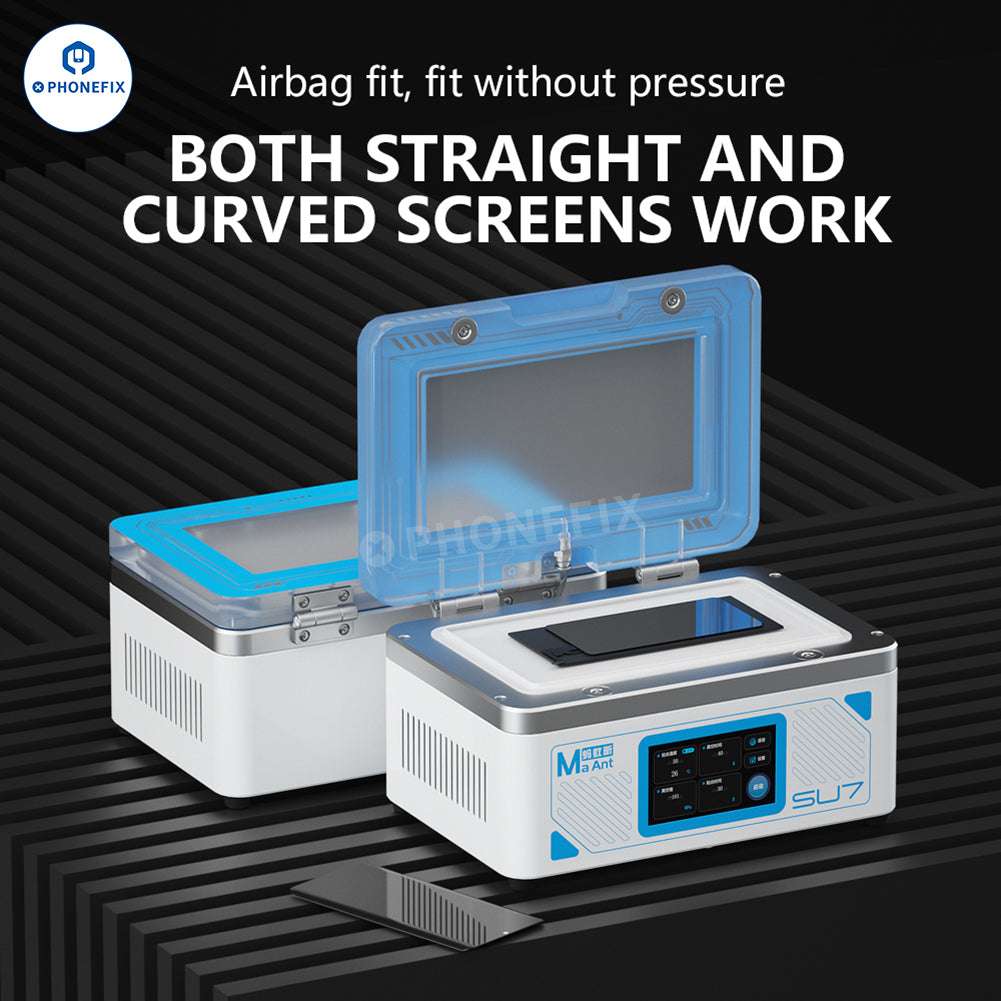

4. Airbag bonding, uniform force at each point, will not crush the screen, straight screen and curved screen can be sealed vacuum bonding.
5. Intelligent automatic adjustment of vacuum value, pressure can reach -101KPa.
6. Bonding OCA glue, bonding LCD, bonding with frame, three bonding methods, easy to bond the screen.
7. Imported high-quality vacuum silent pump, strong bonding ability, working sound below 60 decibels, no noise.

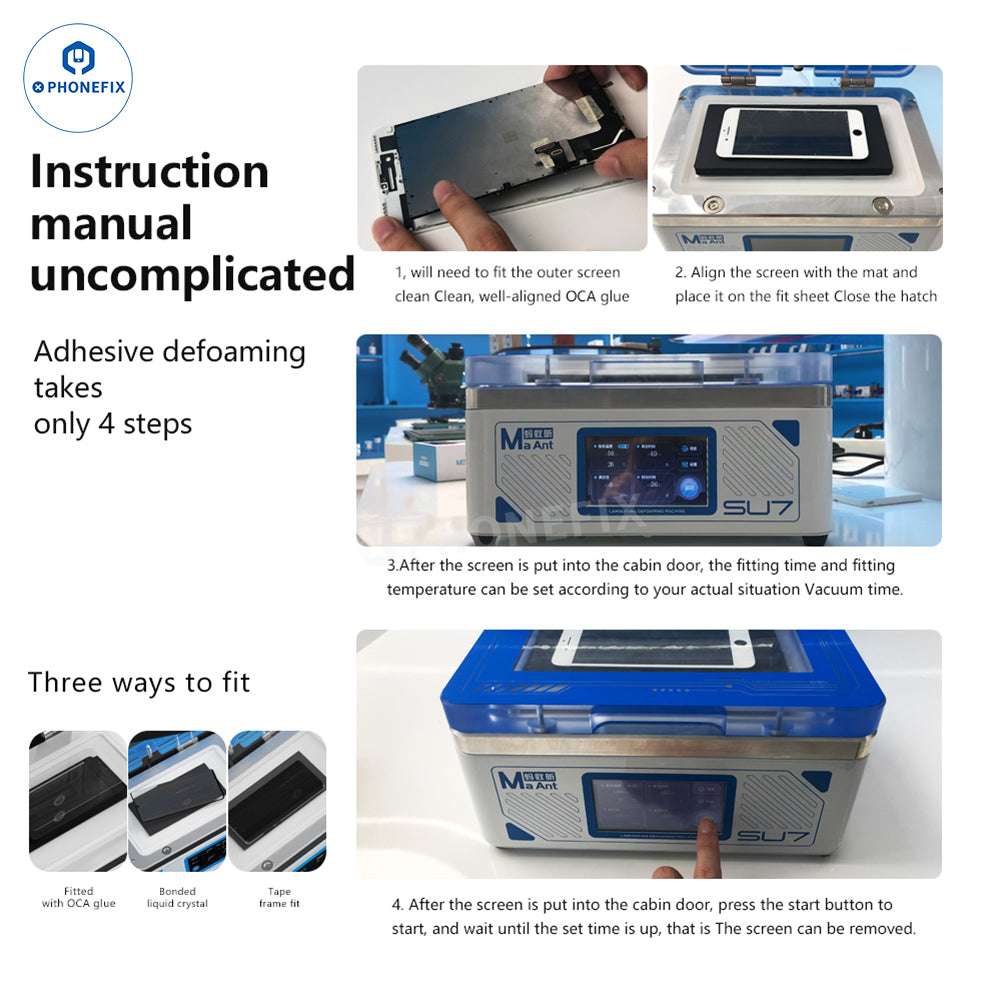

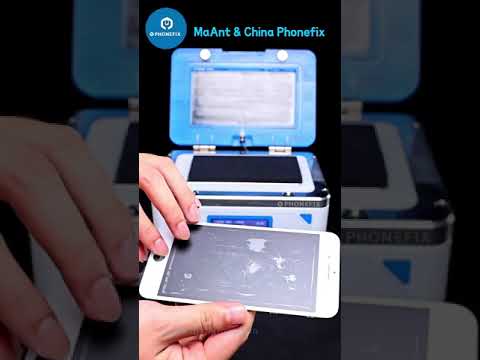

MAANT SU7 Operation Steps:
1. Clean the outer screen to be bonded, align it well and bond it with OCA glue.
2. Align the screen to the pad and put it into the bonding surface and close the door.
3. After the screen is placed in the cabin, you can set the bonding time, bonding temperature and vacuum time according to your actual situation.
4. After the screen is placed in the cabin, press the start button to start it. When the set time is up, you can remove the screen.

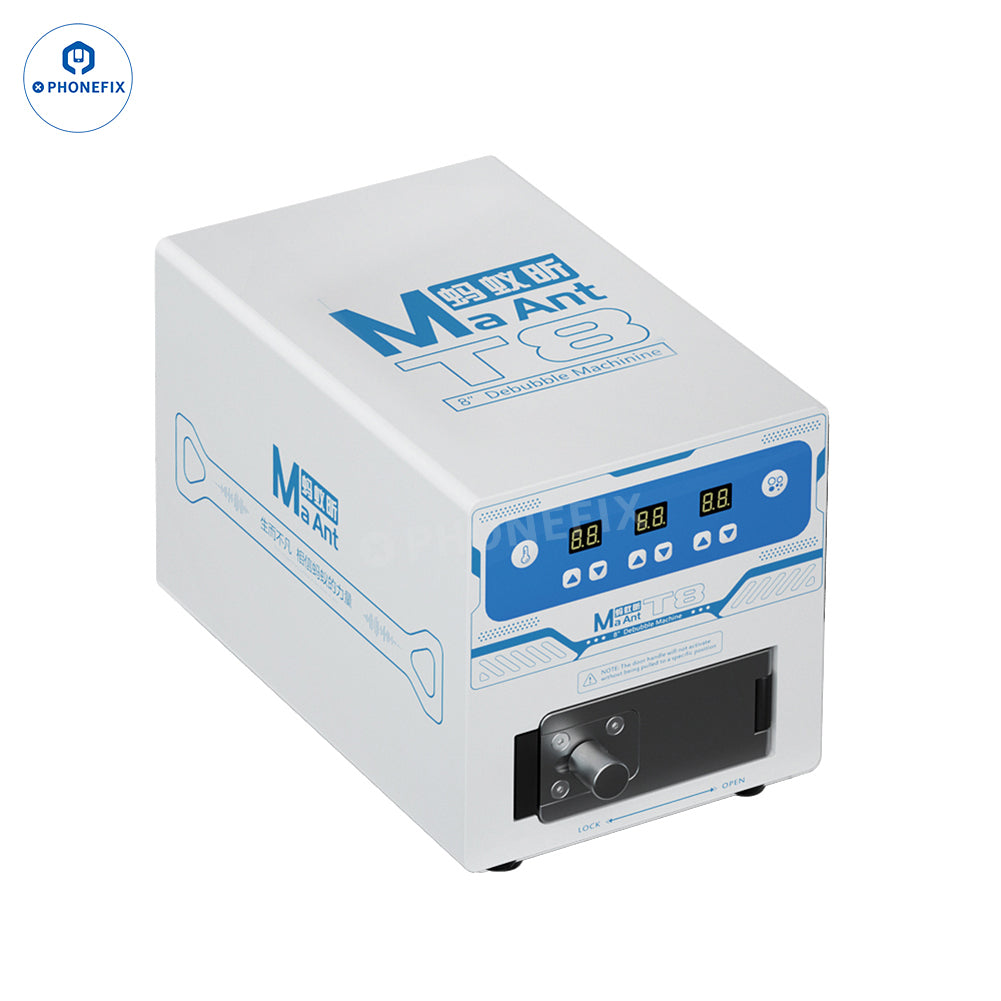

MAANT T8 Parameters:
Model Name: MAANT T8 Mute defoamer.
Temperature range: 0~80°C(recommended 35~50°C).
Functional scope: LCD screen below 8 inches eliminates bubbles.
Power rating: 450W.
Power supply voltage: AC220V/AC110Vselectable.
Interior dimensions: 185*90*40mm.
Defoaming time: 0~999s.
Product net weight: 7.2kg.
Gross packaging weight: 7.8kg.
Product size: 265*170*165mm.
Package size: 335*265*25mm.
MAANT SU7 Parameters:
Name: MAANT SU7 Fit in one machine.
Features: Mobile phone curved screen fit.
Net weight: 8.6kg.
Gross weight: 9.4kg.
Product size: 300*200*144mm
Package size: 348*285*235mm.
