Mechanic 361 SE+ rotatable heating separator and Mechanic 361 mini vacuum screen separator for separating and removing phone middle frame/LCD screen below 7 inches. Mechanic 361 SE+/361 mini/361 mini+ multi-functional screen separator for mobile phone screen heating/glue removal/frame removal/screen separation, ect.
Option:
1. Mechanic 361 SE+
2. Mechanic 361 mini
3. Mechanic 361 mini+

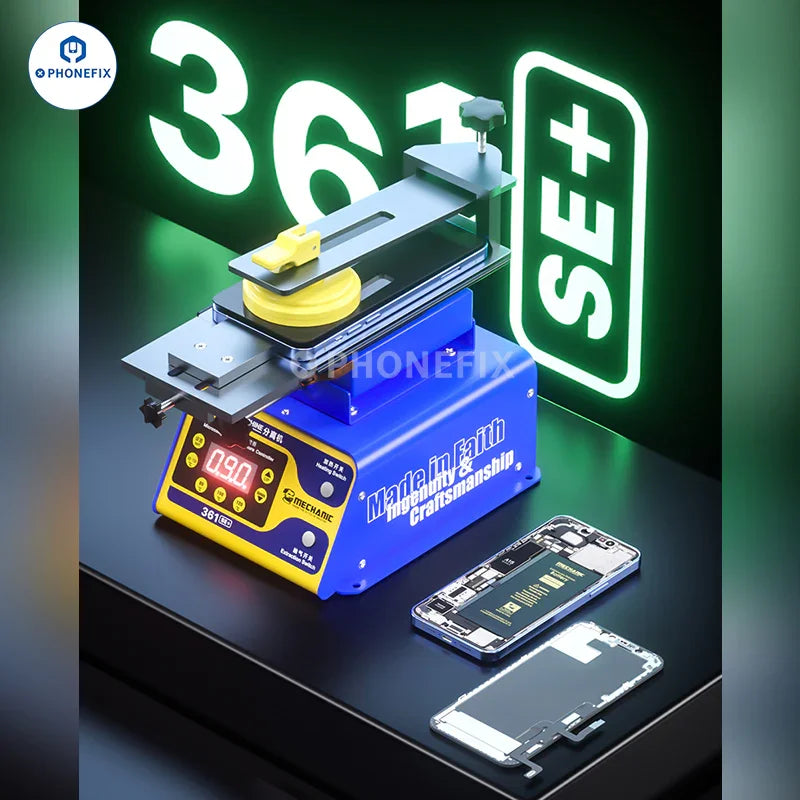

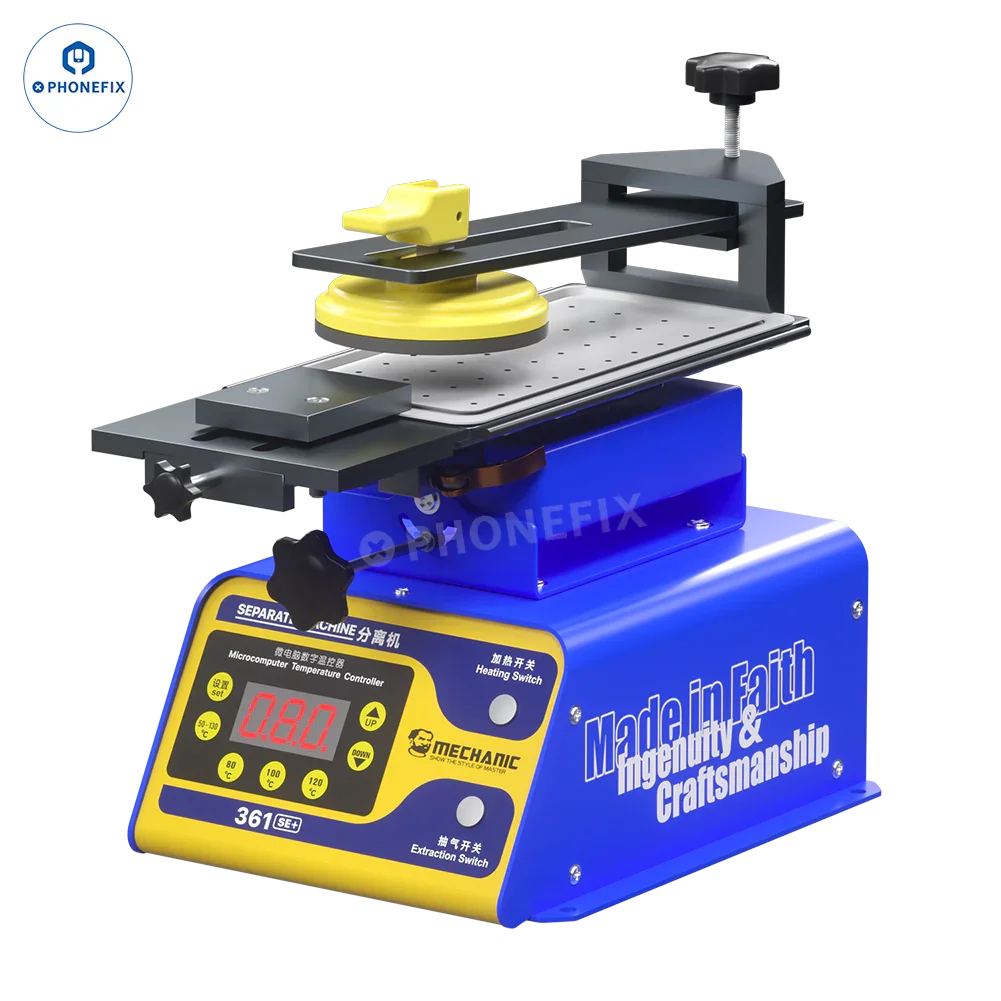

Mechanic 361 SE+ Features:
1. Suitable for separating screens below 7 inches, a quick screen removal tool, universal for curved/straight surfaces, suitable for 90% of models.
2. The multifunctional rotary separator has 3 adjustable temperature levels and a fast heating speed.

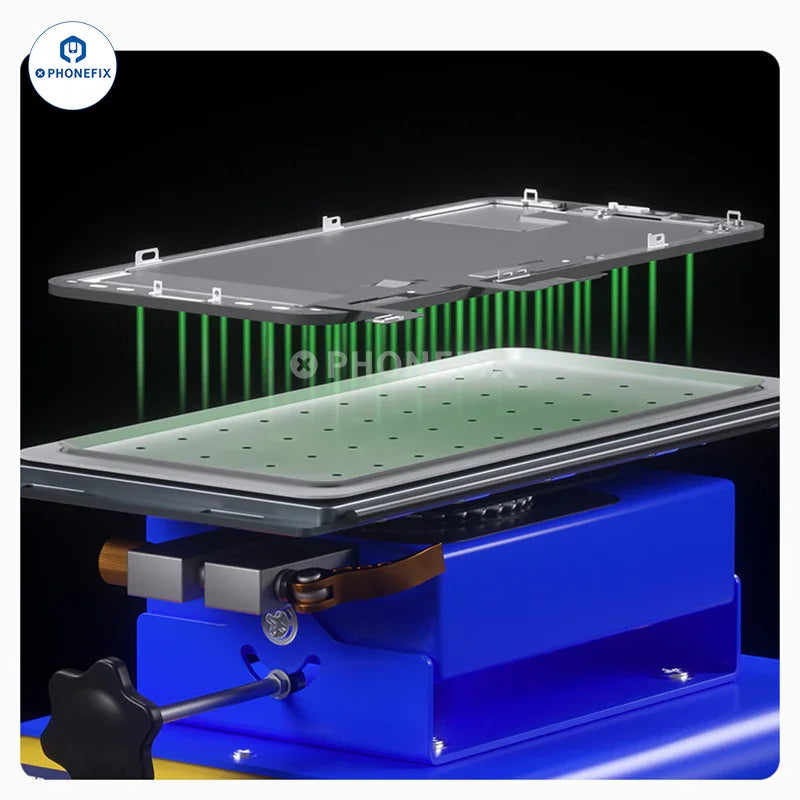

3. Built-in vacuum pump design, strong suction, so you can split the screen without worries.
4. 360° rotating heating platform, built-in high-precision bearings, no dead angle in rotation, can be operated at different angles.
5. Flexible digital temperature control. Quick switching of three temperature levels, precise temperature adjustment, and convenient operation.

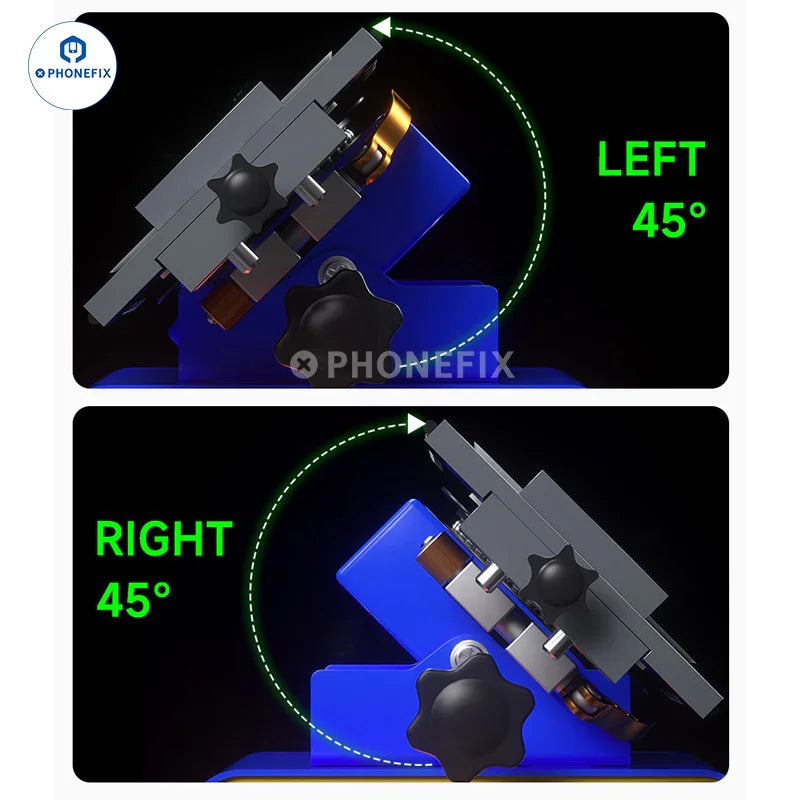

6. Mechanic 361 SE+ tilted 45° design, tilted left and right, convenient solution intrusion, dissolving glue from the inside out.

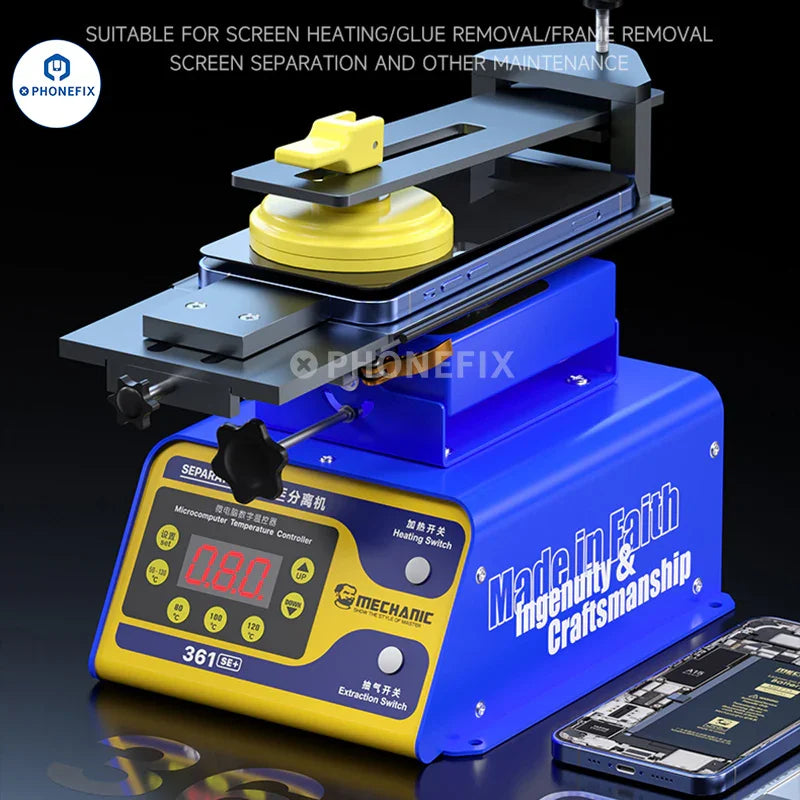

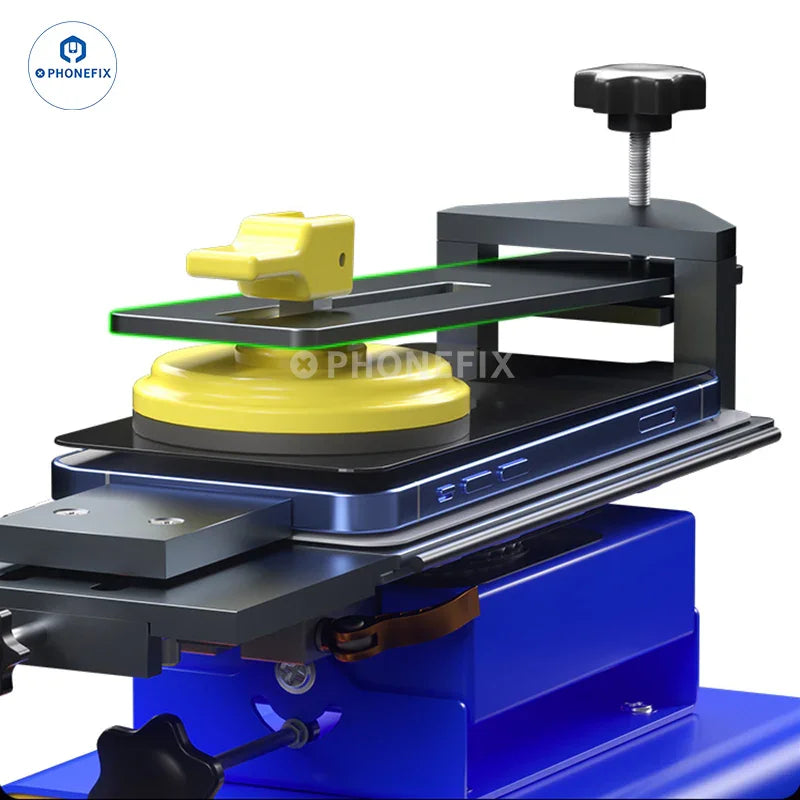

7. Mechanic 361 SE+ can quickly disassemble the straight screen and curved screen, rotate the thumb screws, and increase the pulling force. Soft silicone suction cup to prevent the screen from bursting.

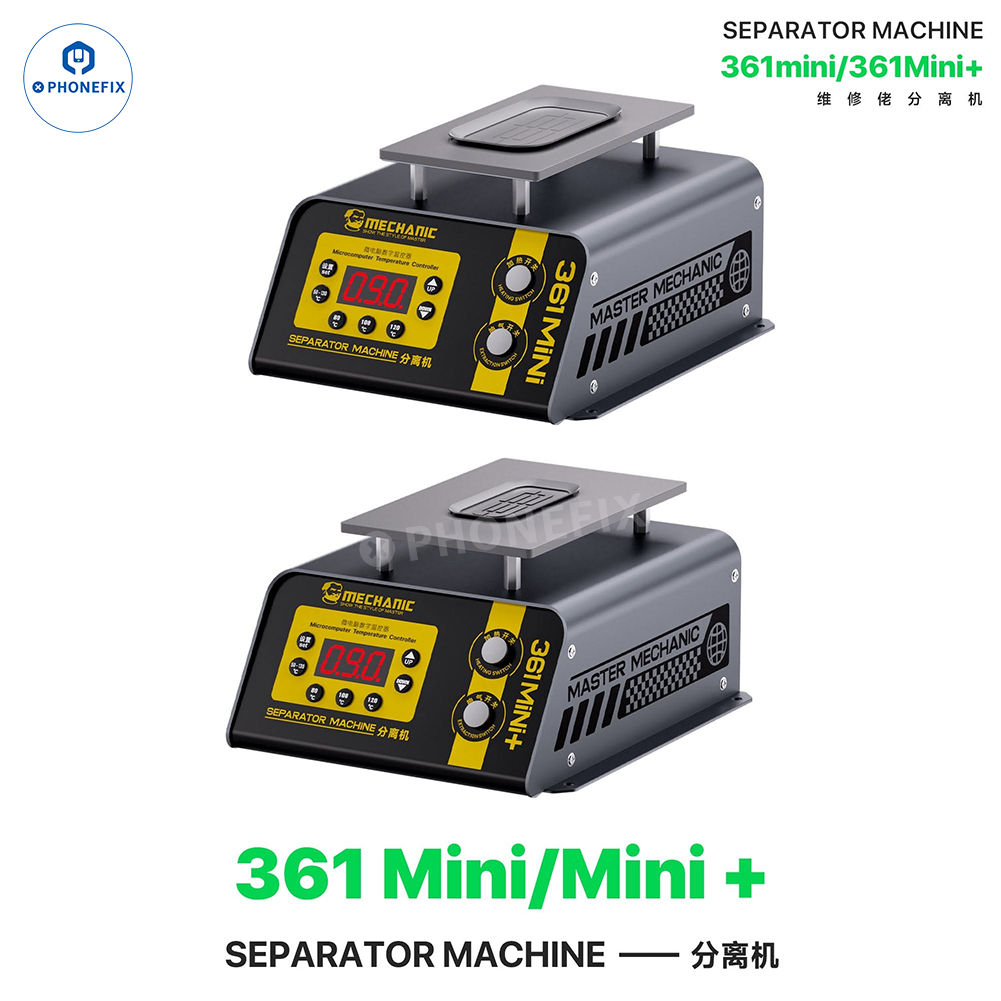

Mechanic 361 mini, 361 mini+ Screen Separator Features:
1. Built-in Vacuum Pump. Securely holds screens in place during separation — prevents slipping and damage, even on cracked displays.
2. 4 Temperature Settings (50-130°C). Digital microcomputer controller with over-temperature alarm — protects screens from burns.
3. Automatic Venting. Quick screen disengagement after vacuum adsorption — efficient separation workflow.

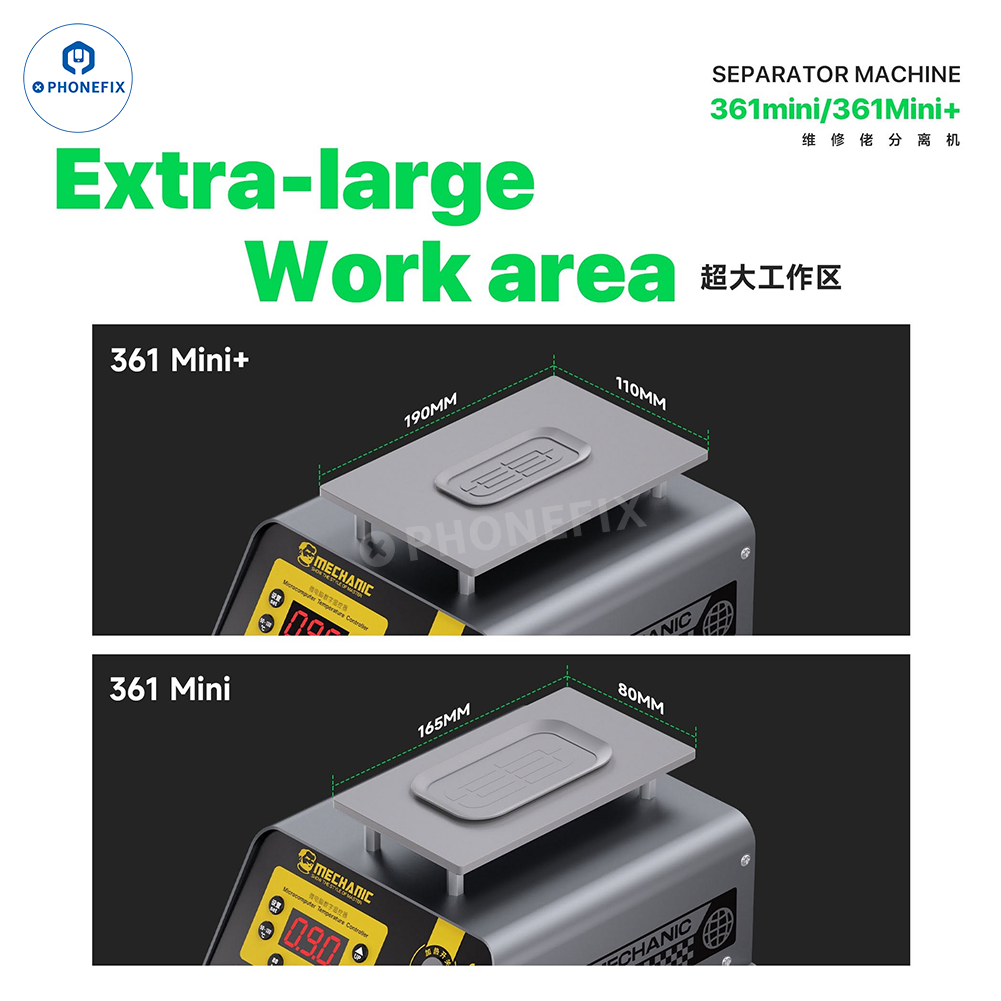

4. Large Work Area: 361 Mini+: 110*190mm. 361 Mini: 80*165mm.

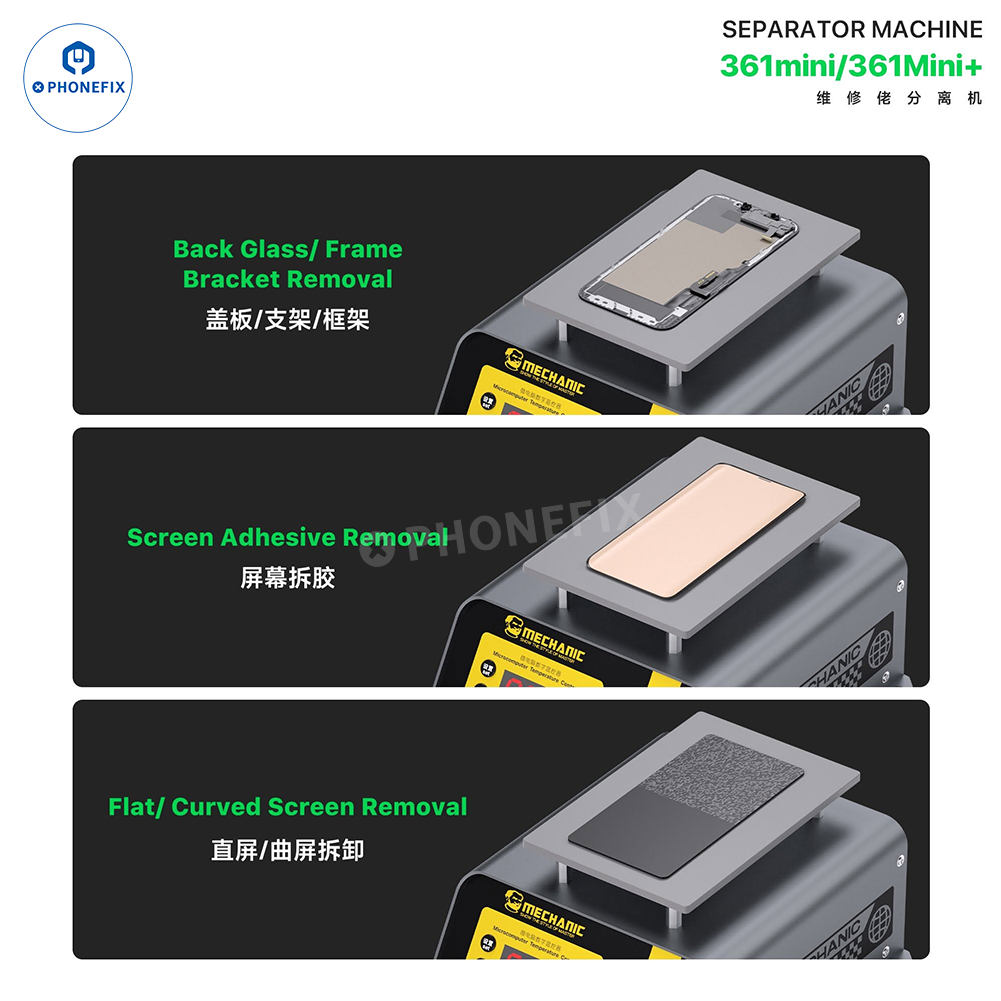

5. Multiple Applications: Suitable for flat/curved screen removal, back glass separation, frame repair, and adhesive removal.
The difference between 361SE and 361SE+: 361 SE+ has 45° tilt and screen removal bracket, while 361SE does not.
Specifications:
Name: MECHANIC Separator Machine
Model: 361mini / 361Mini+
Weight (361mini): 1.7kg
Weight (361Mini+): 1.8kg
Size: 225 × 175mm
Packing Size: 120 × 64 × 10mm
Power: 200W
Voltage: 110V – 220V 50Hz/60Hz (Universal Voltage)

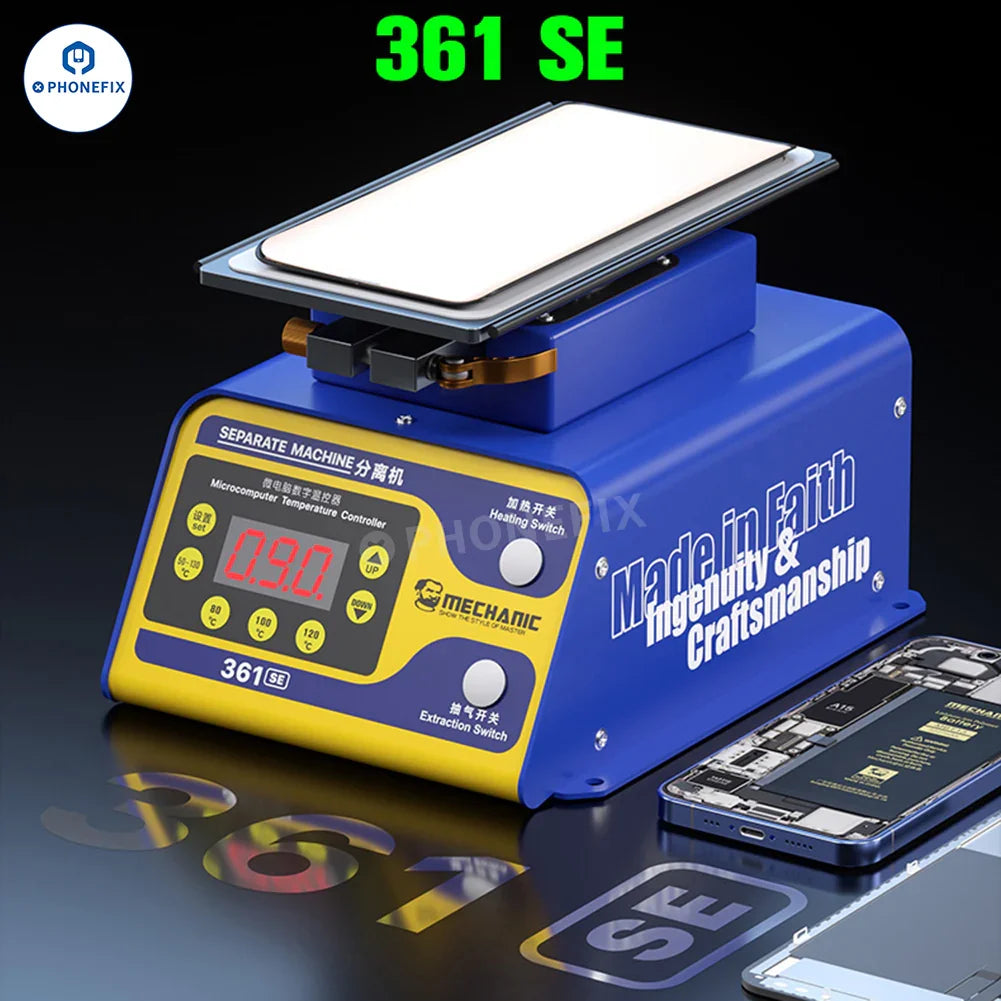

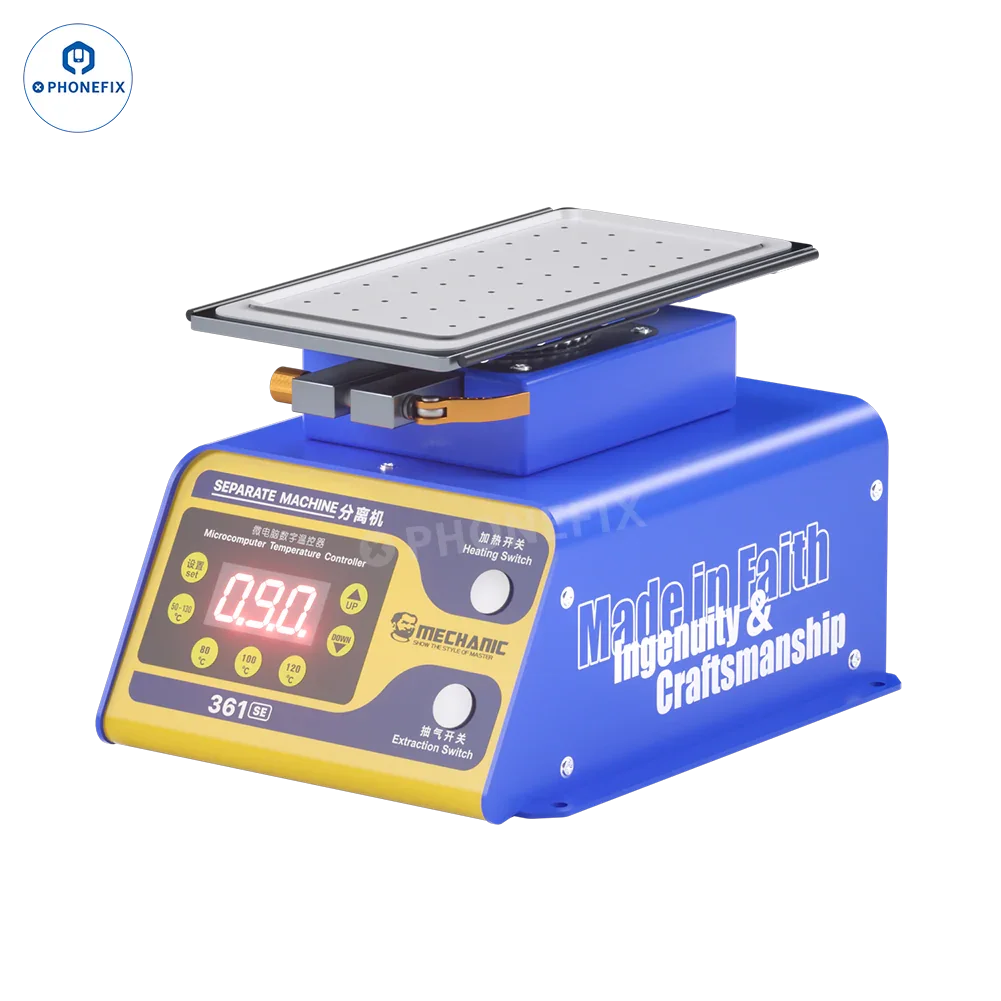

Mechanic 361 SE Parameter:
Model: 361 SE Multi-function Rotary Separator.
Input Voltage: 110V/220V Universal.
Power: 400W.
Scope of application: LCD screen below 7-inch.
Temperature: 50-130°C.
Size: 188*130*126MM.
Packing: 230*210*185MM.
Net Weight: 1.55KG.
Gross Weight: 2.05KG.
Mechanic 361 SE+ Parameter:
Model: 361 SE+ Multi-function Rotary Separator.
Input Voltage: 110V/220V Universal.
Power: 400W.
Scope of application: LCD screen below 7-inch.
Temperature: 50-130°C.
Size: 188*130*250MM.
Packing: 260*220*220MM.
Net Weight: 2.4KG.
Gross Weight: 2.9KG .
361 SE Product List:
Host *1.
Silicone pad *1.
Glue scraper *1.
Screw *4.
Manual *1.
power cord *1.
361 SE+ Product List:
Host *1.
Silicone pad *1.
Glue scraper *1.
Screw *4.
Manual *1.
power cord *1.
Screen removal rack.
