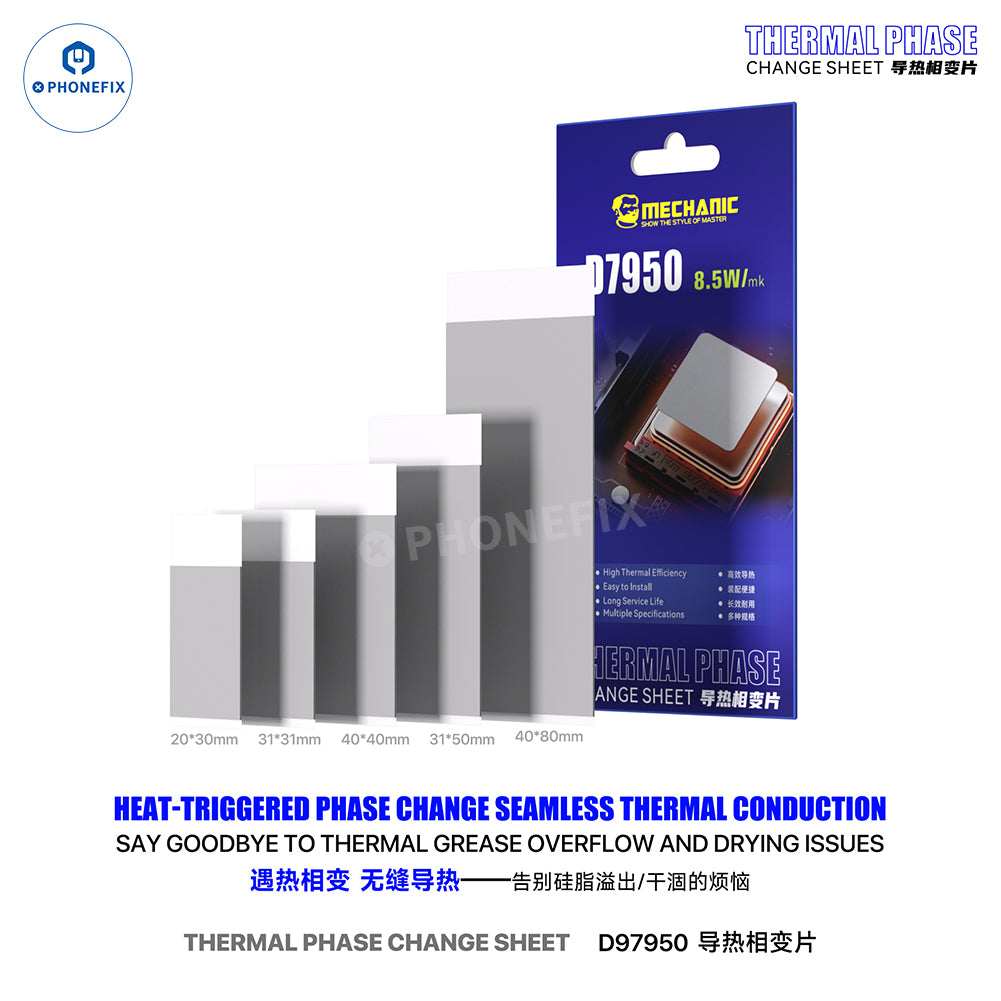

MECHANIC D7950 Thermal Phase Change Sheet is made of high-efficiency phase change thermal material with a thermal conductivity of 8.5W/m·K. It is solid at room temperature and transforms into a semi-fluid state when heated, seamlessly conforming to the contact surfaces between heat-generating chips and heatsinks to fill microscopic gaps for efficient heat transfer. Suitable for efficient thermal management in laptop CPUs/GPUs, desktop CPUs/GPUs, AI servers, EV chargers, base stations, high-power ICs, vehicle ECUs, and various other electronic devices requiring reliable heat dissipation.

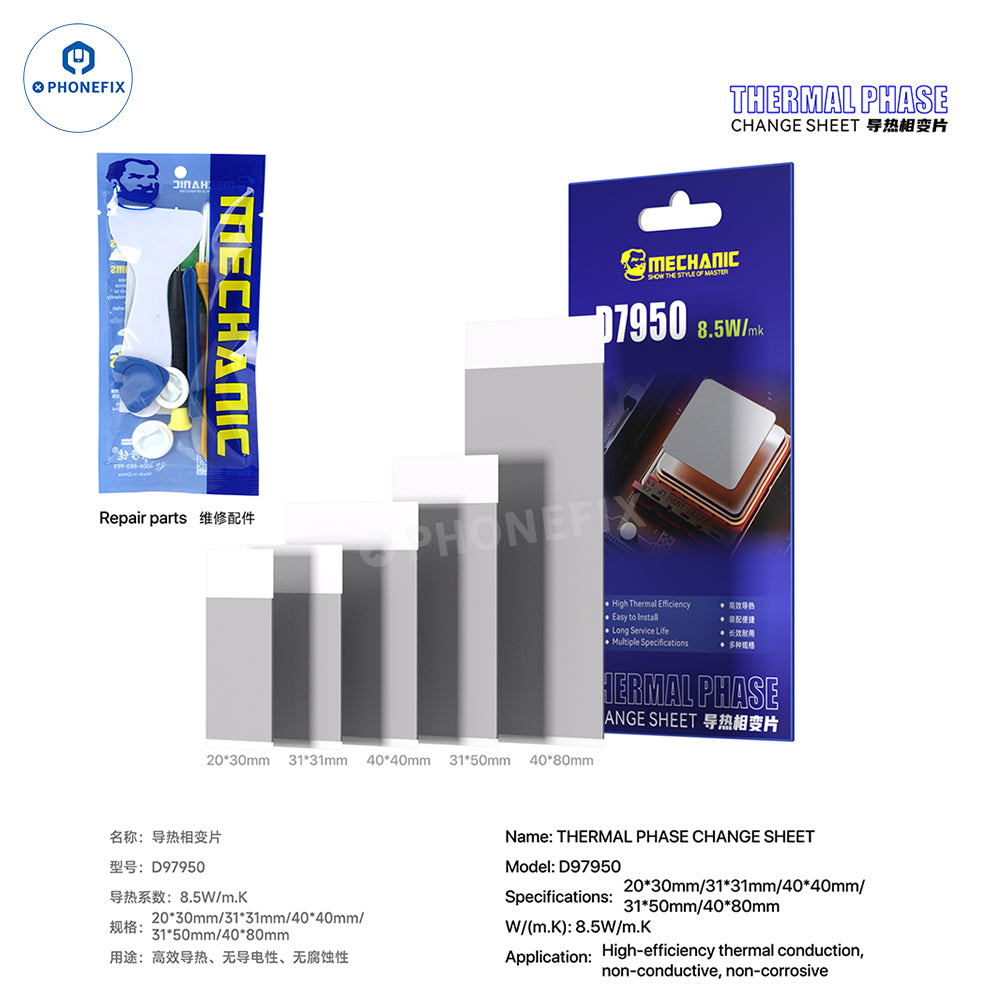

Option (Thickness 0.2mm):
1. MECHANIC D7950 Thermal Phase Change Sheet 20*30MM.
2. MECHANIC D7950 Thermal Phase Change Sheet 31*31MM.
3. MECHANIC D7950 Thermal Phase Change Sheet 40*40MM.
4. MECHANIC D7950 Thermal Phase Change Sheet 31*50MM.
5. MECHANIC D7950 Thermal Phase Change Sheet 40*80MM.
Features:
1. High thermal efficiency with a conductivity of 8.5W/m·K, ensuring seamless contact and superior heat transfer after phase change.

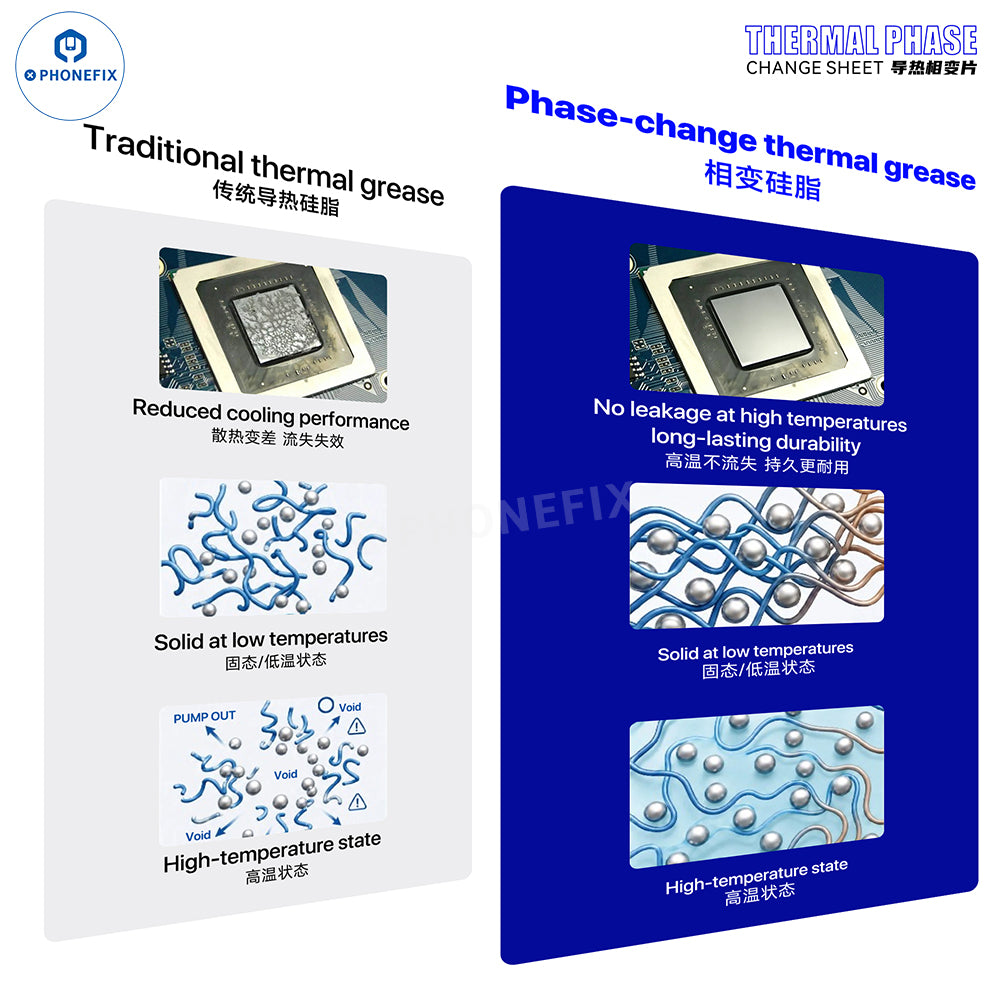

2. Unlike traditional thermal grease, the phase change material does not flow out at high temperatures or dry out over time, maintaining stable thermal performance for extended periods.

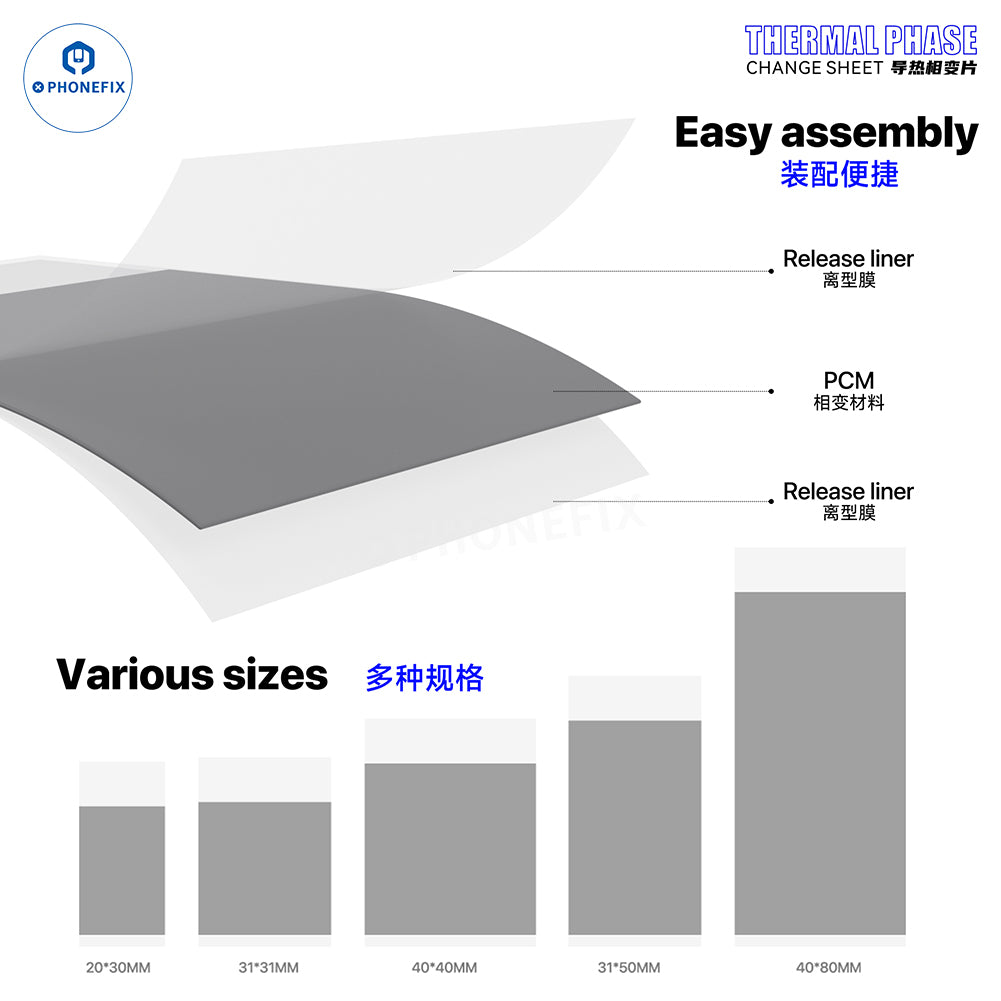

3. Easy assembly with protective release liners on both sides; simply align with the chip, apply, and peel off the top liner – no messy application required.
4. Non-conductive and non-corrosive, ensuring safe use on various electronic components without the risk of short circuits caused by grease overflow.
5. Available in five sizes: 20×30mm, 31×31mm, 40×40mm, 31×50mm, and 40×80mm, accommodating different chip sizes and thermal requirements.
Product Parameters:
Brand: MECHANIC
Product Name: Thermal Phase Change Sheet
Model: D7950
Thermal Conductivity: 8.5W/m·K
Available Sizes: 20×30mm / 31×31mm / 40×40mm / 31×50mm / 40×80mm
Notice: Do not stack in multiple layers; do not disassemble for reuse; do not use oversized pieces to cover non-core areas
