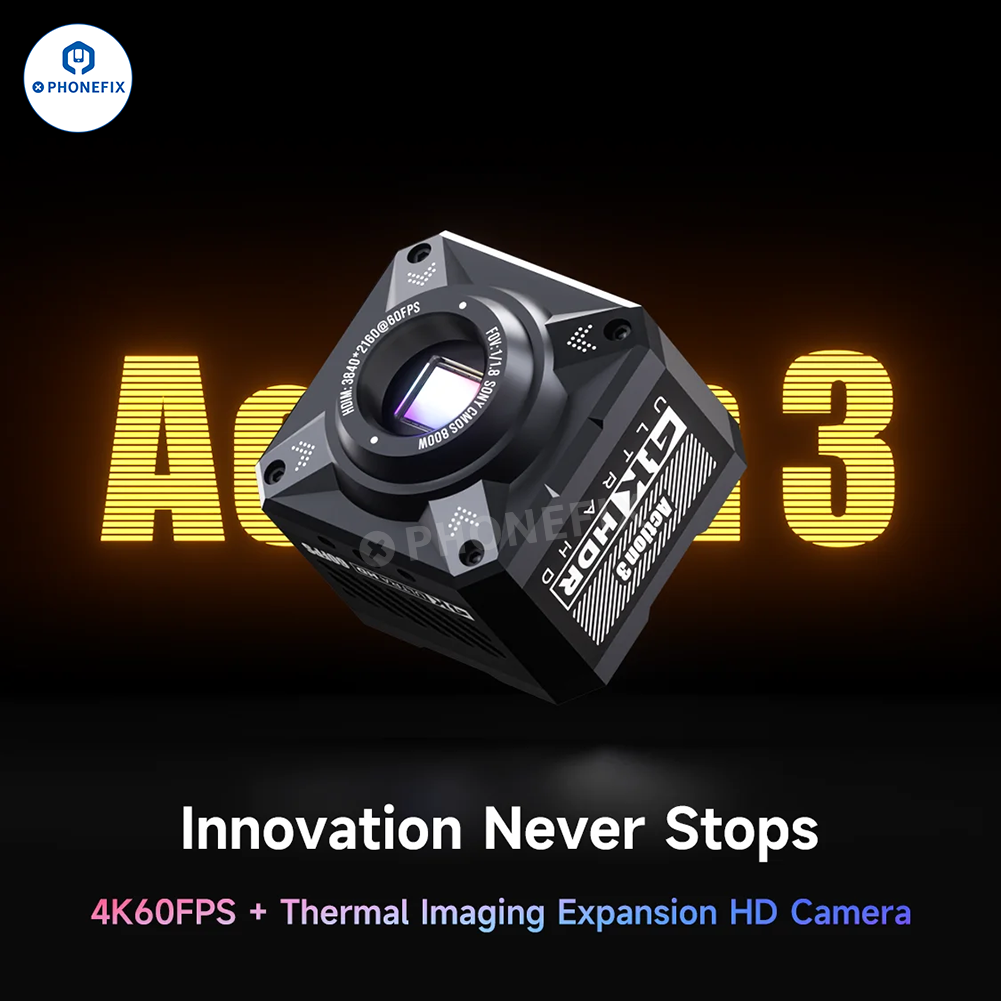

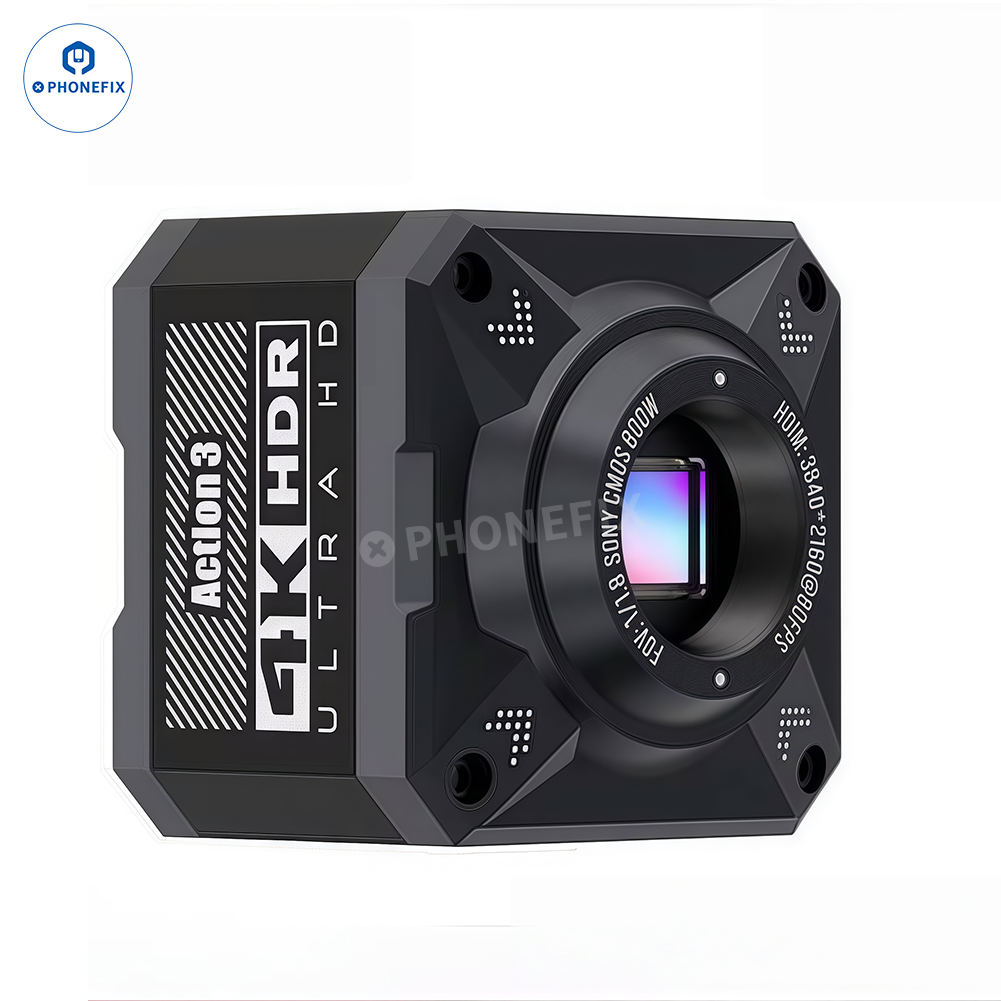

MECHANIC Action 3 Microscope Camera 4K 60FPS Optical/Thermal Imaging Dual-display HDMI USB Output for Mobile Phone Repair. SONY IMX678 1/1.8 inch CMOS sensor, 4K HDR ultra HD, compatible with most microscopes and C-mount adapter lens, suitable for mobile phone/electronic precision motherboard CPU BGA chip welding and repair.
Features:

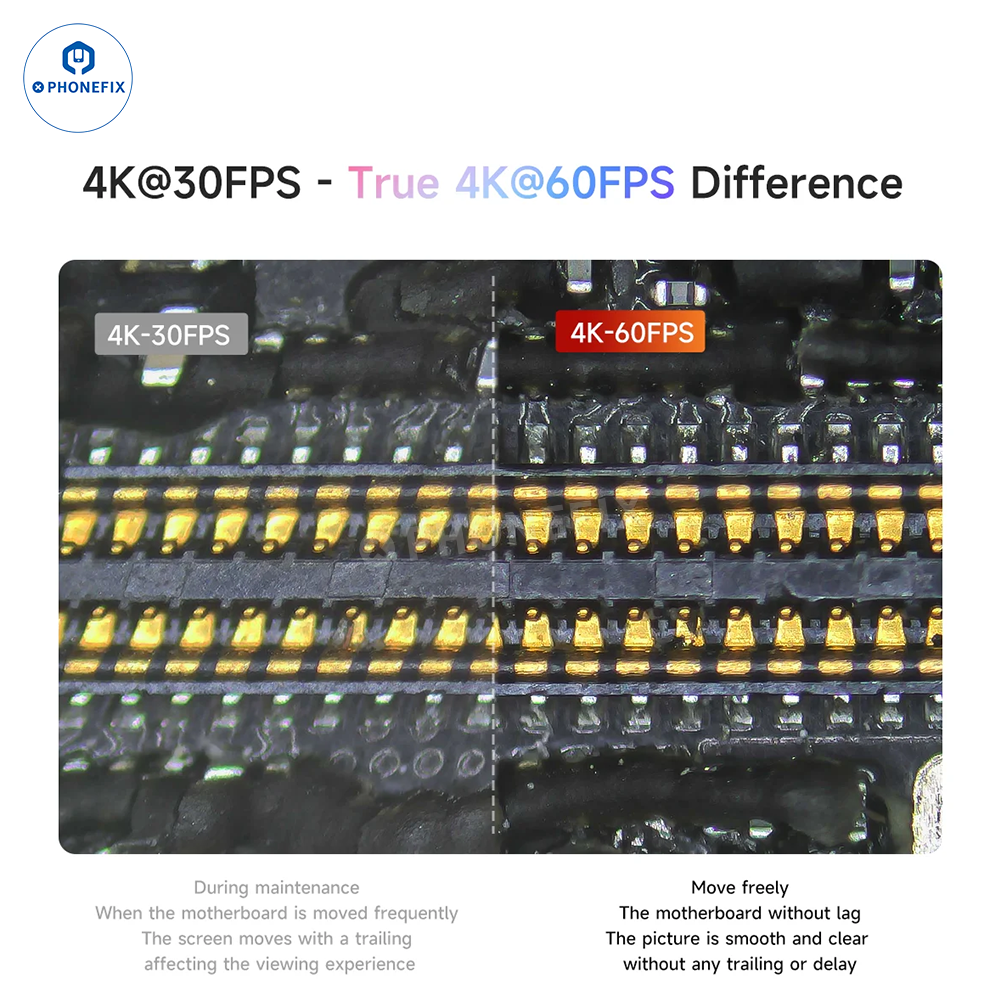

1. Ultimate Image Performance: Equipped with 118 sensors and supporting 4K 60FPS video output, it accurately captures minute details and thermal variations, ensuring accurate repair and inspection work.

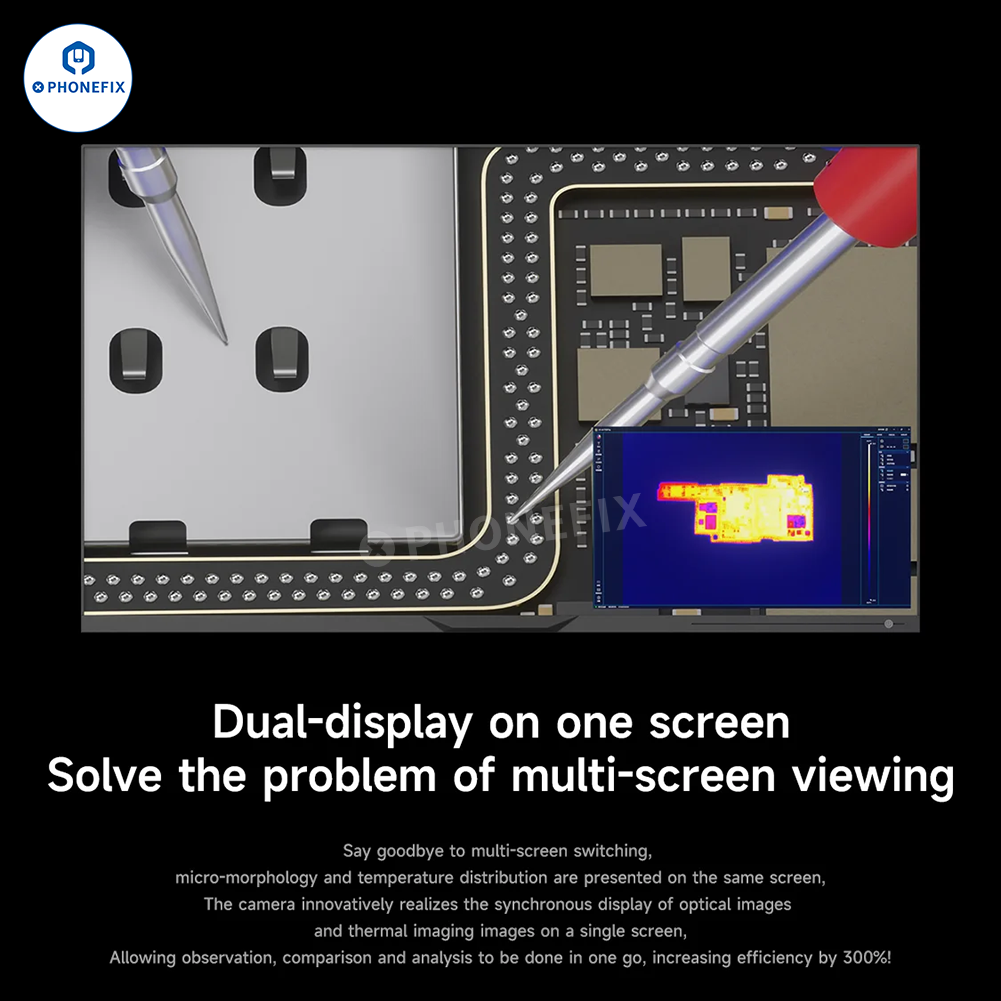

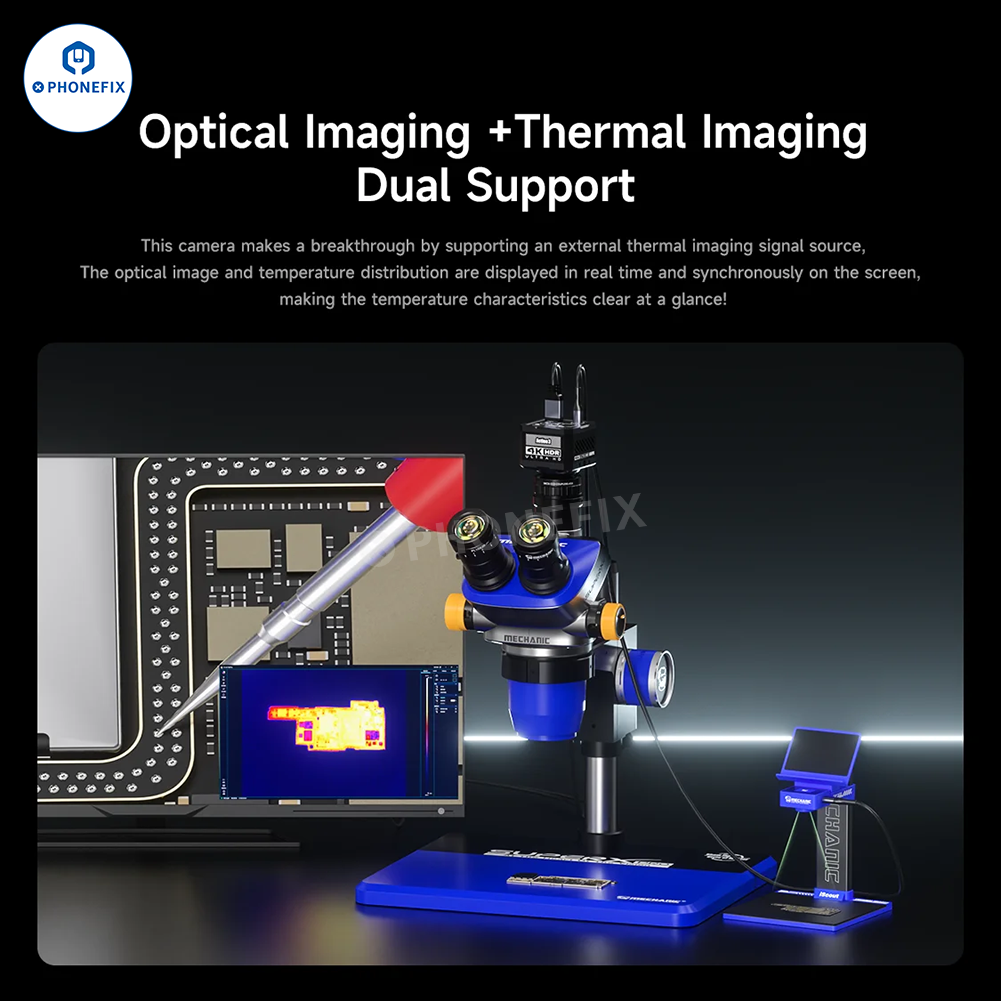

2. Thermal Imaging Technology: Advanced optical thermal imaging facilitates identification of hidden dangers and abnormal hot spots that are difficult to detect with traditional equipment.
3. Rugged and Durable Construction: Constructed from aircraft-grade aluminum alloy, it meets military-grade durability standards and has undergone over 10,000 cycle tests to withstand intense daily use.
4. User-Friendly Design: The ergonomic design enhances user comfort and operational efficiency.

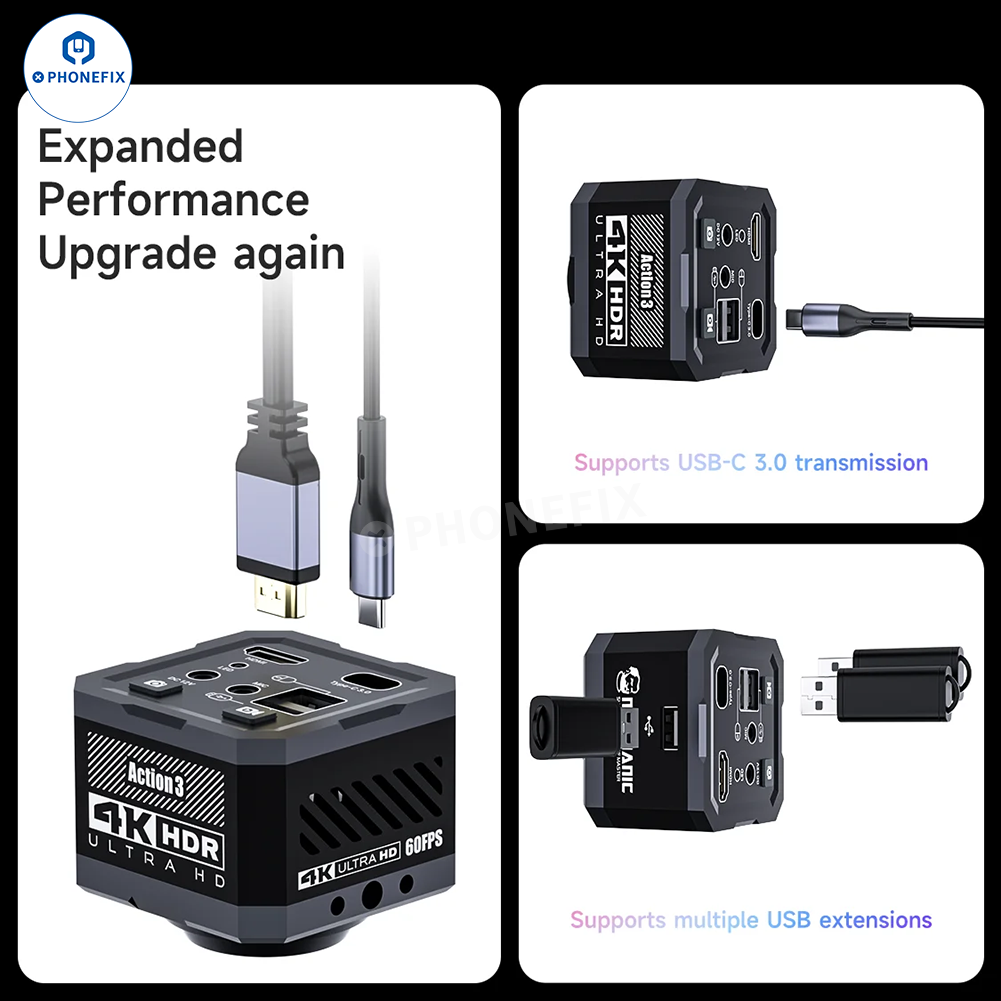

5. Multi-Interface Compatibility: Equipped with HDMI, USB 3.0, USB 2.0, and Type-C ports, it accommodates a variety of control and output methods, allowing for easy integration into existing systems.
6. Plug-and-Play with Multiple Language Support: Supports Chinese and English operating systems, and comes with comprehensive wiring and control components for immediate use.

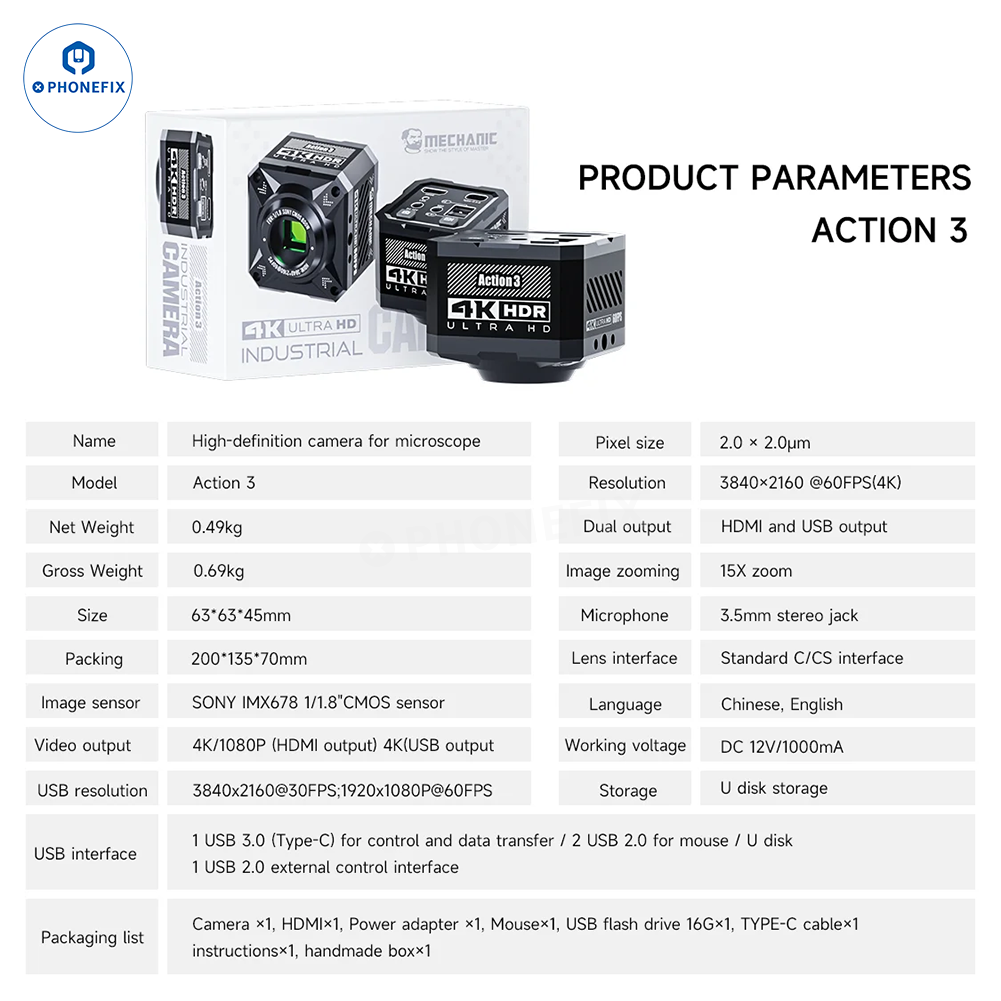

Parameters:
Name: MECHANIC Action 3 High-definition 4K camera for microscope
Image sensor: SONY IMX678 1/1.8"CMOS sensor
Video output: 4K/1080P (HDMI output) 4K (USB output
USB resolution: 3840x2160@30FPS;1920x1080P@60FPS
Pixel size: 2.0 x 2.0μm
Resolution: 3840x2160 @60FPS(4K)
Dual output: HDMI and USB output
Image zooming: 15X zoom
Microphone: 3.5mm stereo jack
Lens interface: Standard C/CS interface
Language: Chinese, English
Working voltage: DC 12V/1000mA
Storage: U disk storage
USB interface: 1 USB 3.0 (Type-C) for control and data transfer / 2 USB 2.0 for mouse / U disk 1 USB 2.0 external control interface.
Net Weight: 0.49kg
Gross Weight：0.69kg
Size: 63x63x45mm
Packing: 200x135x70mm
Packaging list
Camera x1
HDMI x1
Power adapter x1
Mouse x1
USB flash drive16G x1
TYPE-C cable x1
instructions x1
handmade box x1
