MECHANIC ARK6075 6.0-75X Trinocular Stereo Microscope for Phone/Electronics Micro-soldering Precision Repair. Semi-apochromatic optical design, 0.6X-7.5X super zoom range. Equipped with WF10X25mm eyepiece and a 0.45X CTV Adapter lens, can be used with most HDMI cameras for mobile phone repair, electronics repair, PCB CPU BGA chips micro soldering repair, ect.
Features:
1. Innovative Semi-Apochromatic Design: The semi-apochromatic optical system effectively reduces dispersion and distortion, resulting in clearer and more realistic images.
2. Significantly Improved Image Quality: Compared to traditional optical systems, color reproduction is improved by 20%, field flatness by 15%, and detail sharpness by 10%.

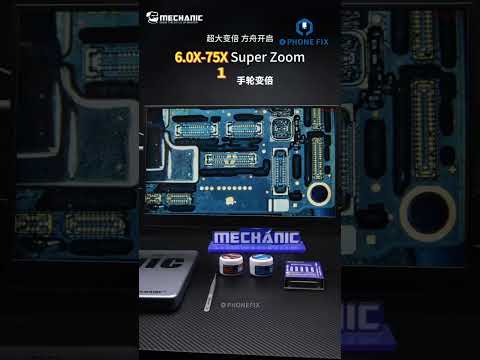

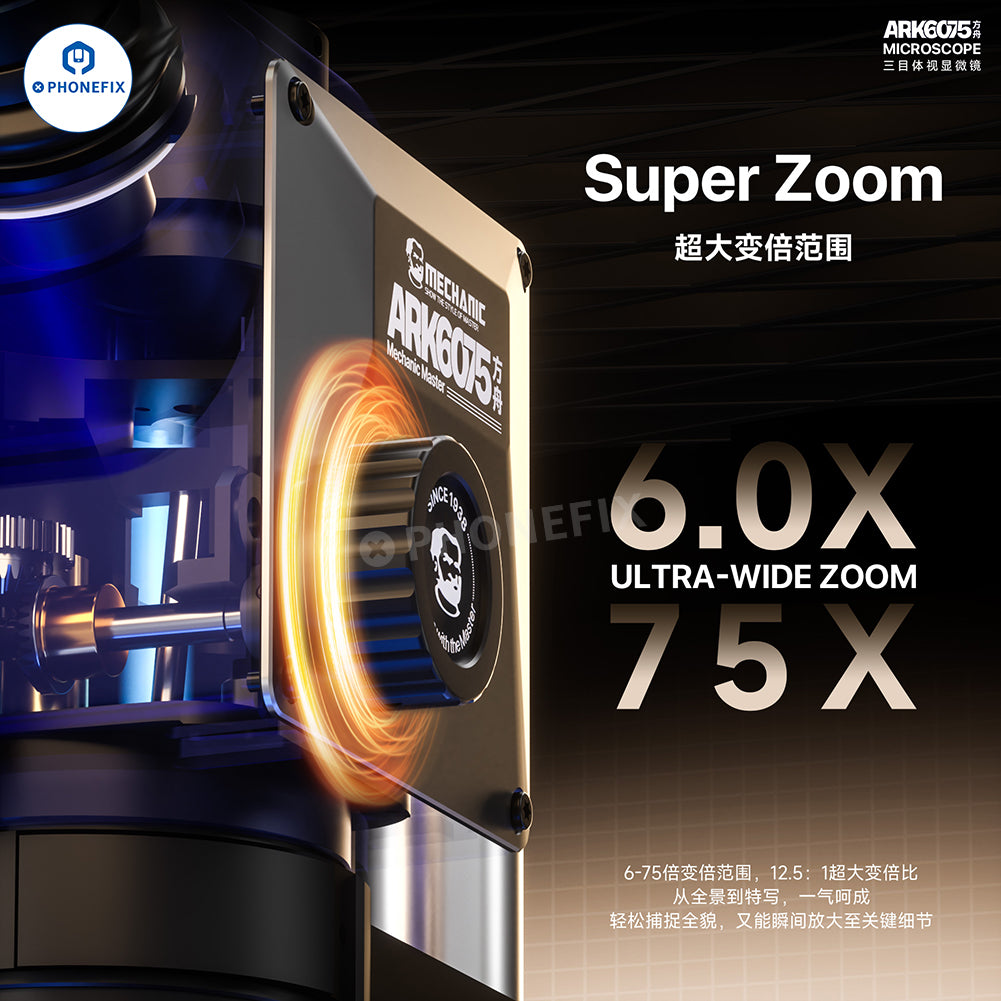

3. 6.0X-75X Super Wide Zoom Range: Features a super wide zoom ratio of 12.5:1, supporting continuous zoom increments from 0.6X to 7.5X, easily achieving a smooth transition from panoramic capture to instantaneous magnification of key details.
4. 10mm Super High Working Distance: Provides ample under-lens maneuverability, greatly facilitating tool handling and routine soldering repairs.

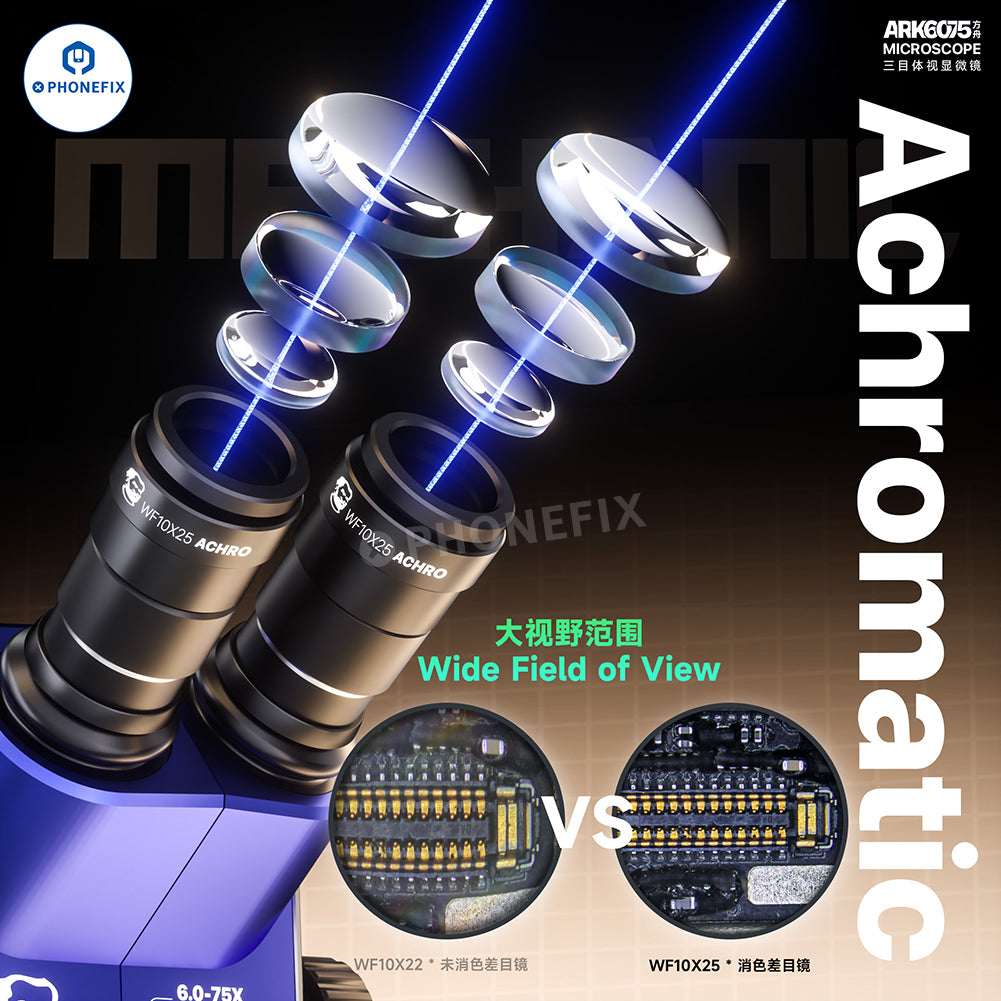

5. Wide-Field Achromatic Eyepiece: Standard configuration includes a WF10X25 ACHRO achromatic wide-field eyepiece, offering a wider field of view compared to the traditional WF10X22 eyepiece, reducing eye fatigue and discomfort during prolonged use.

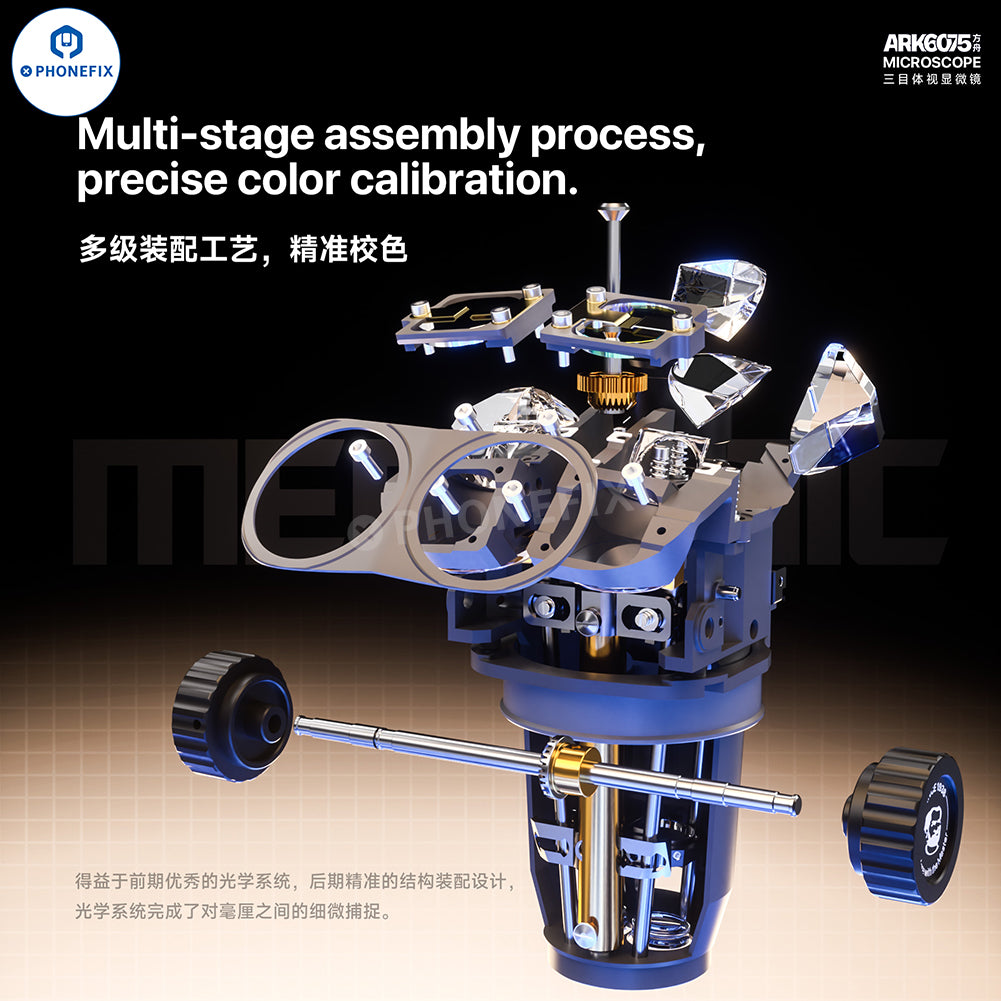

6. Multi-Level Precision Assembly Process: Thanks to the excellent optical system and precise post-assembly design, it undergoes precise color calibration at the factory, achieving millimeter-level precision in capturing minute details.
7. B3 Large, Stable Base: The large design provides rock-solid support, significantly expanding the range of motion and making every movement effortless.

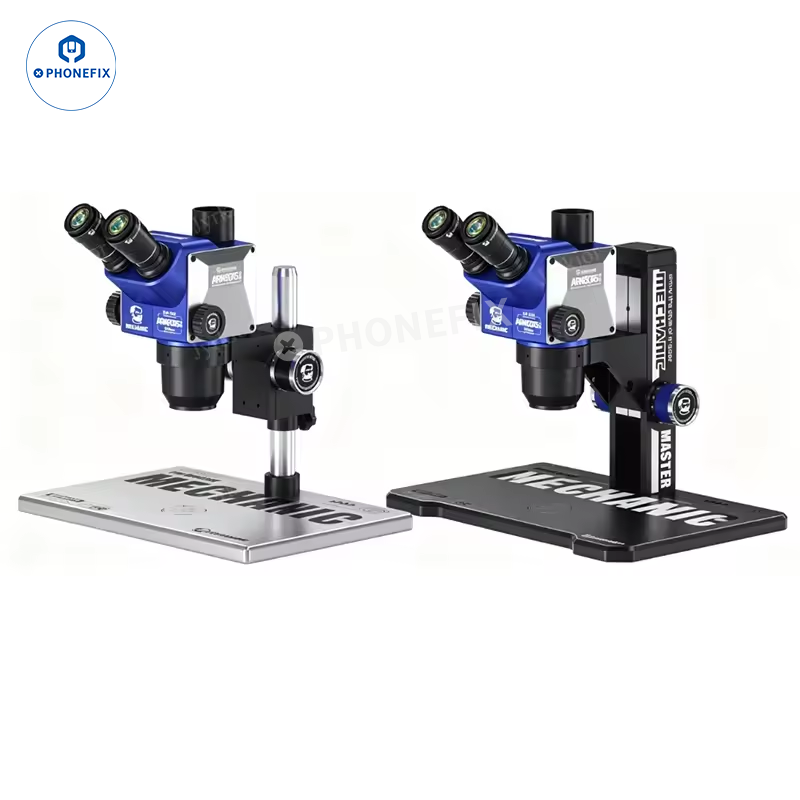

Option:

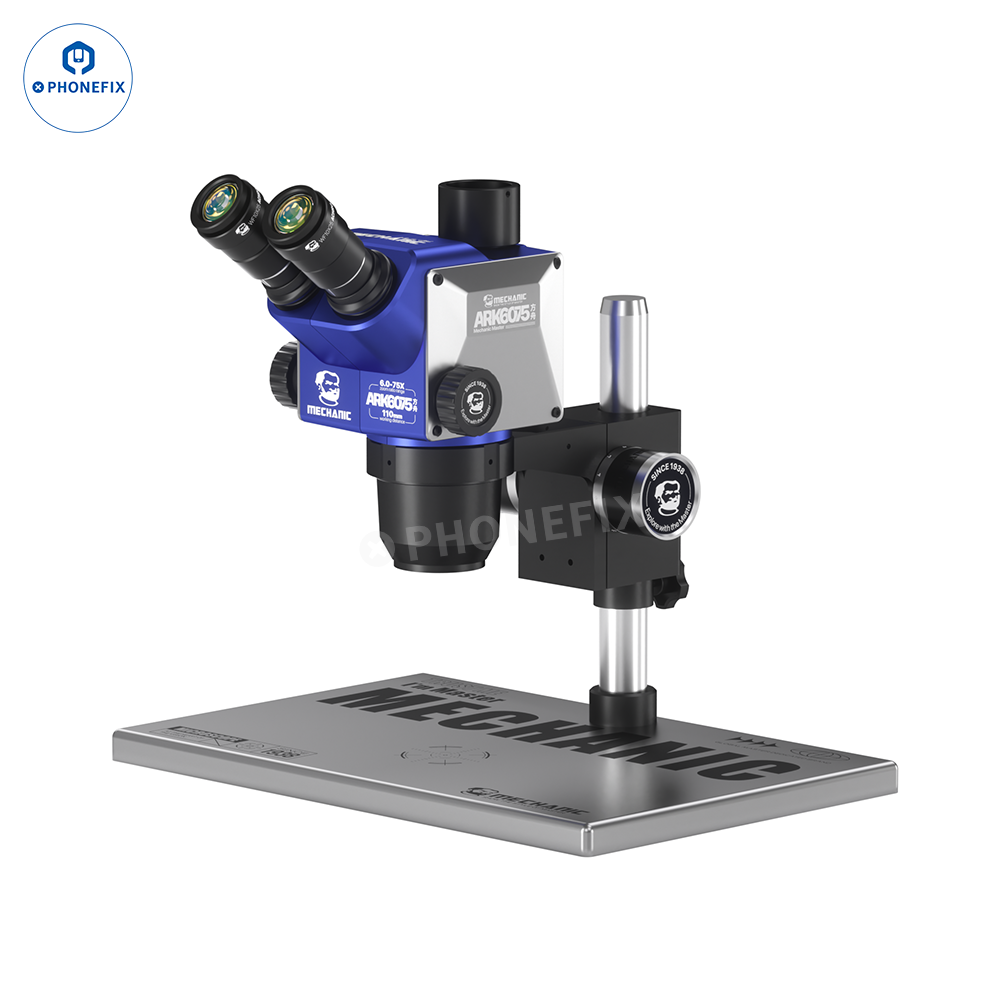

1. ARK 6075-B3 (B3 large base version).

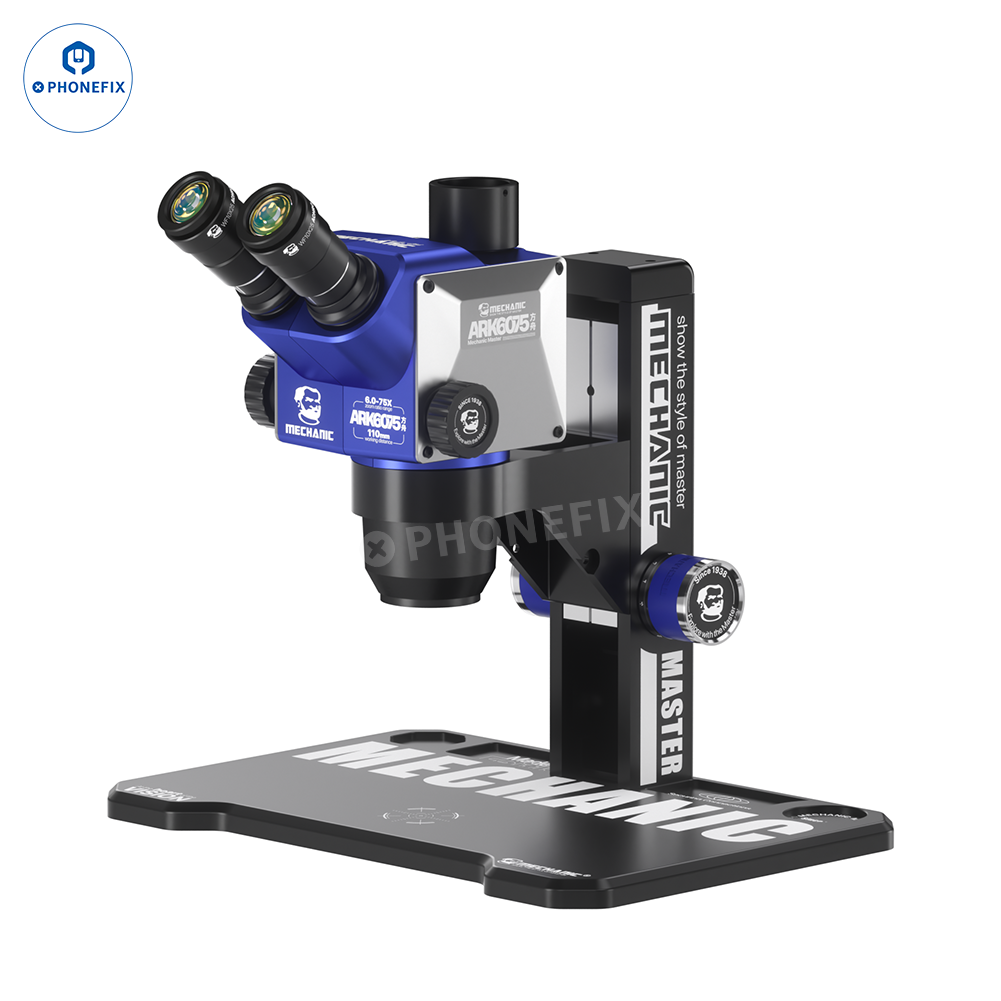

2. ARK 6075-TSD (TSD base version).
Product Specifications:
Name: Trinocular Stereo Microscope
Model: ARK6075
Optical System: Greenough Optical System
Eyepiece: WF10X25mm Achromatic Wide Field Eyepiece
Magnification Range: 0.6X – 7.5X
Maximum Magnification: 75X
Zoom Ratio: 12.5:1
Working Distance: 110mm
Trinocular Interface: Standard 0.45X CTV Adapter
Base Dimensions: 380x260 mm
Packaging Dimensions: 424x328x250 mm
Net Weight: 5.45kg
Gross Weight: 5.93kg
Packing List:
Microscope Head ×1
Microscope Stand ×1
Microscope Base ×1
WF10X25 Eyepiece ×2
0.45X Adapter ×1
LED Ring Light ×1
Limiting ring ×1
Eye mask ×2
Instruction manual ×1
