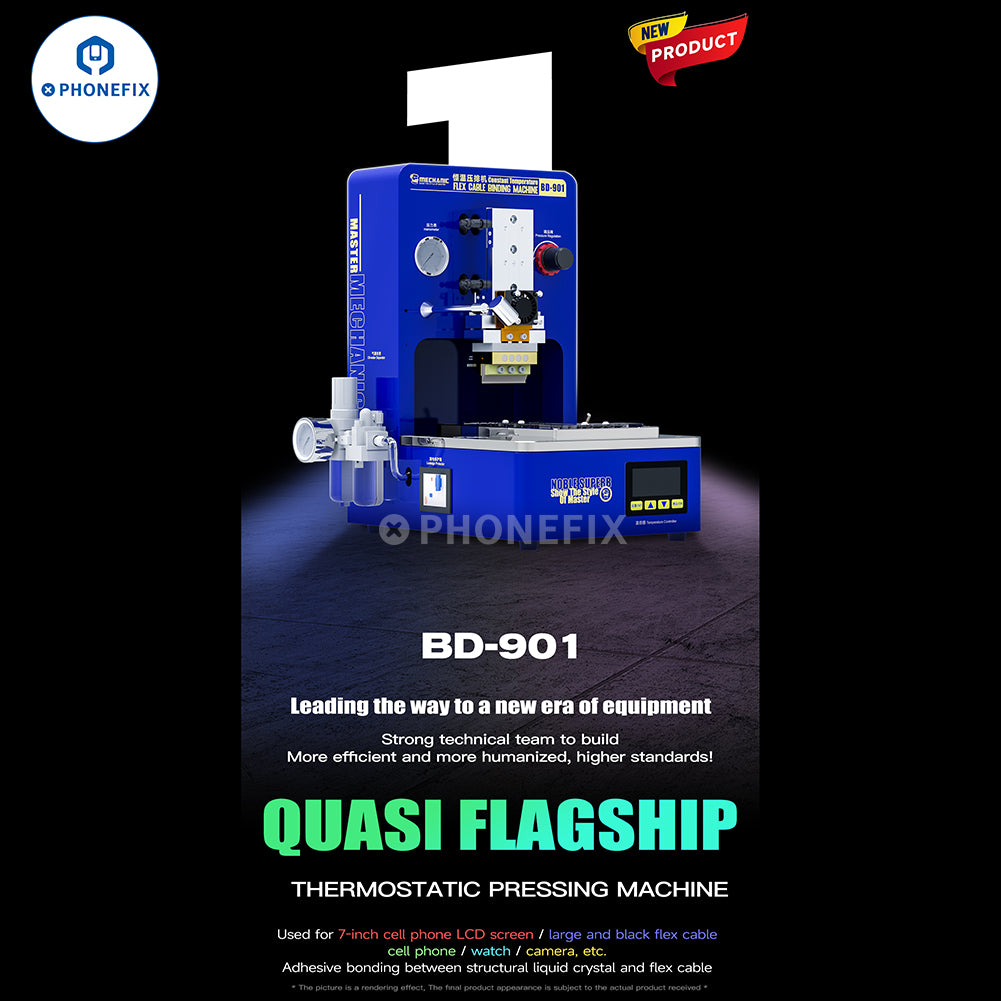

Mechanic BD-901 Constant Temperature Flex Cable Bonding Machine for mobile phone 7-inch LCD screen/large and black flex cable/watch/camera repair, ect. Mechanic BD-901 Pro Double Station Thermostatic Pressing Machine For Screen Flex Cable Bonding Repair. Adhesive bonding between structural liquid crystal and flex cable.

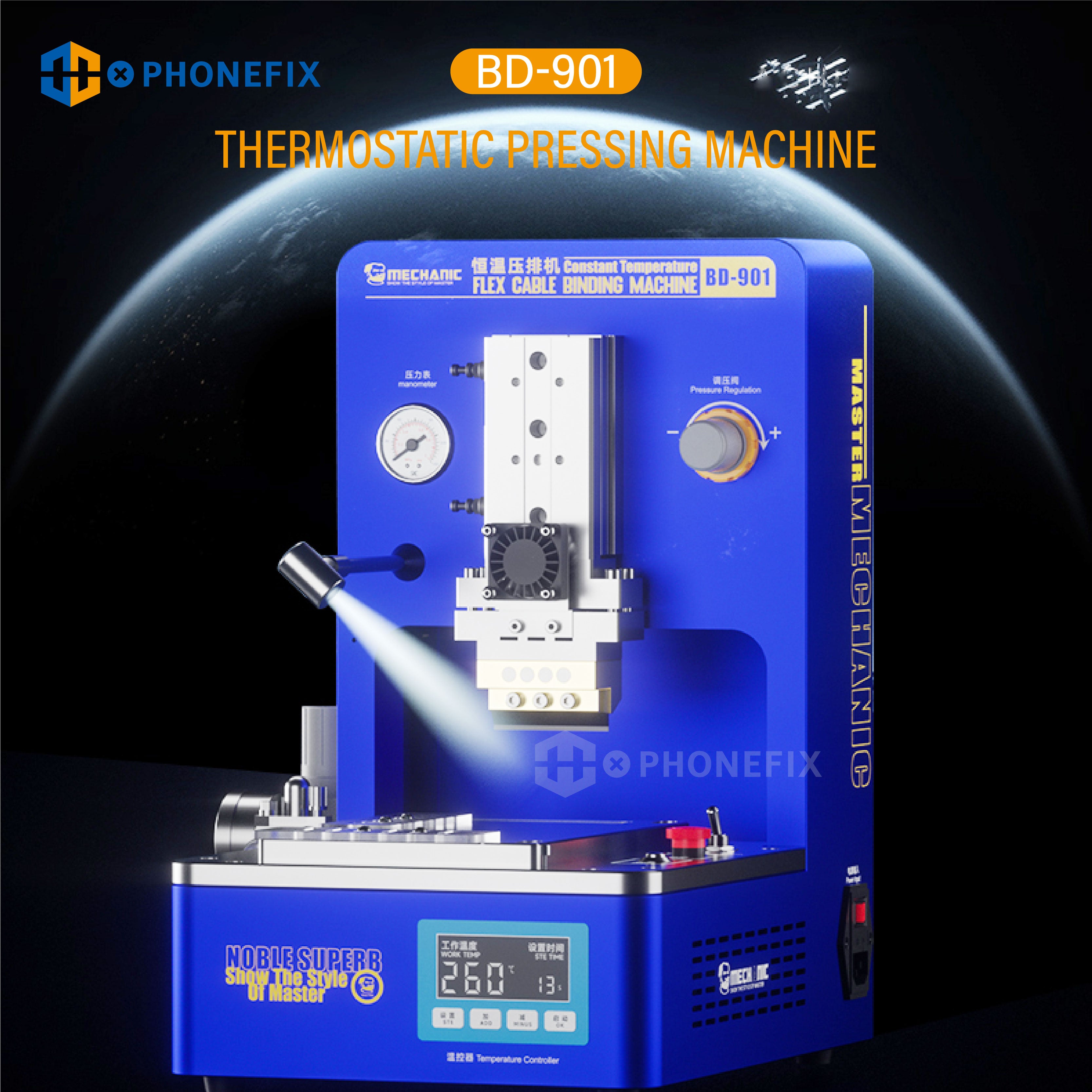

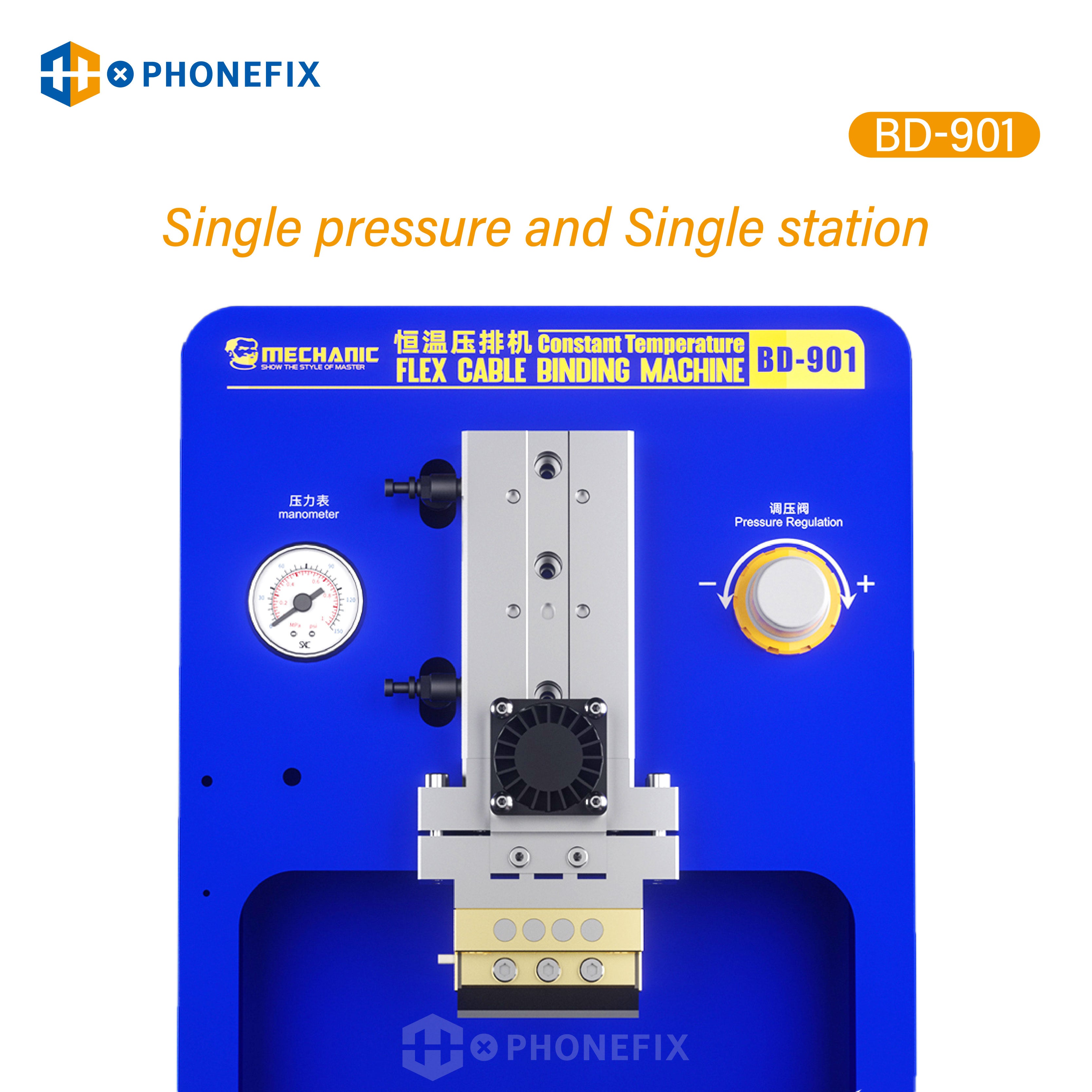

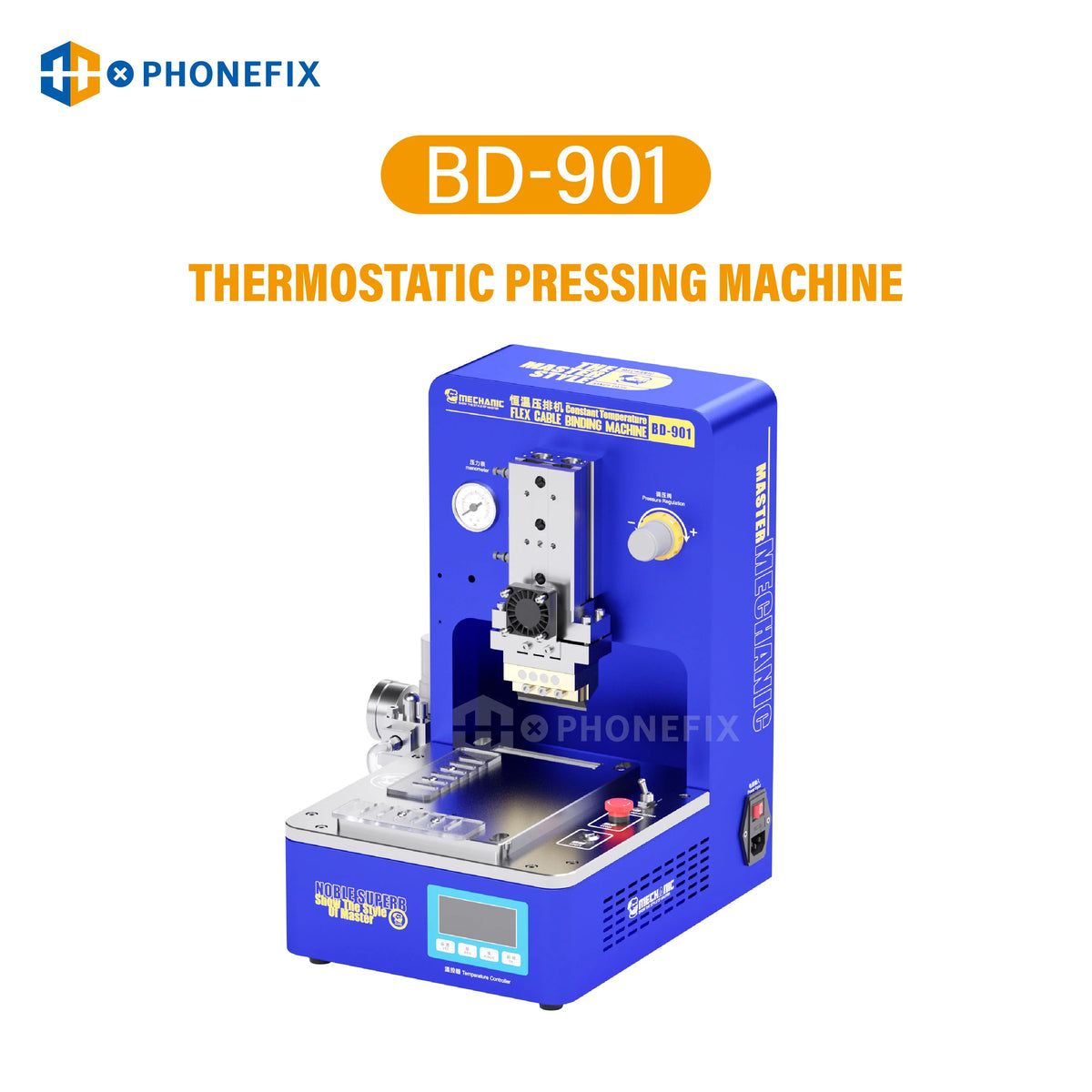

Mechanic BD-901 single station pressing cable bonding machine features:
1. Single station high efficiency, wires pressing is steady, keep the cutter head balanced.

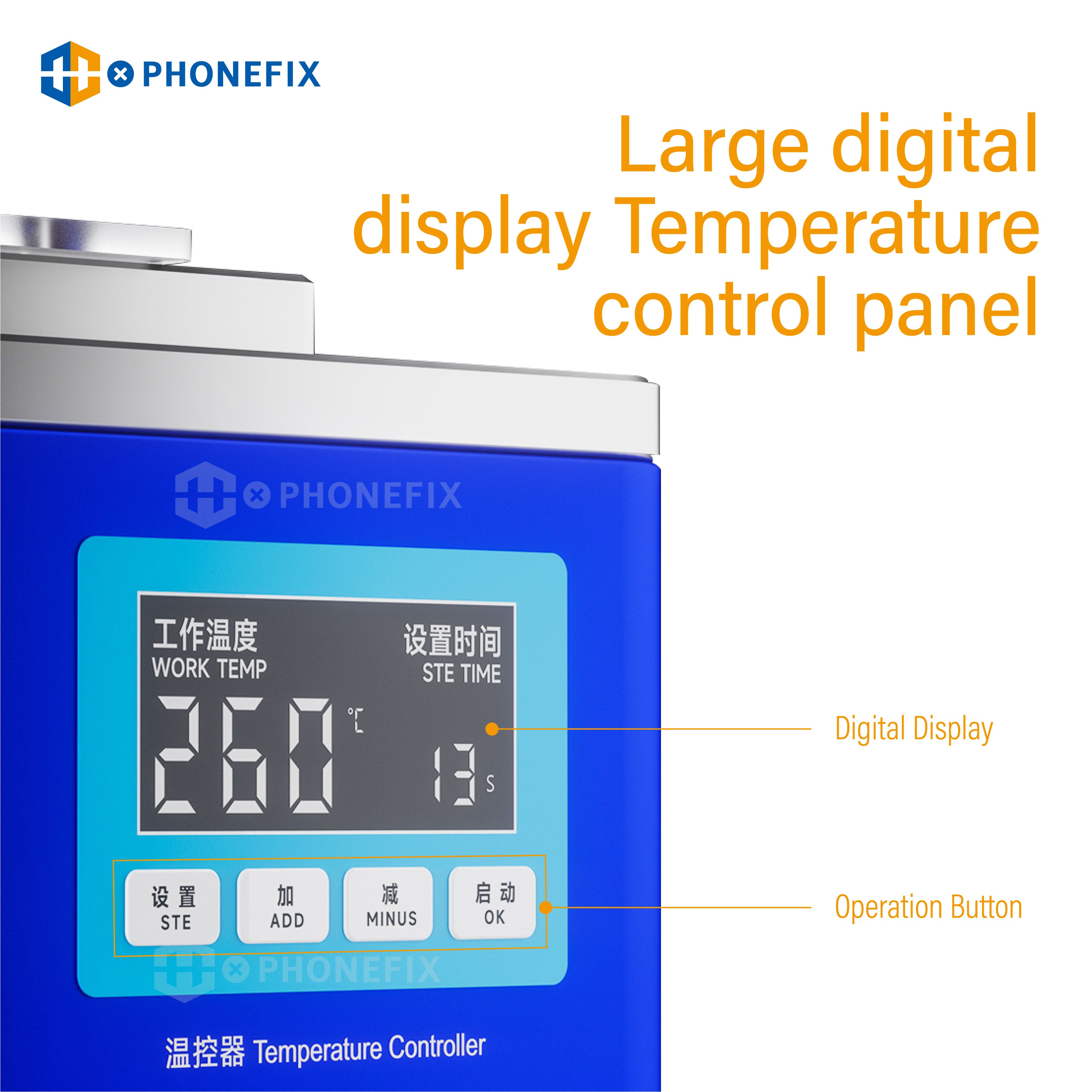

2. Large digital display temperature control panel.
3. Adopts advanced large-screen digital display thermostat, four-speed temperature control design to ensure precise temperature control.
4. The LED digital display displays the temperature in real time, making the production process more intuitive and efficient.
5. Adopting advanced mechanical design and precision manufacturing technology, it is equipped with a pressure regulating valve and pressure gauge.

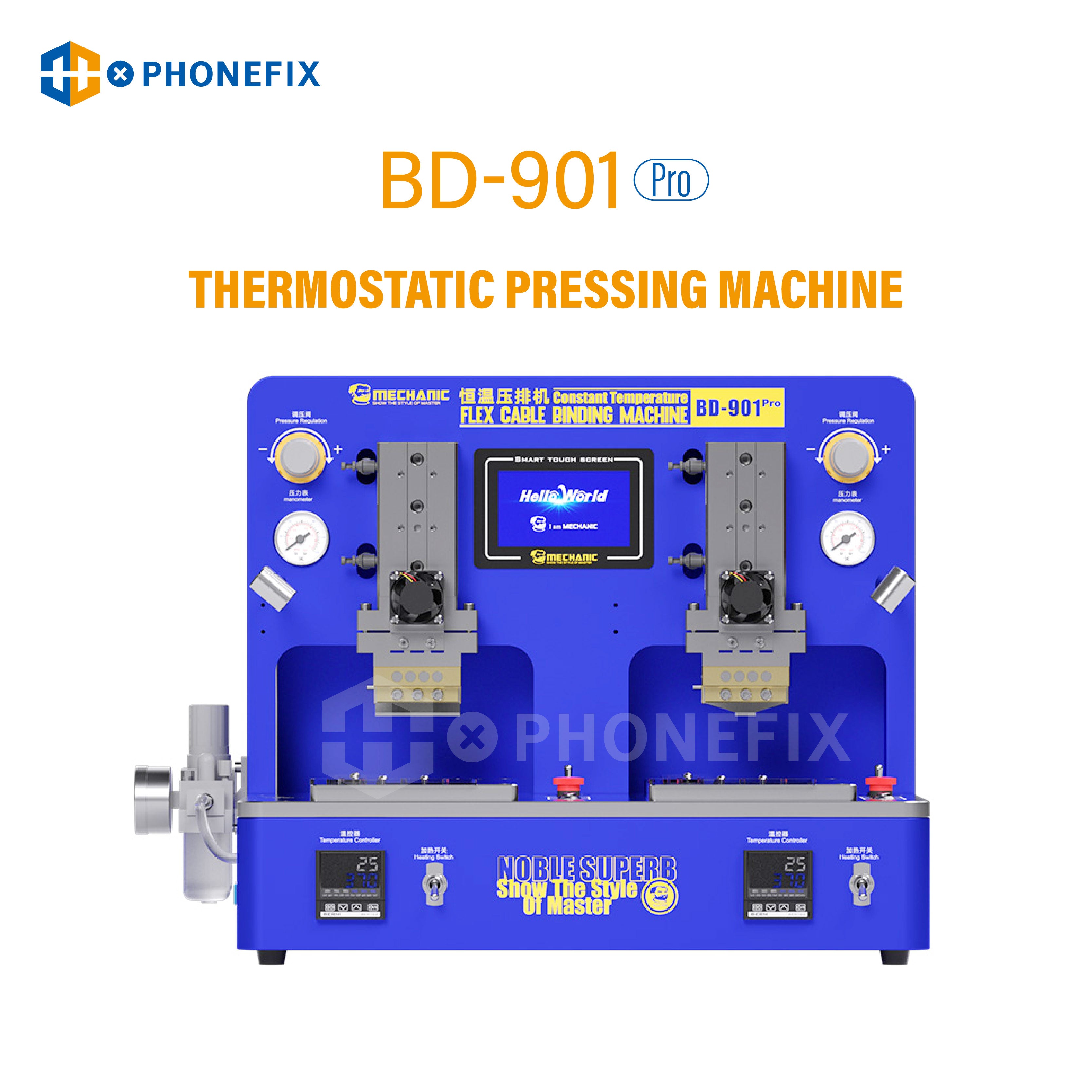

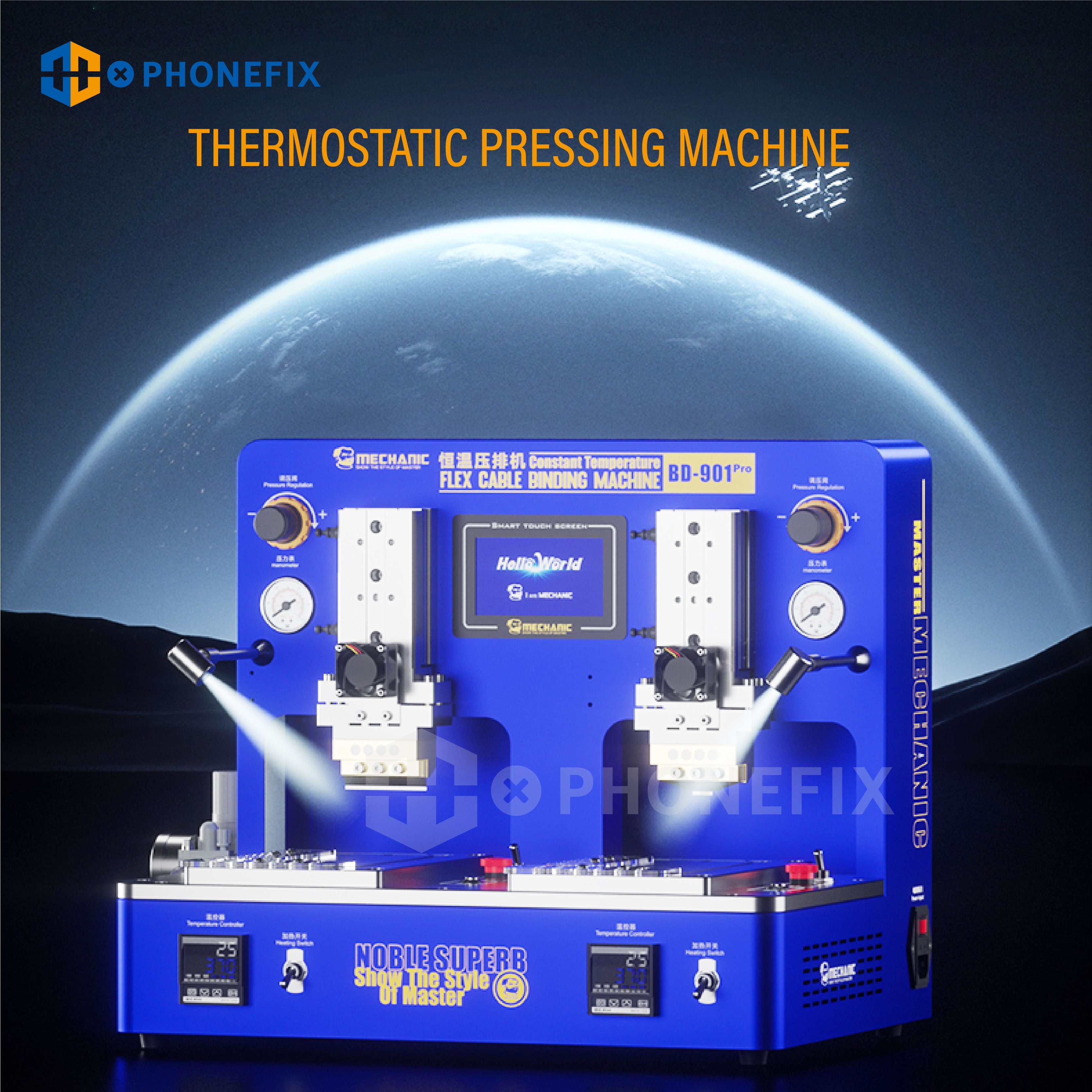

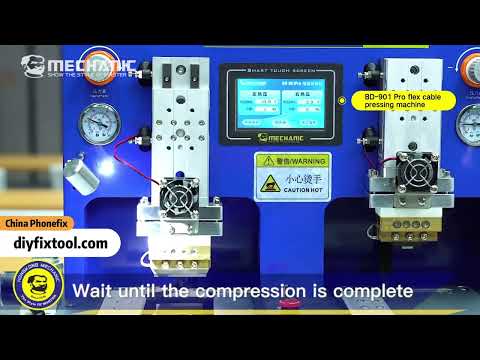

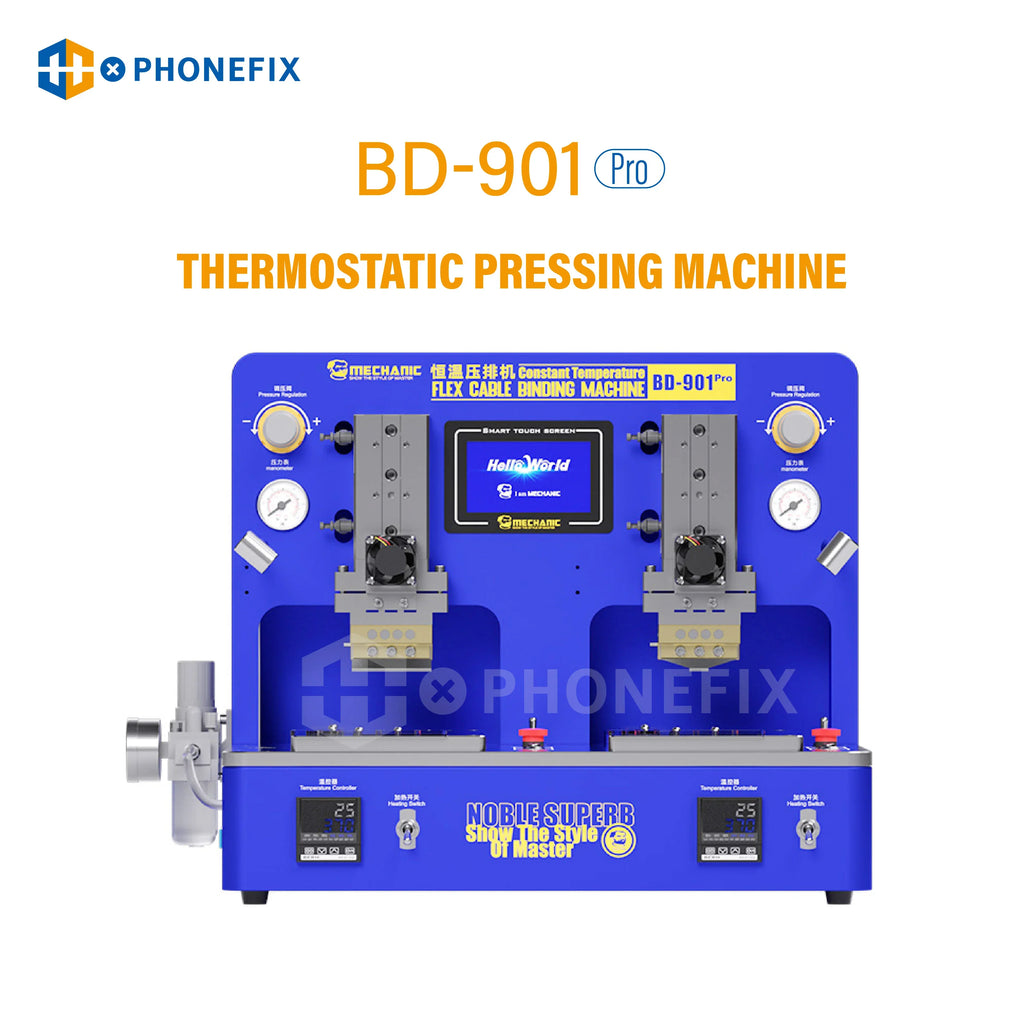

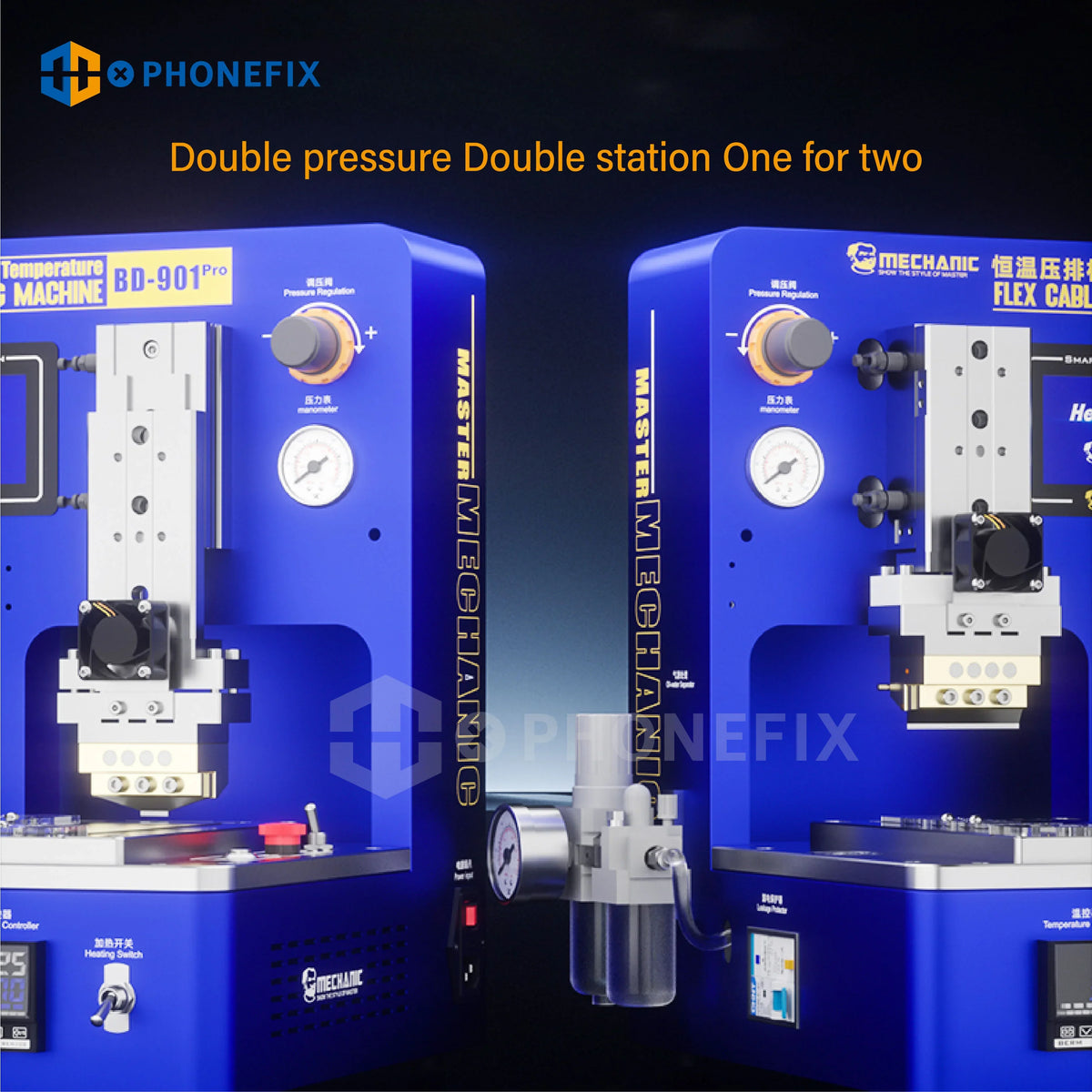

Mechanic BD-901 Pro double station pressing cable bonding machine features:
1. Double station high efficiency, wires pressing is steady, keep the cutter head balanced.

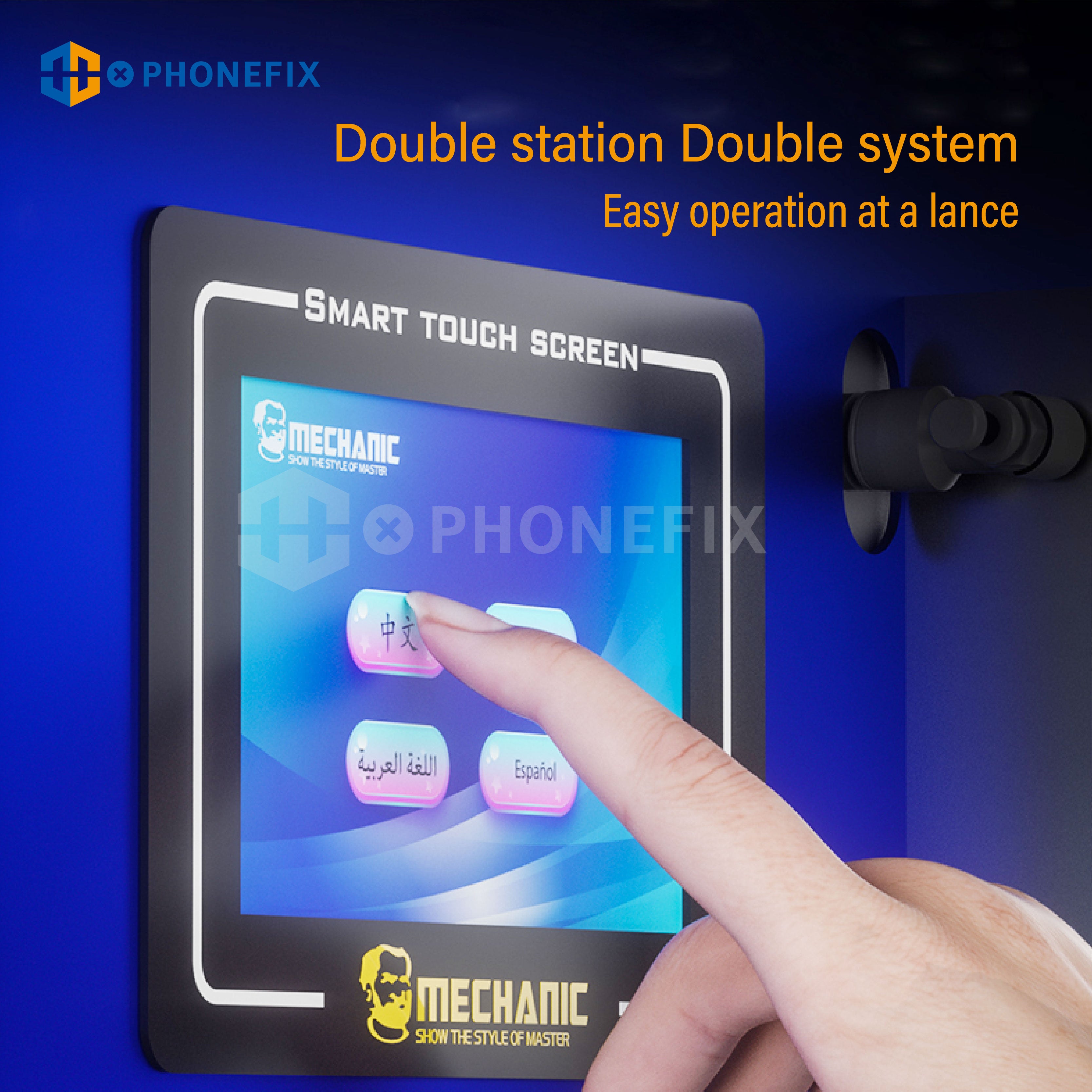

2. Double station and double system, easy operation at a glance.
3. 4.3 inch smart touch panel design can switch automatic, manual mode more intuitive operation and comfortable use experience.
4. The unique design enables simultaneous operation of two stations .
5. Production efficiency is doubled and one machine can be used by two and one machine can be used by two.
Mechanic BD-901 series Flex Cable Pressing Bonding Machine Features:

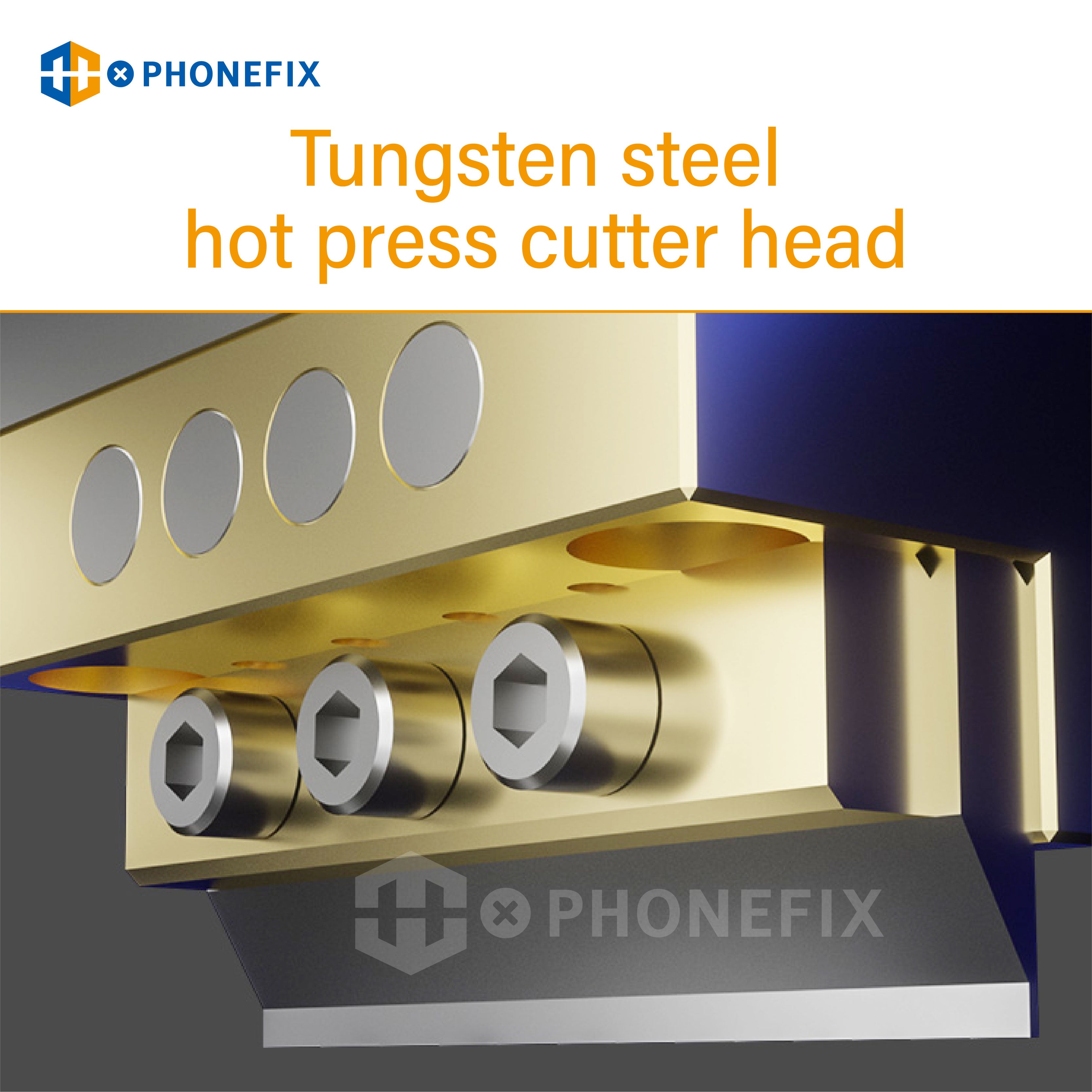

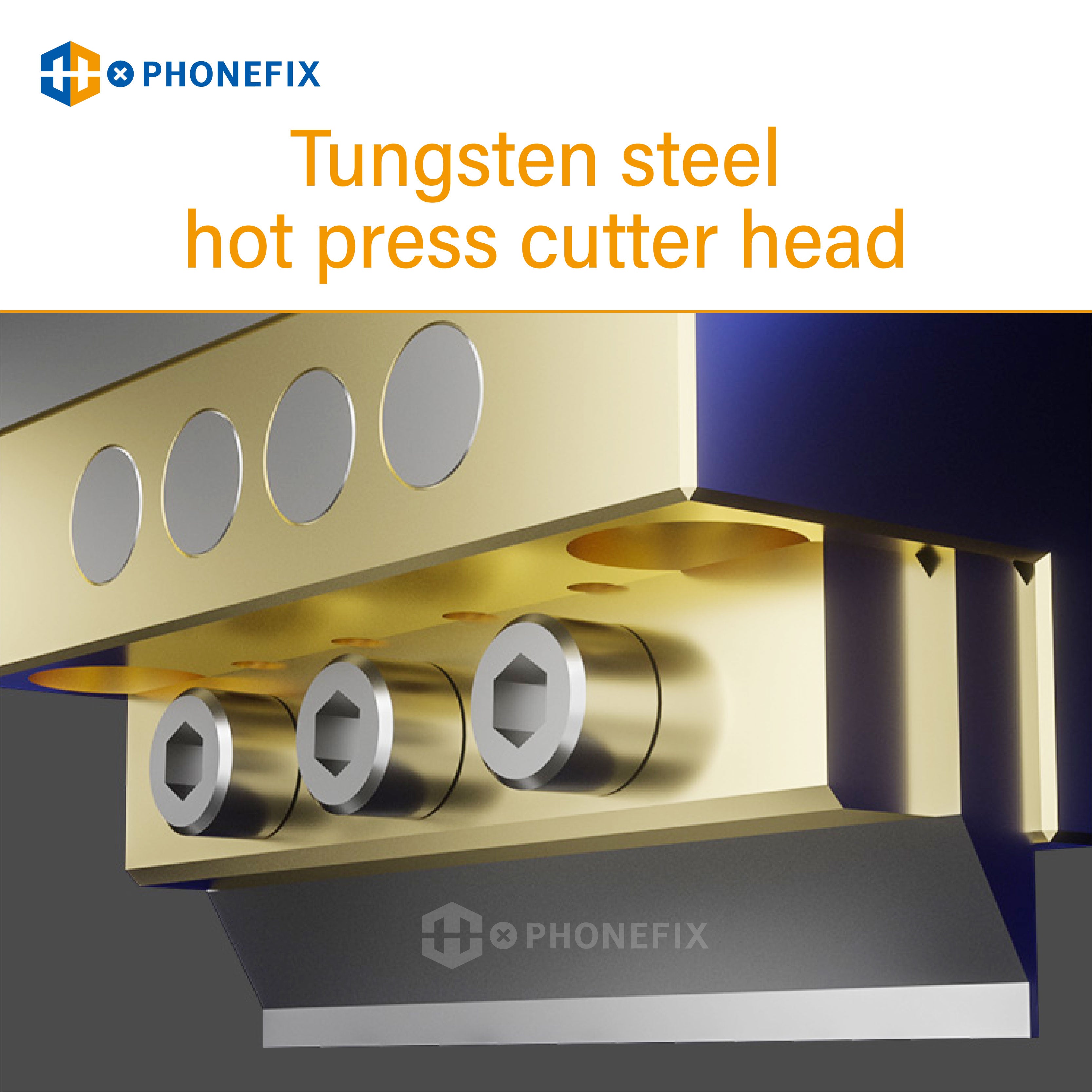

1. Tungsten steel hot press cutter heads have Universal black wire indenter and Universal touch indenter.
2. Use high-tech aviation materials faster heat conduction, more uniform heating, more stable hot pressing.

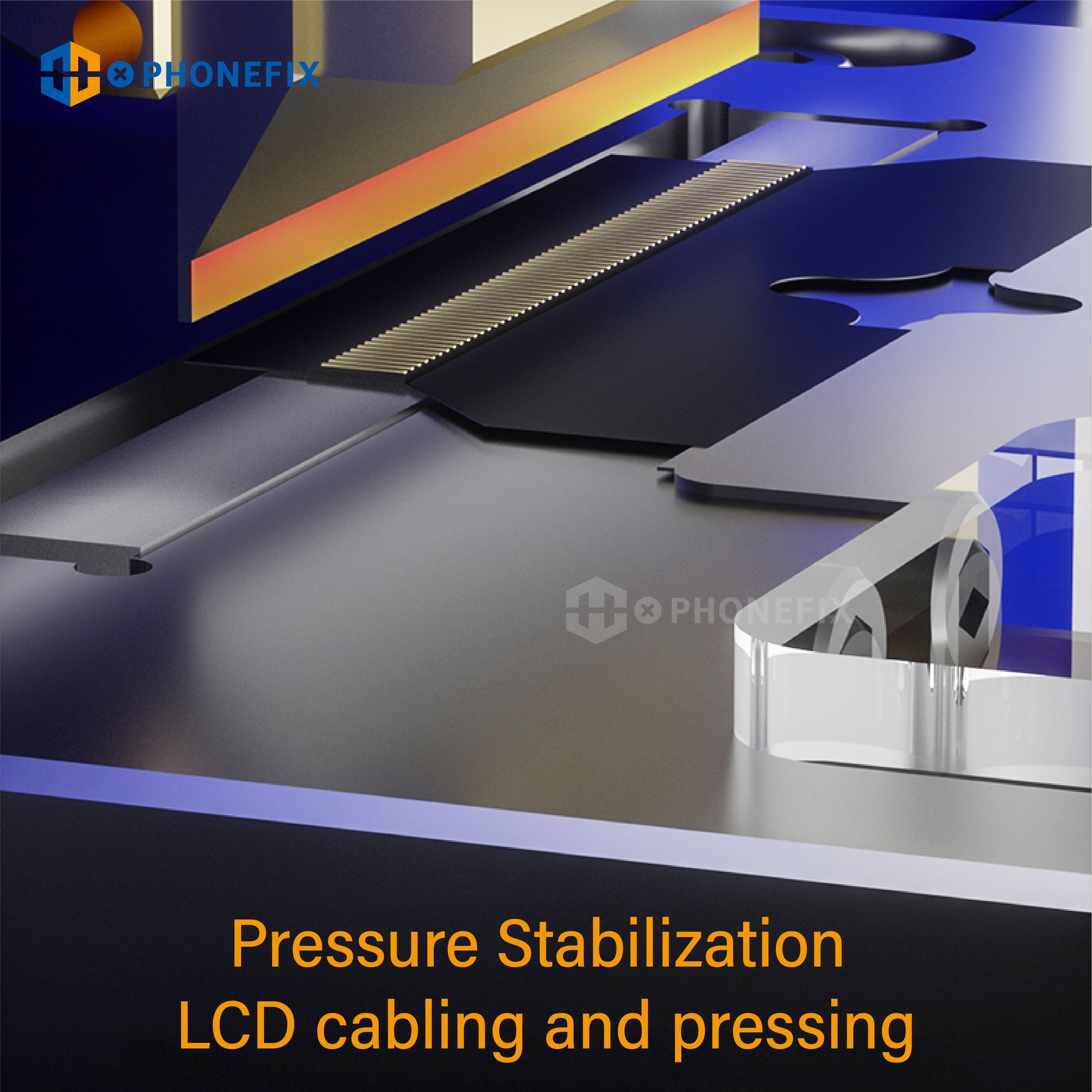

3. Pressure Stabilization LCD cabling and pressing used for 7-inch mobile phone LCD large black row mobile phone, watch, camera etc.
4. It can automatically and manually fine-tune the cutter head up and down, using advanced automation technology to retain the traditional manual fine-tuning method and emergency stop button.
Mechanic BD-901 Parameters:
Name: Thermostatic pressing machine (single station).
Model: BD-901.
Wooden box size: 330*440*540mm.
Voltage: AC110v-220v.
Net Weight: 13kg.
Gross Weight: 19kg.
Temp: 0-380° ±0.5.
Power: 300W.
Air Pressure: 0.1-0.8MPA (range adjustable).
Mechanic BD-901 Pro Parameters:
Name: Thermostatic pressing machine (double station).
Model: BD-901Pro.
Wooden box size: 570*460*540mm.
Voltage: AC110v-220v.
Net Weight: 23.4kg.
Gross Weight: 29kg.
Temp: 0-380° ±0.5.
Power: 600W.
Air Pressure: 0.1-0.8MPA (range adjustable).
