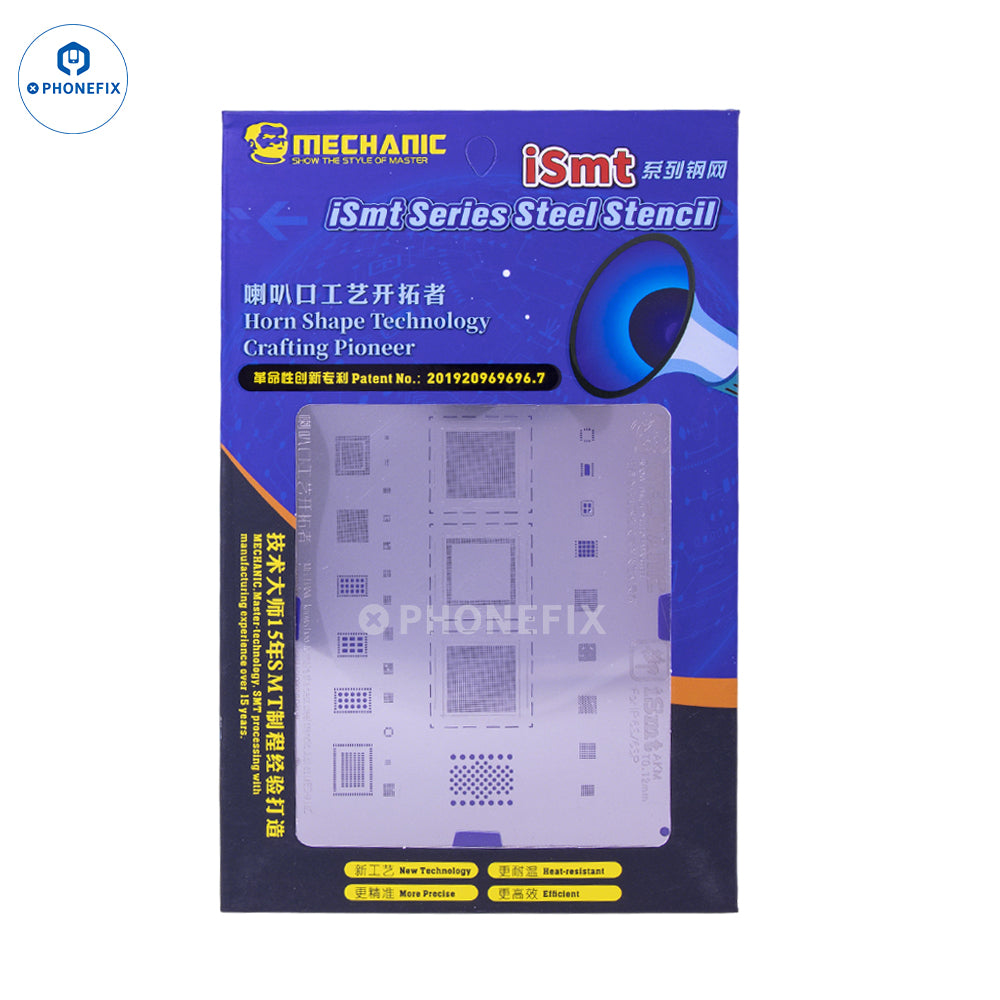

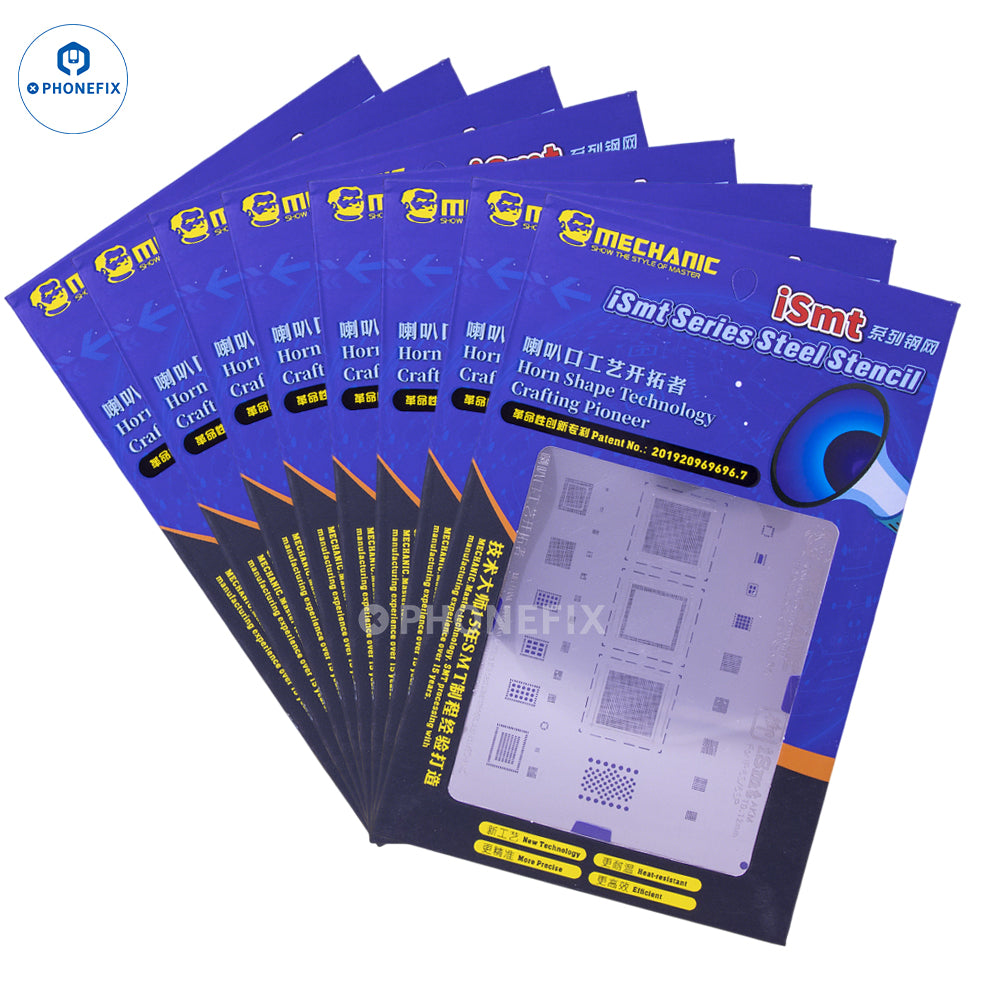

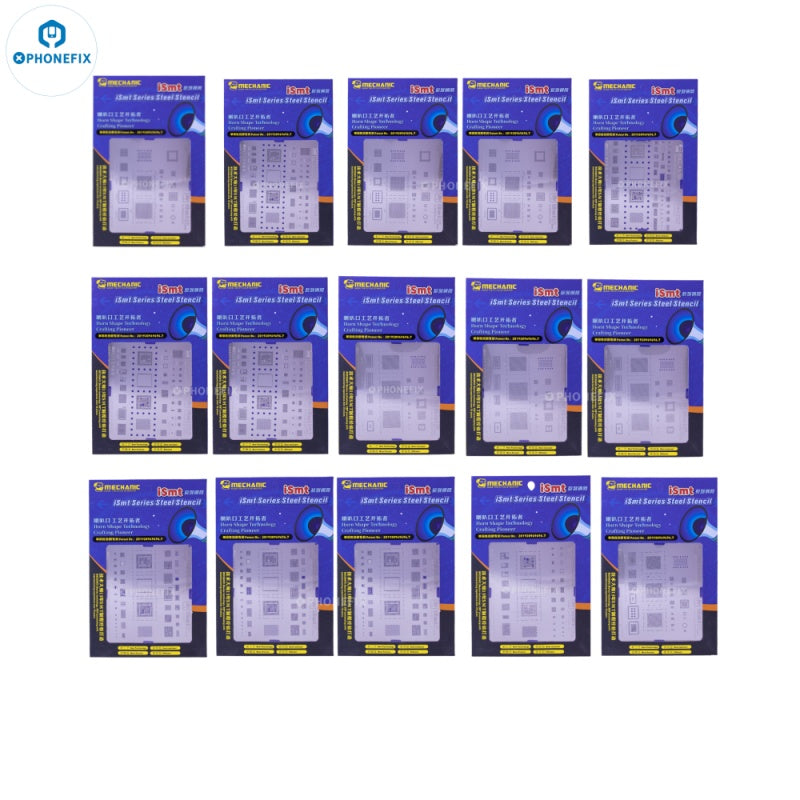

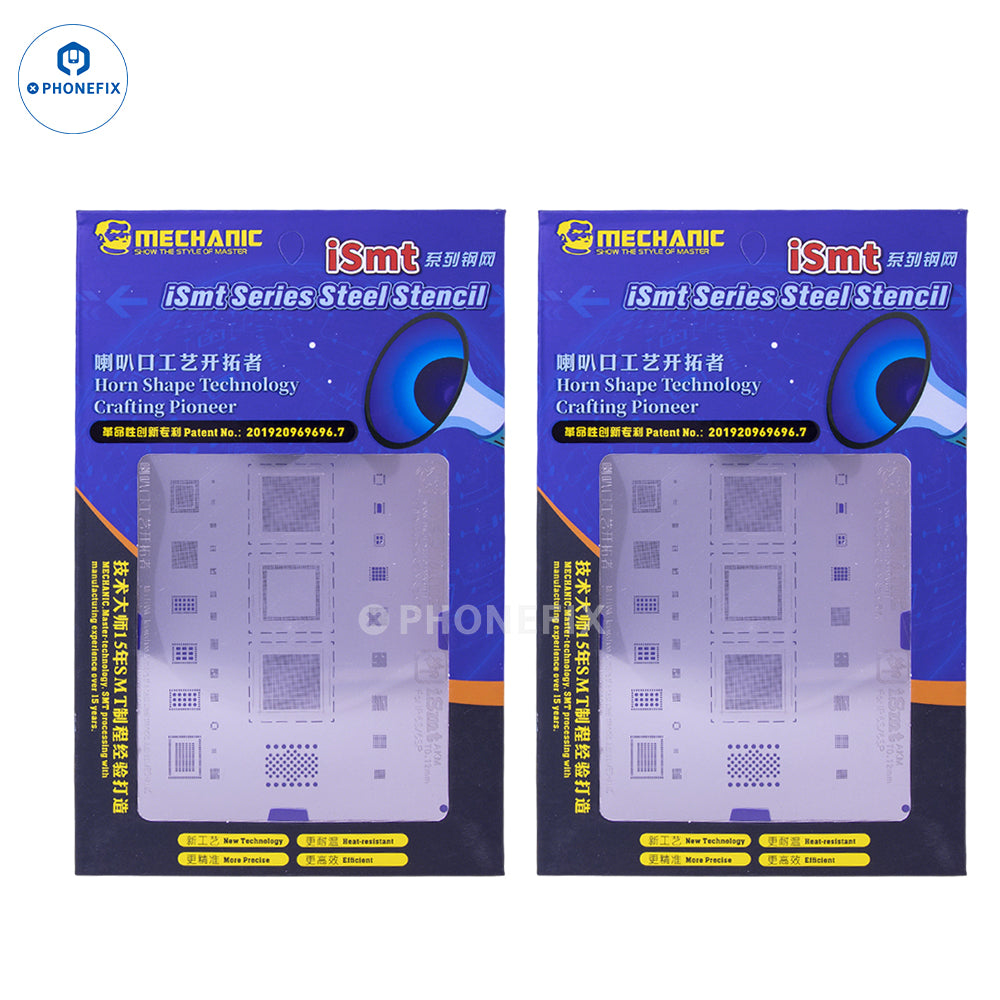

PHONEFIX Sample/Gift: MECHANIC Multi-Specification BGA Reballing Stencil features an open-slot design that significantly enhances operational convenience and efficiency. Its embedded structure perfectly replicates the original factory layout, helping to resolve the "pop-up" notification issues that often arise after screen replacements. This stencil is suitable for use with Apple and Android series devices—including tablets—for screen replacement, solder ball reballing, and general repair tasks.
Features:
1. Open-Slot Design: Simplifies operations, boosts soldering efficiency, and ensures precise alignment.
2. Safe Grinding Function: Effectively protects flex cables from damage, minimizing the risk of accidents during the repair process.
3. IC Reballing Function: Optimizes the soldering workflow and ensures high-quality solder joints.
4. Embedded Design: Perfectly replicates the original factory structure, guaranteeing the quality and precision of device repairs.
5. Wide Compatibility: Suitable for BGA soldering and repair tasks on a broad range of Apple and Android series mobile phones and tablets.
Applicable Models:
4D-X: 4D Anti-Solder-Leak Reballing Stencil
4D-XSM: 4D Anti-Solder-Leak Reballing Stencil
iMove Xiao 01: 6G/6P
iMove Xiao 02: 6S/6SP
iMove Xiao 04: 8G/8P/X
iMove Xiao 05: XR/XS/MAX
iMove Xiao 06: 11/Pro/Max
iMove Xiao 07: IP12/Pro/Max/mini - A4
iTin Wu 01: A7
iTin Wu 02: A8
iTin Wu 03: A9
iTin Wu 04: A10
iTin Wu 05: A11
iTin Wu 06: A12
iTin Wu 07: 5G/5S
iTin Wu 08: 6G/6P
iTin Wu 09: 6S/6SP
iTin Wu 10: 7G/7P
iTin Wu 11: 8G/8P/X
iTin Wu 12: XR/XS/MAX
iTin Wu 13: 5G/5S
iTin Wu 14: 6G/6P
iTin Wu 15: 6S/6SP
iTin Wu 16: 7G/7P
iTin Wu 166: IP 12 Mini
iTin Wu 167: IP 12 Pro Max
iTin Wu 168: iPhone 13 mini
iTin Wu 17: 8G/8P/X
iTin Wu 18: XR/XS/MAX
iTin Wu 21: IP 11
iTin Wu 22: 11 Pro/Max
iTin Wu 25: IP X
iTin Wu 26: XS/XS Max
iTin Wu 280: Xiaomi 10U Mid-layer
iTin Wu 281: Mate 40 RS Porsche
iTin Wu 41: 0.4x27x27 Staggered Mesh
iTin Wu 42: 0.4x34x34 Parallel Mesh
iTin Wu 43: 0.5x32x32 Parallel Mesh
iTin Wu 44: 0.8x28x28 Parallel Mesh
iTin Wu 45: 0.8x32x32 Parallel Mesh
iTin Wu 46: 0.8x33x33 Parallel Mesh
iTin Wu 47: 0.8x37x37 Parallel Mesh
iTin Wu 57: [AEC2 5C]
iTin Wu 58: Xiaomi 9 Pro
iTin Wu 59: [S20 G98B/985F]
iTin Wu 60: [S20 G98B/985F 02]
iTin Wu 61: [Ace2 5G 2]
iTin Wu 62: Huawei [P40 Pro]
iTin Wu 63: [S1+SM-G996U/0/D/W]
iTin Wu 64: [S20 G9888/BR Middle Layer]
iTin Wu 65: [Xiaomi 11 Ultra Middle Layer]
iTin Wu 66: [Mate40 RS Porsche Middle Layer]
iTin Wu 67: [Note10]
iTin Wu 68: [S20 C980/981B】
S24: 0.08MM-XS/XM/XR
S24: 0.08MM-IPX
S24: 0.08MM-8G/8P
S24: 0.10MM-8G/8P
S24: 0.10MM-IPX
S24-01: 0.12MM-5G/5S
S24-03:0.12MM-6S/6SP
S24-07:0.12MM-11/Pro/Max
S24-21: for MAXIM Series power supply IC.
S24-22: for MT6757V/SDM845 B/MT6771V/SDM660/MT66763V/SDM854 A/MT6739V/SDM710.
S24-23: for MTK Series CPU Steel Stencil.
S24-24: for MSM8992/8974 CPU Universal/LG G2/G3/G4 Series H790/V10/H968/VS986/LS990.
S24-25: for MSM8996 CPU/LG G5/G6 /VS995/H850/V20 /H868/G6+/Q8v.
S24-26: for MSM8998 CPU LG/V30/V30P/V30S/V30S+/H930DS.
S24-27: for MT6755V/6750V R9/A59/A37/Y67/noblue 3/3S/5/6.
S24-28: for MT6771/6763/SDM660 CPU/OPPO A3/A1/A73/A79/A83 /R11/R15, VIVO X20/X20i/Y75.
S24-29: for CPU-OPPO/VIVO/MSM8916/8939/8940.
S24-30: For Qualcomm PM / MTK MT Power Supply.
S24-32: for Exynos8890/MSM8996 CPU/S7/G9300/G9350 /G9308/G930F.
S24-33: for Exynos7420 CPU/S6/S6+/NOTE5:G9200/G9250/N9200.
S24-34: for Exynos3470/7580/7880 CPU/A520/A310/S5 MINI/A7/ A5/A3/S5/J7.
S24-35: for MSM8976 CPU/A9/C9/A9000/A9100/A9000.
S24-36: for MSM8916/for MSM8953/B01-AB CPU/C7071/J610/C7/ J3/J5/A5.
S24-37: for Snapdragon 845/Exynos9810 CPU/S9/S9+.
S24-38: for Qualcomm APQ80784 CPU/BGA529/EMCP Sam Galaxy Note4.
S24-39: for Exynos7570/3475, SC9830 A/7730S/ CPU: Sam J1/J2/J3/J4 /Samsung100H/J2/J320F.G570M.
S24-40: for Exynos9820/Qualcomm 855/SM850/SAMS10/S10+/ NOTE10,G9730/G975/G977/N975.
S24-41: for Exynos7904/Qualcomm710/SDM710/J720/A305/ G8870/G887/A40S/A8S.
S24-42: for Qualcomm PMIC Qualcomm Power Supply 1.
S24-43: for Qualcomm PMIC Qualcomm Power Supply 2.
S24-47: for Samsung Exynos Series CPU 1.
S24-48: for Samsung Exynos Series CPU 2.
S24-49: for HUAWEI HI Series Power Supply.
S24-51: for HUAWEI HI Series CPU 1.
S24-52: for HUAWEI HI Series CPU 2.
S24-54: for Kirin 930/935/HI3630/3635 CPU/HUAWEI P8/MATE7/ MTS/HONOR 7/X2.
S24-57: for HI6220/250/MSM8952 CPU/HUAWEI P8/P9/NOVA/ Double 4G vision/Honor 4X/4C/5C/5A.
S24-58: for Kirin 910T/HI620 CPU/HUAWEI 07.
S24-59: for HI Kirin 960/HI3660 CPU/HUAWEI P10/10P, Mate9/9Pro, NOVA2S,HONNOR 9/V9.
S24-60: for Kirin 970/HI3670 CPU/HUAWEI P20/20Pro,Mate10/10Pro/RS/HONOR 100/10V.
S24-61: for Kirin 980/HI3680 CPU/HUAWEI/Mate20/20X/20Pro/20RS /HONOR20/MateX/Magic2.
S24-62: for MSM8998 CPU/MIAOMI 6 MIX2.
S24-63: for MSM8974/8274/8674 CPU/MIAOMI 4/MI3/3S/NOTE.
S24-64: for MSM8916/8928/MT6592 CPU/REDMI NOTE/REDMI 2/2A.
S24-65: for MSM8956/MT6795 CPU/REDMI NOTE2/3/MIAOMI MAX.
S24-66: for MSM8953/MT6797 CPUV/REDMI NOTE4/4X/ REDMIPro.
S24-67: for Qualcomm 636/60 CPU, REDMI NOTE5/5Pro,XIAOMI NOTE3/6X.
S24-68: for MSM8953/8917 CPU/REDMI NOTE4, REDMI 4/4A/5A,REDMI 5Plus/S2/Pro, XIAOMI 5X/MAX2.
S24-69: for MSM8996 CPU/XIOAMI5/5S/5S PLUS/ NOTE2/MIX.
S24-70: for Qualcomm 845/710, SDM845/710 CPU, REDMI NOTE5/5Pro, XIAOMI NOTE3/6X.
S24-71: for MTK MT Series Power Supply.
S24-72: for MTK CPU Series.
S24-73: for MT6595W CPU/ MEIZU MX4.
S24-74: for MT6750V, 6755 CPU MEIZU, Note-3/3S/5/3MAX/E,
NOTE/NOTE3/NOTE5.
S24-75: for MT6735V CPU MEIZU&Note 2CT/NOTECT, NOTE2/5S.
S24-76: for MT6757V CPU, MEIZU Pro7, NoteX.
S24-77: for MT6797V/6795 CPU/MEIZUMX5/MX6/Pro6/NoteMeta1.
S24-78: for Exynos8890 CPU, MEIZU Pro6 plus.
S24-79: for Exynos5430, CPU Universal MX4 Pro.
S24-81: for MSM8976, 8956 CPU, OPPO R9P/R9SP, VIVO X6/X7/X9P/X9S, MI MAX.
S24-82: for SPREADTRUM Series CPU 1.
S24-84: for Qualcomm Series CPU 1.
S24-85: for Qualcomm Series CPU 2.
S24-86: for Qualcomm Series CPU 3.
S24-87: for Qualcomm Series CPU 4.
S24-89: for MTK Series Power Supply.
S24-90: for MF/WIFI/Audio IC Universal steel stencil.
