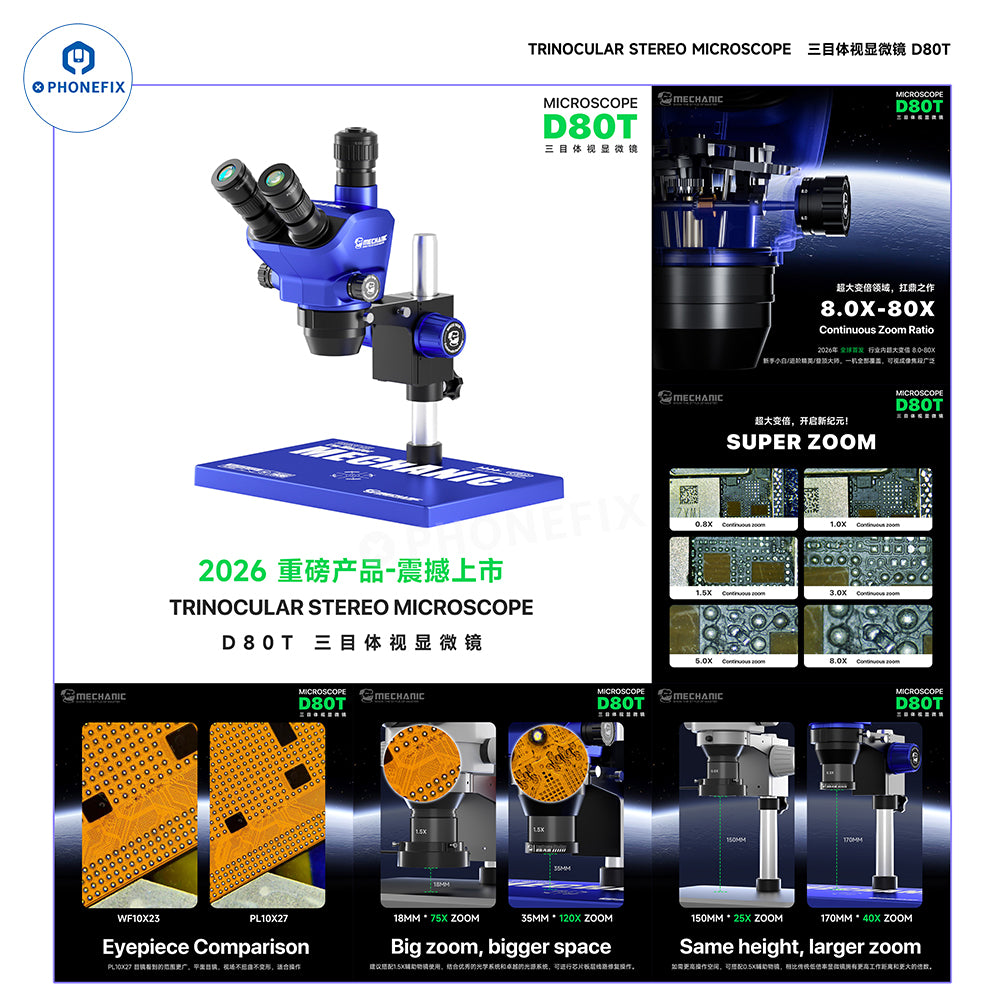

MECHANIC D80T 8.0X-80X Trinocular Stereo Microscope for Mobile Phone Motherboard BGA IC Micro-Soldering Repair and Electronics Repair. Mechanic D80T-B5 360° rotatable high-power trinocular microscope featuring an interpupillary distance range of 55–75 mm, dual-sided diopter adjustment, and adjustable 10X/27 eyepieces. With a working distance of 100 mm, it is ideally suited for precision repair operations on electronic devices and mobile phone motherboards, capable of clearly rendering the intricate details of tiny components and solder joints.
Features:

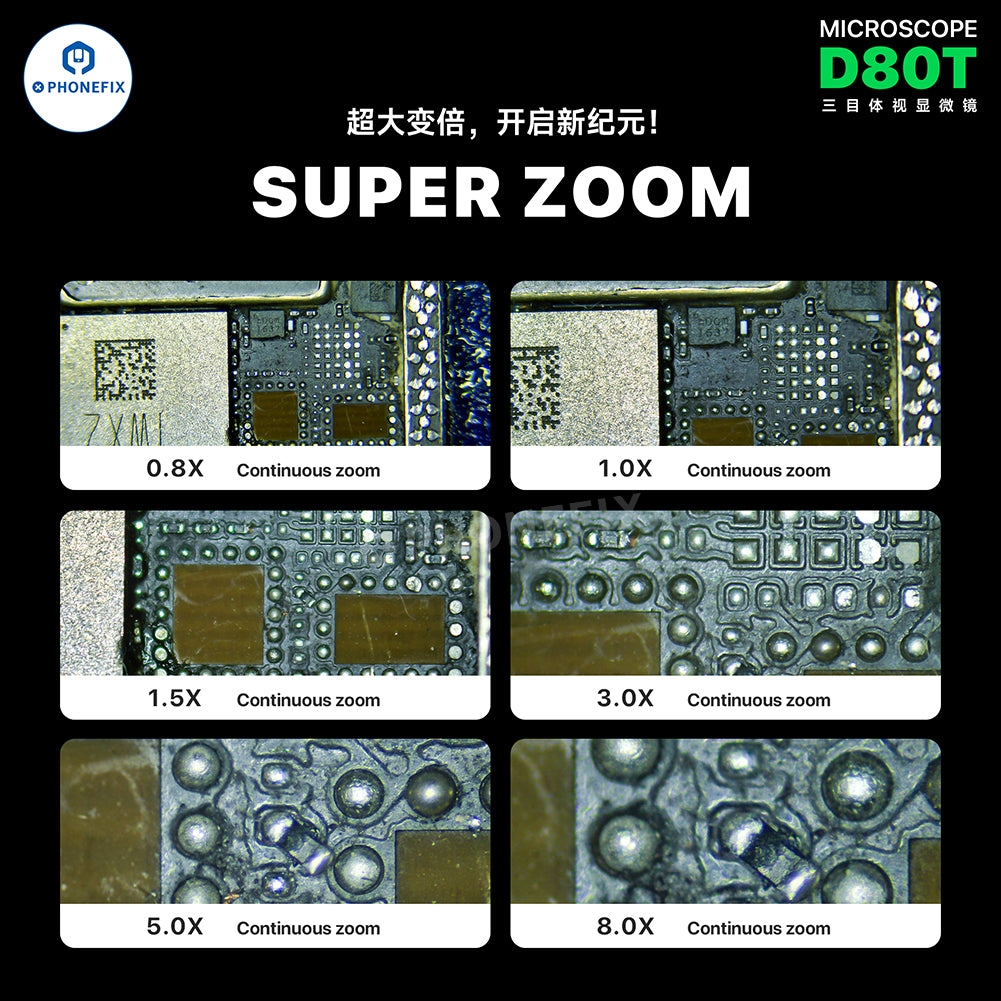

1. Ultra-wide zoom range: Up to 1:10 zoom ratio, supporting continuous zoom from 8.0X to 80X, adapting to different observation needs.
2. Galilean optical system: Provides high resolution, high depth of field, and a wide field of view, ensuring clear imaging details and accurate color reproduction.
3. High-quality optical glass: Combined with special coatings, enhancing optical performance and improving imaging effects.

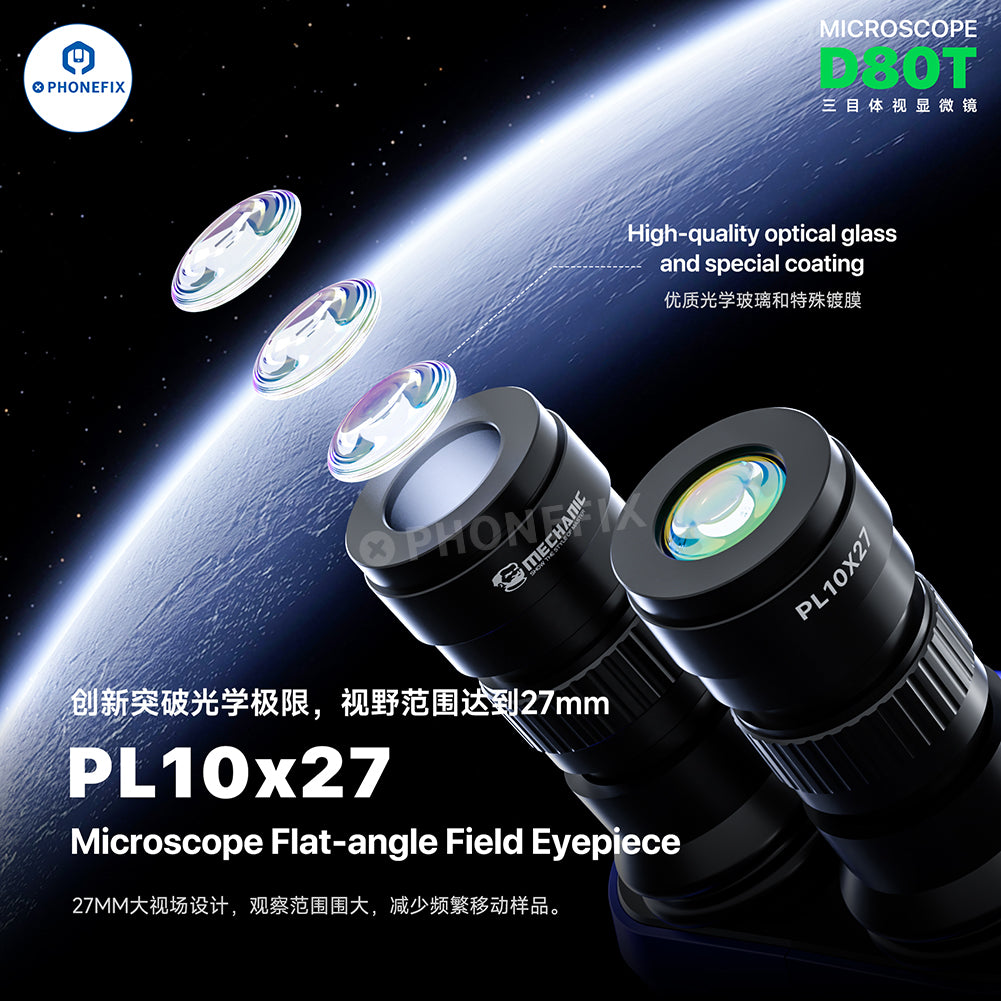

4. Wide Field-of-View Eyepiece: PL 10X27 eyepiece with a 27mm field of view, providing a wider observation range and reducing sample movement frequency.
5. 100mm Extra-Large Working Distance: Provides more space for operation and maintenance, adapting to a wider range of applications.
6. CTV Interface Support: Equipped with a 0.5X electronic eyepiece interface for CTV connection, expanding functionality.

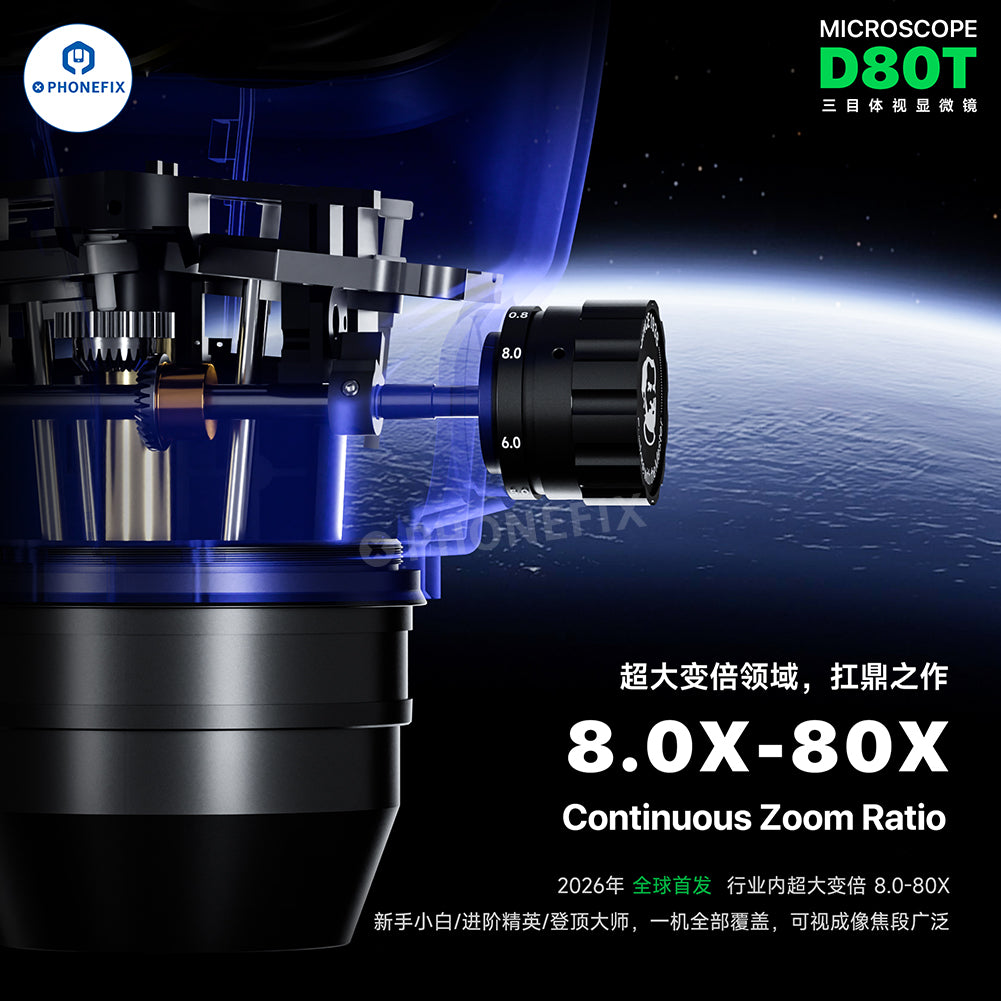

7. Efficient Operation: Supports continuous zoom, with a zoom range of 8.0X-80X covering all application scenarios, ensuring accurate observation of details.
8. When paired with a 0.5X auxiliary lens, it achieves a working distance of 170 mm while maintaining a high-magnification operational field of view of 40X.
9. When paired with a 1.5X auxiliary lens—compared to the 2X auxiliary lenses found on traditional microscopes—it delivers a crushing performance upgrade, boosting magnification by 20% and operational working height by 50%.
10. Compatible with most HD cameras.
Product Specifications:

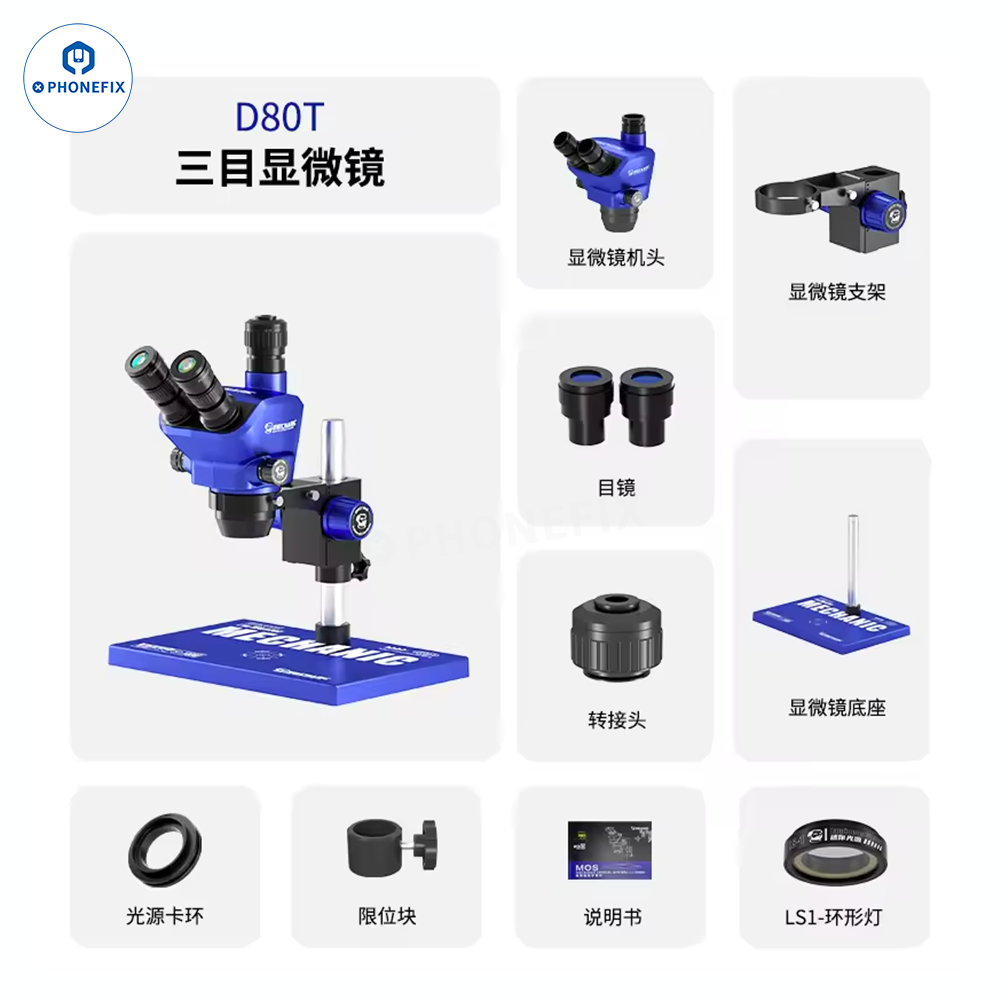

Product Name: Trinocular Stereo Microscope
Product Model: D80T
Packing: 424x328x250mm
Size: 380x250mm
Net Weight: 4.7KG
Gross Weight: 6.6KG
Eyepiece: PL10X27mm wide field of view, flat angle
Magnification: 8.0X-80X
Distance: 100mm
Eyepiece field of view: 35mm(8x)-3.5mm(80x)
Trinocular Interface: Standard 0.5X CTV Adapter
