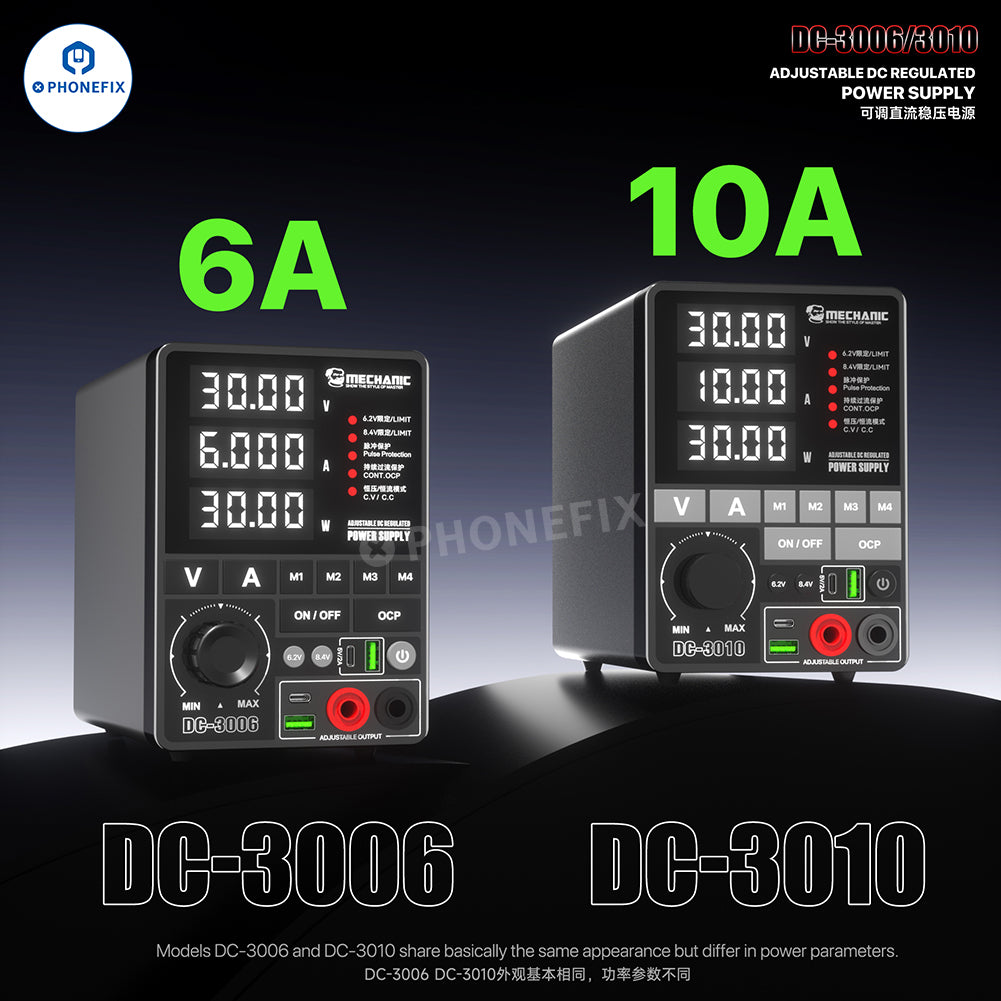

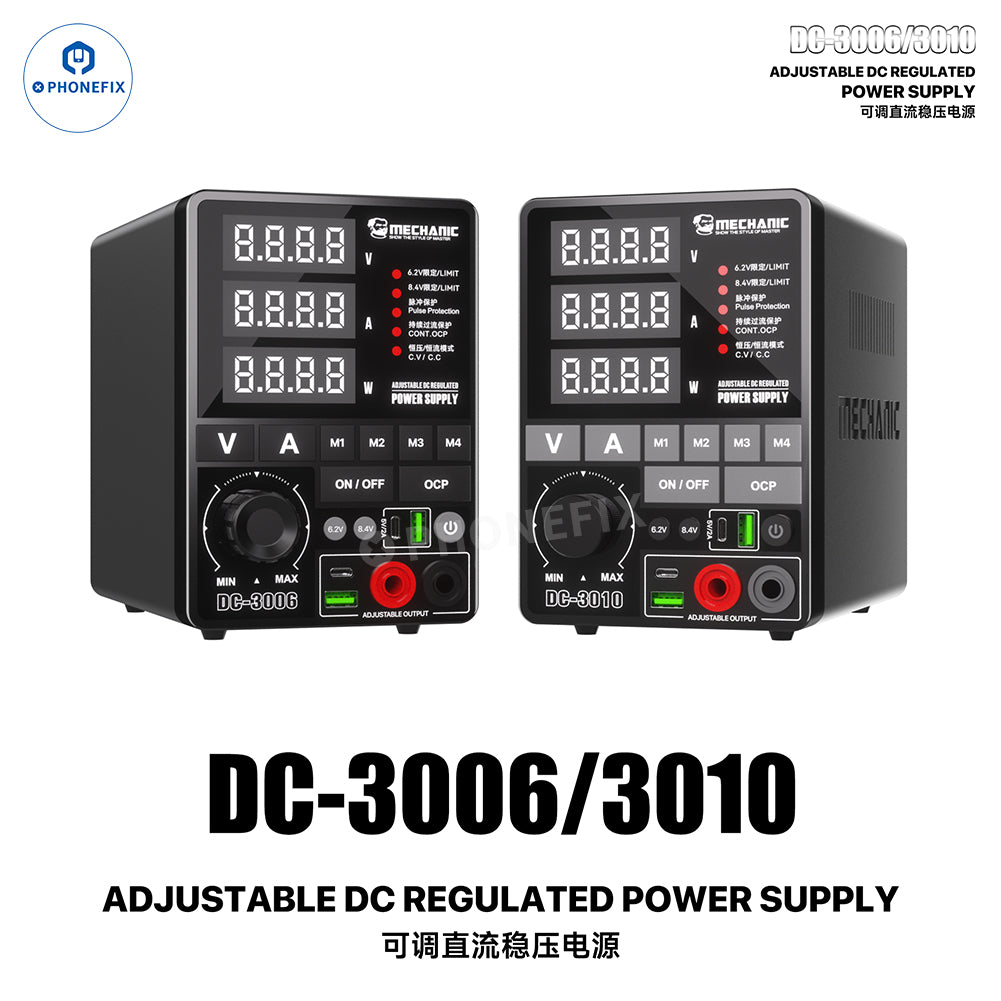

MECHANIC DC-3006 DC-3010 Adjustable DC Regulated Power Supply supports 0–30V adjustable output and available in 6A 10A. 4-digit display, precise adjustment, 5V 2A USB output. Supports constant voltage (CV)/constant current (CC) modes, M1-M4 parameter memory function, one-key 6.2V/8.4V voltage limiting, and multiple safety protections. Suitable for mobile phone motherboard repair and power supply testing.
Option:
1. Mechanic DC-3006: 30V 6A.
2. Mechanic DC-3010: 30V 10A.
Features:

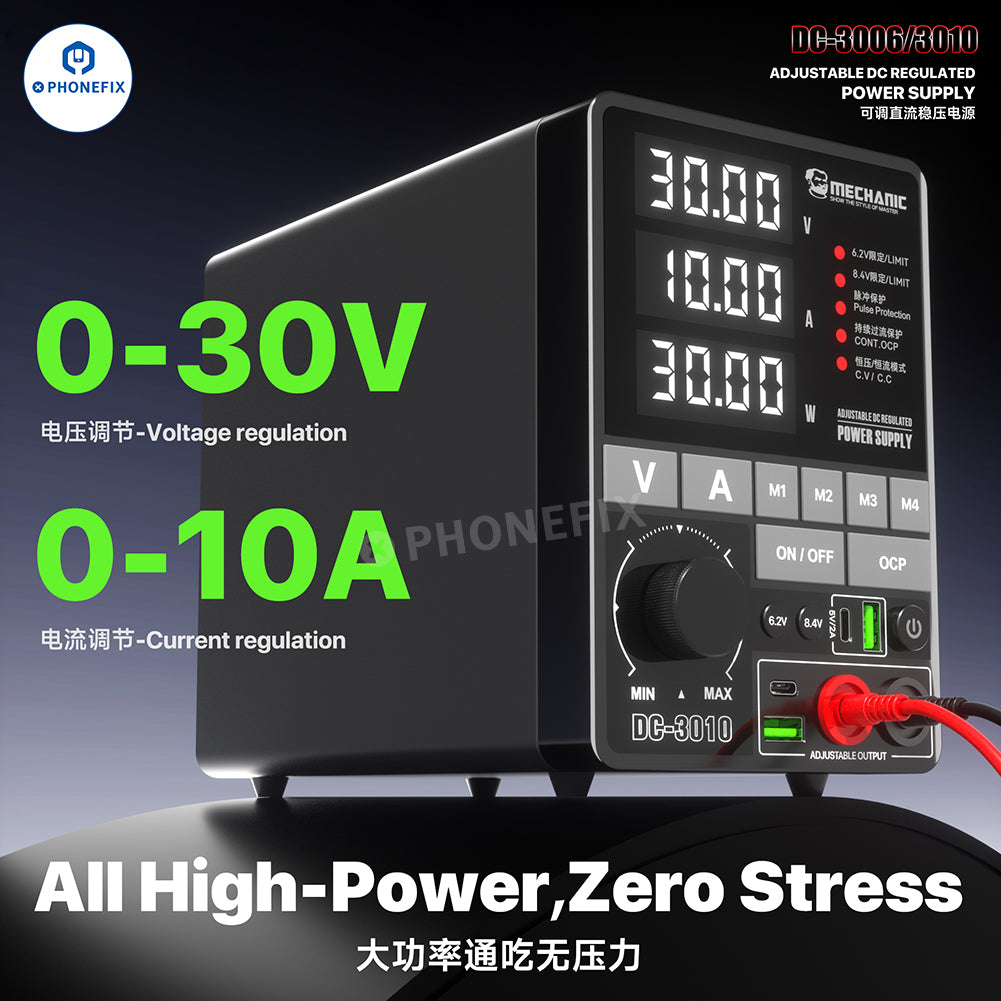

1. Wide range adjustable output (0–30V): Supports precise adjustment of output voltage to meet various application needs such as mobile phone repair, electronic development, and experimental testing.
2. Two current ratings available: The DC-3006 provides 0–6A output, while the DC-3010 provides 0–10A output, easily driving high-power electronic devices.

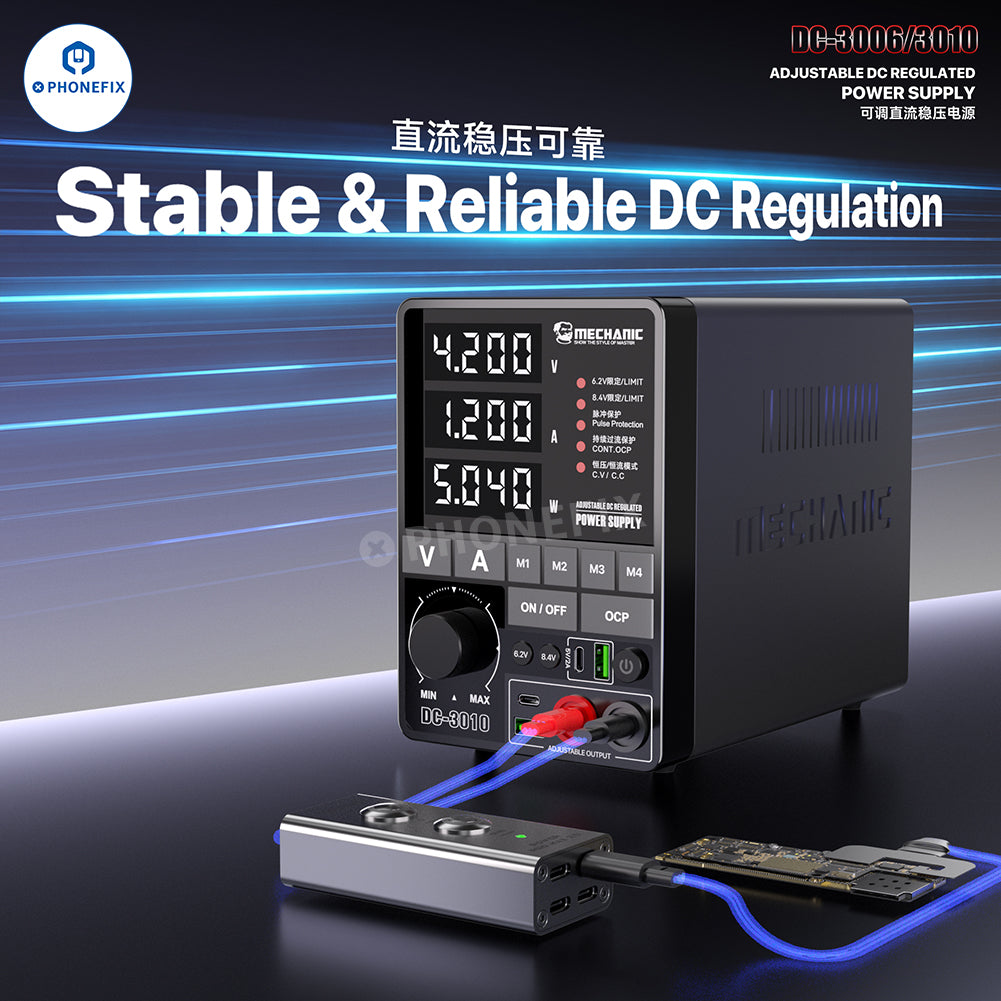

3. Dual operating modes: Automatically switches between CV (Constant Voltage) and CC (Constant Current) modes to ensure stable, safe, and reliable power supply.
4. High-definition digital display: Real-time display of voltage, current, and power parameters for convenient and accurate monitoring of output status.
5. Four parameter memory sets (M1–M4): Supports one-click storage and quick recall of frequently used voltage and current parameters, improving work efficiency.
6. One-click 6.2V/8.4V voltage limit: Built-in quick mode for commonly used maintenance voltages, reducing repetitive adjustment operations.
7. 5V/2A fixed USB output: Equipped with an independent USB power supply interface, providing a stable 5V/2A power supply for USB devices.
8. 0–33V adjustable USB output interface: Supports adjustable USB output, expanding the range of electronic testing applications.
9. Multiple safety protections: Built-in continuous overcurrent protection (CONT.OCP), pulse protection, and constant current protection effectively ensure the safety of the equipment and the product under test.

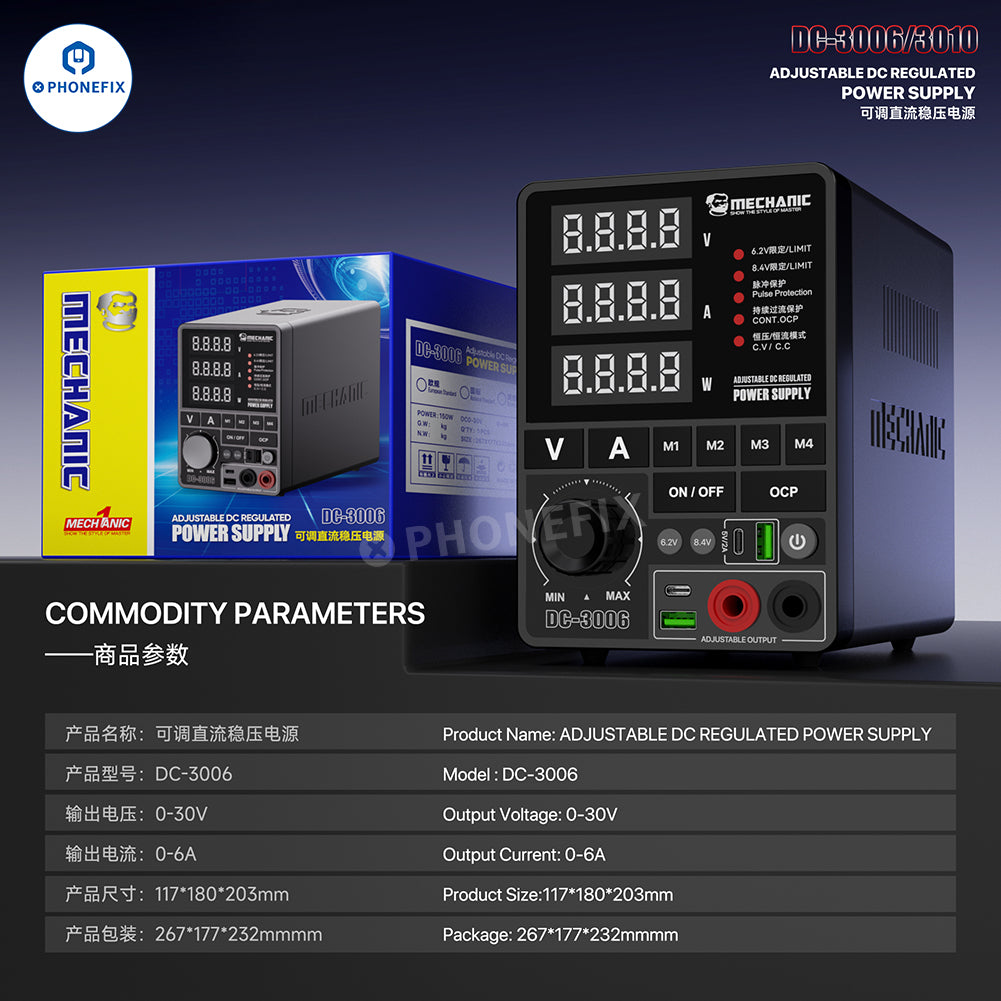

DC-3006 Power Supply Specifications:
Brand: MECHANIC
Product Name: Adjustable DC Regulated Power Supply
Output Voltage: 0–30V
Output Current: 0–6A 0–10A
Operating Mode: Constant Voltage (CV) / Constant Current (CC)
Parameter Memory: M1–M4 (Four memory groups)
Fixed USB Output: 5V/2A
Adjustable USB Output: 0–33V
Voltage Quick Mode: 6.2V/8.4V (One-button limit)
Safety Protection: Continuous Overcurrent Protection, Pulse Protection
Product Dimensions: 117x180x203 mm
Packaging Dimensions: 267x177x232 mm

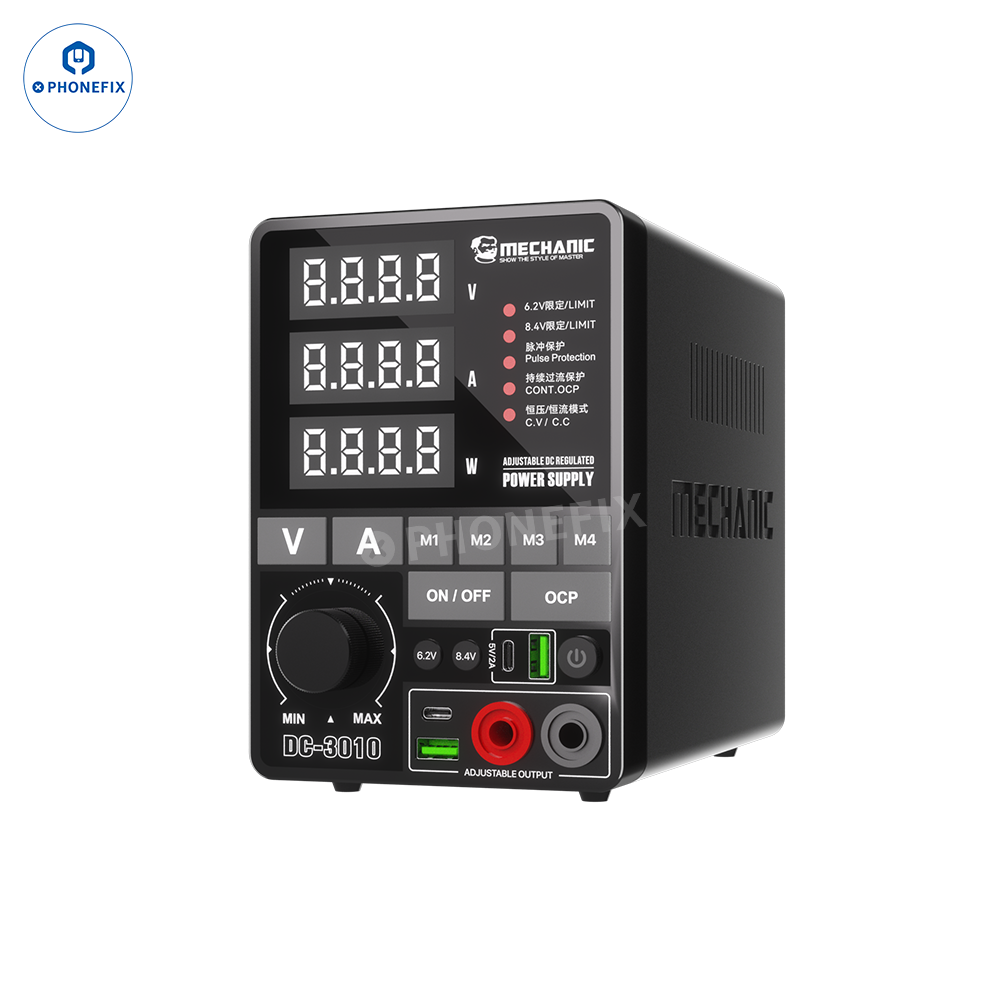

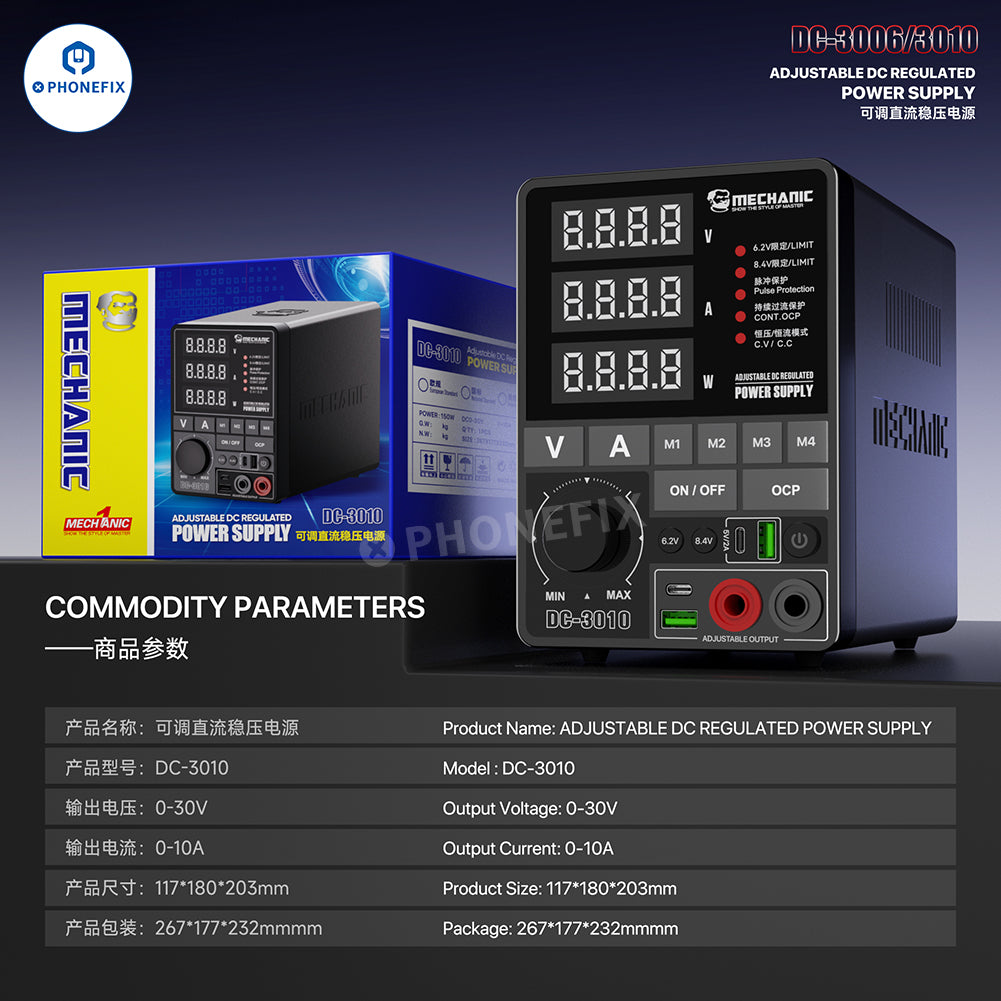

DC-3010 Power Supply Specifications:
Brand: MECHANIC
Product Name: Adjustable DC Regulated Power Supply
Output Voltage: 0–30V
Output Current: 0–10A
Operating Mode: Constant Voltage (CV) / Constant Current (CC)
Parameter Memory: M1–M4 (Four memory groups)
Fixed USB Output: 5V/2A
Adjustable USB Output: 0–33V
Voltage Quick Mode: 6.2V/8.4V (One-key limit)
Safety Protection: Continuous Overcurrent Protection, Pulse Protection
Product Dimensions: 117x180x203 mm
Packaging Dimensions: 267x177x232 mm
