Mechanic GAN-03 Fenix 16-inch LCD Screen Intelligent Laminating Machine and Mechanic GAN-16 Fenix 16-Inch Screen Bubble Removal Machine for Mobile Phone iPad Tablet Curved and Straight Screen Refurbishment Below 16 Inches. Used with an external vacuum pump and air compressor to refurbish and repair most mobile phone LCD screens.

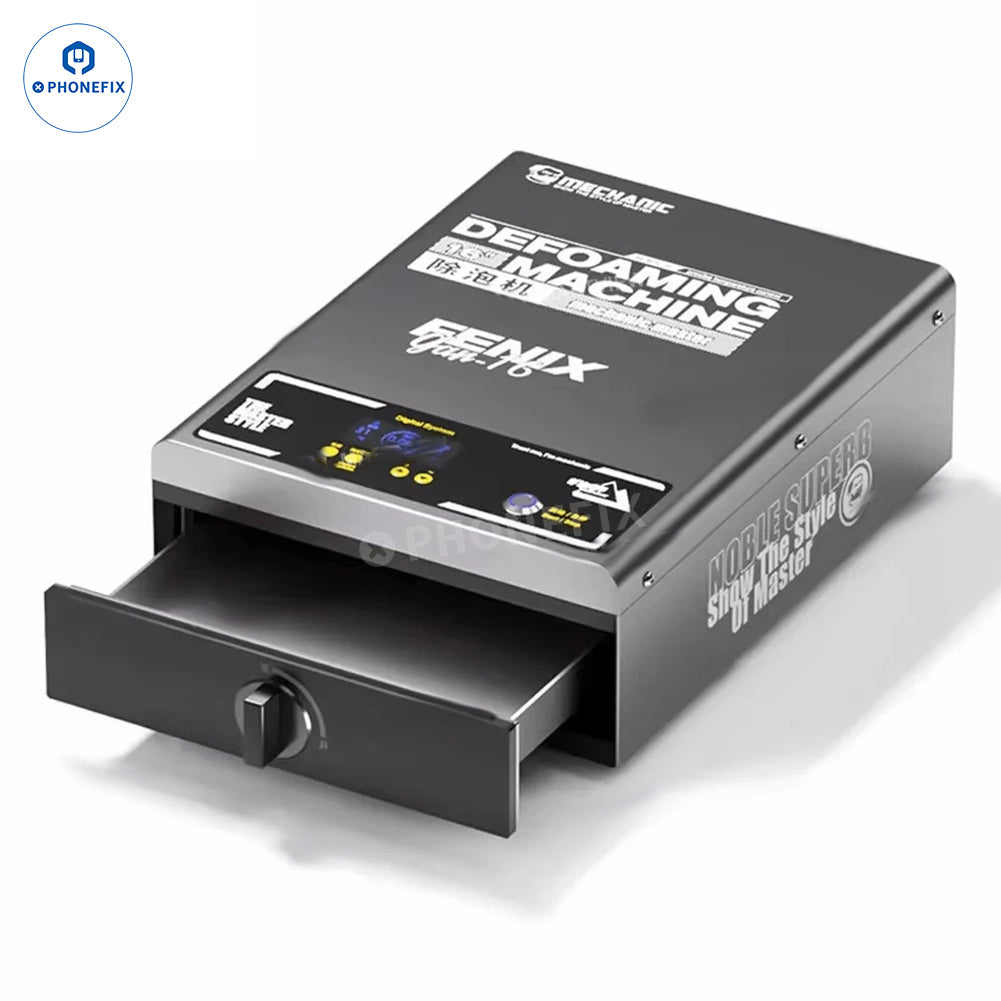

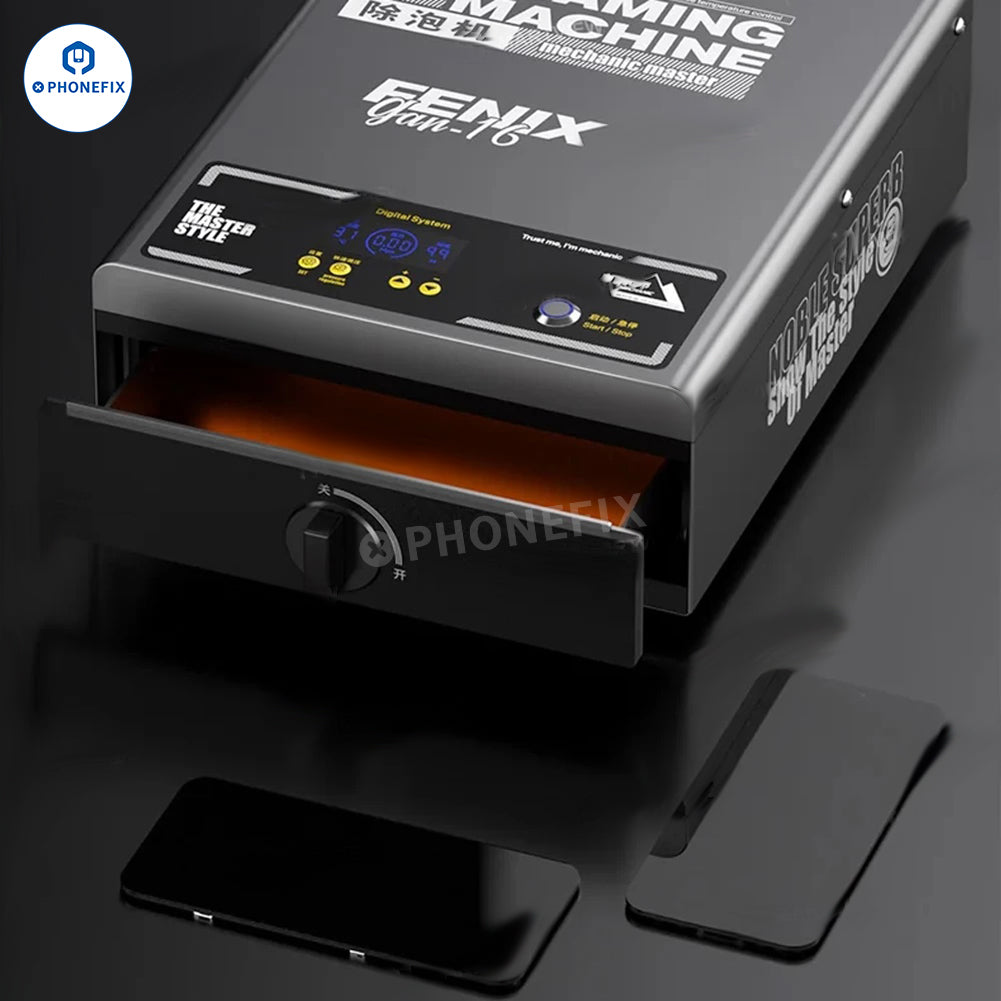

Mechanic GAN-16 Fenix De-bubble Machine Features:
1. Voltage compatibility: It runs on AC 110V/220V voltage and can be used flexibly in different regions.

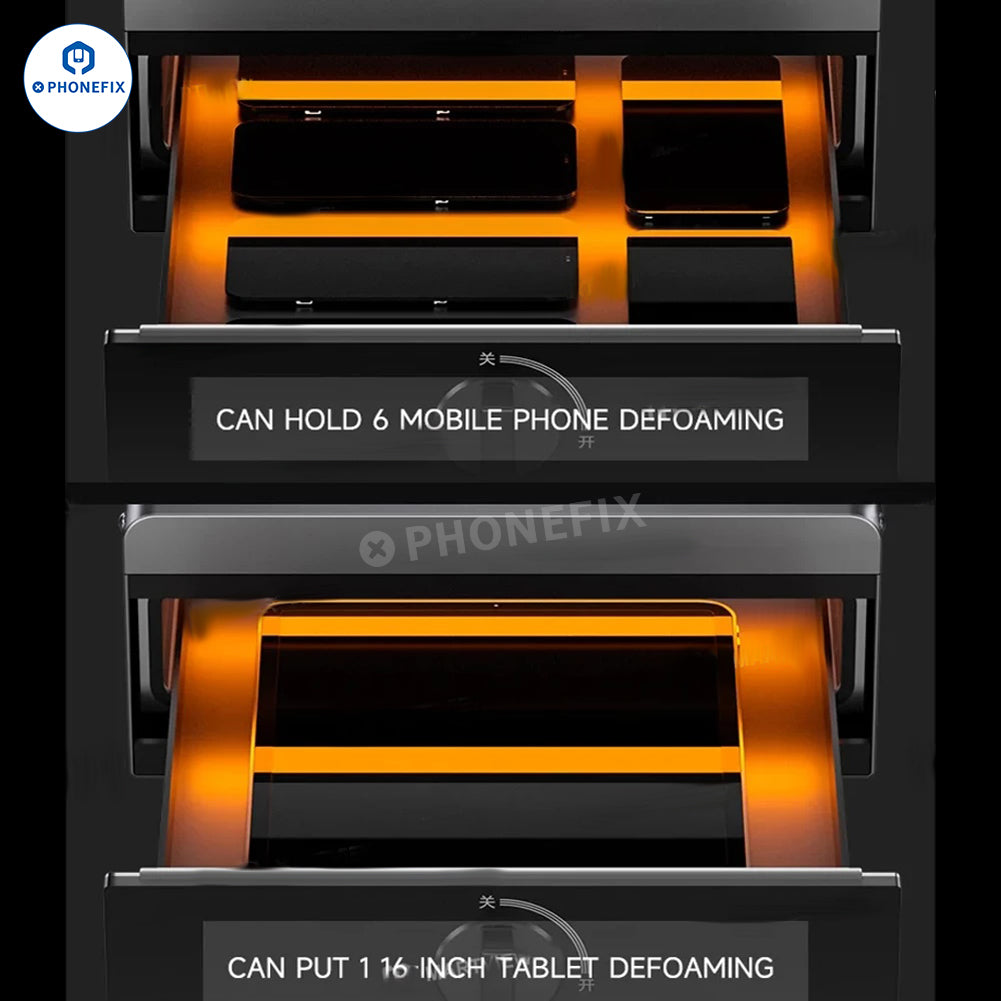

2. It can hold 6 mobile phones for defoaming and 1 16-inch tablet for defoaming

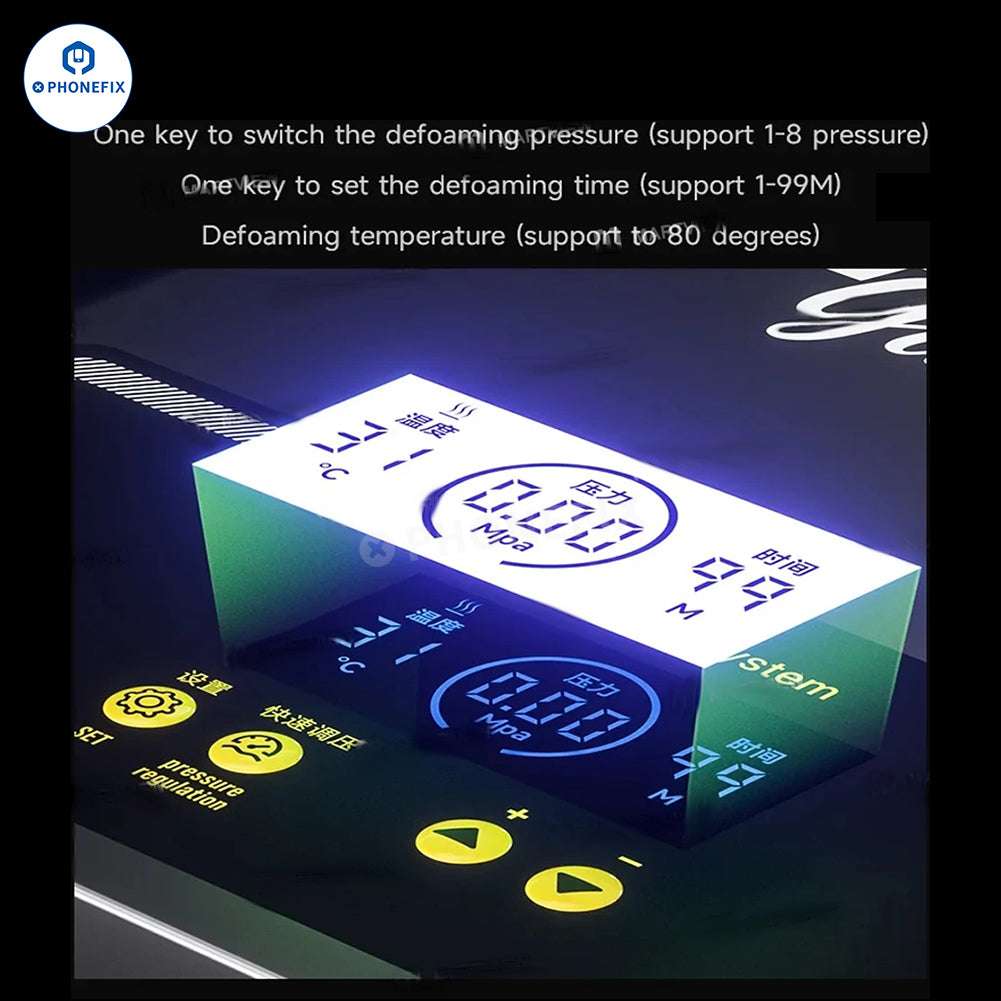

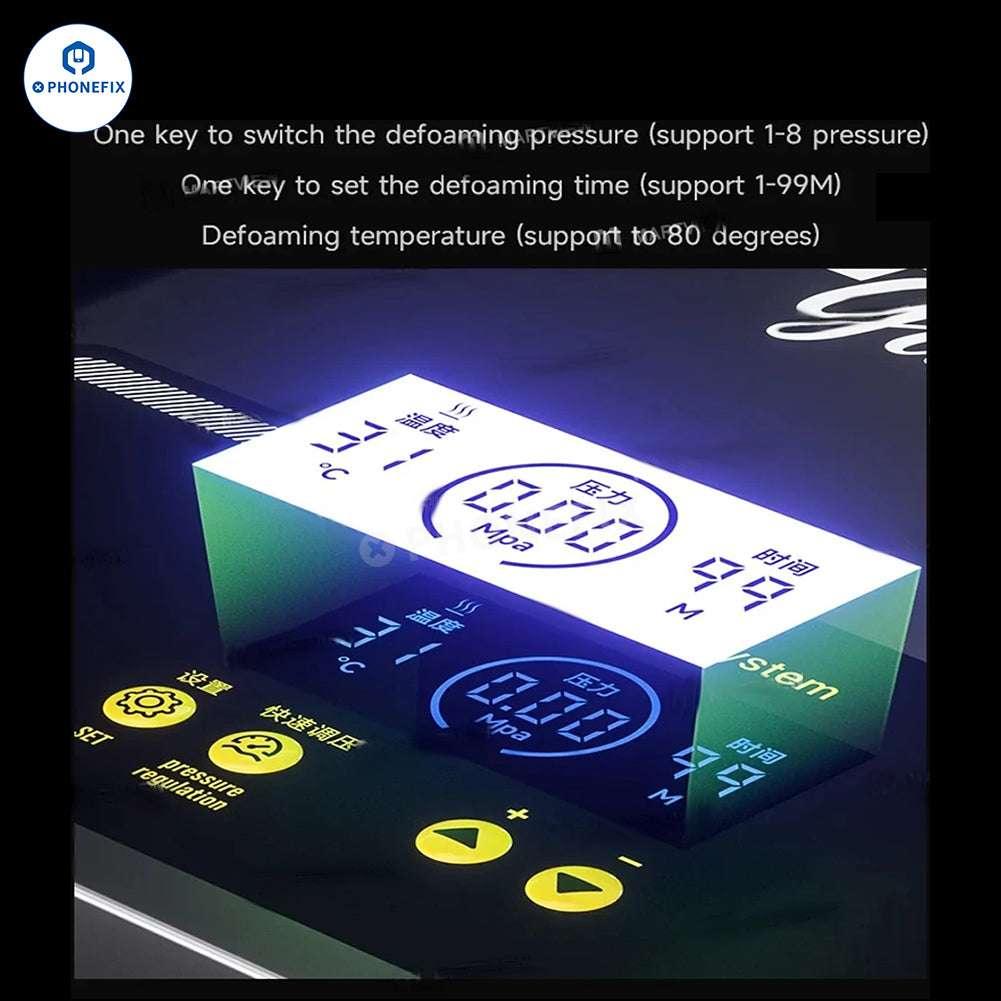

3. Intelligent digital display pressure adjustment: switch defoaming pressure supports 1-8 pressure; set defoaming time supports 1-99Min; defoaming temperature supports up to 80 degrees.

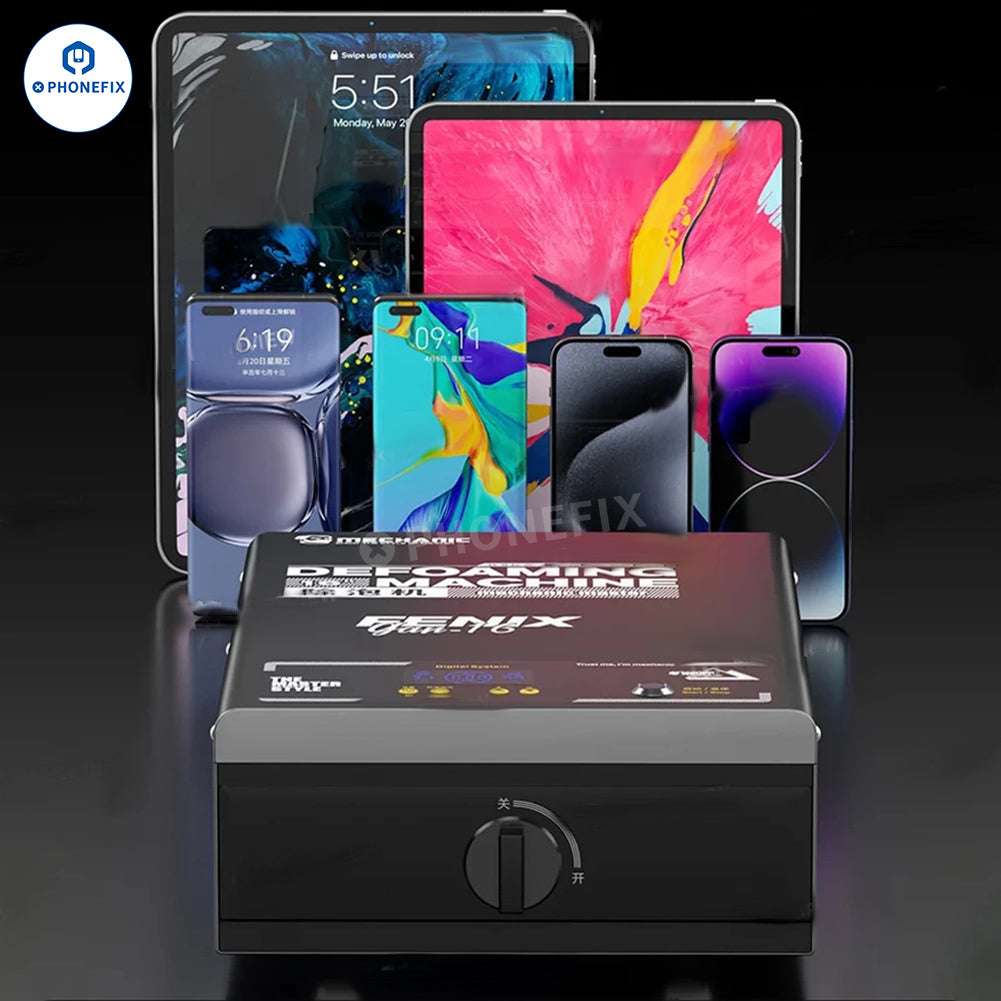

4. Supports defoaming of a range of devices, including curved screens, which are generally more difficult to handle than flat screens.
5. Intelligent touch screen, which can easily operate and monitor the defoaming process.

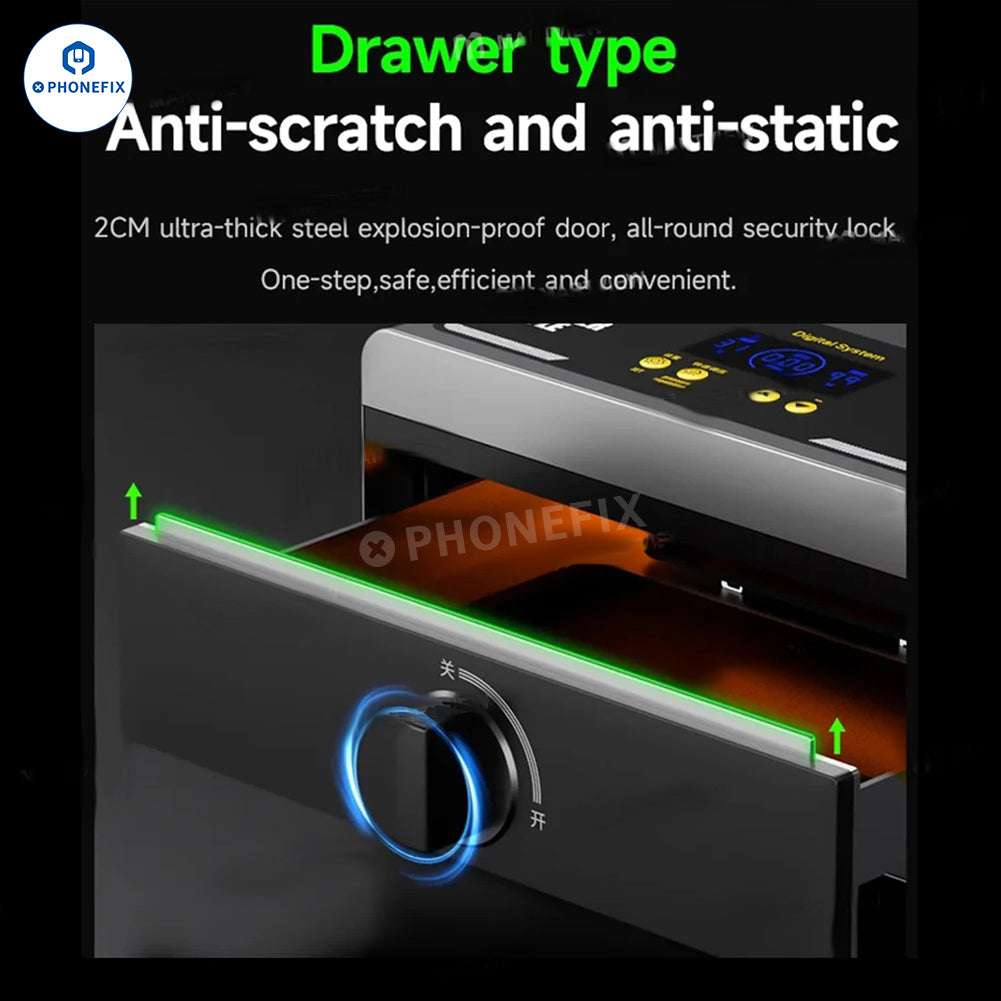

6. Anti-scratch, anti-static, explosion-proof door, safe, efficient and convenient.
7. Precise temperature control, induction door lock, safe explosion-proof door.
Mechanic GAN-03 Fenix Laminating Machine Features:

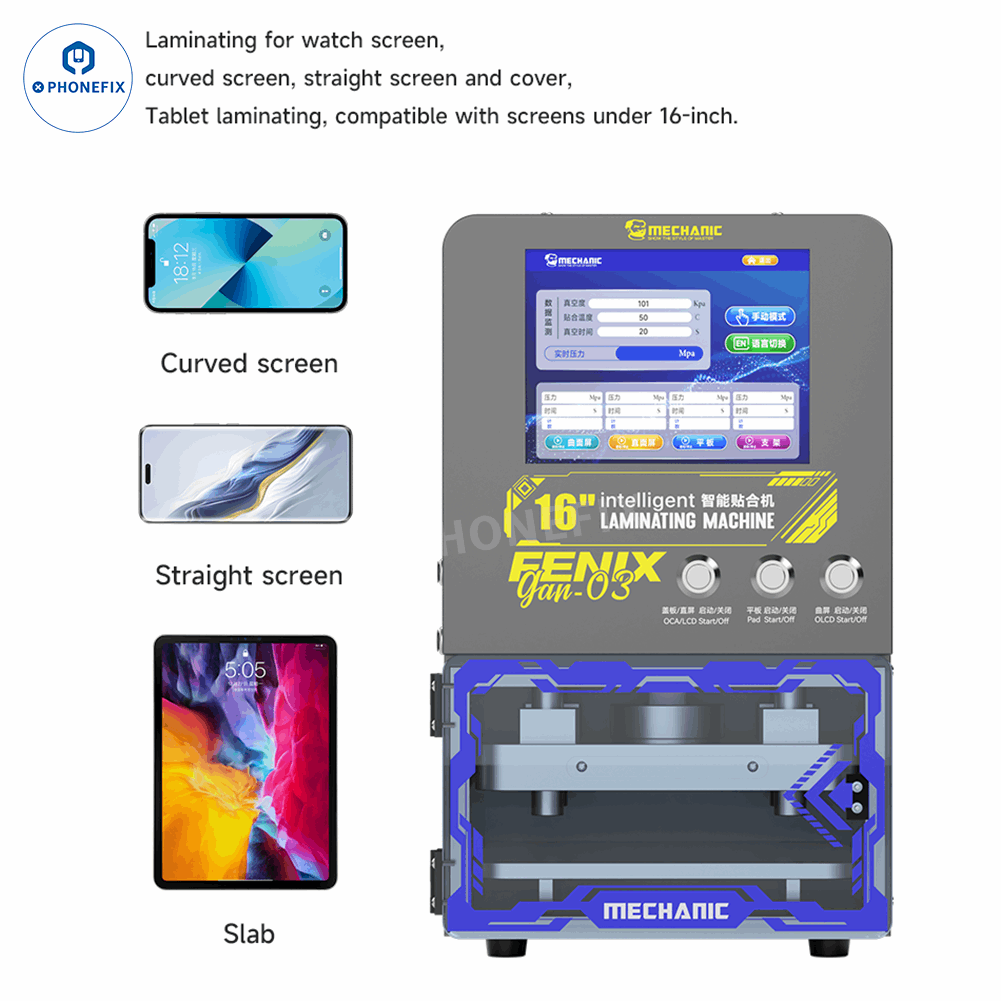

1. One-touch smart start 16-inch lamination, suitable for watch screens, curved screens, straight screens, cover plates, tablets, fully compatible with screens below 16 inches.

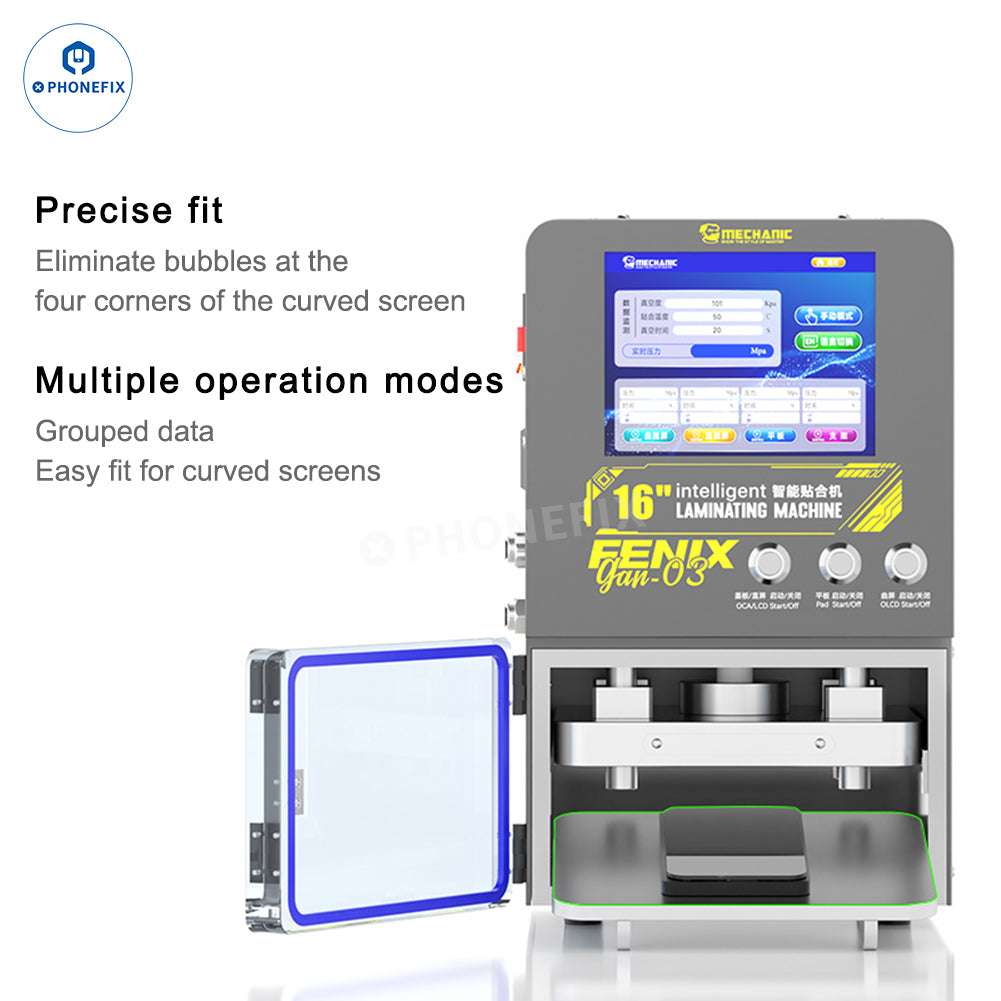

2. Multiple operation modes, precise lamination, easy lamination of straight curved screens.

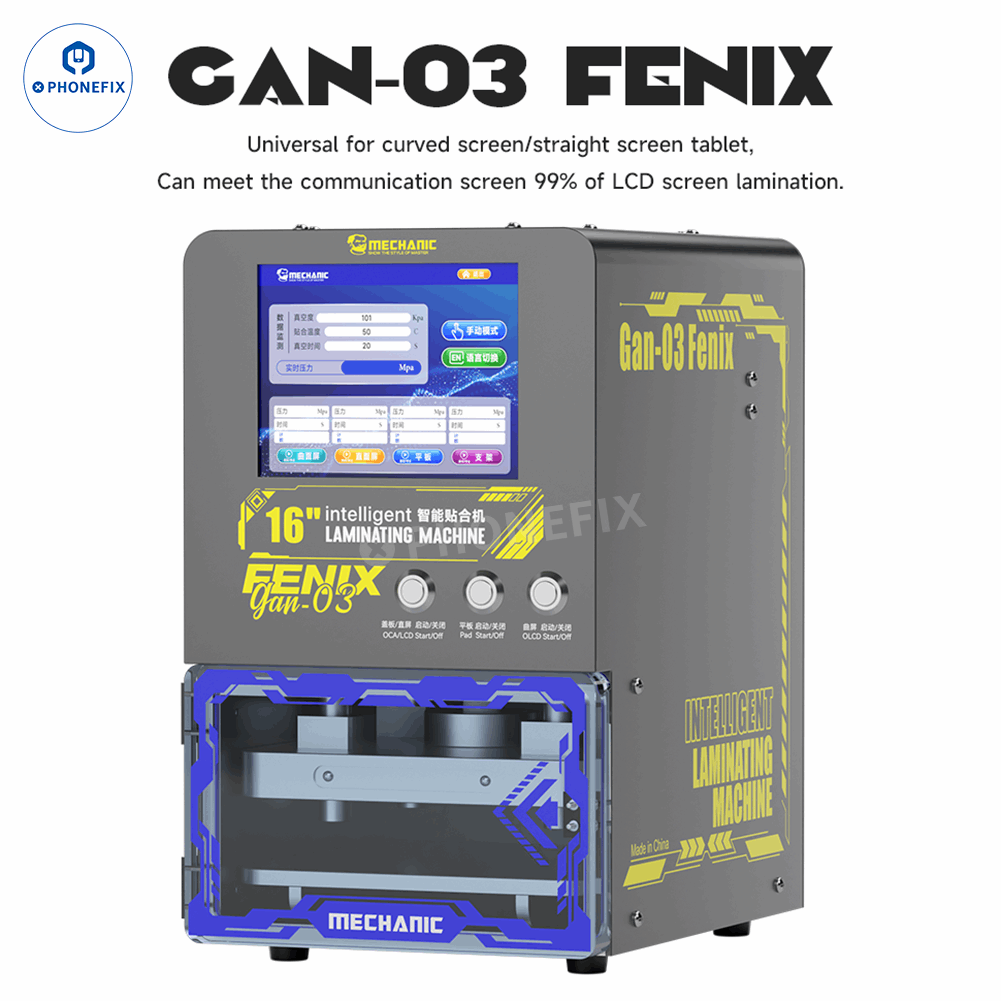

3. Universal for curved/straight tablets, can meet 99% of LCD screen lamination of communication screens.

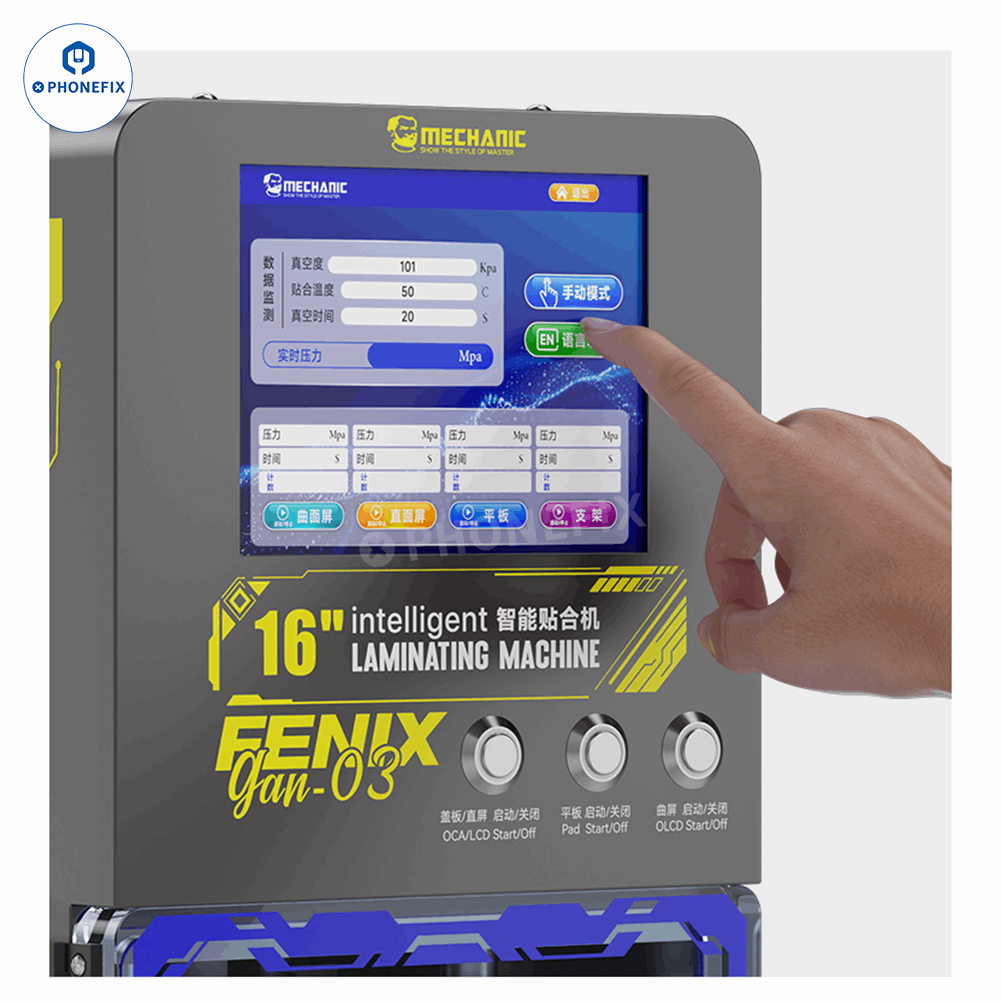

4. 8-inch high-definition touch screen, can enhance user interaction and control during lamination.

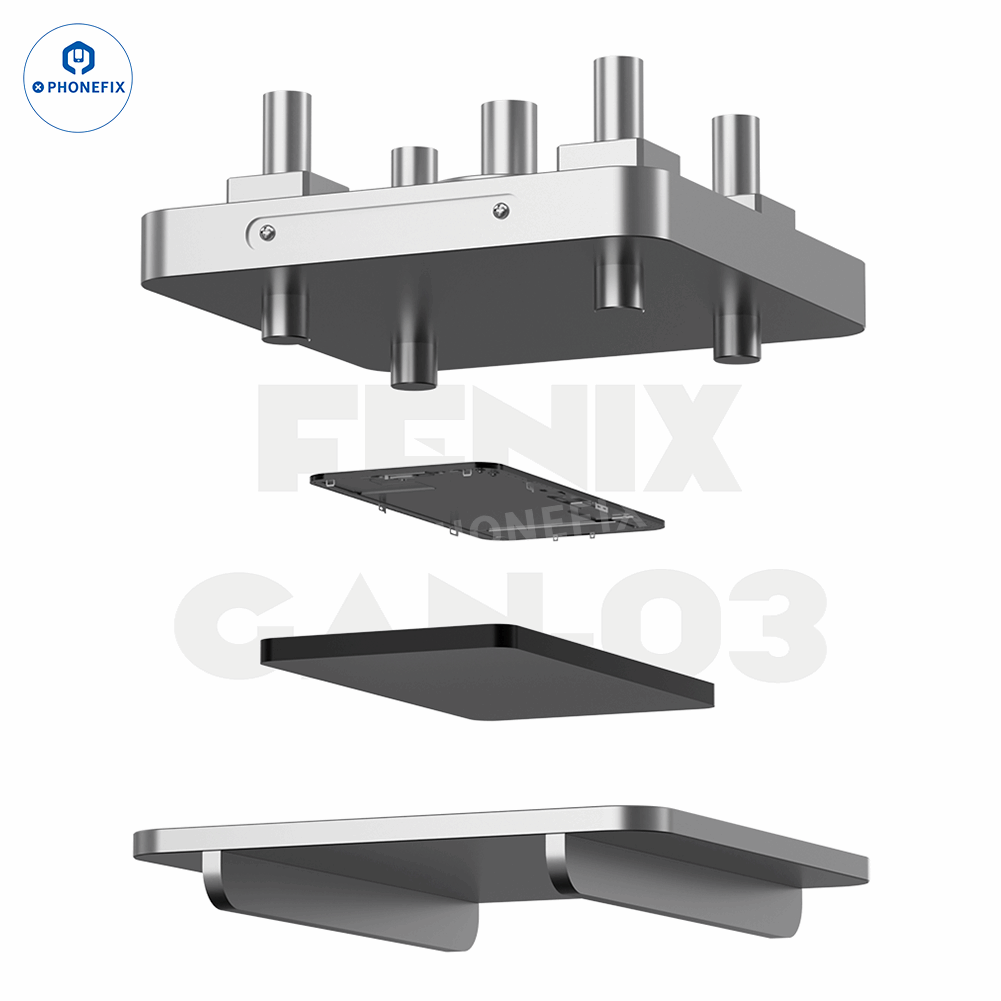

5. Four balancing guides to ensure accurate positioning of the mold in production, prevent deviation between the mold and the workpiece, and ensure the accuracy of the produced products.

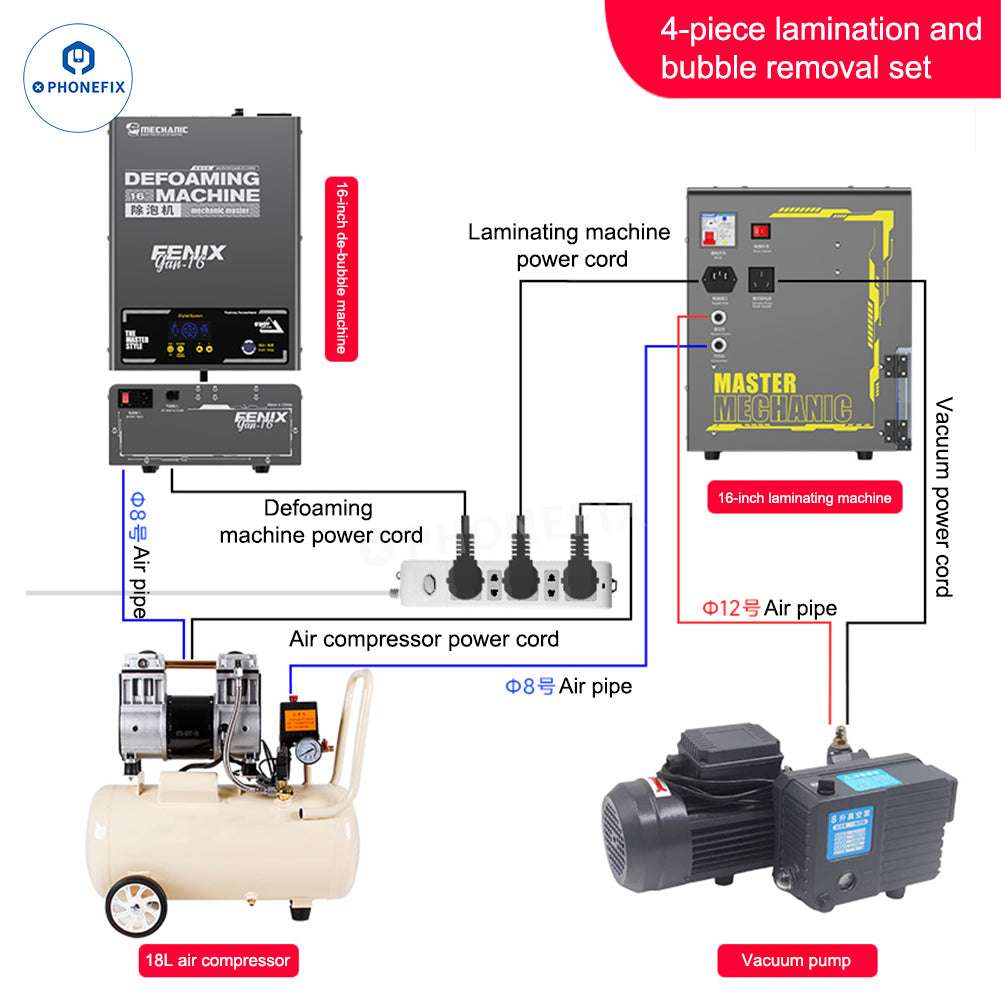

Please note: An external vacuum pump and air compressor are required, an 18L air compressor and 8L vacuum pump are recommended.
GAN-03 FENIX 16-inch Laminating Machine Parameters:

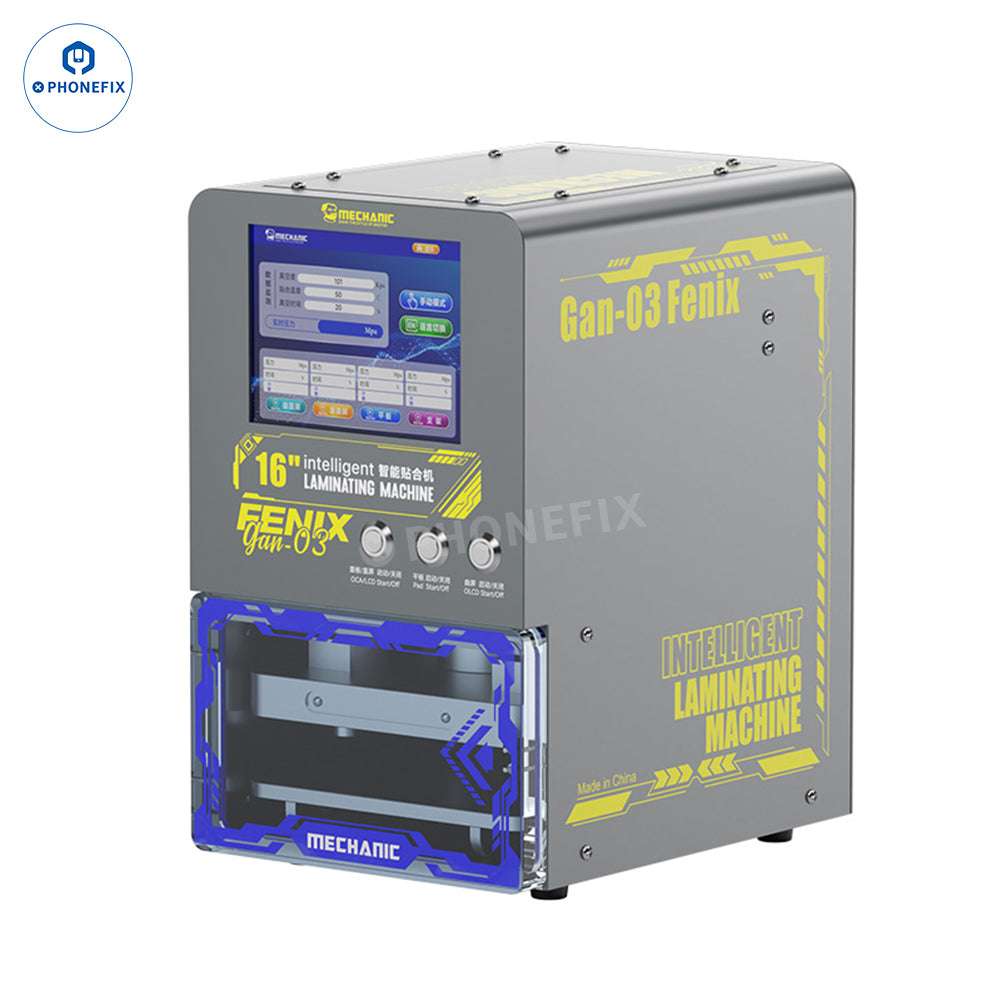

Name: GAN-03 FENIX 16" Intelligent Laminating Machine.
Voltage: 110V/220V
Power: 700W.
Fit size: Under 16"
Net Weight: 30.5KG.
Gross Weight: 38KG.

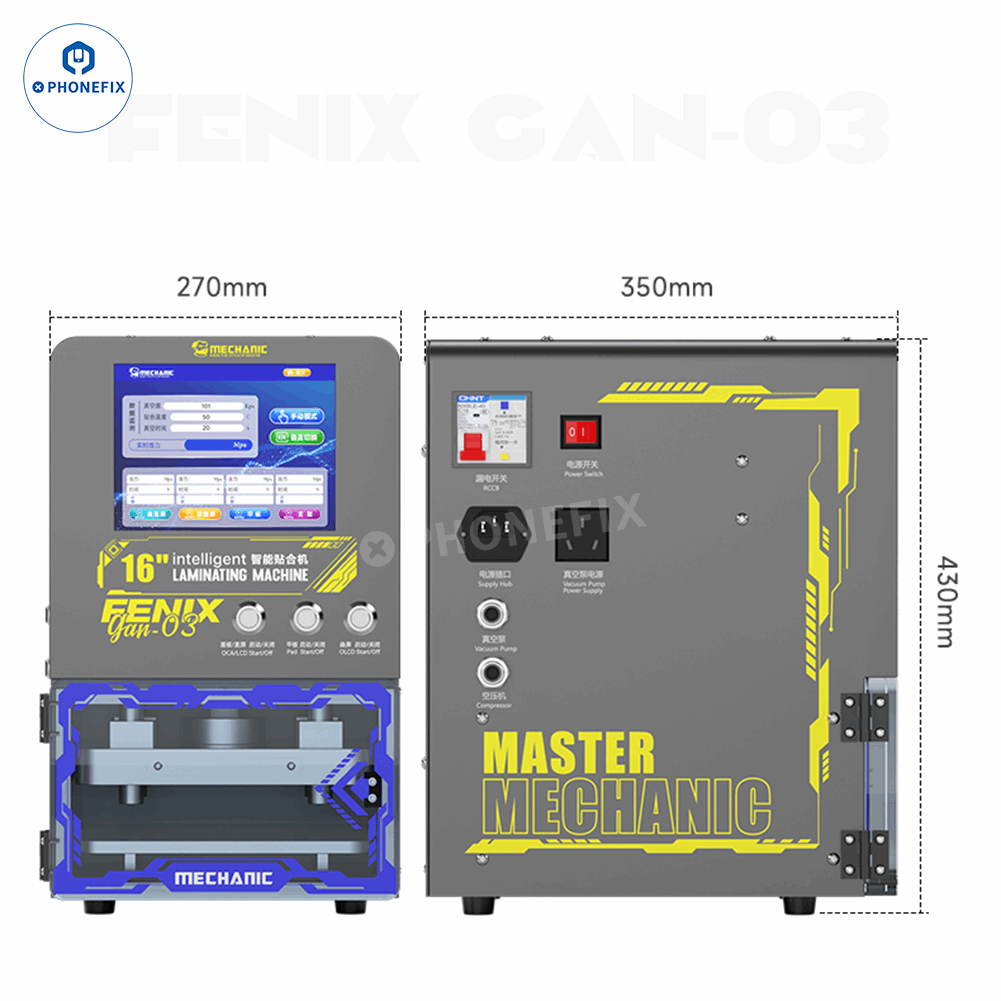

Size: 430*270*350mm.
Packing: 490*350*530mm.
GAN-03 FENIX 16 Inches Laminating Machine Operation Steps:
Step 1: Place the screen in the separator and heat the separated screen.
Step 2: Wipe the separated screen with 530 detergent.
Step 3: Put the replaced screen into the laminating chamber for quick laminating.
Step 4: Put the laminating screen into the de-bubble chamber for quick de-bubble removal.
Step 5: Install the de-bubble screen for use, intact.
GAN-16 Fenix Deforamer Parameters:
Name: GAN-16 Fenix 16-inch Defoaming Machine.
Size: 260*340*110mm.
Voltage: 220V/110V.
Net Weight: 11.6KG.
Gross Weight: 12.1KG.
Temperature: 0-70°.
Power: 500W.
Packing size: 520*445*255mm.
Time range: 1-999 minutes.
Defoaming pressure: 0.1-0.7MPA (adjustable range).
