Mechanic Vision & Vision Air & Vision Pro Microscope Industrial Cameras for Mobile Phone Repair. Mechanic HD Vision 2K 4K cameras used with microscope or C-mount lens adapters for daily cell phone motherboard micro soldering tasks and clear observation and welding repair of electronic circuit boards BGA chips, FPC connectors and other tiny components.

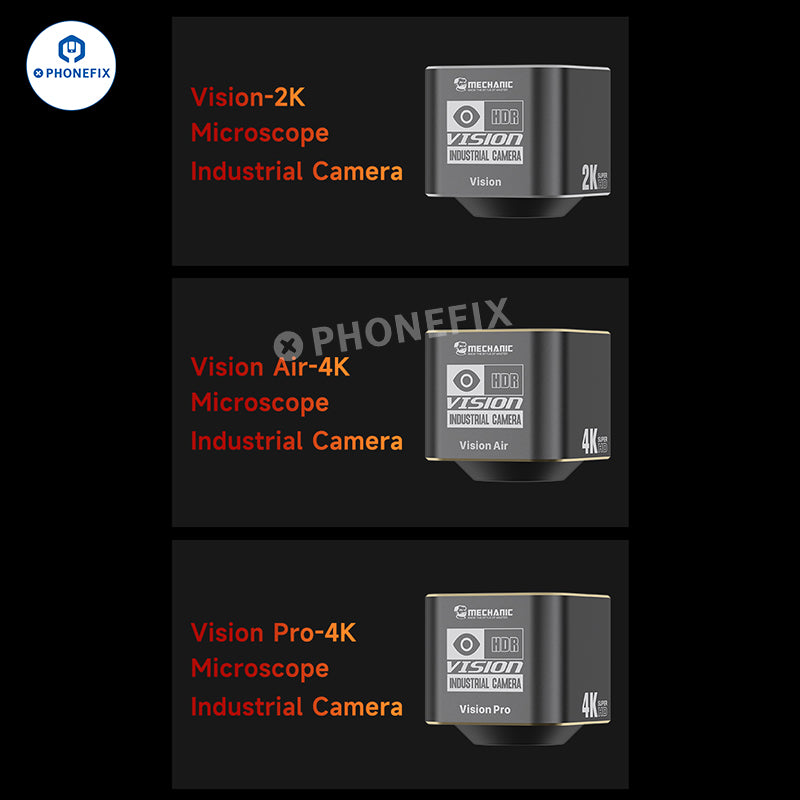

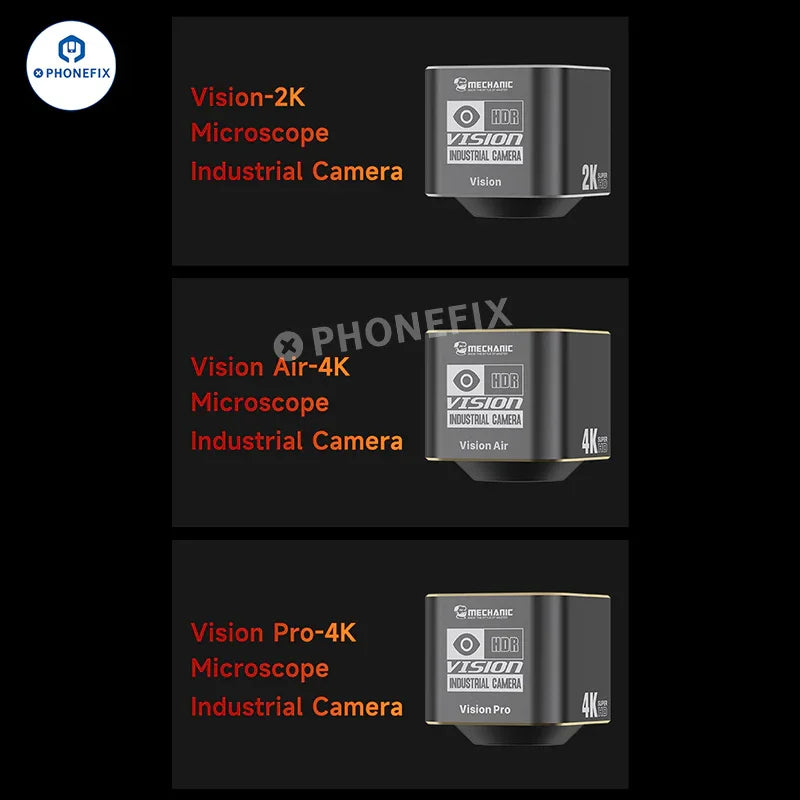

Option:
1. Mechanic Vision 2K Camera

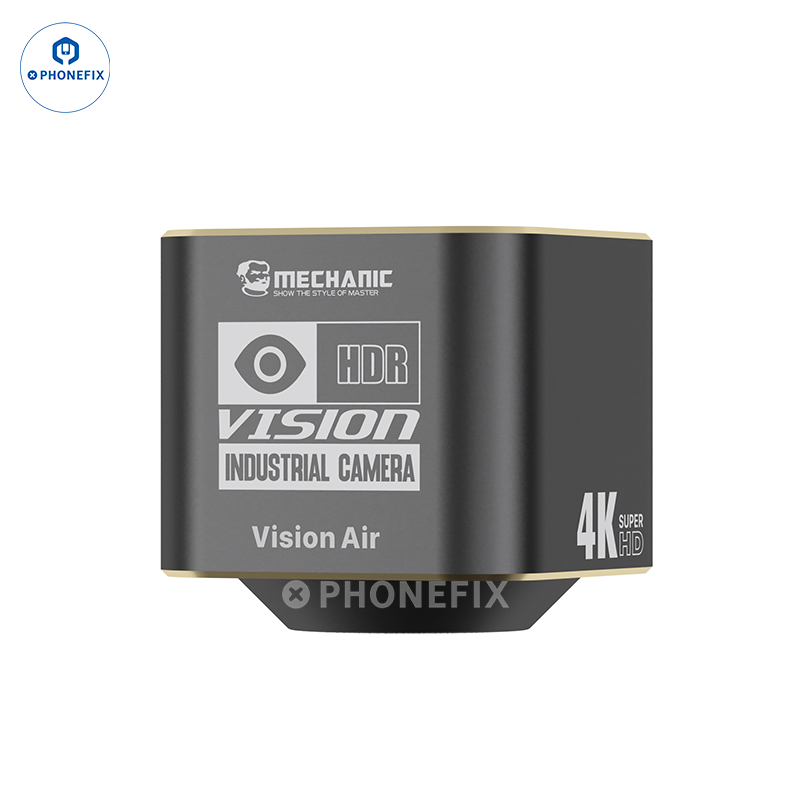

2. Mechanic Vision Air 4K Camera
3. Mechanic Vision Pro 4K Camera
Features:

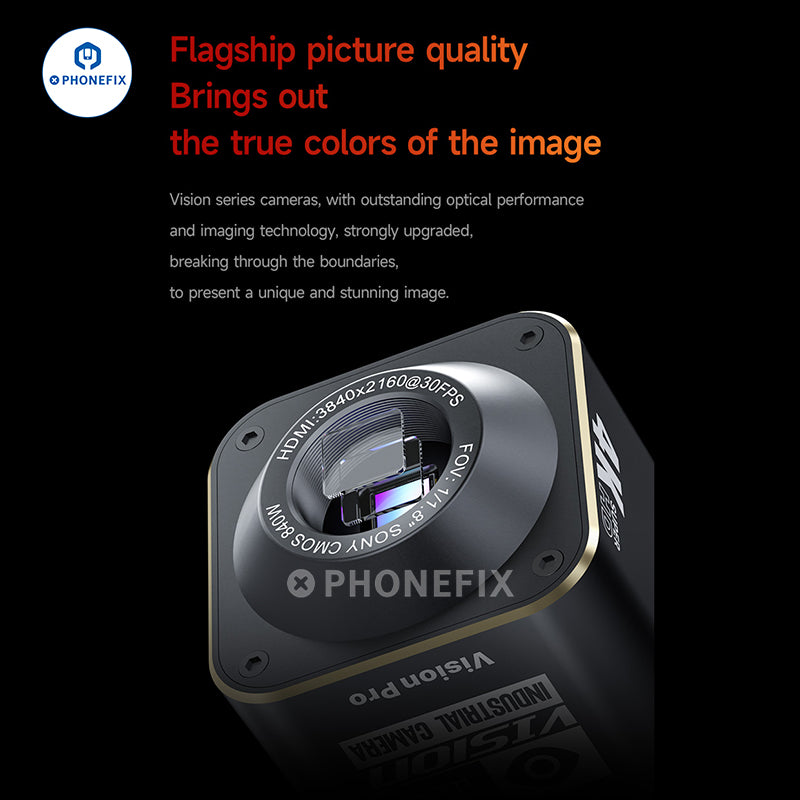

1. Flagship image quality, restore the true color of the image. With its excellent optical performance and imaging technology, the Vision series cameras have been strongly upgraded, breaking through the boundaries and presenting unique and stunning pictures.

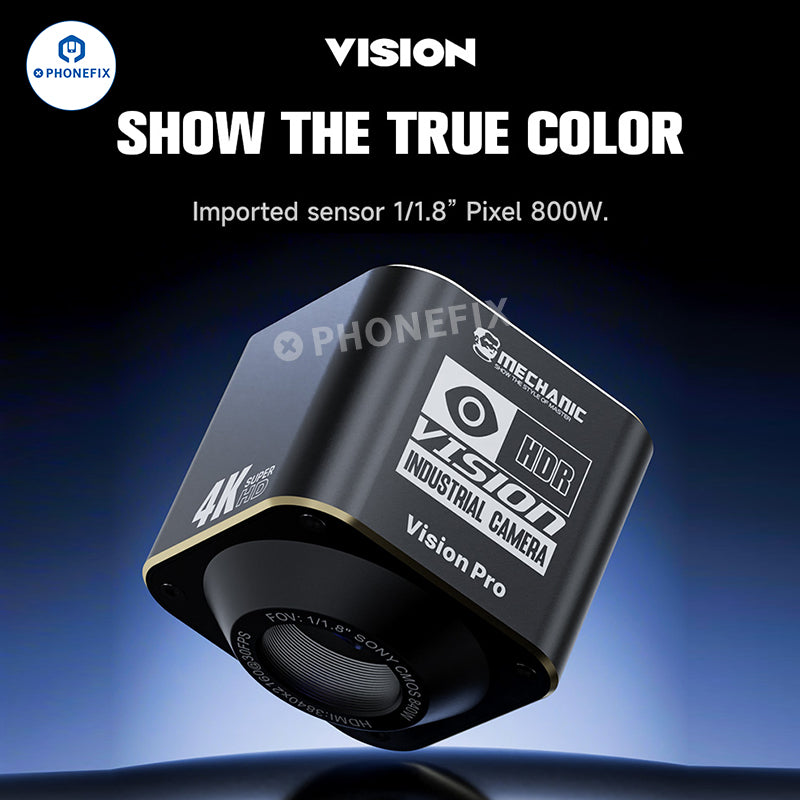

2. The panoramic camera uses Sony's 1/1.8-inch original imported sensor, setting a new record. The improvement is a leap forward, and the excellent image quality and dynamic range are visible to the naked eye.

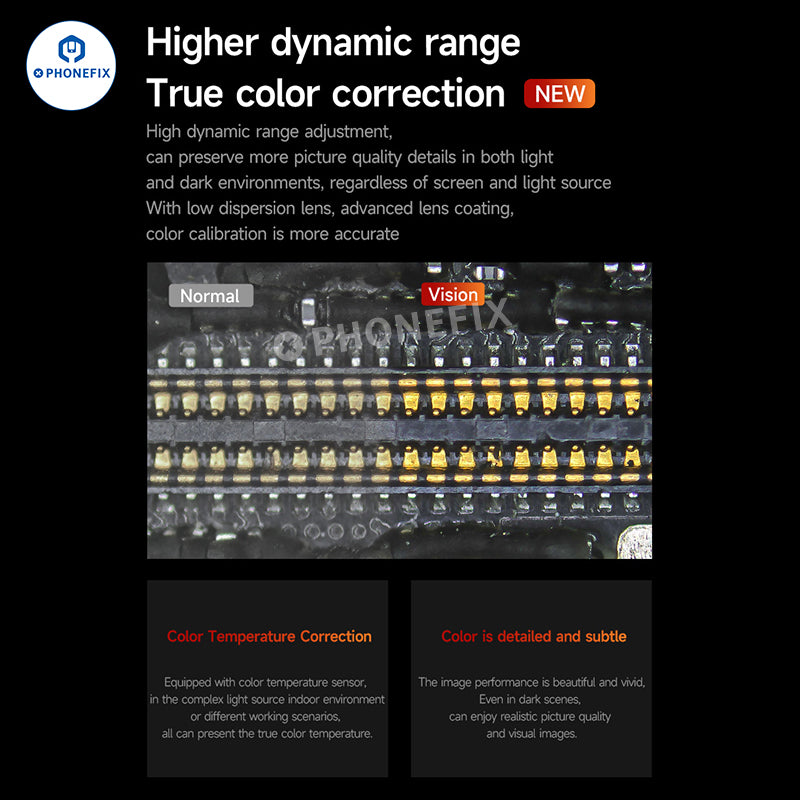

3. Higher dynamic range true color correction. High dynamic range adjustment, no matter in light or dark environment, no matter what the screen and light source are, can retain more image quality details. Low dispersion lens, advanced lens coating, more accurate color calibration.

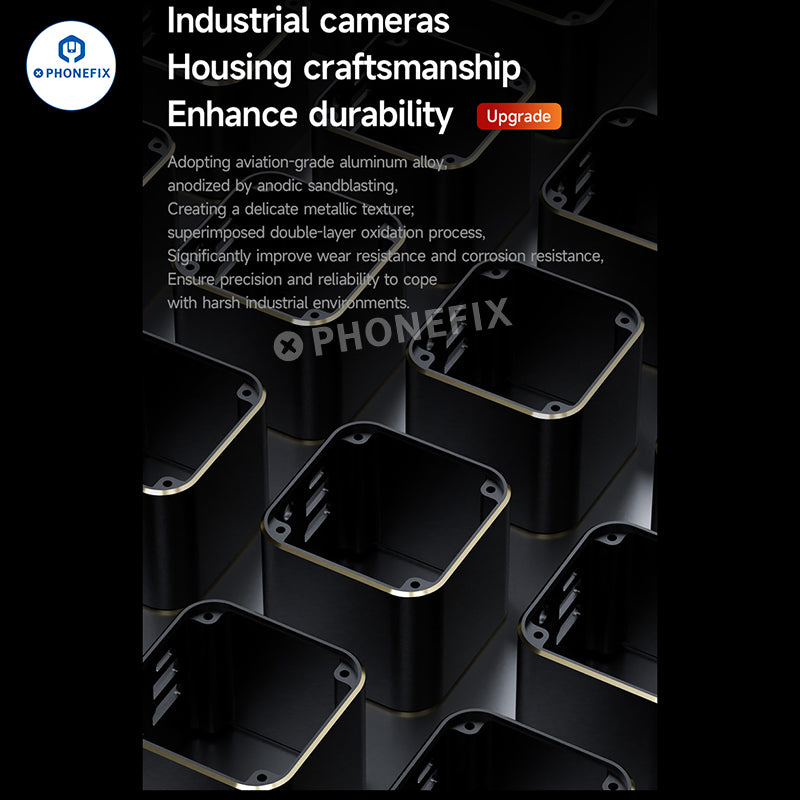

5. Made of aviation-grade aluminum alloy, anodized sandblasting, creating a delicate metal texture. Superimposed double-layer oxidation process, significantly improves wear resistance and corrosion resistance, ensures accuracy and reliability, and easily copes with harsh industrial environments.

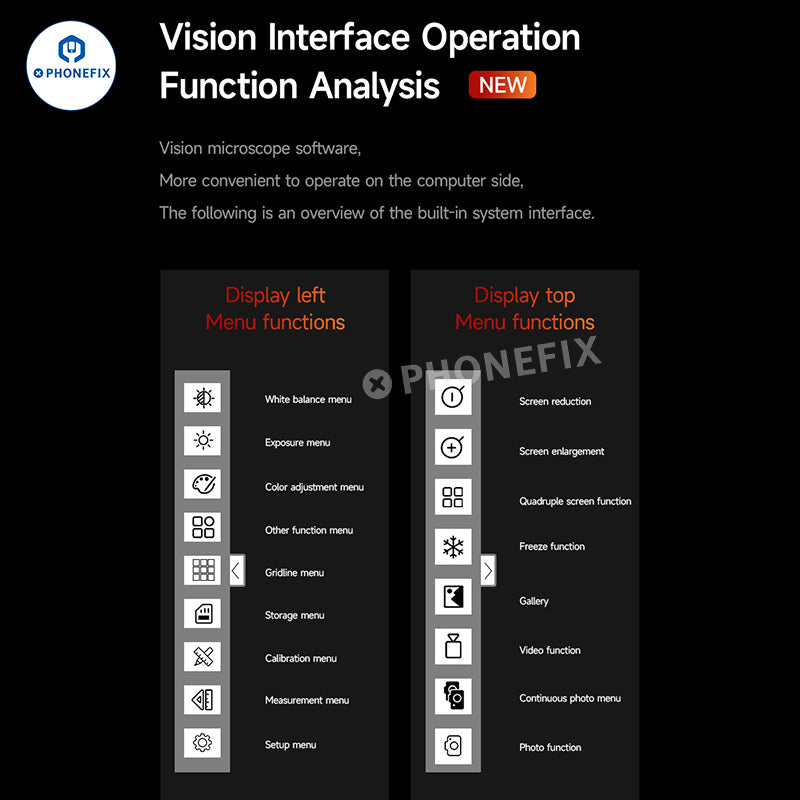

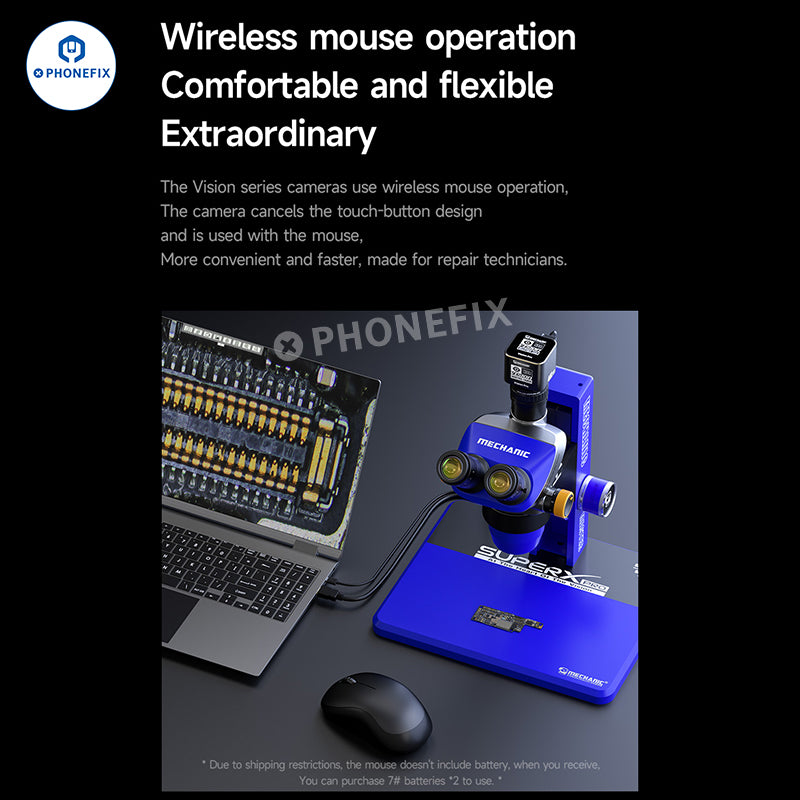

6. The Vision series cameras use wireless mouse operation, cancel the touch button design, and operate directly through the mouse, which is more convenient and quick, specially designed for maintenance technicians.

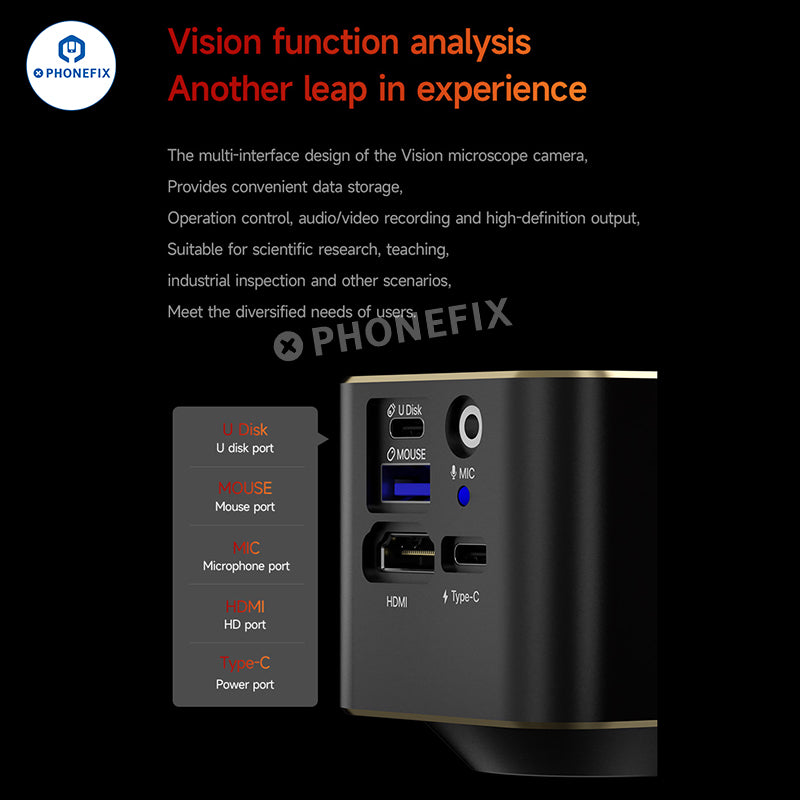

7. The multi-interface design of the Vision microscope camera provides convenient data storage, operation control, audio and video recording and high-definition output.

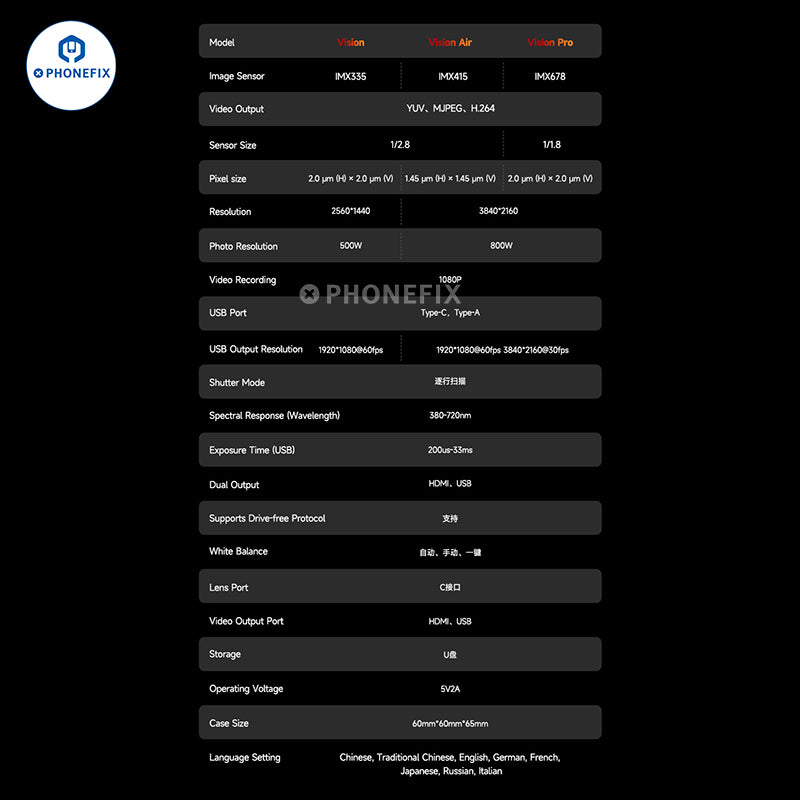

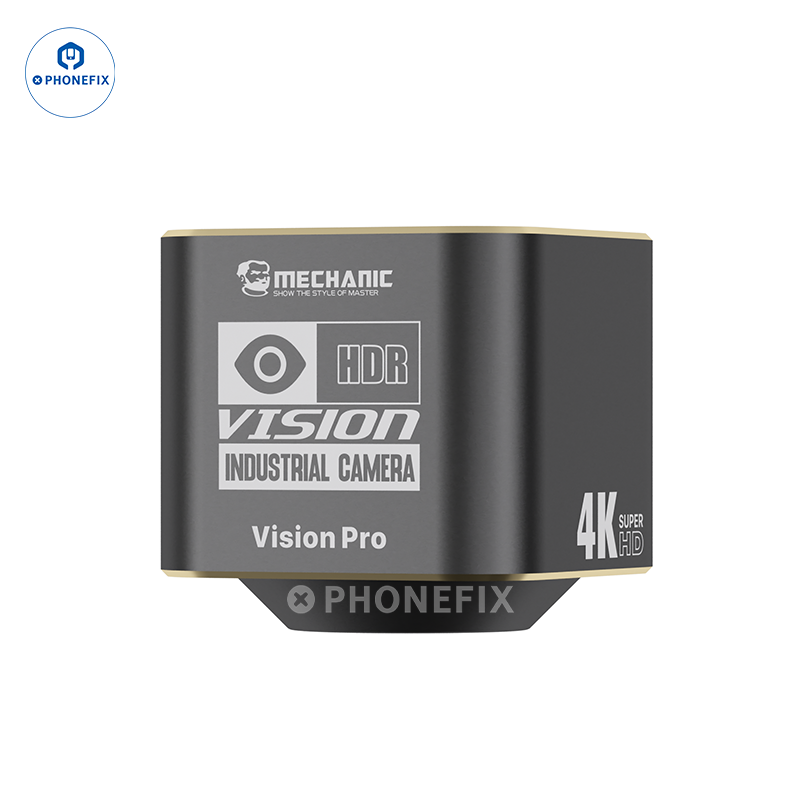

Mechanic Vision Pro 4K Camera Parameters:
Image sensor: IMX678
Sensor size: 1/1.8
Pixel size: 2.0μm(H) x 2.0 ym(V)
Resolution: 3840*2160
Photo resolution: 800W
Video recording: 1080P
Video output: YUV, MJPEG, H.264
USB port: Type-C, Type-A
USB output resolution: 1920x1080@60fps, 3840*2160@30fps
Shutter mode: Progressive Scan
Spectral response (wavelength): 380-720um
Exposure time (USB): 200us-33ms
Dual output: HDMI, USB
Drive-free protocol: Support
White balance: Automatic, manual, one-button
Lens port: C mount
Video output port: HDMI, USB
Storage: USB flash drive
Operation voltage: 5V 2A
Case size: 60*60*65mm
Language setting: Chinese, English, German, French, Japanese, Russian, Italian.
Mechanic Vision 2K Camera Parameters:
Image sensor: IMX335
Sensor size: 1/2.8
Pixel size: 2.0μm(H) x 2.0 ym(V)
Resolution: 2560*1440
Photo resolution: 500W
Video recording: 1080P
Video output: YUV, MJPEG, H.264
USB port: Type-C, Type-A
USB output resolution: 1920x1080@60fps
Shutter mode: Progressive Scan
Spectral response (wavelength): 380-720um
Exposure time (USB): 200us-33ms
Dual output: HDMI, USB
Drive-free protocol: Support
White balance: Automatic, manual, one-button
Lens port: C mount
Video output port: HDMI, USB
Storage: USB flash drive
Operation voltage: 5V 2A
Case size: 60*60*65mm
Language setting: Chinese, English, German, French, Japanese, Russian, Italian.
Mechanic Vision Air 4K Camera Parameters:
Image sensor: IMX415
Sensor size: 1/2.8
Pixel size: 1.45μm(H) x 1.45 ym(V)
Resolution: 3840*2160
Photo resolution: 800W
Video recording: 1080P
Video output: YUV, MJPEG, H.264
USB port: Type-C, Type-A
USB output resolution: 1920x1080@60fps, 3840*2160@30fps
Shutter mode: Progressive Scan
Spectral response (wavelength): 380-720um
Exposure time (USB): 200us-33ms
Dual output: HDMI, USB
Drive-free protocol: Support
White balance: Automatic, manual, one-button
Lens port: C mount
Video output port: HDMI, USB
Storage: USB flash drive
Operation voltage: 5V 2A
Case size: 60*60*65mm
Language setting: Chinese, English, German, French, Japanese, Russian, Italian.
