Mechanic MOS 4K Pro 4K Ultra HD Trinocular Microscope Camera. Mechanic MOS-4K/MOS 4K Pro/MOS 510/MOS 500 4K Video Camera for electronic circuit board/mobile phone PCB CPU BGA chips soldering repair.

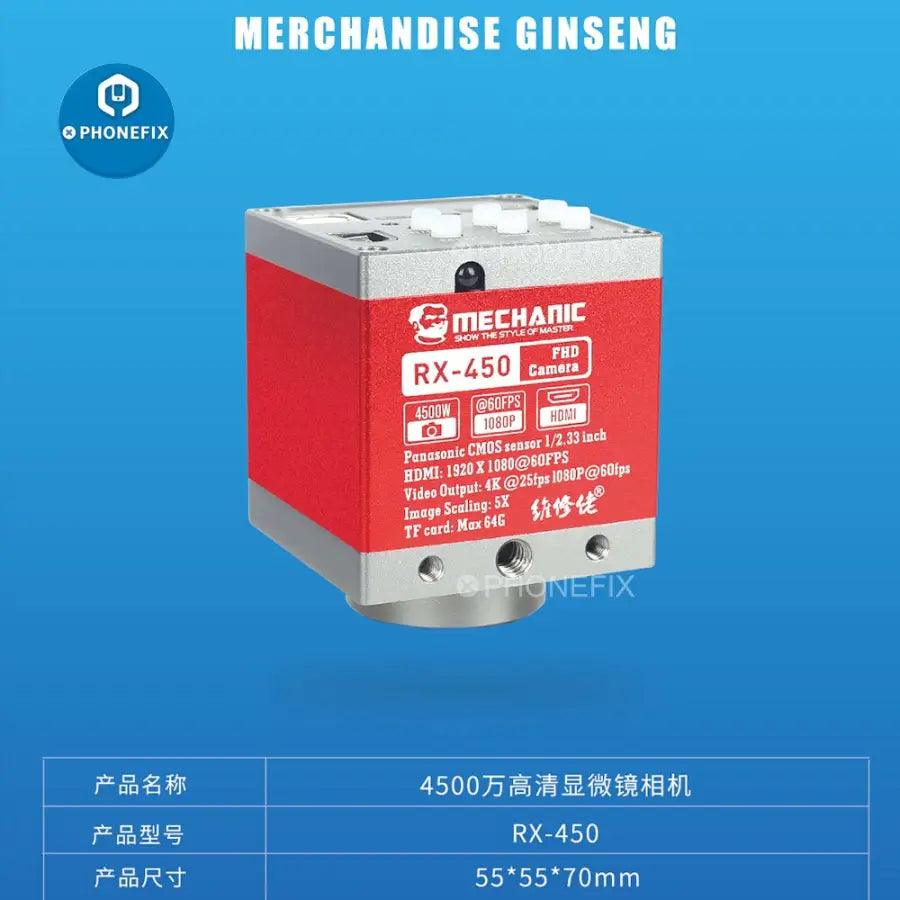

Mechanic RX-450 microscope camera has been discontinued. HD HDMI input digital electronic simultaneous microscope camera, Mechanic 4500W HDMI USB industrial digital video microscope camera for mobile phone CPU PCB chips phone repair.

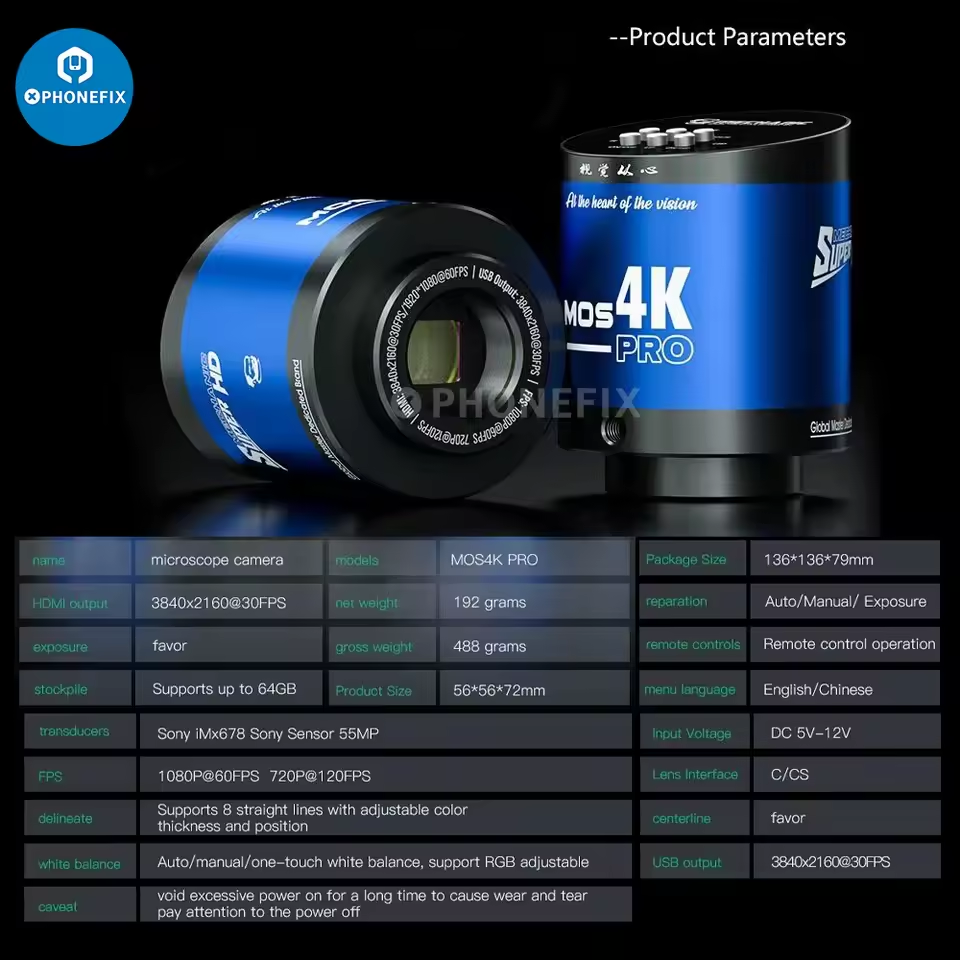

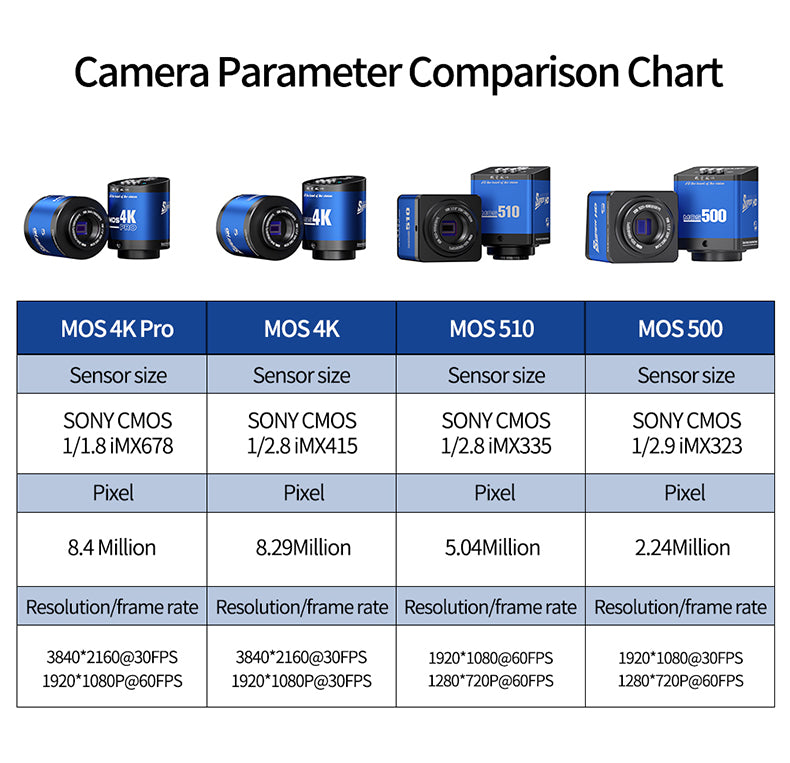

Mechanic MOS 4K PRO Camera Parameter:Model: MOS 4K PRO microscope camera.
Sensor: 1/1.8 Sony CMOS IMX678 829W.
HDMI: 3840x2160@30FPS, 1920*1080P@60FPS.
USB: 3840x2160@30FPS.
FPS: 1080P@60FPS 720P@120FPS.
Pixels: 8.4 Million
55MP.
Video Recording: 4K at 30fps
Lens Interface: C/CS
Memory: Supports up to 64GB.
Input Voltage: DC 5V-12V.
MOS 4K PRO Camera Manual: https://docs.google.com/document/d/1zVO78NBj0IZCC2OzFm3EBjj9Ef-NqOQz/edit?usp=drive_linkMOS 4K PRO camera upgrade file: Please note that unless there are specific issues, there is no need to update the software. Because the internal algorithms of the old and new versions are different, after updating the software, in order to conserve camera performance and extend its lifespan, the system will display 1080p, but the image quality will remain the same; only the displayed numerical values will change.Mechanic MOS 4K Camera Parameter:Model: MOS 4K camera.
Sensor: 1/2.8 Sony CMOS IMX415 829W.
HDMI: 3840x2160@30FPS, 1920*1080P@60FPS.
USB: 3840x2160@30FPS.
FPS: 1080P@60FPS/720P@60FPS.
Pixels: 8.29 Million
51MP.
Video Recording: 4K at 25fps.
Lens Interface: C/CS
Memory: Supports up to 64GB.
Input Voltage: DC 5V-12V.

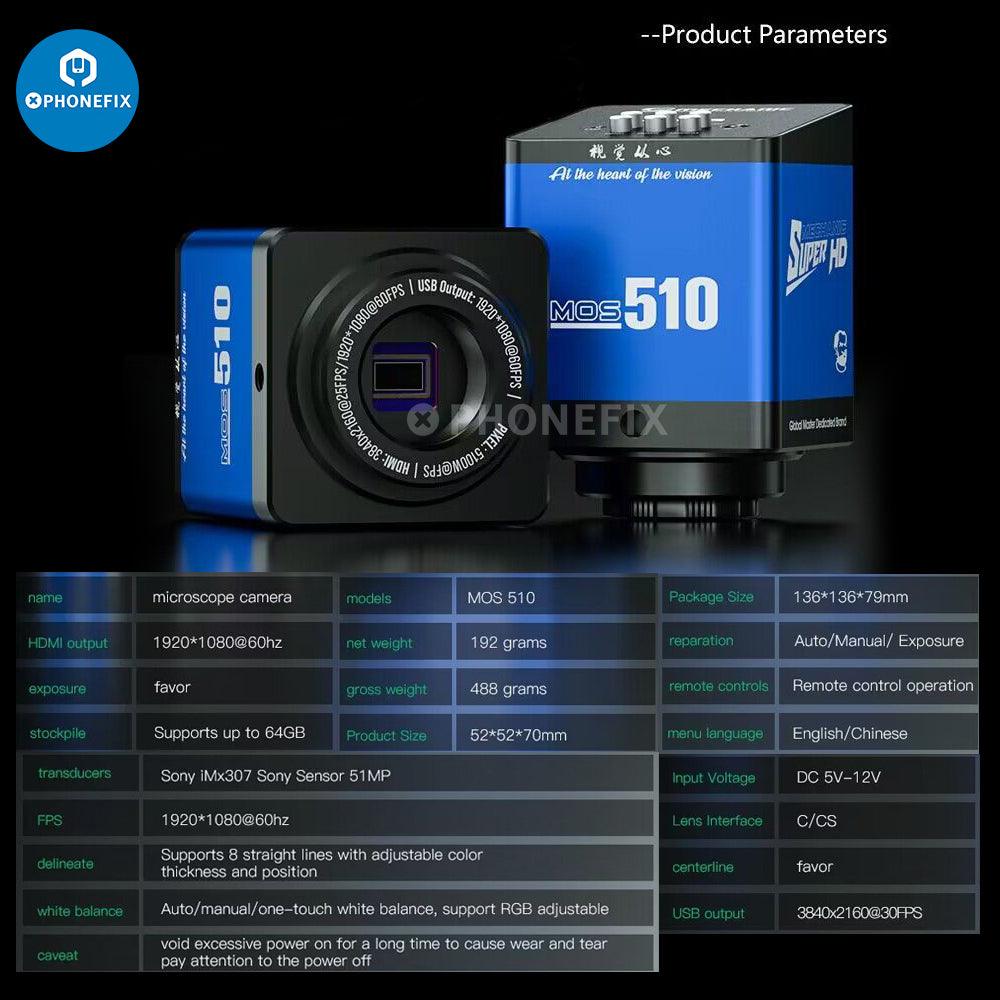

Mechanic MOS 510 Camera Parameter:Model: MOS 510 camera.
Sensor: 1/2.8 Sony CMOS 514W IMX307.
HDMI: 1920x1080@60FPS.
USB: 1280*720P@30FPS
Pixels: 5100W@FPS.
Video Recording: 4K at 25fps
Lens Interface: C/CS
Memory: Supports up to 64GB.
Input Voltage: DC 5V-12V.

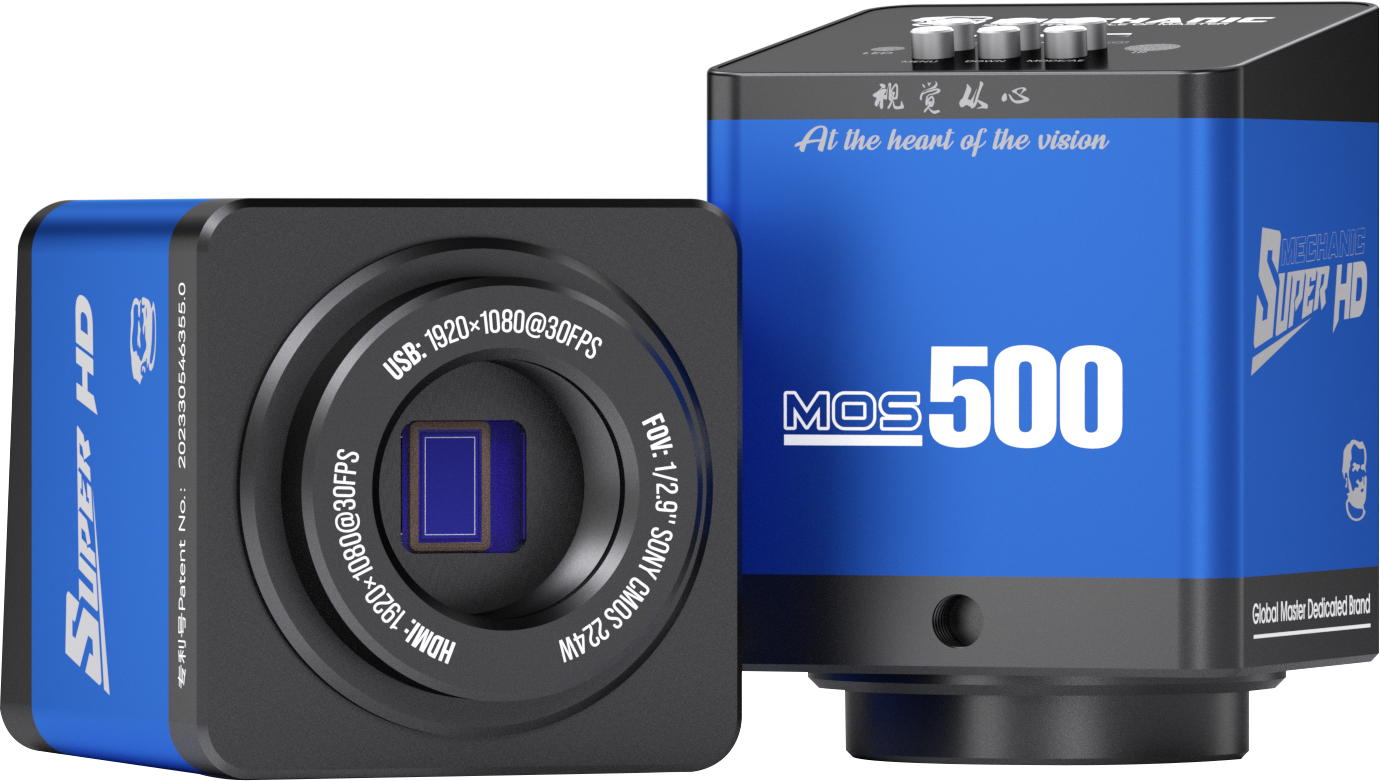

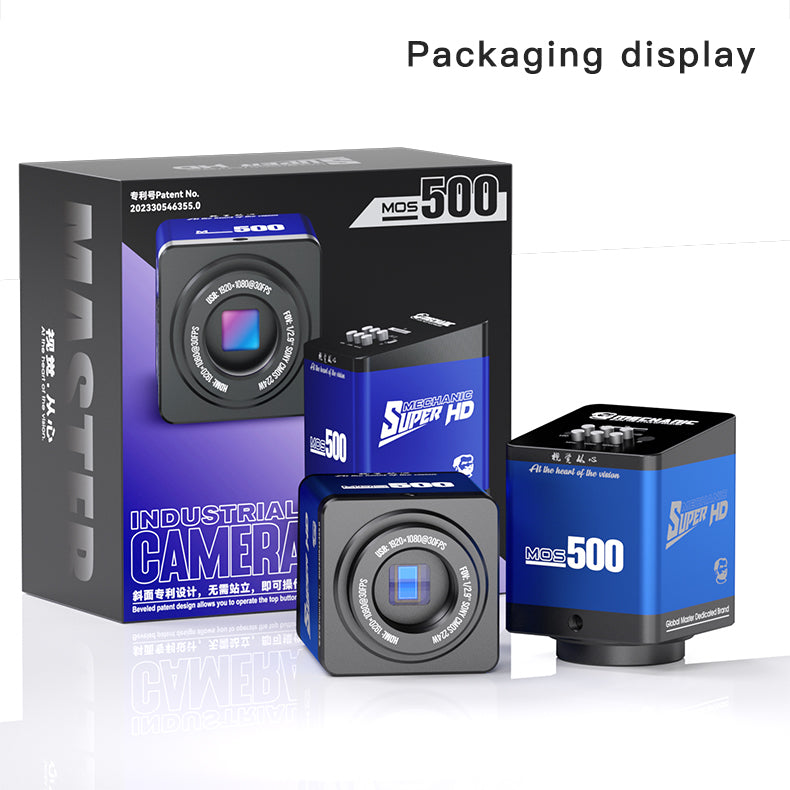

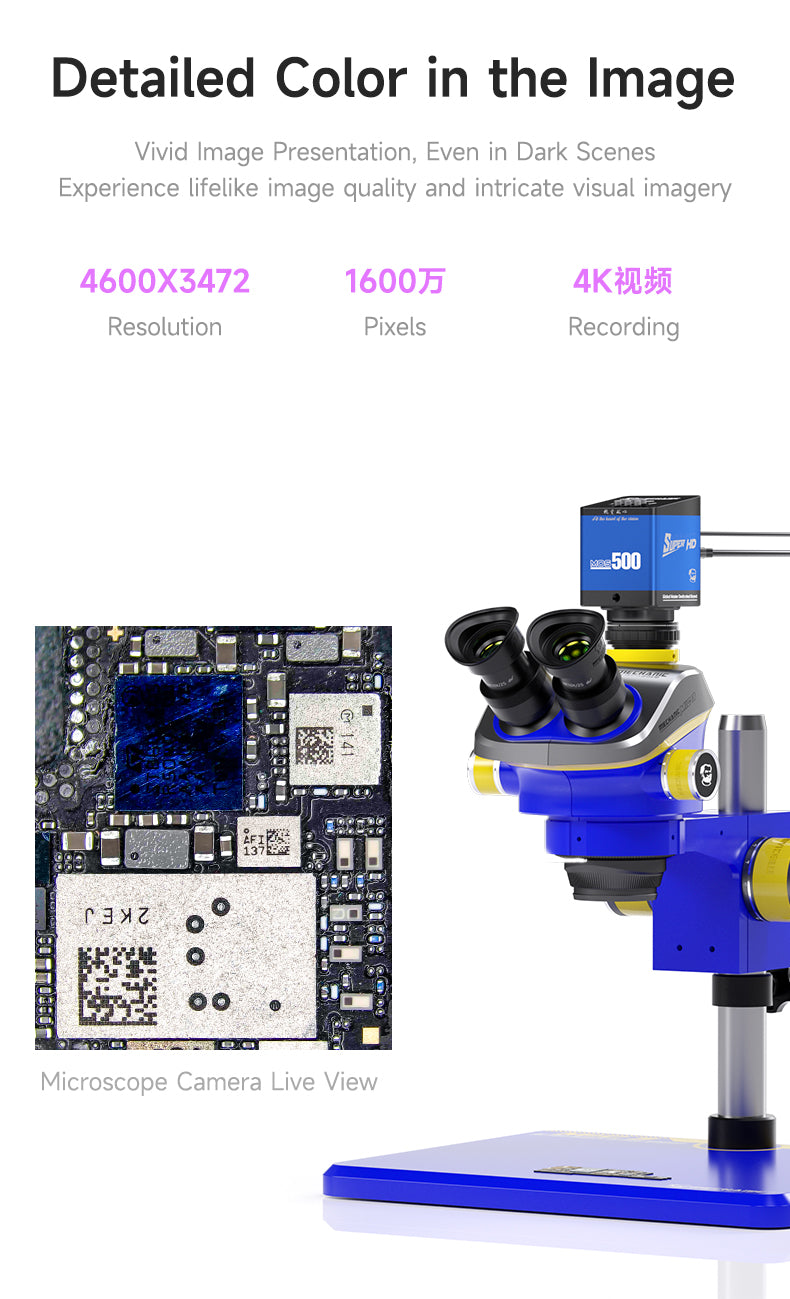

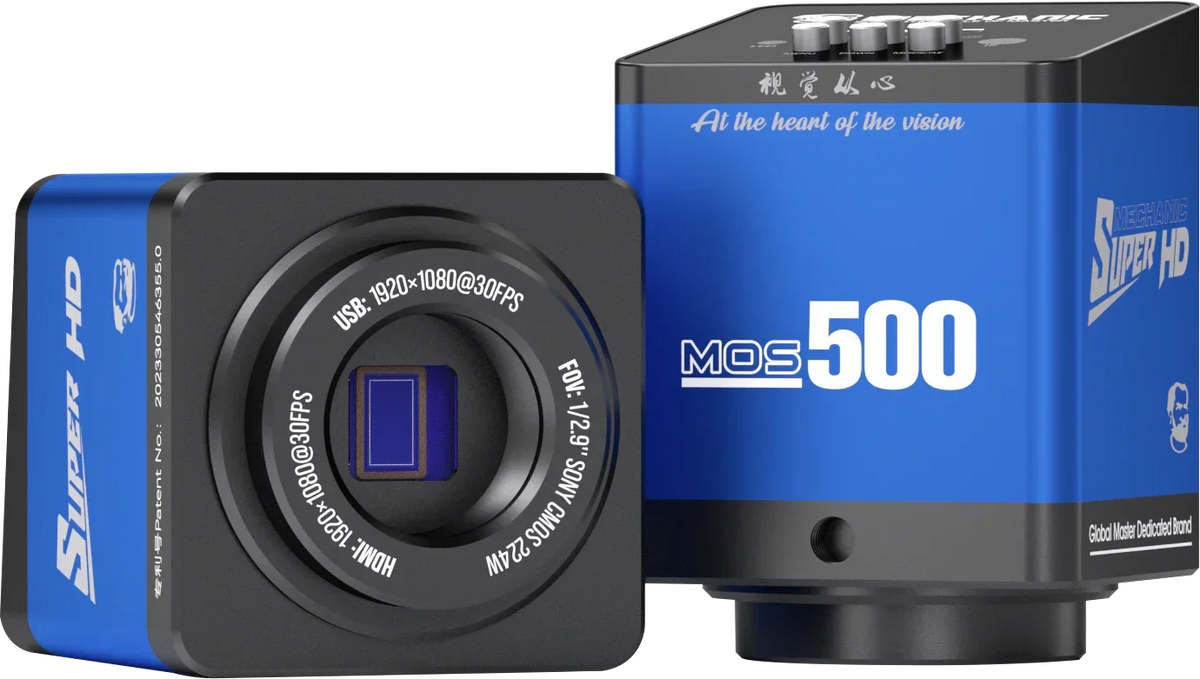

Mechanic MOS 500 Camera Parameter:
Model: MOS 500 camera
Sensor: Sony CMOS 1/2.9 IMX323
HDMI: 1920*1080@30FPS
USB Output: 1280*720P@60FPS
Pixels: 1600W@FPS.
Lens Interface: C/CS
Memory: Supports up to 64GB.
Input Voltage: DC 5V-12V.

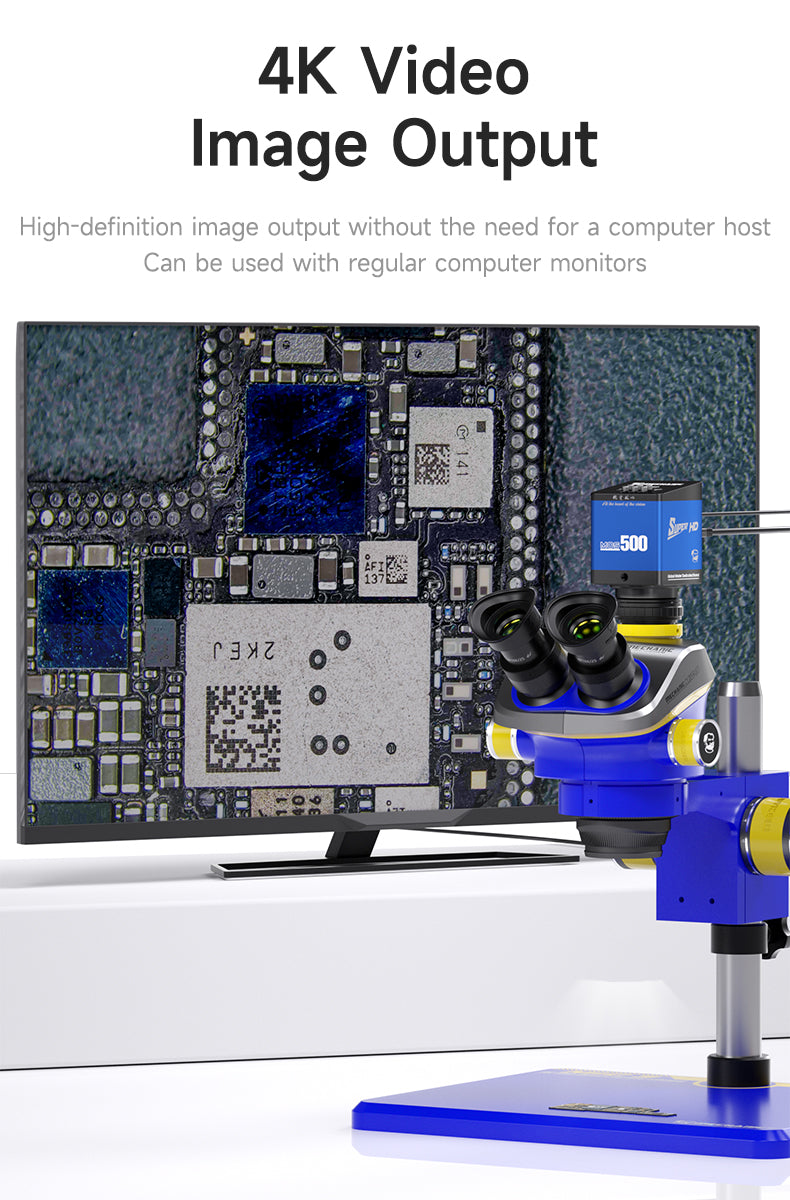

Original Sony sensor / 4K video output / 5X zoom / ultra-high resolution image.
