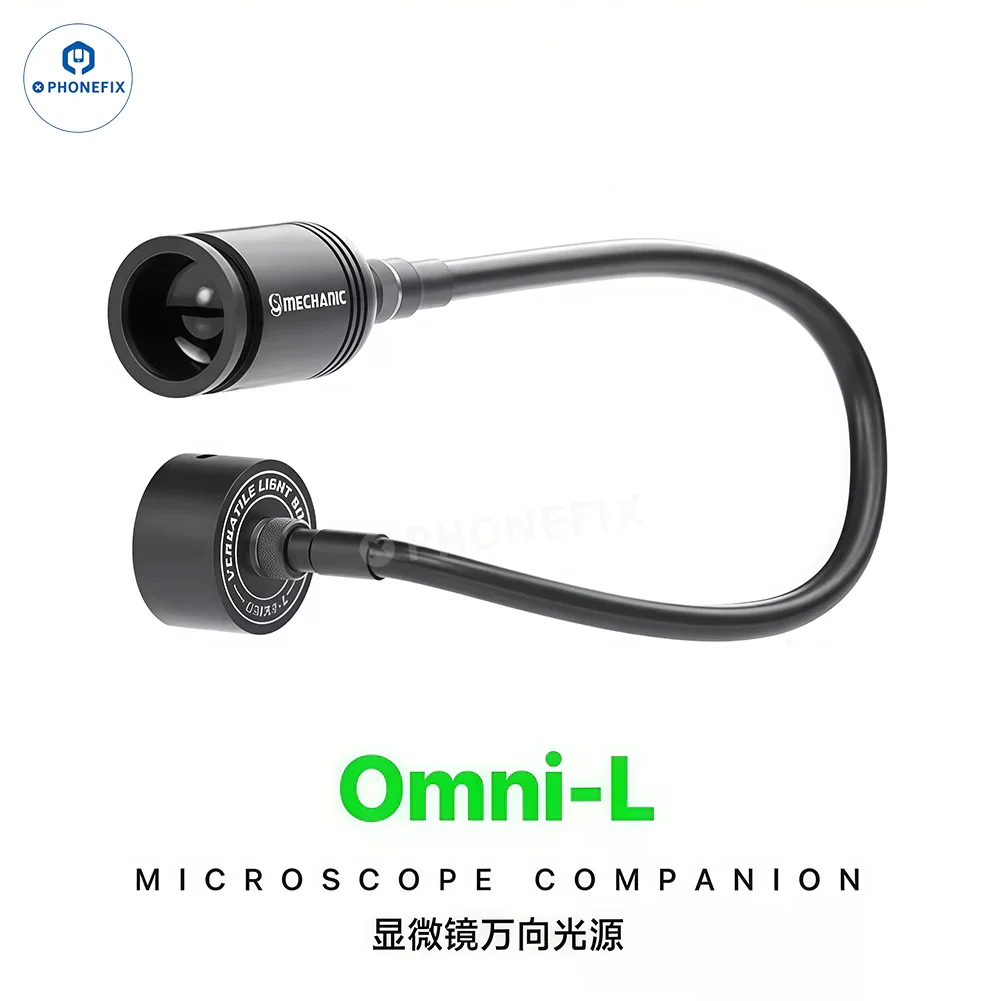

MECHANIC Omni-L Microscope Companion Light Source with Magnetic Base provides 360° all-around Oblique Lighting for Mobile Phone Motherboard Repair. 5W High CRI LED with Stepless Dimming. Precise, shadowless, and blind-spot-free lighting, along with three mounting options, makes it suitable for PCB repair, watch repair, micro-soldering, and other repair work.
Feature:

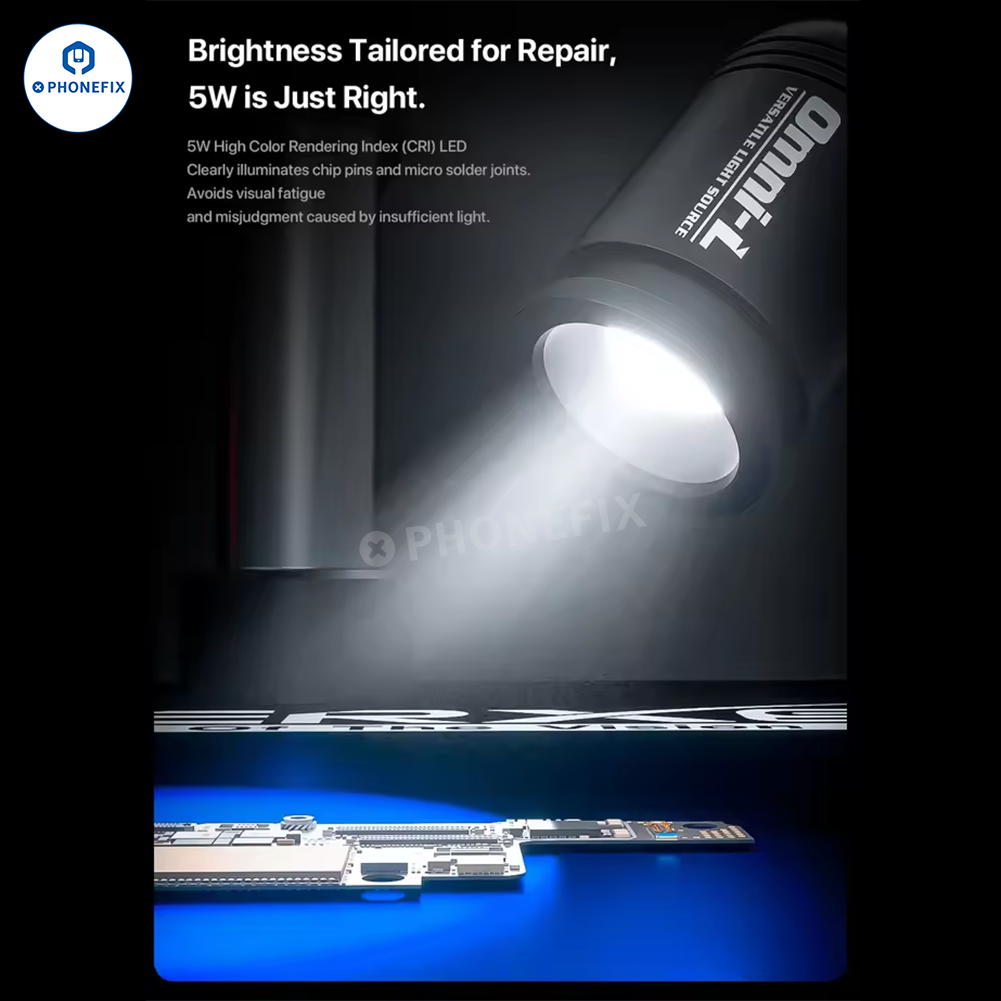

1. Professional-grade illumination: Equipped with a 5W high color rendering index LED, 0-100% stepless dimming, providing natural and bright light, reducing eye fatigue and avoiding misjudgment.
2. Precise focus control: The knurled focusing ring can adjust the beam from a concentrated focal point to a broad floodlight to adapt to different observation needs.
3. 3D detail oblique illumination: The unique oblique illumination design enhances the 3D effect of PCB layers and micro-components, making flying wires and solder joints clearer.
4. 360° flexible gooseneck arm: The high-toughness metal flexible tube can be bent and fixed freely, providing precise, shadow-free illumination.

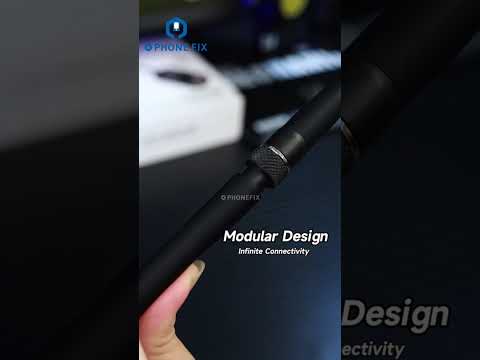

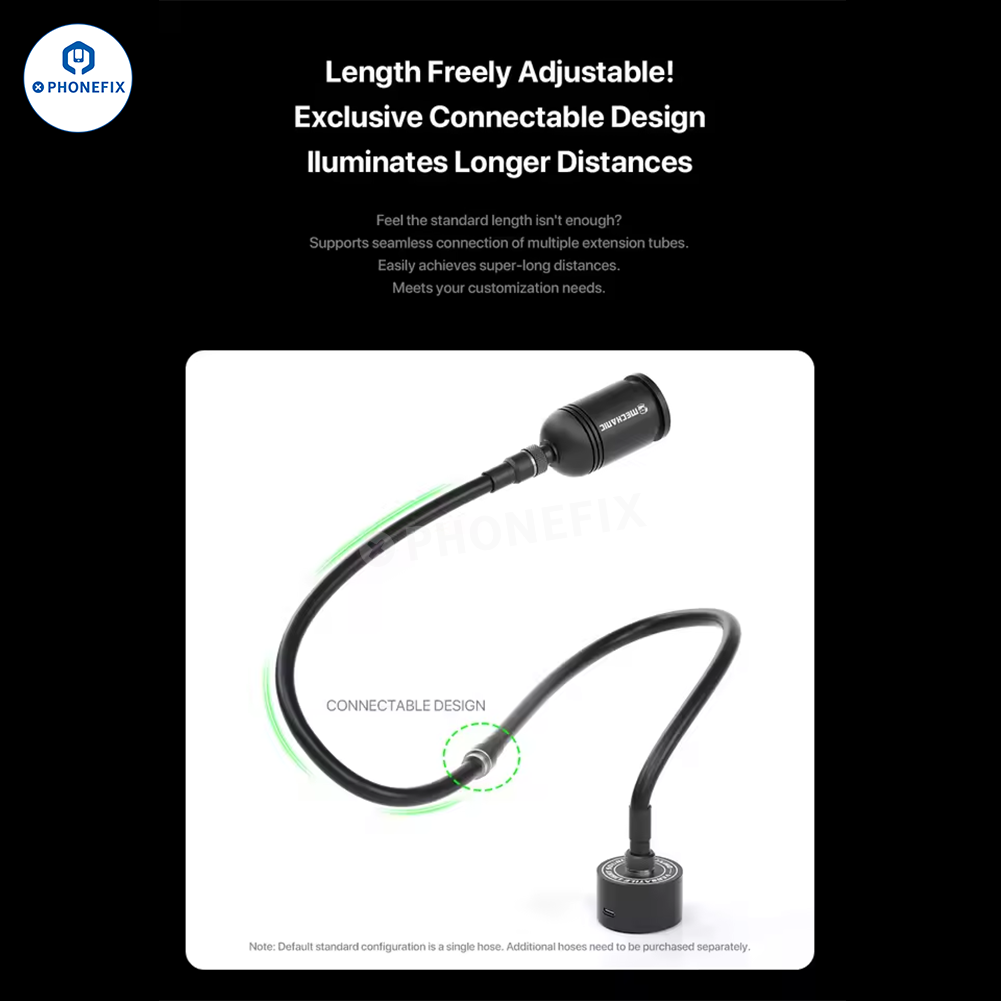

5. Modular Design: Supports expansion; extension tubes can be added via aviation plugs to meet different working needs.

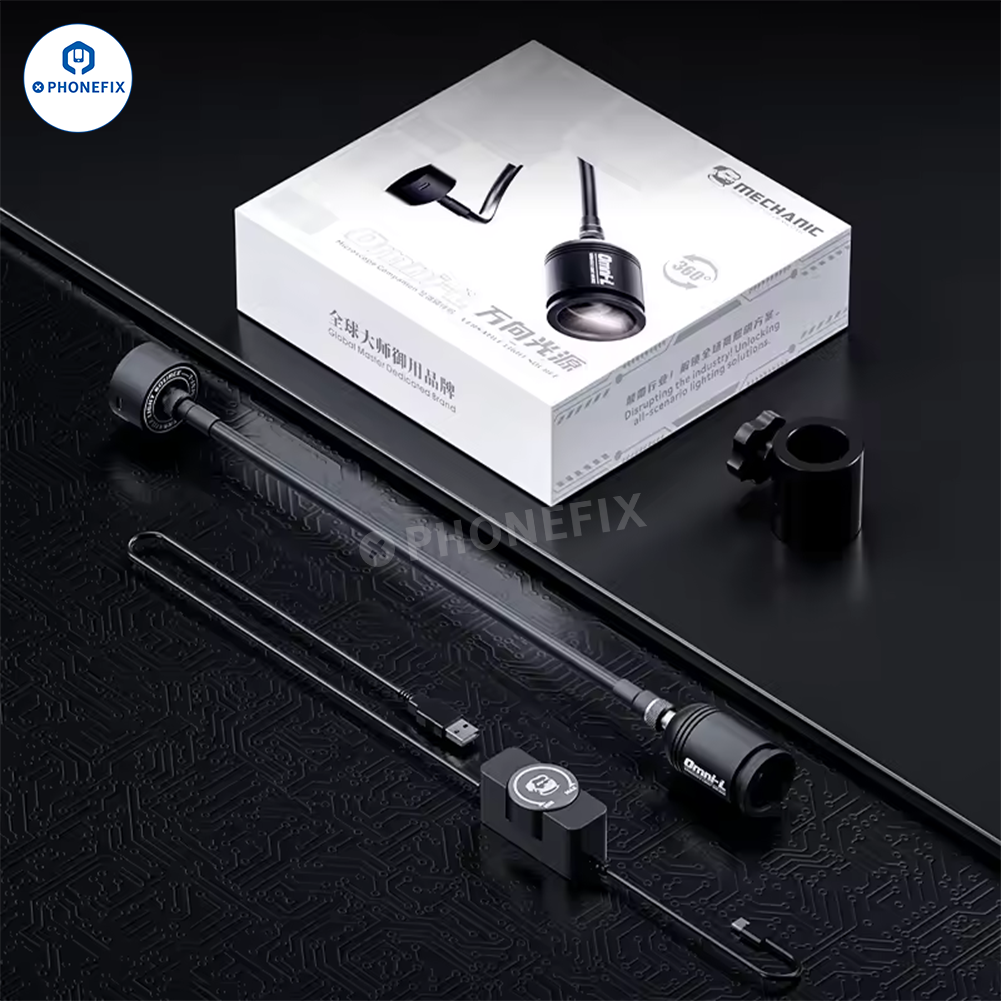

6. Three Mounting Options: Strong magnetic base, universal threaded interface, and adjustable limit block provide diverse mounting options, ensuring stability and safety.
7. Safe and Durable: Aviation-grade aluminum heat sink ensures efficient heat dissipation for the LED light over a long period, preventing overheating and extending its lifespan.
Product Specifications
Name: Microscope Companion
Model: Omni-L
Power: 5W
Lumen: 498.88LM
Net Weight: 589g
Gross Weight: 899g
Size: 44x525mm
Packing: 230x225x65mm
Color Temperature: 8000K-10000K
Brightness Adjustment: Adjustable from 0-100%
Maximum Illuminance: 100000-200000LUX
