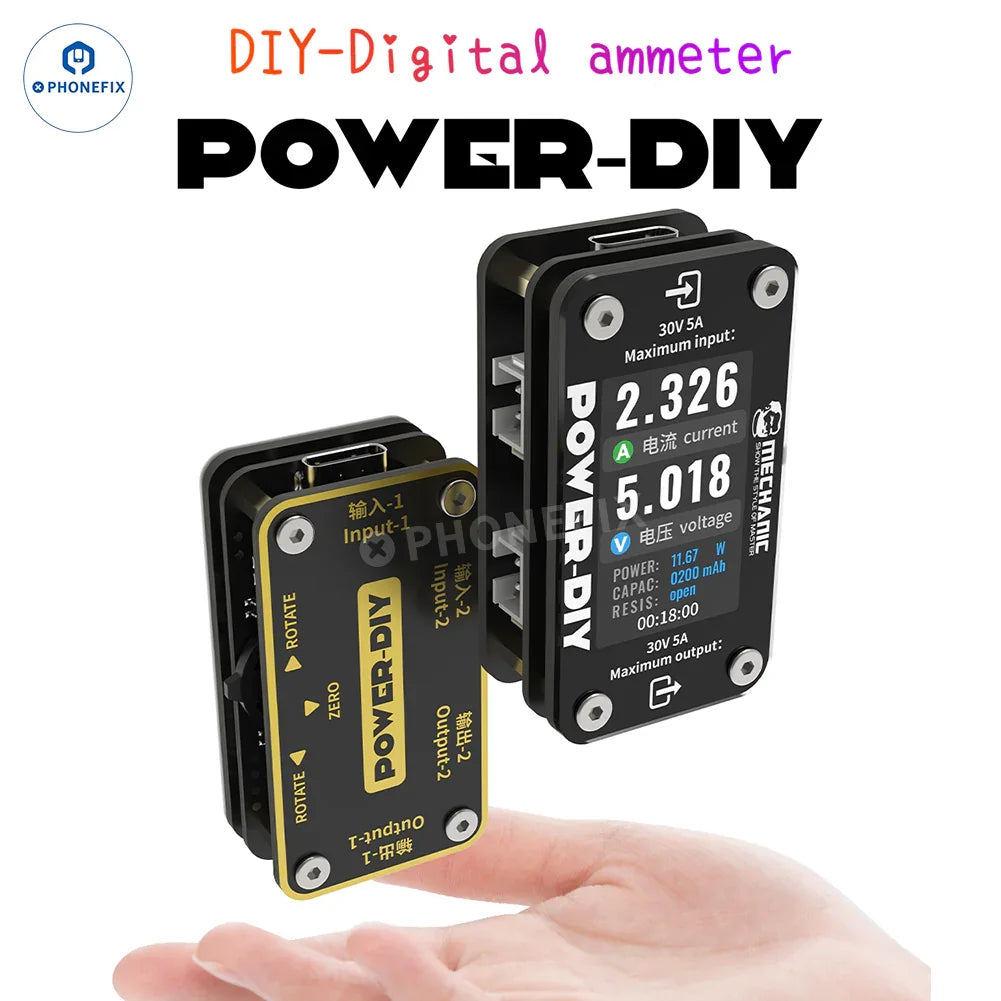

Mechanic POWER-DIY 30V 5A Digital Ammeter with Type-C XH2.54 power supply mode, built-in multiple cables for manual DIY, 360° screen rotation adjustment. Mechanic POWER-DIY Digital Ammeter uses high-definition display and high-computing chips to adapt to the use of products in different scenarios, such as charger installation, electronic equipment modification, equipment installation, etc.
Features:

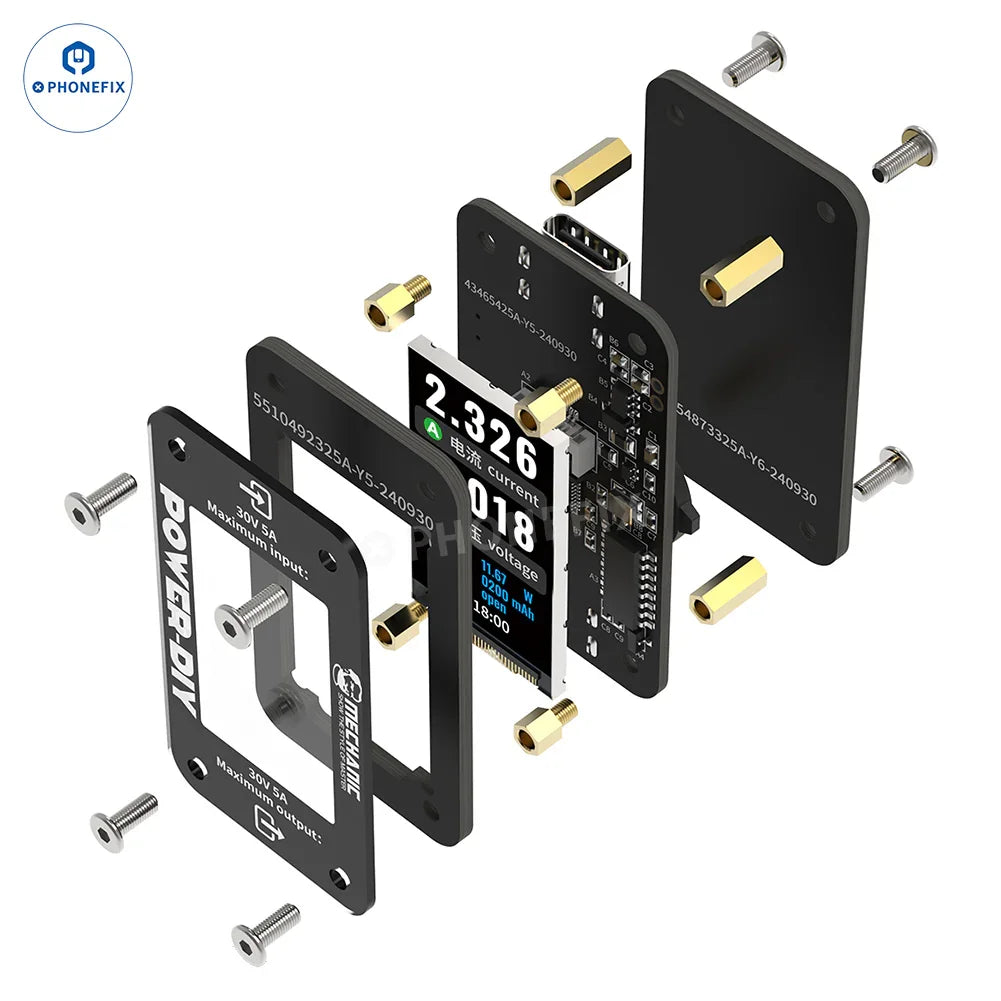

1. Mechanic POWER-DIY Digital ammeter, high computing power supports 30V 5A, new structure stable and firm, solid materials, stability and reliability.

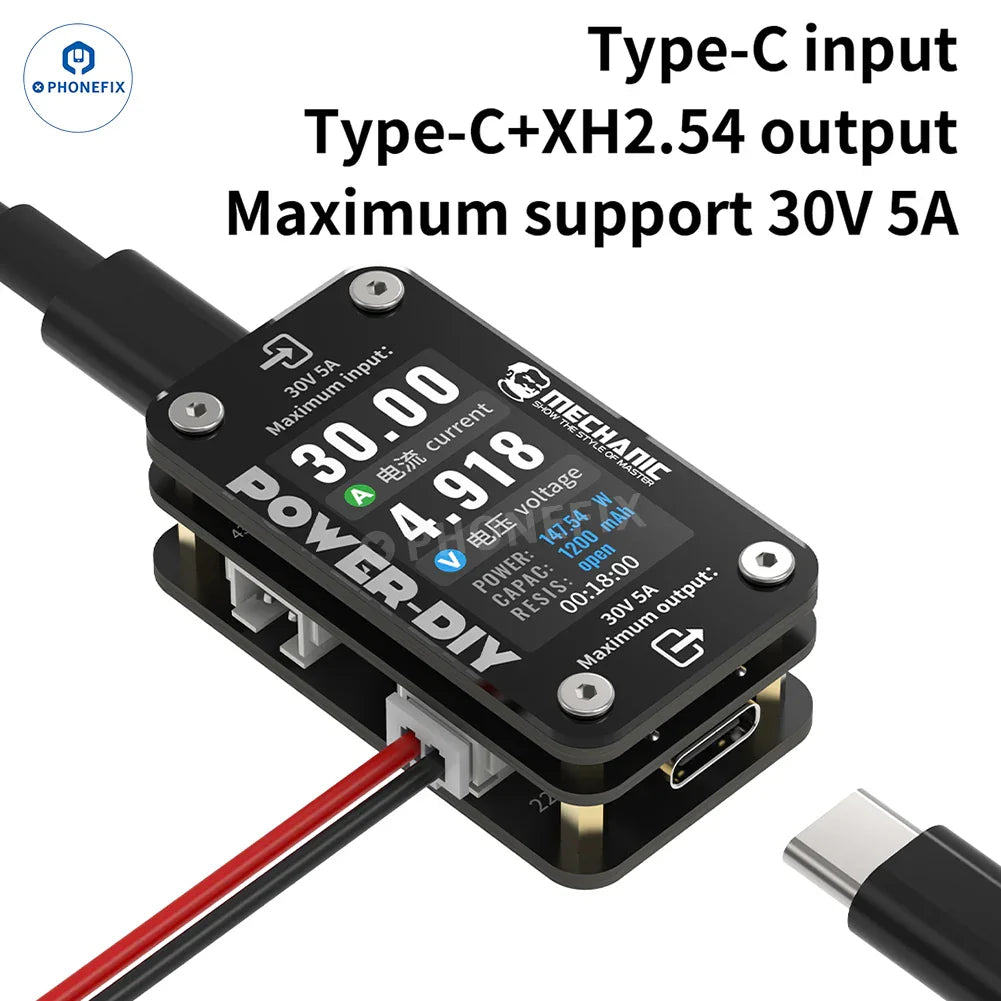

2. Mode-01: Type-C input, Type-C+XH2.54 output. When using the Type-C input terminal, both Type-C and XH2.54 can output current simultaneously, which can power devices such as smartphones and tablets.
3. Mode-02: XH2.54 input, Type-C+XH2.54 output. When using the XH2.54 input terminal, both Type-C and XH2.54 output currents can be used simultaneously, making it convenient for multiple devices to be powered and providing more possibilities for DIY.
4. Mode-03: When testing power supply equipment below 4V, it is necessary to connect a 4-6V power supply to the external power supply of the equipment, and the product can measure low-voltage current after connection.

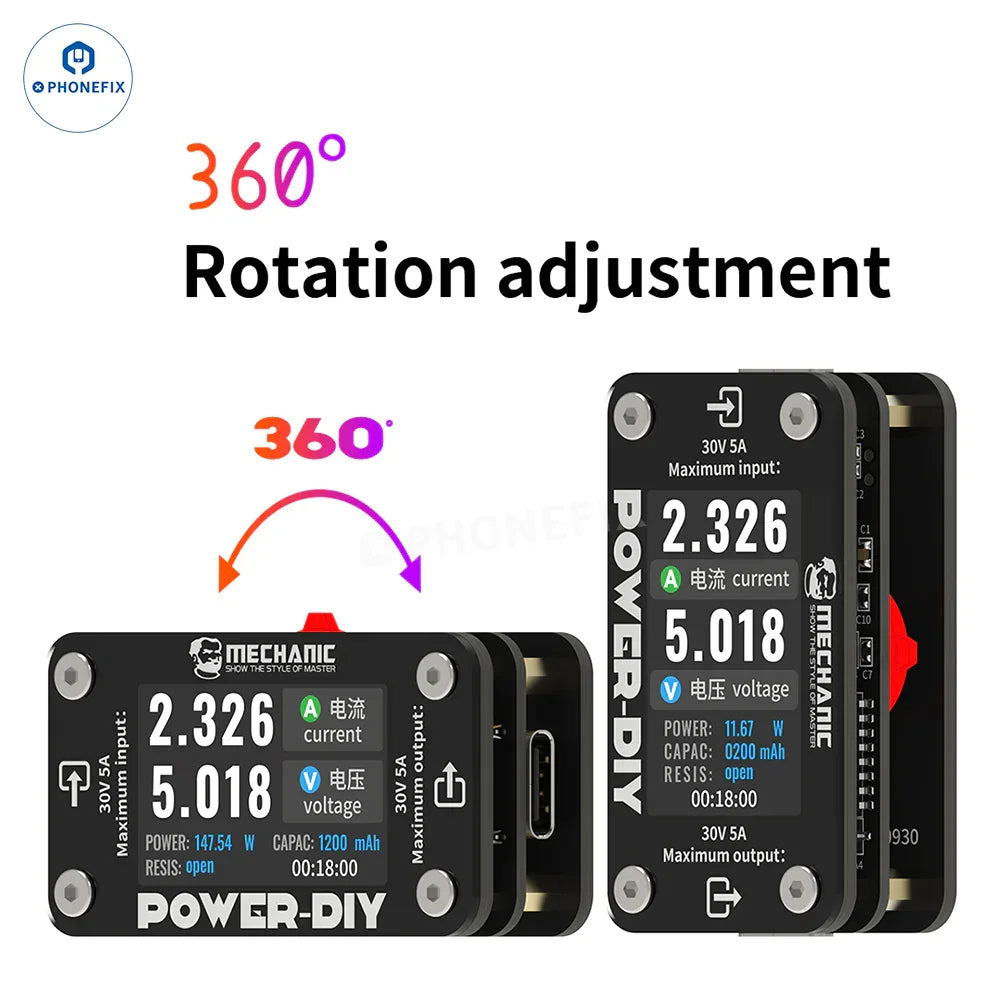

5. In order to adapt to the usage of the product in different scenarios, the UI interface of the product has been designed horizontally and vertically, which can be rotated by the fluctuating side dial switch.

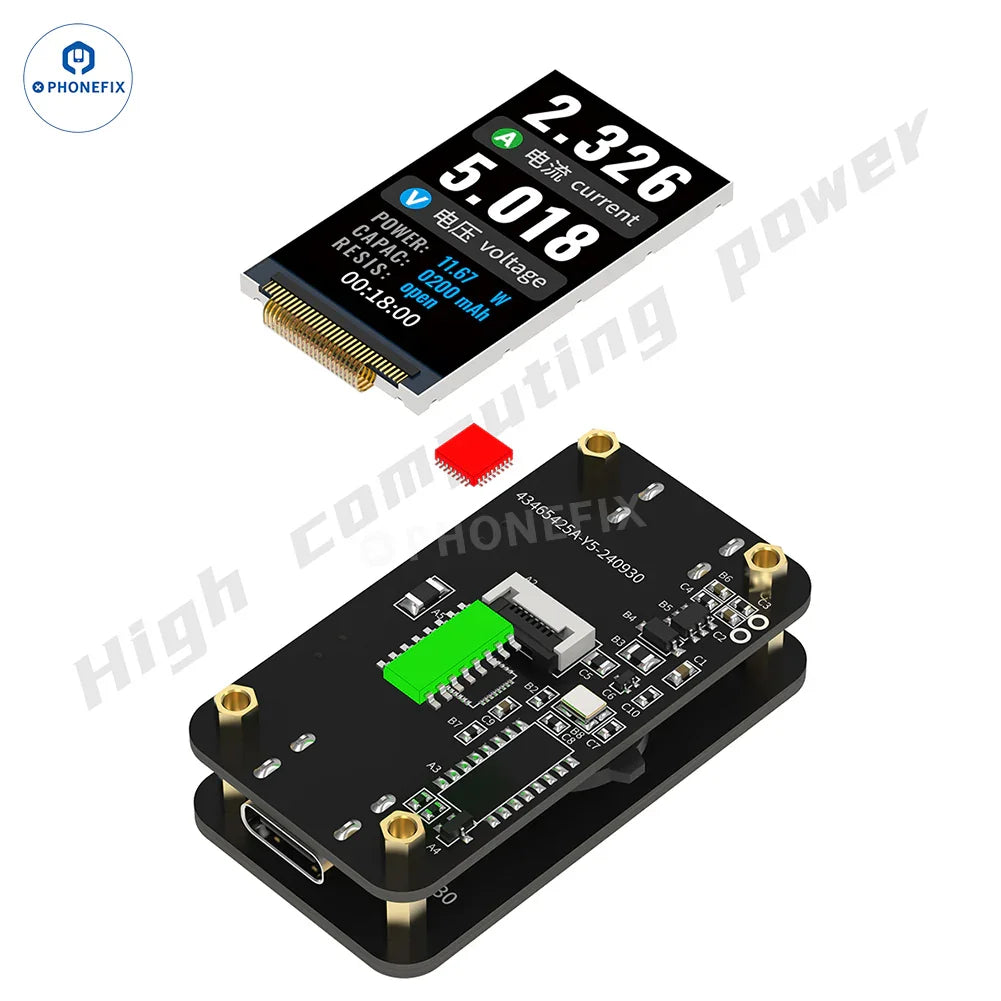

6. The stability and accuracy of the product require high computing power chips as the foundation to accurately display the detection results.

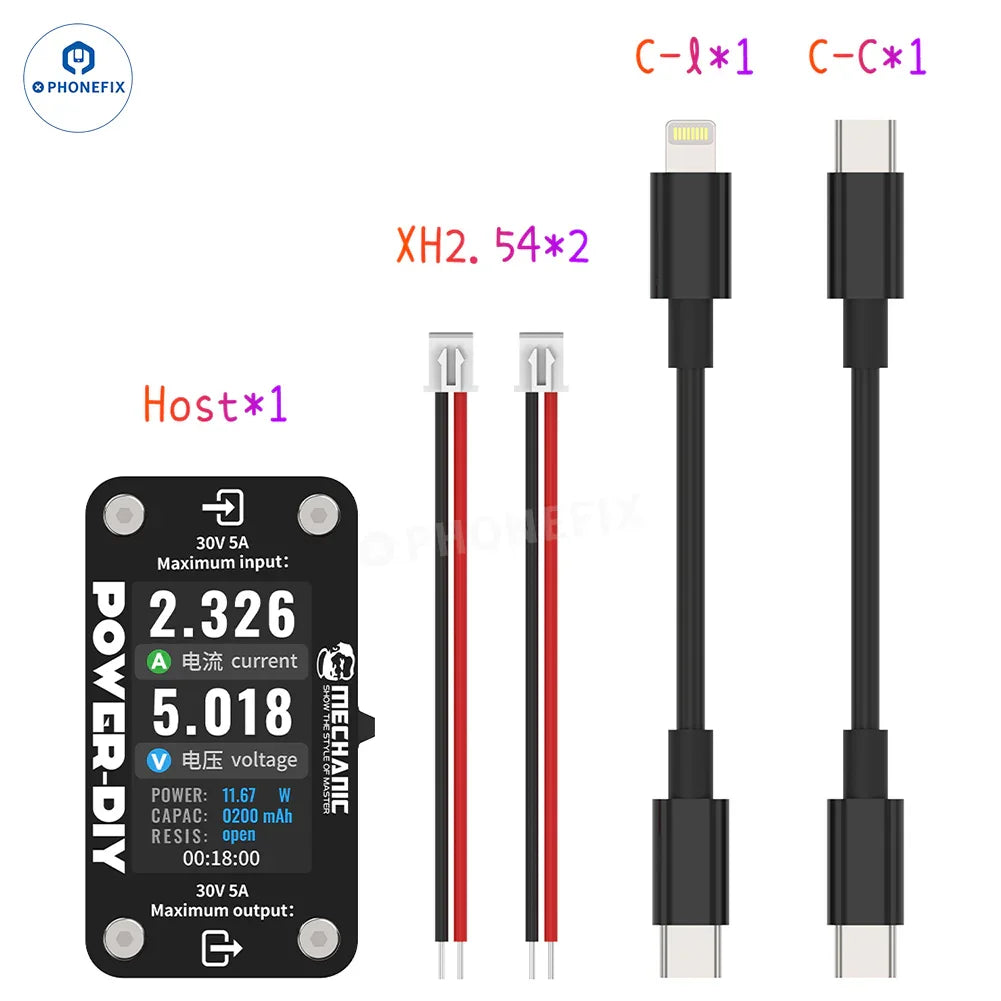

7. Built in multiple DIY cables, even the smallest threads are made of high-quality materials.
Product parameters:
Name: DIY Digital Ammeter.
Packaging size: 52*79*22mm.
Product size: 26.6*46.6*17mm.
Product weight: 35g.
Input terminal: Type-C+XH2.54.
Output terminal: Type-C+XH2.54.
Measurement voltage: 0-30V.
Measurement current: 0-5A.
Voltage accuracy: 1mV.
Current accuracy: 1mA.
