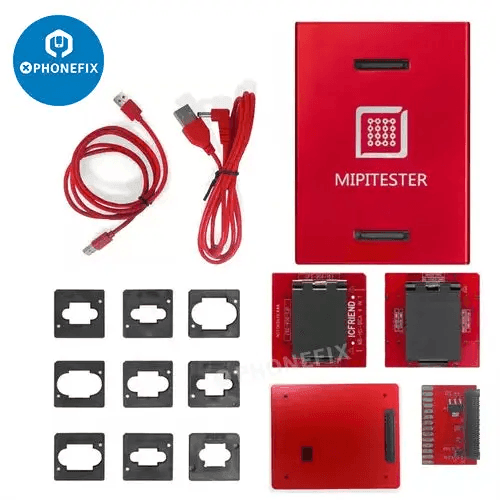

Original ICFRIEND Mipi Nb Max box + UFS 4 in 1 Socket UFS BGA 153,UFS 254,UFS 297 Adapter + E-MATE eMMC 13 in 1 Adapter. MiPi NB-Max is a tool intended for reading and writing user data on UFS and eMMC chips. Medusa PRO II Box has been discontinued.
MiPi NB Max Full Set Package Content:
1x MiPi Tester Box
1x ISP Adapter
1x USB 3.0 Cable
1x USB 5V Cable
NB-EMMC-BGA 13 in 1 set:
eMMC-BGA221
eMMC-BGA529
eMMC-BGA162-186
eMMC-BGA136
eMMC-BGA168
eMMC-BGA153
eMMC-BGA169
eMMC-BGA100
eMCP-BGA254
eMCP-BGA186
eMCP-BGA136
eMCP-BGA529
eMCP-BGA168
NB-HS-BGA 4 in 1 set:
UFS-BGA-297
UFS-eMMC-BGA254
UFS-153
1x EMMC UFS P1 Adapter
Official website: https://En.MiPitester.com
pls use the lastest software, download link:
https://mega.nz/folder/j0UChb5a#u0VzDbf3I-KQ-uMiU4BrPA

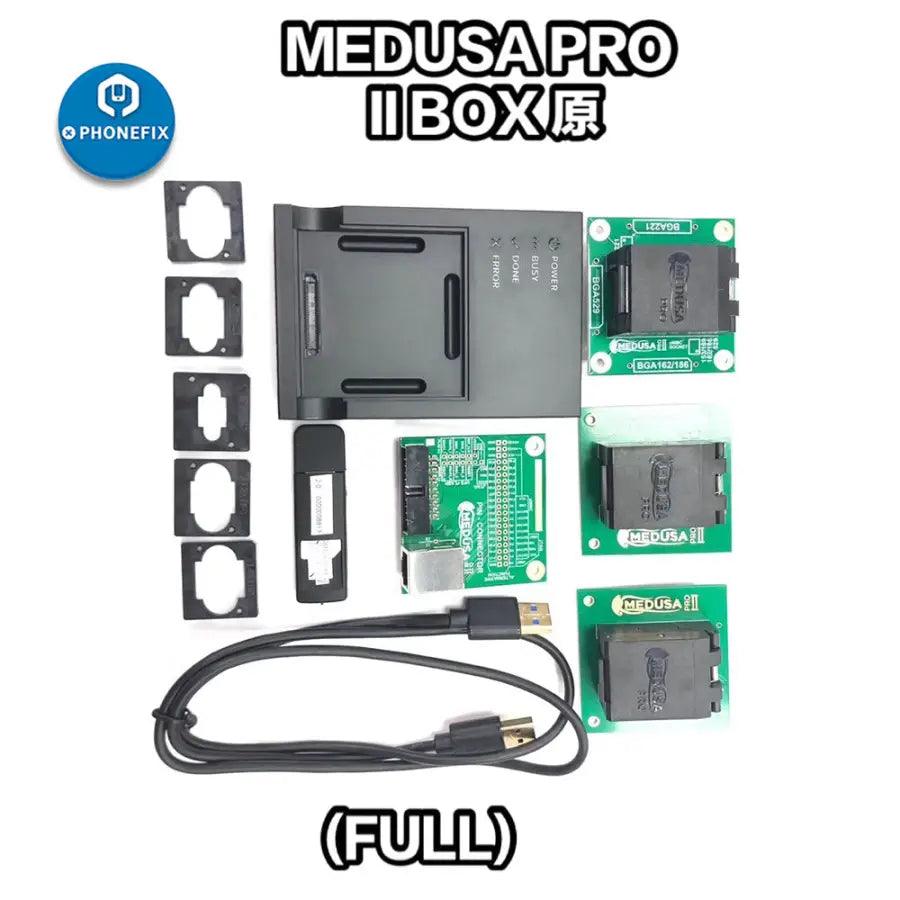

Full set Medusa PRO II Box adapter for read / write / boot / flash / repair mobile phone: LG, Samsung, HTC...., the professional phone flashing and unlocking tool intended for a wide range of Samsung, Huawei, LG, Lenovo, Motorola, Oppo, Sony, Xiaomi, ZTE and other devices through USB, UFS and MMC interfaces. The main intended purpose of Medusa PRO II Box is repairing dead boots of the devices (mobile phones, PDAs, modems, etc.) or these devices recovery, until they become fully operational.
What`s new: Hardware
New ergonomic design
More powerful hardware base that can be easily enhanced
Faster interaction with PC (USB 3.0)
Wide range of voltage regulation
Introduced ISP method for UFS flash memory without desoldering
Identification of external expansion boards (UFS, eMMC sockets, PIN-CONNECTOR, etc.)
capable to work with other peripherals by means of PIN-CONNECTOR
Advanced multicolor indication of operation modes
Software
UFS
UFS operation modes: slow (PWM) and fast (HS)
Read Android build info
Main features:
Read
Write
Wipe Data
UFS Service Operations
Distribute UFS Storage
Configure UFS descriptors, attributes, flags
Save/Write Config descriptors
Save/Write attributes
Save Flags
Write OEM ID
Format UFS (all active LUN)
Read RPMB Counter
Factory Repair of UFS flash memory
MMC
Introduced ability to work with MMC by means of 8-bit bus
Increased MMC data transfer speed
Detection of eMMC socket connection
BGA153/169
BGA162/186
BGA 529
BGA 221
Features : Fast USB 3.0 high-speed mode (+USB 2.0 compatibility)
UFS data transfer speed 55 MB/s (writing) / 100 MB/s (reading) and more
depends on PWM/HS working mode and flash storage speed
1-bit, 4-bit and 8-bit MMC buses supported (40 MB/s and more)
speed depends on bus width and flash storage speed
In System Programming (ISP) now possible for MMC and UFS flash memory types
without desoldering, if there is a technical capability to solder by means of PIN-CONNECTOR expansion board
All output voltages (VCC, VCCQ, VCCQ2) regulation within operation range 1.2…3.3V
Medusa PRO II - Software Features:
Full-featured professional software
Supports all operations (Read, Write and Edit) with any required memory partition via UFS, MMC, and USB interfaces.
Service operations with UFS memory
Divide flash memory into LUN units
Work with descriptors, attributes, flags
Write OEM ID
Erase memory on all active LUN
Read RPMB Counter
Service operation with MMC flash memory
Edit: geometry, partitions, CID, CSD and other data registers
Restore/Update flash memory firmware
Read/View Extended CSD registers
Format flash memory
Simple intuitive GUI interface suitable for both beginners and experts
Quick device restoration by means of SRF files
SRF files contain partition data as well as other useful information (help files and diagrams)
SRF data are compressed (to increase performance)
Built-in Partition Manager
Partition Manager allows you to edit the required partitions and save changes thus improving user experience. Plus, you will be able to open Full Flash binary files, edit the file content and save the edited file back on the device.
Simple operation for each partition separately (Read, Write, Erase, Edit) on the specific storage devices
Built-in Smart-Repair-File Constructor with Partition Manager for creating your own SRF files
SRF file can be taken from the device or read from Full Flash binary file. This functionality allows user (without developer’s assistance) add devices to the list of supported models, which are not officially supported yet. User can upload the custom SRF file into separate section of Support Zone and submit it for further analysis of the developers. If this custom SRF file is considered legitimate and correct, name (or nickname) of the author will be credited within the next update. Thus, user has the opportunity to participate in the development of Medusa PRO II and become known in certain circles.
Built-in Download Manager allows you to download files directly from the software
Devices with NAND, OneNAND and eMMC memory types are supported via USB interface
Devices with eMMC memory type are supported via MMC interface
Software is compatible with Windows 10
Medusa PRO II Box - Supported UFS Types :
- KLUDG8J1EB-B0B1 SAMSUNG 119.19 GB
- KLUDG8V1EE-B0C1 SAMSUNG 119.19 GB
- KLUDG8J1CB-B0B1 SAMSUNG 119.19 GB
- KLUCG4J1CB-B0B1 SAMSUNG 59.60 GB
- KLUCG4J1EB-B0B1 SAMSUNG 59.60 GB
- KLUCG4J1ED-B0C1 SAMSUNG 59.60 GB
- KLUBG4G1CE-B0B1 SAMSUNG 29.81 GB
- KLUDG4U1EA-B0C1 SAMSUNG 119.20 GB
- KLUBG4G1BD-E0B1 SAMSUNG 29.81 GB
- THGAF8T1T83BAIRB TOSHIBA 238.37 GB
- THGAF8T0T43BAIRB TOSHIBA 119.20 GB
- THGAF8G9T43BAIRB TOSHIBA 59.61 GB
- THGAF4G9N4LBAIRB TOSHIBA 59.61 GB
- THGBF7G8K4LBATRC TOSHIBA 32GB
- THGAF8G8T23BAILB TOSHIBA 29.82
- THGAF4G9N4LBAIRA TOSHIBA 60 GB
- SDINDDH4-32G SANDISK 32GB
- H28U74303AMR (hC8aM1) SKHYNIX 60 GB
- H28U74301AMR (hC8aL1) SKHYNIX 60 GB
- H28U62301AMR (hB8aL1) SKHYNIX 29.81 GB
