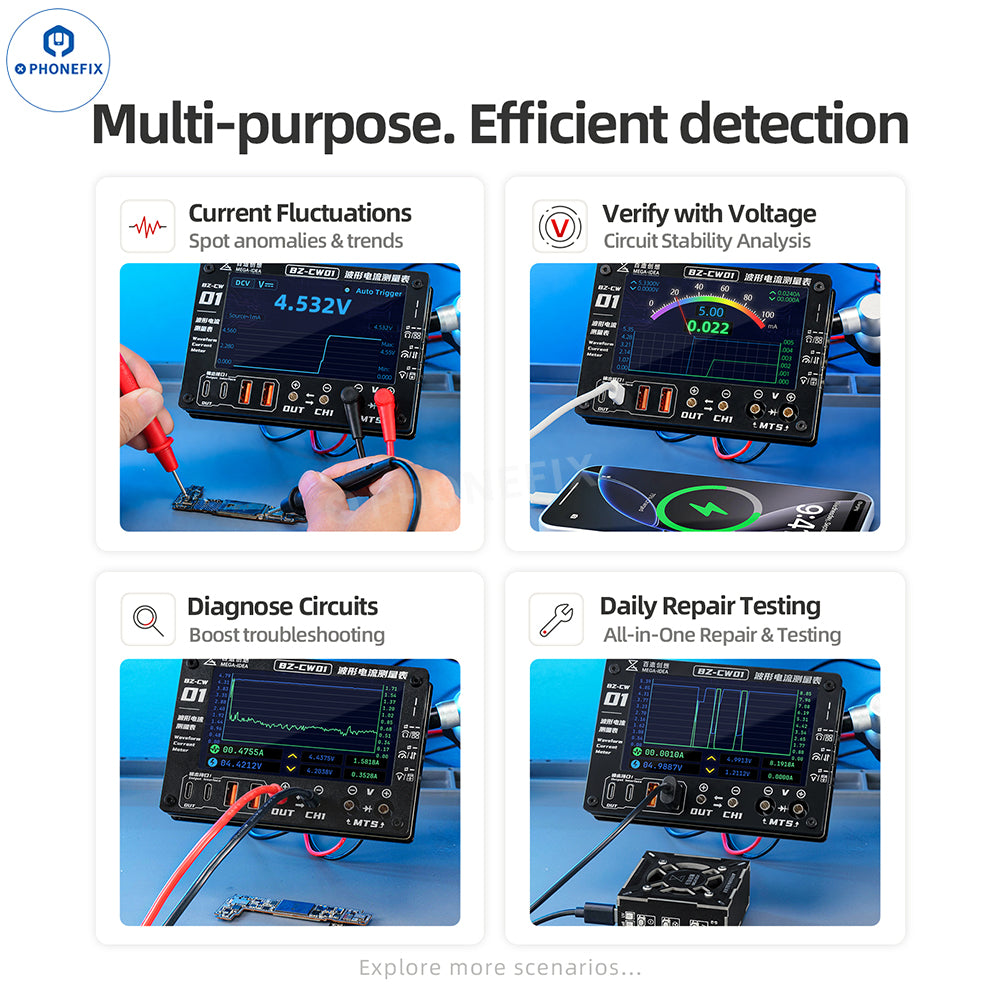

MEGA-IDEA BZ-CW01 waveform current meter with 0-36V/0-8A measurement, multimeter functions (V/Ω/diode/continuity), and real-time current/voltage waveform display. Three display modes—pointer, curve, and digital multimeter. Dual output interfaces (OUT and CH1/MT) and Type-C connectivity. Detecting leakage currents, identifying short circuits, monitoring battery charging behavior, and verifying power supply stability. Ideal for phone motherboard diagnostics, charging circuit testing, and general circuit troubleshooting.
Features:
1. Rapidly captures instantaneous voltage and current fluctuations during startup, power switching, and load changes.
2. Visually displays current trends via waveform graphs for quick identification of anomalies.

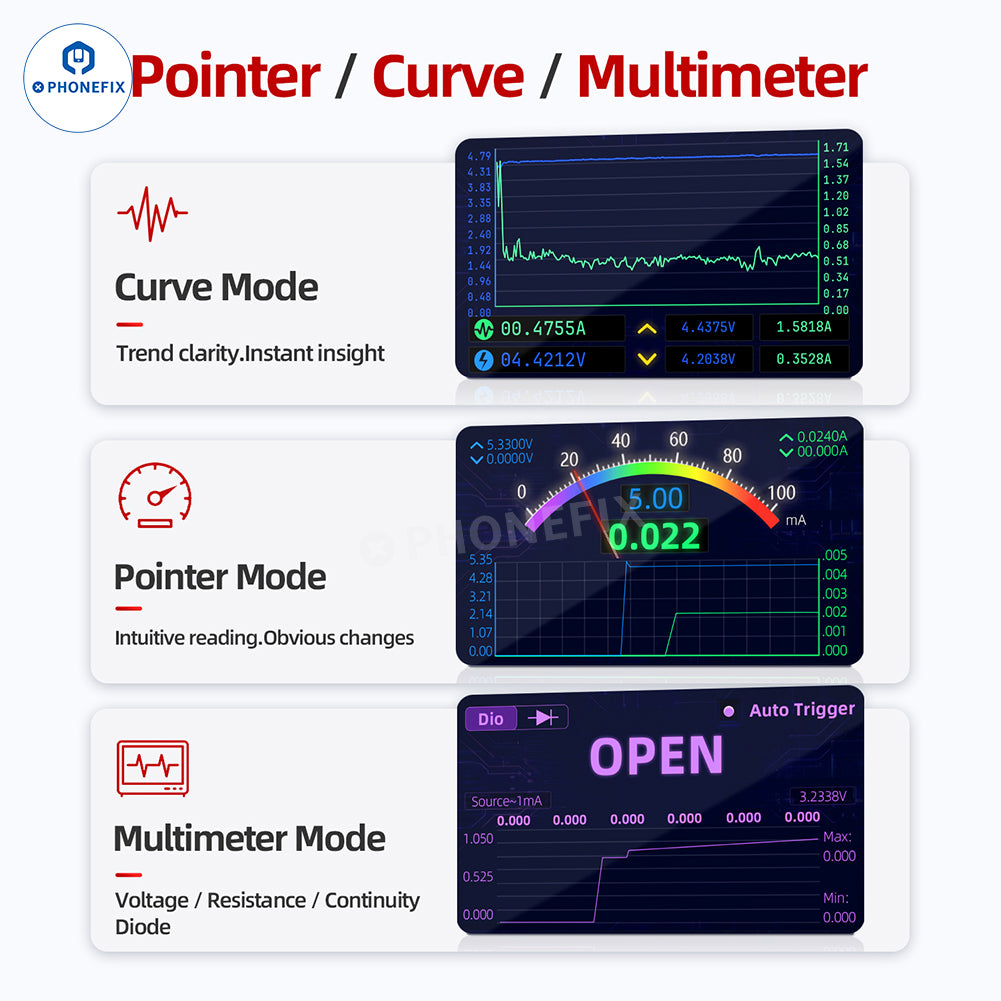

3. Supports waveform, analog gauge, and multimeter modes to meet diverse repair needs.
4. Capable of detecting minute current changes; suitable for complex circuit and motherboard diagnostics.

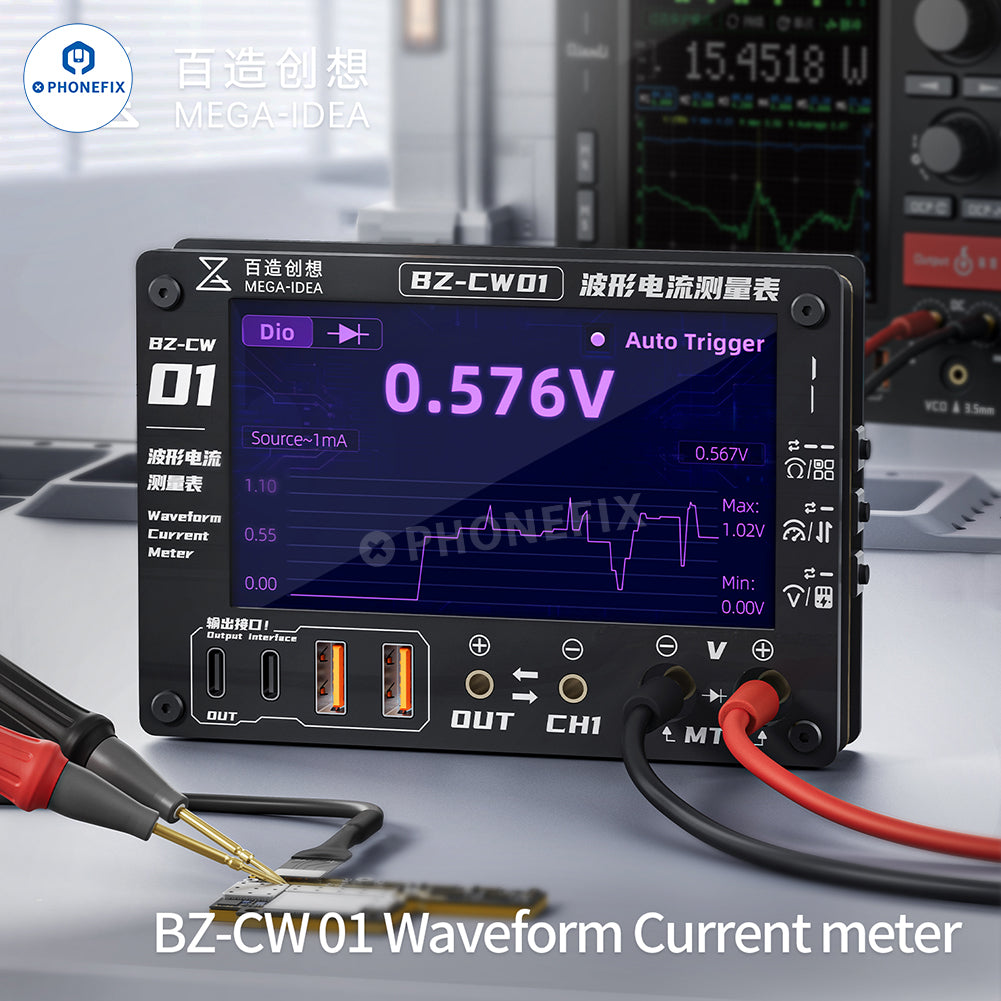

5. Supports basic testing functions including voltage, resistance, continuity, and diode tests.
6. Real-time monitoring of charging voltage, current, and power to analyze charging anomalies.
7. Connects to a PC for large-screen display, data monitoring, and repair analysis.

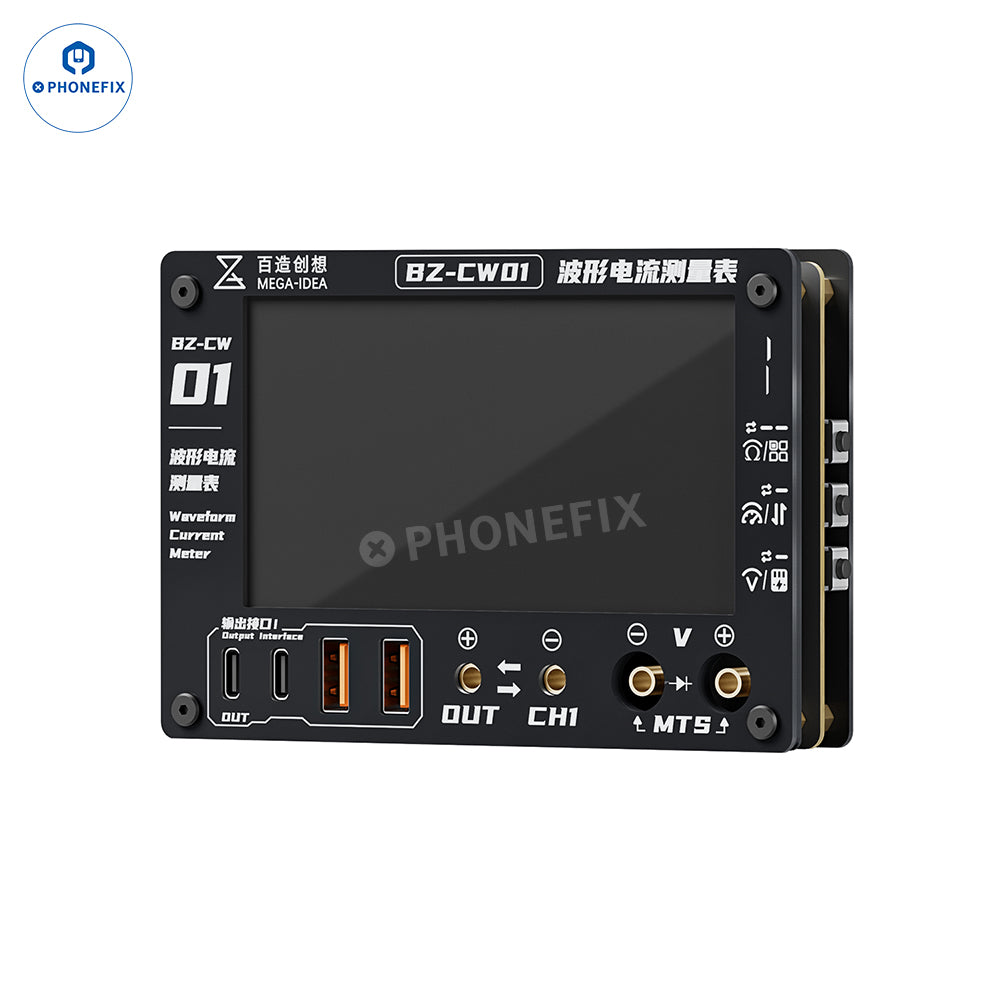

8. Offers multiple connection options—including Type-C, USB-A, and banana sockets—to suit various testing scenarios.

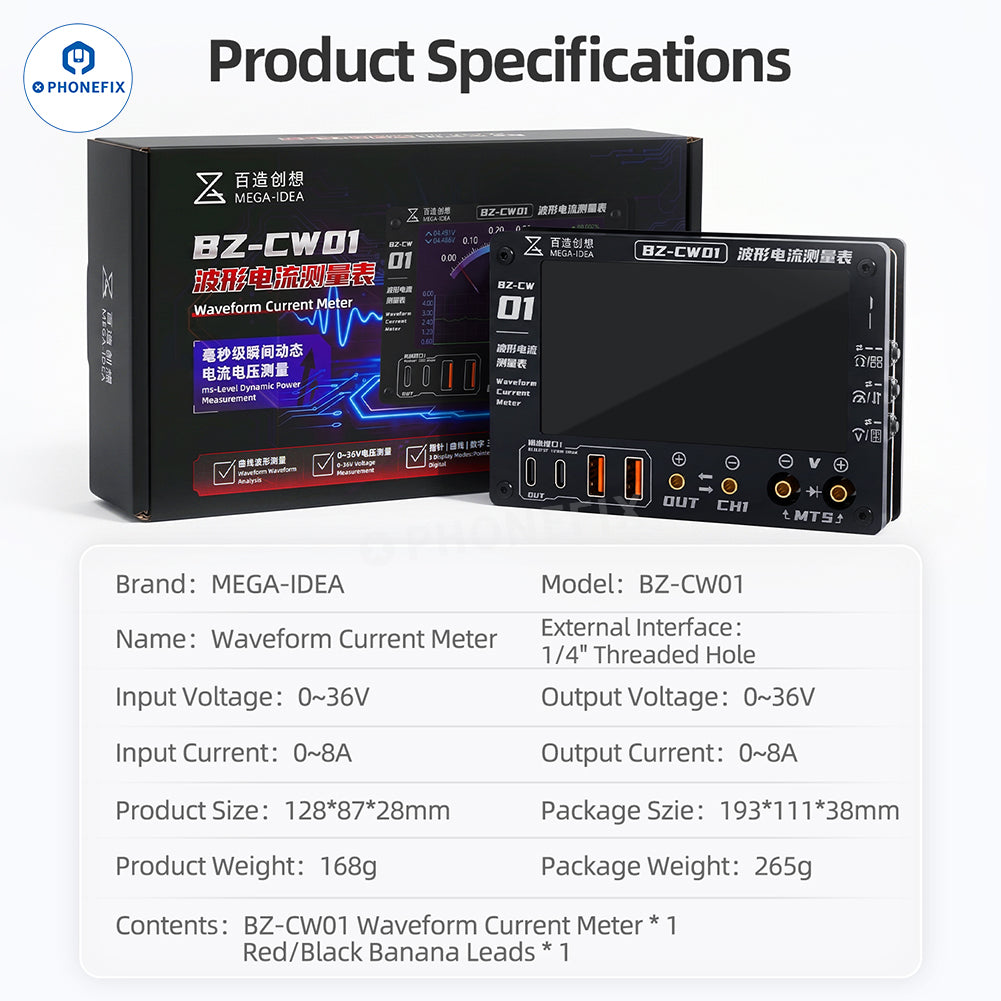

Product Specifications
Product Name: Waveform Current Meter
Brand: MEGA-IDEA
Model: BZ-CW01
Measurement Functions: Dynamic voltage & current measurement; resistance; continuity; diode test
Dynamic Response: Millisecond-level response
Input/Output Voltage Range: 0–36V
Input/Output Current Range: 0–8A

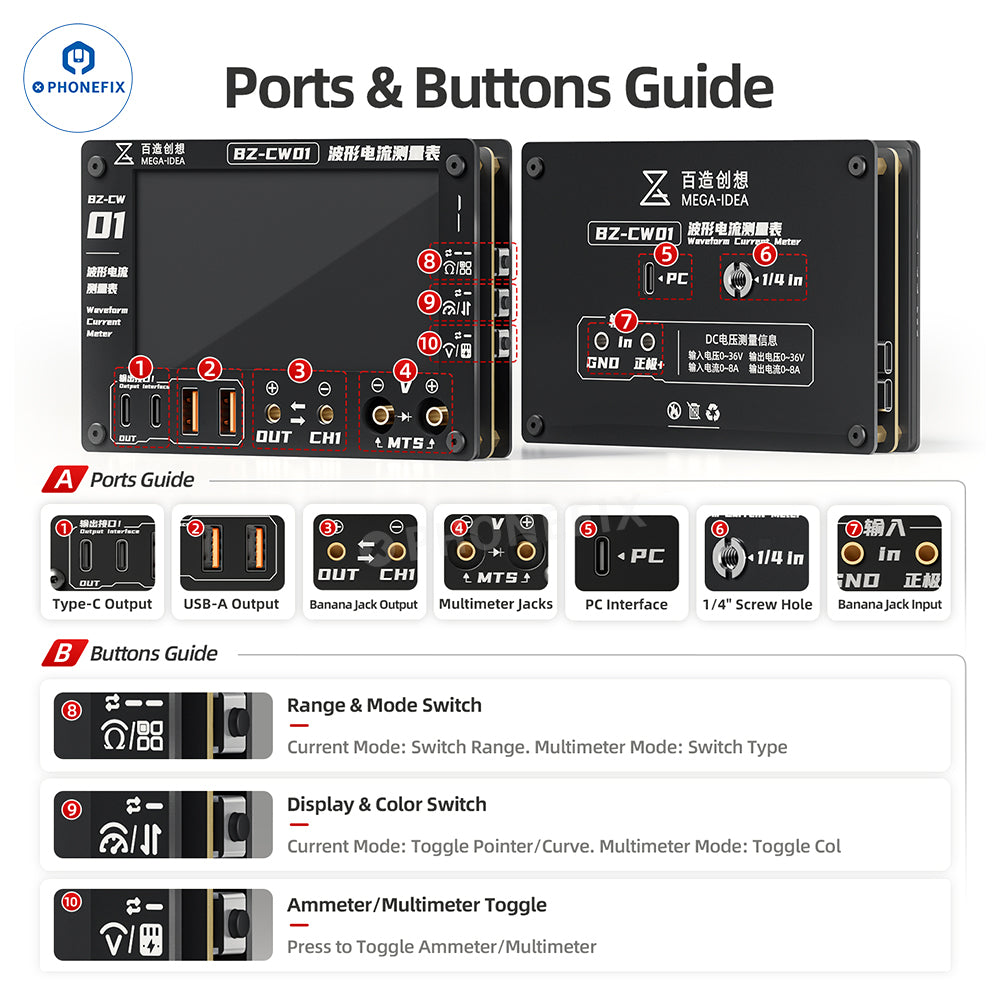

External Interfaces: Type-C, USB-A, banana socket, PC interface, multimeter interface
Threaded Interface: 1/4-inch threaded hole
Product Dimensions: 128 x 87 x 28 mm
Package Dimensions: 193 x 111 x 38 mm
Product Weight: ≈168g
Package Weight: ≈265g
