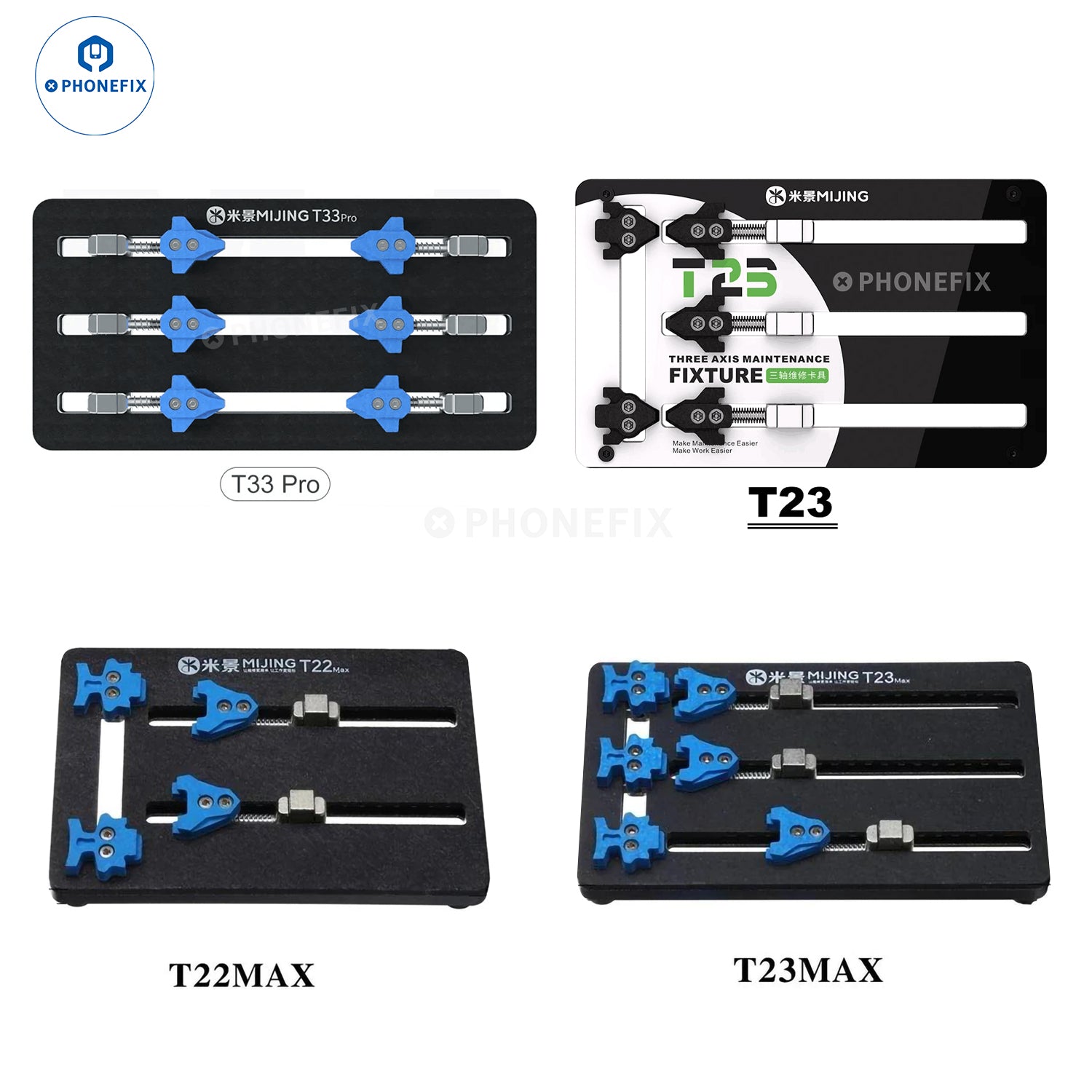

Universal Mobile Phone Repair Holder - MIJING T22 Max, T23, T23 Max, T33 Pro motherboard fixture PCB CPU BGA chip soldering clamp. MIJING T22max two axis repair fixture, mijing T23max three axis repair fixture, mijing T23 three-axis glass repair fixture and Mijing T33PRO Three axis clamp for mobile phone repair. Mijing T-series Phone Repair PCB Holder Fixture.
Option:
1. MIJING T22 Max 2-Axis fixture.
2. MIJING T23 3-Axis fixture.
3. MIJING T23 Max 3-Axis fixture.
4. MIJING T33 Pro 3-Axis fixture.

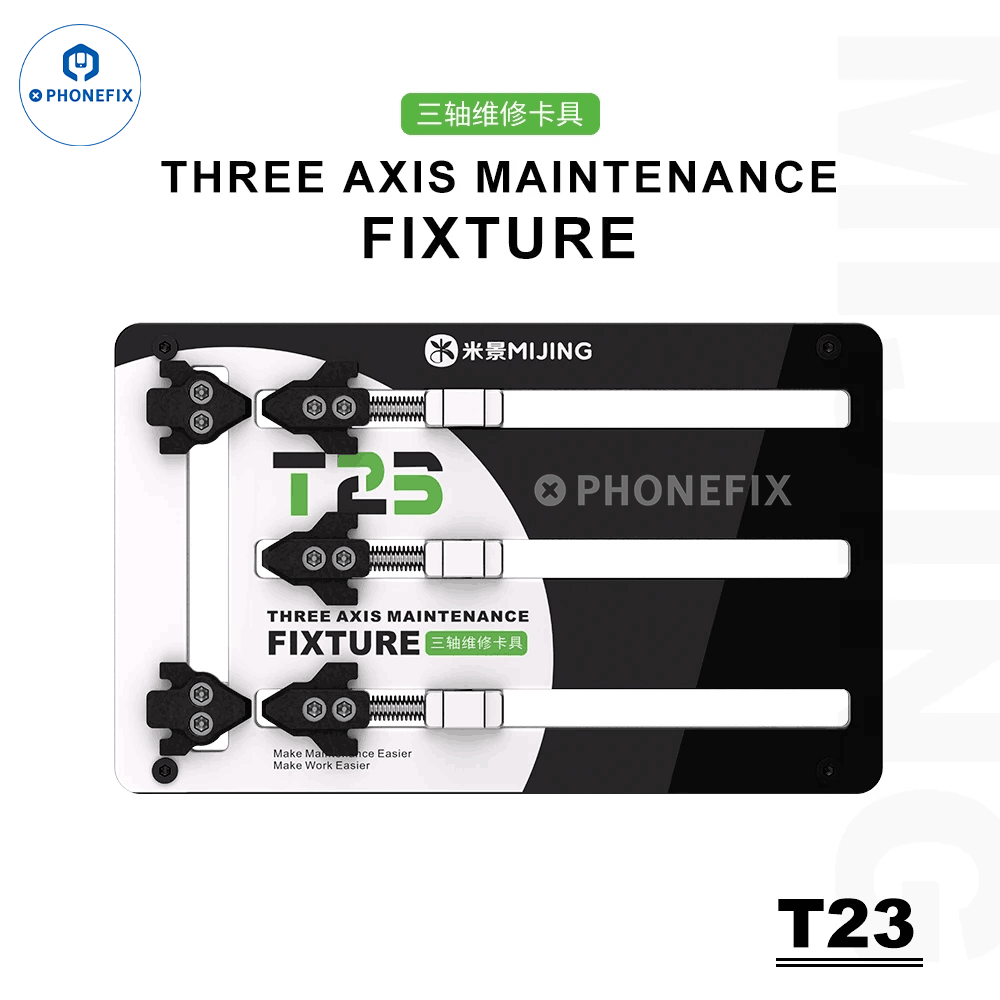

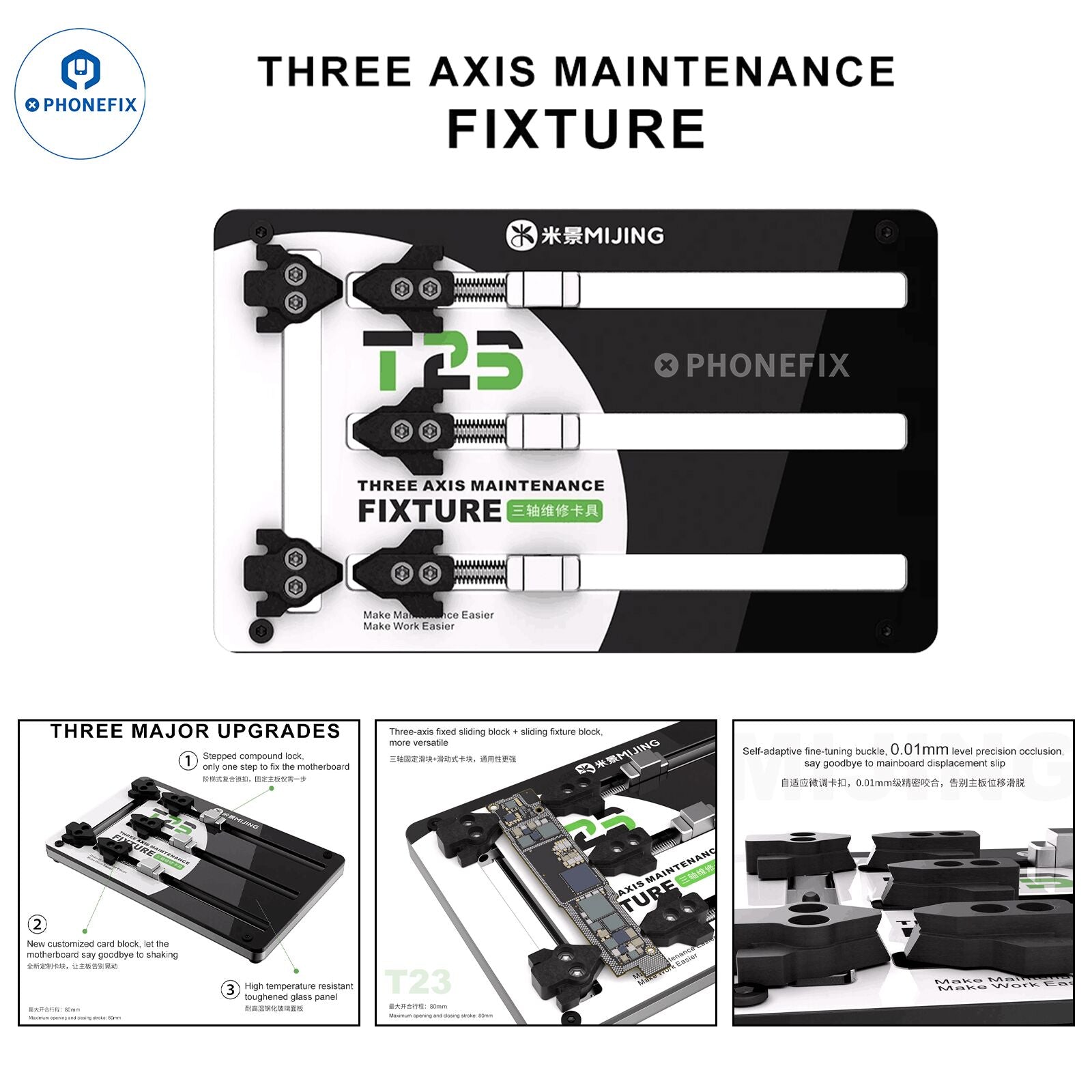

MIJING T23 Features:
1. Mijing T23 3-Axis motherboard repair fixture for mobile phone (iPhone Android Phone) repair.
2. Designed with a high temperature resistant toughened glass panel.
3. Sels-adaptive fine-tuning buckle, 0.01mm level precision occlusion, prevent the motherboard from slipping.
4. Three-axis fixed sliding block and sliding fixture block, more versatile.
5. Stepped compound lock catch with spring buffer, refuse to heat loose.
6. Maximum opening and closing stroke: 80mm.

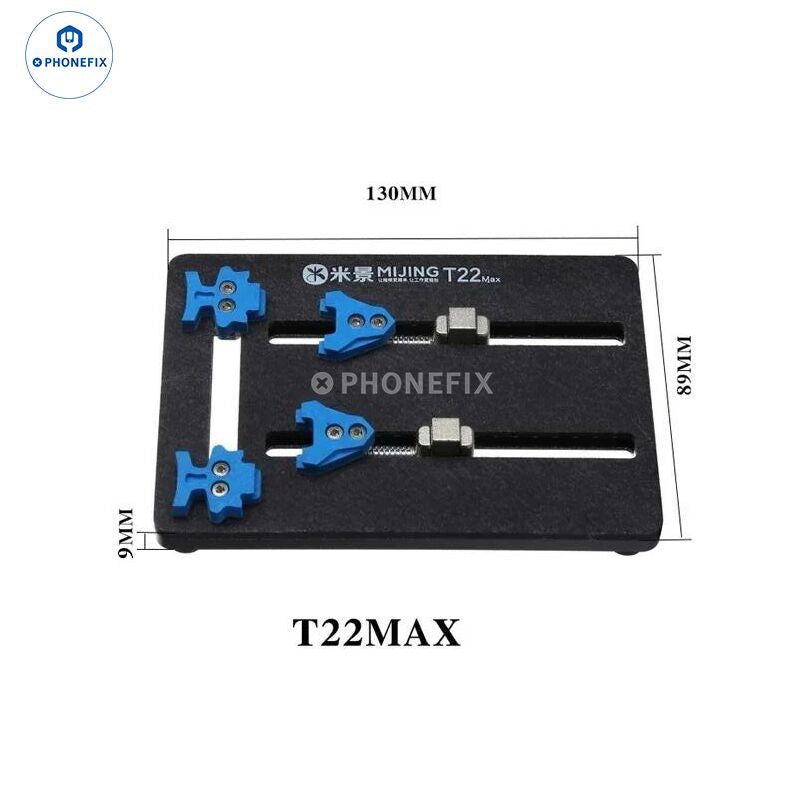

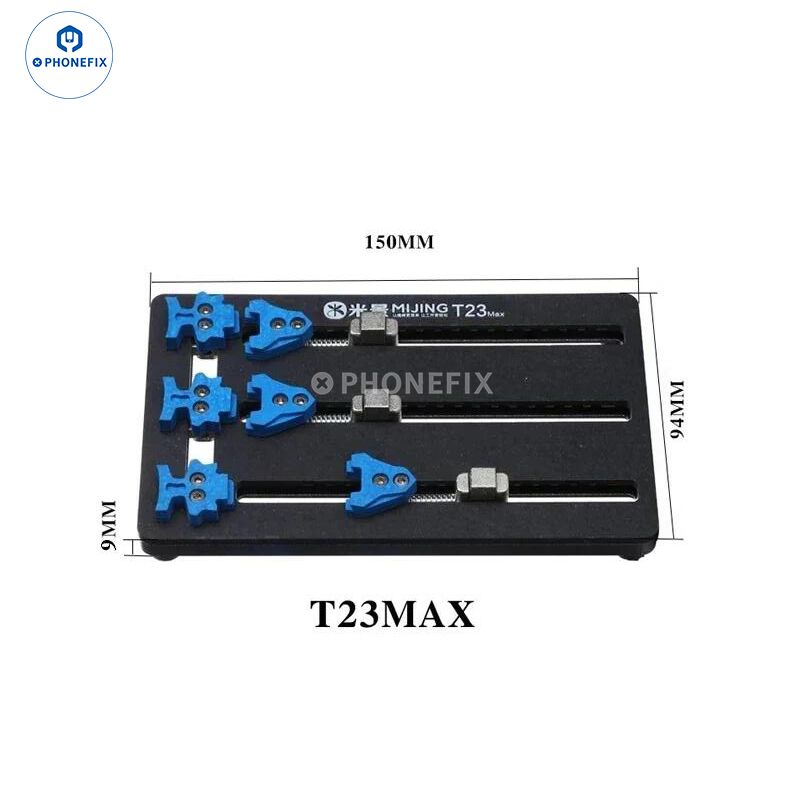

MIJING T22 Max/T23 MAX Features:
1. Mobile phone maintenance fixture, two adjustable distances and rotary fixed design, no rebound, fixed firmly. MIJING T22max two axis and T23max three axis.
2. To prevent the fixture from moving during use, a special non-slip pad is provided to facilitate heating.
3. A heat sink is added to the bottom of the fixture to allow hot air to be discharged more effectively.
4. The rotary shaft locks the phone motherboard or IC more efficiently, fixed well without a rebound.
5. The fixture supports fixing the IC for removing the glue, avoiding the IC from breaking when removing the black glue.
6. The clamp can be adjusted to different distances, high, medium, and low. Just loosen the two screws at the bottom, move the fixing plate to the corresponding position, and then tighten the bottom screws to lock it.

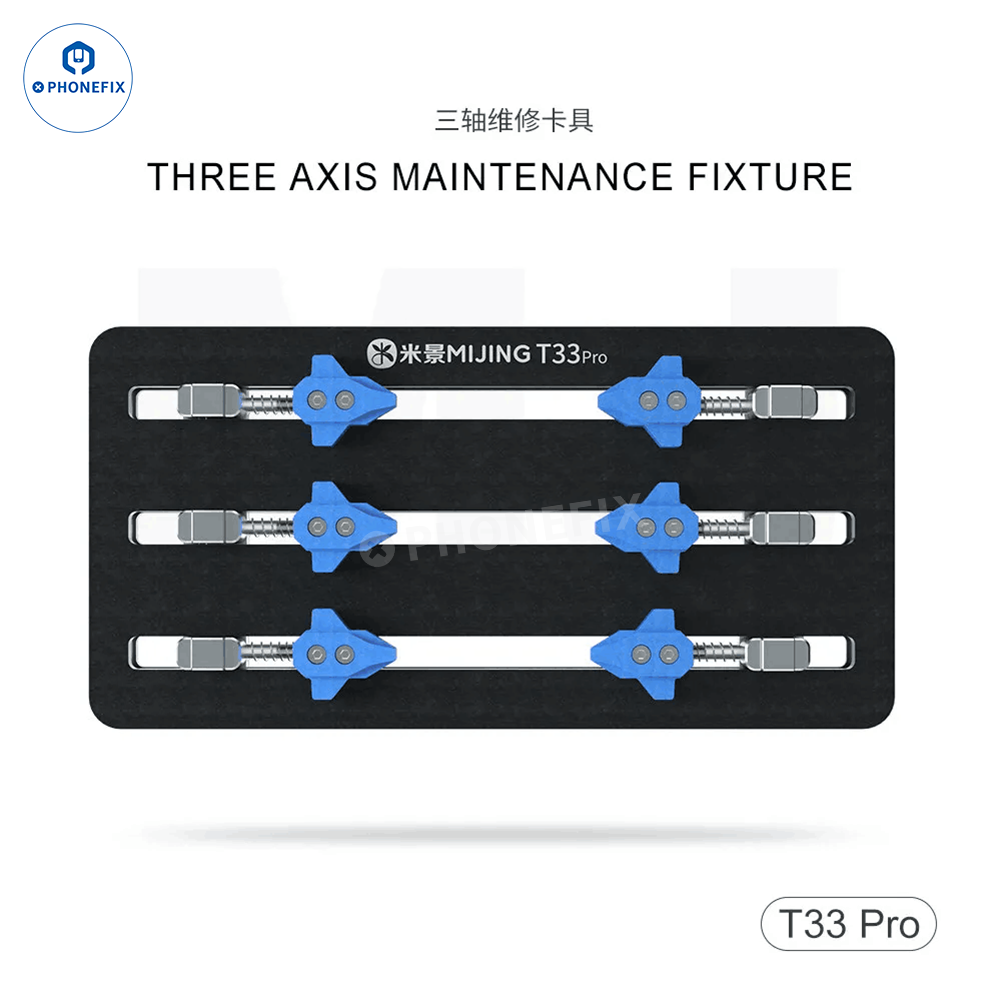

Mijing T33 Pro Feature:
1. Mijing T33 Pro 3-Axis Multi-Angle Motherboard Holder PCB IC Soldering Fixture.
2. Symmetrical buckle design, no fear of special-shaped motherboard.
3. V-shaped bayonet buckle, bevel buckle.
4. Stepped lock catch, tightly clamped, perfect fit
90mm extra wide working area.
