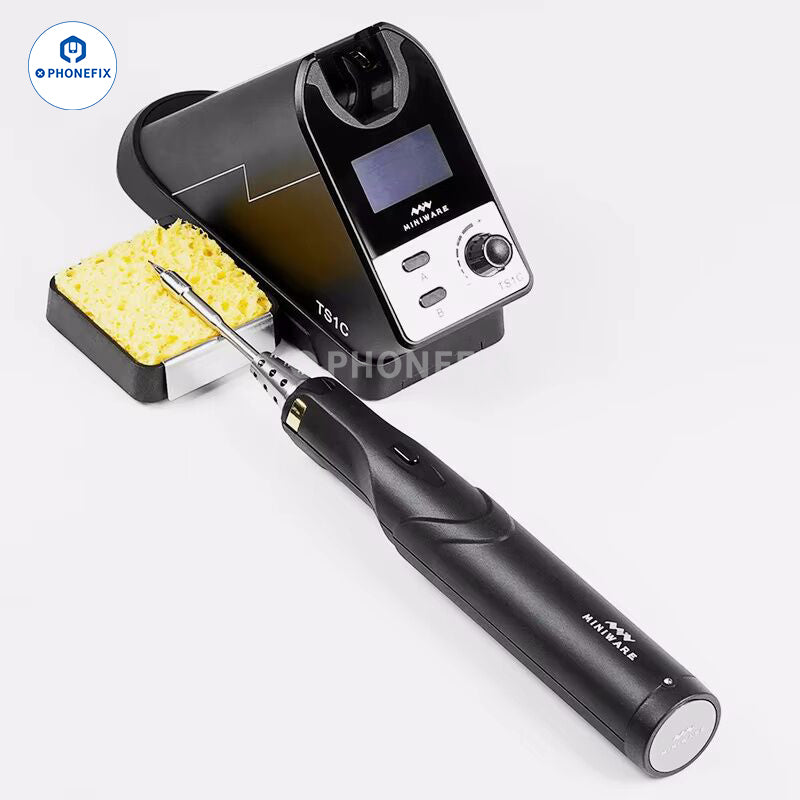

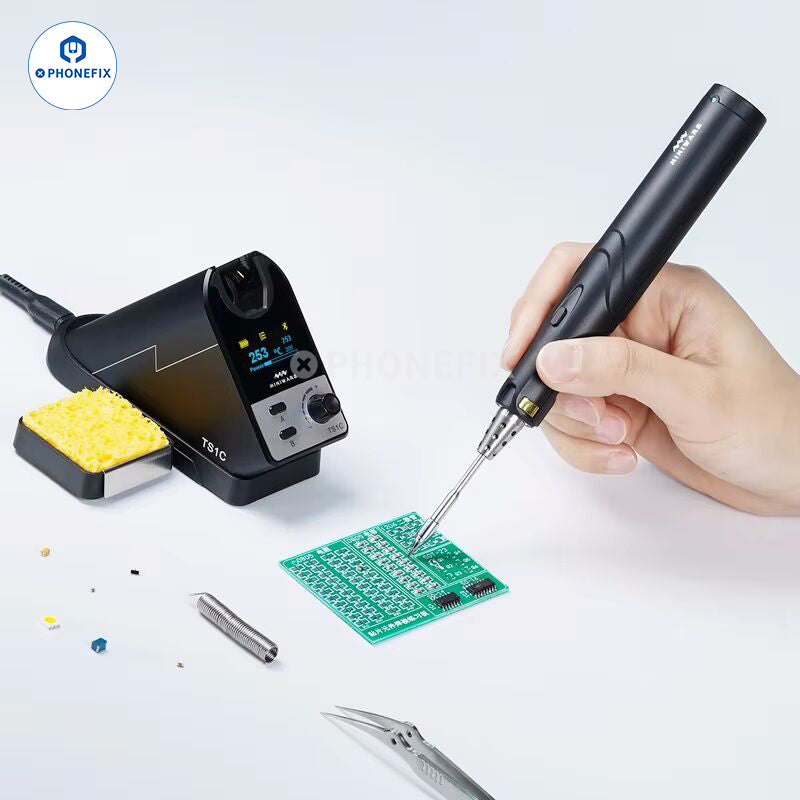

Miniware TS1C PD 45W intelligent digital display cordless soldering station, suitable for PCB SMD repair. Miniware TS1C lead-free portable USB soldering station has a maximum PD20V 45W input power. Long press the "BOOST" button on the handle to instantly heat up to 400℃.
Features:
1. Embedded e-Design firmware upgrade software DFU (Device Firmware Upgrade), which can be easily upgraded to optimize user experience; the control base and soldering iron handle can be upgraded separately.
2. The soldering iron handle has a welding power of up to 36W, and can continuously solder more than 180 solder joints on a single full charge. It comes with a TS-B02 standard universal 3.5mm audio interface soldering iron head.
3. Split soldering iron design, BT communication, remote control, adjustment, welding is free from the constraints of the power cord and is not restricted.
4. 128*64 pixel OLED display, temperature and status are displayed separately, and the charging status, working status, power, and BT connection status of the soldering iron handle are clear at a glance.
5. After the handle is put back on the base, it automatically returns to the preheating temperature and intelligent sleep state; it has capacitor undervoltage, overtemperature, and charging protection, which is smarter and safer to use.
6. Maximum PD20V 45W input power, smooth charging, the control base can also be used as a soldering iron stand to charge the handle.
7. Supports standby preheating, temperature adjustment, menu setting, and information display of the soldering iron handle.
8. The base has three expansion slots, which can be installed with different expansion accessories, and the directions of different accessories can be switched at will.
9. Capacitor energy storage, efficient charging and discharging, only 7 minutes to fully charge, continuous stable and efficient power.

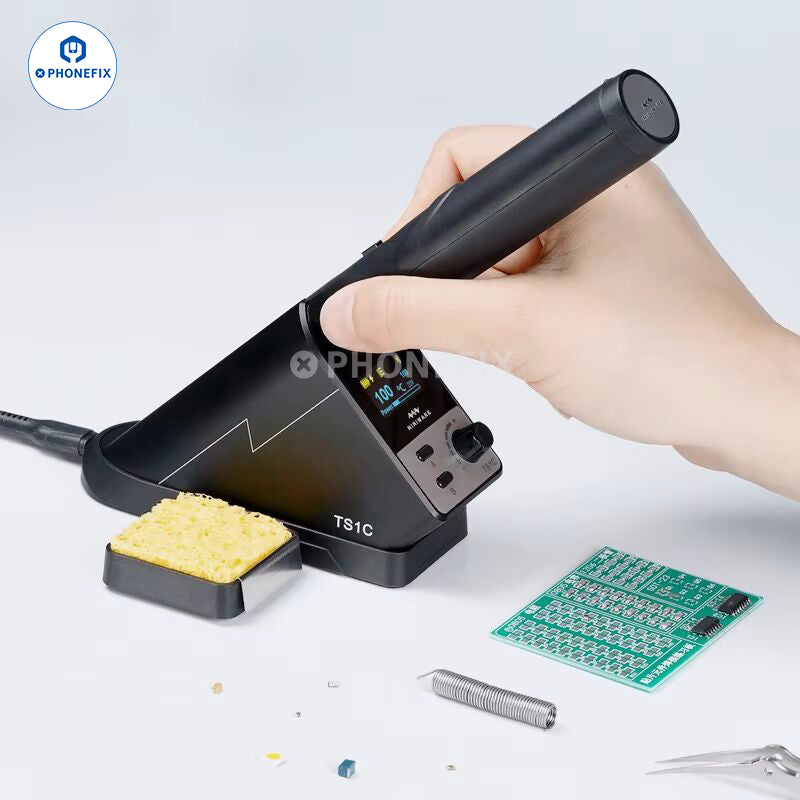

10. Put the handle on the base, connect to Bluetooth, and it will automatically preheat to improve work efficiency.
10. Pull out the handle, automatically heat to the working temperature, and heat up quickly. One-click heating, long press the "BOOST" button on the handle, and instantly heat up to 400℃.
Specification:
Control Base:
Model: TS1C-S.
Screen: 128*64 pixel OLED.
Interface: USB Type-C.
Safety protection: Over current protection.
Maximum input voltage: PD2 20V.
Maximum input power: 45W.
Weight: 186g (Including a sponge slot).
Size: Control Station: 44.5*122*73mm; Sponge Slot: 42*43*10mm.
Other: Three expansion slots for multiple expandable accessories.
Soldering Iron Handle:
Model: TS1C-P.
Interface: USB Type-C.
Capacitance: 750F.
Charging time: 7 minutes.
Maximum heating power: 36W.
Temperature range: 100~400℃(212°F~752°F).
Temperature stability: ±3%.
Soldering tip: 3.5mm audio interface soldering tips (TS80/80P soldering tip series).
Safety protection: Capacitor under voltage protection, capacitor charging protection, over temperature protection.
Size: φ23*133mm.
Weight: 62g (without soldering tip).

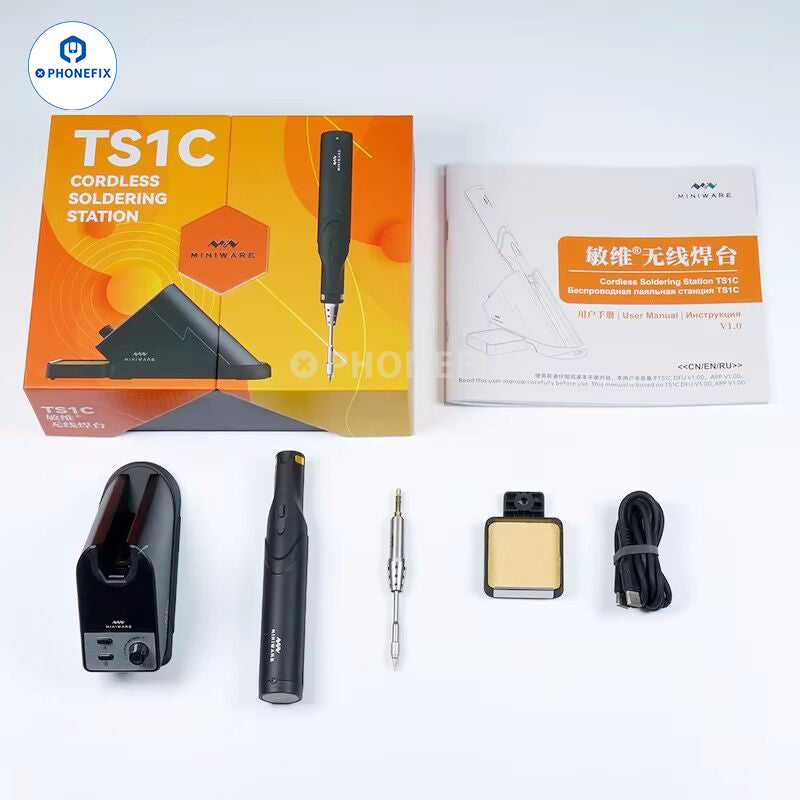

Package includes:
1* Soldering Iron Handle.
1* Soldering Iron Tip.
1* Control Base.
1* Sponge.
1* USB Cable.
