Mijing motherboard layered test fixture for iPhone X-17 Pro Max. Mijing C17 C18 C20 C22 C23 C24 C18Pro C20Pro C21Pro C22Pro C23Pro C24Pro motherboard test stand for iPhone X/11/12/13/14/15/16 series motherboard middle layer function testing. Mijing logic board upper lower layer middle frame tester for iPhone X 11 12 13 14 15 16 17 series.
Option:

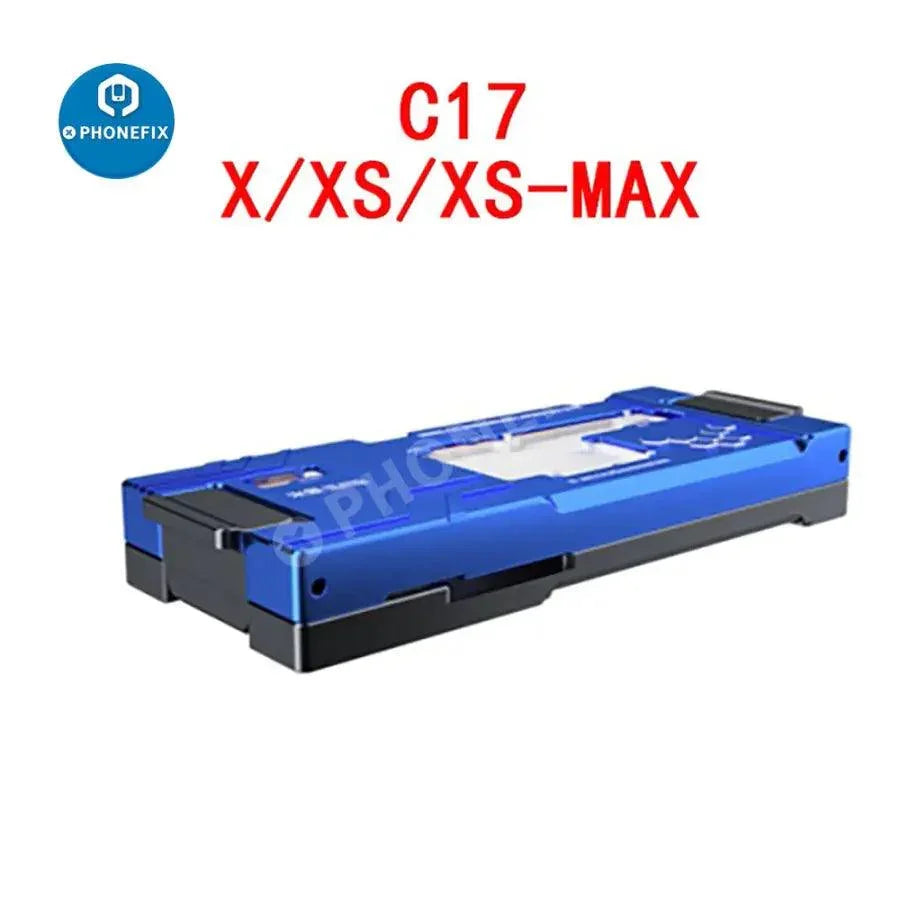

1. Mijing C17 3-in-1 test fixture for iPhone X/XS/XS MAX motherboard function detection.

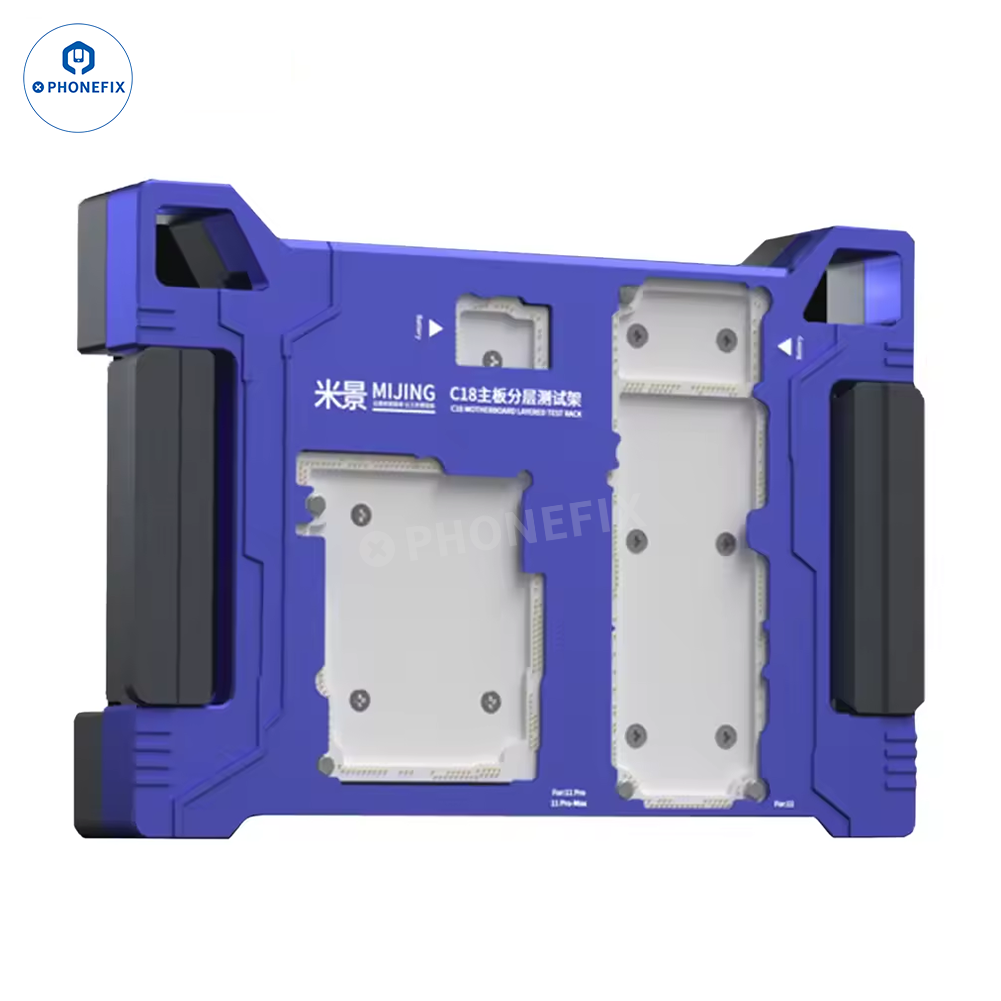

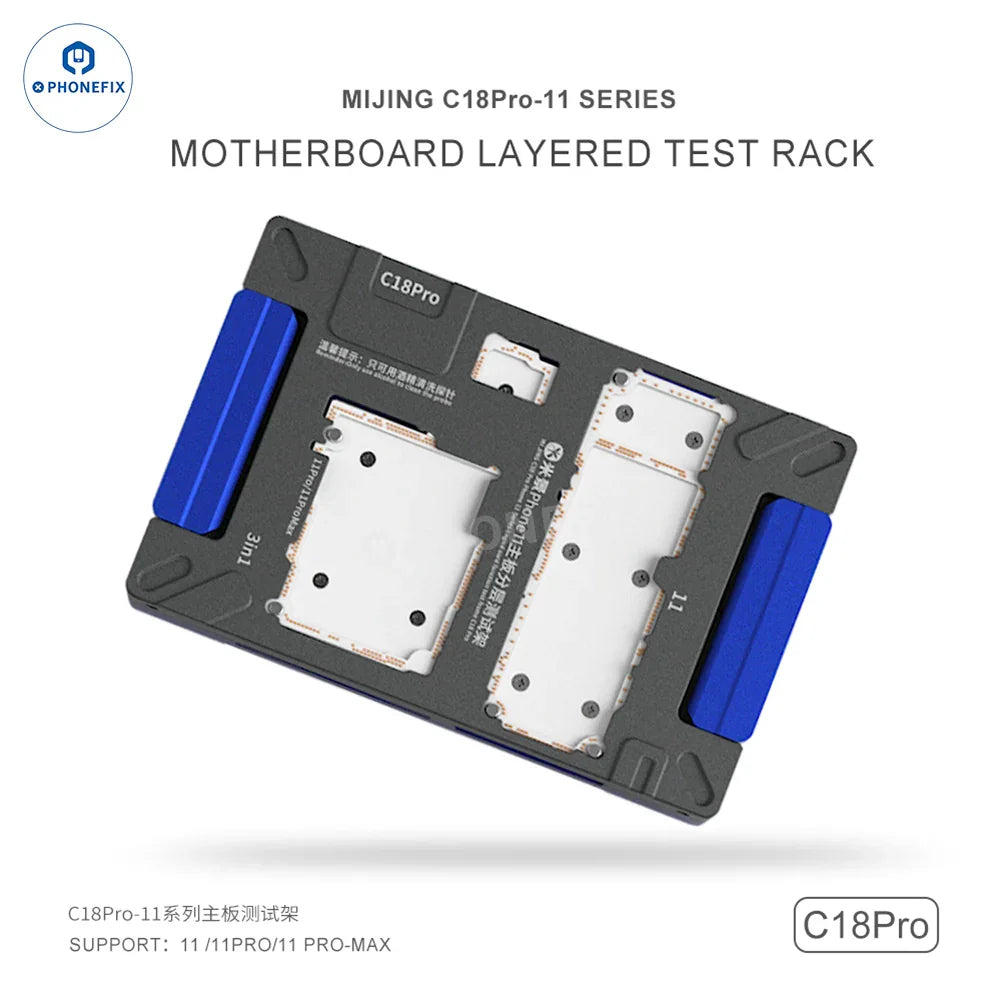

2. Mijing C18/C18Pro 3-in-1 test fixture for iPhone 11/11 Pro/11 Pro MAX motherboard function detection.

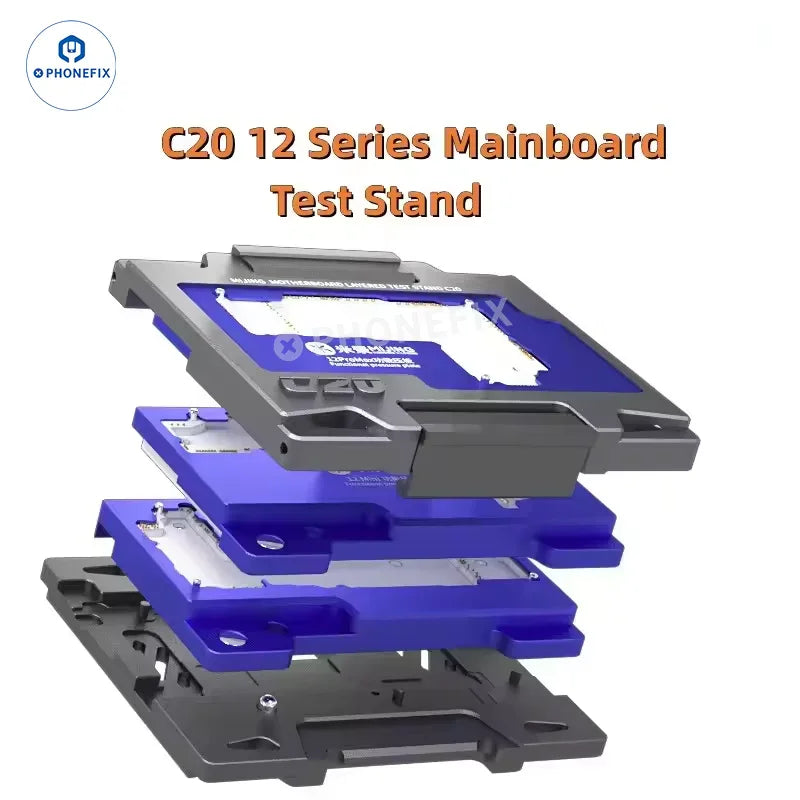

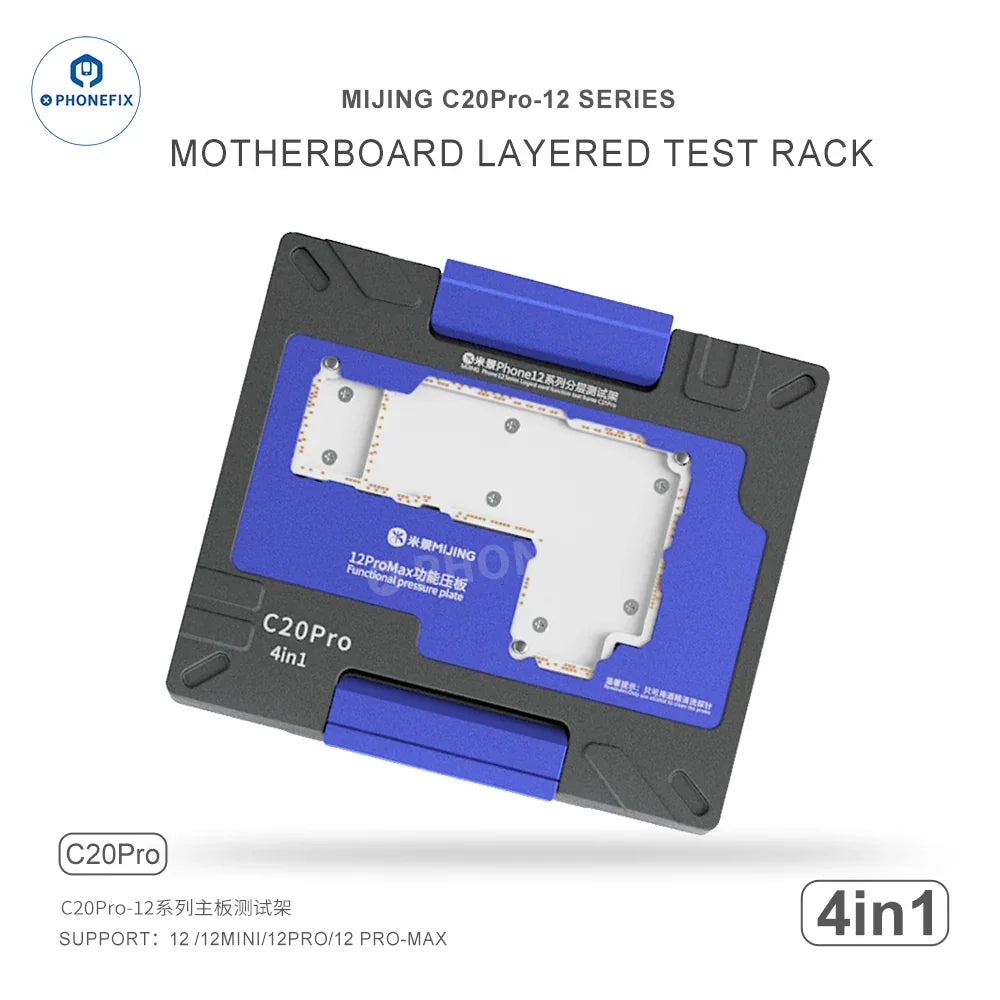

3. Mijing C20/C20Pro 4-in-1 test fixture for iPhone 12/12 mini/12Pro/12 Pro MAX motherboard function detection.

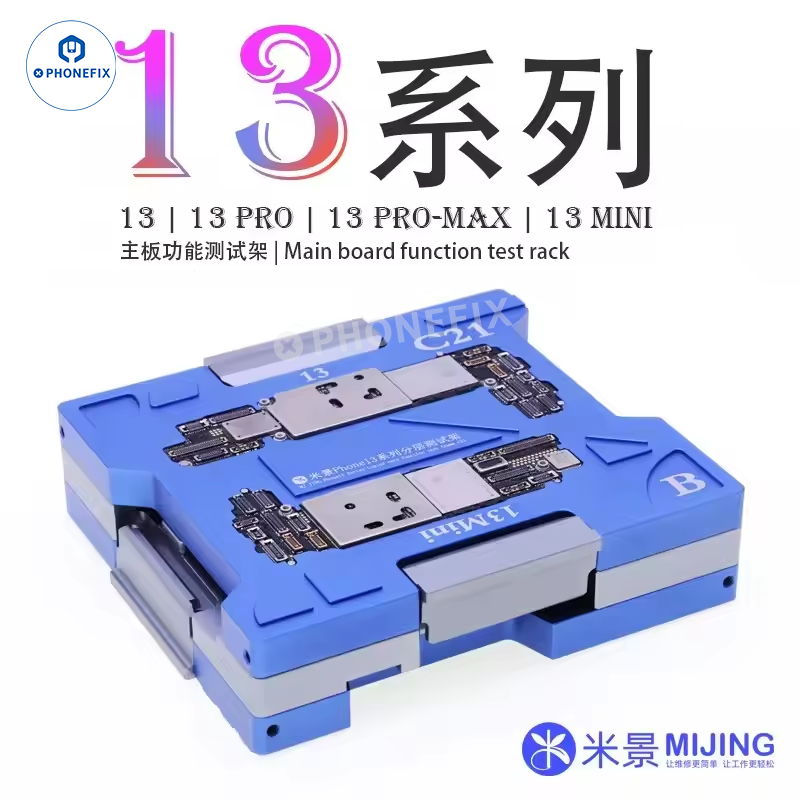

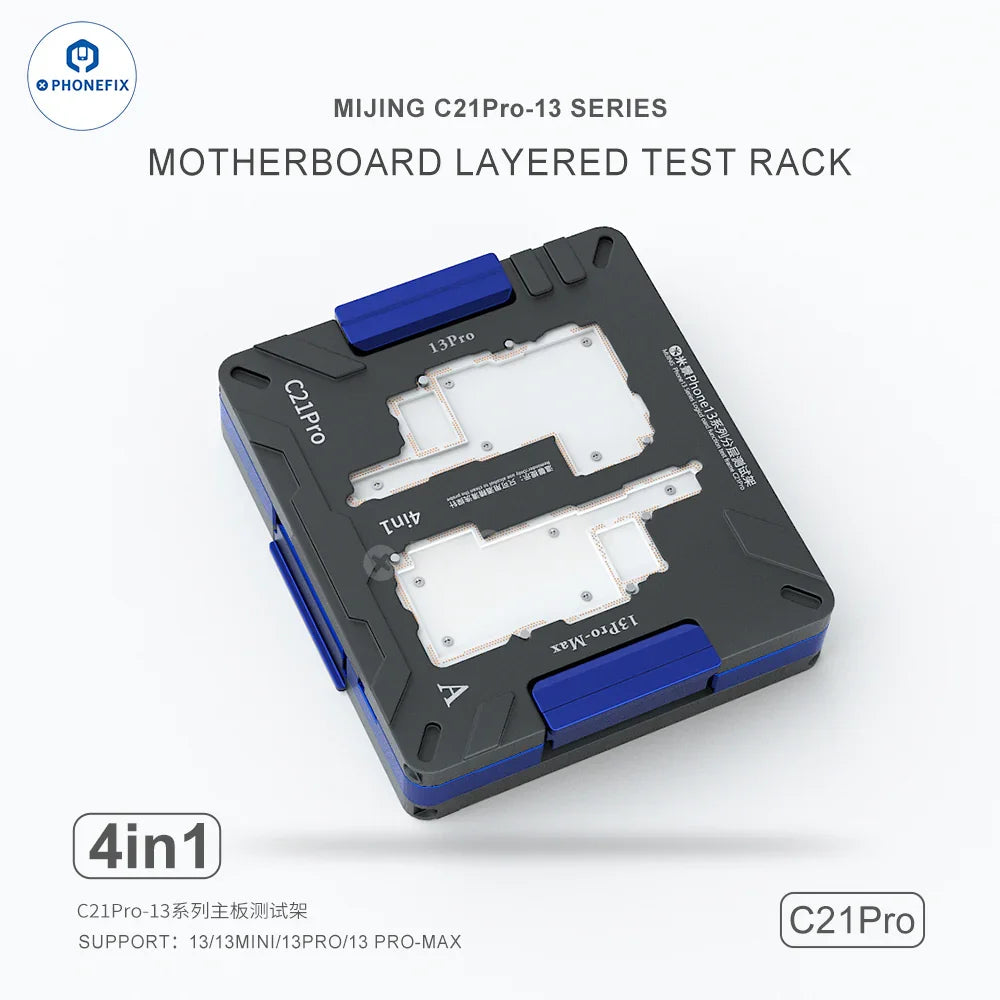

4. Mijing C21/C21Pro 4-in-1 test fixture for iPhone 13/13 mini/13Pro/13 Pro MAX motherboard function detection.

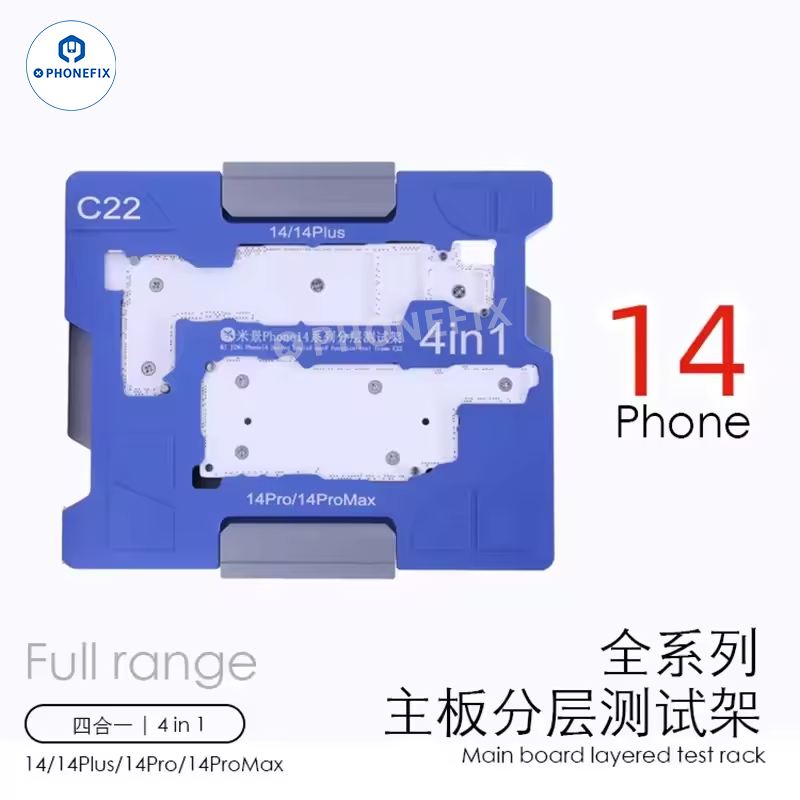

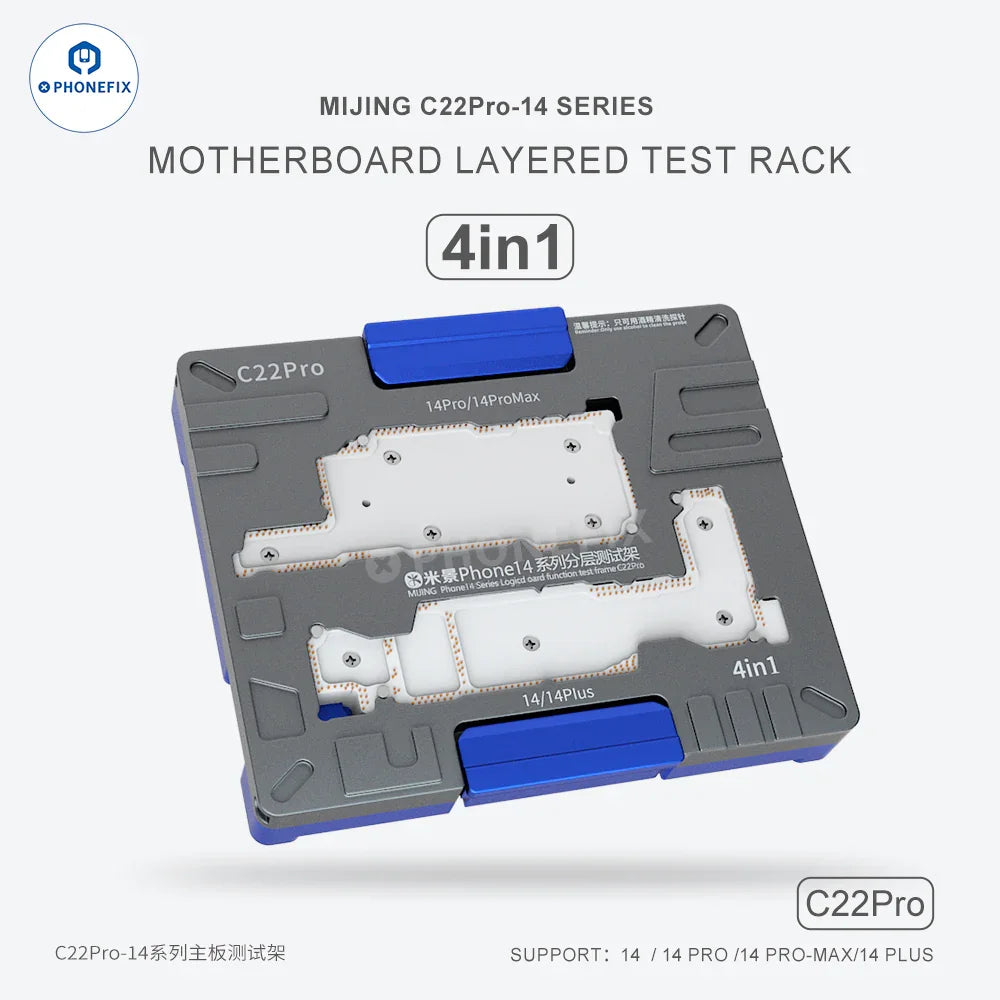

5. Mijing C22/C22Pro motherboard layered test tixture for iPhone 14/14 Plus/14 Pro/14 Pro Max.

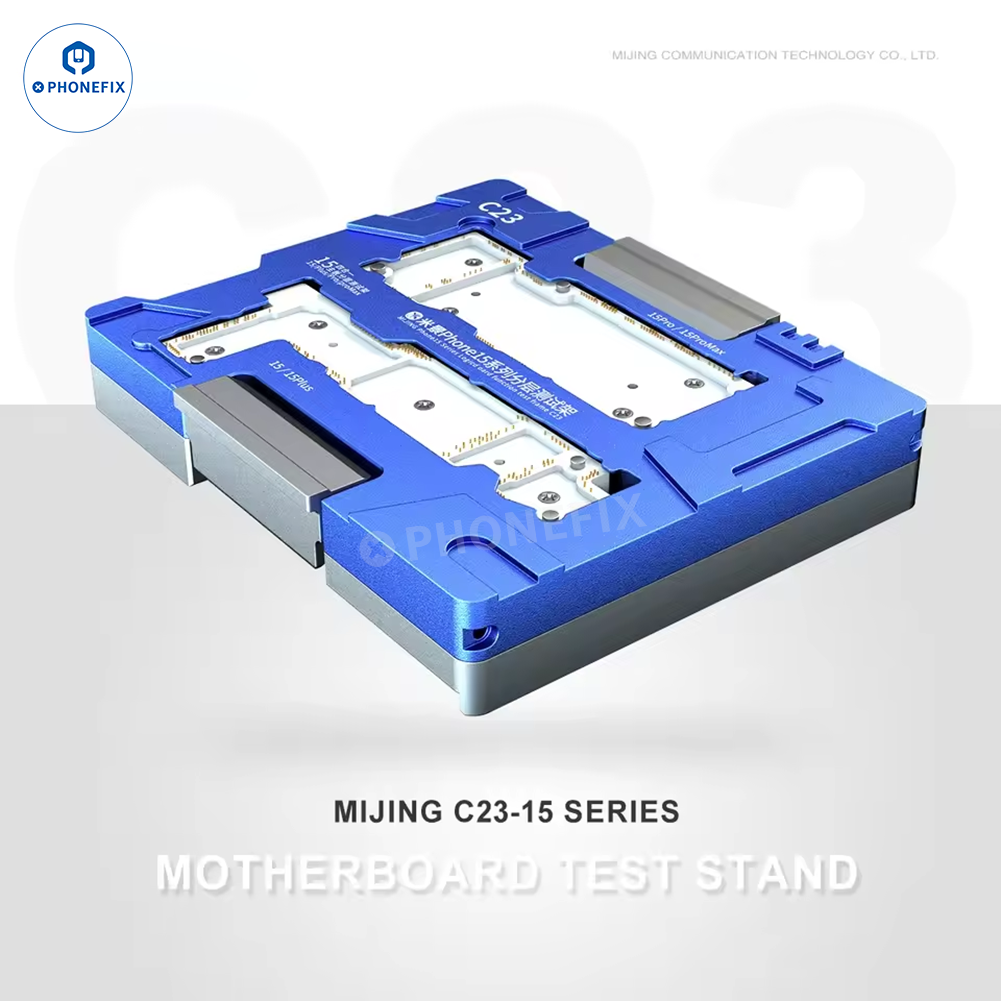

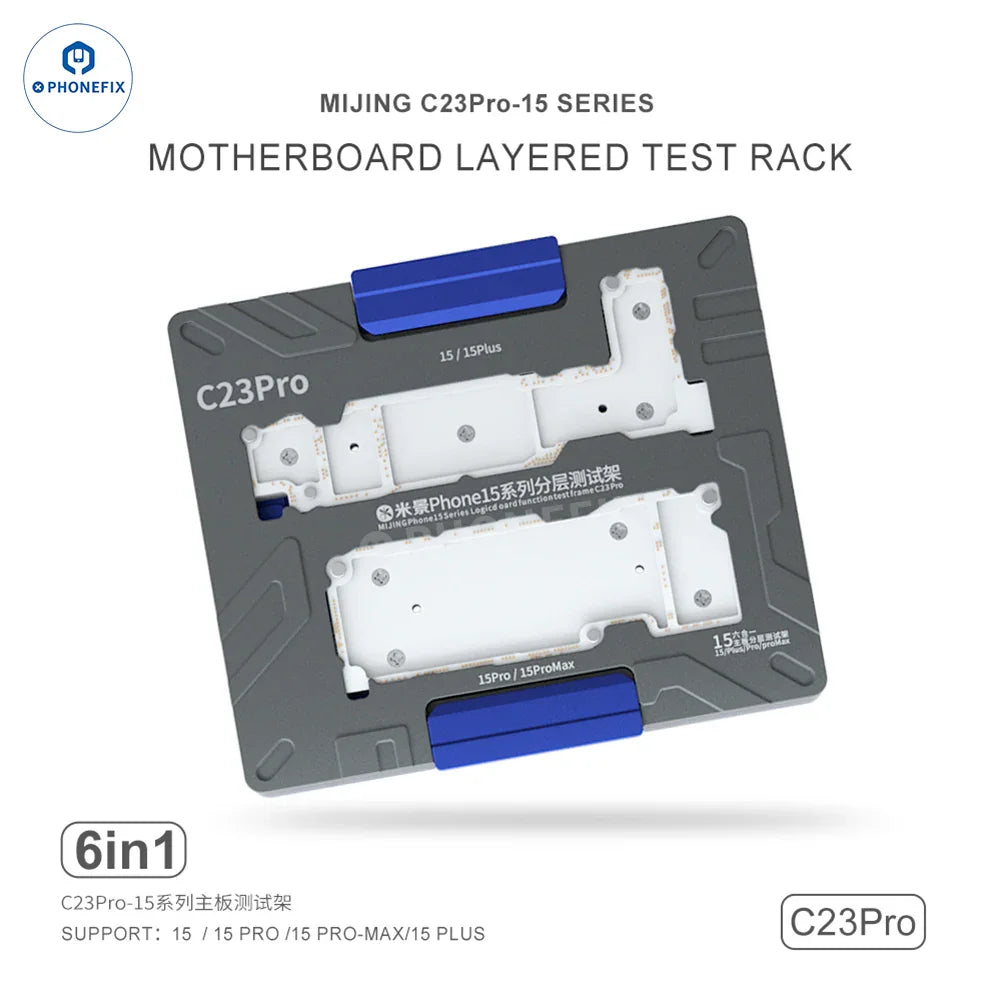

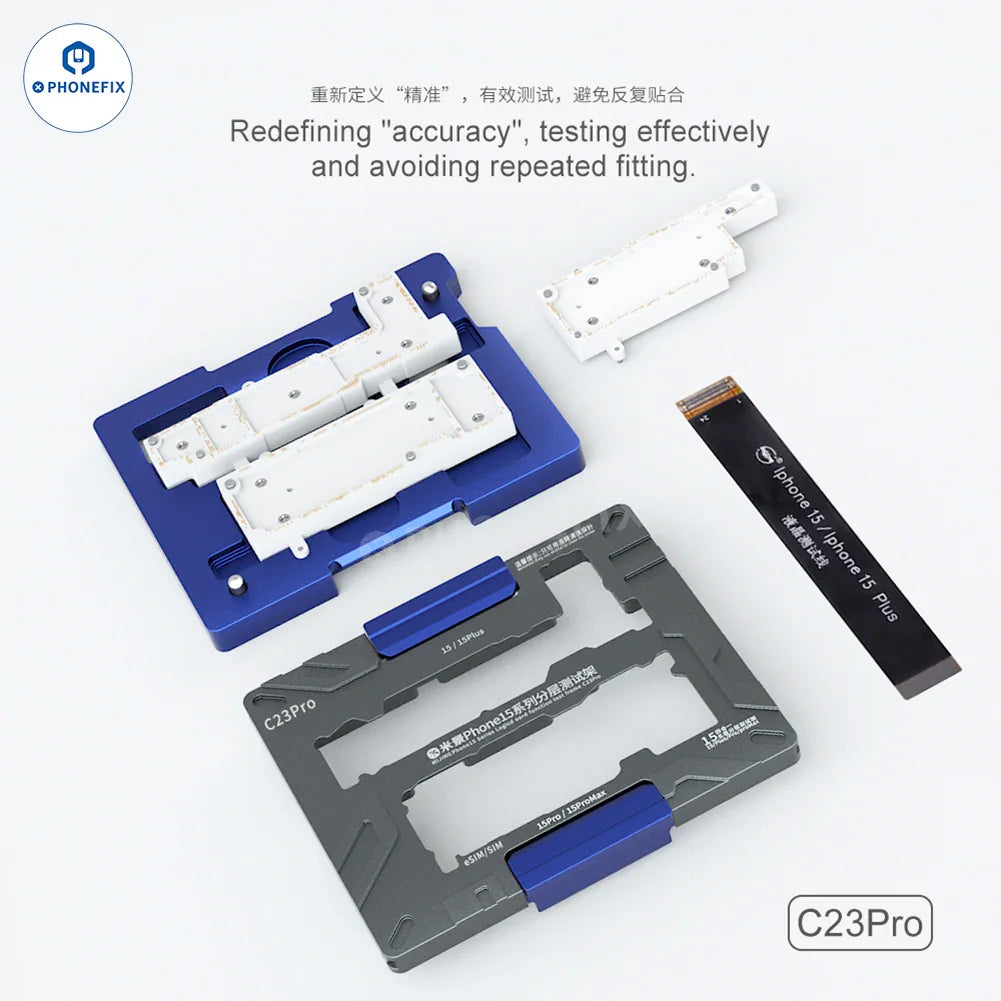

6. Mijing C23/C23Pro motherboard tester fixture for iPhone 15/15 Plus/15 Pro/15 Pro Max.

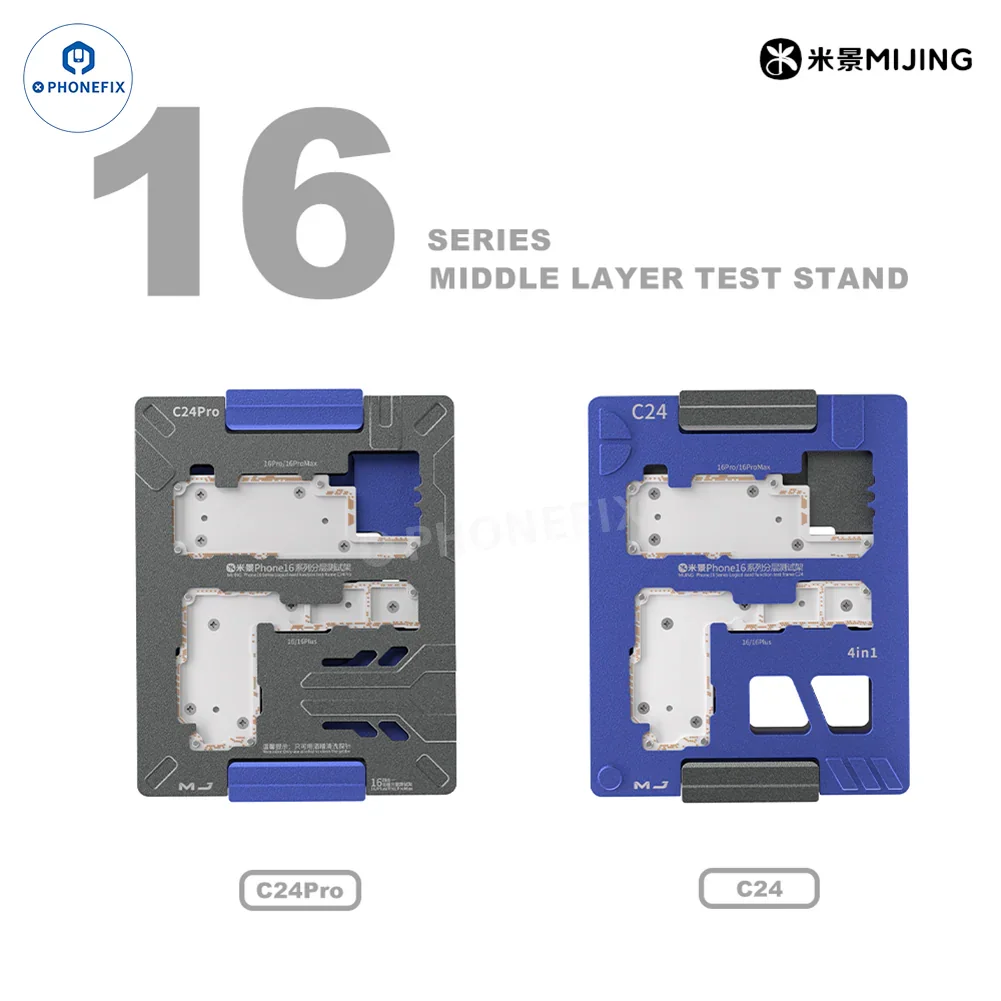

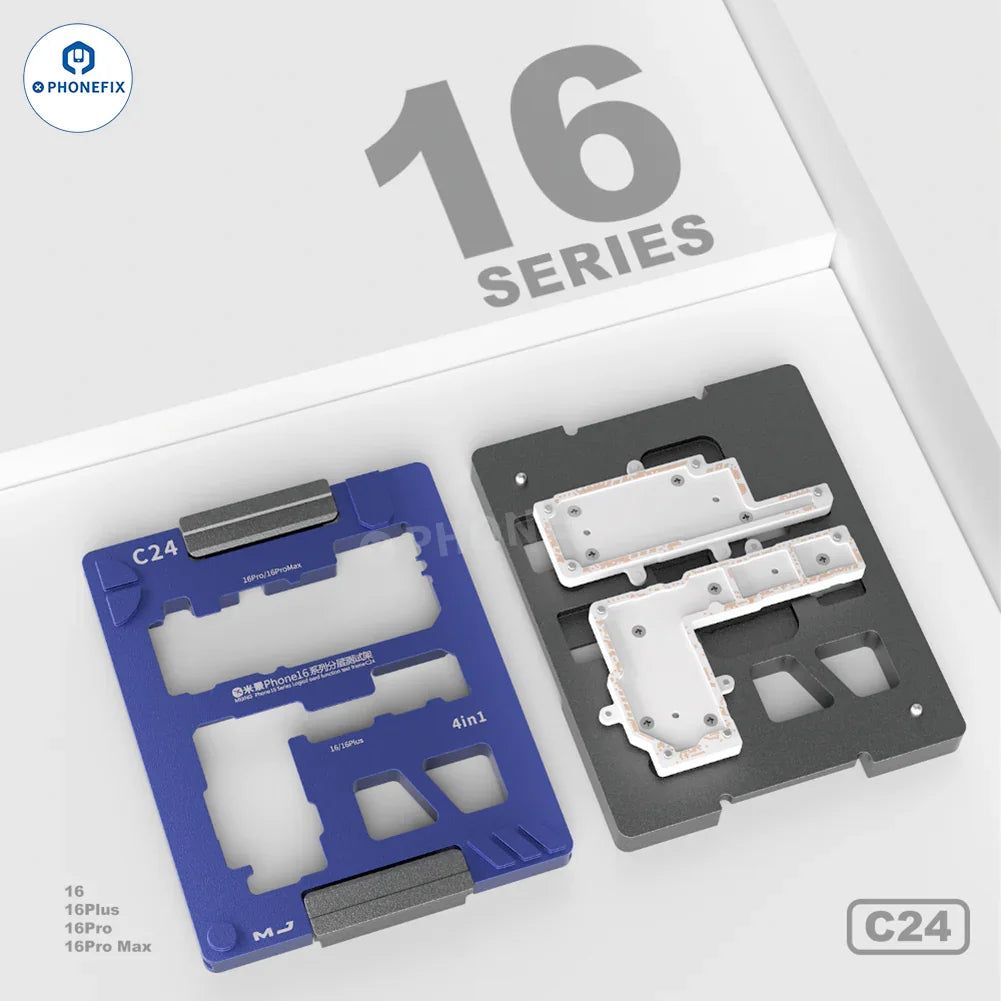

7. Mijing C24 motherboard middle layer test fixture for iPhone 16 series.

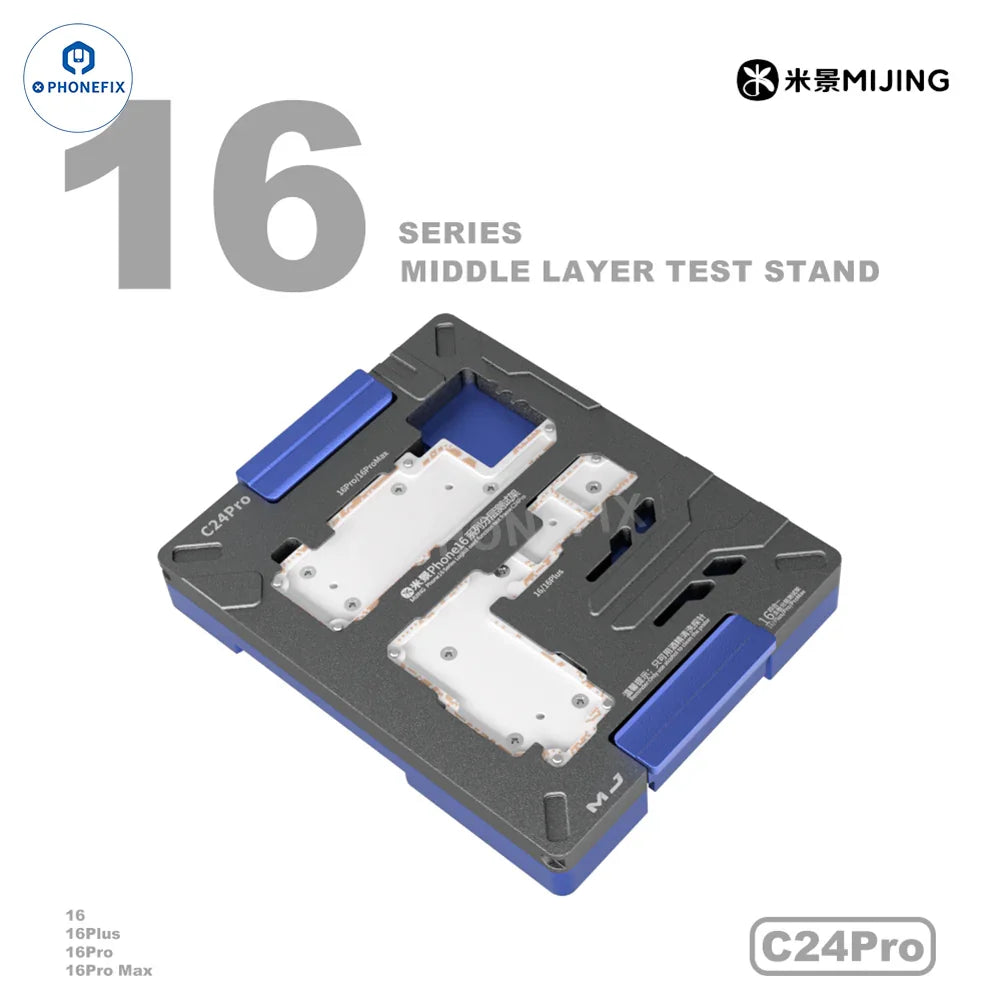

8. Mijing C24PRO motherboard middle layer test fixture for iPhone 16 series.

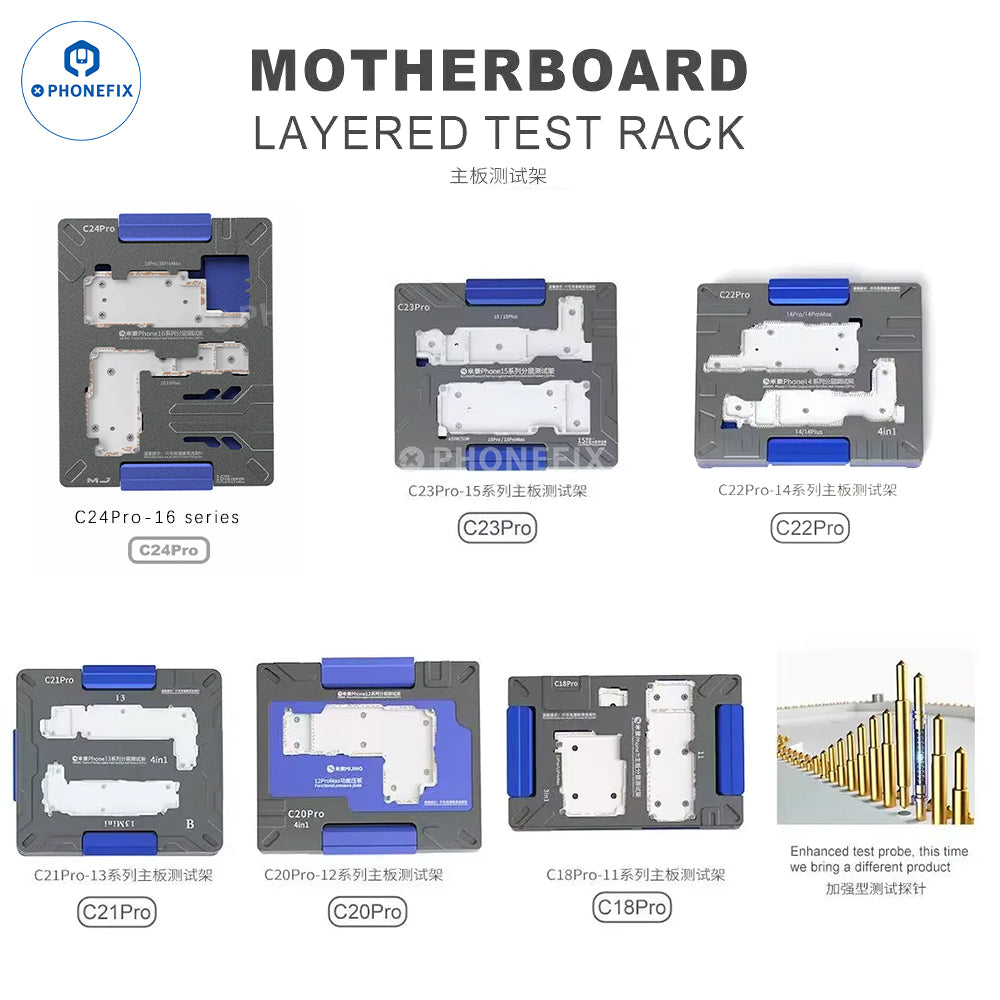

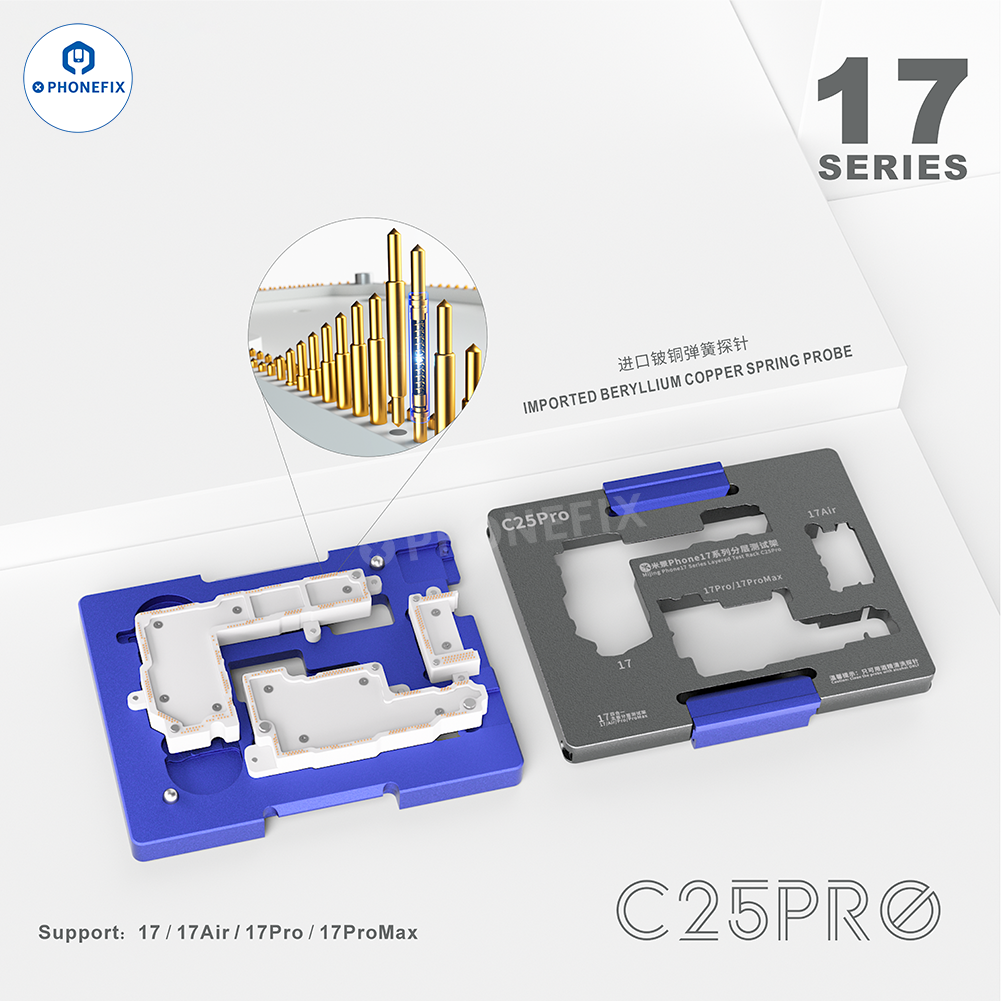

The difference between the PRO and non-PRO versions is the probe. The Pro version uses a spring probe (for better quality and accuracy), while the non-Pro version uses a standard probe.
Feature:
1. Mijing Motherboard Layered Testing Stand supports iPhone 11/12/13/14/15/16 Pro Max logic board function detection.

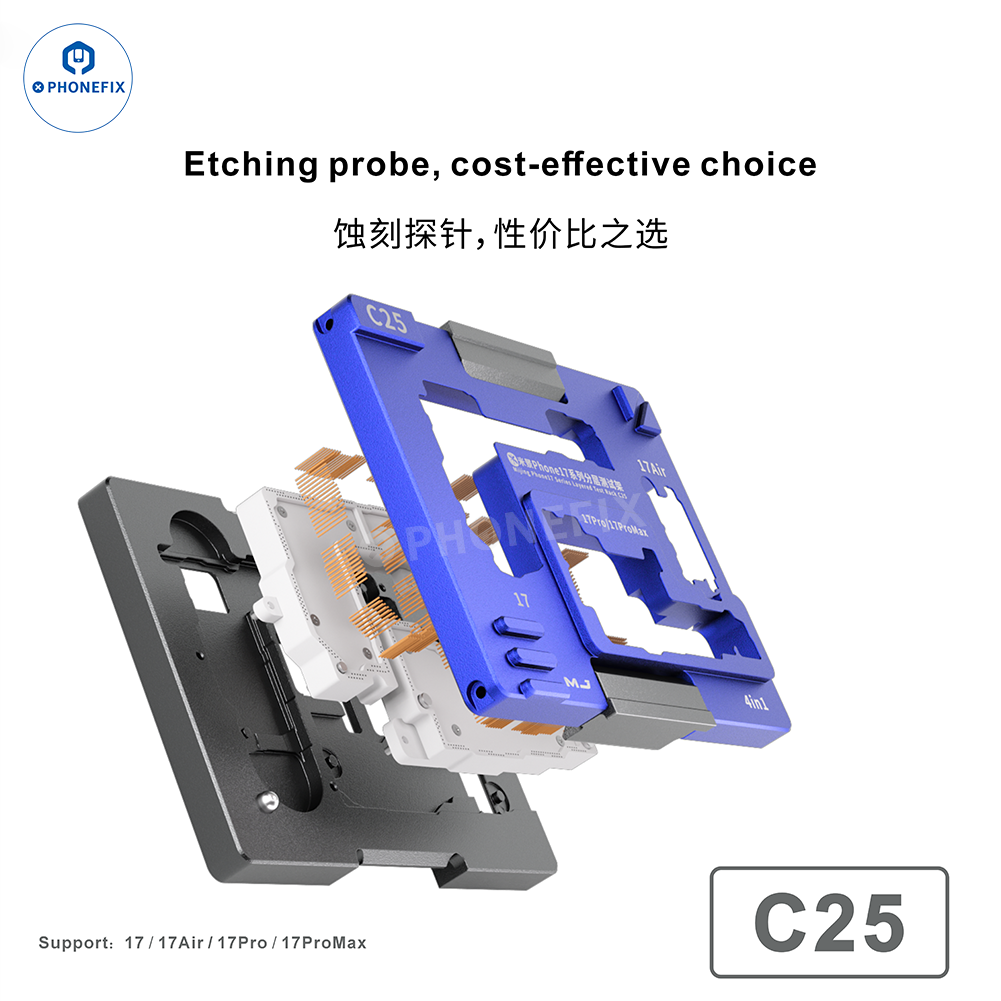

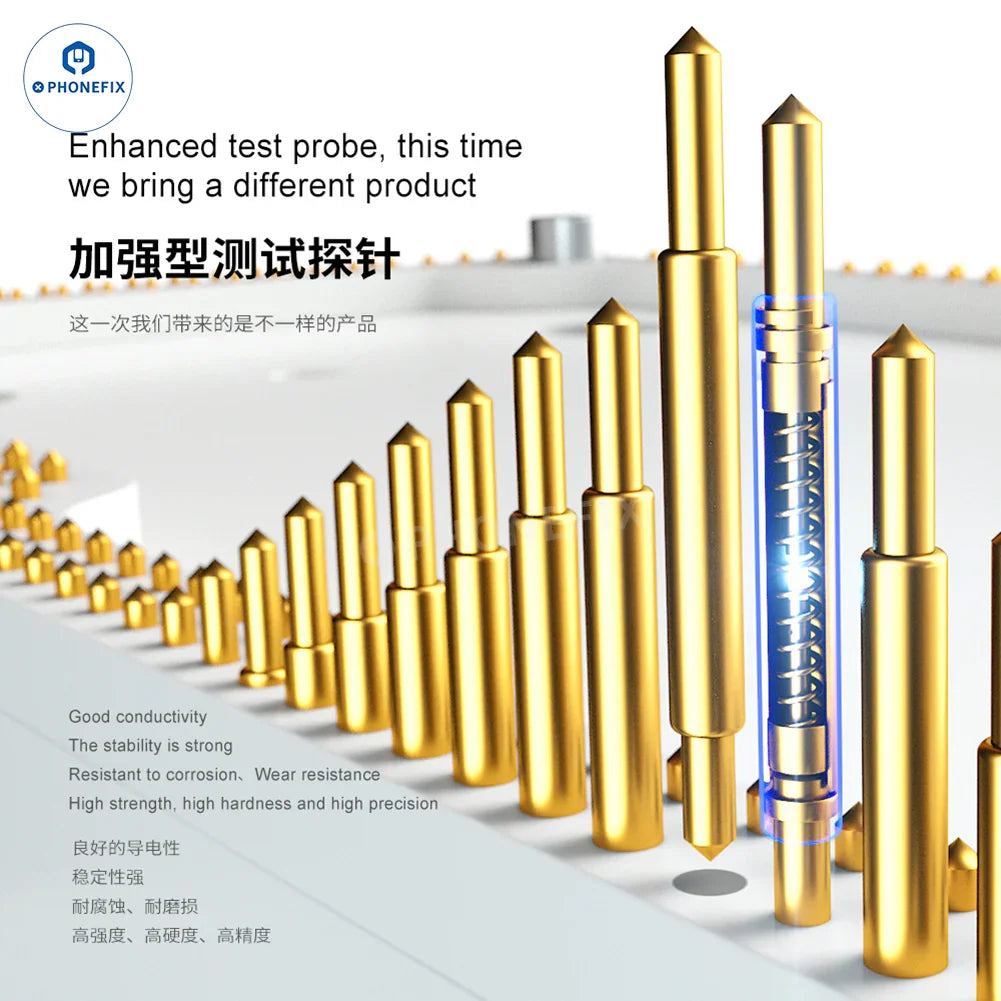

2. It features custom gold-plated spring probes and high-precision CNC machining for accurate alignment of solder points.

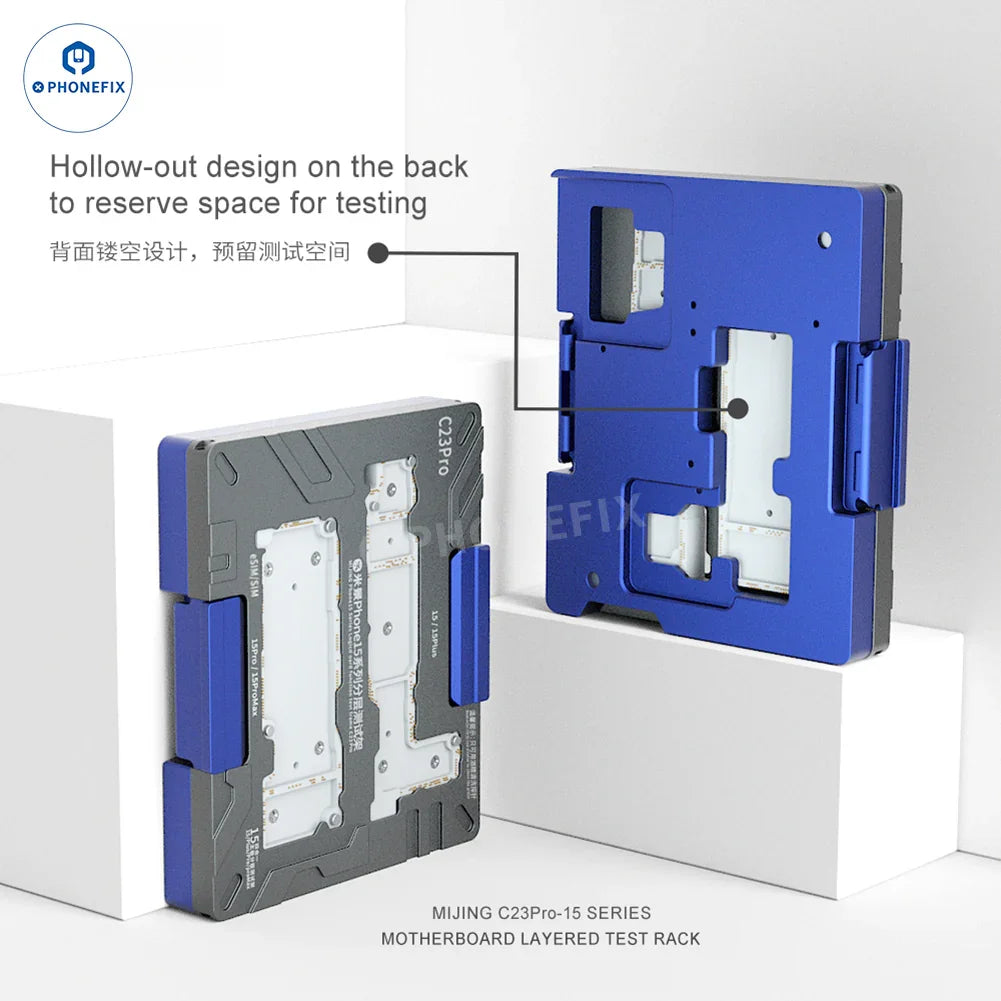

3. The stand has a hollow design on the back with reserved testing space, allowing for non-bonded testing of all functions. This makes motherboard testing simple and efficient.
4. Easy to use, connect the upper and lower motherboards for testing/repair, avoid problems after installation, increase maintenance speed.
5. Check in advance to avoid duplicate disassembling and breaking the motherboard Small size, easy to carry.
Operational Process:

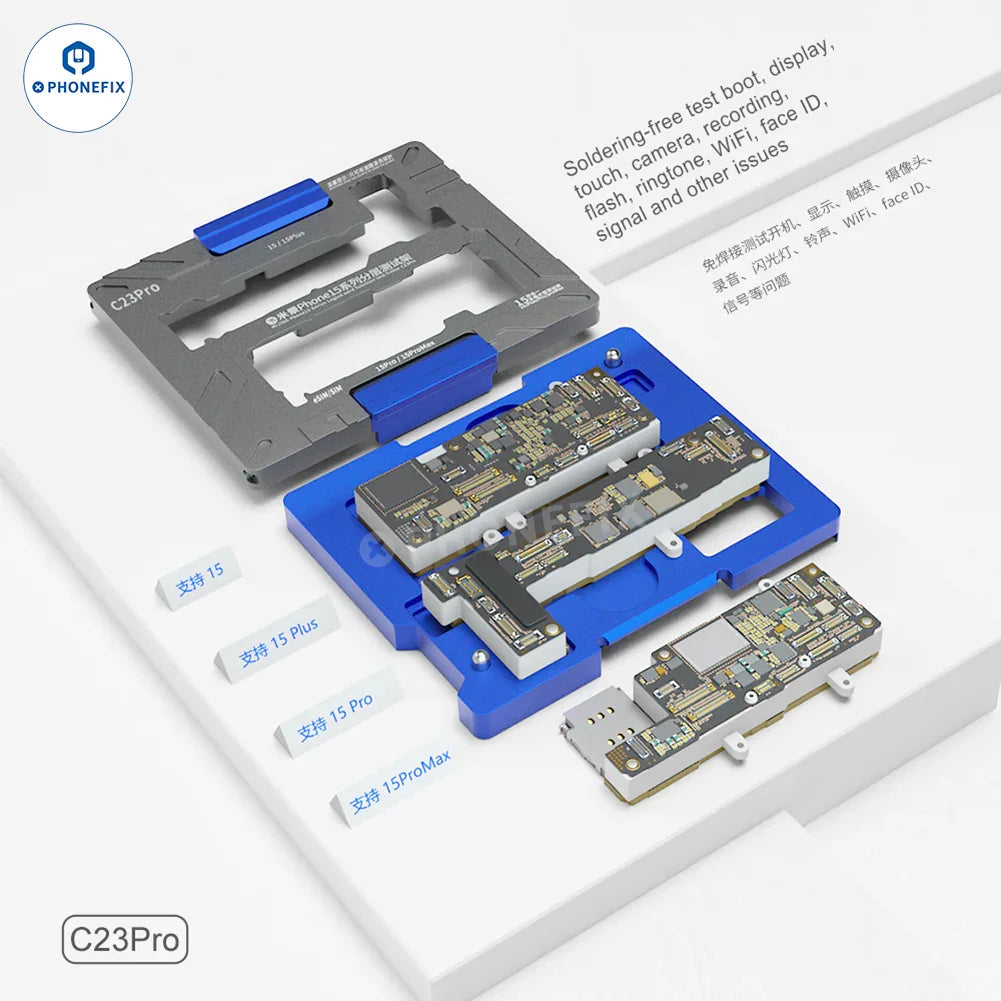

1. Decomposition iPhone X-16 Pro Max Middle Layer simply equipped the test fixture.
2. Install: Put in the lower main board, put on the pinboard, but the top board in, and then cover the test rack.
3. The first way to connect the screen line, boot, power cord, or battery test ink success or not.
4. The second way is to connect the end plug on the base of the first method to implement the brush function.
