2023 Newly MIJING K23 MAX motherboard repair fixture with iPhone A9-A16 CPU groove. MJ K23 Dual Shaft PCB Soldering Holder for mobile phone motherboard soldering repair Fixture. Mijing K23 Pro PCB holder fixture Dual Shaft soldering fixture for mobile phone motherboard chips accessories iPhone CPU soldering repair.
Mijing K23/K23 Pro/K23 MAX High temperature Dual Shaft phone PCB Board Holder, for iphone repair soldering Jig Fixture Work Station, iPhone / Samsung / huawei mobile Phone repair motherboard PCB soldering Holder Repair Tool, double-shaft Phone PCB soldering Fixture & Clamp Holder for iPhone Samsung repair.

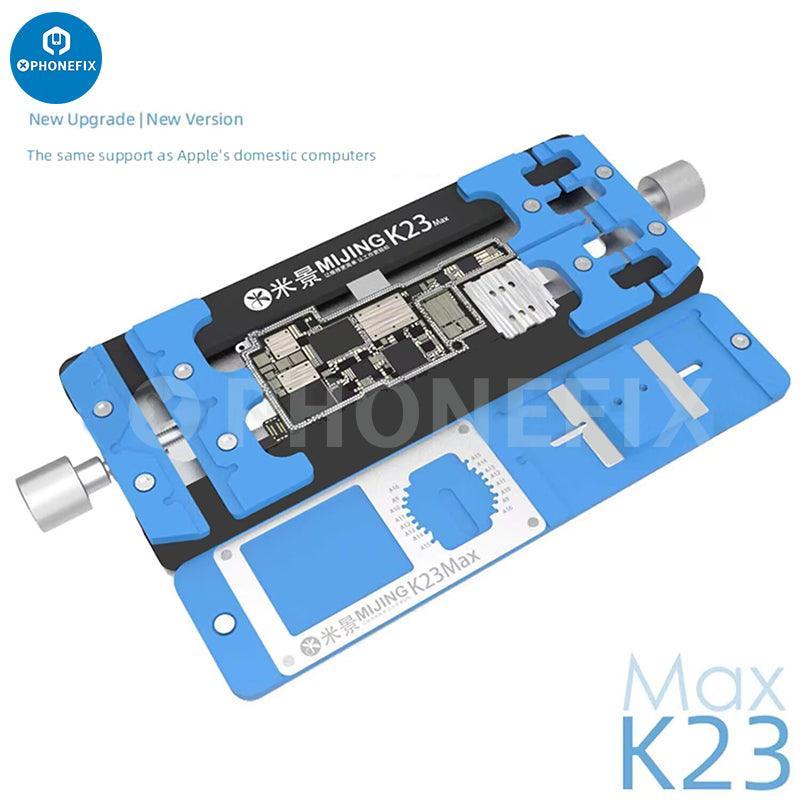

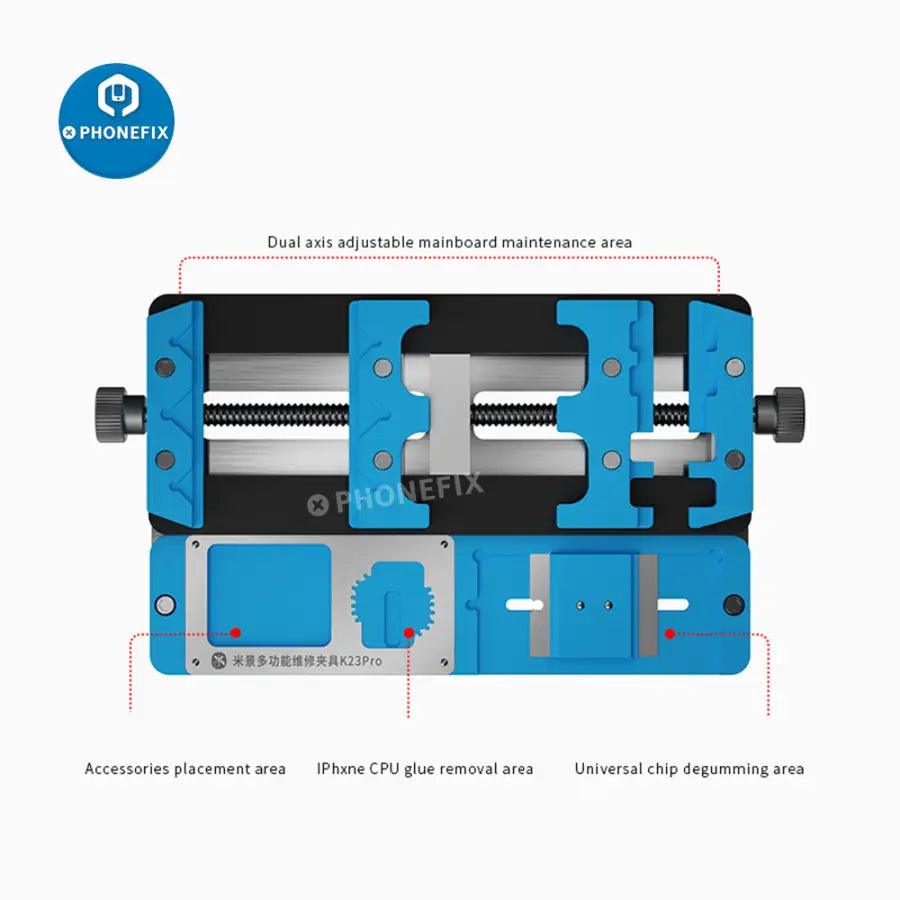

Mijing K23 Max Multifunction PCB Fixture Add functional combination areas, chip storage slots, iPhone CPU de-gluing area and multi-functional chip fixing area

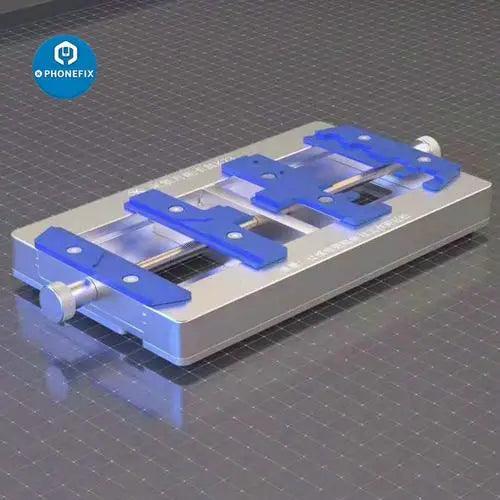

The K23 Max is a multi-functional repair fixture, suitable for most types of motherboards on the market.
The K23 Max is designed with three types of clips for different types of motherboards to meet different needs,Compatible with iPhone 14 series, suitable for Apple A9 to A16 CPU.
1. Universal mobile phone motherboard holder fixture for soldering repair, rotary fixed design, no rebound, fixed firmly! The design has three adjustable distances.
2. Prevent clamps from moving during use, special anti-skid pad, in order to allow heating. Let the hot air can be discharged more efficienty. Add heat sink to botton of clamp.

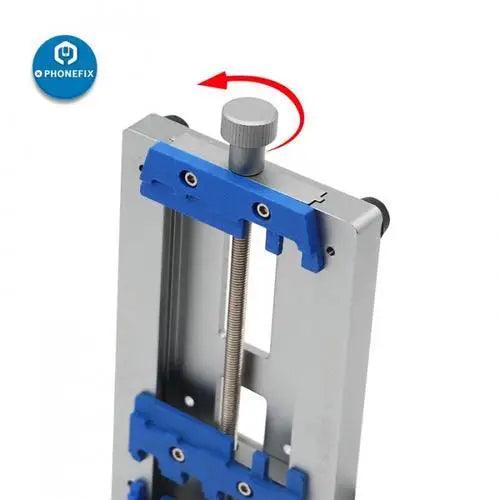

3. Rotary shaft locks the motherboard or IC more efficienty, Fixed well without rebound.
4. K23 Fixture also support IC type fixtures fixed for removal of back glue, the clamp is designed to bear the force of IC beam, which can hold up the empty parts of IC well and aovid the IC breaking when removing black glue.
5. K23 PCB soldering fixture can be adjusted at difference distance from the high, middle and low levels. It's necessary to loosen the two screw as the bottom, move the fixing plate to the appropriate gear position, and then tighten the bottom screws to lock it.
