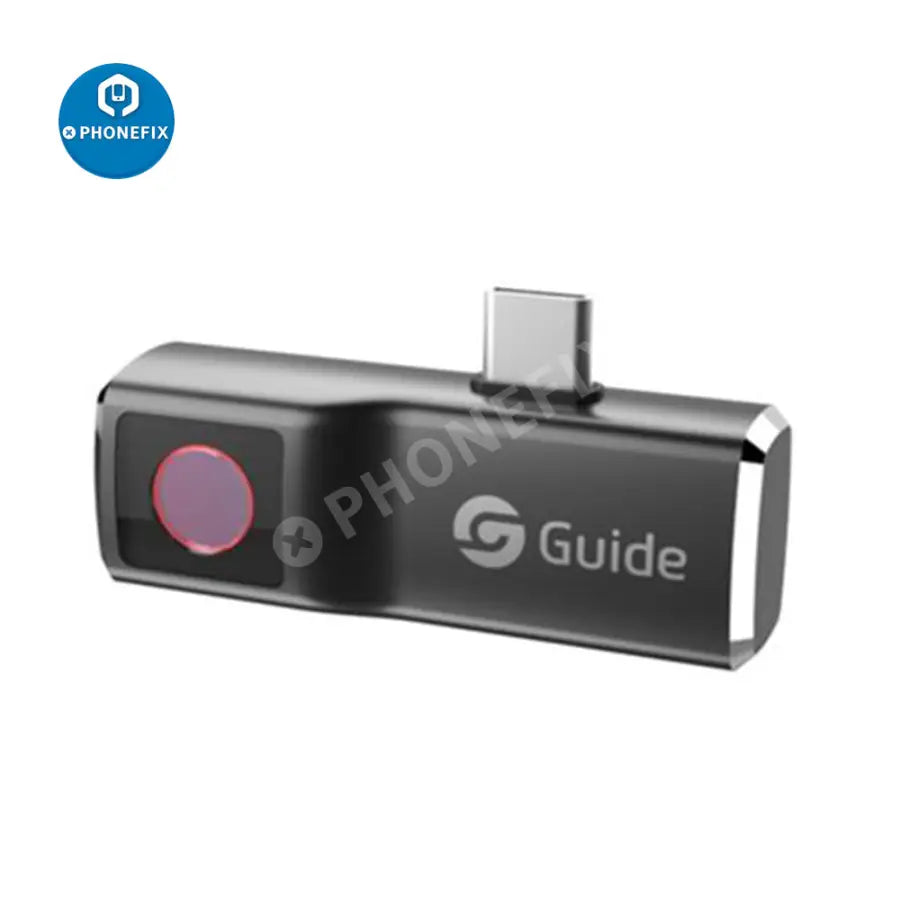

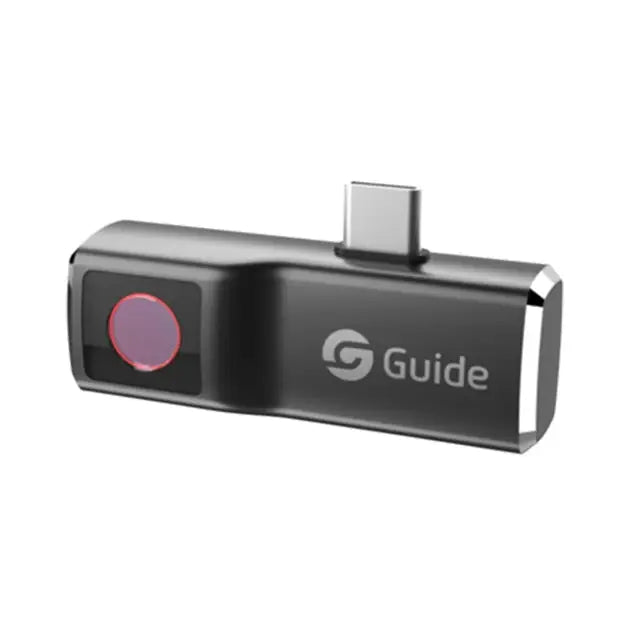

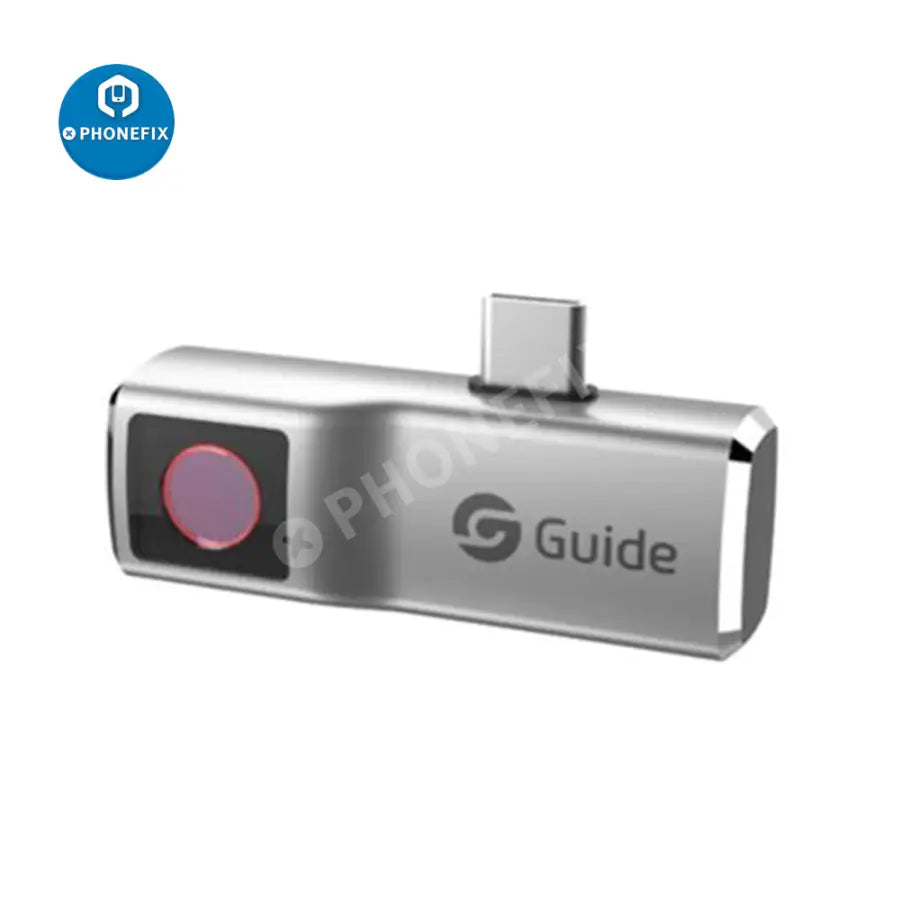

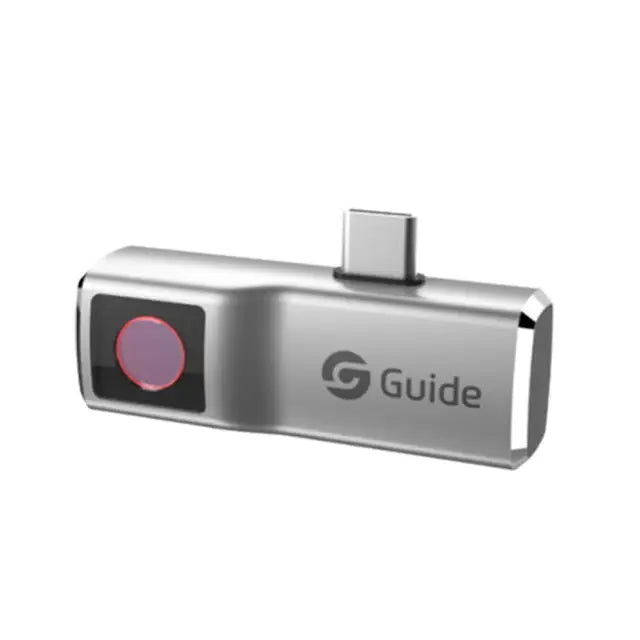

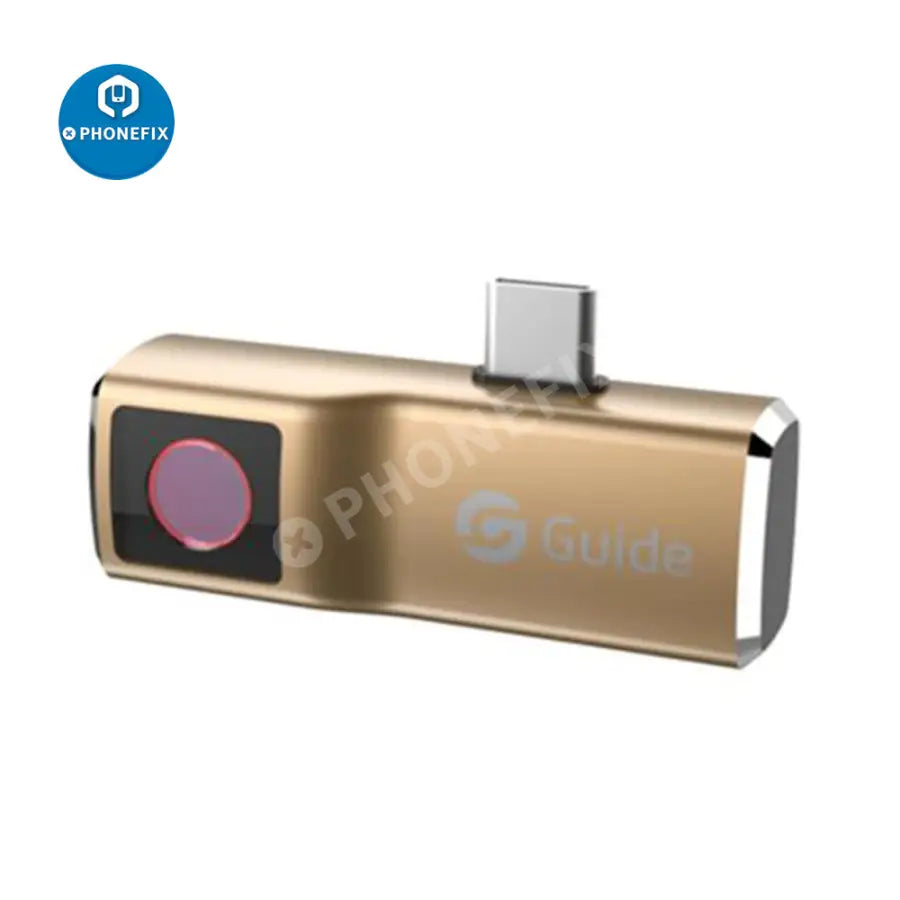

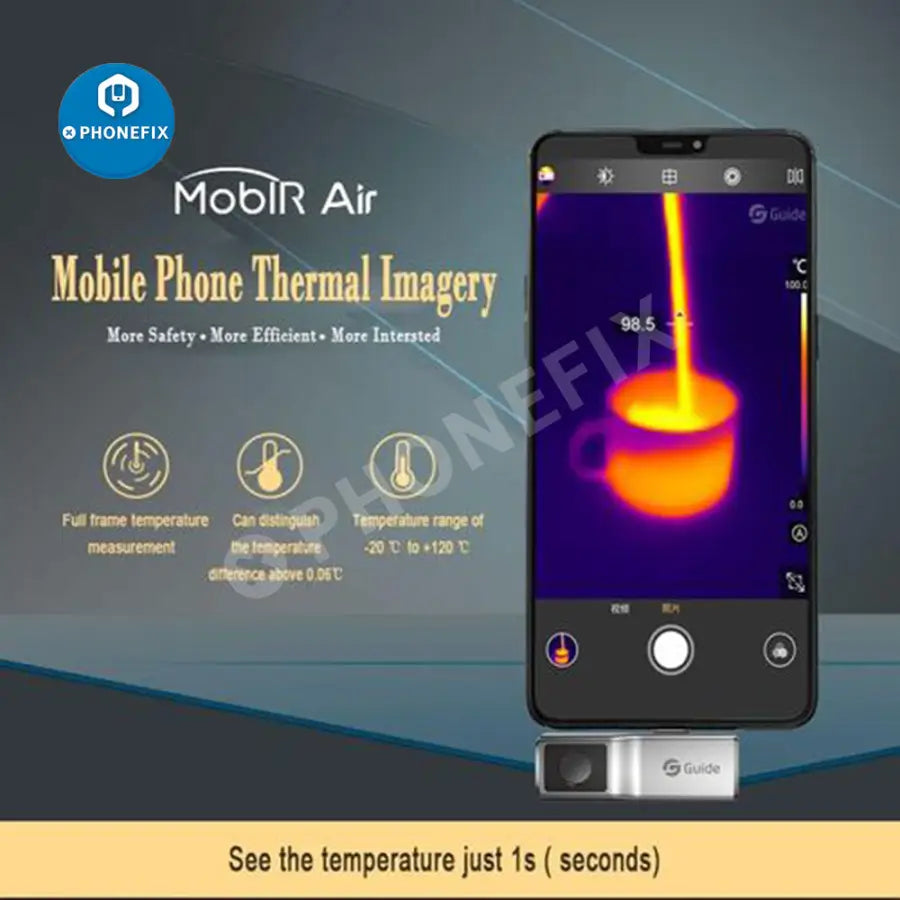

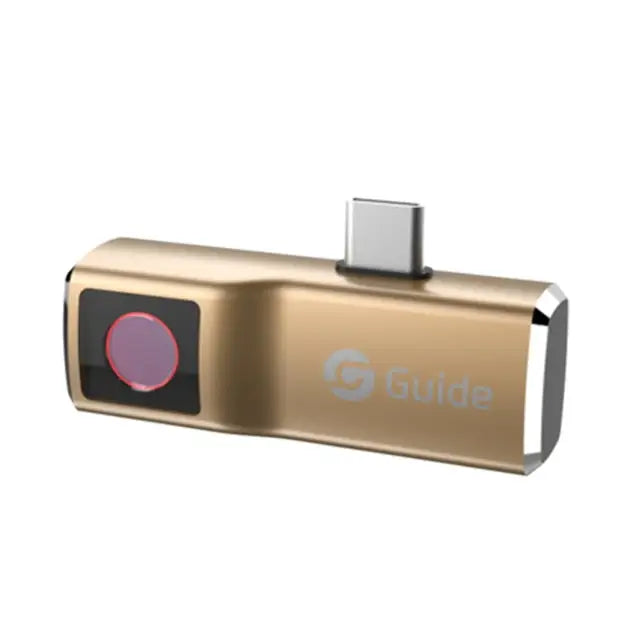

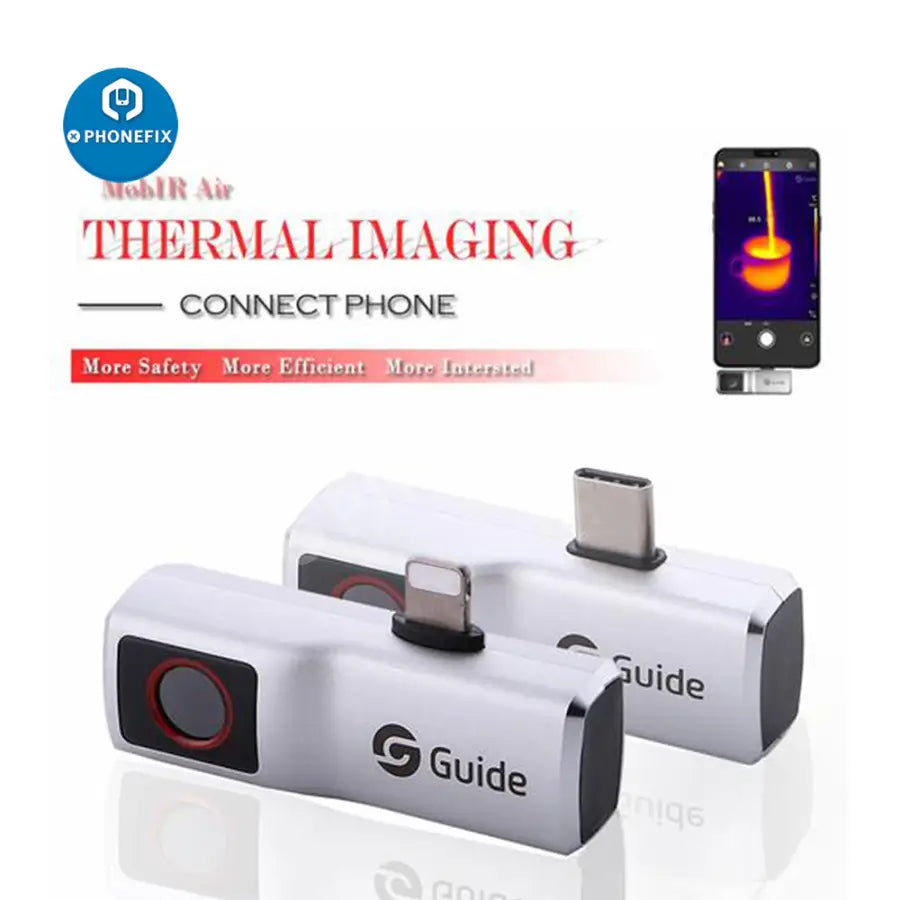

Guide MobIR Air smartphone thermal camera with 120x90 IR resolution, 25Hz frame rate, 50° FOV, and -20°C to 120°C range. USB-C plug-and-play for Android. Ideal for Phone PCB repair and inspection.
Features:
1. 120×90 Infrared Resolution. 17μm pixel size with NETD thermal sensor captures fine temperature differences.
2. 25Hz High Frame Rate. Smooth, real‑time thermal imaging — no lag or stutter.
3. 50° Wide Field of View. Covers large areas quickly — ideal for scanning circuit boards and building inspections.
4. -20°C to 120°C Temperature Range. Suitable for electronics repair, HVAC, and daily inspection tasks.

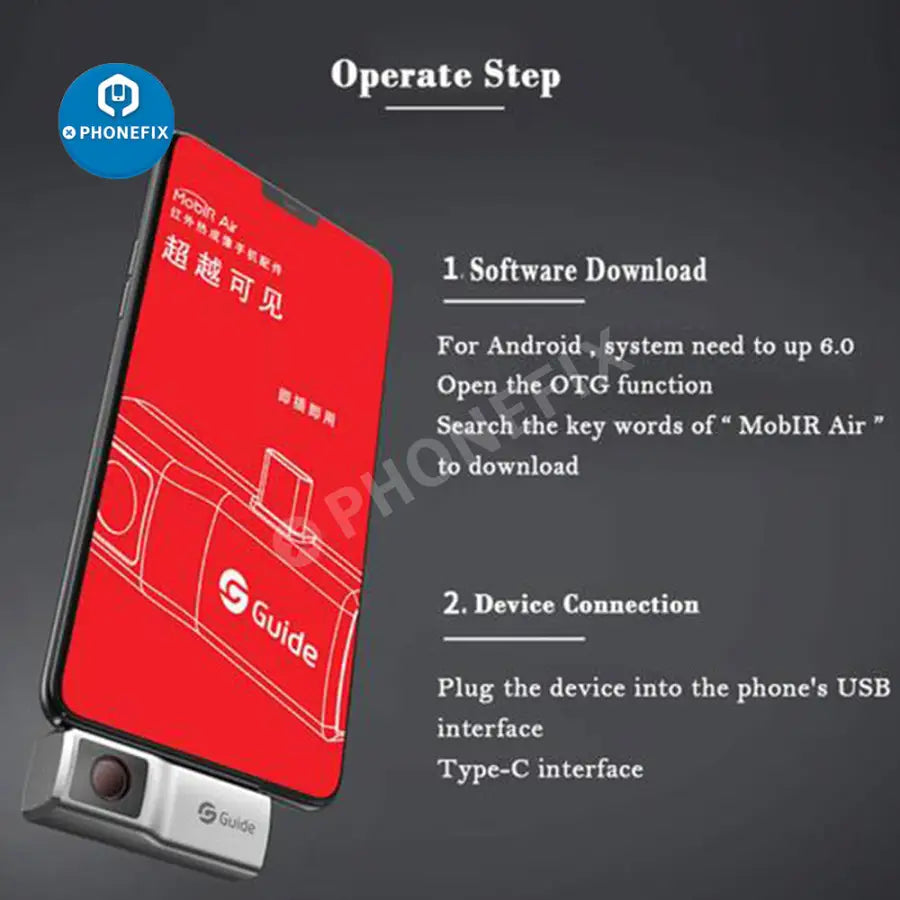

5. USB‑C Plug‑and‑Play. No battery needed — powered directly by your Android phone.
6. Ultra‑Low Power Consumption. <150mW, supports 3+ hours of continuous use.

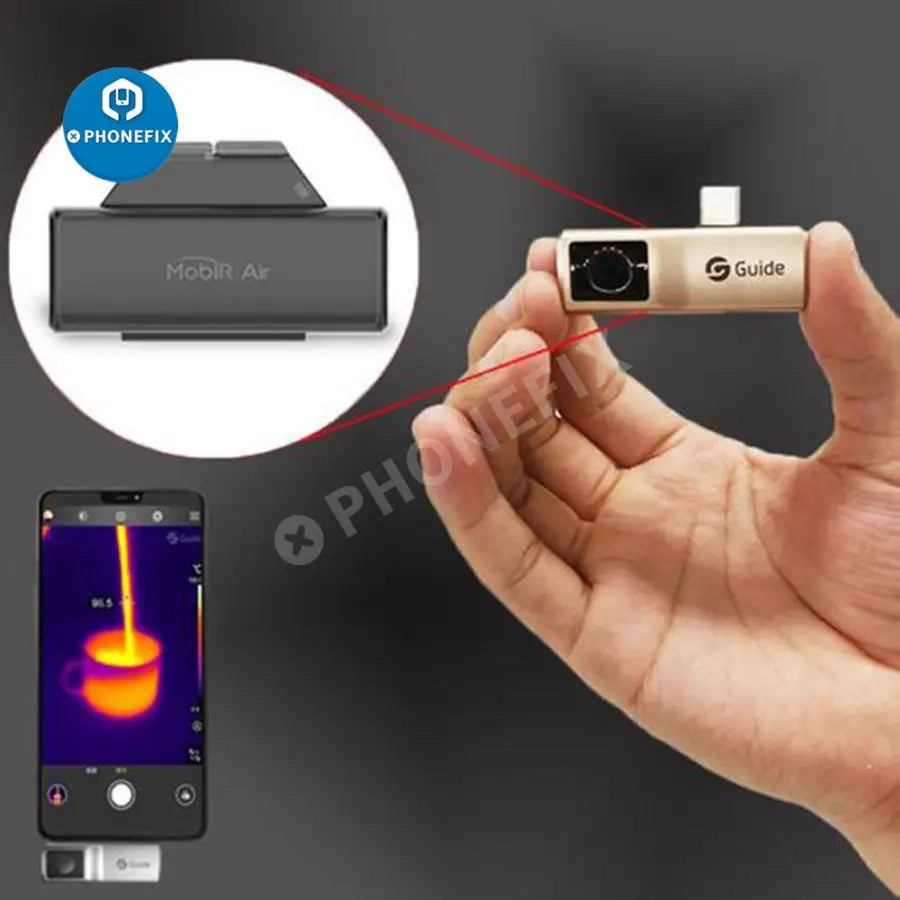

7. Compact & Lightweight. 20g pocket‑sized design — carry it anywhere.

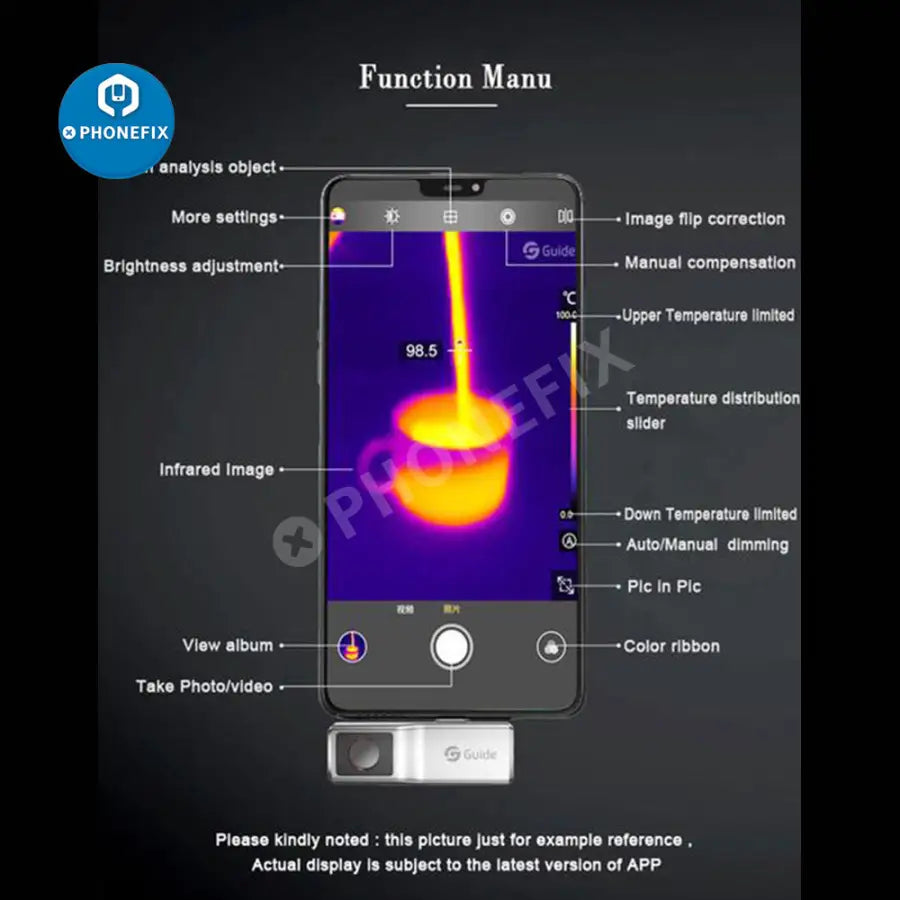

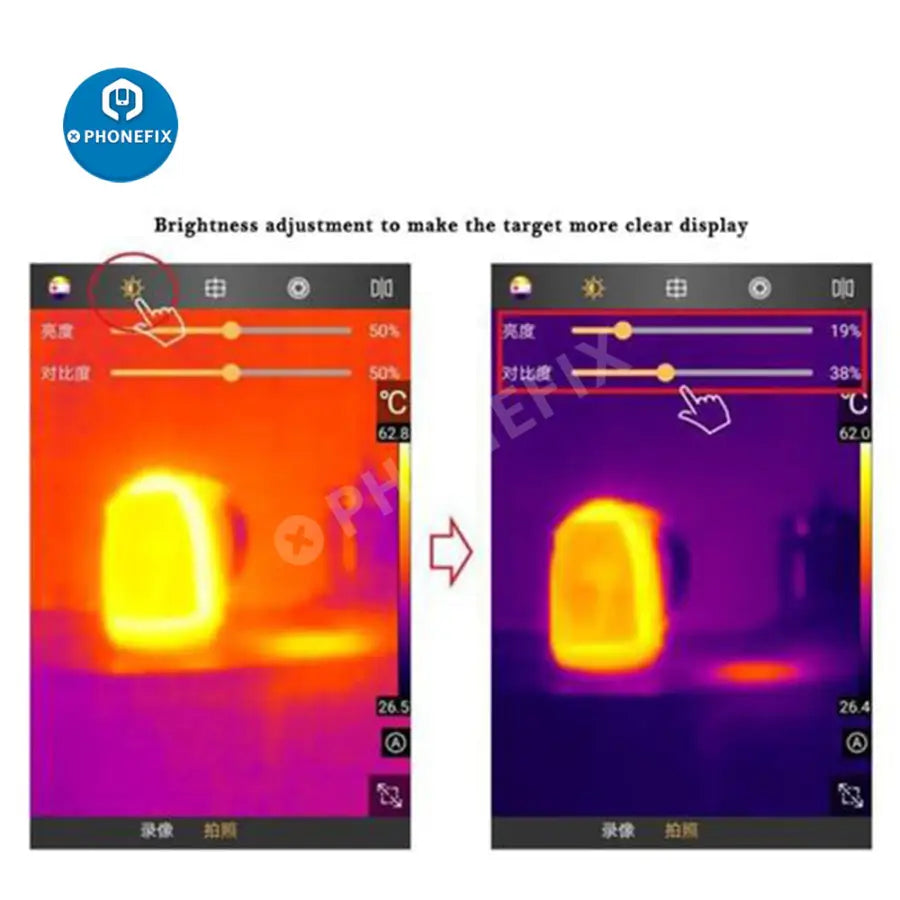

8. Free Guide App. Download from major app stores — full thermal analysis features.
8. Does not require batteries or charging, phone power supply directly. Waterproof case included.

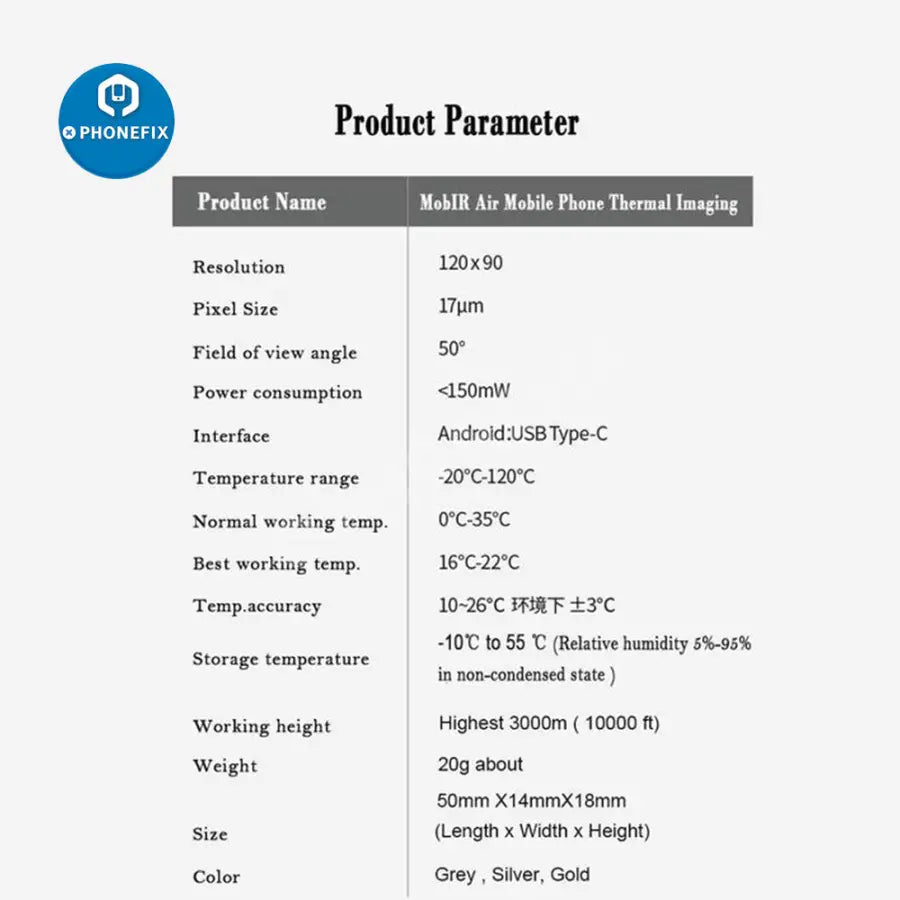

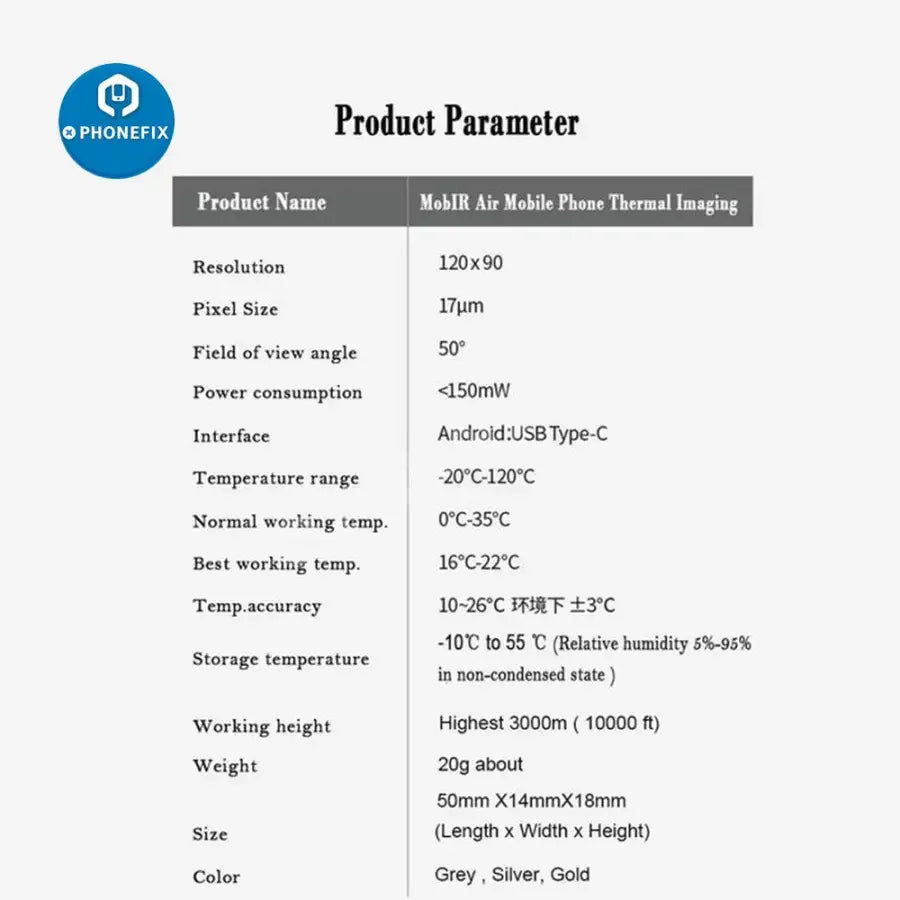

Technical Specifications:
Brand: Guide (Guide Sensmart)
Model: MobIR Air
Infrared Resolution: 120 × 90 pixels
Pixel Size: 17μm
Detector Type: Uncooled VOx (vanadium oxide)
Spectral Range: 7.5 – 14μm
Frame Rate: 25Hz
Field of View (FOV): 50°

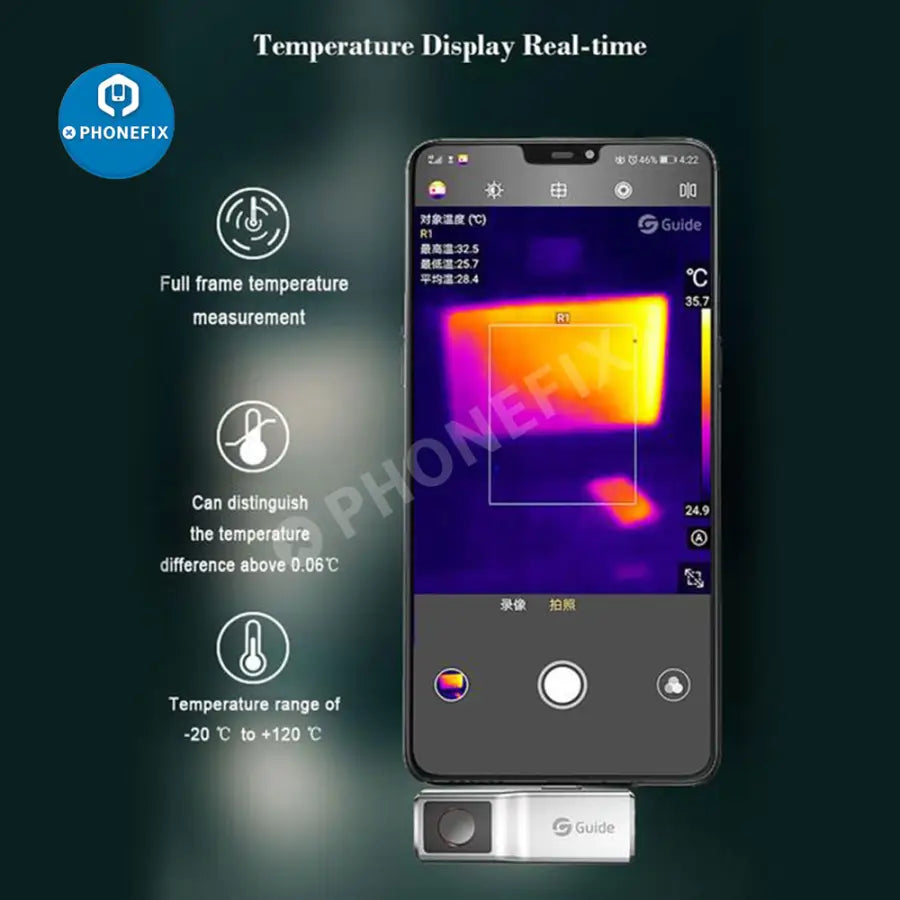

Temperature Range: -20°C to 120°C
Temperature Accuracy: ±3°C or ±3% (typical)
NETD: ≤60mK (detects 0.06°C difference)
Power Consumption: <150mW
Interface: USB Type-C (Android)
Weight: ≈ 20g
Dimensions: 50 × 14 × 18mm
Application
PCB & Motherboard Repair. Locate short circuits, overheating components, and cold solder joints.
Phone Repair. Identify faulty ICs, battery hotspots, and charging circuit issues.
Building Inspection. Detect heat leaks, insulation gaps, and moisture problems.
HVAC Maintenance. Check heating/cooling system performance and ductwork.
Electrical Inspection. Find overloaded breakers, loose connections, and hot wires.
