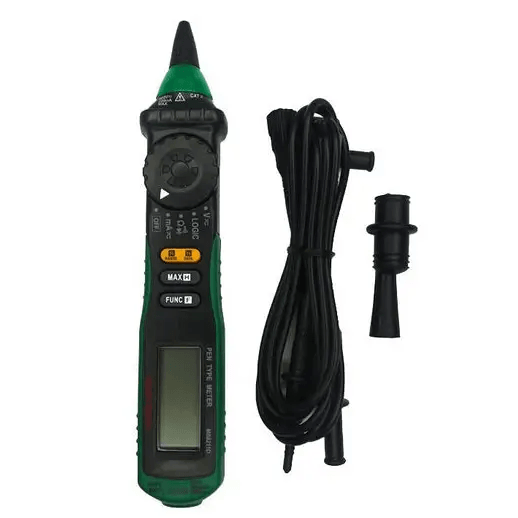

MasTech MS8211 / MS8211D
Multimeter Automobile circuit measuring repairing
MasTech MS8211 / MS8211D Auto meter is a portable professional measuring instrument with handsome LCD easily reading. Single operation of a transform switch makes measurement convenient. Overload protection and low battery indication are provided, this meter is ideal for use in the fields, workshop, school, hobby and home applications.
The difference between MS8211 and MS8211D
Optional Type :
- Option 1: MS8211D: DC/AC Current test function, logic level tests
- Option 2: MS8211: non-contact voltage detection (with led alarm)
Product Features :
- Pen type design Automotive Multitester
- Auto range and manual range
- Built-in non-contact voltage detector, it is convenient to test the socket or the lead whether is with power or not
- Test AC/DC voltage, resistance
- LCD display shows the measured value and the unit symbol
- Retractable tip design
- Diode check and continuity test
- Data hold and MAX hold
- Rotatable Probe Socket
- Sensitivity adjustment knob
- Auto power off
Product Specification :
- Optional Type: MS8211 MS8211D
- Range Accuracy
- DC Voltage: 200mV/2V/20V/200V/600V ±(0.7%+2) ±(0.7%+2)
- AC Voltage: 200mV/2V/20V/200V ±(0.8%+3) ±(0.8%+3) 600V ±(1.0%+3) ±(1.0%+3)
- DC Current: 20mA/200mA ±(1.5%+3)
- AC Current: 20mA/200mA ±(2.0%+3)
- Resistance: 200Ω ±(1.0%+3) ±(1.0%+3) 2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+1) ±(1.0%+1) 20MΩ ±(1.0%+5) ±(1.0%+5)
Product Features :
- Display counts: 2000 2000
- Auto Ranging: TRUE TRUE
- Manual Ranging: TRUE TRUE
- NCV Non-Contact AC Voltage Detection: >50V AC TRUE
- Logic Level Test >3.5V: High Level; <3.5V: Low Level TRUE
- APO Auto Power Off TRUE TRUE
- Diode 2.7V TRUE TRUE
- Continuity Buzzer <50Ω TRUE TRUE
- MAX Maximum Value Hold: TRUE TRUE
- Data Hold: TRUE TRUE
- Retractable Tip Retractable Tip for Safe Storage: TRUE TRUE
- Power Supply: 2x1.5V AAA Batteries (not included)
- Product Size: 208mmx38mmx29mm/8.26"x1.5"x1.1"
- Product Weight: 1.2g/0.22lb
- Certificate: CE ETL CAT.II 600V RoHS
