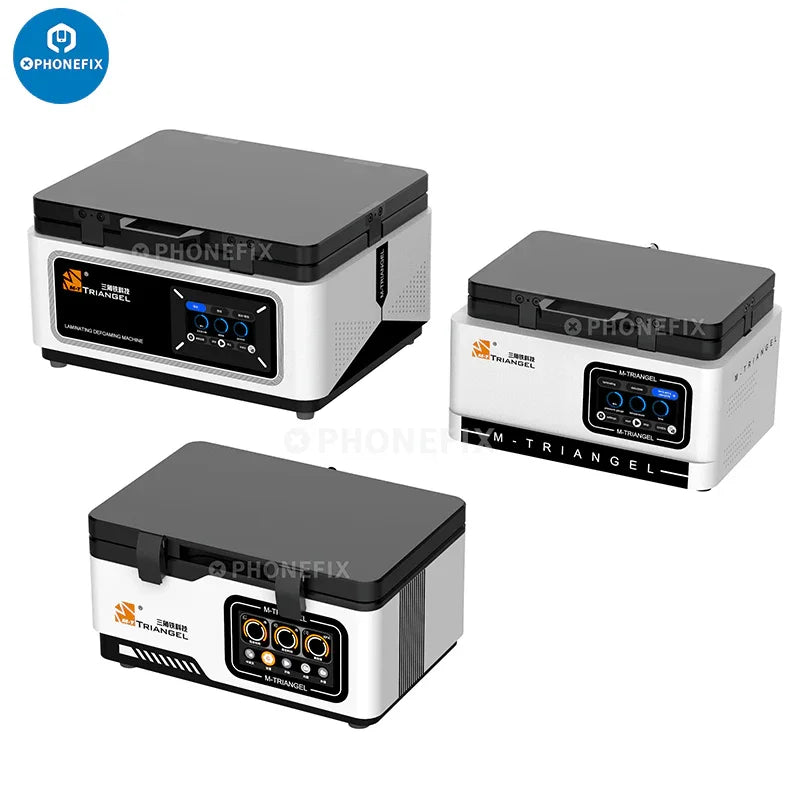

MT-13 MT-16 MT-18 Screen Vacuum Laminating Defoaming Machine

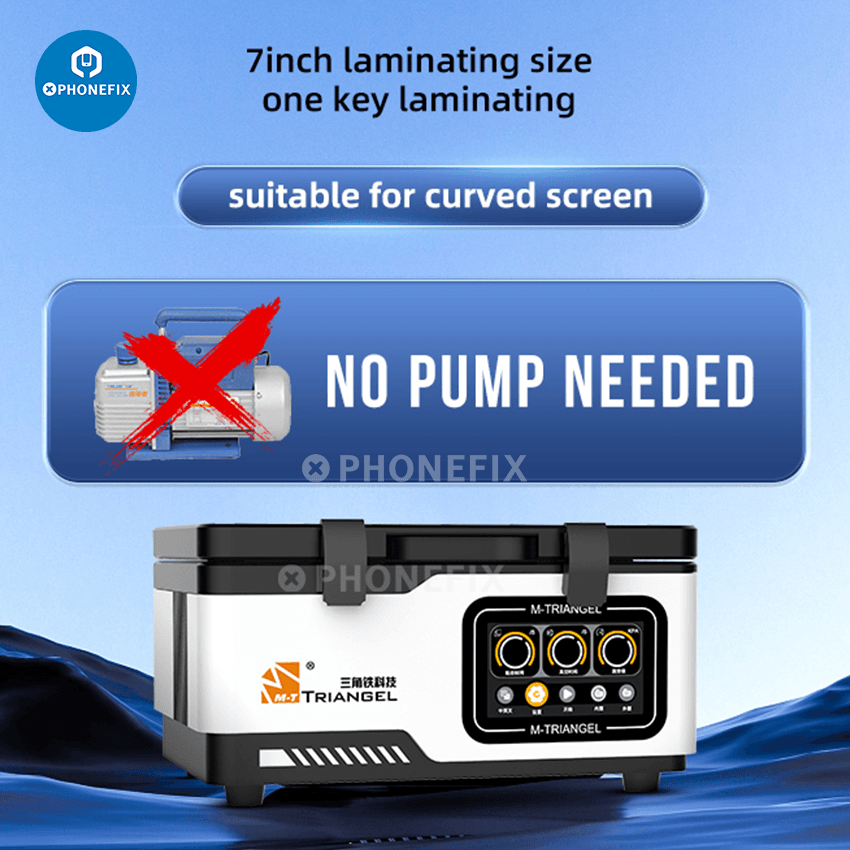

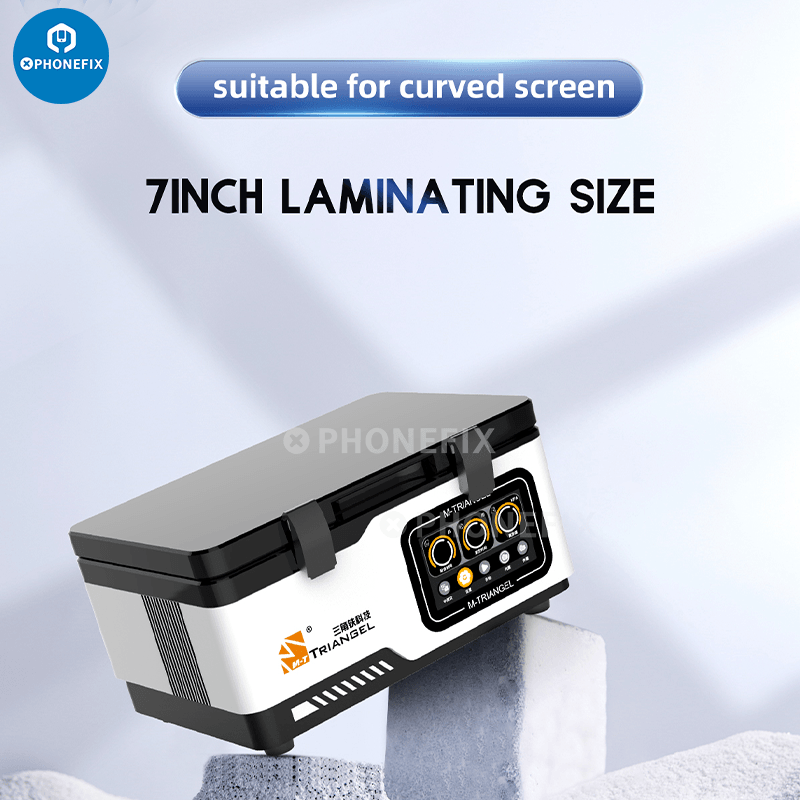

M-Triangel LCD Screen Laminating Bubble Removing Machine Built-in Vacuum Pump For Phone iPad Tablets Touch Screen Lamination And Air Bubble Removal Below 16 Inches. MT-13 Mini Vacuum Laminating Machine supports most flat curved screen lamination up to 7-inch. MT-16 Laminating Defoaming Machine supports flat and curved screens lamination and air bubble removal up to 9 inches. MT-18 Airbag Laminating Bubble Removing Machine For flat and curved screens laminating and defoaming up to 16 inches.

Features:

• 3D soft lamination.
• Digital display, one-button start.
• Chinese and English Language Support.
• Built-in vacuum pump, external connection available.
• No external air compressor is required.
• Supports flat and curved screens.
• Support lamination up to 10.9 inches.
• Compact design, all in one.

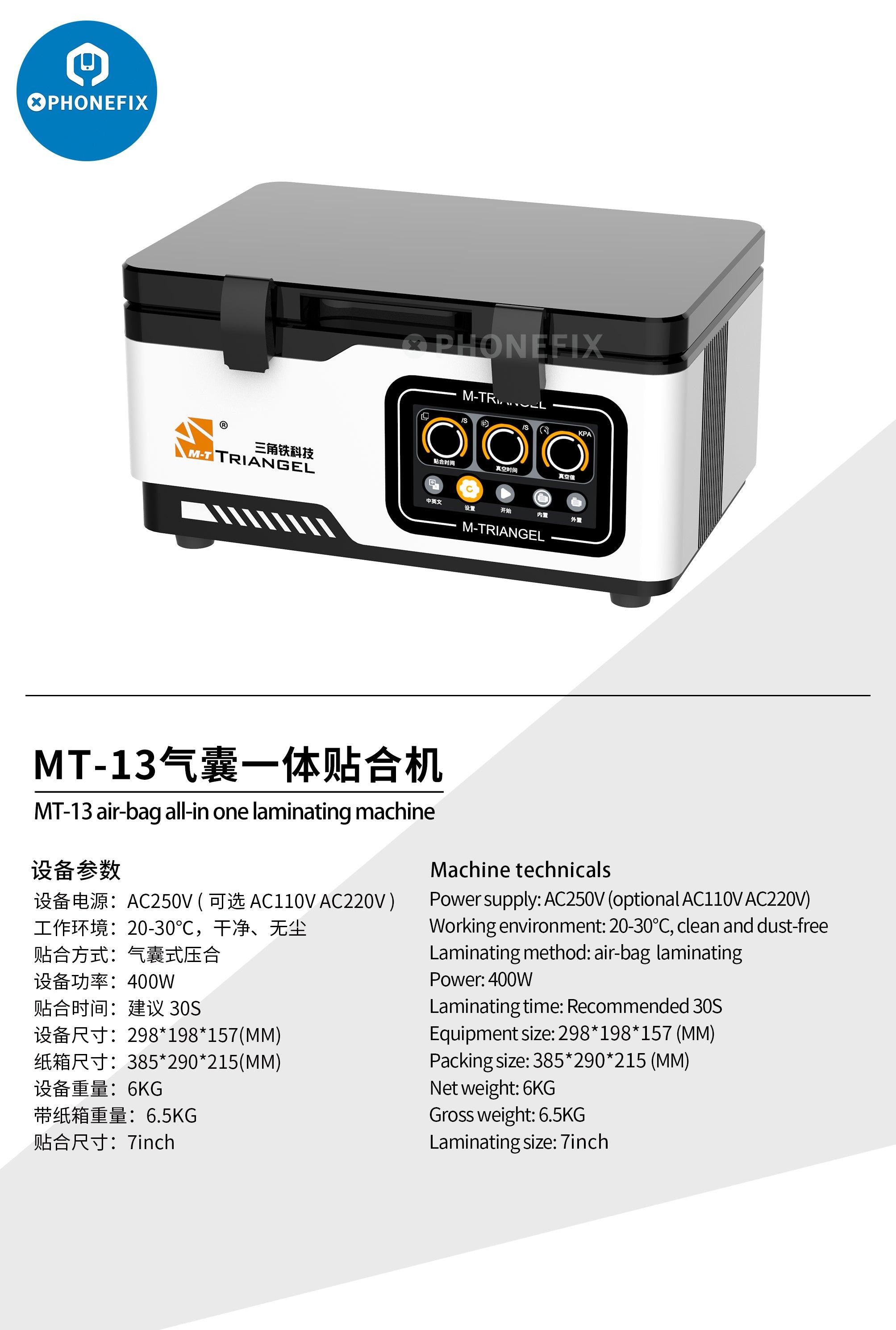

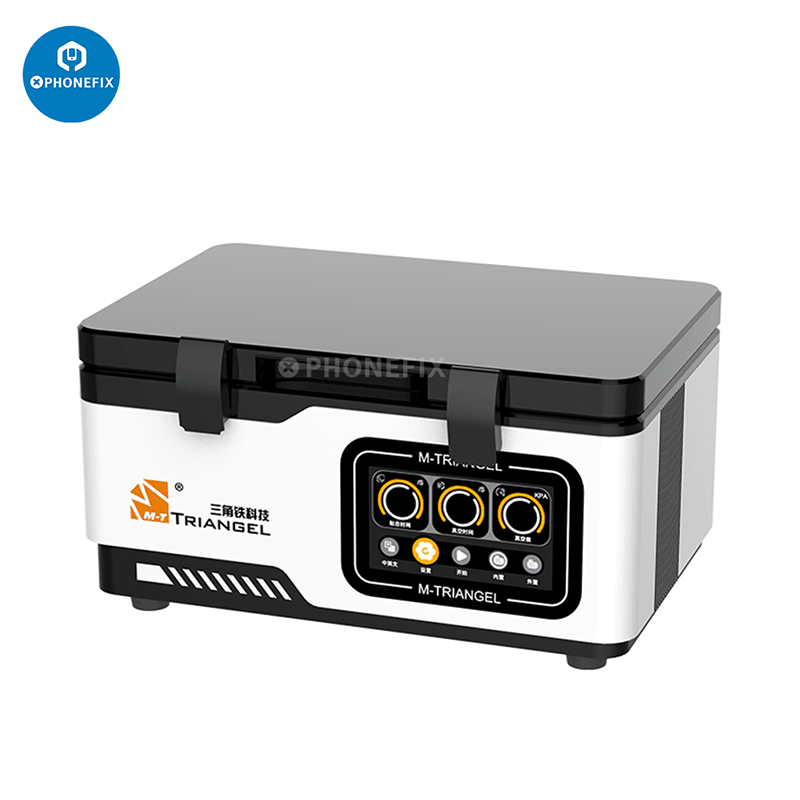

M-Triangel MT-13 Specification:
Power supply: AC 110V/220V.
Working environment: 20-30℃, clean and dust-free.
Laminating method: Air-bag laminating.
Power: 400W.
Laminating time: Recommended 30S.
Equipment size: 298*198*157mm.
Packing size: 385*290*215mm.
Net weight: 6KG.
Gross weight: 8KG.
Laminating size: 10.9-inch.

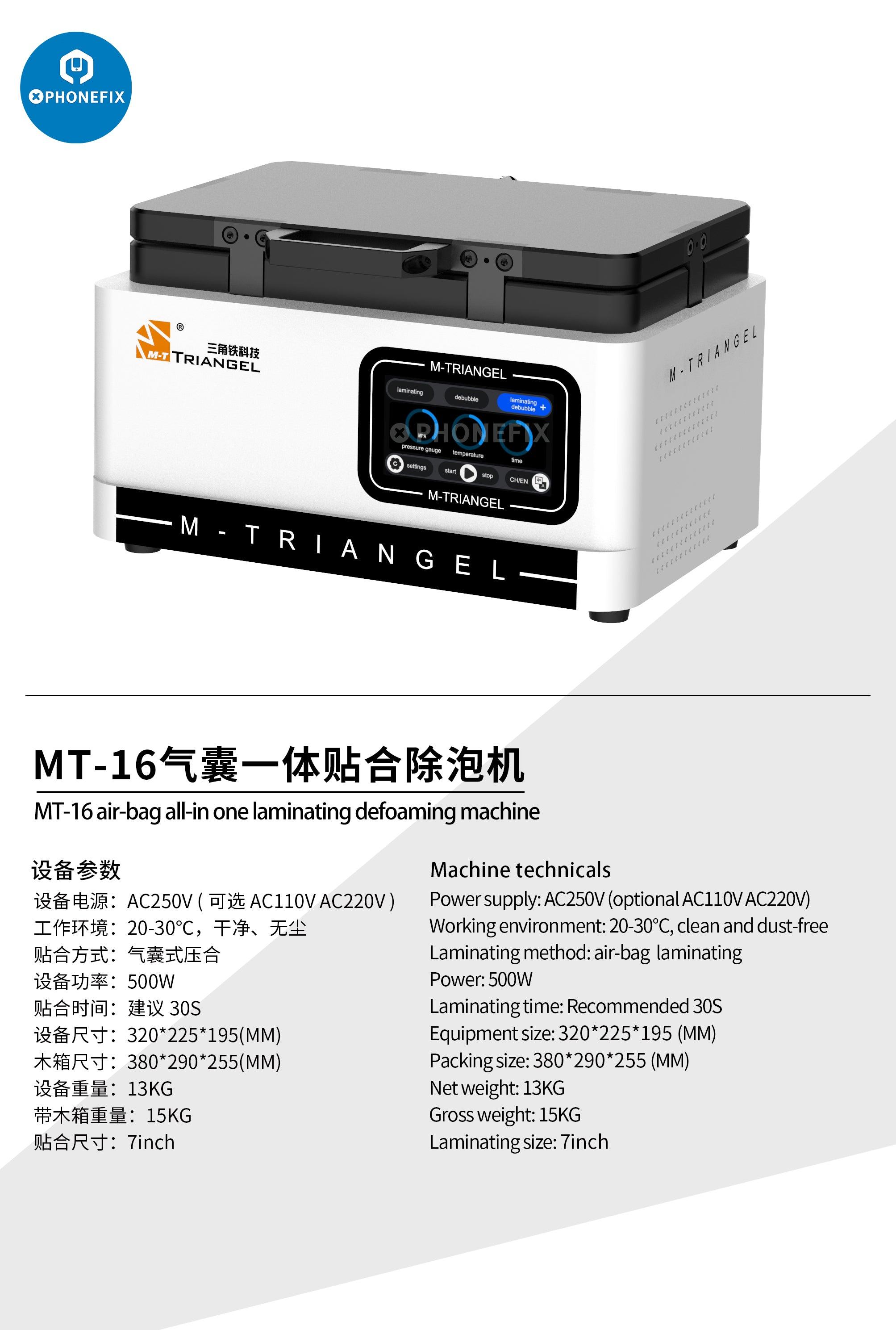

M-Triangel MT-16 Specification:
Brand: M-Triangel.
Model: MT-16.
Power supply: AC 110V/220V.
Working environment: 20-30℃, clean and dust-free.
Laminating method: Air-bag laminating.
Power: 500W.
Laminating time: Recommended 30S.
Equipment size: 320*225*195mm.
Packing size: 380*290*255mm.
Net weight: 13KG.
Gross weight: 17KG.
Laminating size: 10.9-inch.

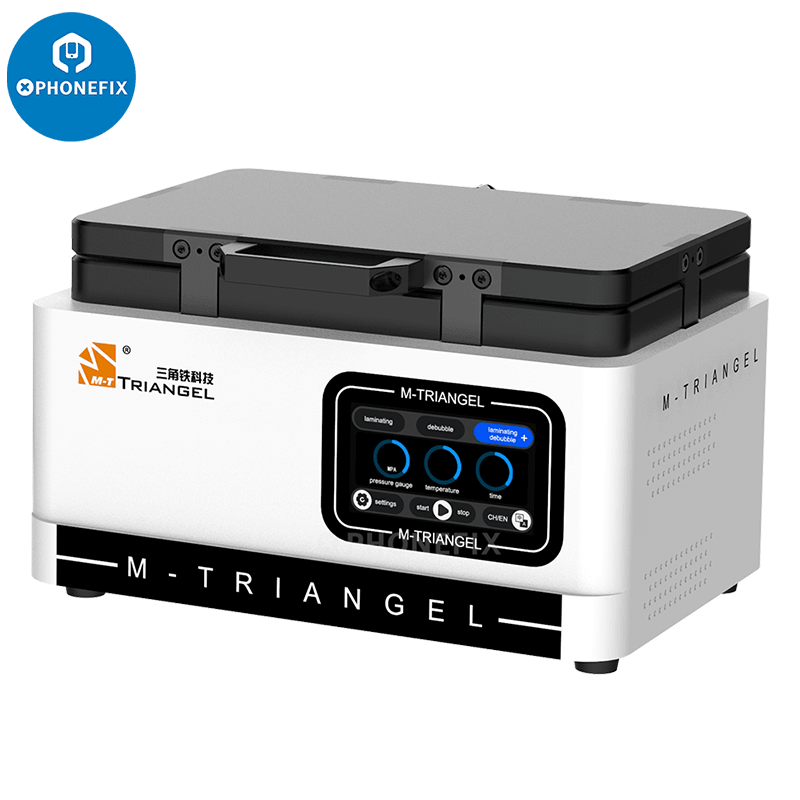

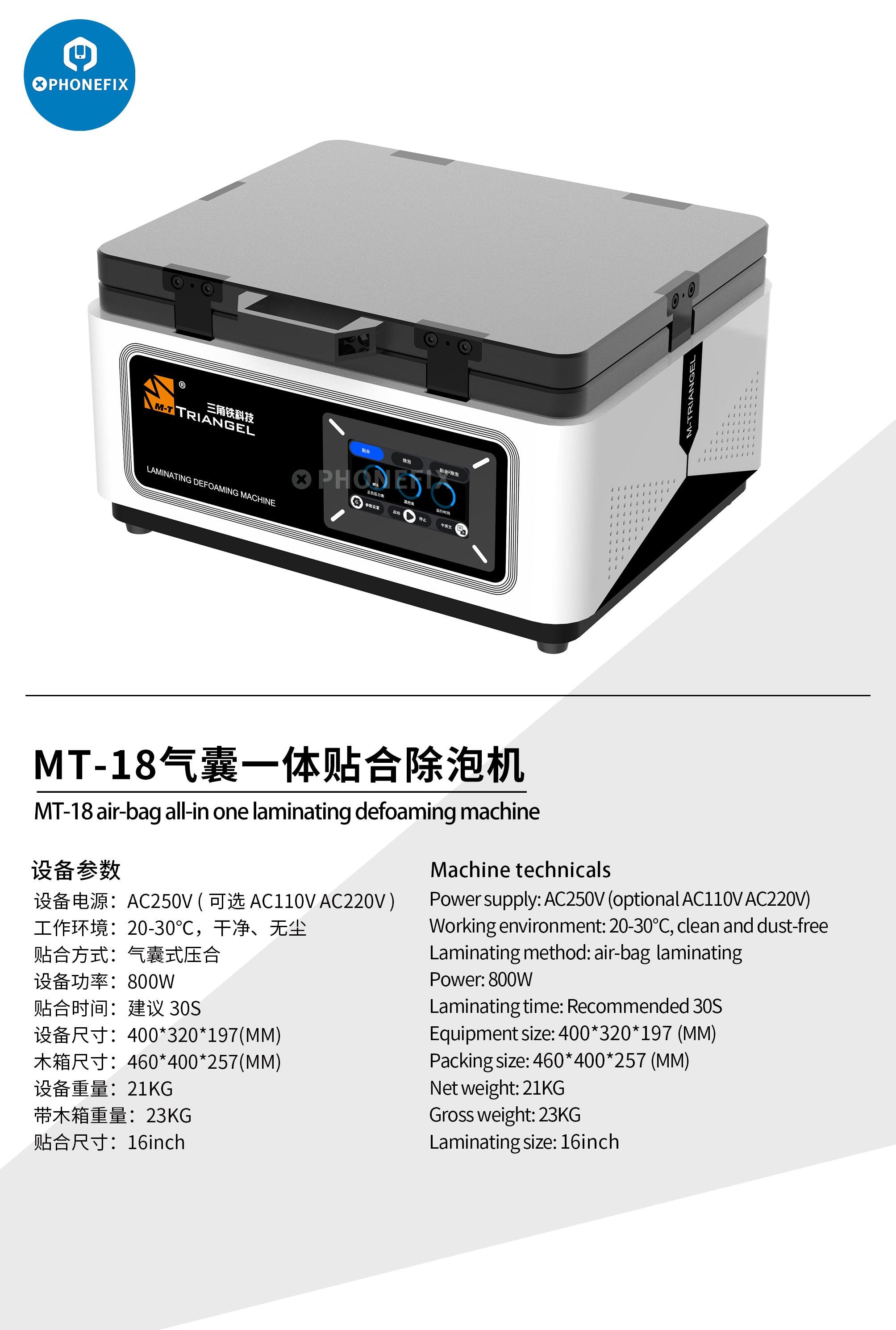

M-Triangel MT-18 Specification:
Brand: M-Triangel.
Model: MT-18.
Power supply: AC 110V/220V.
Working environment: 20-30℃, clean and dust-free.
Laminating method: Air-bag laminating.
Power: 800W.
Laminating time: Recommended 30S.
Equipment size: 400*320*197mm.
Packing size: 460*400*257mm.
Net weight: 21KG.
Gross weight: 25KG.
Laminating size: 16-inch.

Package includes:
1 x M-Triangel MT-13/MT-16/MT-18 Machine(Optional)
1 x Power Cord

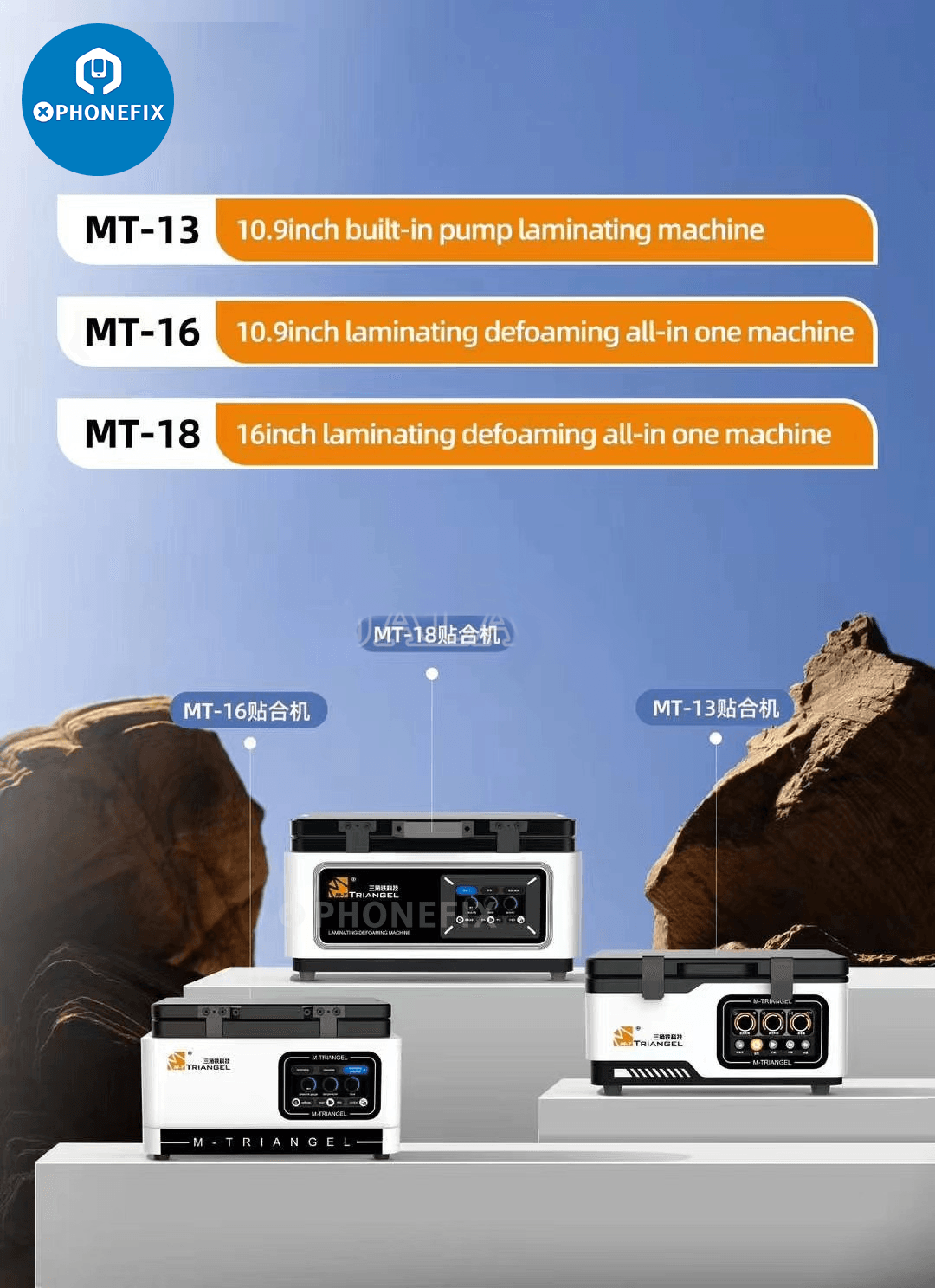

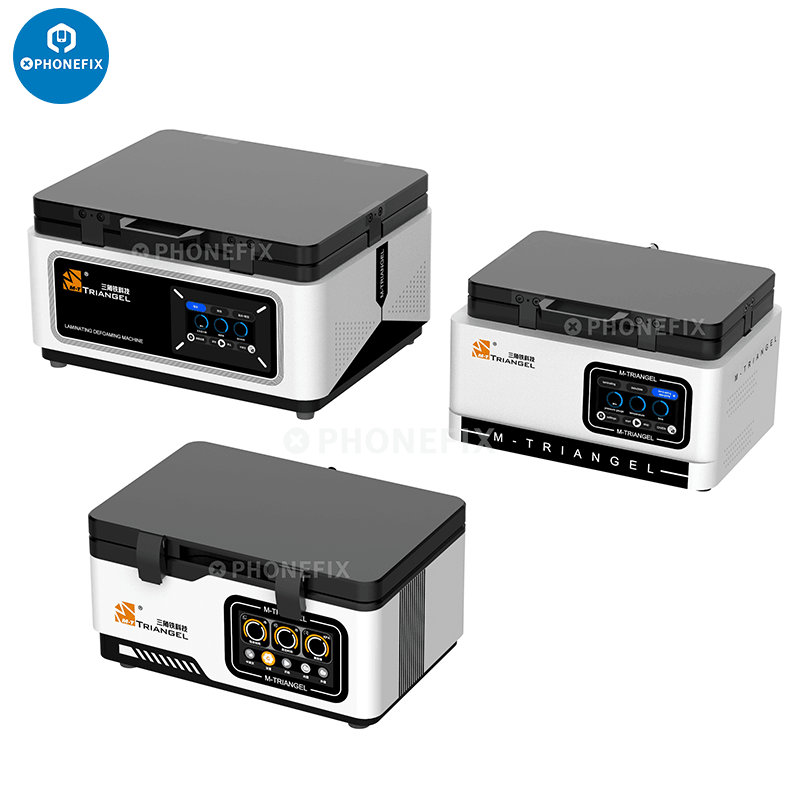

Difference between MT-13 MT-16 MT-18:

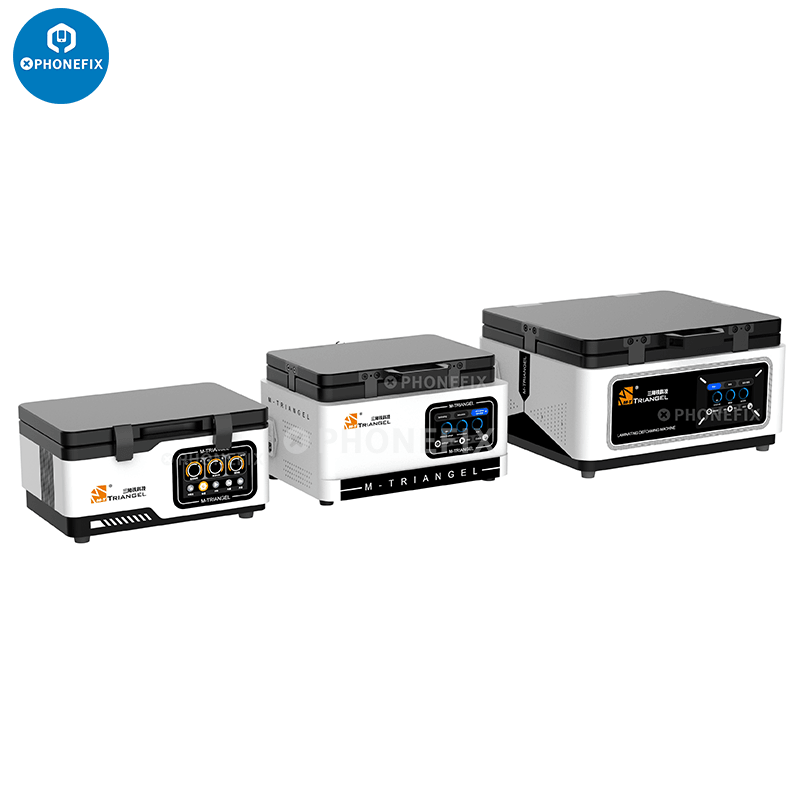

1. Weight and size: MT-13<MT-16<MT-18.

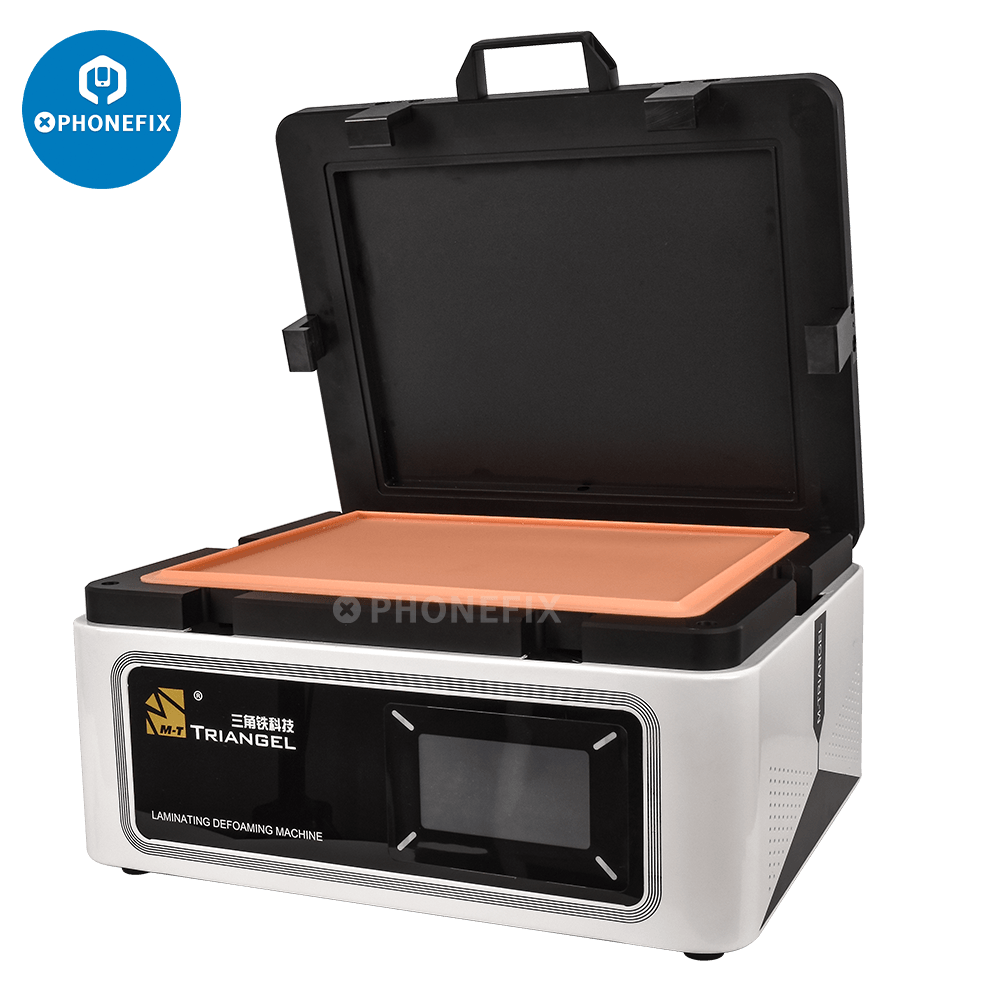

2. MT-13 and MT-18 with the bladder attached to the lid, and the MT-16's bladder is attached to the bottom of the container.
3. MT-13 and MT-16 are suitable for mobile phone screen bonding within 9-inch, and MT-18 supports tablet and mobile phone lamination within 16 inches.
4. MT-16 and MT-18 have built-in compressors that support heating and high-pressure defoaming, while MT-13 does not.

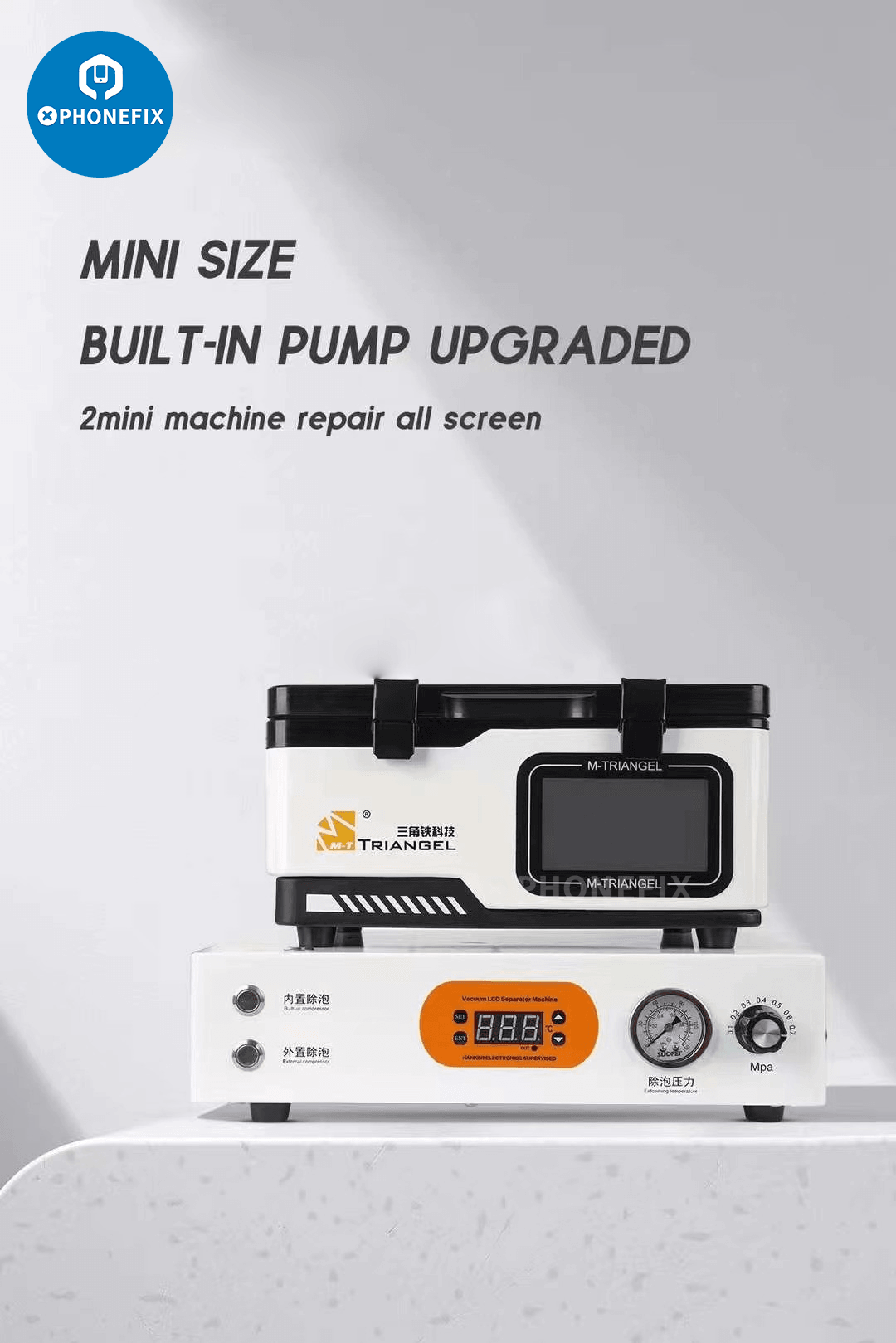

5. MT-13 has reserved an external vacuum pump interface and see-through top cover, you can monitor the airbag working status at any time.
