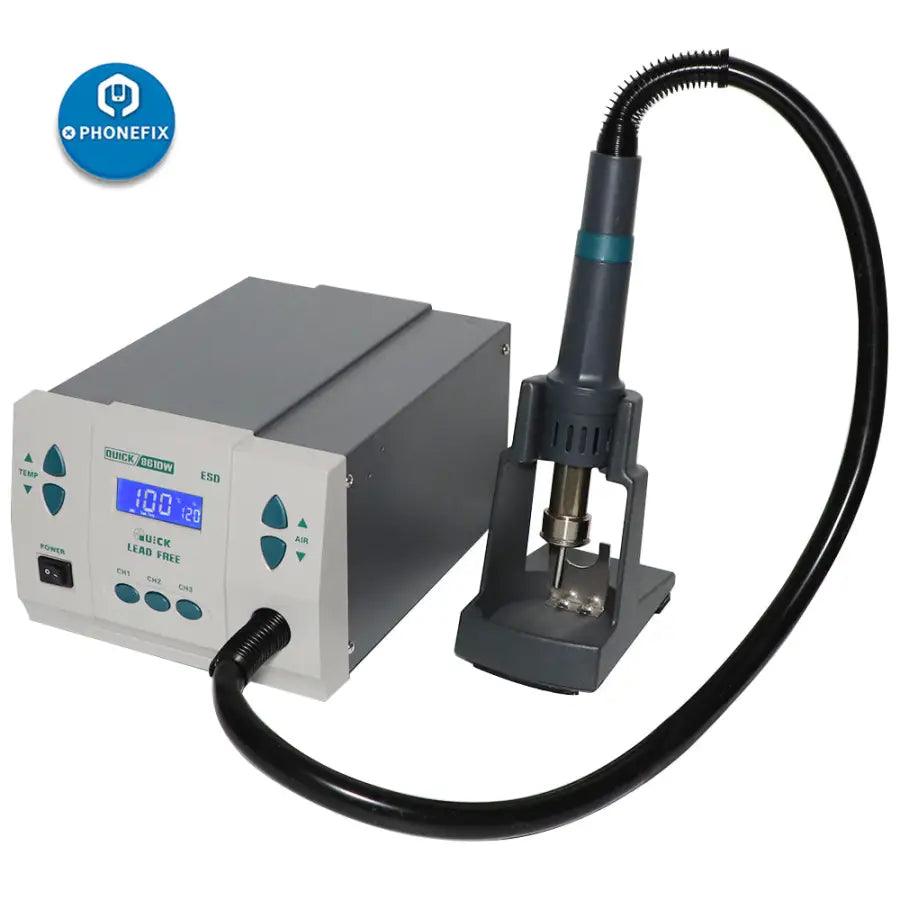

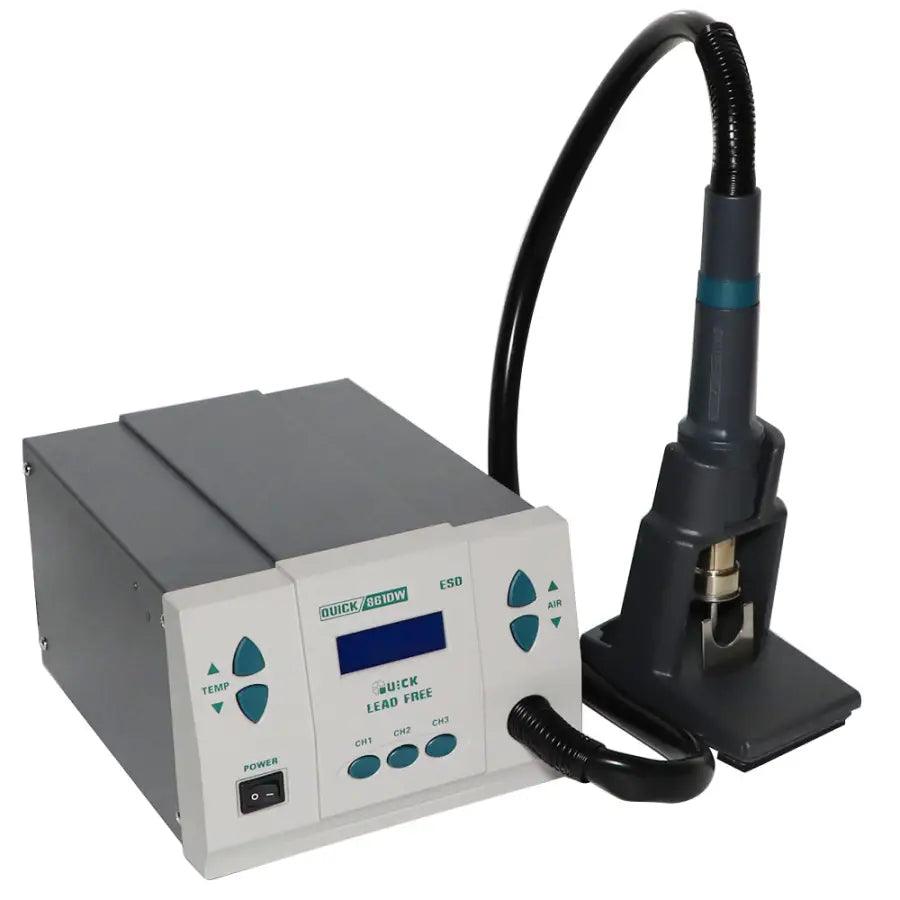

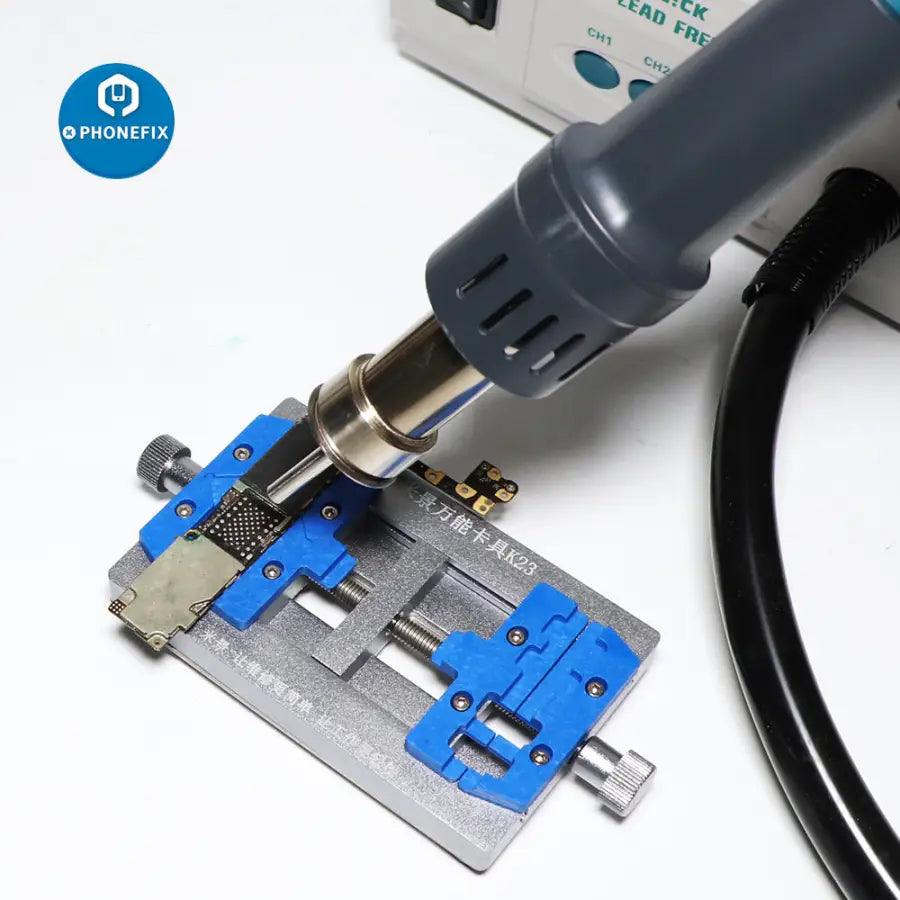

Original QUICK 861DW hot air rework desoldering station is a professional phone repair rework station, desoldering and soldering of BGA IC components, 1000W / 500 °C QUICK 861DW lead free rework station for mobile phone BGA desoldering repair.
QUICK 861DW Hot Air Rework Station Lead Free Soldering Station For BGA IC Components Welding.
220V or 110V option voltage.
Note: 110V, need customized, time: about 1-2 days.With

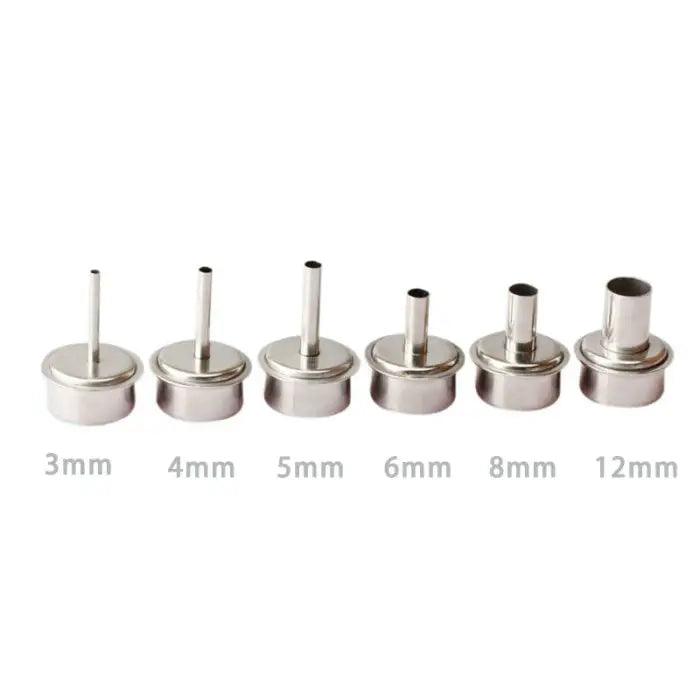

3pcs Heat Gun Nozzles - size : 5mm + 6mm + 8mm, if need 3mm / 12mm nozzle, need bought it alone. More QUICK 861DW
Nozzles from: www.vipfixphone.com.
Features :

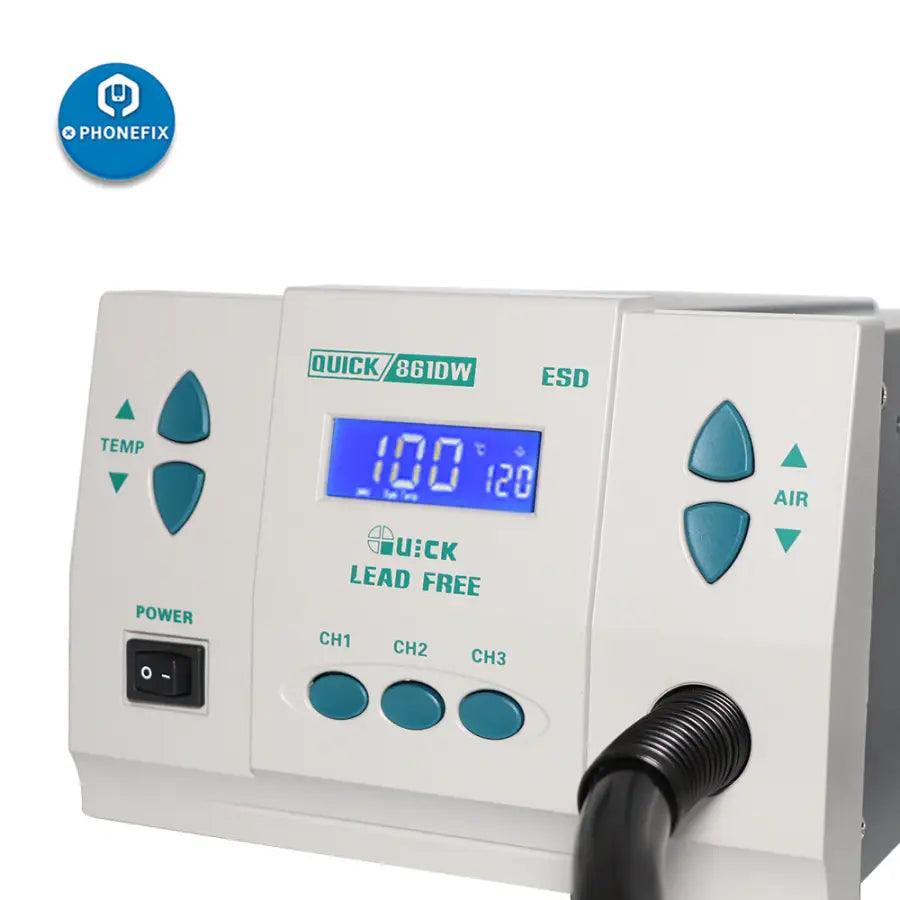

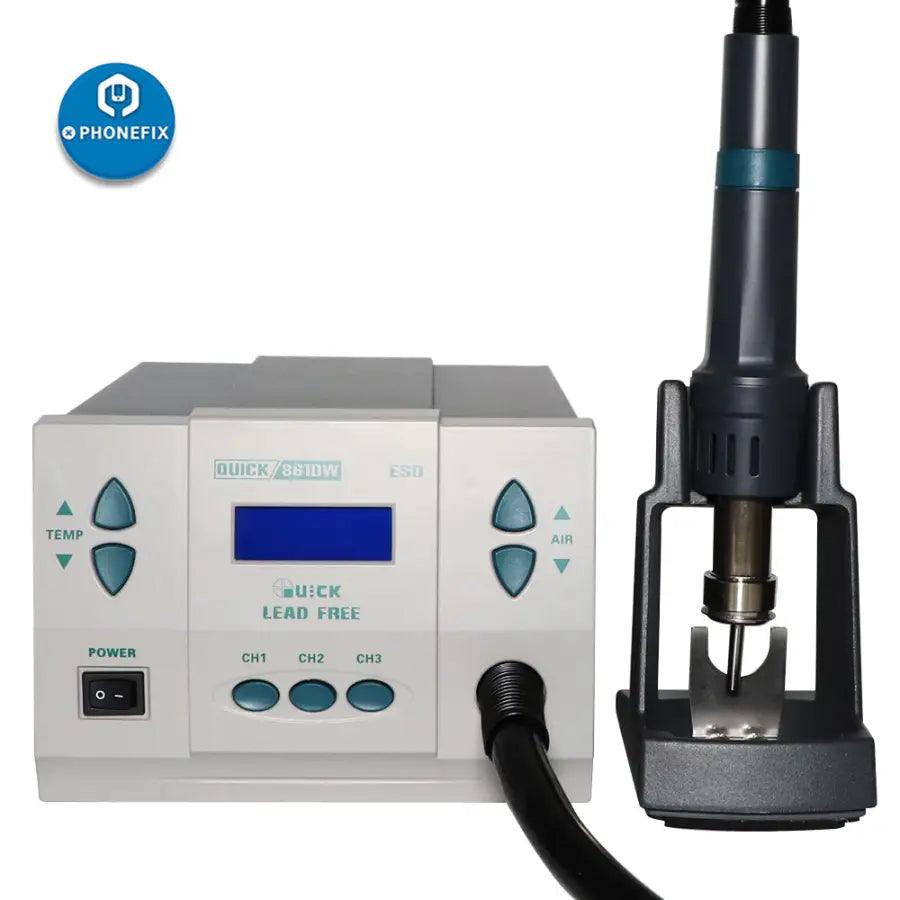

- With CH1, CH2, CH3 three working channels, and each channel can be set to the amount of wind, and temperature.
- Password protection and key lock function.
- Facilitate real-time operation, with magnetic switch control lever is placed in the handle holder immediately into hibernation.
- With automatic sleep function, in a dormant state parameters can be set.
- Sensor closed loop, microcomputer zero trigger temperature control, power, heating quickly, easily and precisely adjust the temperature stable, free from the influence of wind.
- The use of brushless vortex blower, air flow adjustable, wide range, can be adapted to a variety of uses.
- The system has an automatic cooling function of wind capacity, extend the life of the heating element and protect the hot air handle.
Specification :
- Power: 1000W
- Voltage: AC 220V / 110V
- Temperature range: 100 °C ~ 500 °C
- Air volume ratio range: 1 to 120
- Maximum air flow: 120L / min
- Dimensions: 188 (L) × 245 (D) × 135 (H) mm

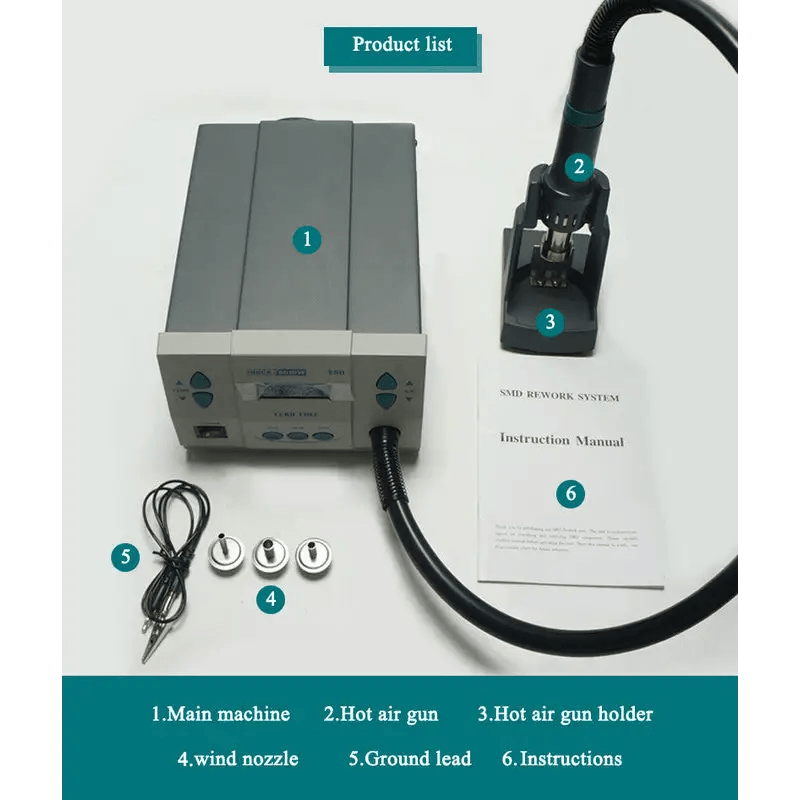

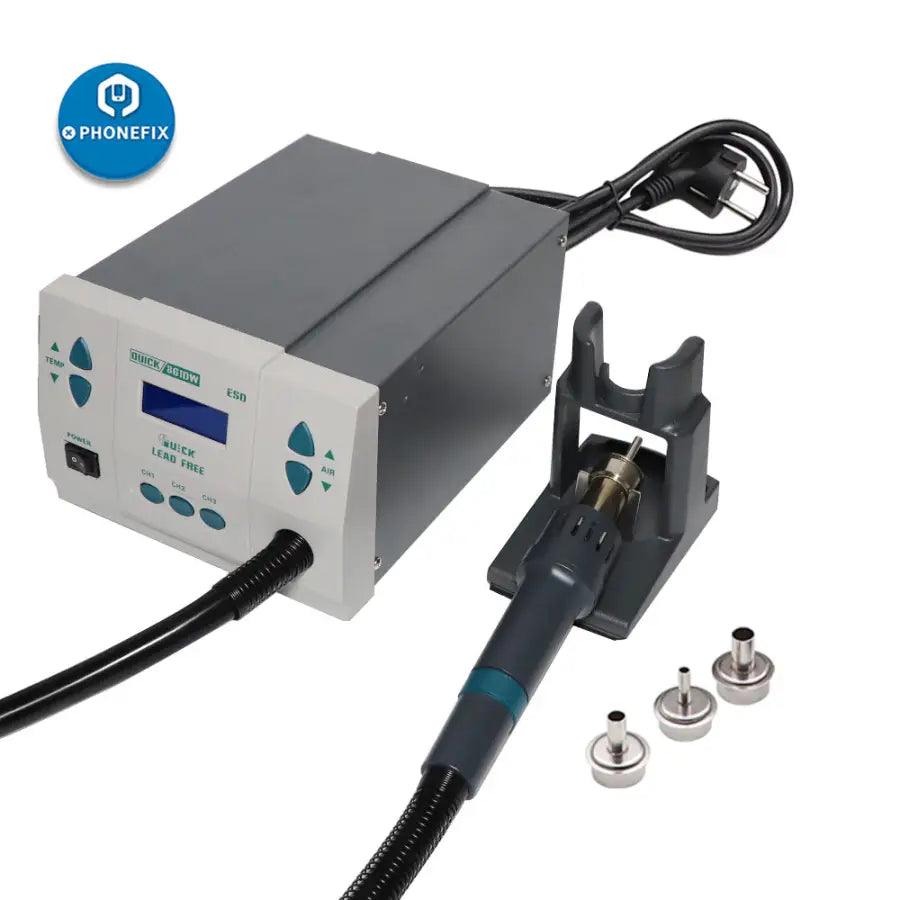

Package List :
- 1pcs x Quick 861DW rework station

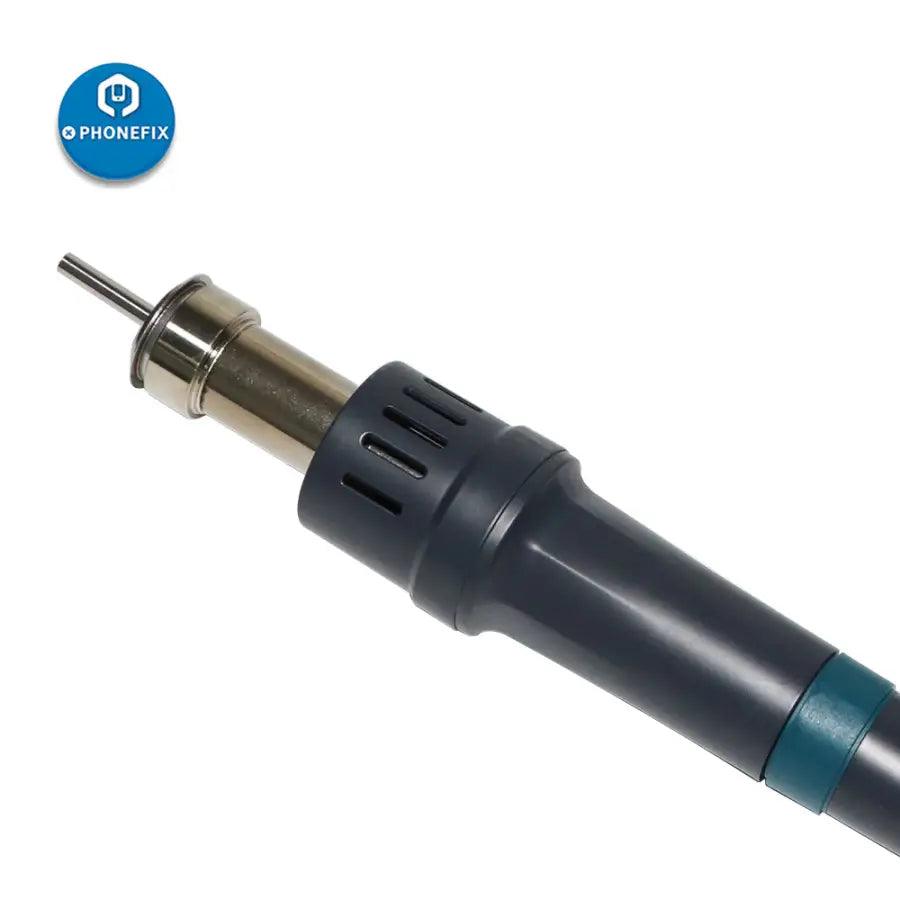

- 1pcs x Hot air gun

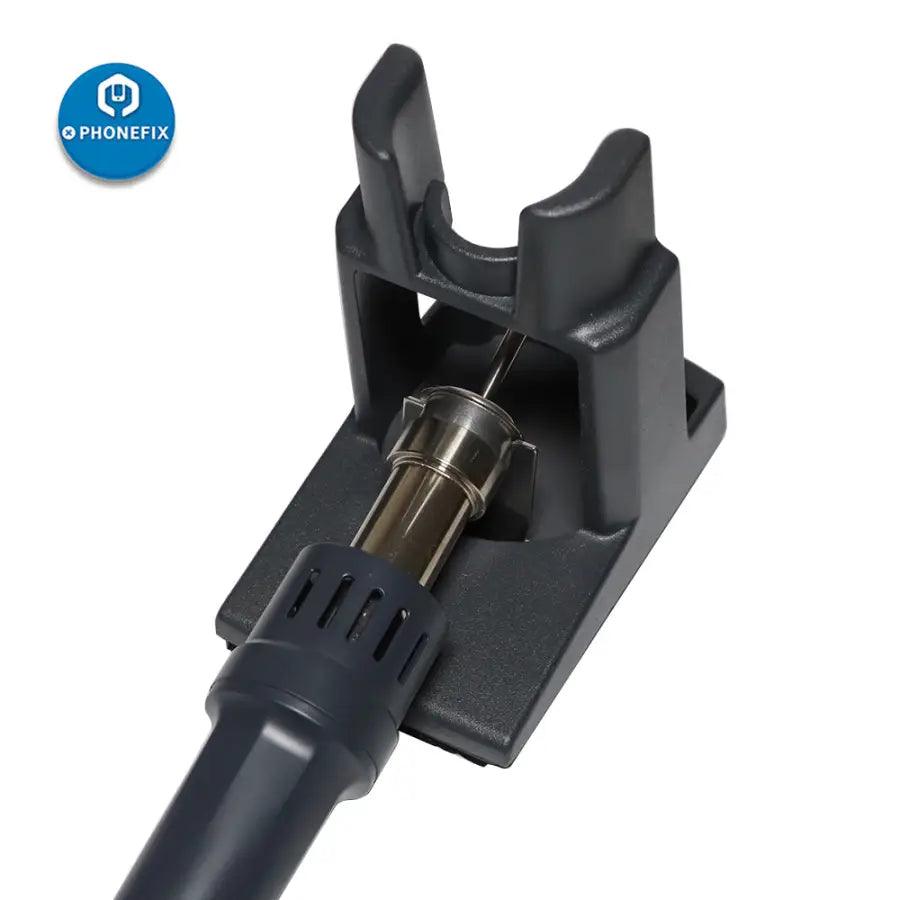

- 1pcs x Hot air gun holder

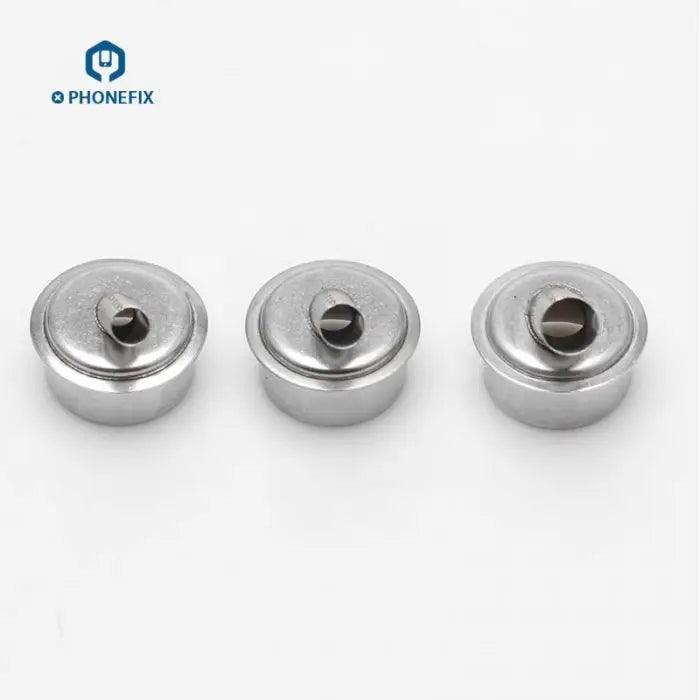

- 3pcs x Heat gun nozzles
- 1pcs x Ground lead
- 1pcs x Instructions
