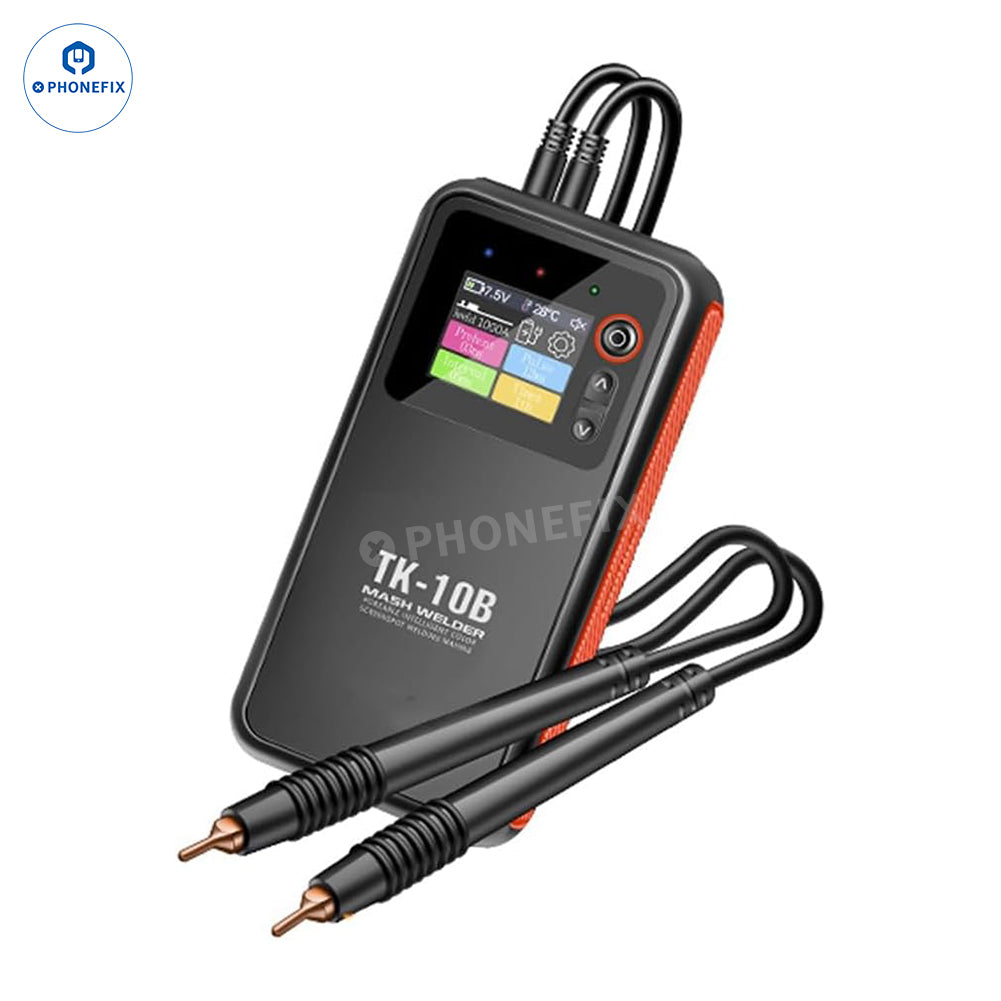

TK-10B Portable Spot Welding Machine and 80 Gears Adjustable Handheld Spot Welder Portable Digital Display Mini Spot Welding Machine for Mobile Phone/iPhone Battery Replacement or Repair. TK-10B Spot Welder features spot welder+charging treasure, suitable for mobile phone battery repair.
TK-10B Features:

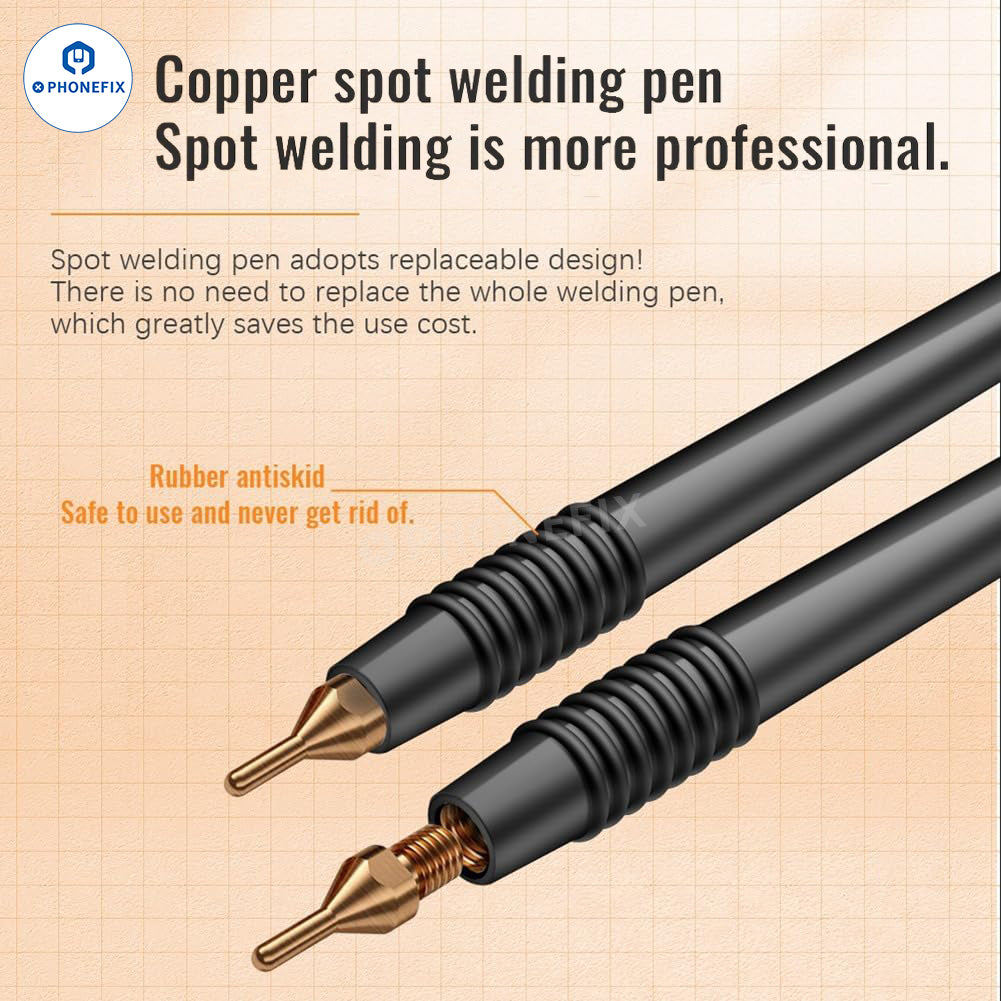

1. Copper spot welding pen, spot welding is more professional.Spot welding pen adopts replaceable design! There is no need to replace the whole welding pen, which greatly saves the use cost.

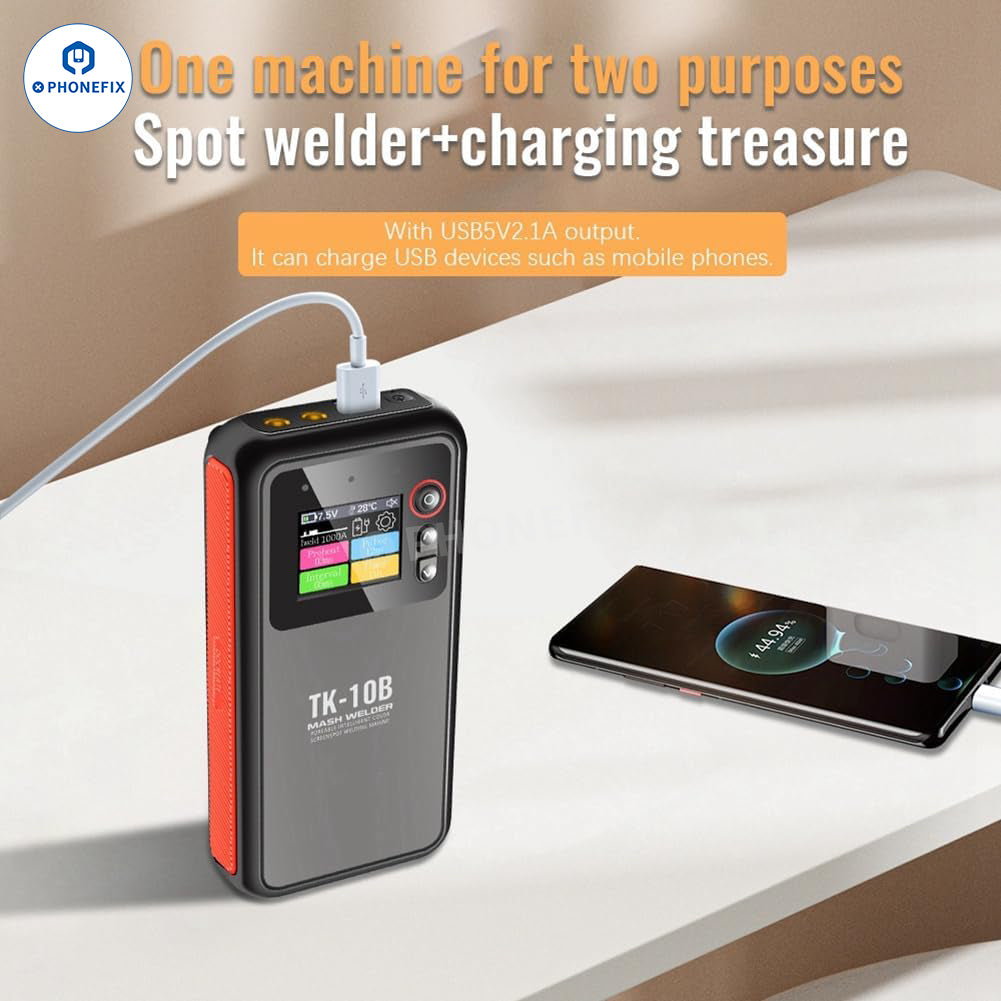

2.One machine for two purposes, spot welder+charging treasure with USB5V2.1A output. It can charge USB devices such as mobile phones.

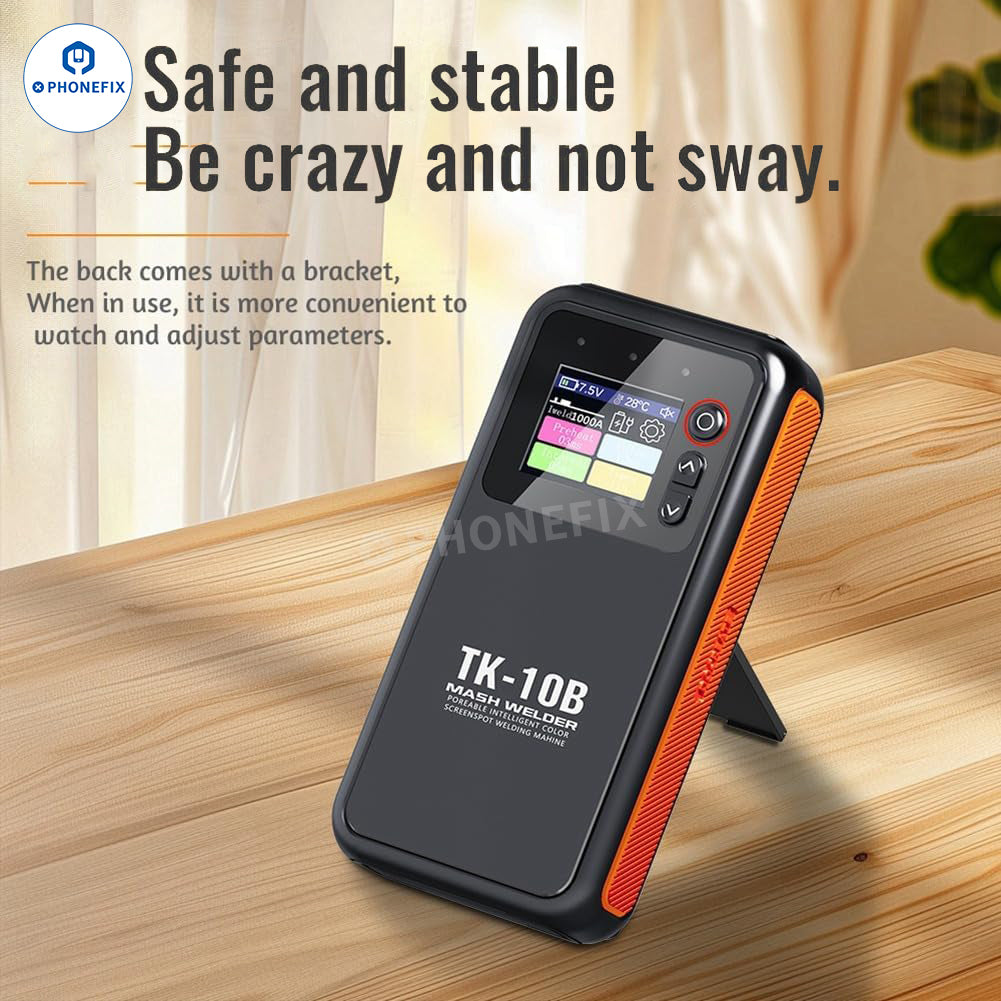

3. Safe and stable, be crazy and not sway. The back comes with a bracket, when in use, it is more convenient to watch and adjust parameters.

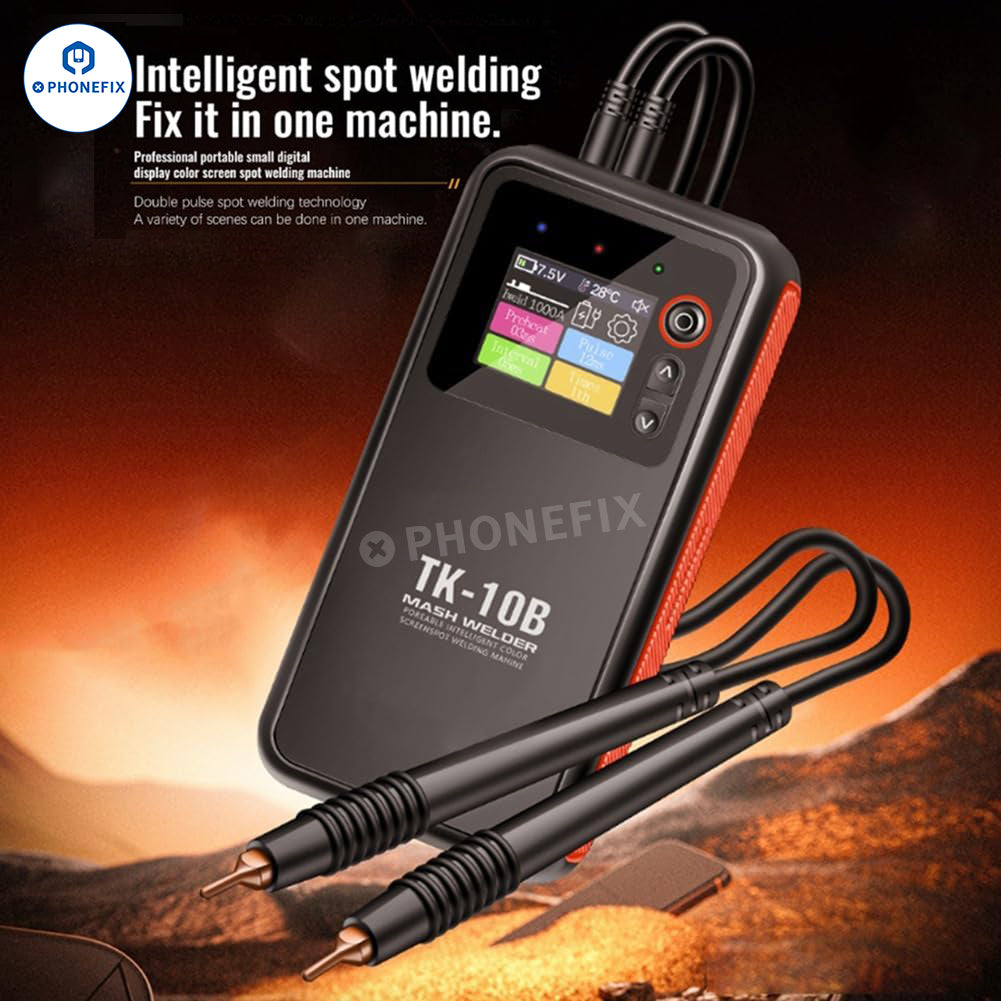

4. Intelligent spot welding fix it in one machine. Professional portable small digital display color screen spot welding machine. Double pulse spot welding technology, a variety of scenes can be done in one machine.

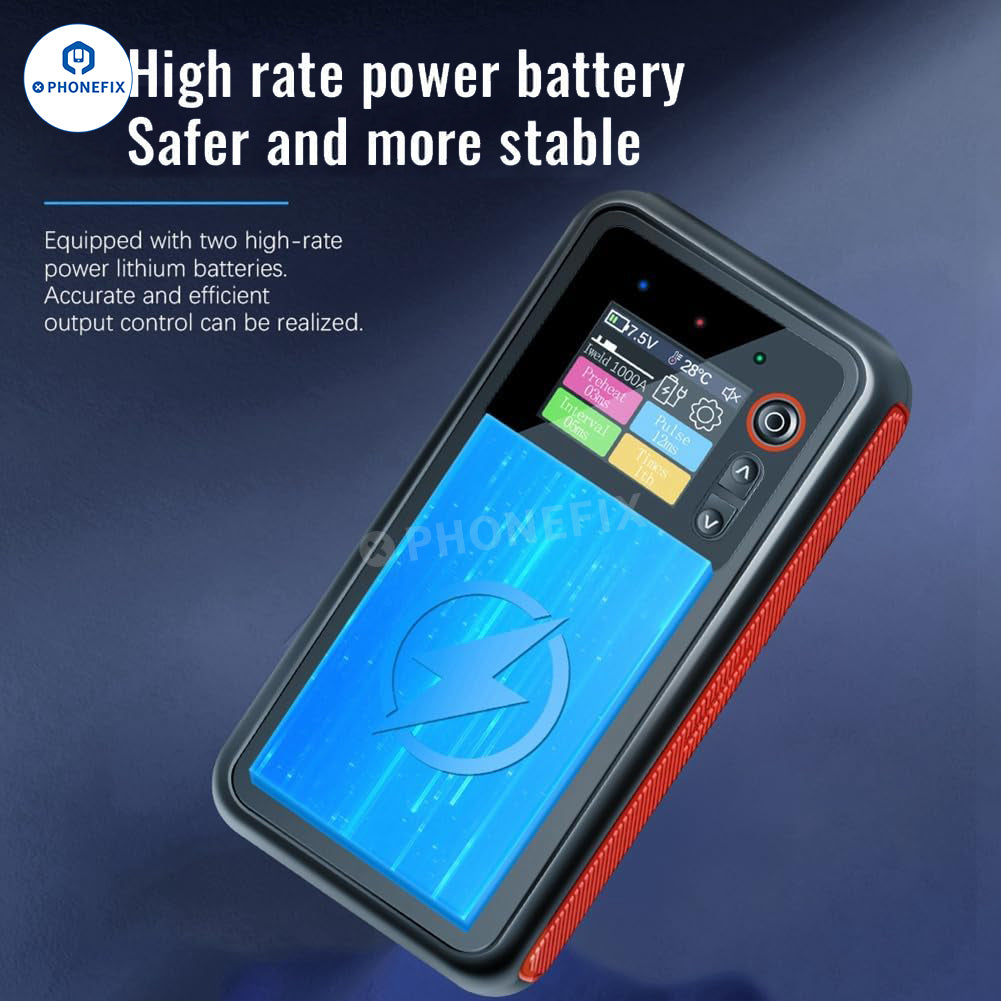

5. High rate power battery safer and more stable, equipped with two high-rate power lithium batteries. Accurate and efficient output control can be realized.

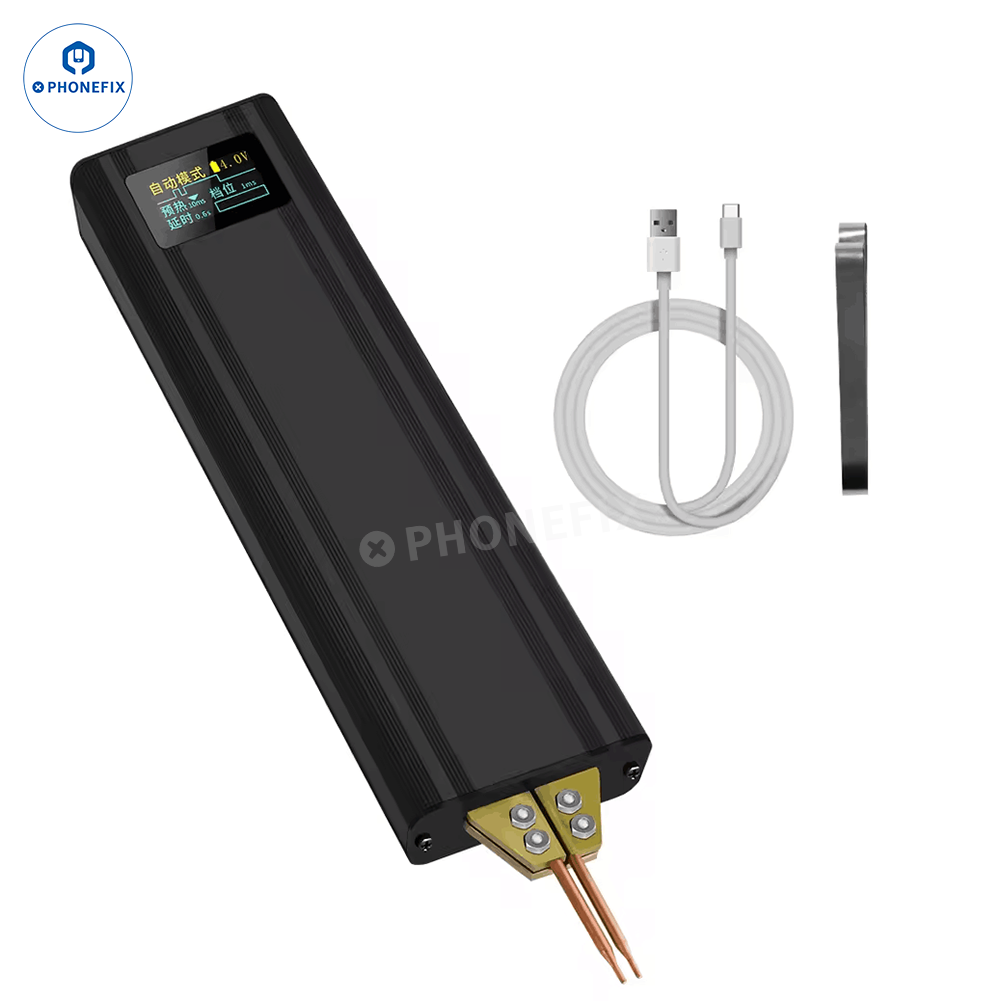

80 Gears Spot Welder Features:

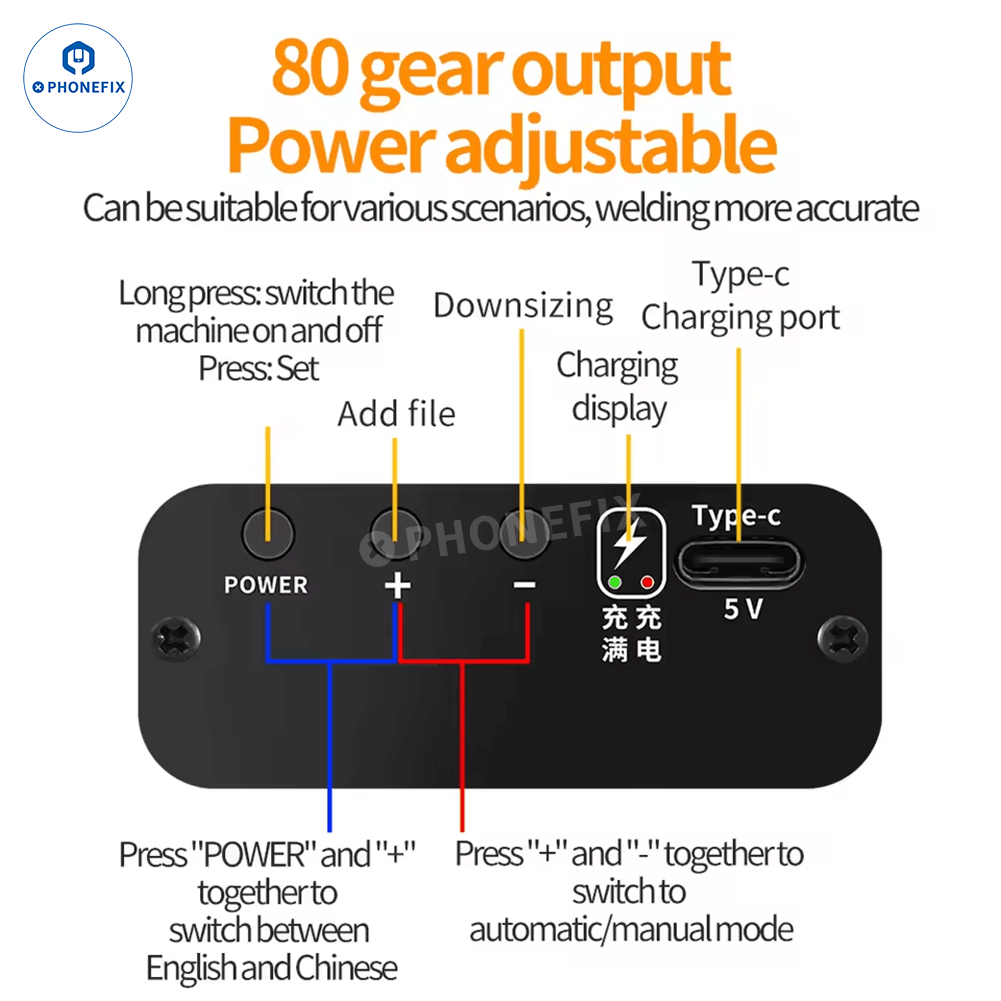

1. Dual pulse output, dual mode optional, automatic/manual switching.
2. 80 adjustable power levels, more precise welding, better solder joints soldering effect,
3. Can weld 0.1-0.2mm.
4. High-definition display, portable, handheld, easy to carry and use.

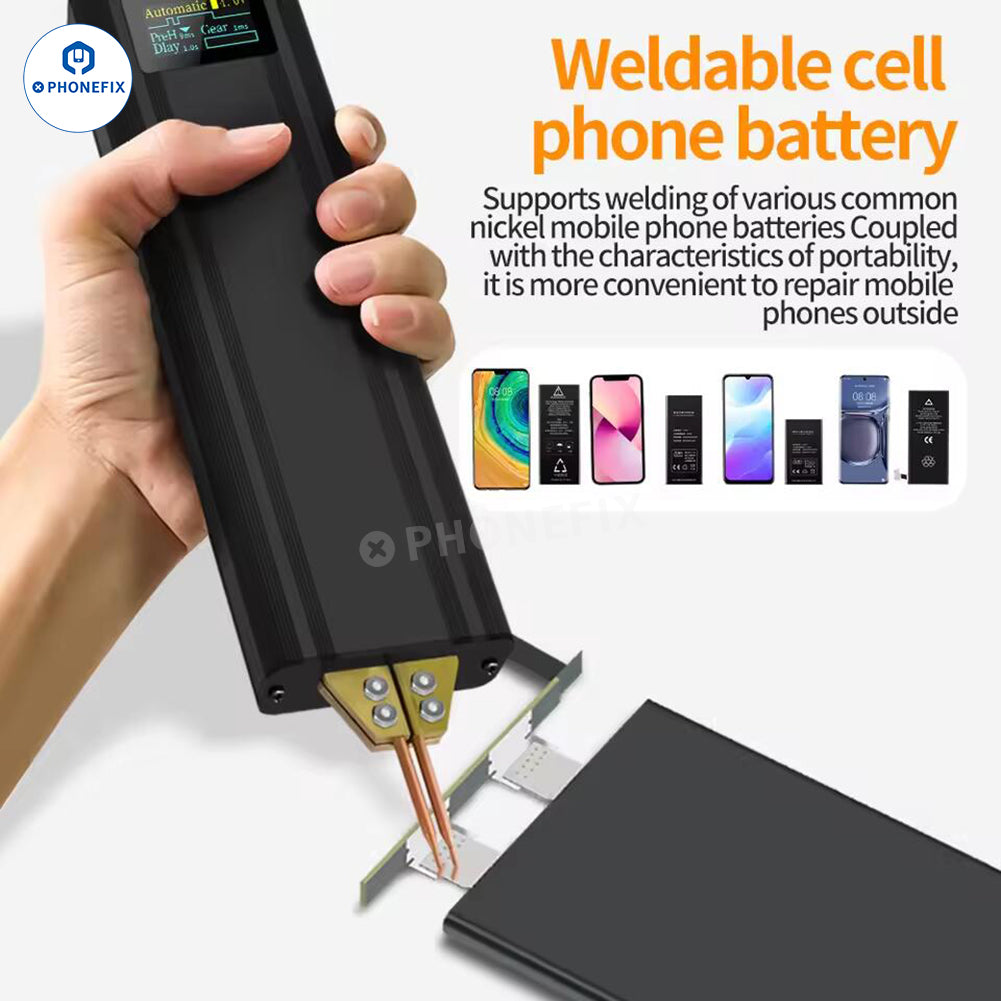

5. Supports welding of various common nickel mobile phone batteries.

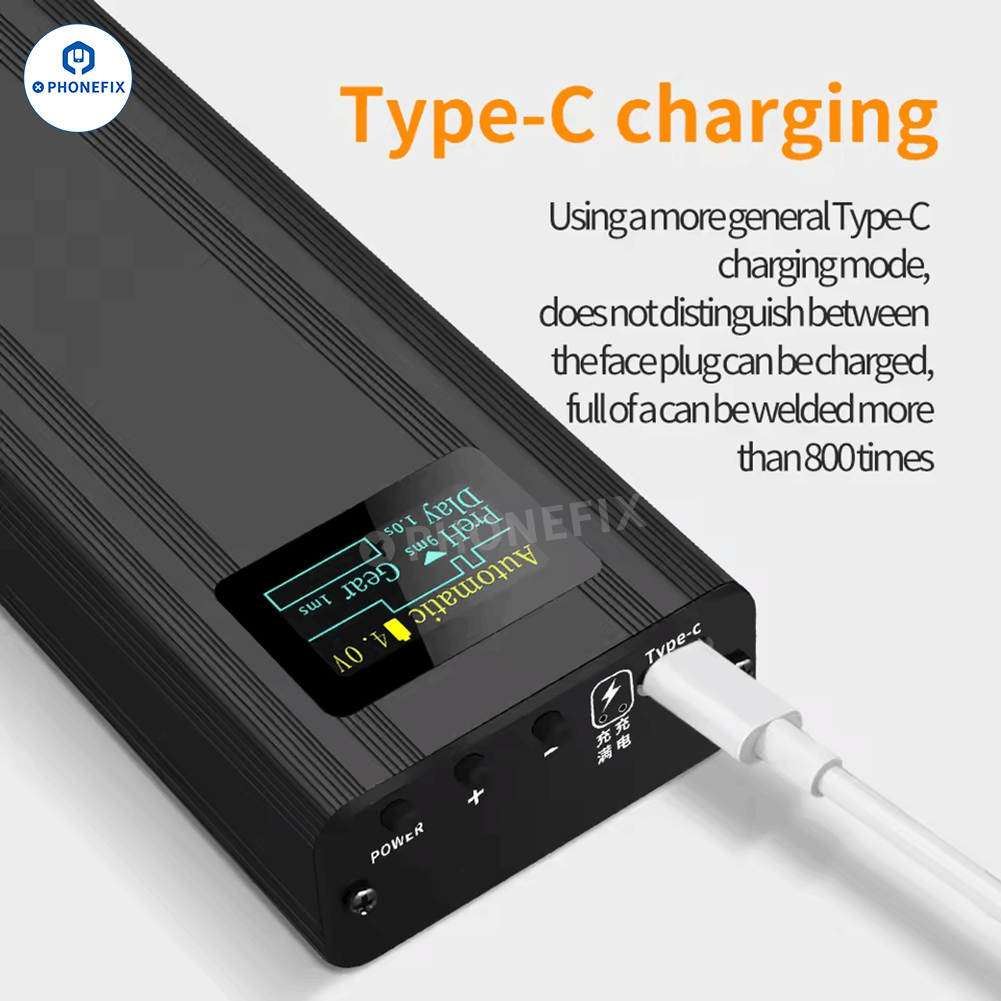

6. 5000mAh large capacity, Type-C charging.
7. Power lithium battery, maximum output current can reach 1200A.
8. Low voltage, over-current, overcharge protection.

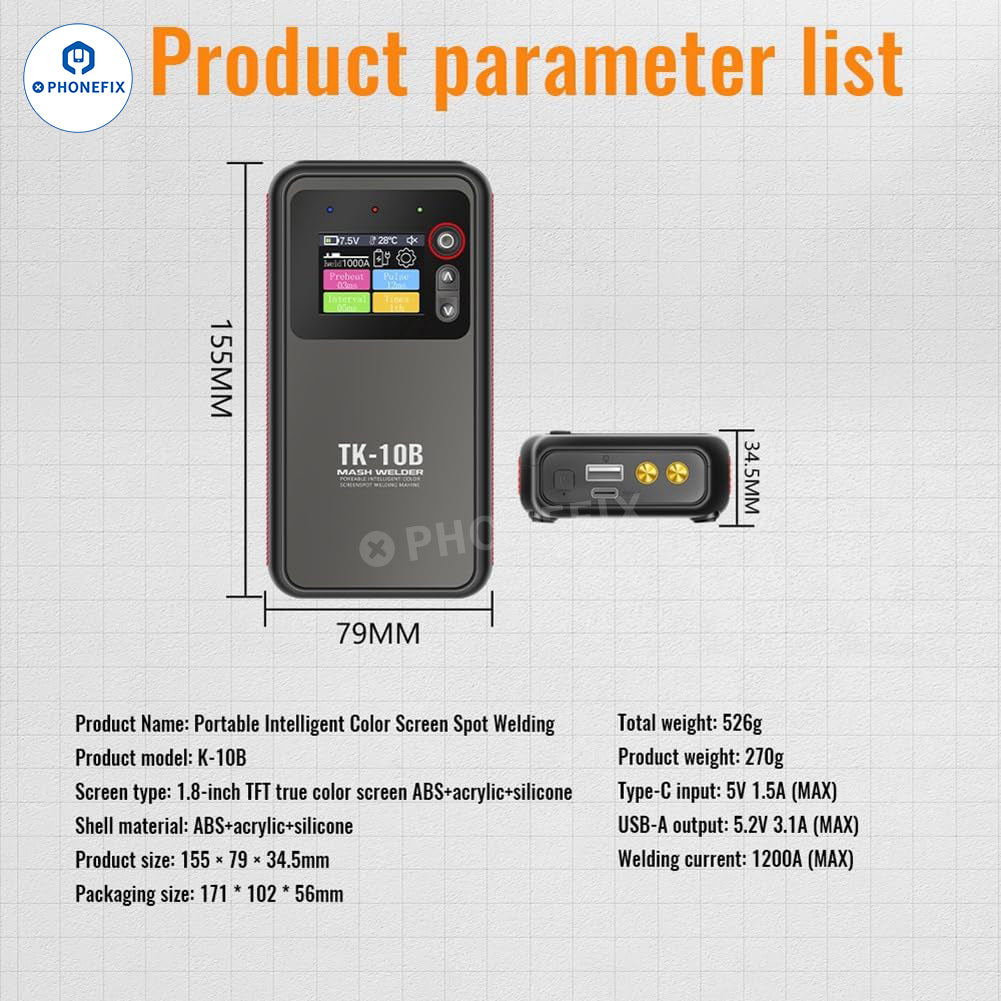

TK-10B Spot Welder Parameters:
Name: Spot welding machine
Model: TK-10B
Screen: 1.8-inch TFT color screen
Input voltage: 5V/1.5A (MAX)
Voltage output: 5.2V/3.1A (MAX)
Welding current: 1200A (MAX)
Colour: As Shown
Material:ABS
Due to different batches, there may be differences in product appearance and printed text, which not affect use.
80 Gears Spot Welder Parameter:
Model: Portable Handheld Battery Spot Welder
Gear adjustment: 80 gears.
Battery type: high-rate polymer battery
Screen size: 0.96 inches.
Battery capacity: 5000mAh
Design current: 800A (MAX)
Input interface: Type-C
Input parameters: 5V/2.1A
Nickel strip thickness: 0.1-0.2mm
Welding method: Visually weld the welding head, hold it at 60 degrees to the horizontal plane, and press the two needles on the surface of the nickel sheet at the same time.
