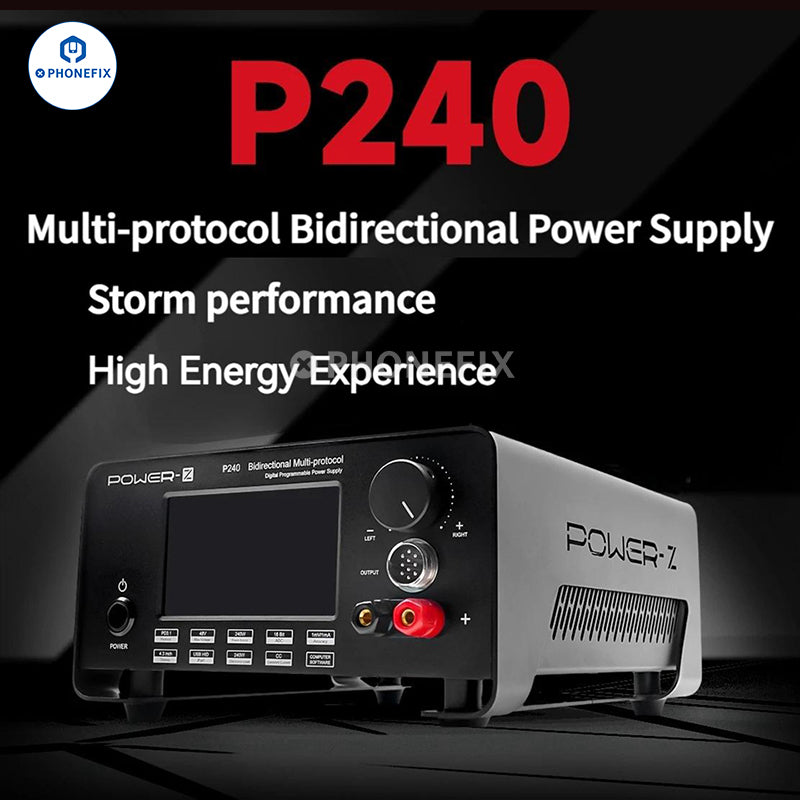

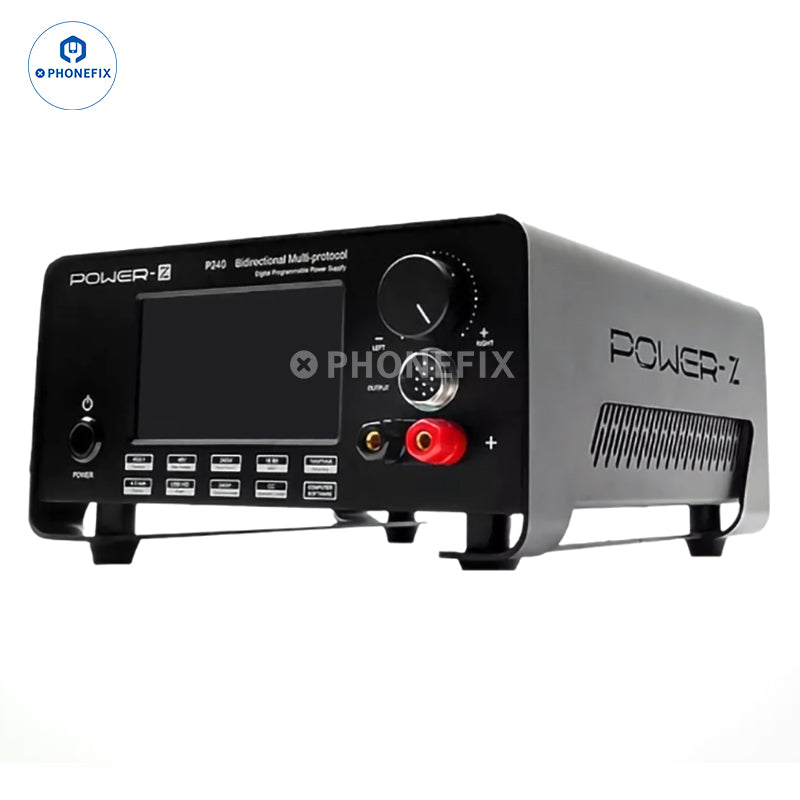

ChargerLAB POWER-Z P240 Bidirectional Multi-protocol Digital Programmable Power Supply With Load Function. POWER-Z P240 can test the output voltage, current, power, ripple of mobile power supply or USB, adapter PCBA and finished products. It has 4.3 inch HD screen, capacitive LCD touch screen, easy to use and quiet to enjoy, fan noise 39.9 dB.
Features:
1. It can test the output voltage, current, power, ripple of mobile power supply or USB, adapter PCBA and finished products.
2. High measurement accuracy, 16bit, voltage 1mV, current 1mA.

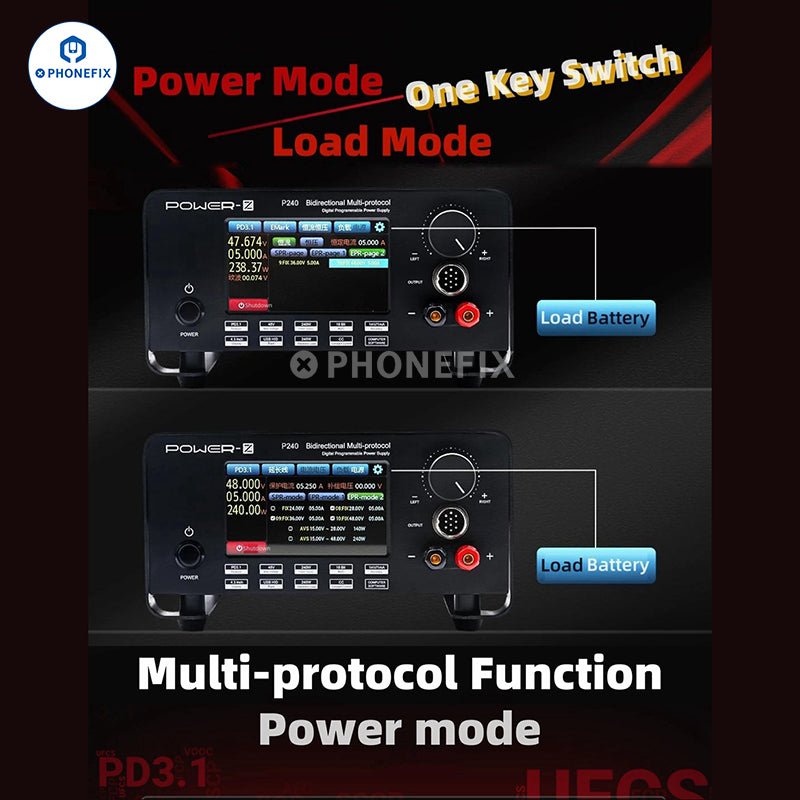

3. Power supply, load double function, multi-protocol trigger regulation, maximum 240W power adjustment, maximum 10A current regulation.

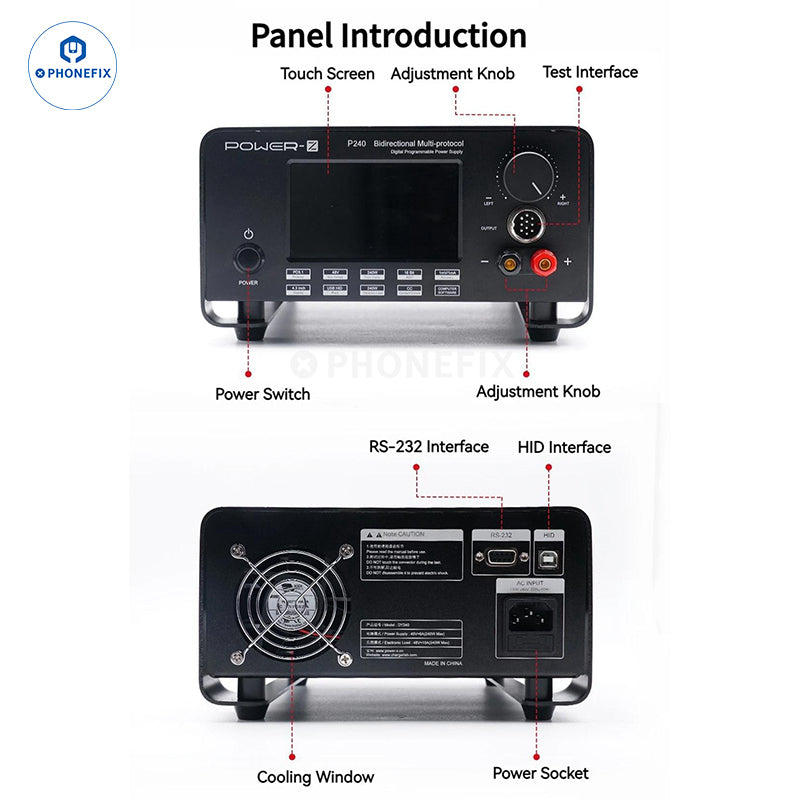

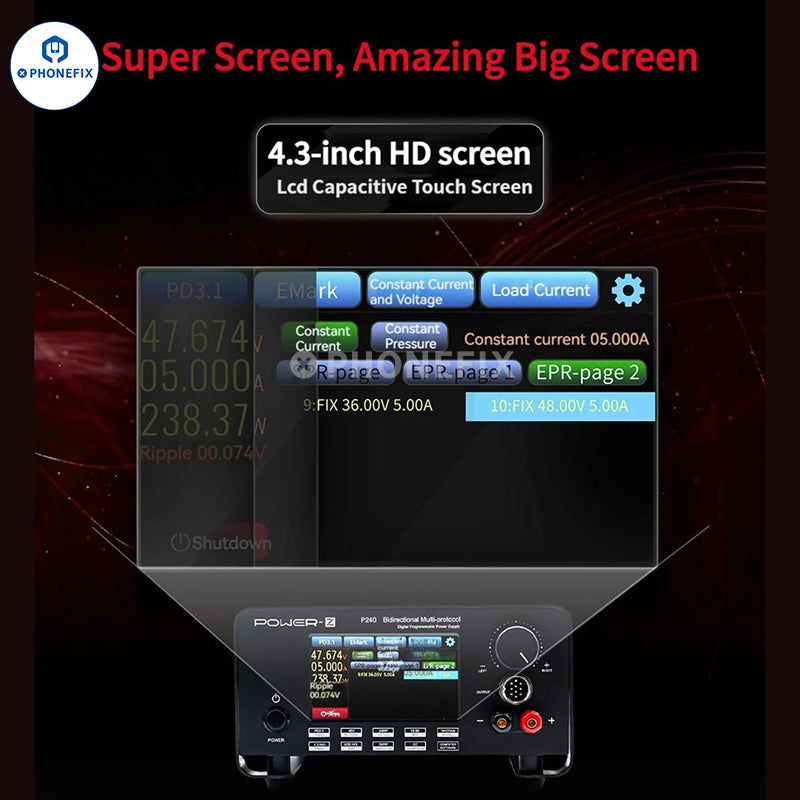

4. 4.3 inch HD screen, LCD capacitive touch screen, easy to operate, operating buttons and various connections, such as a power switch, touch screen, GX20-10 aviation socket, adjustment buttons, etc.
5. Equipped with AC socket, RS232 communication interface (socket DB9), USB-B communication interface and cooling fan.
6. In the power state, it can provide a maximum of 48V 10A 240W power supply and supports a variety of fast charging protocols.
7. . Super heat dissipation CNC metal housing, 4000 rpm powerful fan.
8. Support for multiple protocols afc, fcp, scp, sscp, vooc, pd3.1, ufcs, etc.
9. Adopting metal material to make the shell, the body is cold and easy to dissipate heat and the matt metal structure is not easy to leave fingerprints.

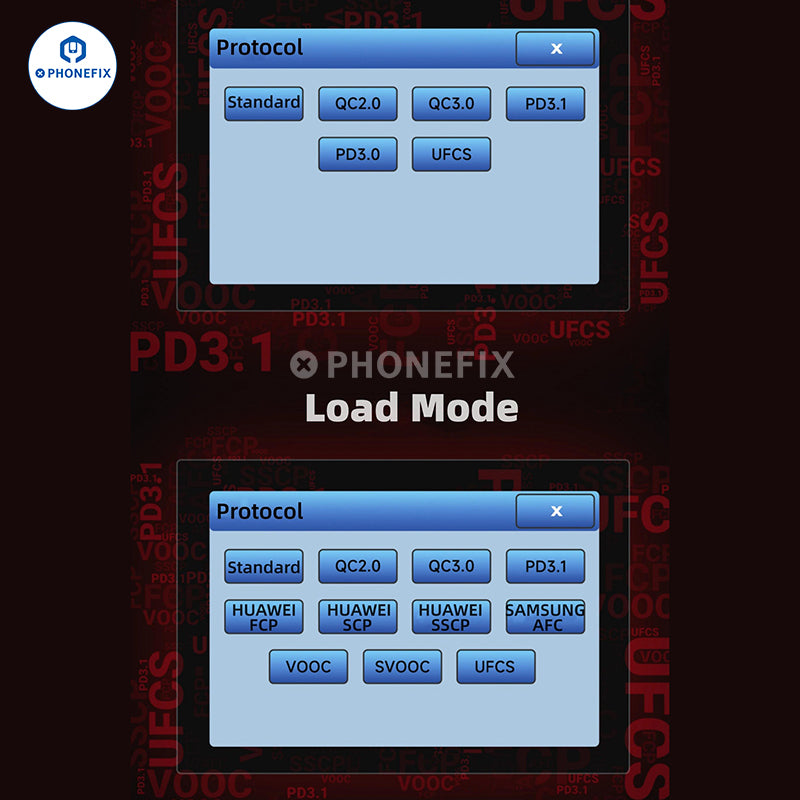

10. Standard mode (DC output) and support for QC2.0, QC3.0, PD3.1, PD3.0 and UFCS fast charging protocols can be selected.

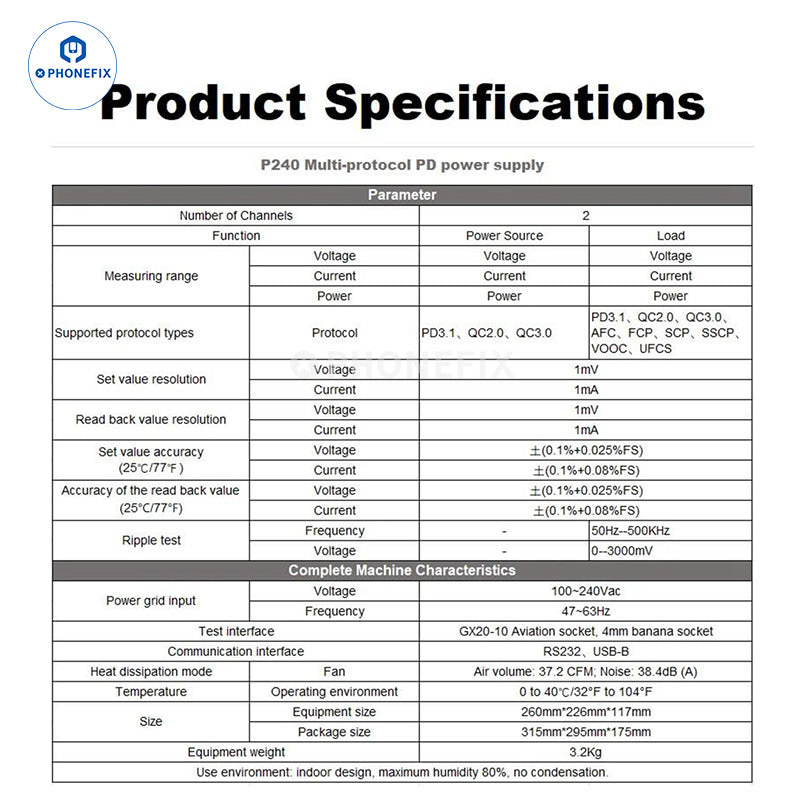

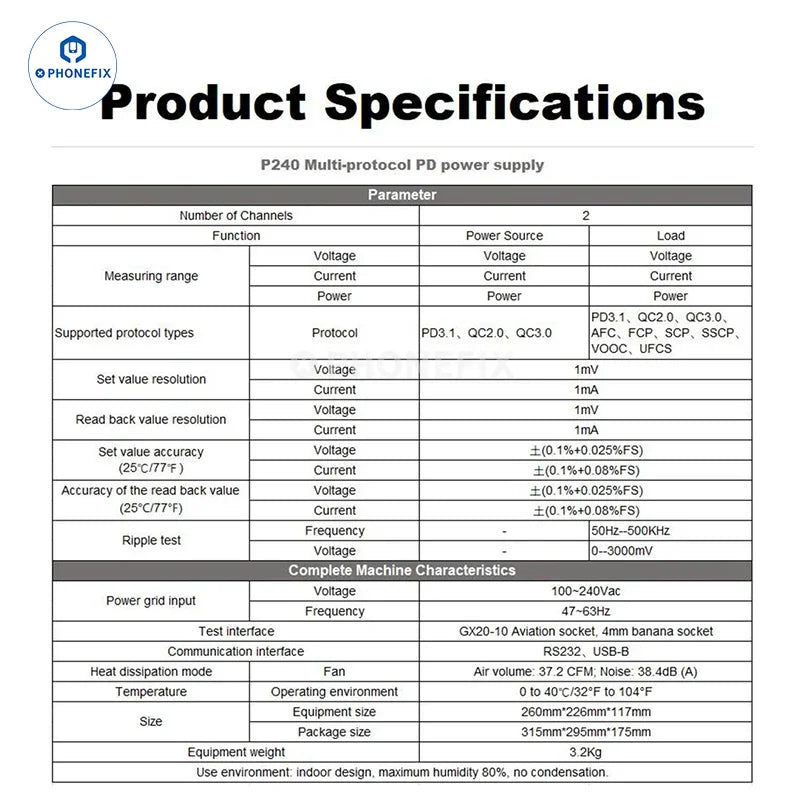

ChargerLAB POWER-Z P240 Parameter:
Set value resolution: voltage: 1mV, current: 1mV.
Read back value resolution: voltage: 1mV, current: 1mV.
Set value accuracy(25℃/77℉)： voltage: ±(0.1%+0.025%FS), current: (0.1%+0.008%FS).
Accuracy of the read back value (25℃/77℉)： voltage: ±(0.1%+0.025%FS), current: (0.1%+0.008%FS).
Ripple test:
Load frequency: 50Hz-500KHz.
Load voltage: 0-3000mV.
Power grid input:
Voltage: 100-240Vac.
Frequency: 47-63Hz.
Test interface: GX20-10 Activation socket, 4mm banana socket.
Communication interface: RS232, USB-B.
Temperature: operating environment: 0-40℃/32-104℉).
Package Lists:
1 x Host
1 x Power Cable
1 x A to C Cable
1 x C to C Cable
1 x C to Micro Cable
1 x Crocodile Clamps Connection Cable
1 x GX20-10 Aviation Plug to Type-C (female) Test Cable
