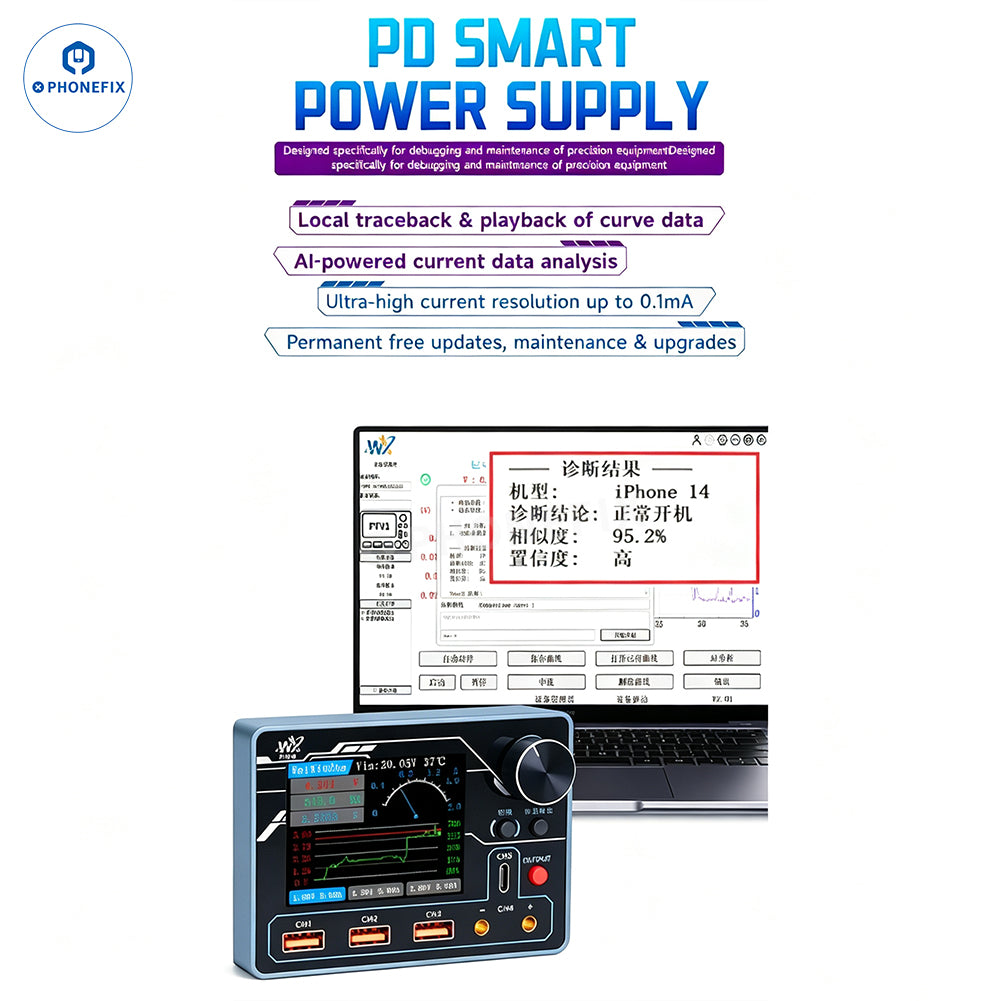

WeiXiuZhe PTV1 PD Smart Power Supply is a professional diagnostic tool that combines a precision power supply with AI current analysis for electronics and phone repair. Featuring an ultra-high 0.1mA current resolution and real-time waveform display, built-in AI current fault analysis engine automatically analyzes current curves, support for PD and QC fast charging protocols, local curve data traceback and playback, multiple display modes (digital, curve, pointer, and comprehensive preview), which helps technicians identify motherboard faults, short circuits, and power-related issues quickly and accurately during mobile phone repair.
Features:
1. Automatically analyzes current curves to quickly assist in diagnosing device faults and improve repair efficiency.

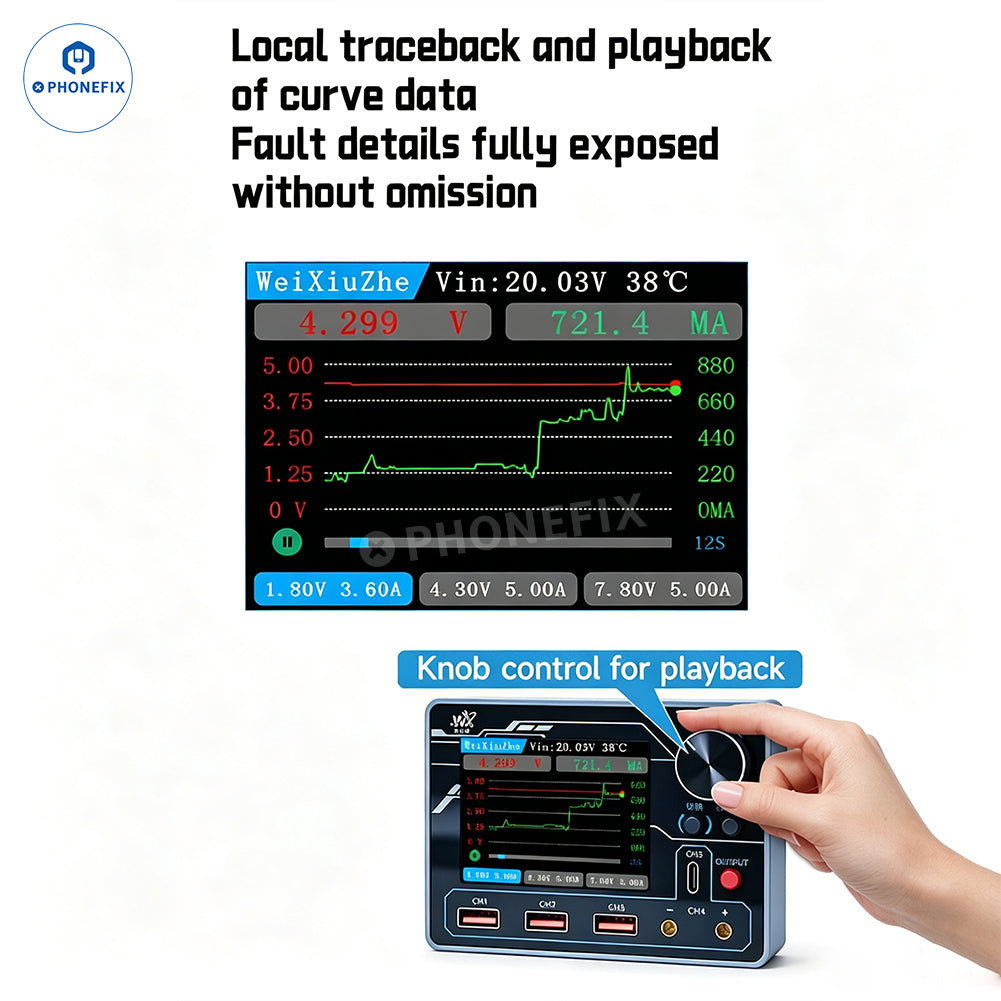

2. Supports local saving and playback of current curves, completely reconstructing the device startup process.

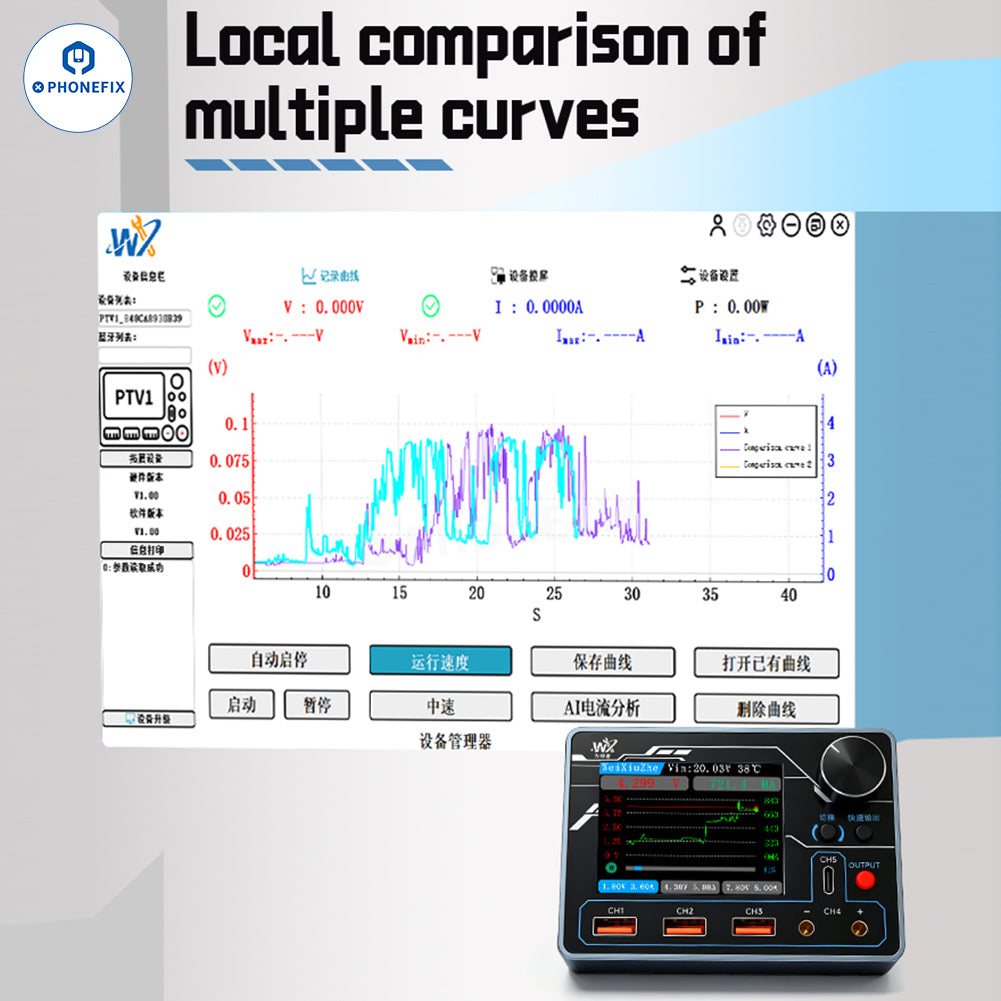

3. Supports simultaneous comparison of multiple historical curves, facilitating analysis of differences before and after repair.
4. Current resolution up to 0.1mA, accurately capturing subtle current changes.

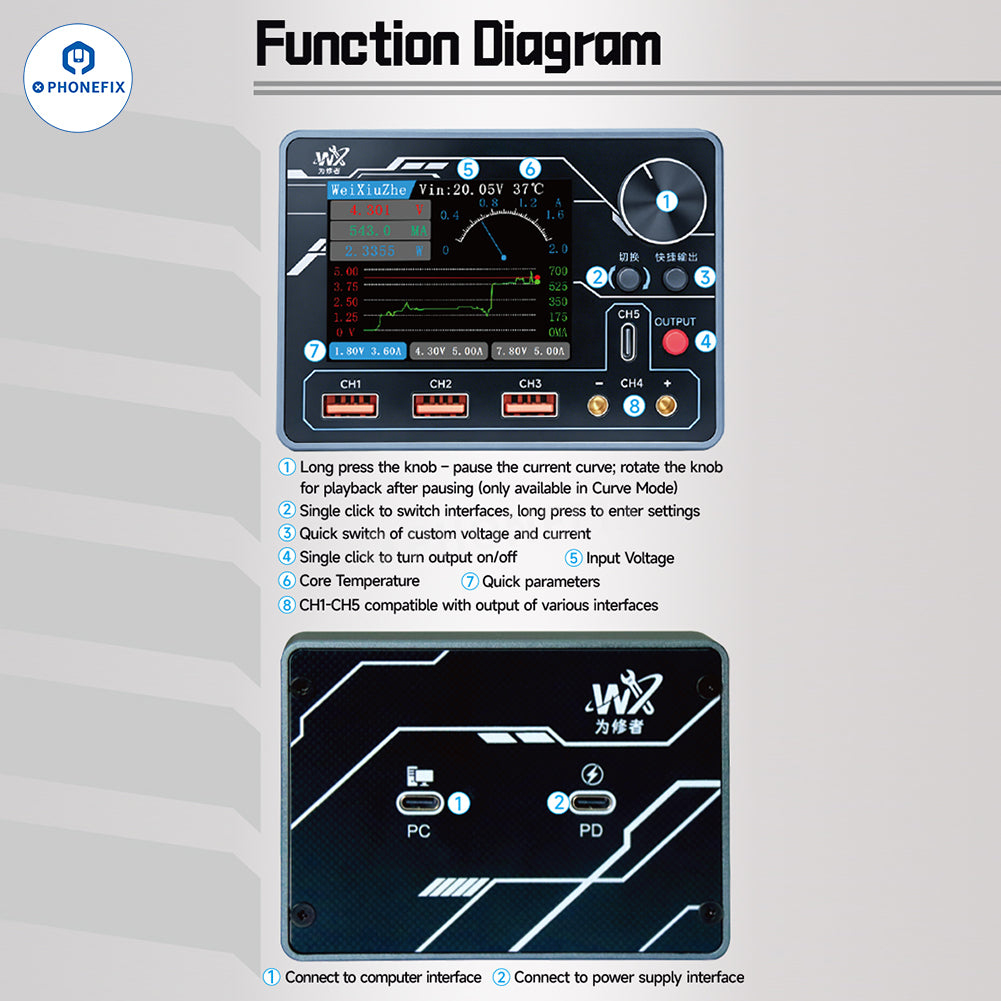

5. Provides four display modes: digital, comprehensive preview, curve, and pointer, meeting different repair needs.
6. Supports 1:1 real-time screen projection, convenient for repair training, live streaming, and remote demonstrations.
7. Supports bidirectional control between the device and PC, allowing adjustment of output parameters on the computer.
8. Built-in CH1–CH5 quick parameters for one-click switching of commonly used voltage and current settings.

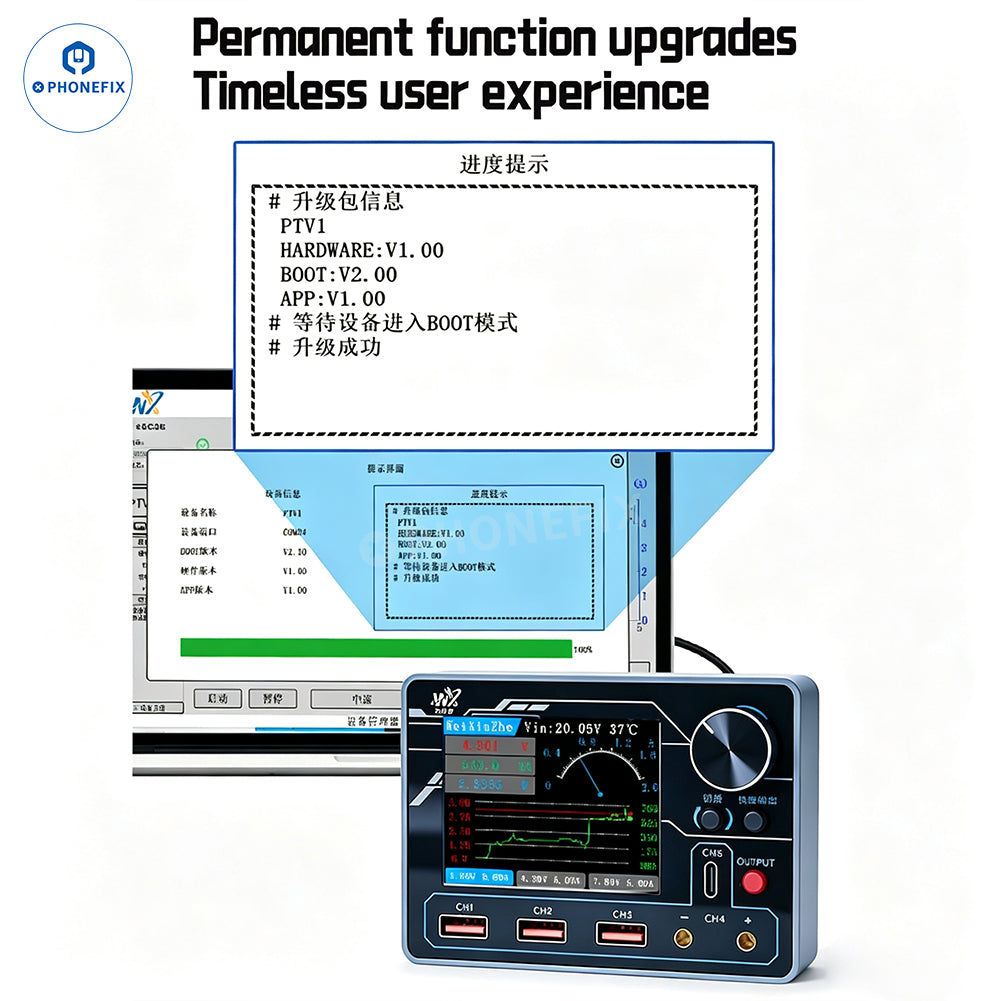

9. Supports continuous firmware upgrades for ongoing optimization of functionality and user experience.
10. Built-in undervoltage, overcurrent, overtemperature, and overload protection for enhanced safety and reliability.
Product Specifications
Product Name: PD Smart Power Supply
Product Model: PTV1
Display: 2.8-inch IPS HD Display
Output Voltage: 0.1V～13V
Output Current: 0～5A

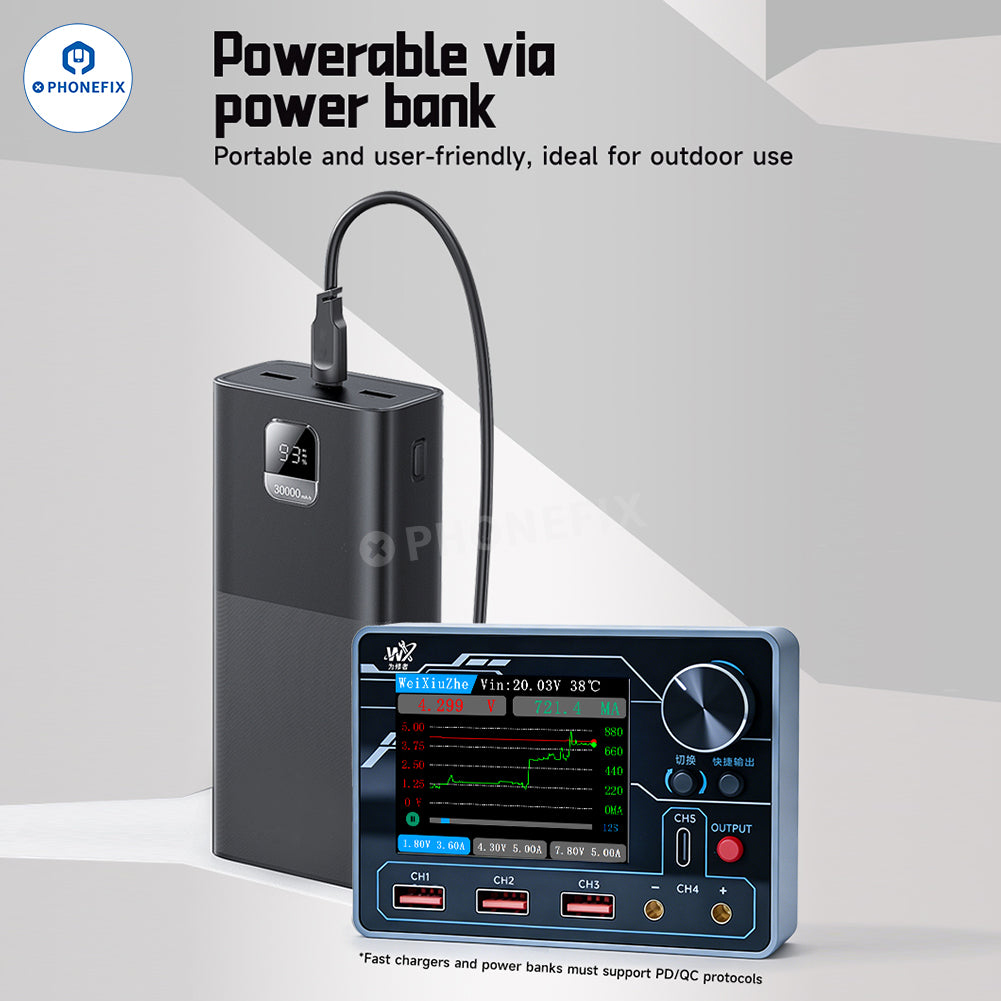

Input Voltage: DC 5V～24V
Input Protocol: Supports PD / QC fast charging protocols
Voltage Ripple: ≤15mVrms
Voltage Reading Resolution: 1mV
Current Reading Resolution: 0.1mA
Output Setting Resolution: 10mV
Maximum Power Efficiency: ≤95% (13V/5A Output)
