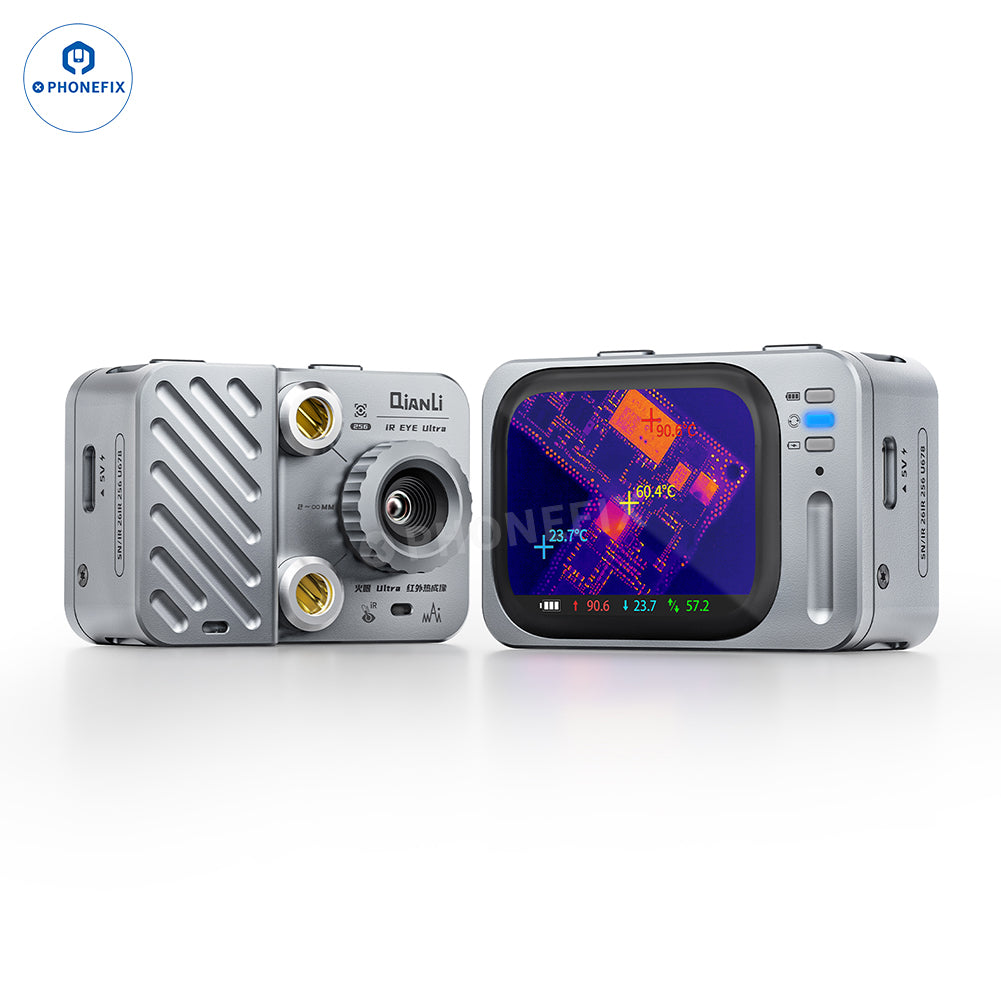

Qianli IR FireEye Ultra Thermal Imaging Camera with 256×192 infrared resolution, laser positioning, and 1/4" mount. Detects short circuits, overheating chips, and electrical faults on mobile phone motherboards and home circuits. Qianli Fire Eye Ultra Thermal imager can quickly diagnose and detect short circuits, leaking components, and overheated chips. They feature built-in laser precision positioning. This allows for rapid diagnosis of faults in mobile phone motherboards, household wiring, electrical outlets, and automotive electrical systems.
Features:

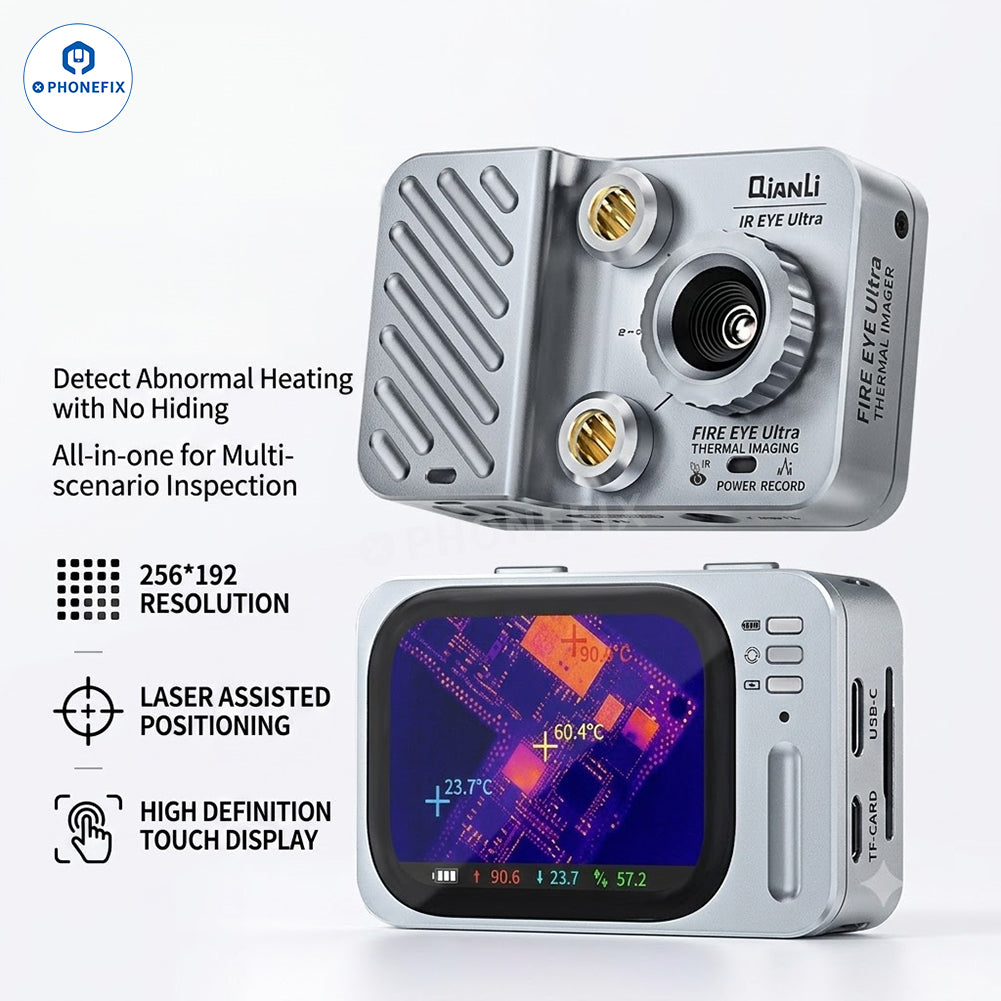

1. 256×192 high-definition thermal imaging resolution, providing richer temperature details, making abnormal heat sources clear at a glance.
2. Supports manual focus adjustment from 2mm to infinity, providing clear thermal images whether for close-range chip inspection or long-range equipment inspection.

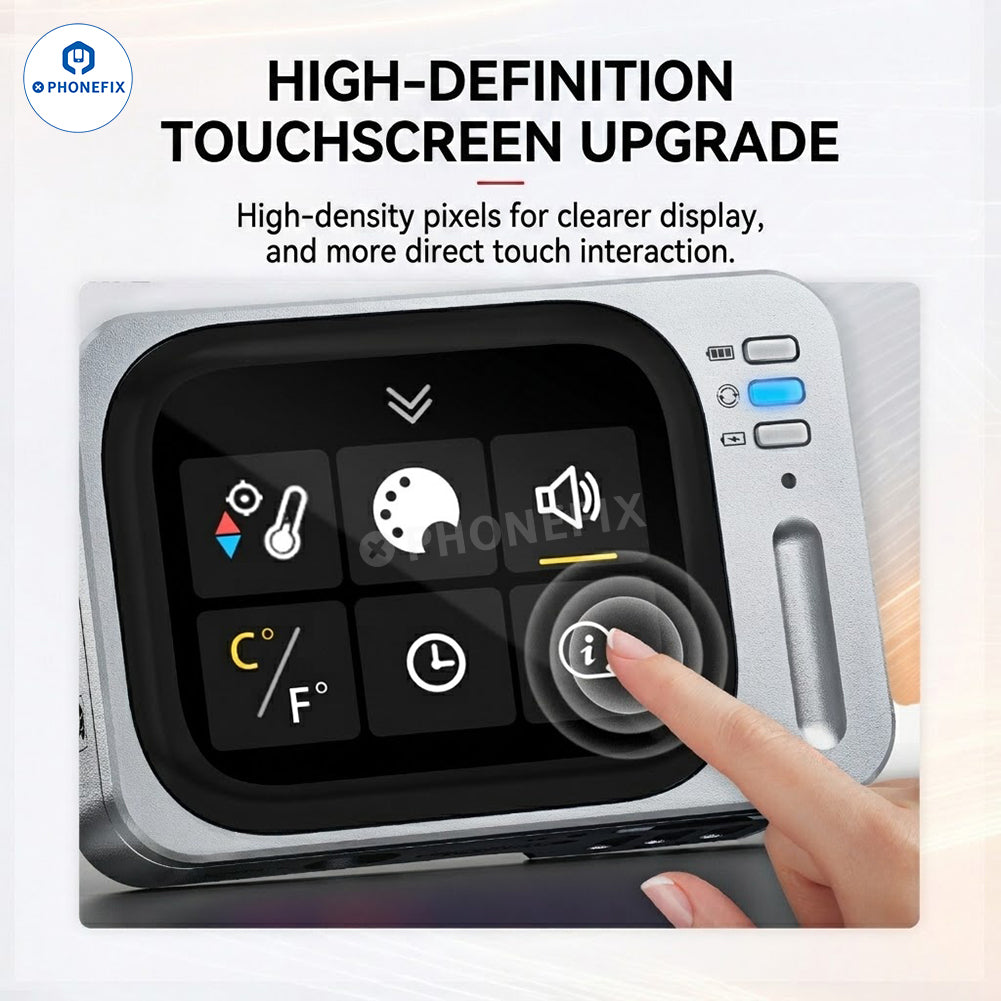

3. High-definition touch screen display, making operation more intuitive and smooth, and viewing thermal imaging information more convenient.
4. Built-in laser-assisted positioning function, using a red cross laser to quickly lock onto the detection target, improving positioning efficiency.
5. Supports 6 professional pseudo-color display modes, including white heat, black heat, iron red, HCR, rainbow, and iron gray, to adapt to different detection needs.

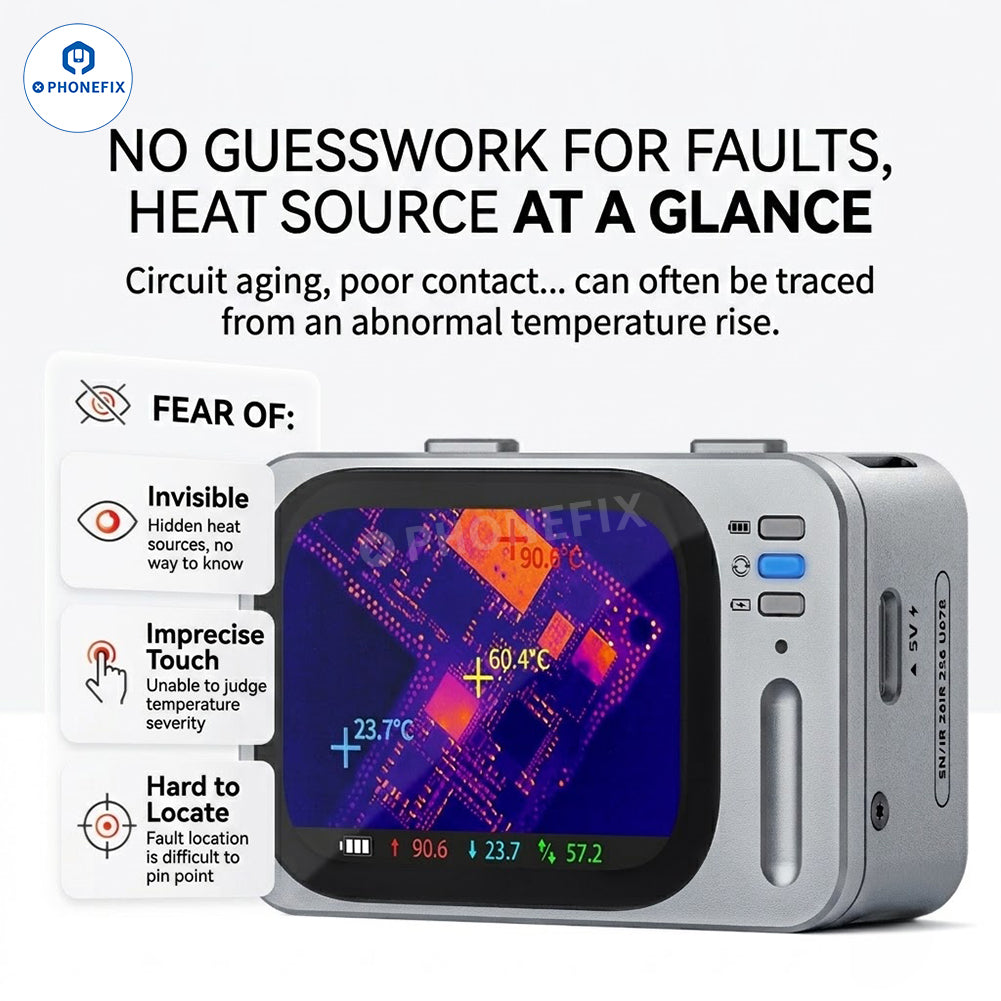

6. Quickly identifies abnormal heating areas, helping to locate faulty chips, circuits, and components, improving repair accuracy.
7. Lightweight and portable design, supports one-handed operation, convenient for carrying and on-site testing.
8. Features a 1/4-inch standard threaded interface, compatible with tripods, stands, and other expansion equipment.

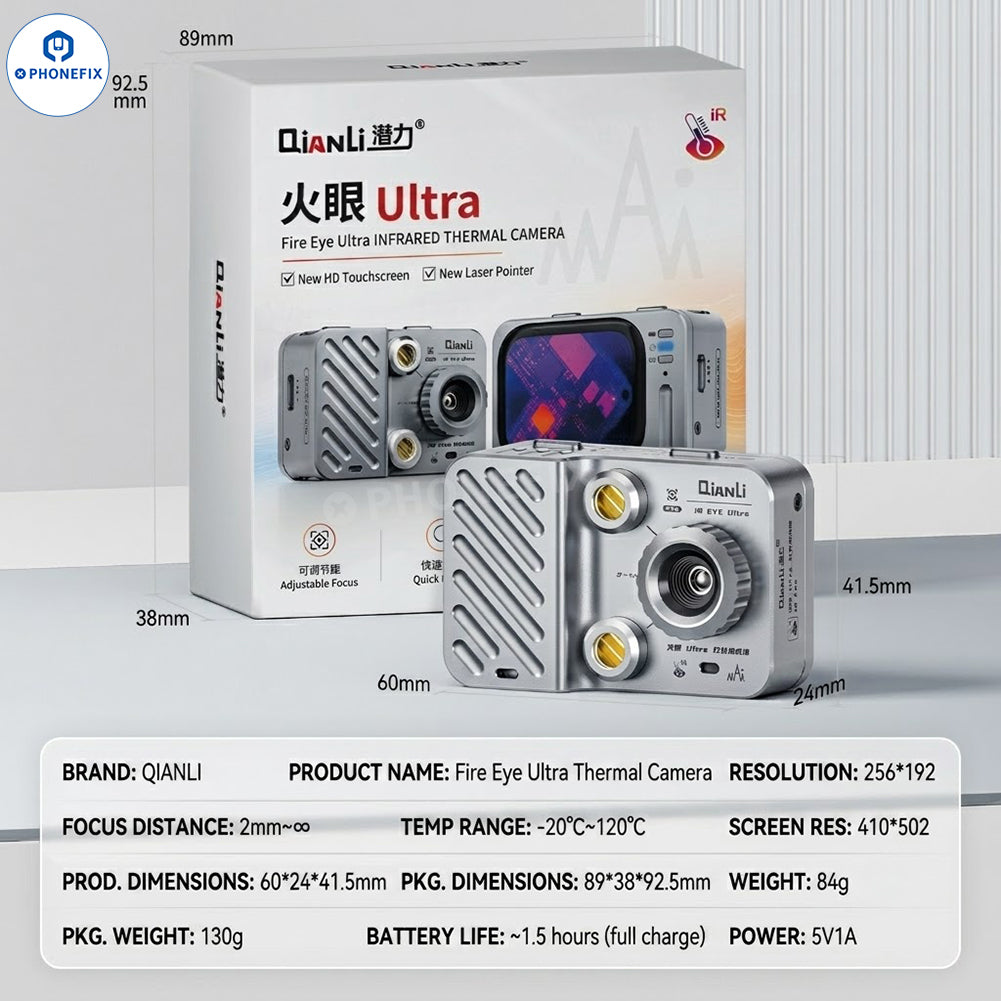

Product Parameters:
Brand: QIANLI
Product Name: Fire Eye Ultra Infrared Thermal Imager
Thermal Imaging Resolution: 256x192
Screen Resolution: 410x502
Focus Distance: 2mm~∞
Temperature Detection Range: -20°C~120°C
Display Method: High-definition touchscreen
Laser Positioning: Supported
Color Modes: White, Black, Iron Red, HCR, Rainbow, Iron Gray (6 colors)
Battery Life: Approx. 1.5 hours (Max)
Power Supply: 5V/1A
Product Dimensions: 60x24x41.5 mm
Packaging Dimensions: 89x38x92.5 mm
Product Weight: 84g
Packaging Weight: 130g
