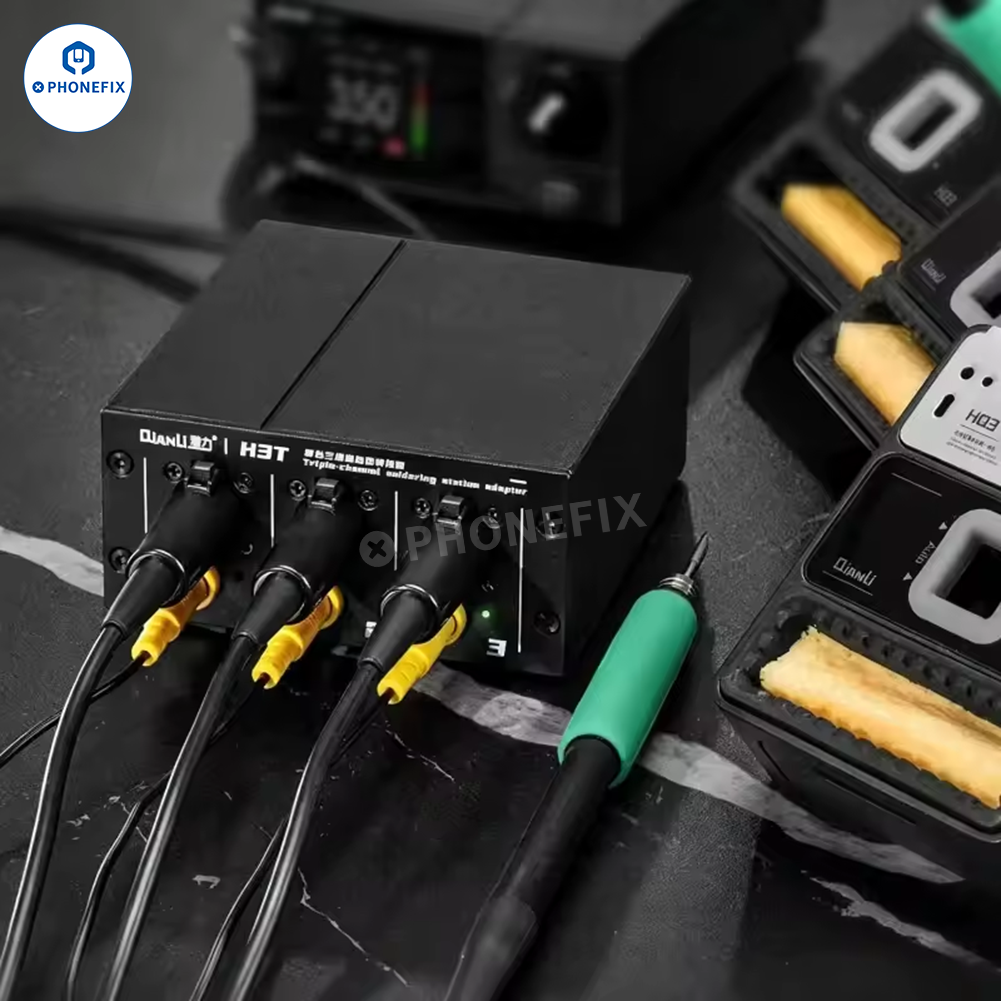

QIANLI H3T Triple-Channel Soldering Station Adapter is a professional 1-to-3 soldering iron expansion hub with auto sleep detection, quick switching, compatible with 6-pin soldering irons. Supporting up to three soldering irons simultaneously, includes Type-C PD cable and ESD grounding wire. Ideal for phone repair shops, PCB rework stations, and electronics workbenches where efficiency and workspace organization matter.
Features:

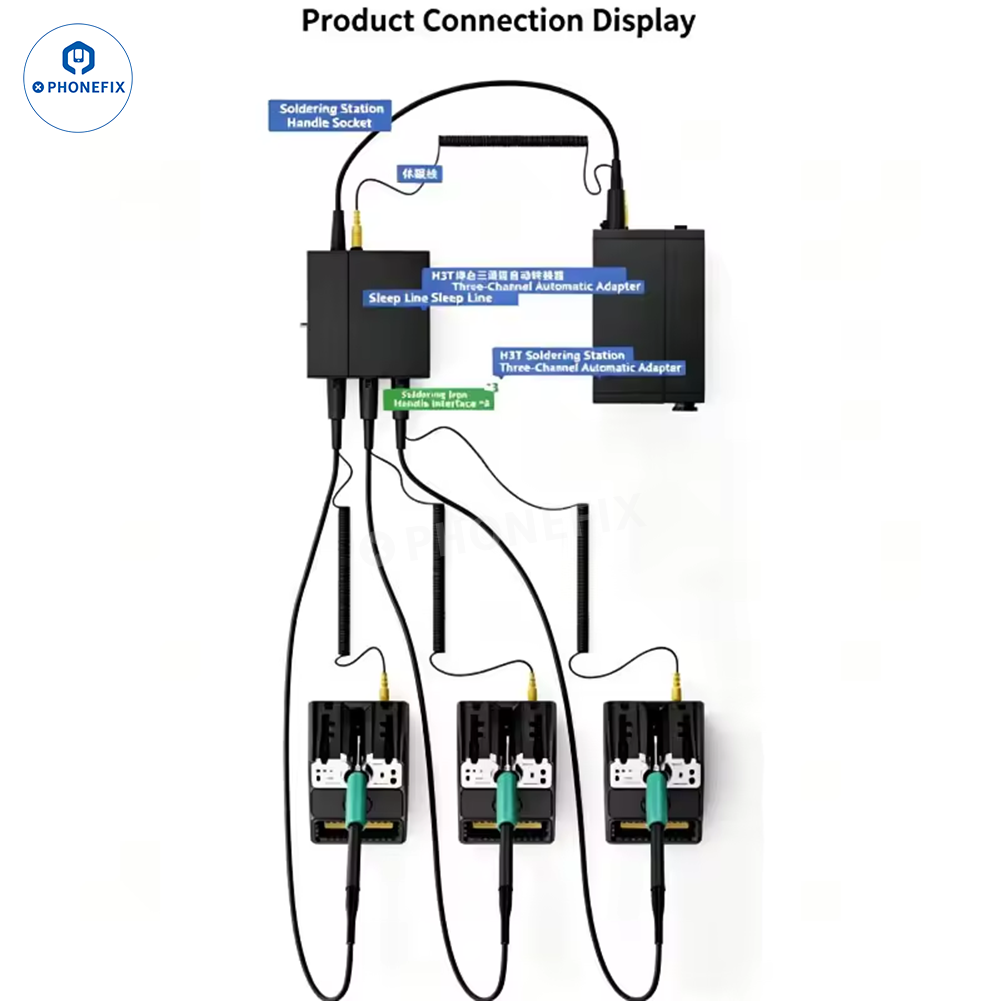

1. Supports connecting three soldering iron handles to one soldering station, enabling quick switching between multiple tools without repeatedly changing soldering irons.

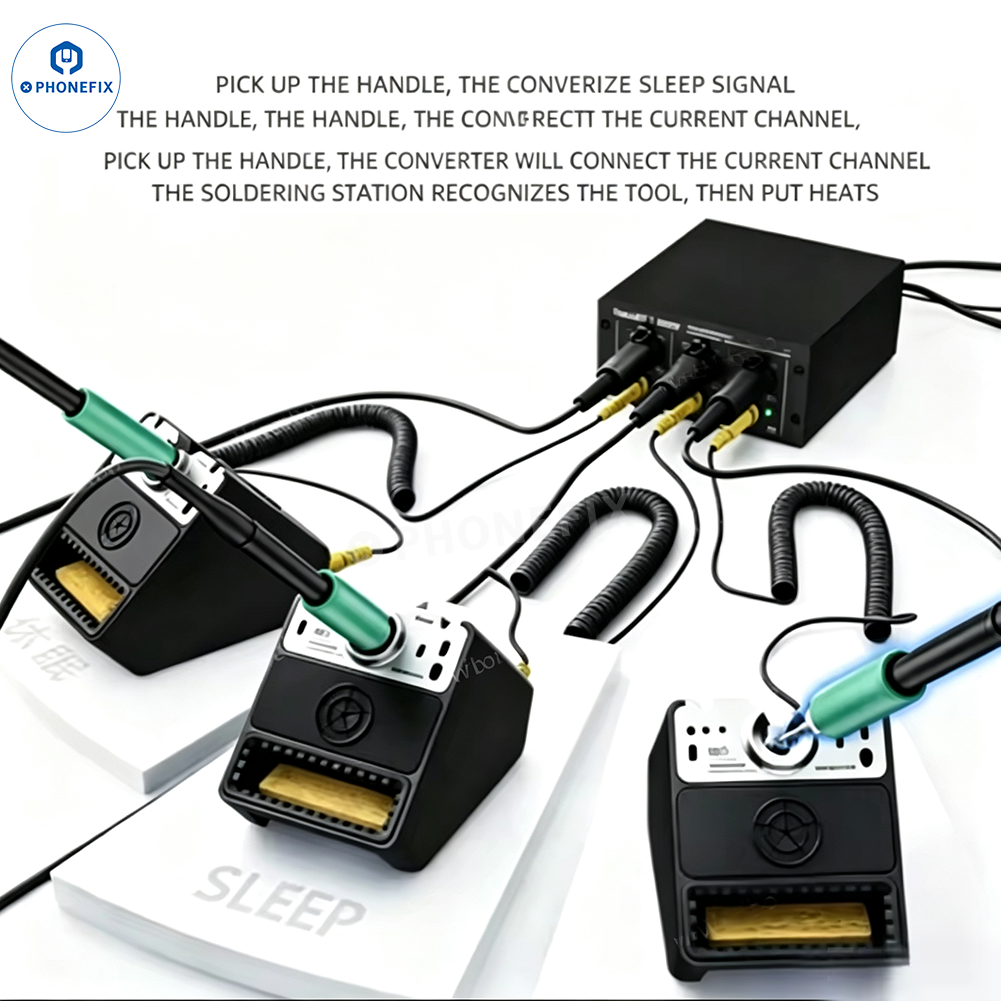

2. Automatically switches working channels based on whether the soldering iron handle is removed from or placed back on the sleep stand, eliminating the need for manual switching and improving repair efficiency.
3. Automatically recognizes the soldering station's sleep signal; picking up the handle automatically activates heating, and placing it back on the soldering iron stand automatically enters sleep mode, extending the life of the heating element.
4. After switching to a different soldering iron, the soldering station automatically re-identifies the current tool and starts working; the entire switching process is smooth and efficient.
5. Supports soldering stations and soldering iron handles compliant with 6-pin interface definitions, and allows for signal adjustment and wiring according to different brands.
6. Effectively solves problems such as frequent soldering iron changes and space-consuming multiple soldering stations, making repair work cleaner and more efficient.
7. Built-in intelligent switching control program switches channels only after correctly detecting a sleep state, ensuring a stable and reliable soldering process.
8. Standard package includes a Type-C PD induced power cable, anti-static grounding wire, power adapter, and instruction manual, enabling quick setup of a professional soldering workstation.
Product Parameters:
Brand: QIANLI
Product Name: H3T Triple-Channel Soldering Station Adapter
Function: One-to-three soldering station expansion, automatic channel switching
Switching Method: Automatic recognition of sleep signal
Supported Channels: 3 soldering iron handle interfaces
Compatible Interfaces: 6-pin soldering iron handle interface (compatible with some brand soldering stations)
Product Dimensions: 105x94.5x46 mm
Packaging Dimensions: 185x155x55 mm
Product Weight: 377g
Packaging Weight: 529g

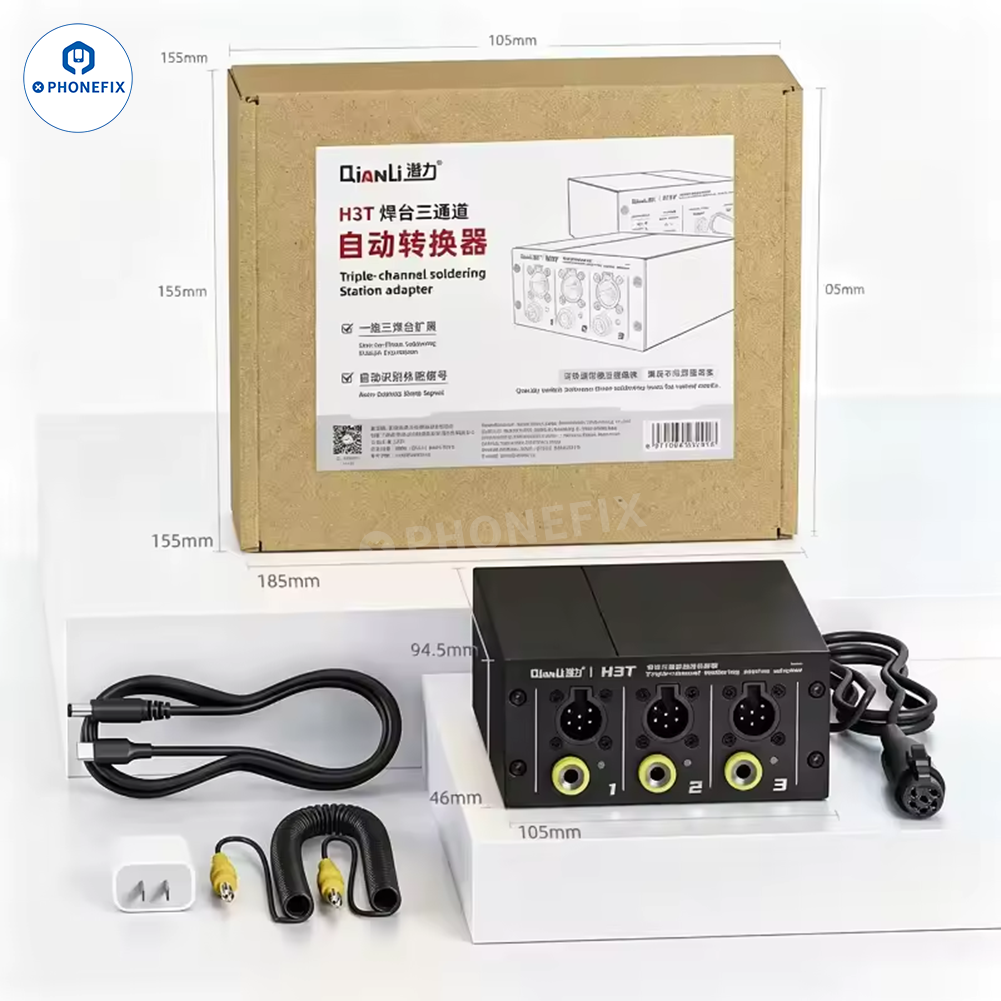

Packaging List
H3T Three-Channel Automatic Soldering Station Adapter ×1
Type-C PD Fixed 12V Decoy Cable ×1
Double-Ended Anti-static Grounding Wire ×1
12V / 1A Power Adapter ×1
Product Manual ×1
