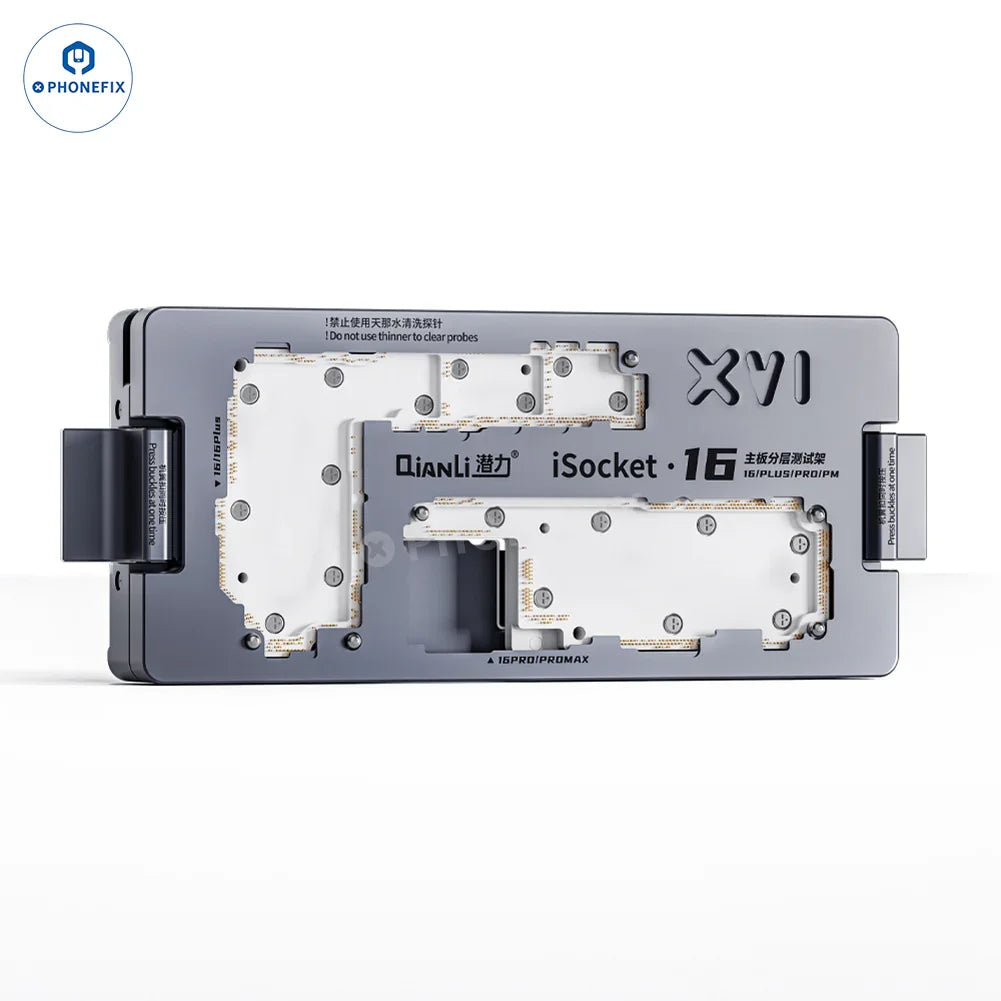

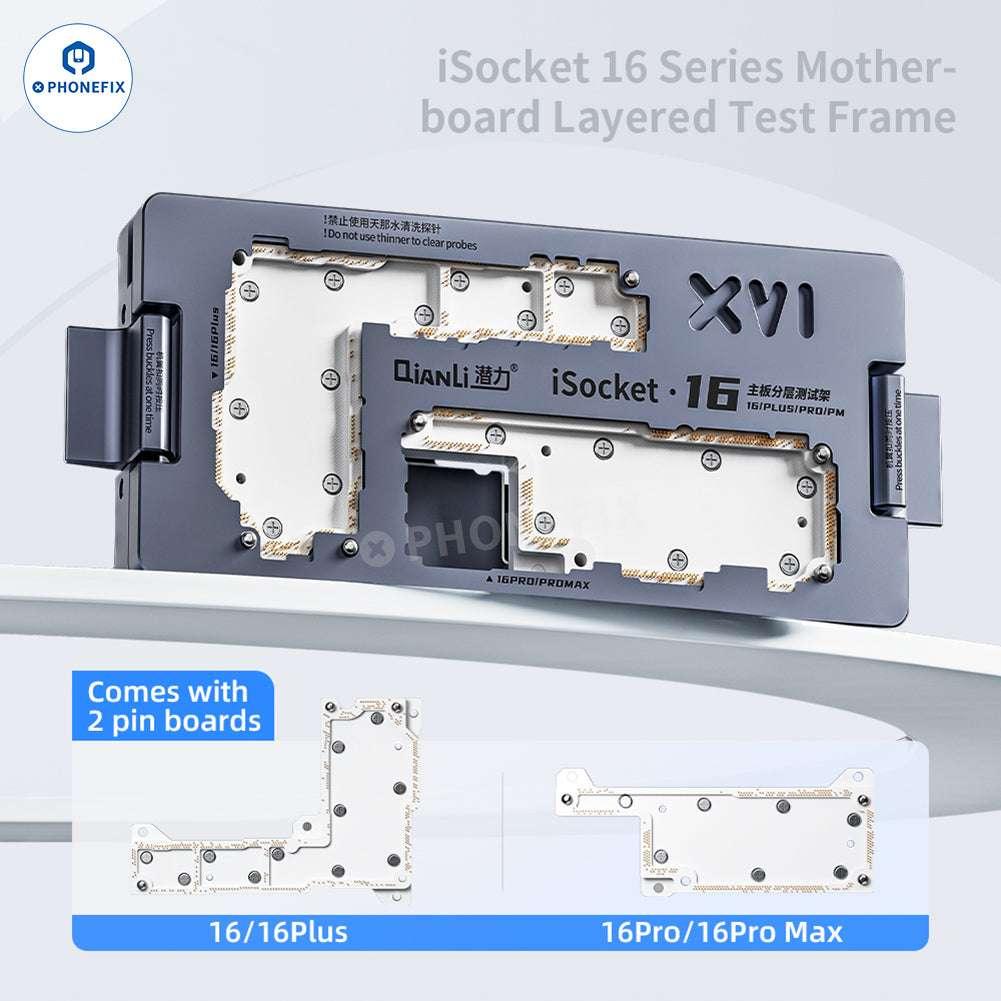

Qianli iSocket 16 Series Motherboard Layered Test Frame with 2 Pin Boards for iPhone 16/16 Plus/16 Pro/16 Pro Max. Qianli iSocket moterboard test fixture high-precision probes to test iPhone 16-16 Pro Max motherboard functions, and efficiently detect the double-layer functions of the iPhone 16 series logic board.
Features:

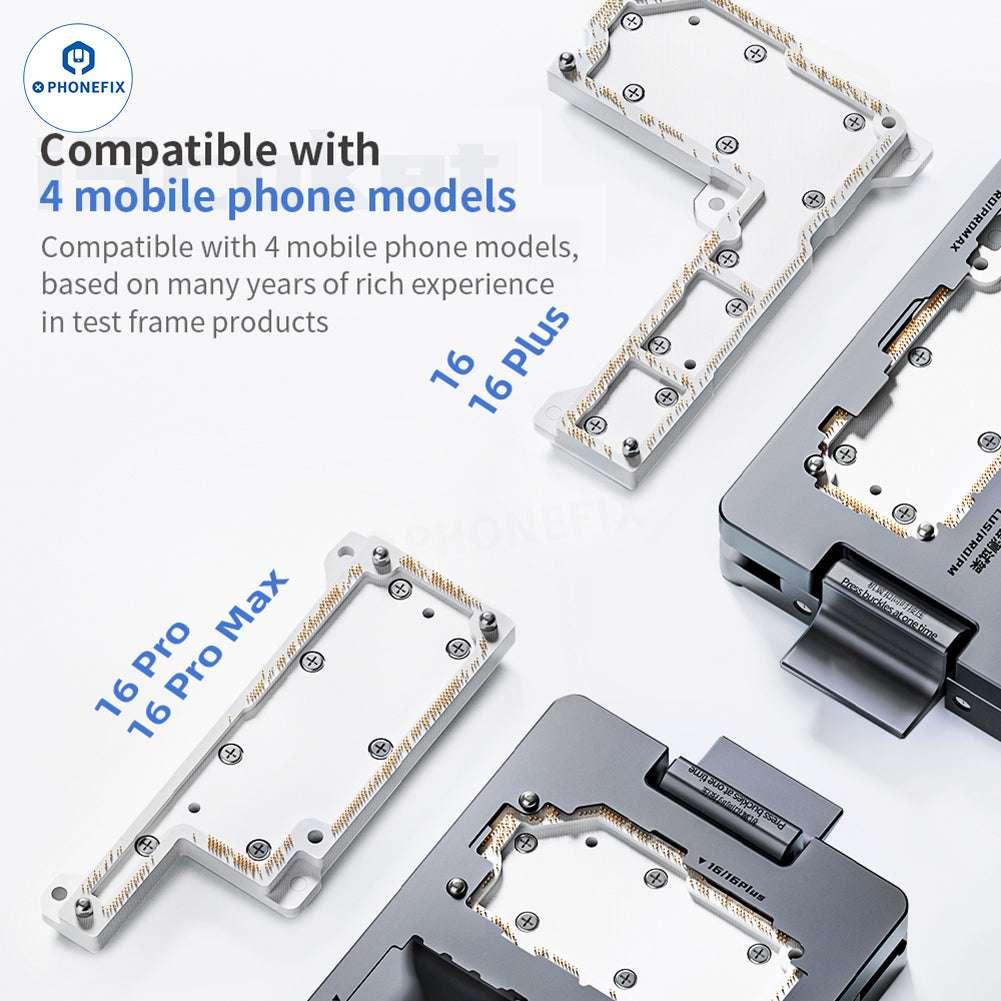

1. QianLi iSocket 16 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 16/16 Plus/16 Pro/16 Pro Max logic board troubleshooting.

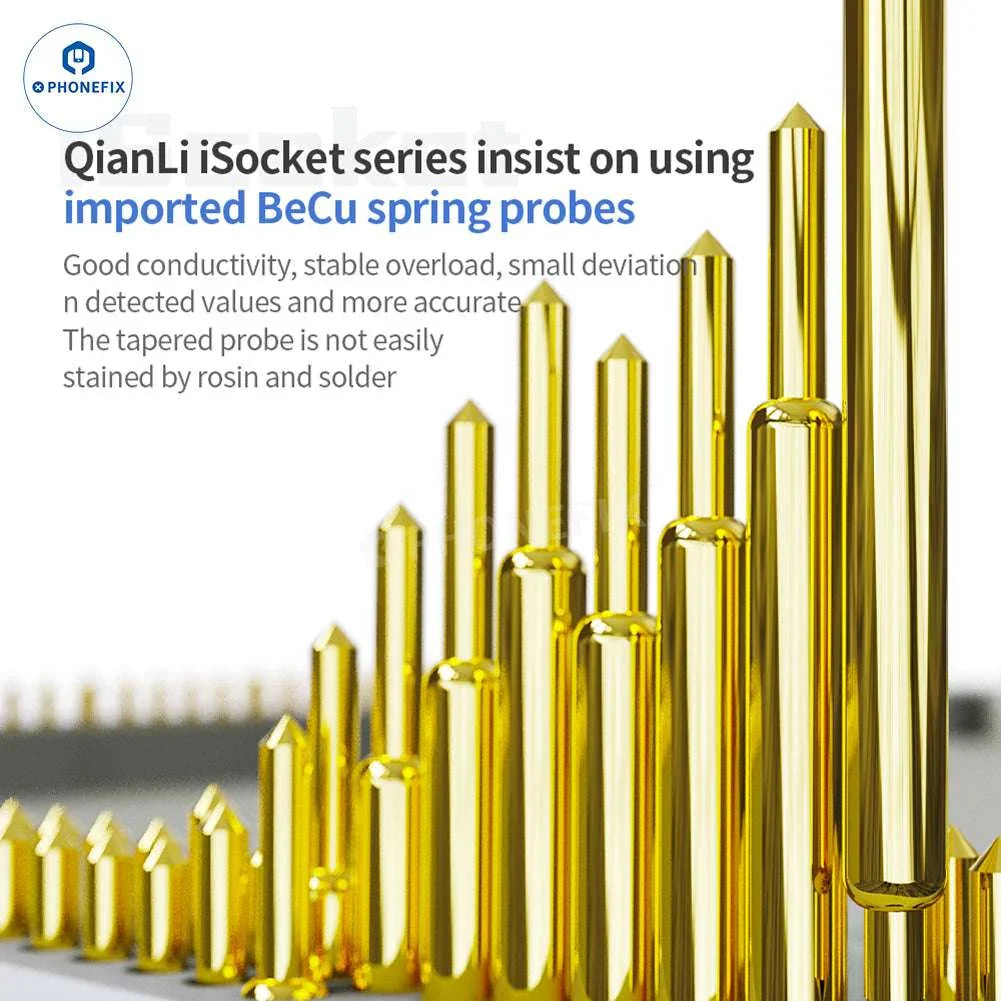

2. Using high-quality BeCu spring probes, high-precision matching and detection of the iPhone motherboards.

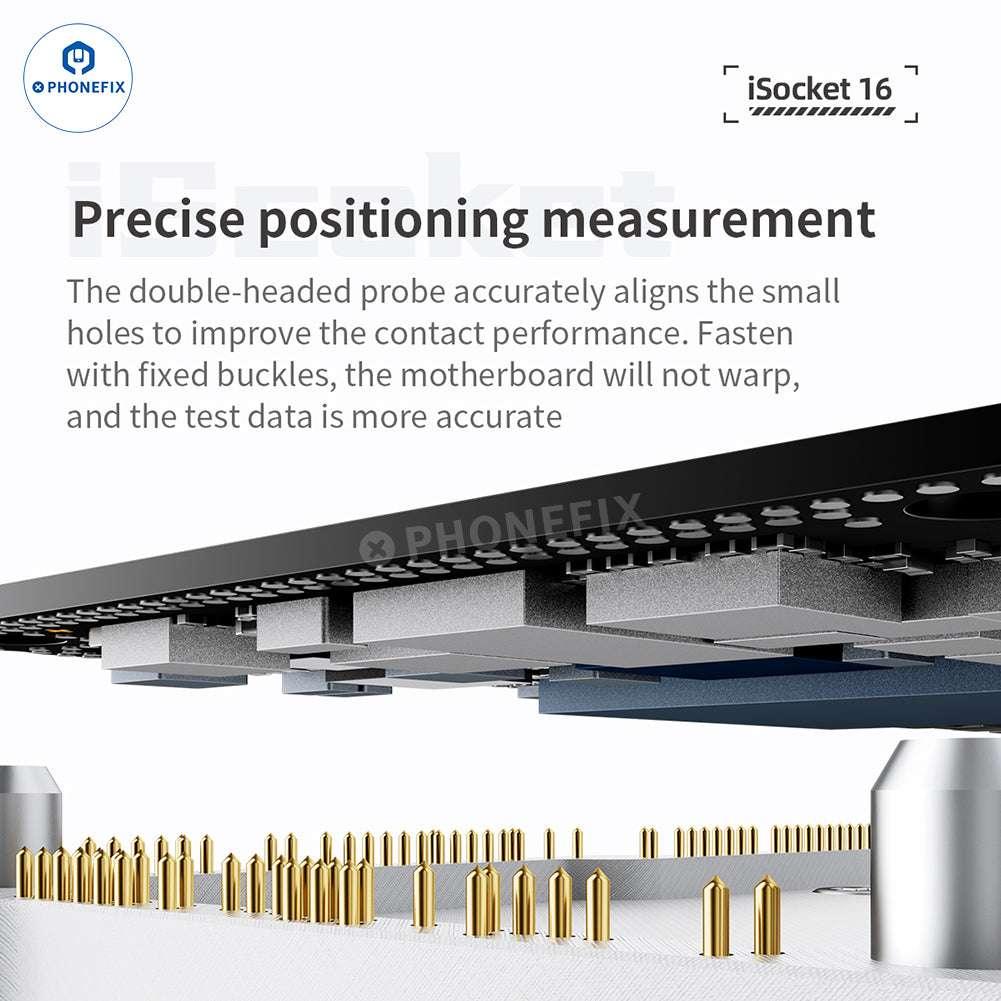

3. The double-headed probe is precisely aligned with the small hole to improve the contact performance.
4. The fixed buckle is used to fasten the motherboard, so the mainboard will not warp and the test data will be more accurate.

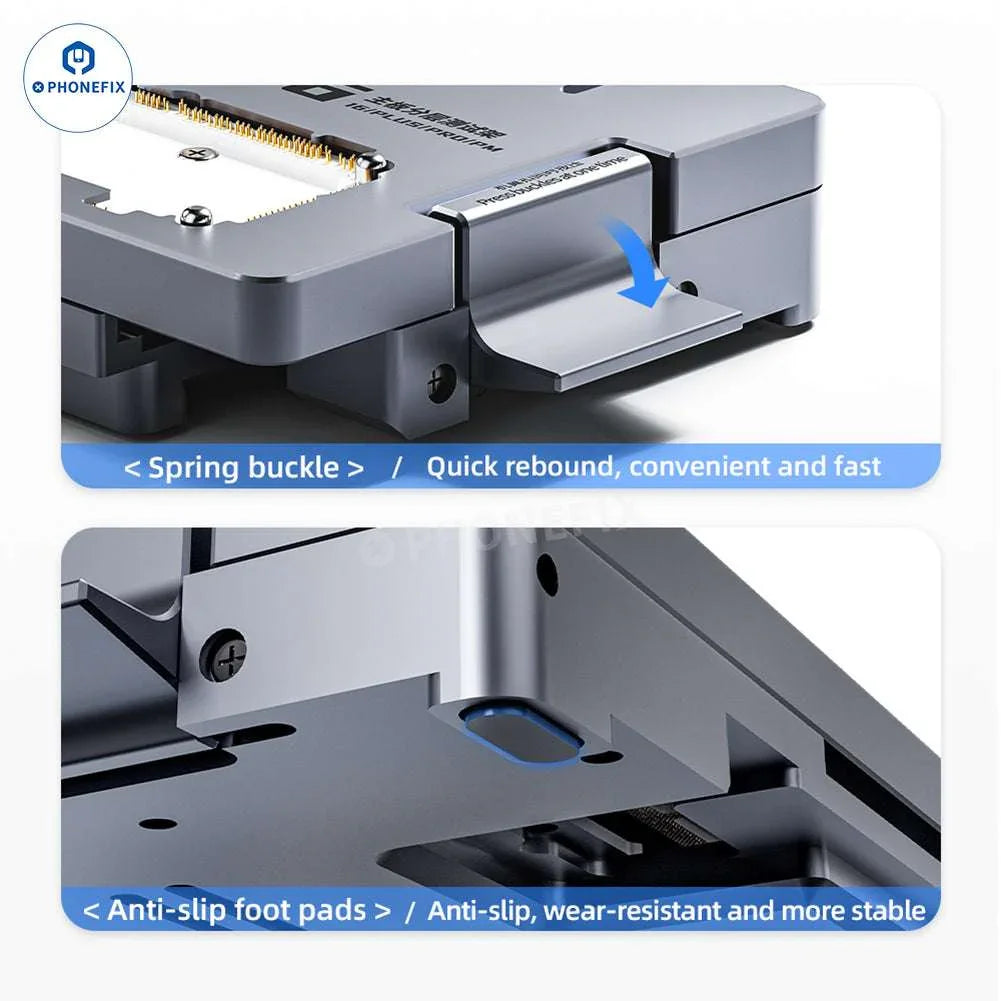

5. Spring buckle, quick rebound, convenient and fast.
6. Good conductivity, stable overload, small deviation of detection value, higher accuracy, and the conical probe is not easily contaminated by rosin and solder.

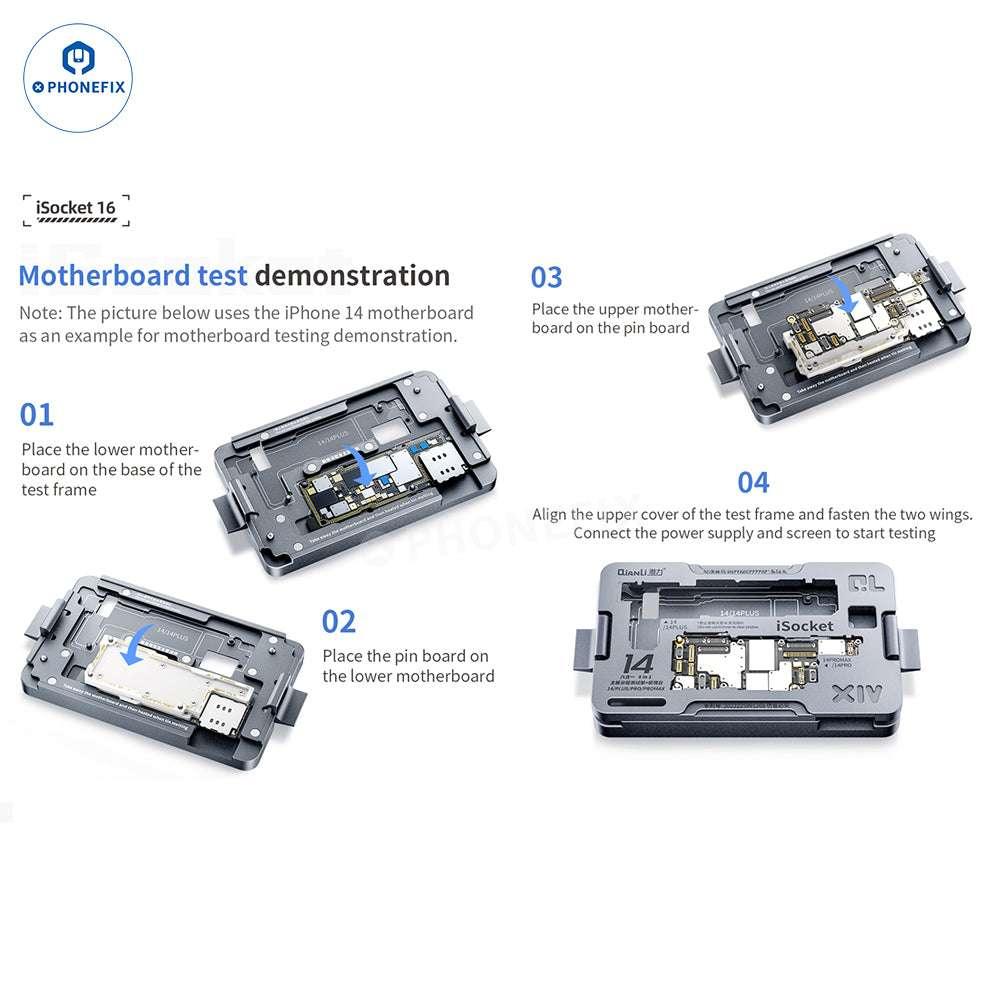

Instructions:
Place the lower motherboard at the base of the iSocket test stand.
Fasten the pin board above the iPhone lower motherboard.
Place the upper motherboard and buckle it on the pin board.
Fasten the two wings of the upper cover of the iScoket test stand and connect the power supply and screen to start testing.

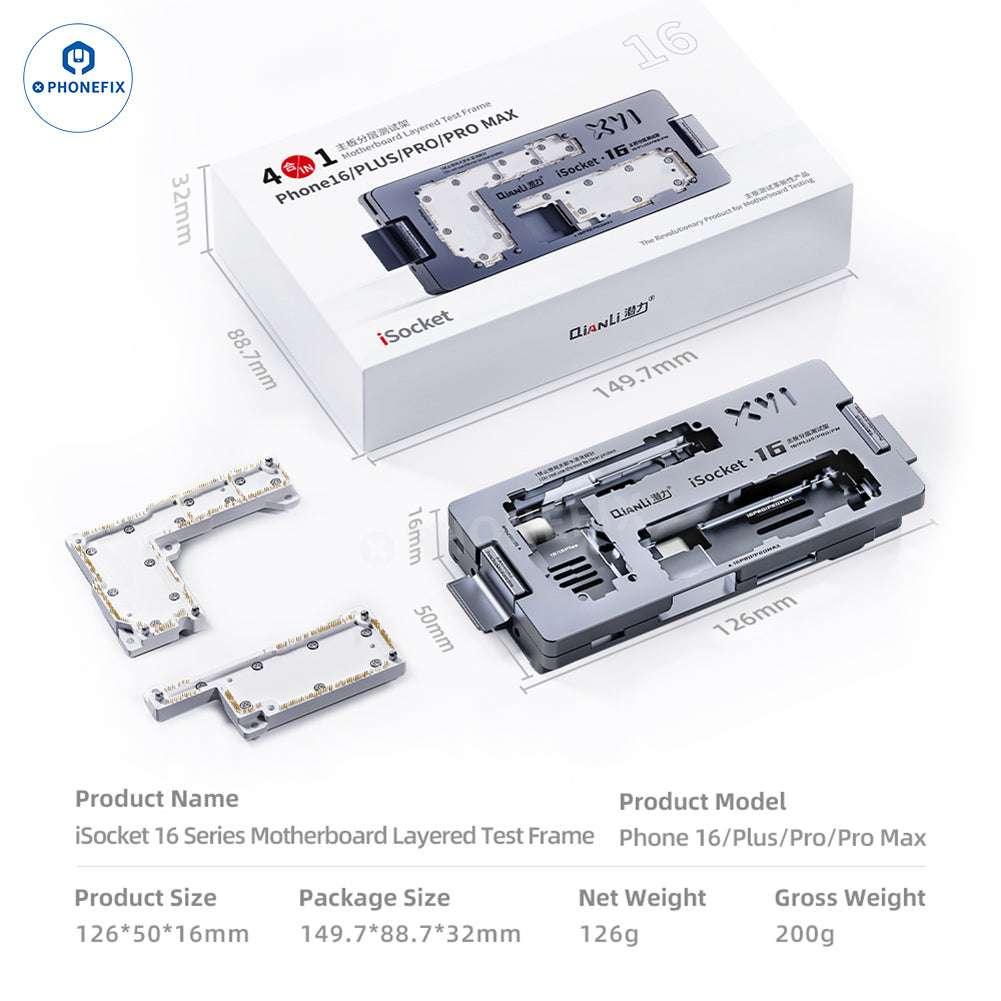

Product Parameters:
Product Name: Qianli iSocket 16 Series Motherboard Layered Test Frame
Product Model: iPhone 16/16 Plus/16 Pro/16 Pro Max
Product Size: 126*50*16mm
Package Size: 149.7*88.7*32mm
Net Weight: 126g
Gross Weight: 200g
