QianLi PM89 Phone Screen Separator and Qianli PM361 Electric Phone Frame Back Cover Separator with digital display for mobile phone LCD screen heating disassembly repair. QianLi PM89 curved/flat/foldable screens separator with 360-degree rotatable panel and built-in vacuum pump. Qianli PM361 phone frame separation tool with electric clamp for screen/frame separating and back cover removal.
Option:
1. QIANLI PM89 screen separator (upgraded version).
2. QIANLI PM86 screen separator.
3. QIANLI PM86 screen separator. It's been discontinued.

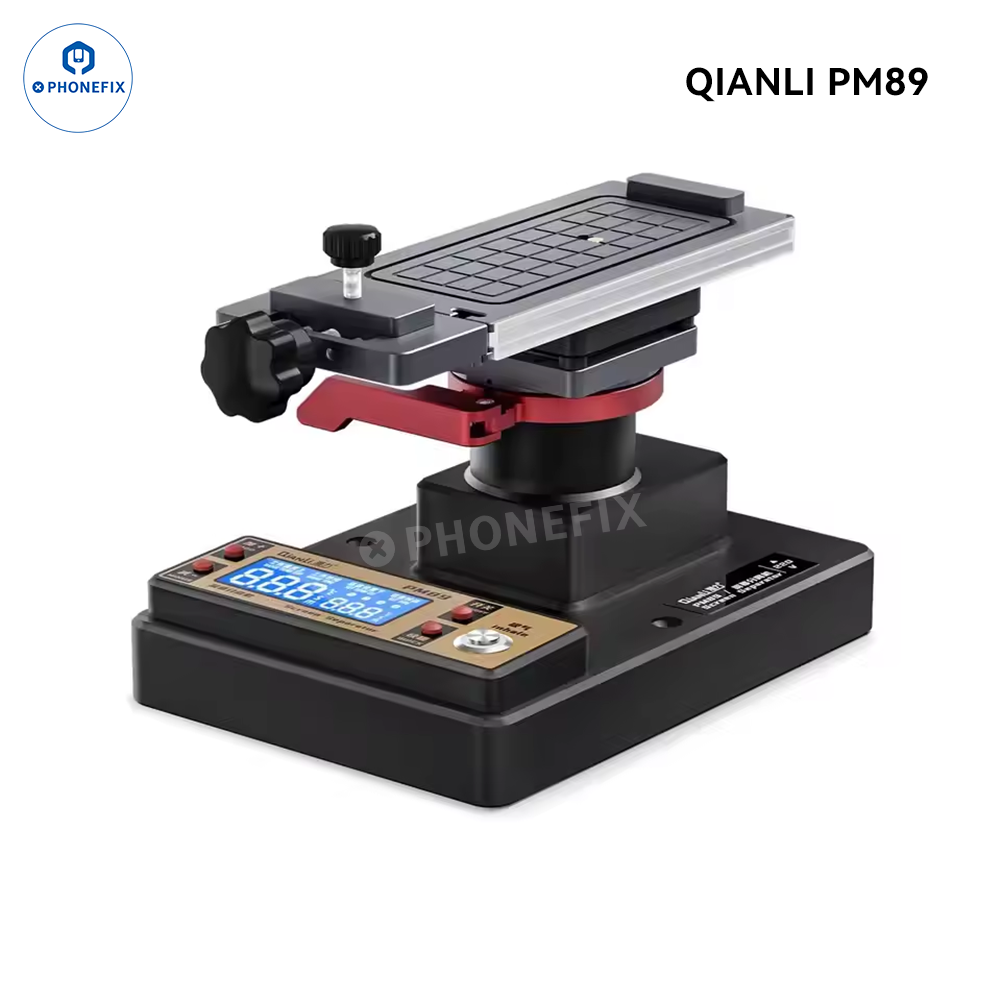

QianLi PM89 Screen Separator Features:
1. QianLi PM89 7-inch heating separator – 360° rotating panel, built-in vacuum pump, and digital temperature control for flat, curved, and foldable screen repair.

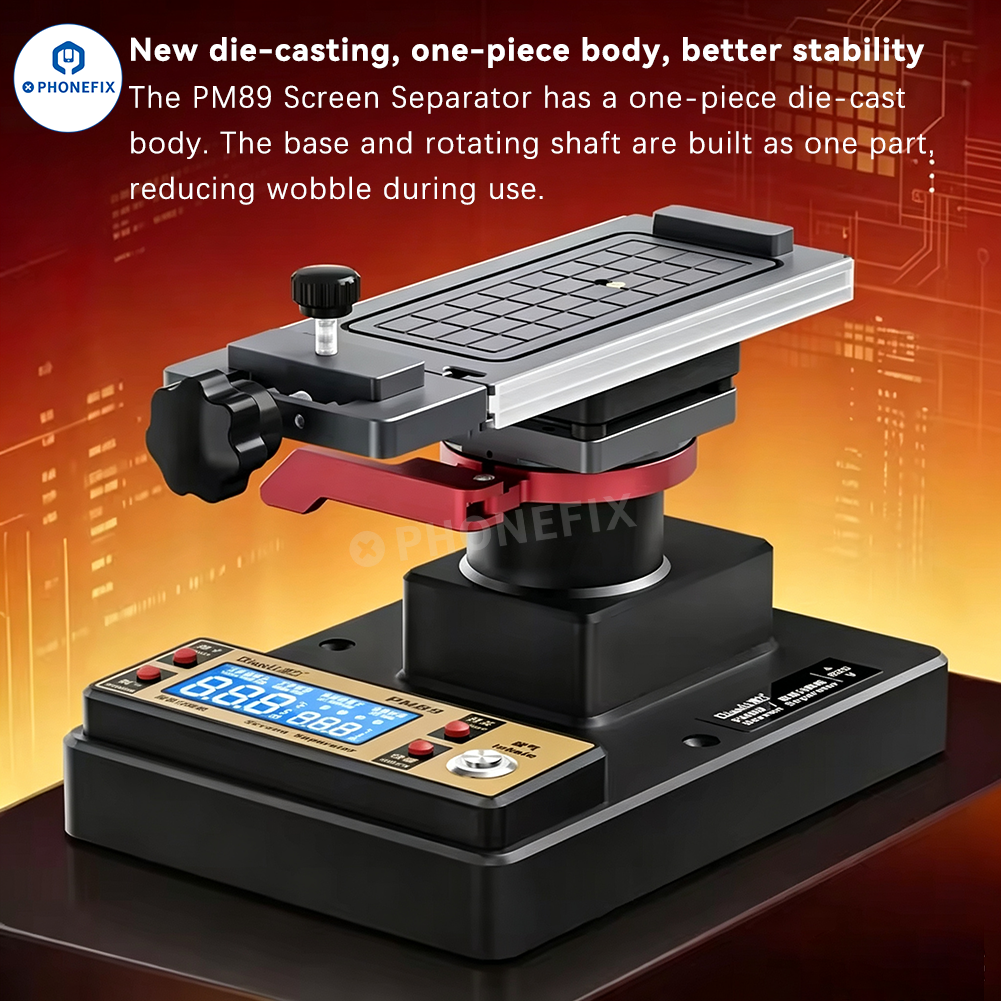

2. One-Piece Die-Cast Body. 360° Rotating Heating Panel.

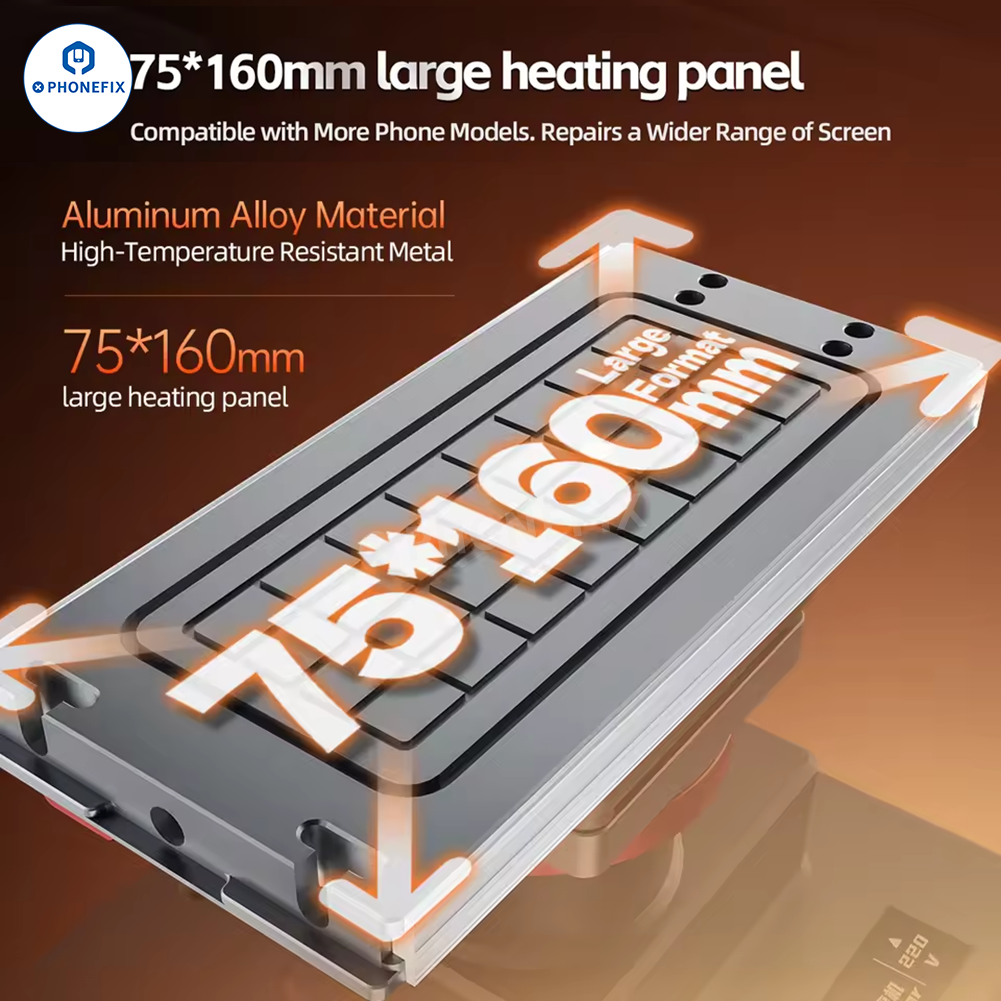

3. 75×160mm Large Heating Panel. Compatible with more phone models — repairs a wider range of screens.

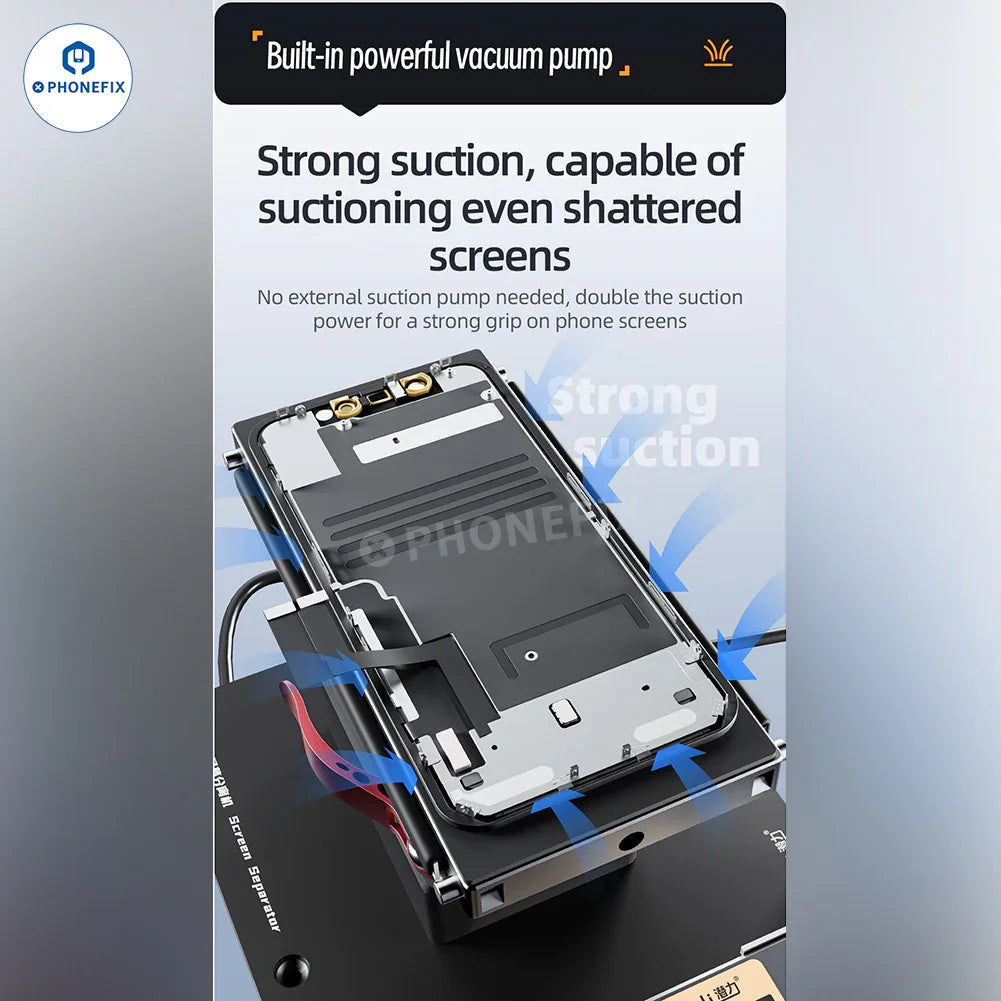

4. Built-in Powerful Suction Pump. No external pump needed — double suction power for strong screen adhesion.
5. Digital Display & Precision Heating. Integrated digital temperature control — rapid, accurate, and safe operation.
6. Quick-Release Locking Mechanism. Toggle lock for heating panel — freely adjust and lock rotation angle

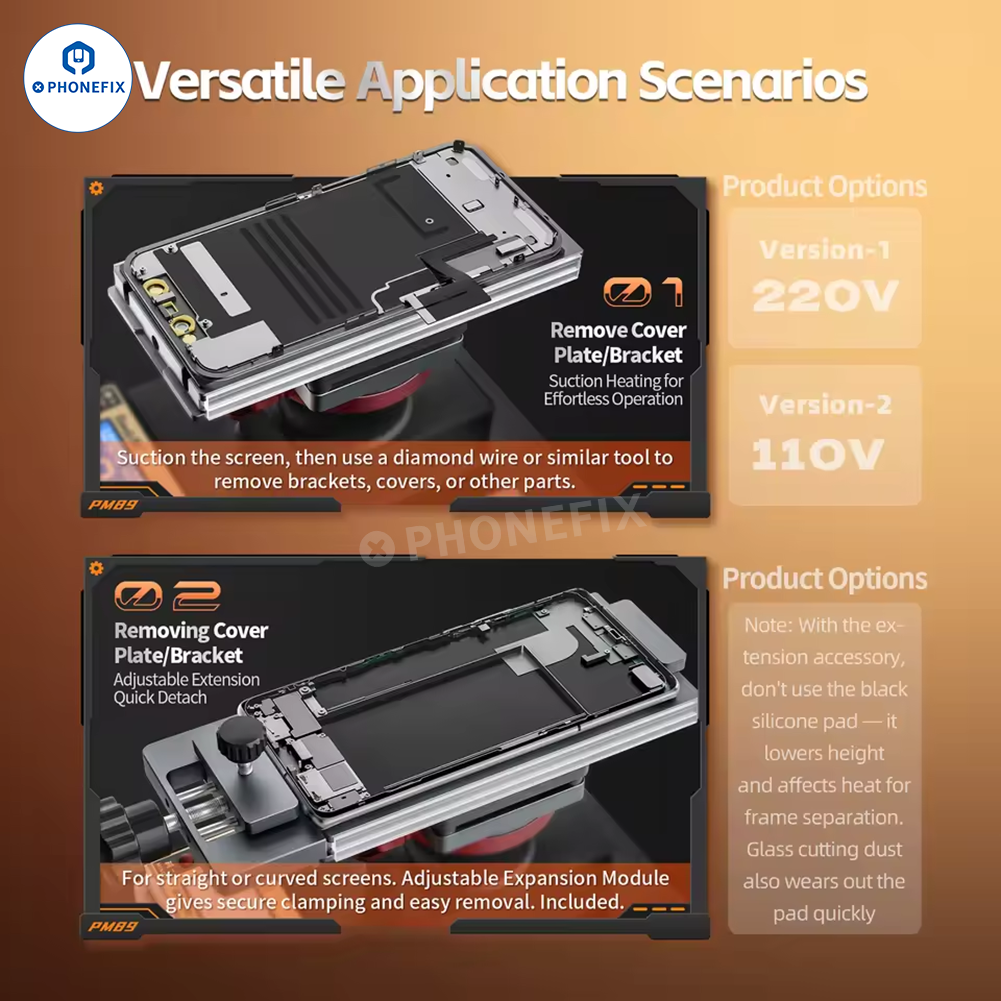

7. Applications: Supports standard screen separation, frame-on separation, module deframing, and single-piece separation.

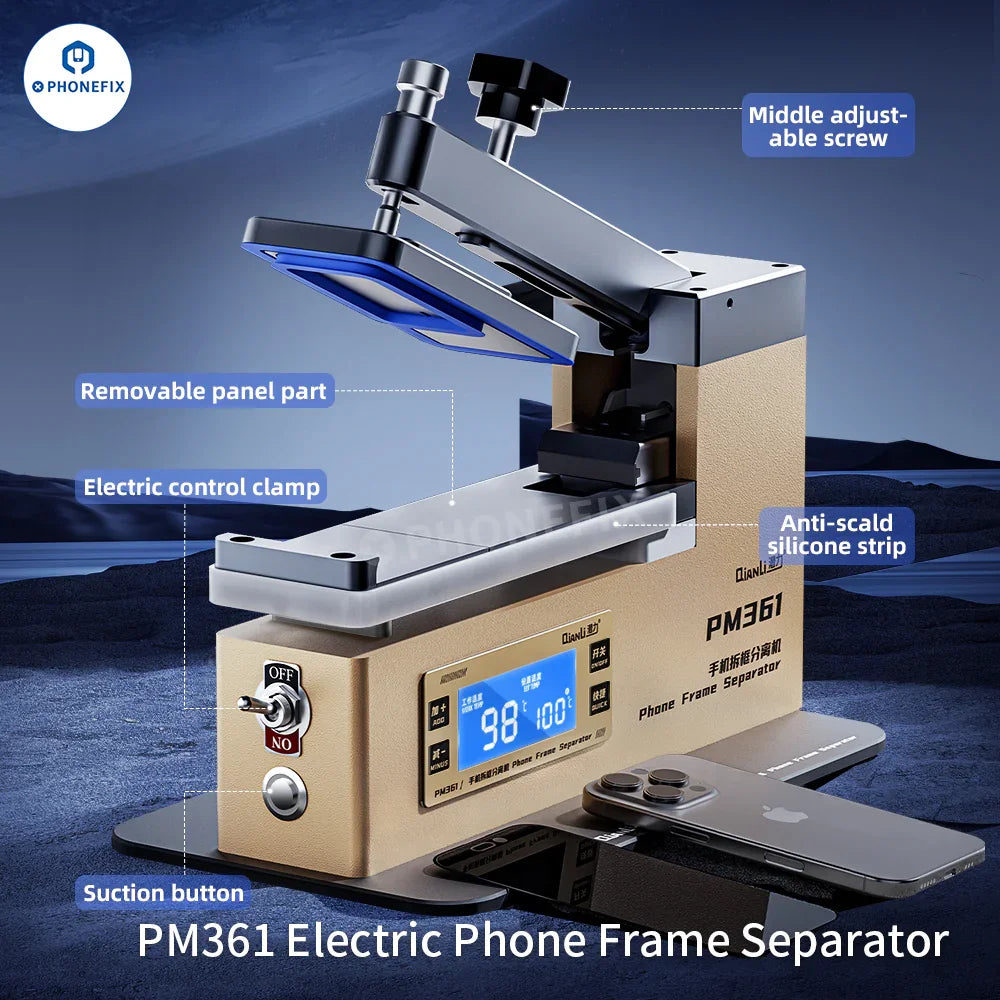

Qianli PM361 Features:
1. The electric clamping design allows for easy removal of the screen and bracket, and the removable back cover for upgrading.
2. Even heating, screen separation stablly, upper and lower dual heating panels design. Both the upper suction panel and lower panel support heating, and the temperature of the lower panel can be adjusted freely.
3. The upper suction panelheats at a constant tem-perature of 70-750°C, lower panel heating tem-perature range 0-145°C.

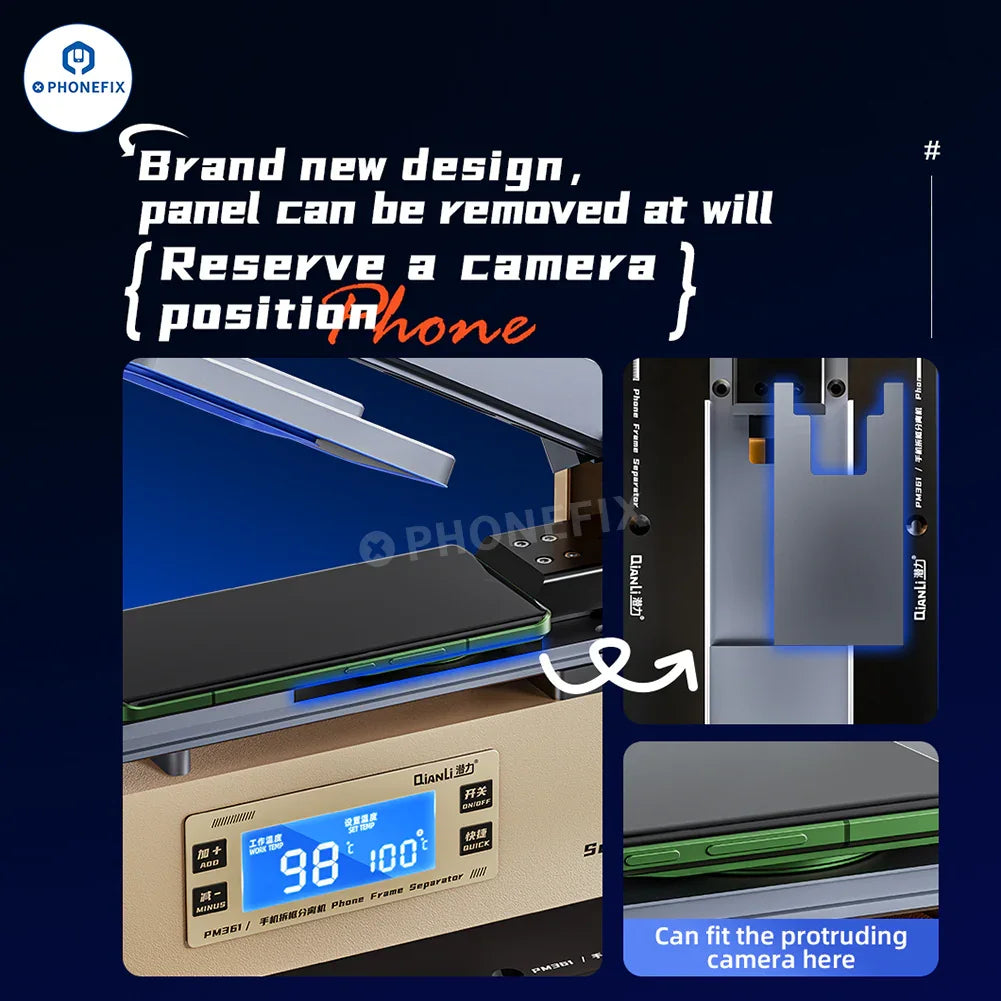

4. Camera protection design: Special cut-outs in the clamp protect raised iPhone cameras, ensuring no harm to lenses during repairs.

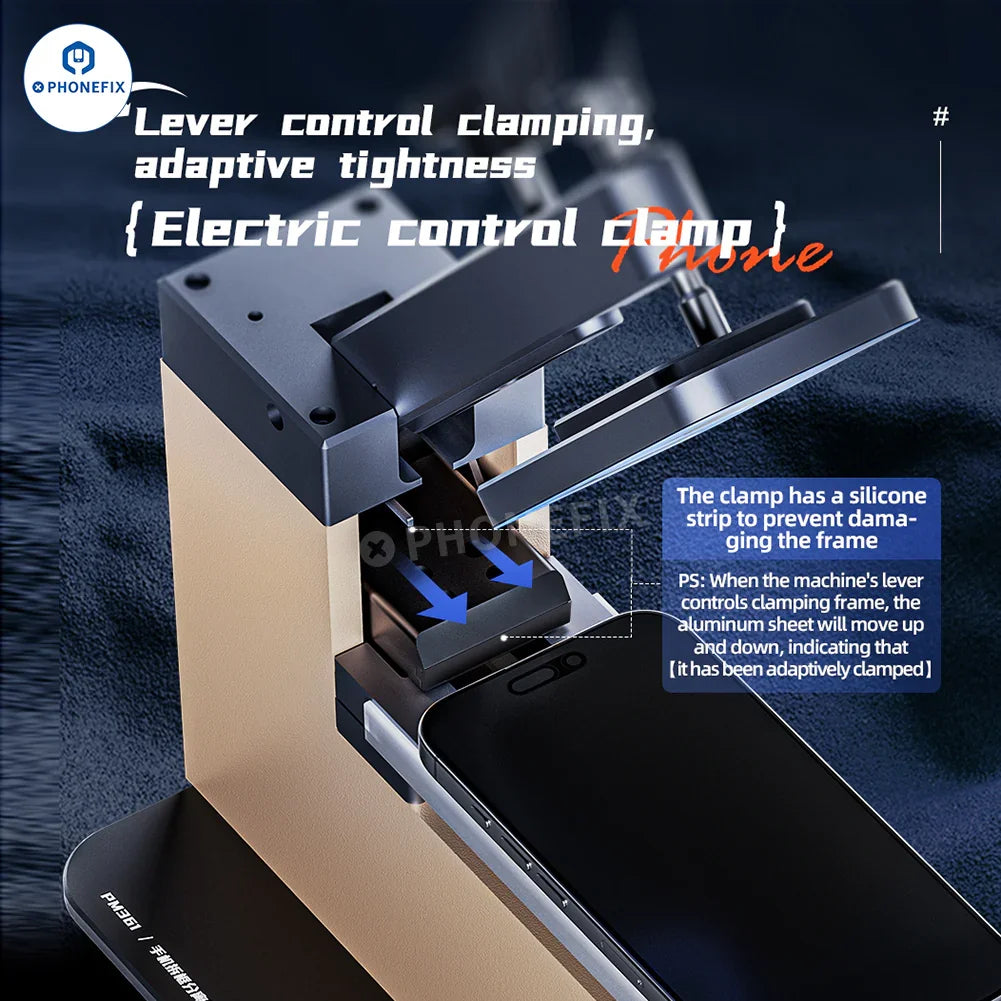

5. Suction and clamp mechanism: Suction holds the phone securely while the clamp applies controlled pressure, making screen removal efficient and damage-free.

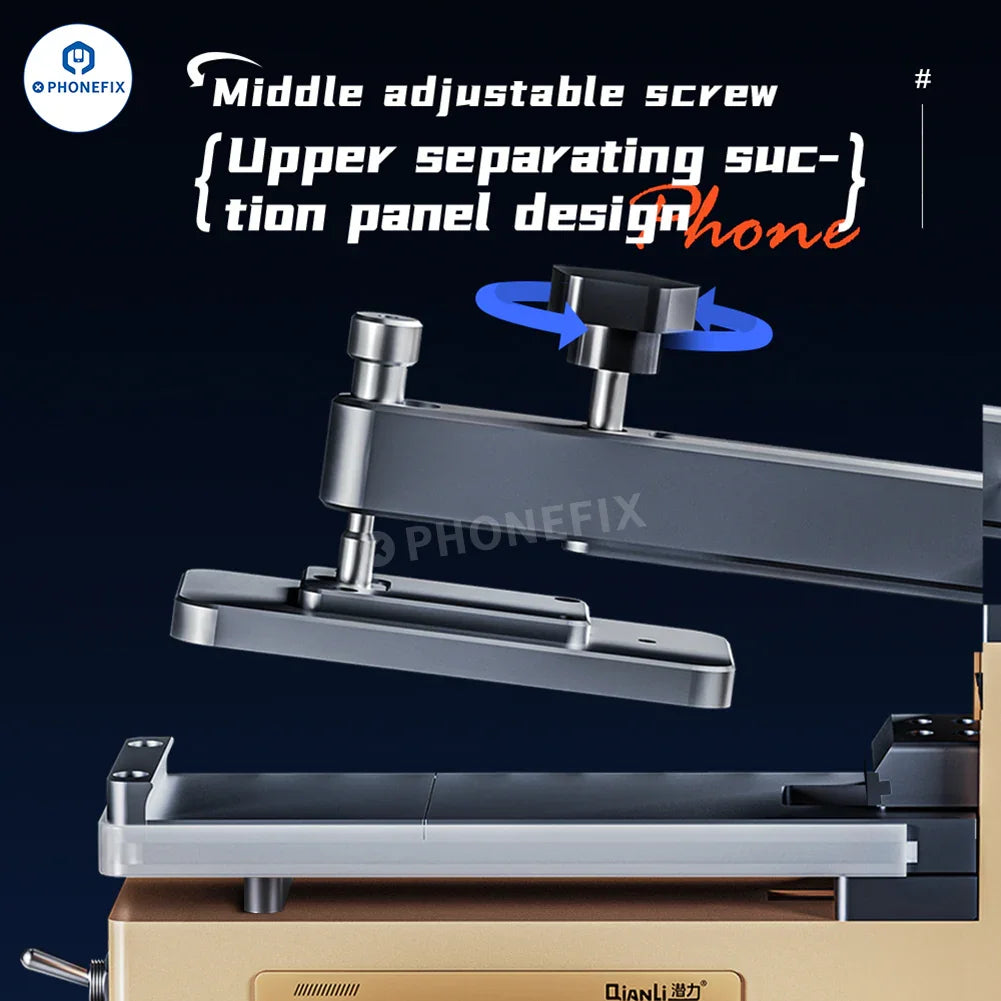

6. Upper separating suction panel design: The upper separation structure of double- arm overlapping designed is based on the mechanical lever principle. By twisting the middle adjustable screw to apply force to the lower resistance arm, the suction panel is slowly lifted, saving effort without affecting the front view.

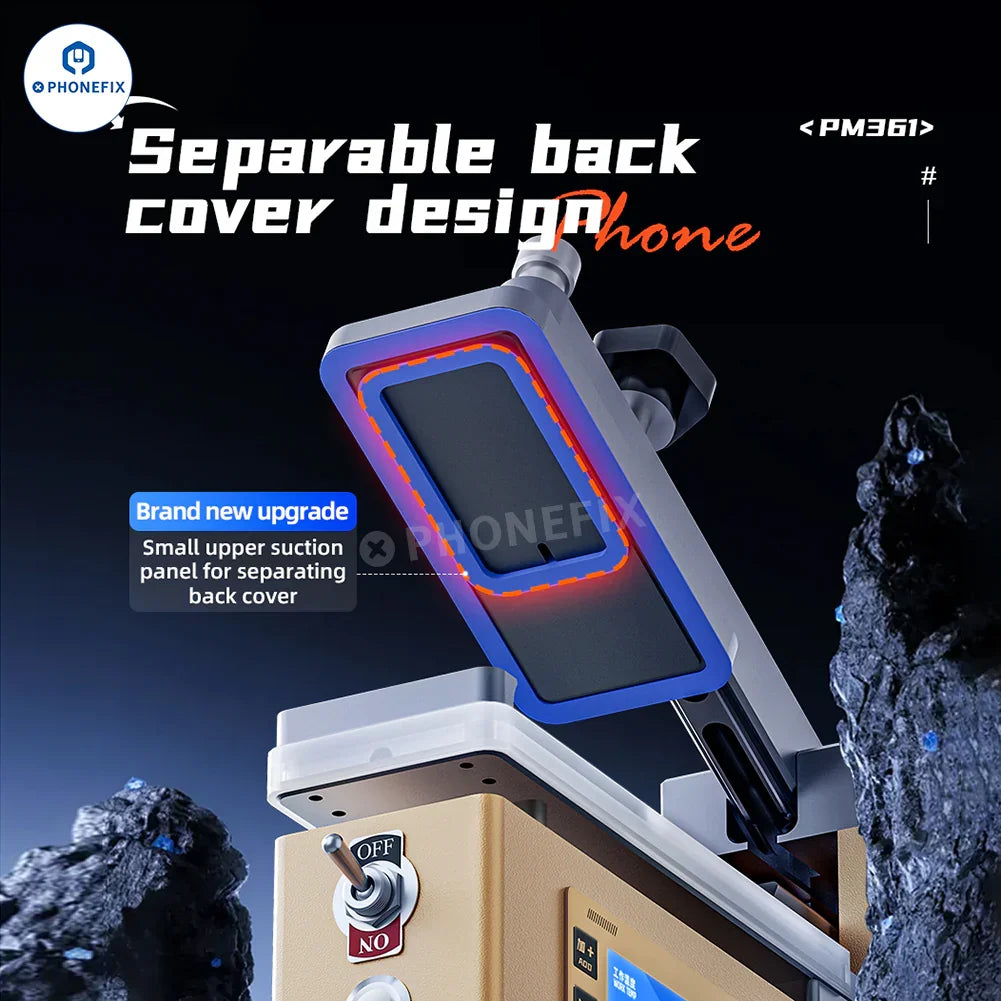

7. Back panel removal for newer models: Also capable of removing the back glass for newer iPhone models with less adhesive, but primarily designed for screen removal.

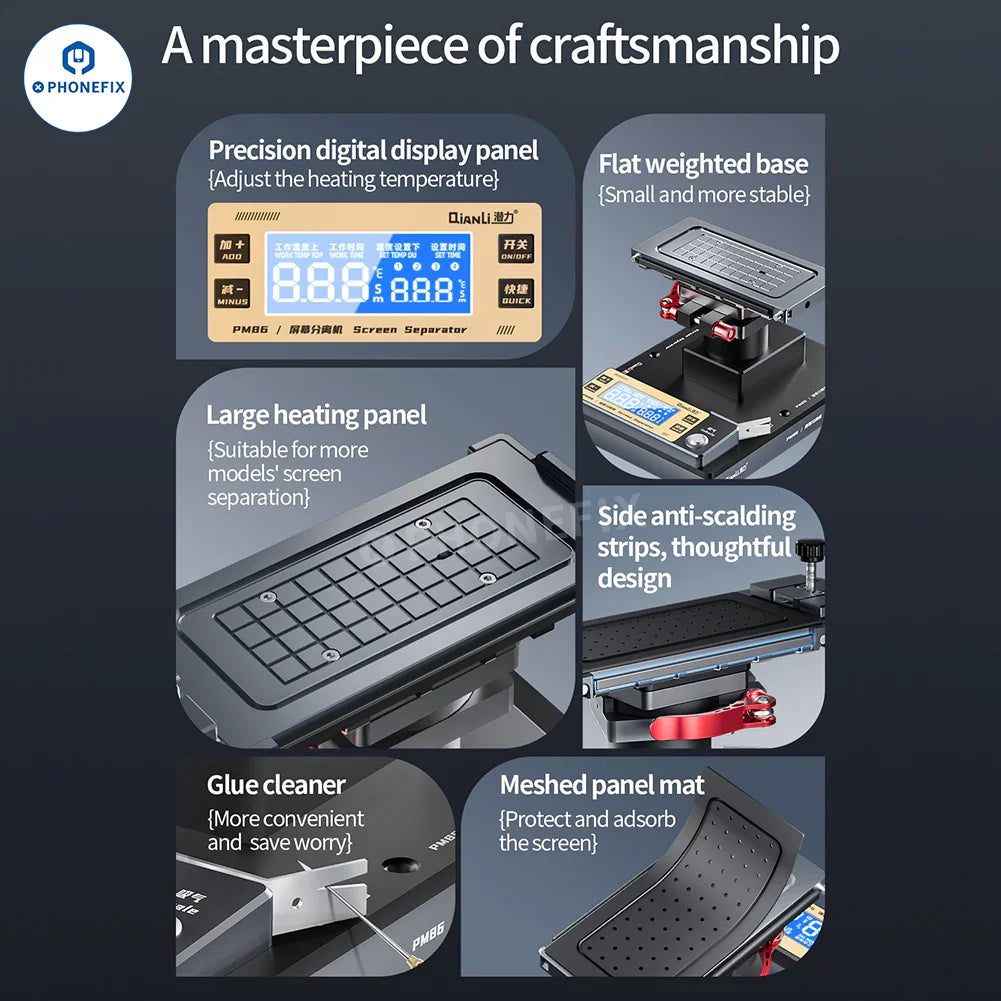

QianLi PM86 Features:
Universal Compatibility: Supports flat, curved, and foldable screen separation.
360° Rotatable Panel: Adjustable panel for convenient access from any angle.
Built-in Vacuum Pump: Strong suction for securely holding screens, including shattered ones, without the need for external pumps.
Quick Heating System: One-button operation with four preset temperature settings, ensuring precise and safe temperature control.

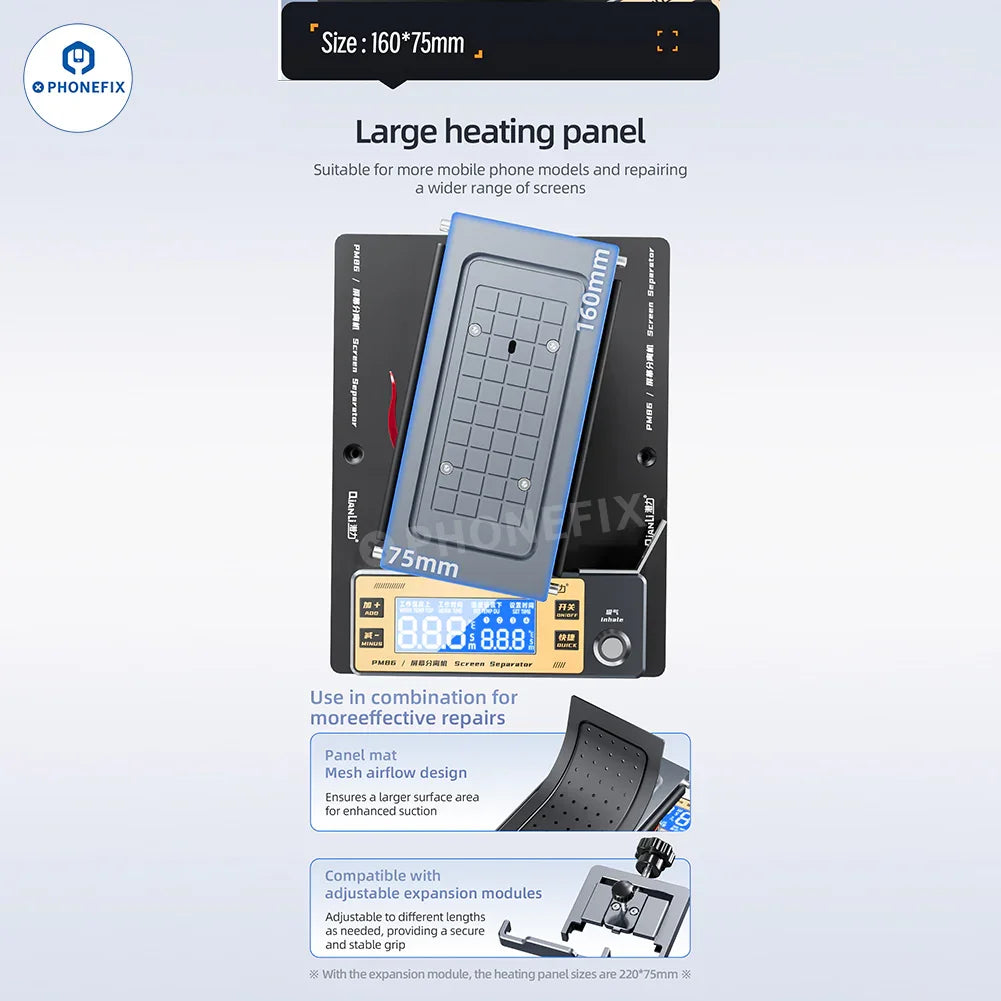

Large Heating Panel: Accommodates a wider range of screen sizes, with an expansion module increasing the panel size from 160x75mm to 220x75mm.
Anti-Scalding Strips & Meshed Panel Mat: Protects both users and screens with thoughtful design elements.

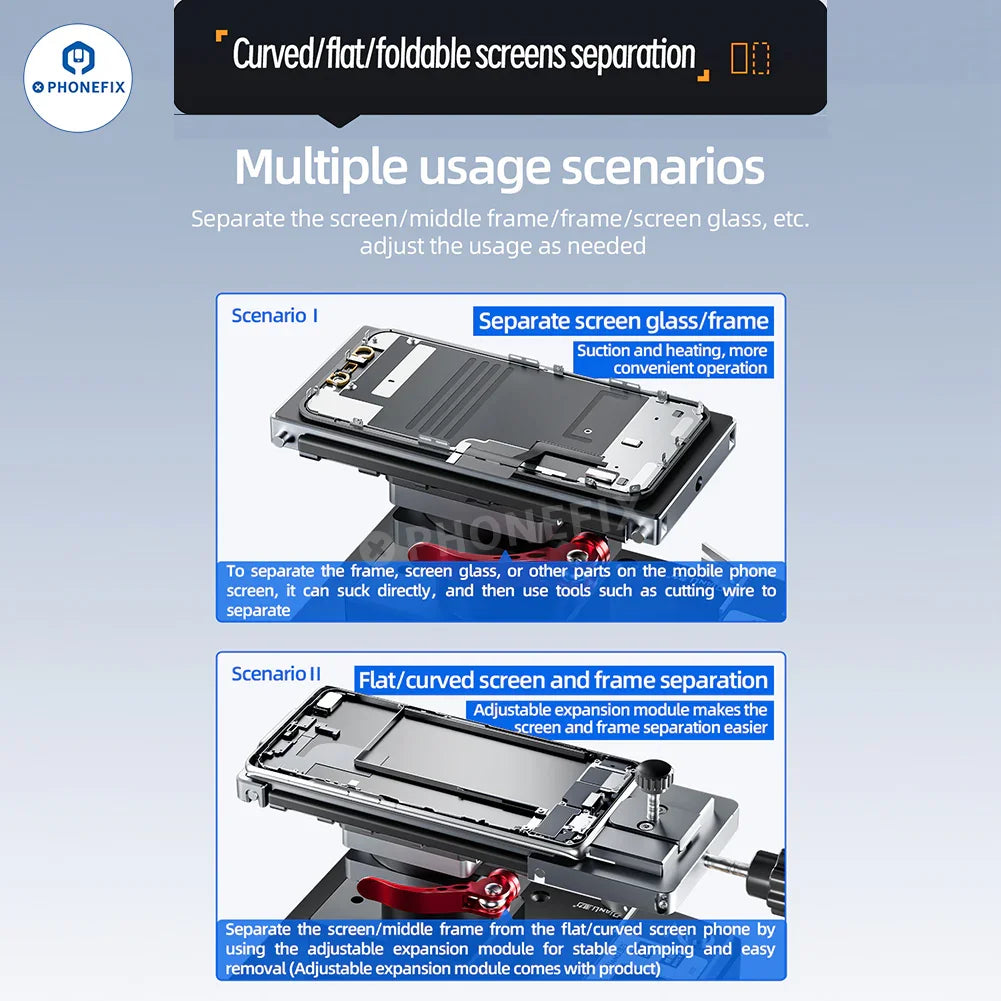

Modular Design: Expansion modules allow for separation of screens, frames, and glass components, adapting to different repair needs.
Flat Weighted Base: Provides stability during repairs.
QianLi PM86 Product Parameters:
Model: QianLi PM86 Phone Screen Separator
Panel Size: 160x75mm (expandable to 220x75mm)
Product Dimensions: 210x160x140mm
Package Dimensions: 285x285x195mm
Product Weight: 2.75kg
Package Weight: 3.38kg
Functions: Screen, middle frame, and glass separation; supports adjustable expansion modules for enhanced flexibility.
QianLi PM361 Parameters:

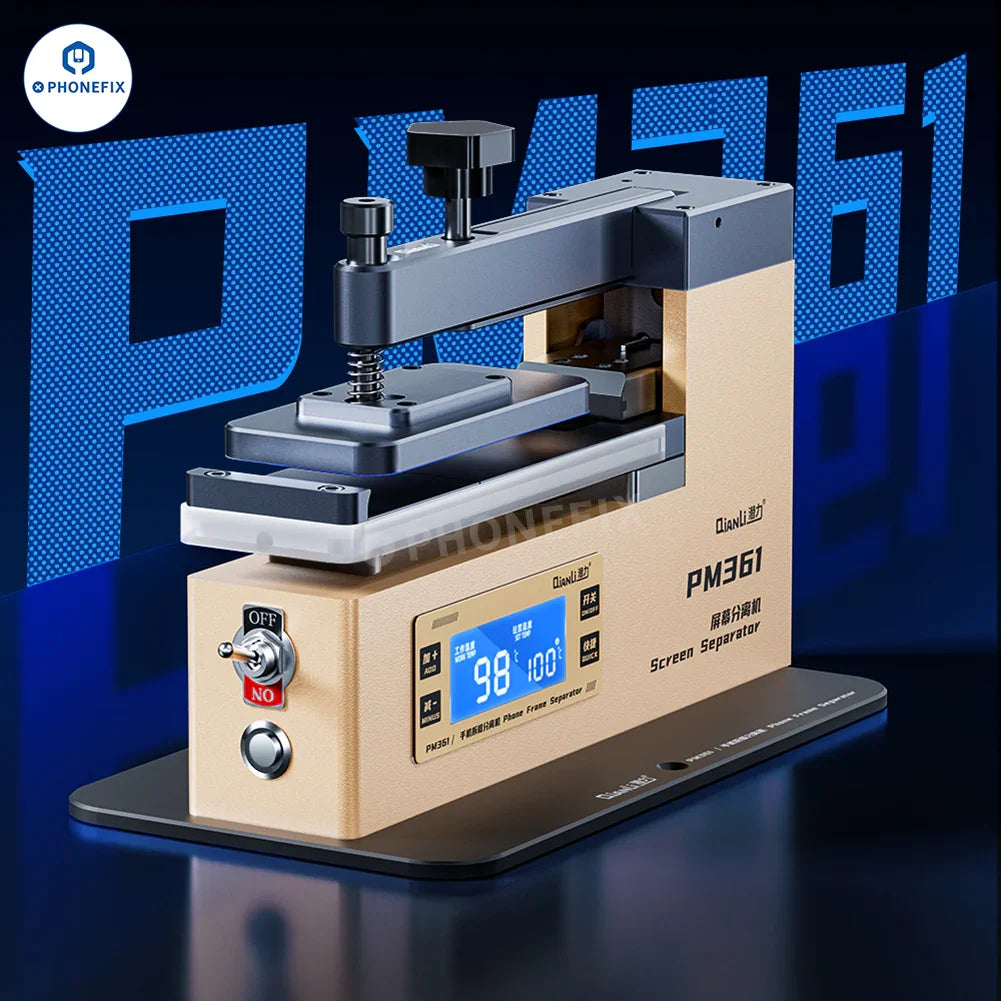

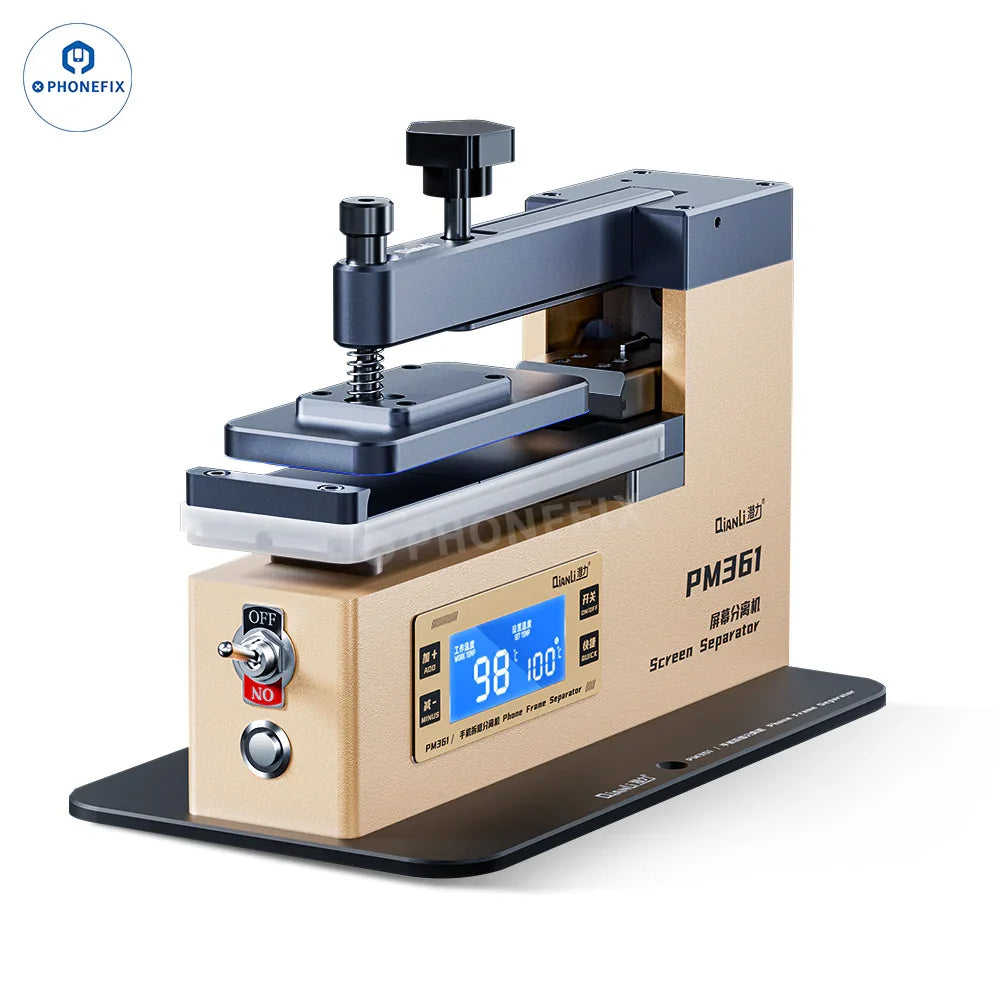

Model: QianLi PM361 Electric Phone Frame Separator.
Voltage: 220V/ 100V.
Package size: 39*29*22.5cm.
Products size: 27.5*23*15.5cm.
Net weight: 3.2kg.
Gross weight: 4.1kg.
Package: Standard carton.
