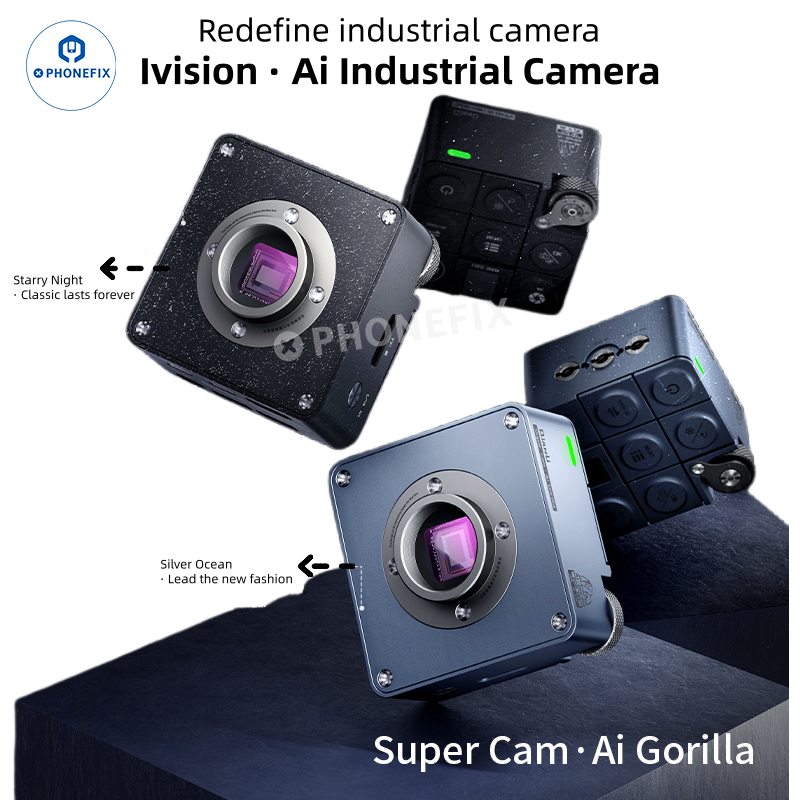

Qianli Super Cam Ai Gorilla Industrial Camera equipped with Sony 1/1.8 inch CMOS and Authentic 4K Real 8M Pixel Sensor. Qianli Gorilla 4K camera and Qianli 0.5X 0.7X Auxiliary Teleconverter Barlow lens can be used with 6558 Gorilla Trinocular Microscope for mobile phone repair and other electronic motherboard soldering repair. Qianli 0.5X 0.7X objective lens are designed for the YCS Integrated Microscope UV Lamp used with the 6558 series microscopes.
Option:
1. Qianli Ai Gorilla 4K Camera (Regular horizontal version/New vertical version).
2. Qianli 0.5X Barlow lens.
3. Qianli 0.7X Barlow lens.
Qianli Gorilla Microscope Features:

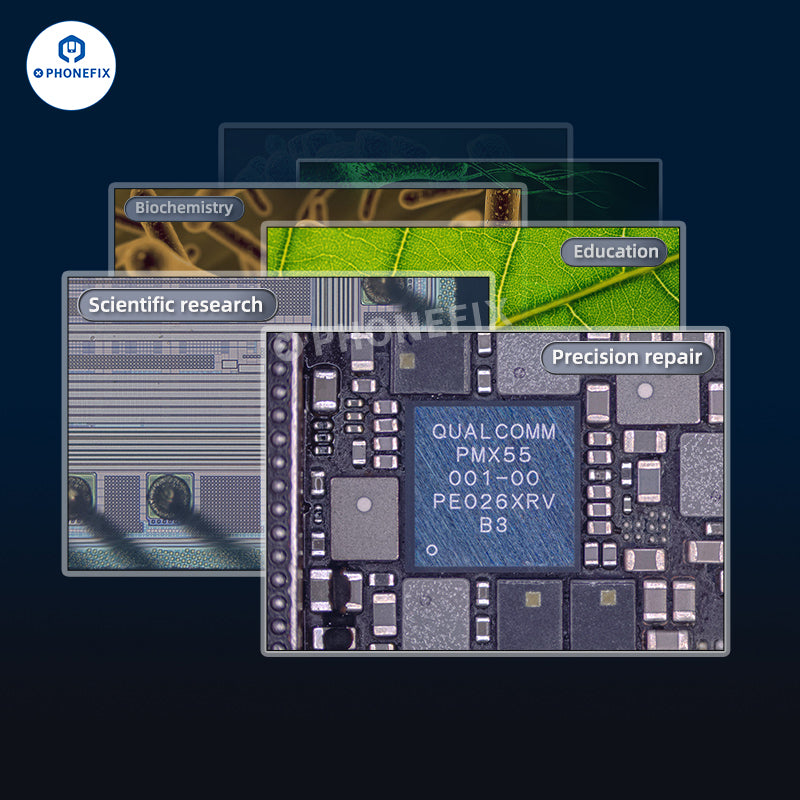

1. High-resolution and ultra-clear imaging: True 8-megapixel Sony CMOS sensor supports 4K resolution.

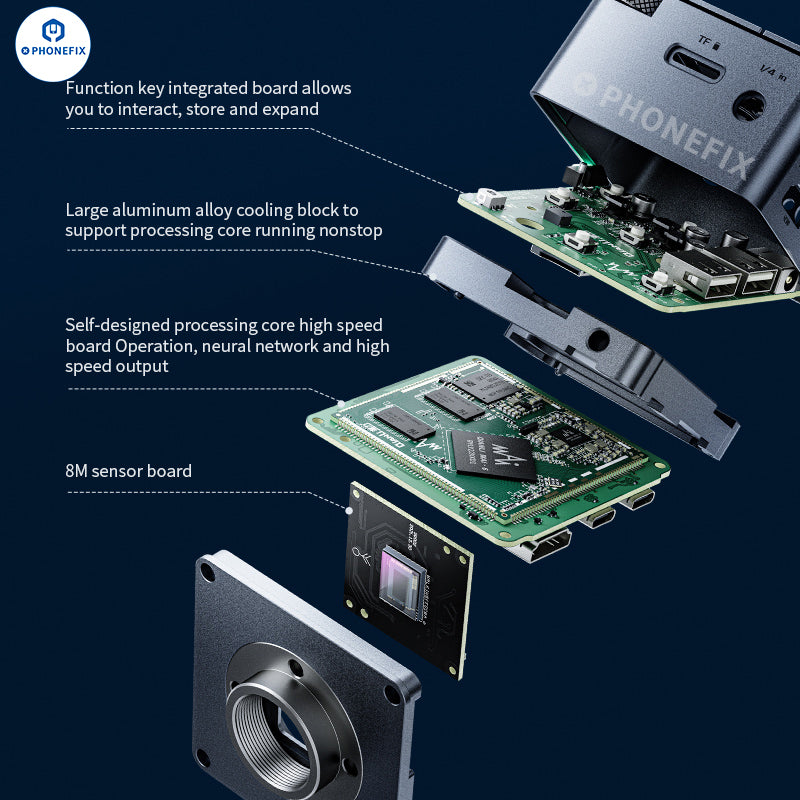

2. Proprietary Ai processing chip: Built-in high-performance 2GHz CPU + GPU + NPU module provides powerful image processing capabilities.
3. Dual 4K Output: Simultaneously outputs 4K/60FPS via HDMI and 4K/30FPS via Type-C, supporting high-definition video transmission.
4. Flexible Interface Design: Multiple interfaces (USB 2.0, Type-C 3.1, HDMI 2.0, etc.) are provided to meet the connection needs of various devices.

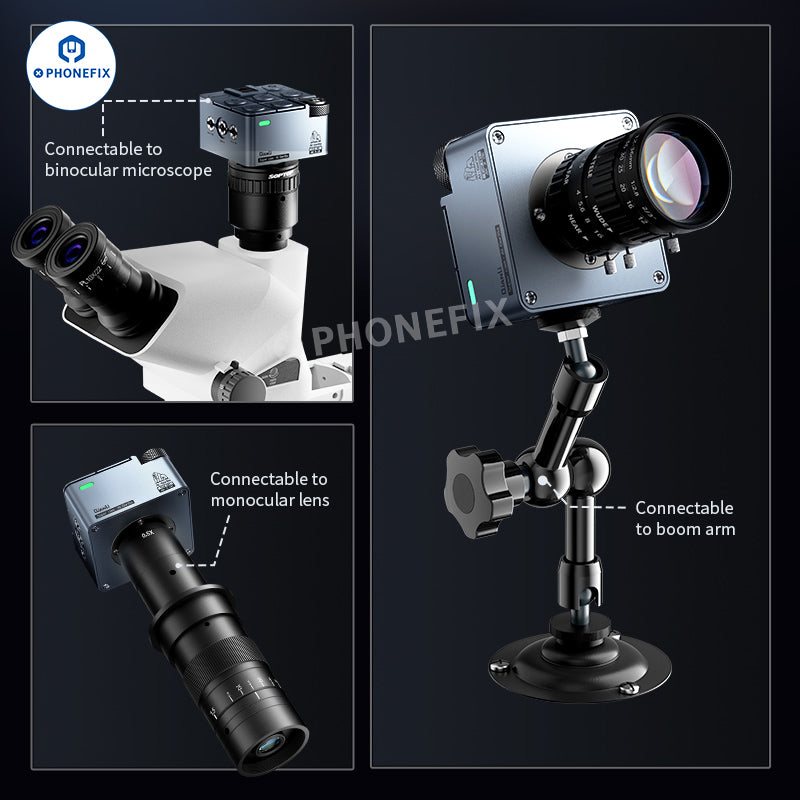

5. Modular Design: Supports interchangeable lenses and flange mounts to meet diverse application scenarios.
6. High Integration and Openness: Supports connection to a wireless mouse, keyboard, and external storage devices (TF card/USB flash drive) for operation and storage.

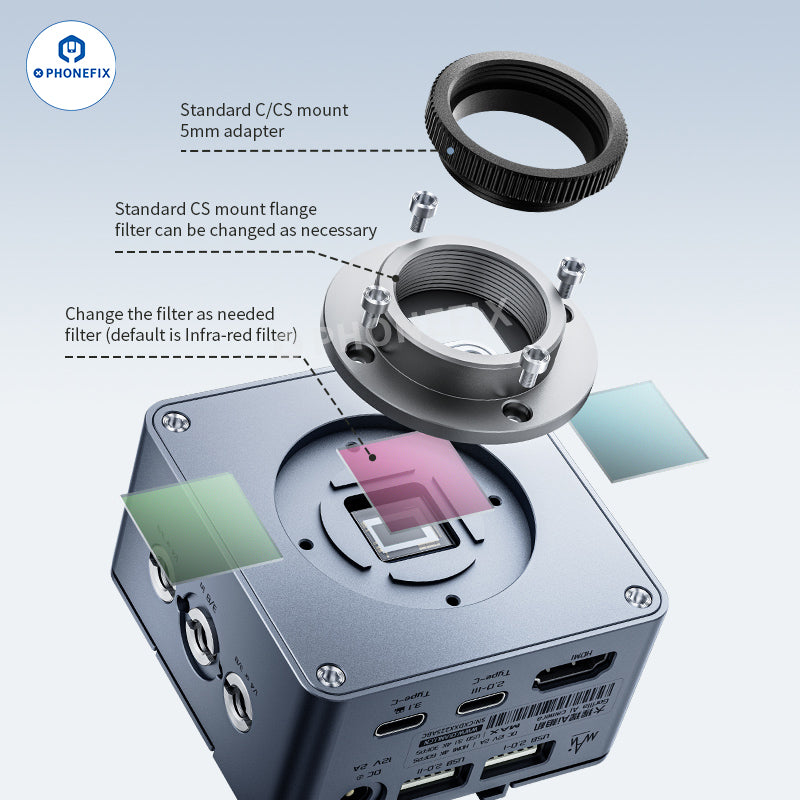

7. Removable Filter: Replaceable filters are available to adapt to different environmental requirements.

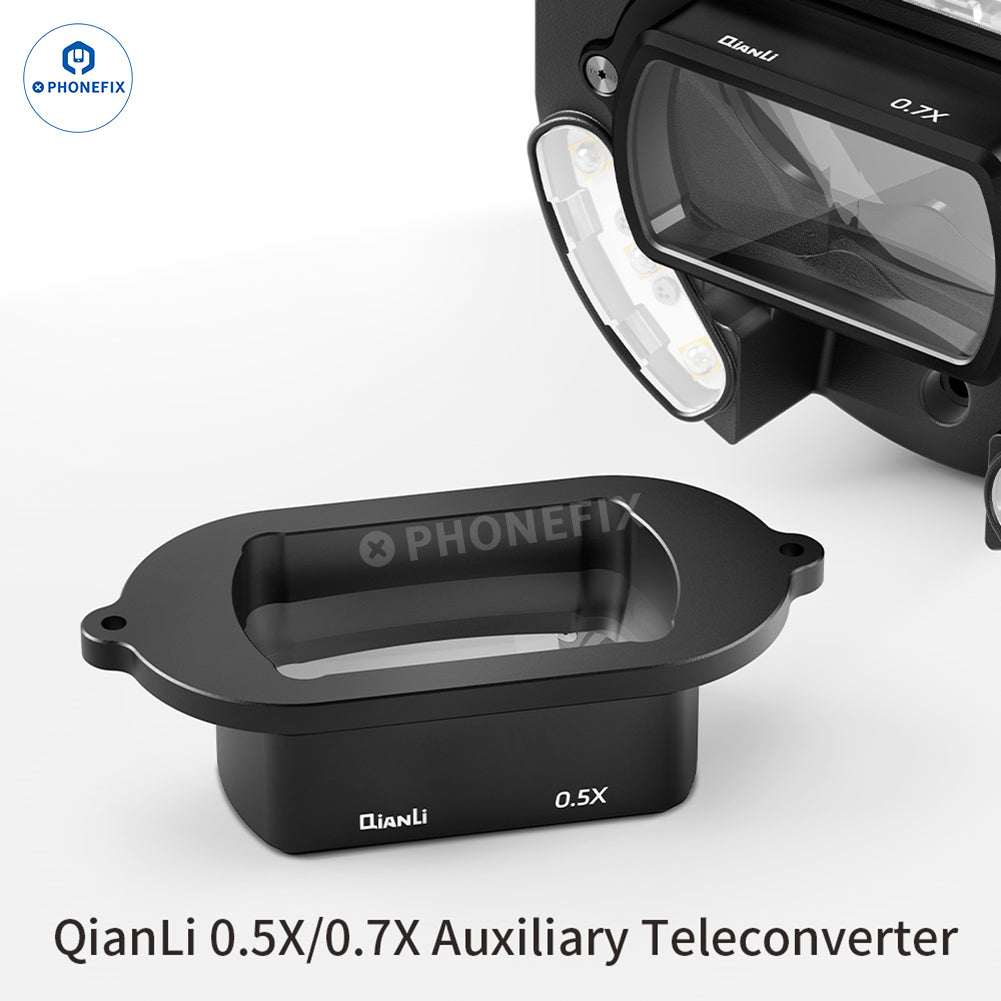

Qianli 0.5X/0.7X Auxlliary Teleconverter lens Features:
1. Improved Working Distance and Field of View: The microscope's field of view and operating space are significantly increased, facilitating precise manipulation.
2. Two Magnification Options: 0.5X and 0.7X teleconverters are available, allowing users to choose the one based on their usage habits and needs.
3. Strong Compatibility: Compatible with microscope light sources and supports integrated microscope positioning, improving work efficiency.

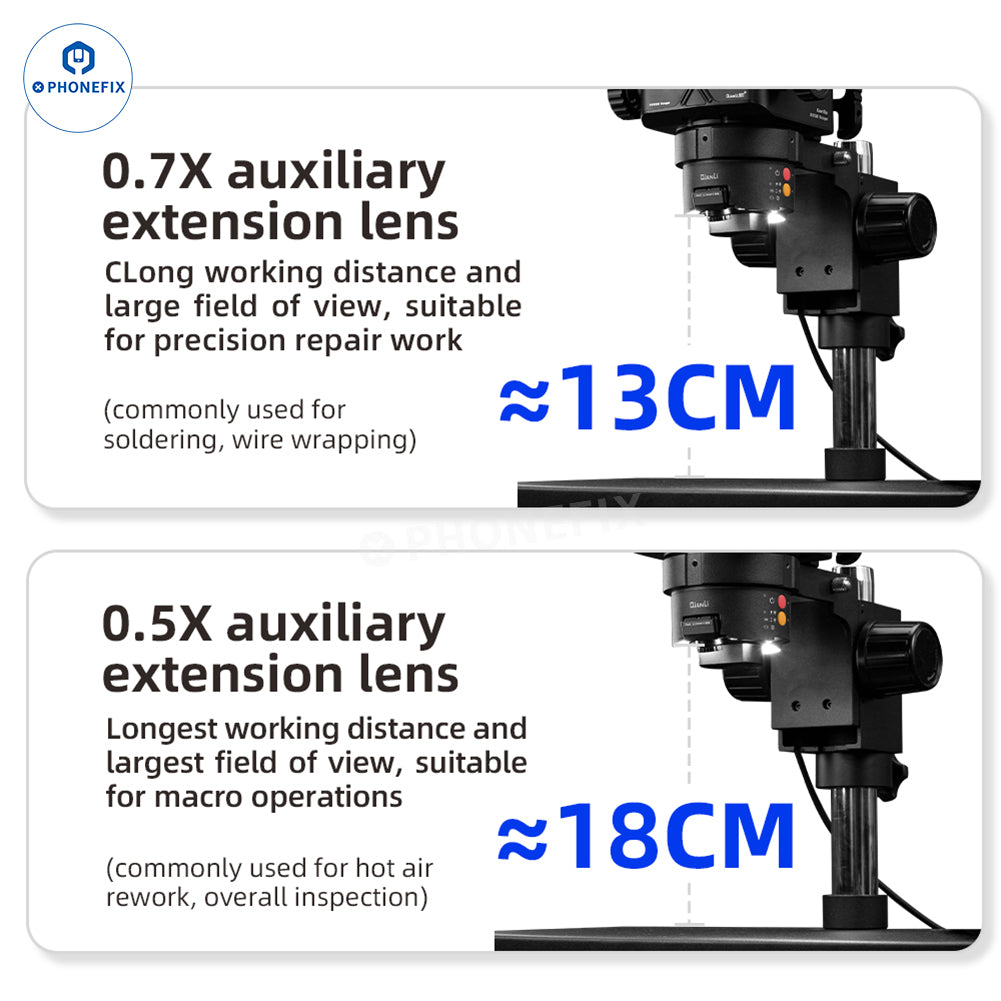

4. Larger Operating Space: The 0.5X teleconverter offers the longest working distance, ideal for macro operations; the 0.7X teleconverter provides a wider field of view, ideal for detailed repair work.
5. Addresses Operational Pain Points: Effectively addresses the issues of short working distance and limited access to the work area, making hands-on repairs more convenient.
Qianli Super Cam Ai Gorilla CMOS 4K Camera Performance Parameters:
Resolution:
· HDMI: 3840*2160@60FPS, 1920*1080@60FPS
· Type-C 3.1: 3840*2160@30FPS, 1920*1080@60FPS
Operation: Wireless mouse, buttons, PC software, Universal UVC port
Input Voltage: DC 12V/2A

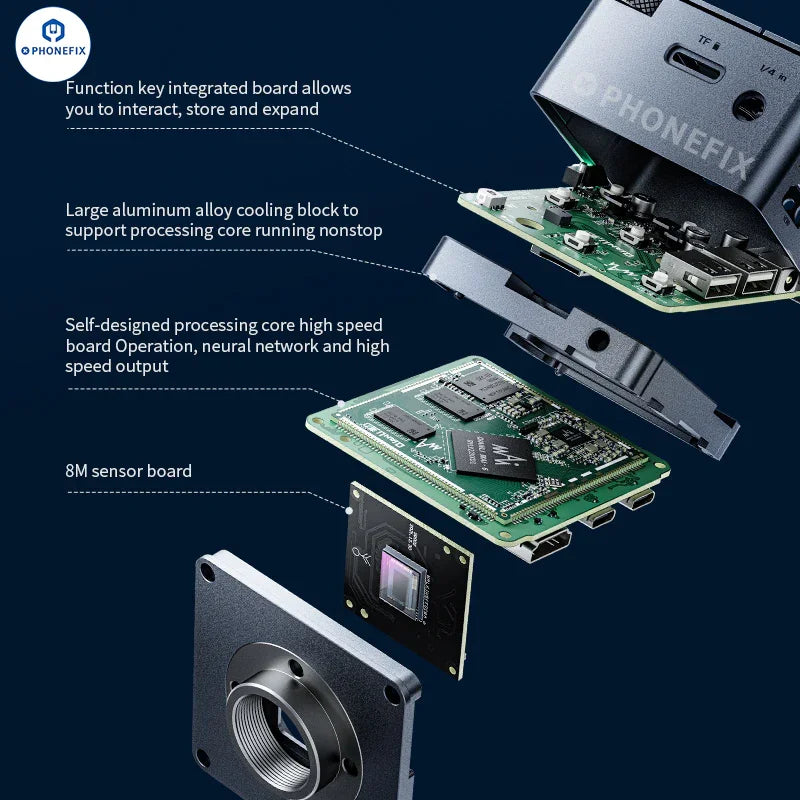

Hardware and Interfaces:
CMOS Sensor: Sony 1/1.8-inch 8-megapixel
Hardware Processor: 2GHz (CPU+GPU+NPU module) high-performance processor
Pixel Size: 2μmx2μm
Hardware Interfaces: USB 2.0 x2, Type-C 2.0 x1, Type-C 3.1 x1, HDMI 2.0 x1, DC 2.1 x1, TF Card x1
Expansion Ports: Cold Shoe x1, 1/4" Bracket x4, 3/8" Bracket x3, 3/8" with Arri Positioning Hole x1
Status Light: Flashes on power-up, Green
Lens Mount: CS, C-Mount
Storage/Upgrade Ports: TF Card/USB Drive/PC Software
Buttons: 6 Function Buttons, 1 Scroll Knob
Software:
White Balance: Auto, Manual
Exposure: Auto/Manual
Mirror Image: Horizontal/Flip
Menu Languages: Chinese/English/Spanish
(Default Chinese)
Photo/Video: Automatic and Manual Naming, Customizable Save Path
Image Controls: Optimal Brightness, Gain, Contrast, Saturation
Digital Zoom: Digitally Zoom in and out
Expansion App: Installable (to be developed, customized, or installed by different industries)
Upgrade: Automatically detects and updates upgrade files upon power-up
Super Cam Ai Gorilla CMOS 4K Camera Specifications:
Brand: Qianli
Name: Super Cam Ai Gorilla
Function: CMOS Camera
Color: Space Gray/Black with Sprinkles
Packaging Dimensions: 170 x 190 x 83mm
Product Dimensions: 70 x 70 x 46mm
Material: Aluminum Alloy
Gross Weight: 891g

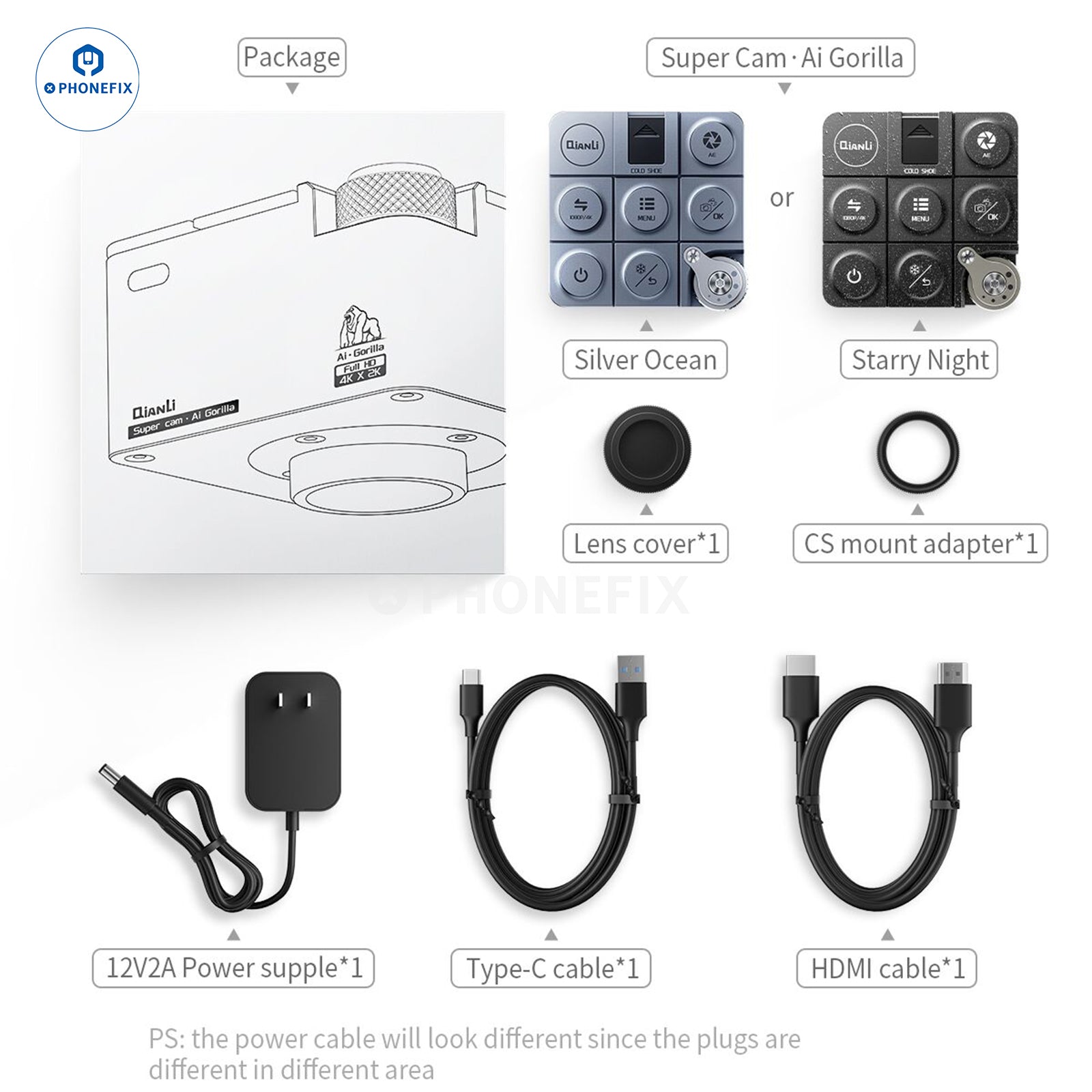

Qianli Gorilla 4K Camera Pakcage list:
1pcs Qianli Gorilla 4K Camera (black/gray).
1pcs Lens cover.
1pcs CS Mount adapter.
1pcs 12V 2A Power supply.
1pcs Type-C cable 2m.
1pcs HDMI cable2m.

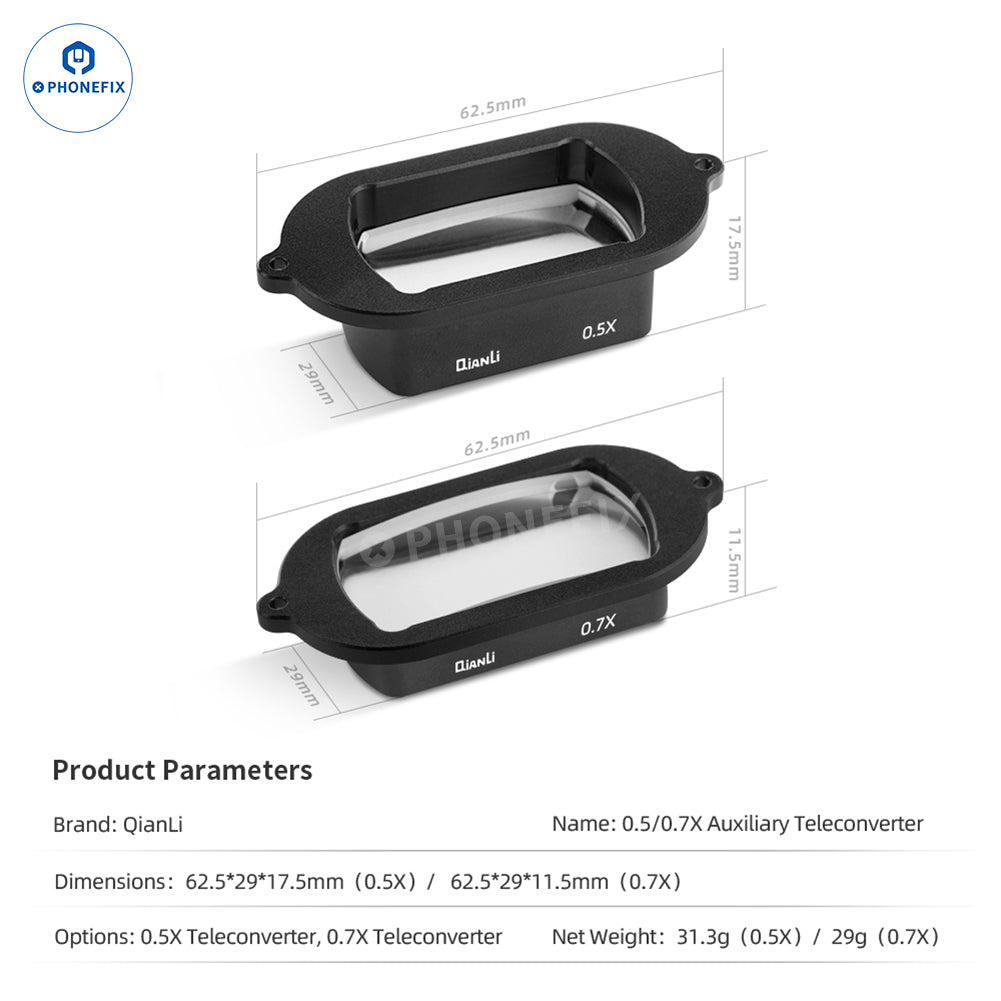

Qianli 0.5X/0.7X Auxlliary Teleconverter Product Specifications:
Brand: Qianli
Name: 0.5/0.7X Auxiliary Teleconverter
Dimensions:
· 62.5 x 29 x 17.5mm (0.5X)
· 62.5 x 29 x 11.5mm (0.7X)
Optional: 0.5X Teleconverter, 0.7X Teleconverter
Net Weight: 31.3g (0.5X) / 29g (0.7X)
