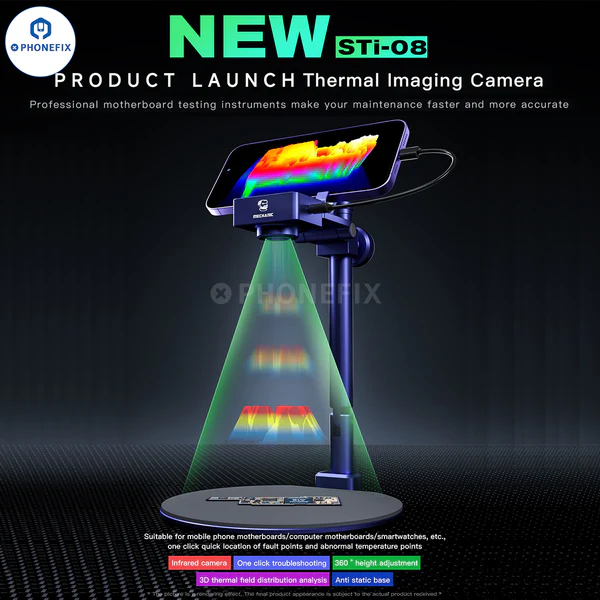

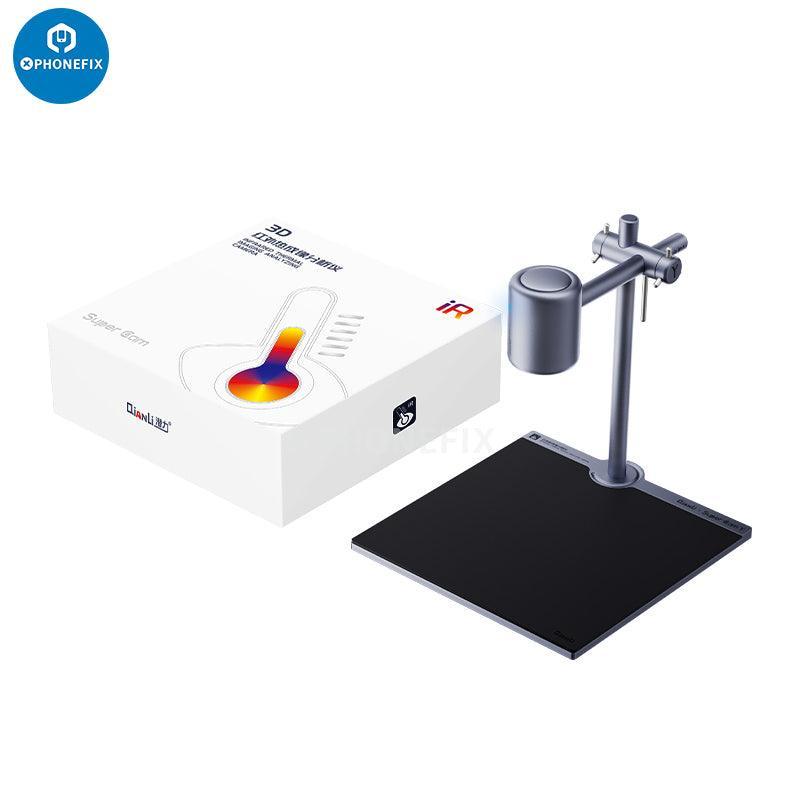

QIANLI TOOLPLUS SUPERCAM X 3D THERMAL IMAGER CAMERA. 2023 Qianli Super Cam Y 3D Infrared Thermal Imaging Analyzing Camera. Qianli Super Cam 3D thermal camera PCB Motherboard fault diagnosis tool. Mechanic 3D TI-08 Thermal Imager Camera
SUPER CAM X 3D THERMAL IMAGER CAMERA Motherboard detection:

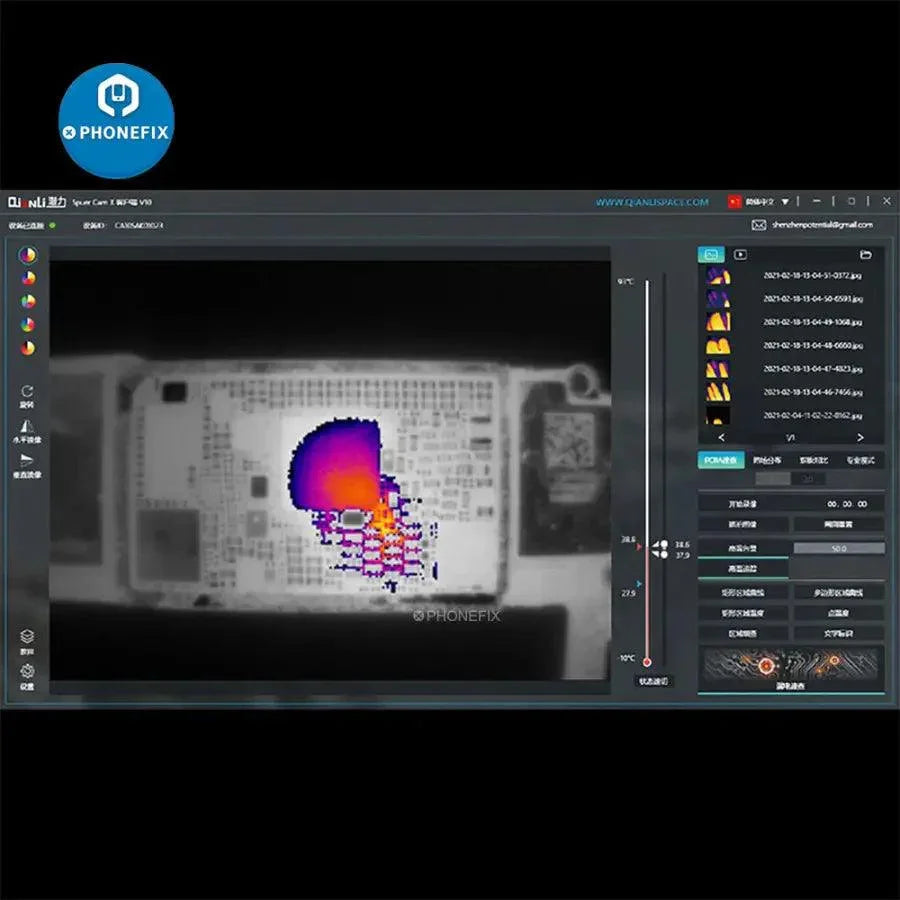

1. Use QIANLI one-button power cord to supply power to the motherboard, adjust the display mode to thermal imaging mode, and enable the software quick check function to detect faulty parts.
2. Optional network cable to USB interface adapter
3. It can be connected to the computer USB interface through the adapter, which is more convenient to use and avoids the network cable interface being occupied.

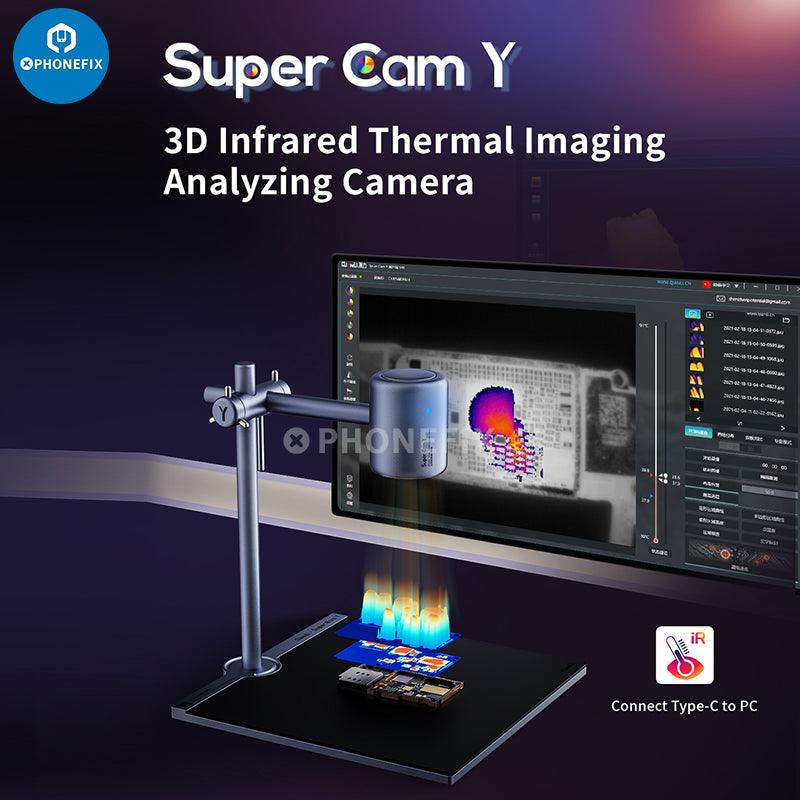

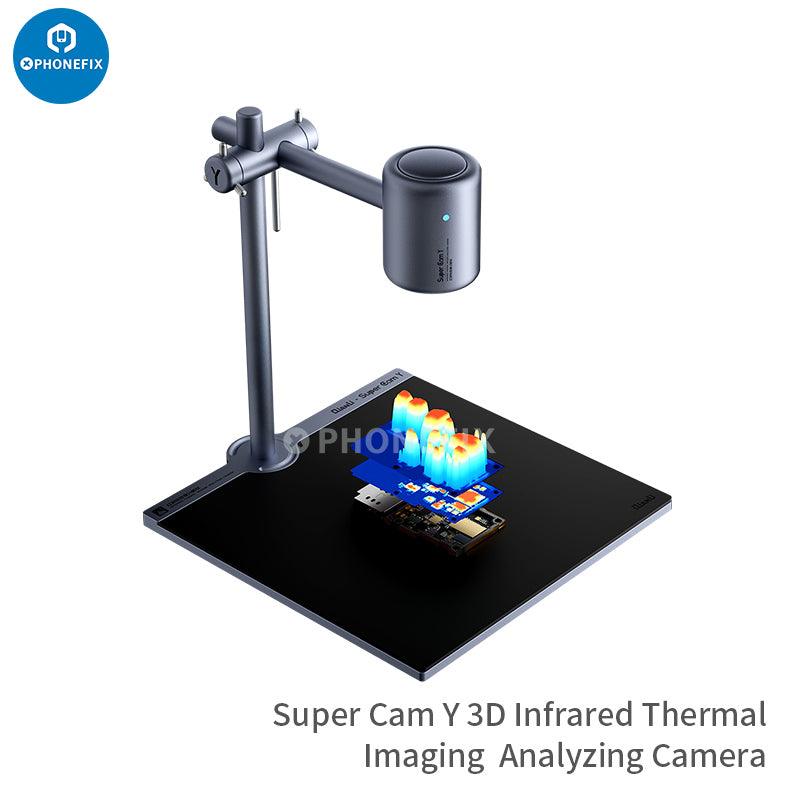

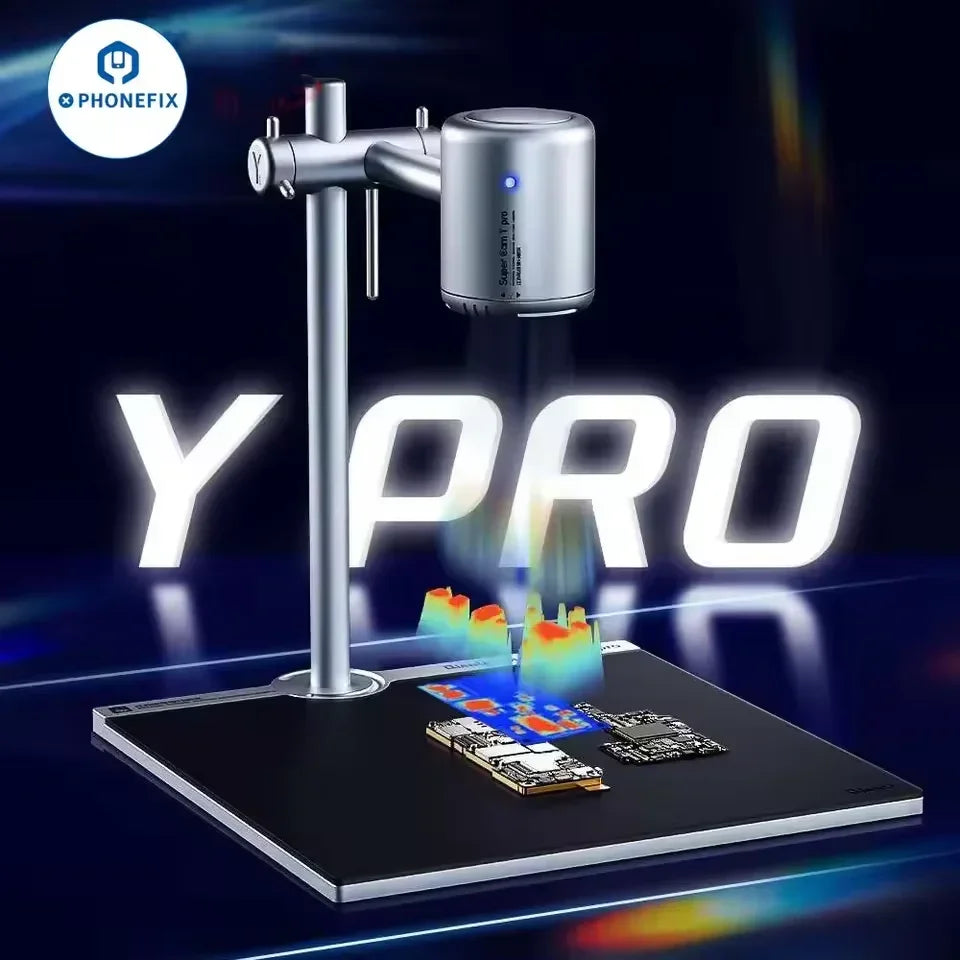

Qianli Super Cam Y 3D thermal camera features:
1. One-click quick check motherboard electricity leakage, quickly locate the abnormal part.
2. Capture and video.
3. Anti-static silicone.

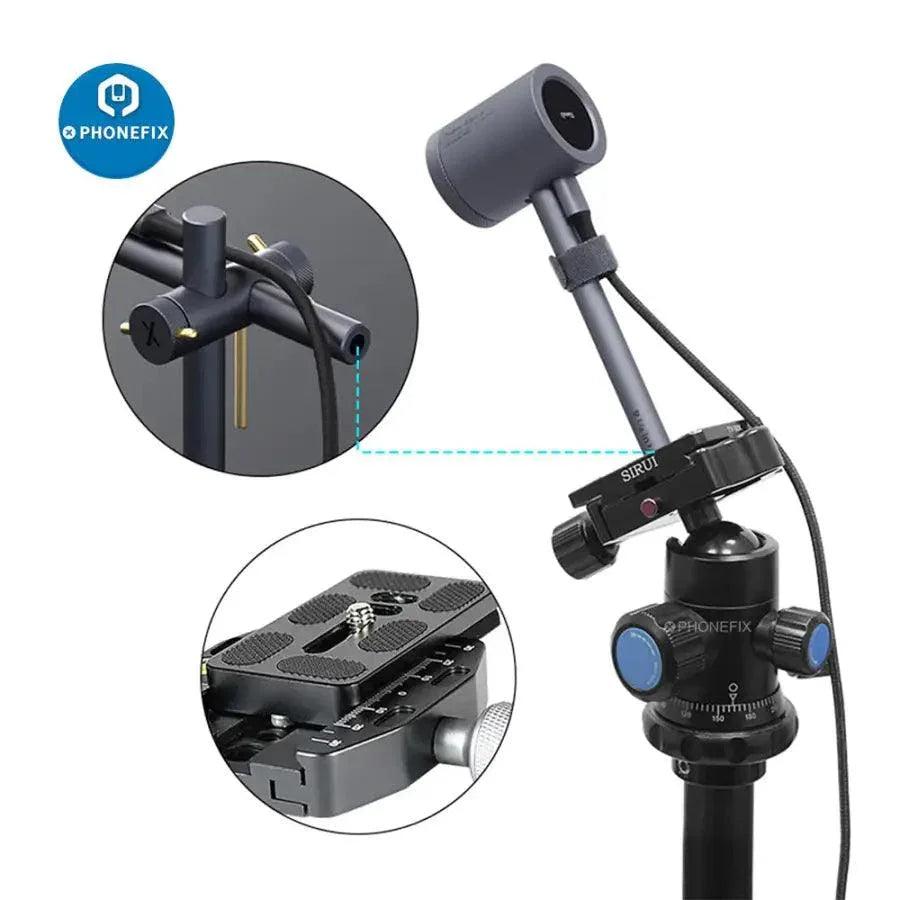

4. Reserve the camera screw holes.
5. High temperature alarm tracking.
6. Type-C connected to the PC.

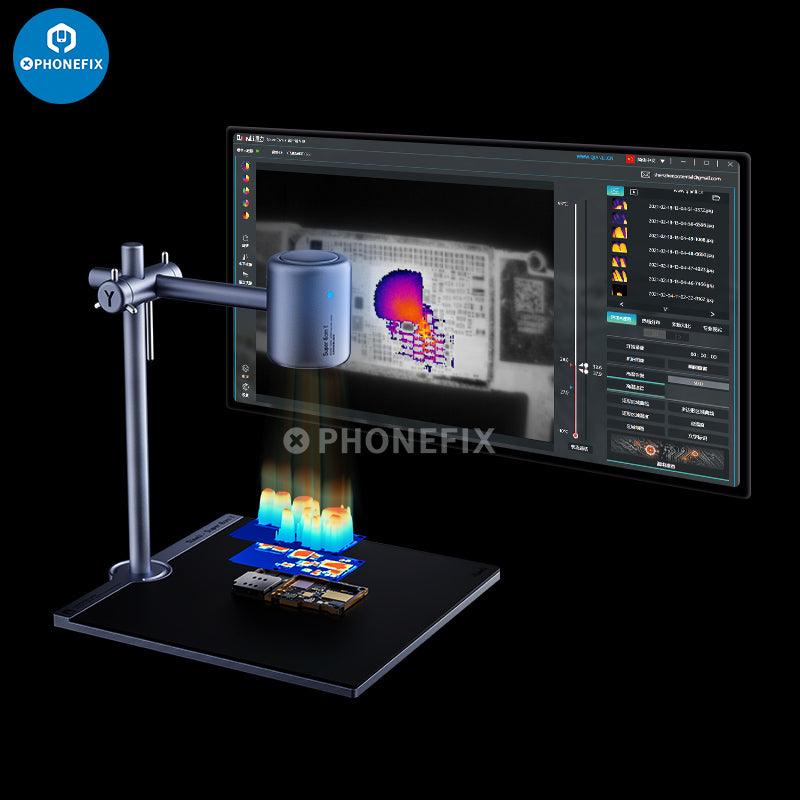

7. 3D/2D thermal field distribution analysis.
8. Regional temperature curve recording.
9. Adjusted lens for motherboard inspection and maintenance.
10. 256x192 resolution, 80-180mm range focal length.
11. Multiple color display modes.

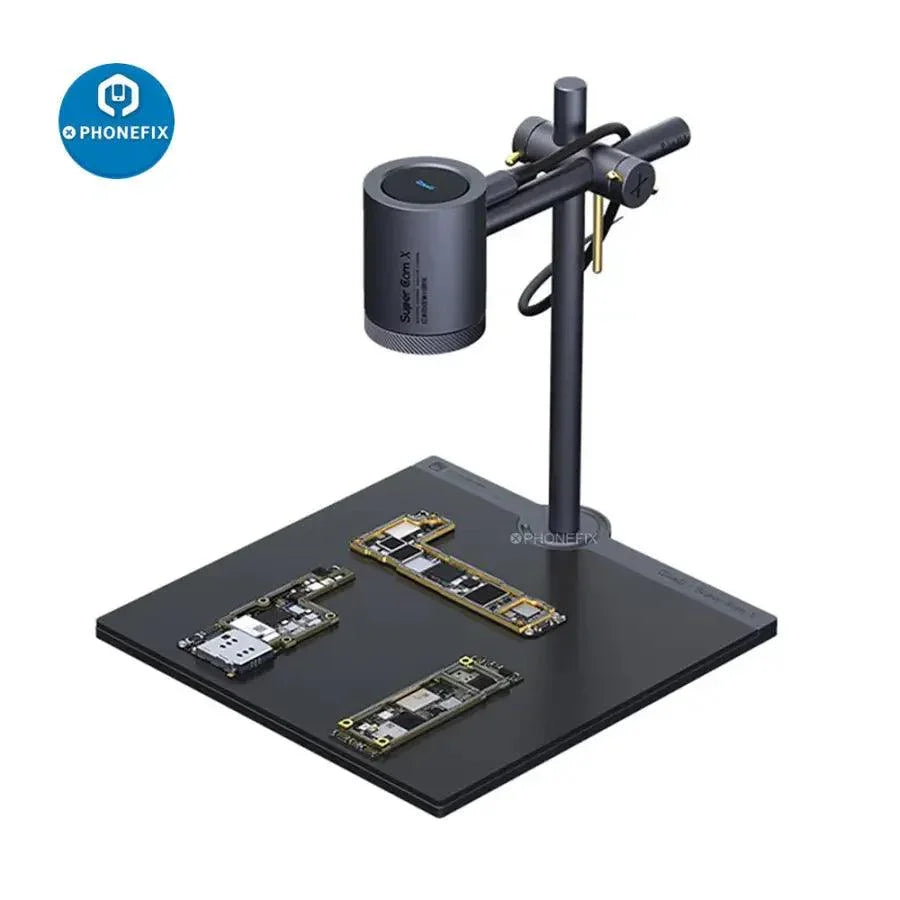

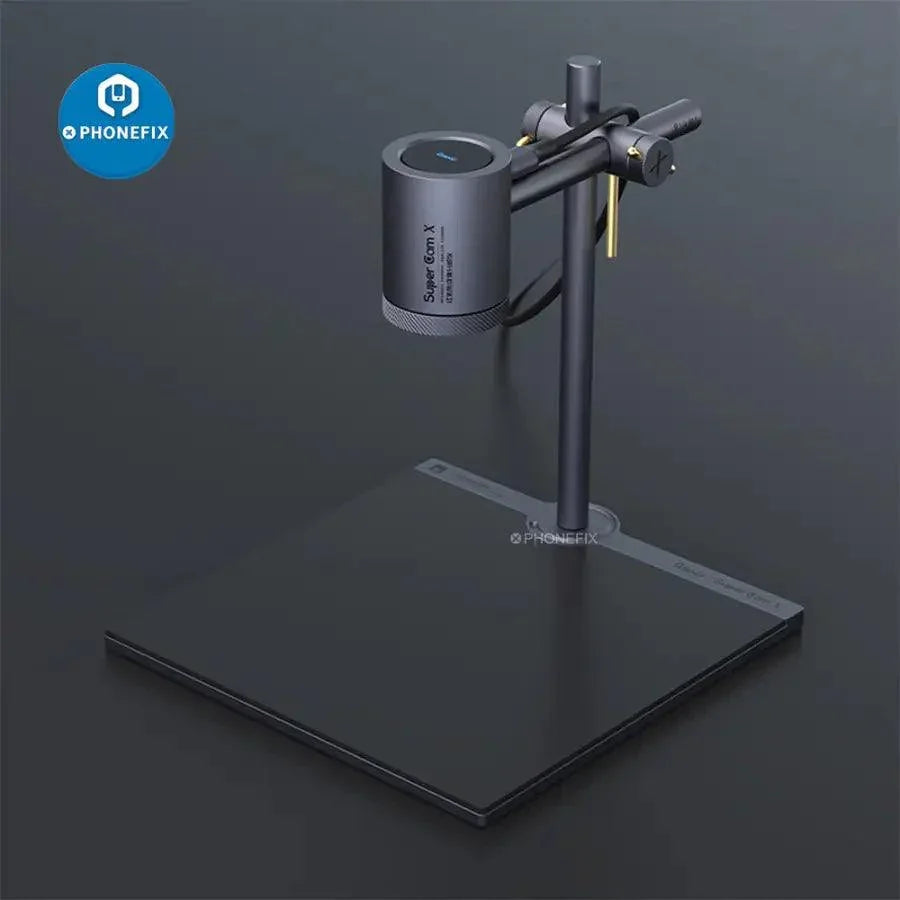

Qianli Super Cam X 3D thermal camera Feature:
1. Maximum temperature range
2. Test area maximum temperature
3. Test area minimum temperature
4. Minimum temperature range
5. Can adjust the angle of the visible light camera
6. Adjustable fusion of infrared thermal imaging and visible light image is clearer image
7. Switchable display mode
8. You can capture pictures taken by PCB and save the data of infrared imaging.
9 can record images taken by PCB and save data of infrared thermography
10. Turn on quick check to quickly find the hottest place
Super Cam Y 3D thermal camera Parameter:
Detector type: uncooled vanadium oxide detector.
Resolution: 256x192.
Wavelength range: 8-14um.
Camera angle: 56-42 degree.
Frame frequency: 25hz.

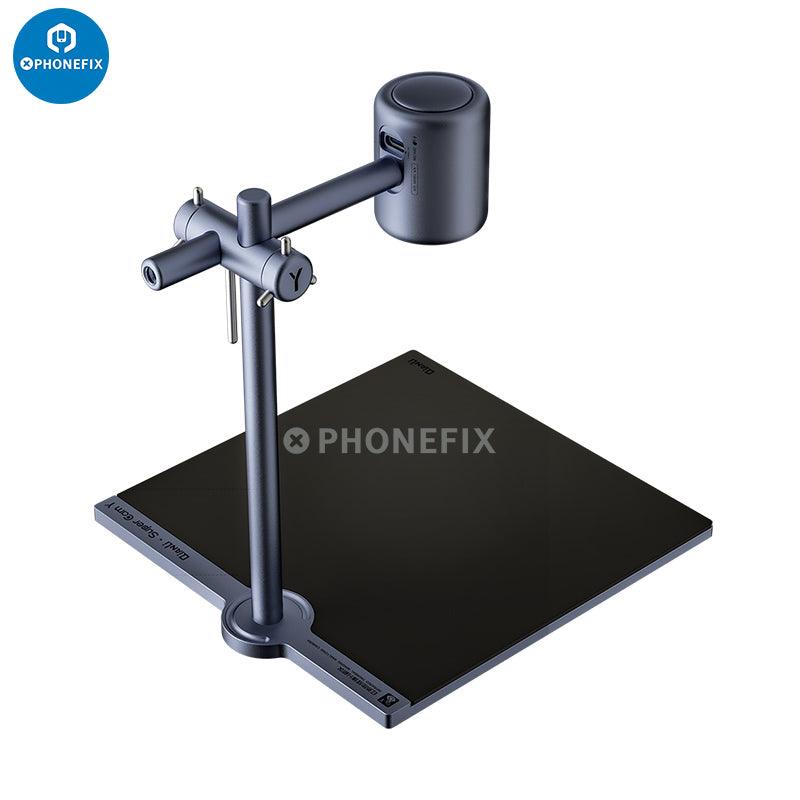

Bracket size: 150x160x161.5mm.
Weight: 435g.
Instally: removable installation.
Input voltage: 5V DC.
Power consumption: <250mw.
Display mode: infrared thermal imaging.
Port type: Type-C.
Image storage format: JPG(640X480).
Video storage format: MP4.
Temperature measurement function: full frame temperature measurement.
Temperature measurement distance: 80-180mm.
Temperature measurement accuracy: ±5℃ or ±5%.
Temperature range: 0℃-120℃.
Storage temperature range: -15℃ - +60℃.
Humidity: Relative temperature.
