QianLi TH800 Adaptive Laminating Machine For Curved Flat Screen

Qianli TH800 iWhole Series TH800 Adaptive Laminating Machine for 10.4-inch Curved And Flat Screen. Qianli TH800 intelligent airbag style screen laminating machine for mobile phone display screen lamination heating repair.

Features:

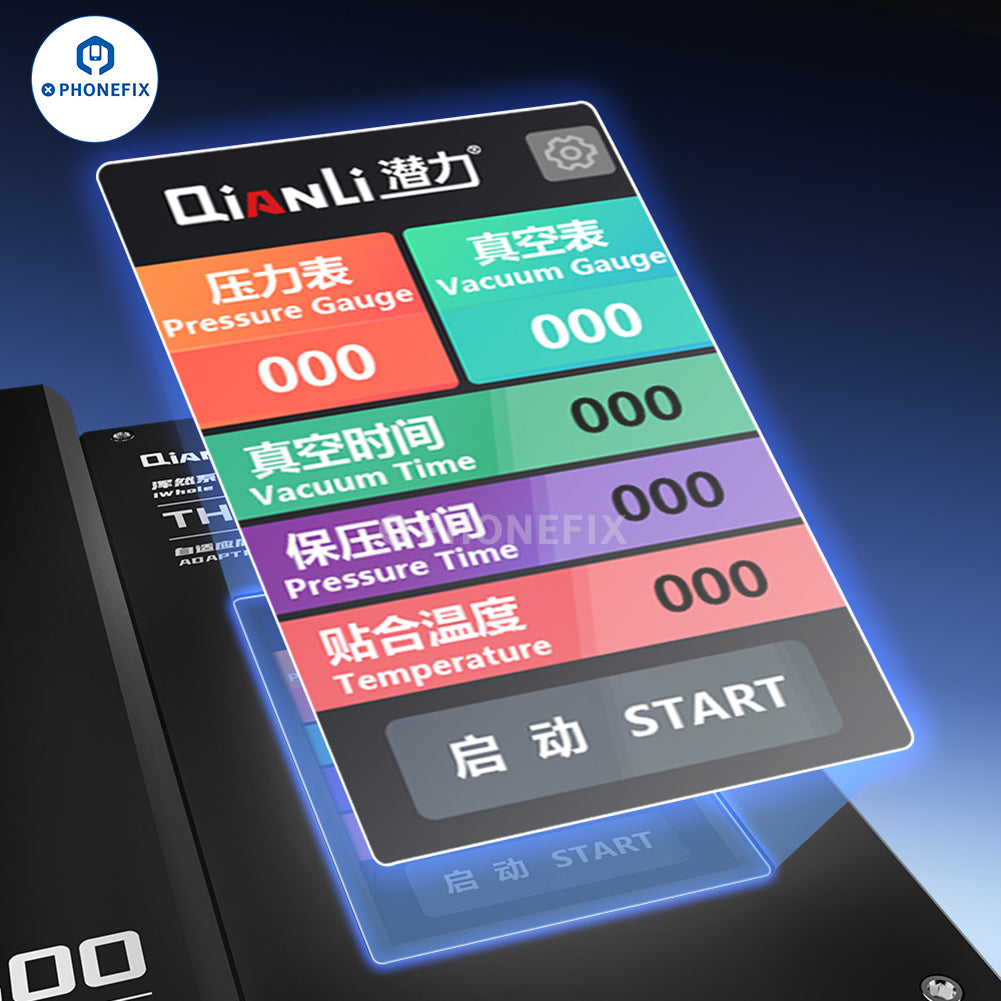

1. Intelligent touch screen to set all the parameters, including vacuum time, pressure time, and laminating temperature.
2. Groundbreaking lid heating, intelligent touch screen, one-button start.

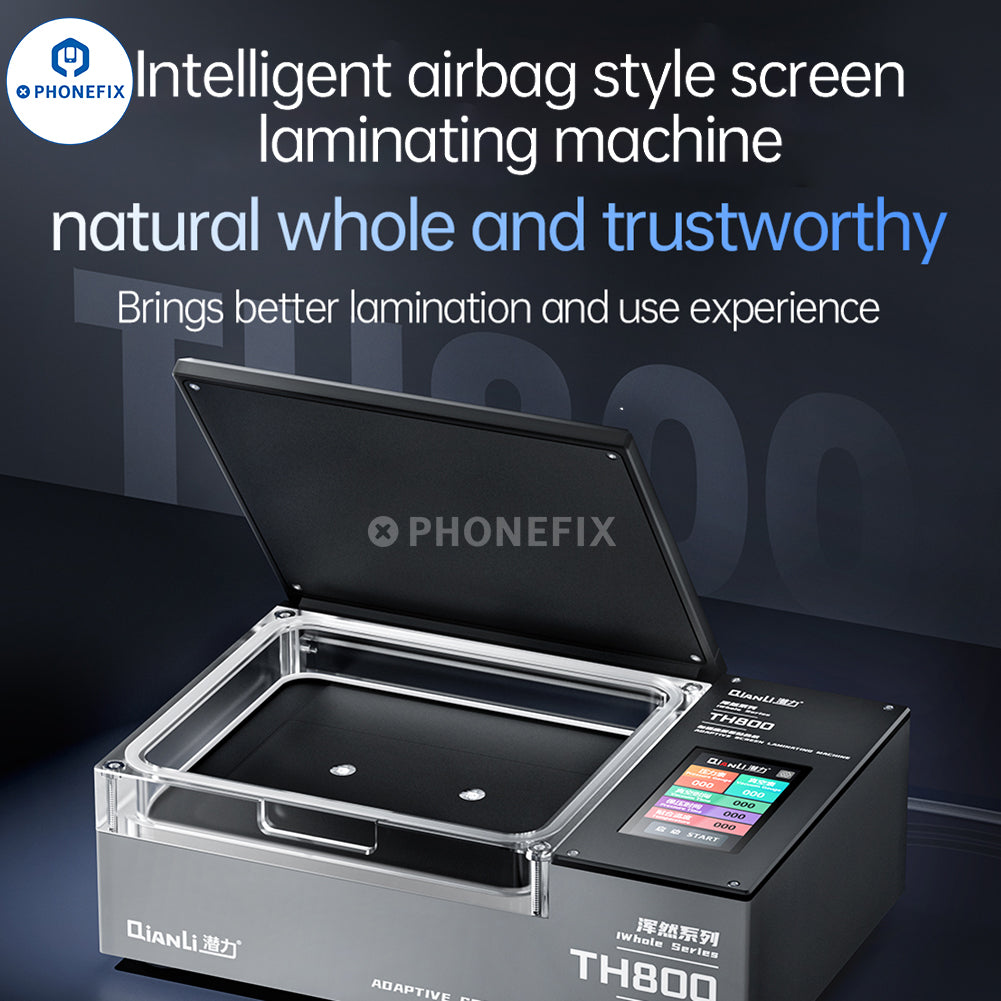

3. Intelligent airbag style screen laminating machine, natural whole and trustworthy.

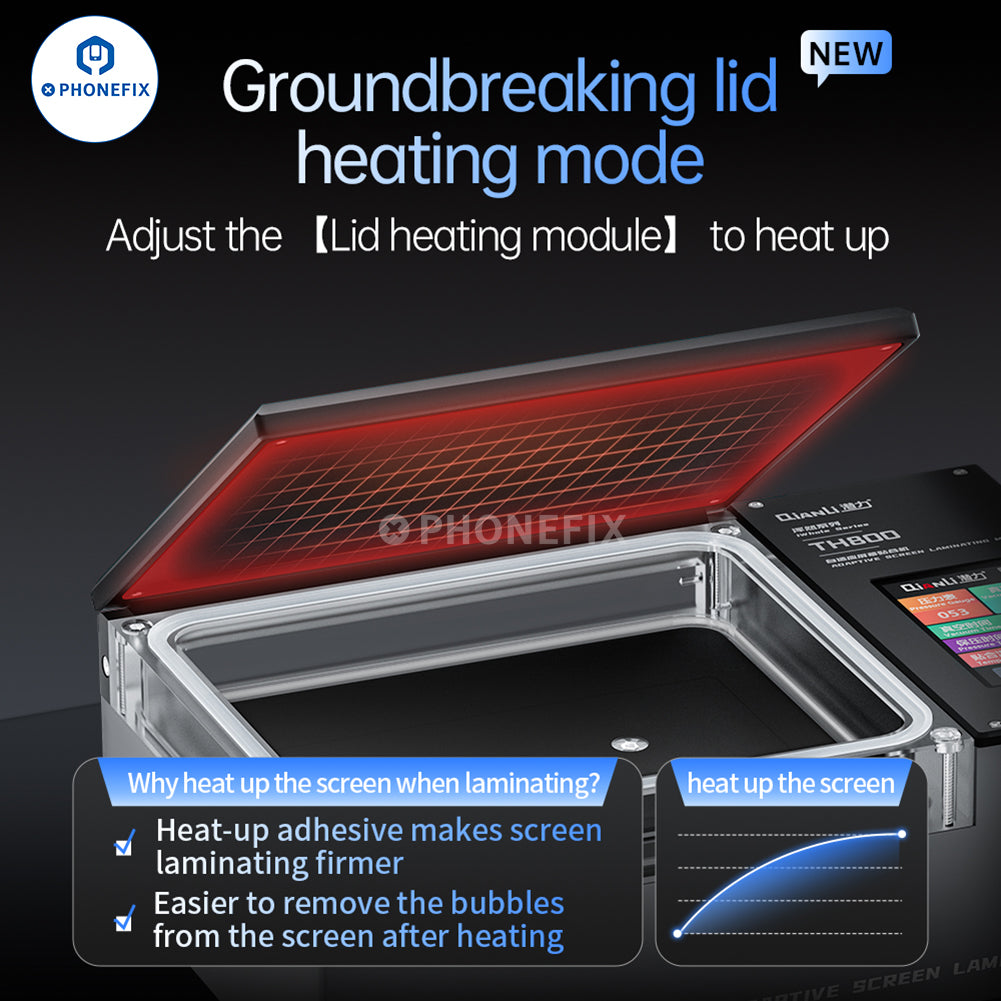

4. NEW Groundbreaking lid heating mode adjusts the Lid heating module to heat up.

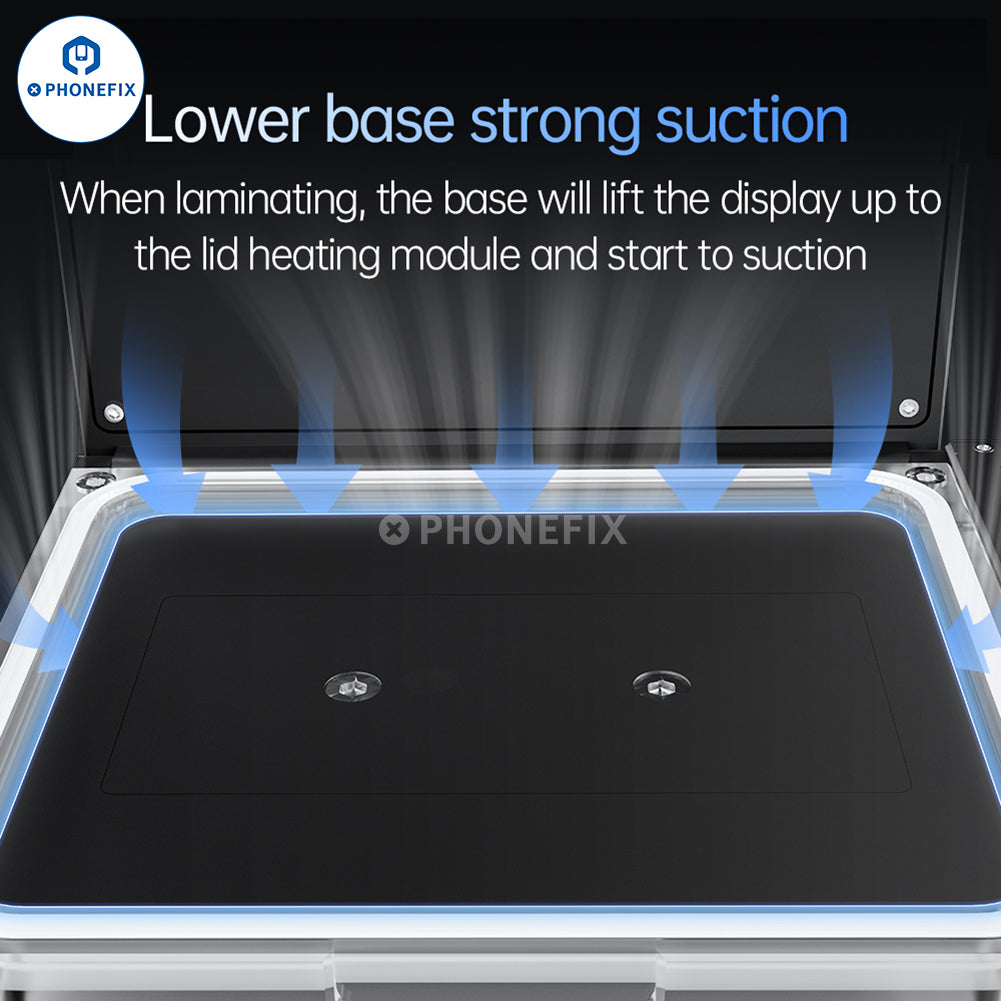

5. Lower base strong suction, when laminating, the base will lift the display up to the lid heating module and start to suction.

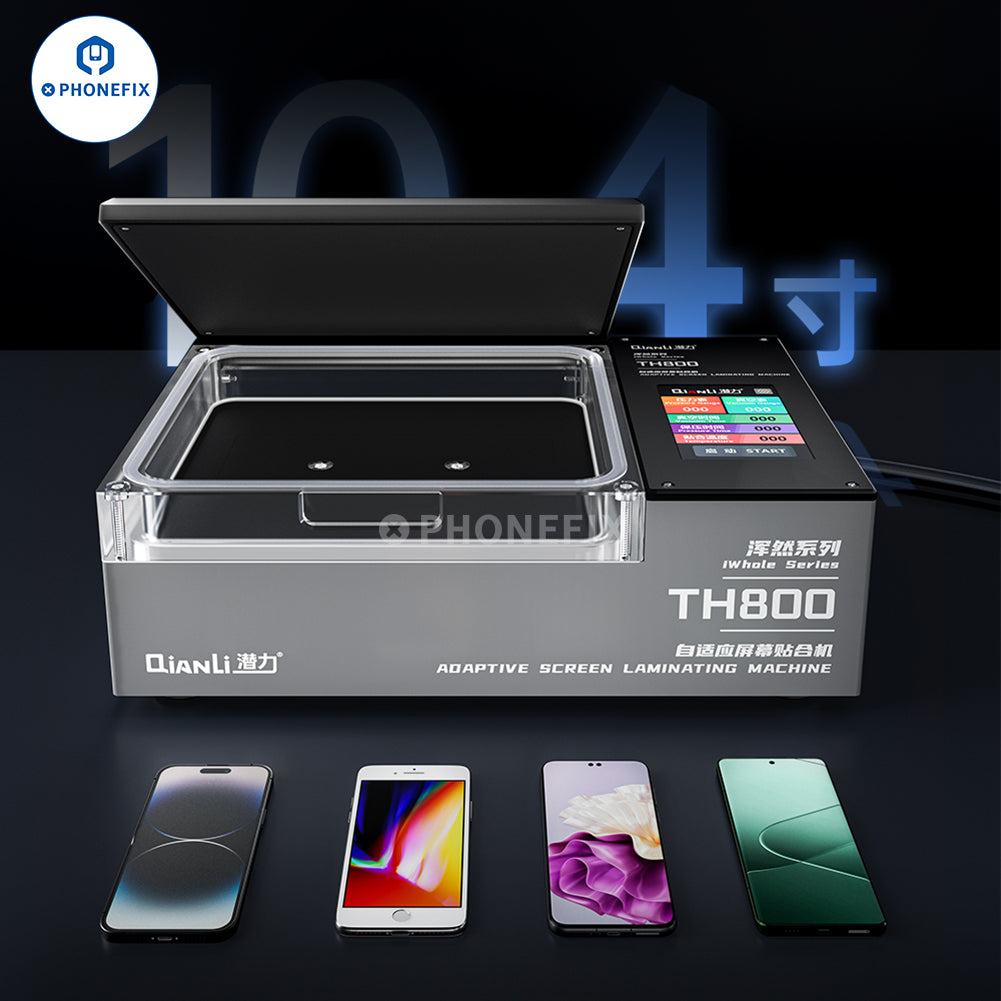

6. 10.4 inch laminating room universal for curved and straight screens.

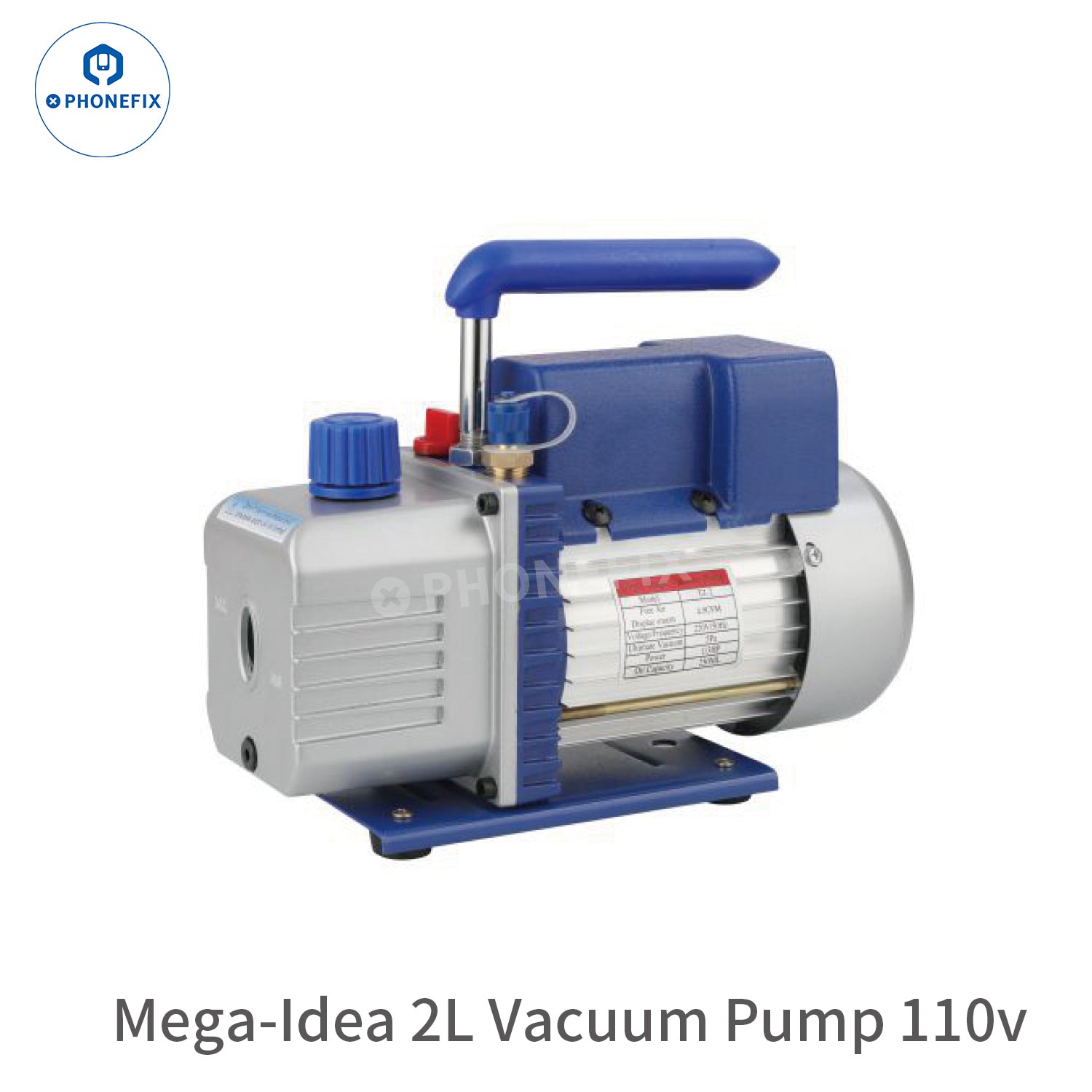

7. Please note: An external vacuum pump is required.

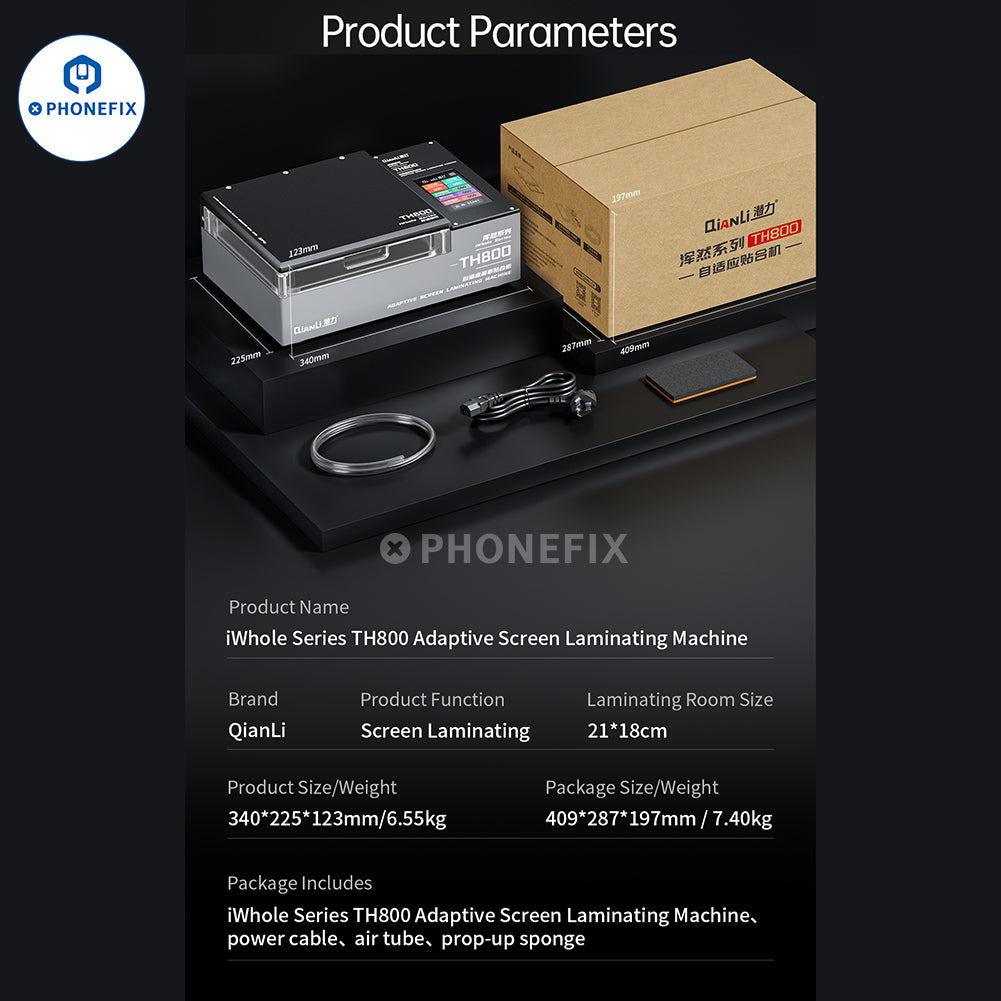

Product Parameter:

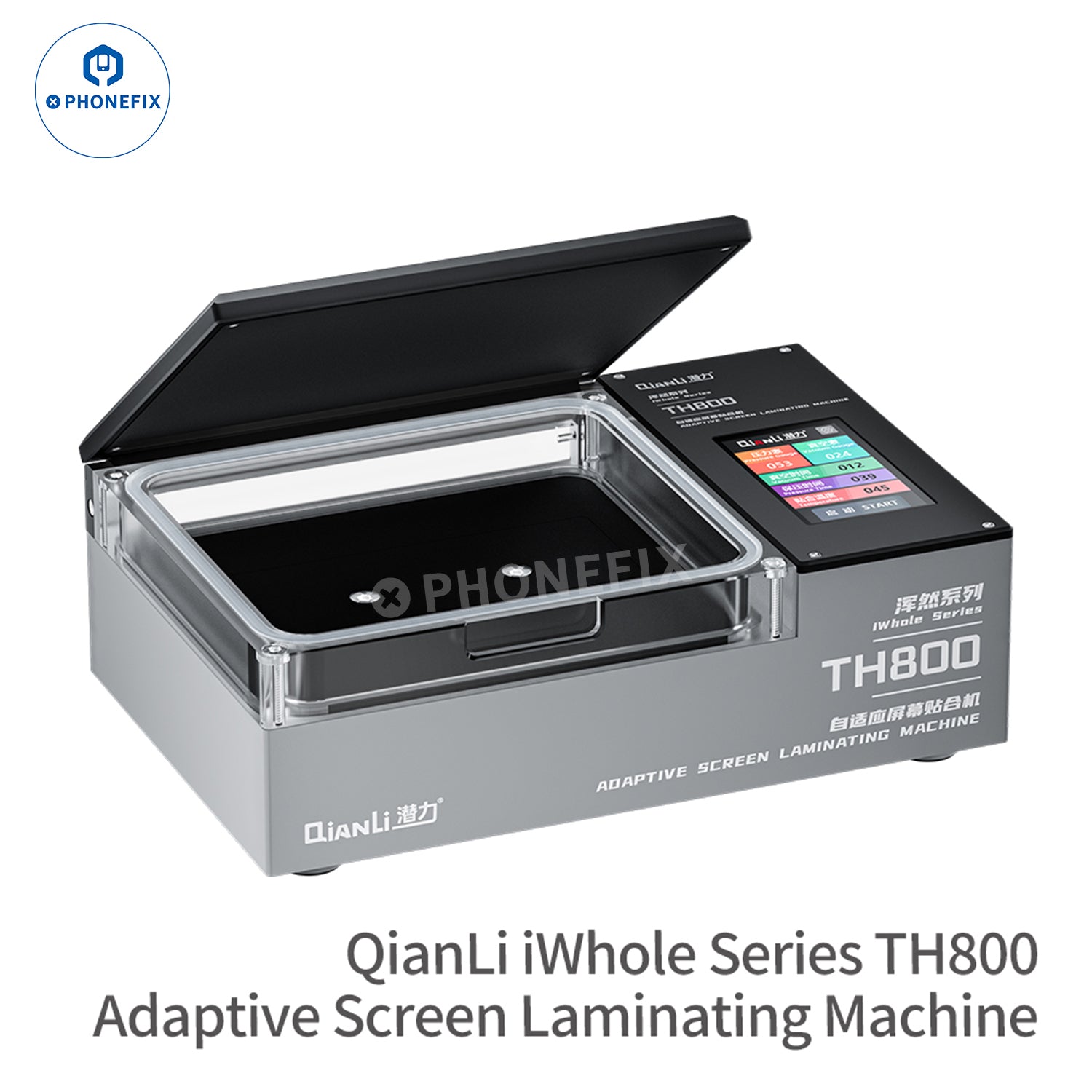

Product Name: QianLi iWhole Series TH800 Adaptive Screen Laminating Machine.
Product Function: Screen Laminating.
Laminating Room Size: 21*18cm
Product Size/Weight: 340*225*123mm/6.55kg
Package Size/Weight: 409*287*197mm/7.40kg
Package Includes:

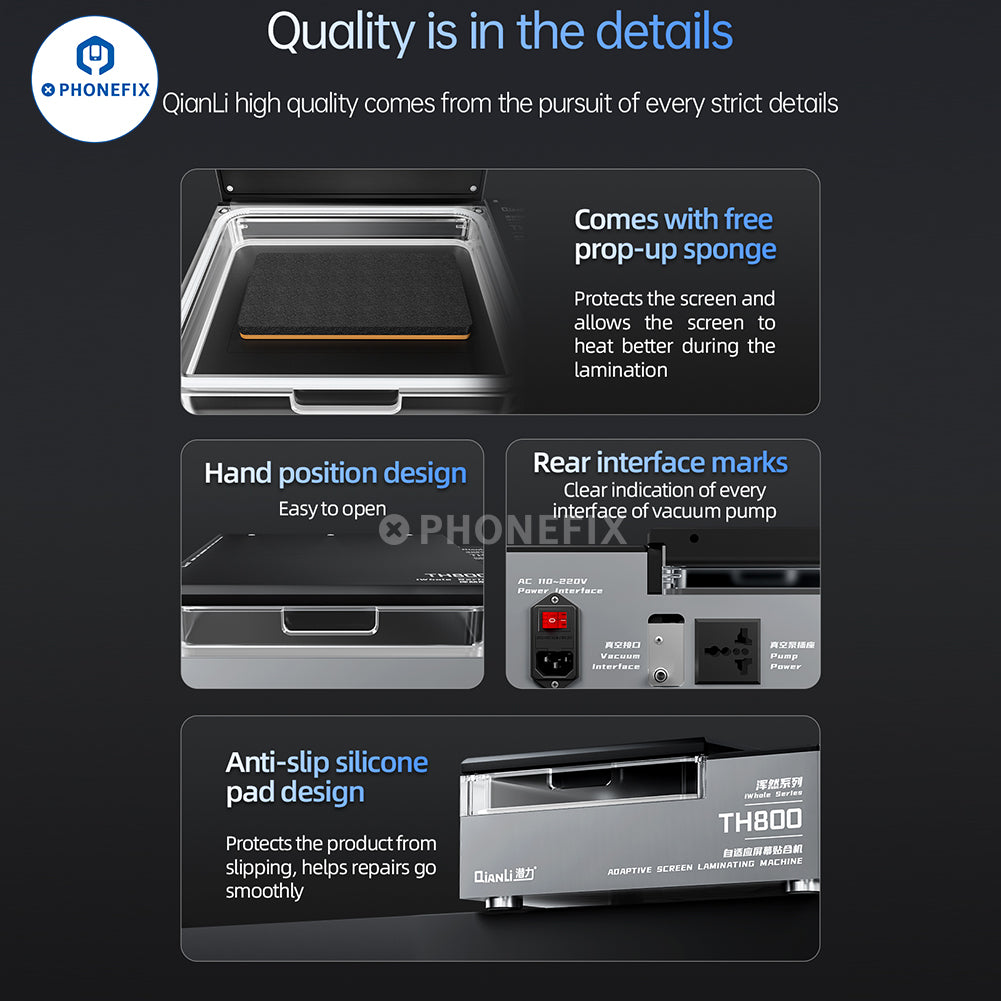

iWhole Series TH800 Adaptive Screen Laminating Machine, power cable, air tube, and prop-up sponge.

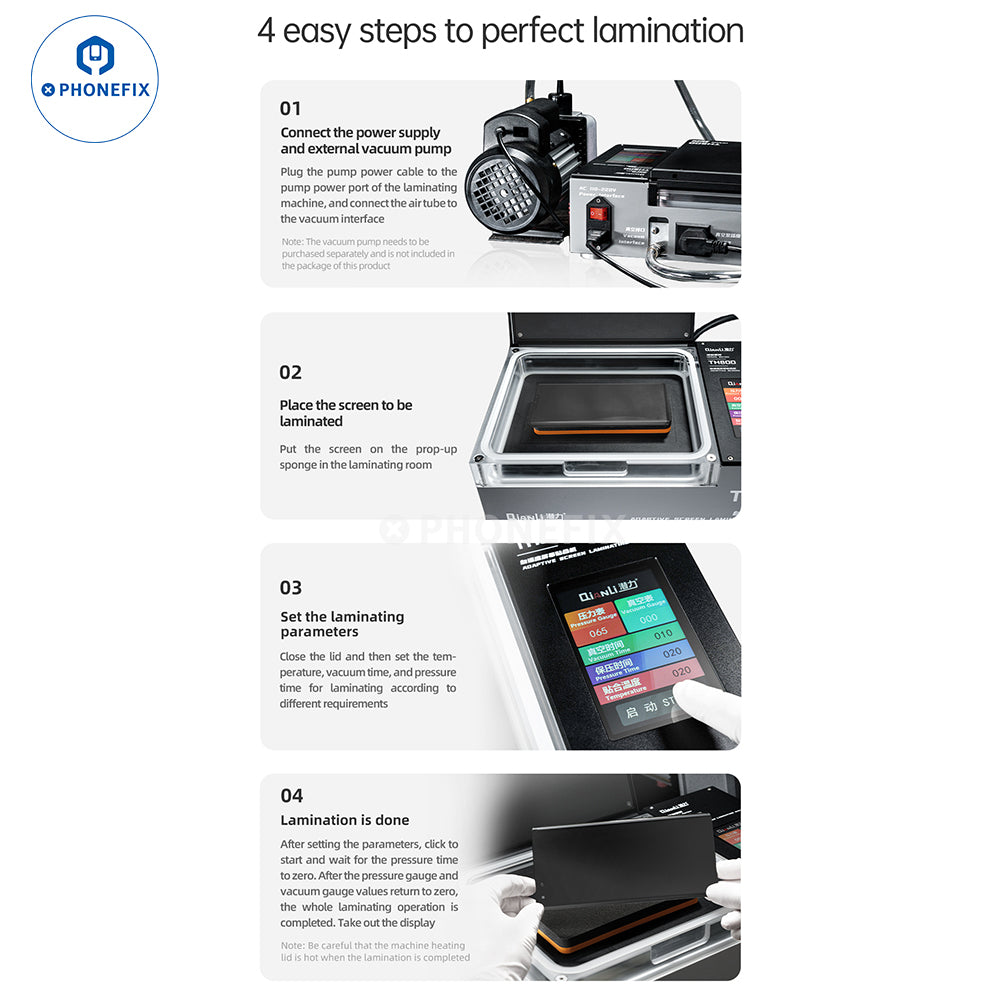

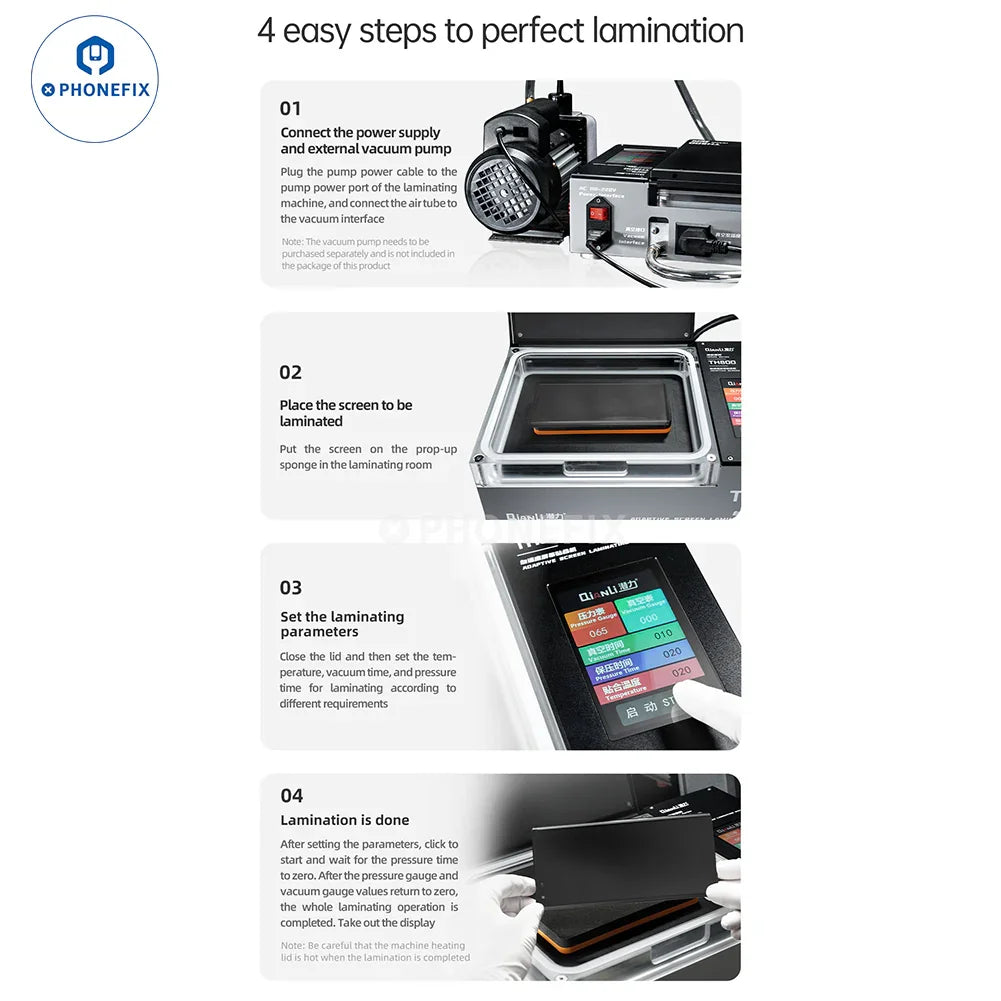

Instructions:
1. Plug the pump power cable to the pump power port of the laminating machine, and connect the air tube to the vacuum interface.
Note: The vacuum pump needs to be purchased separately and is not included in
the package of this product.

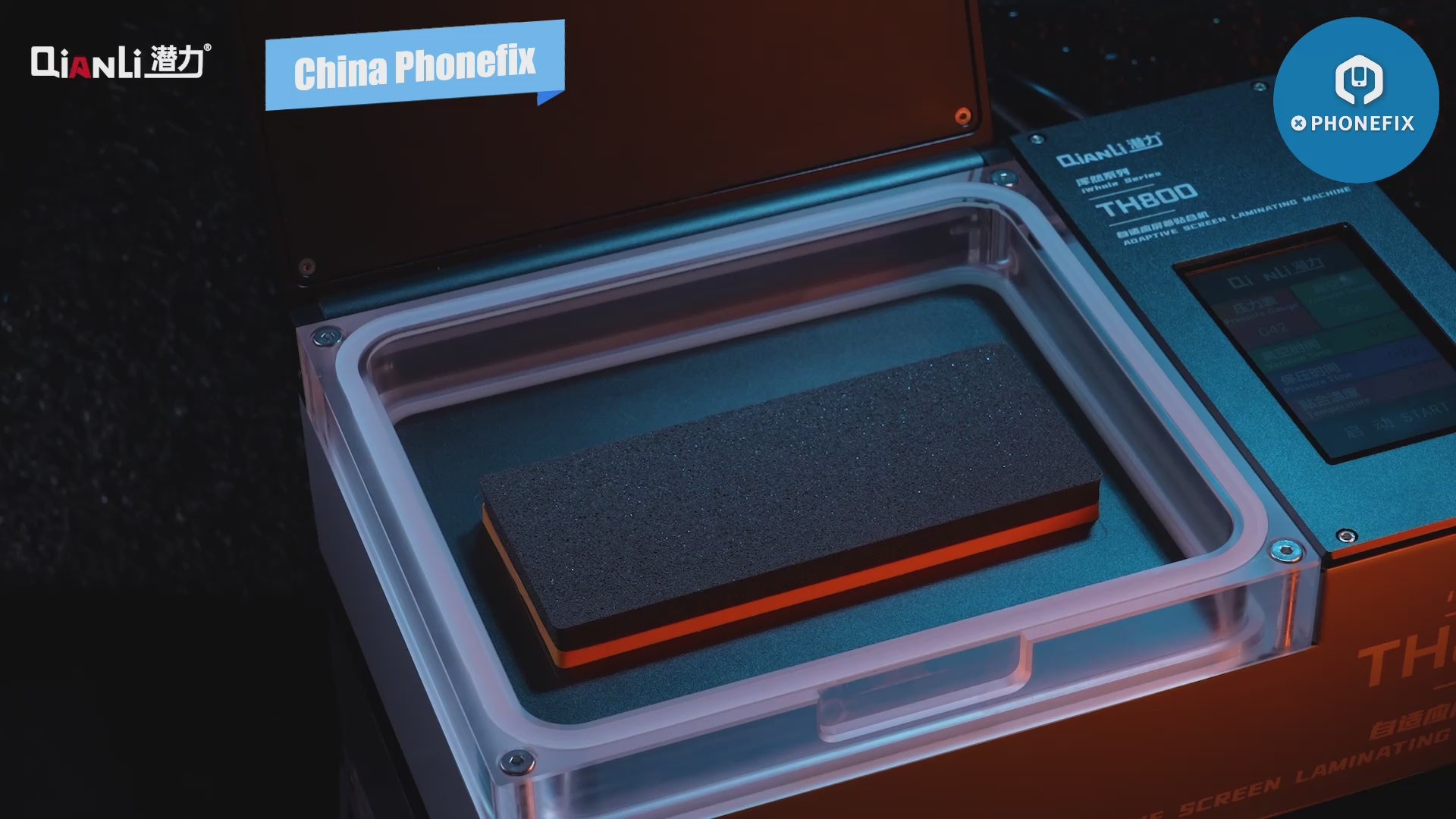

2. Place the screen to be laminated. Put the screen on the prop-up sponge in the laminating room.

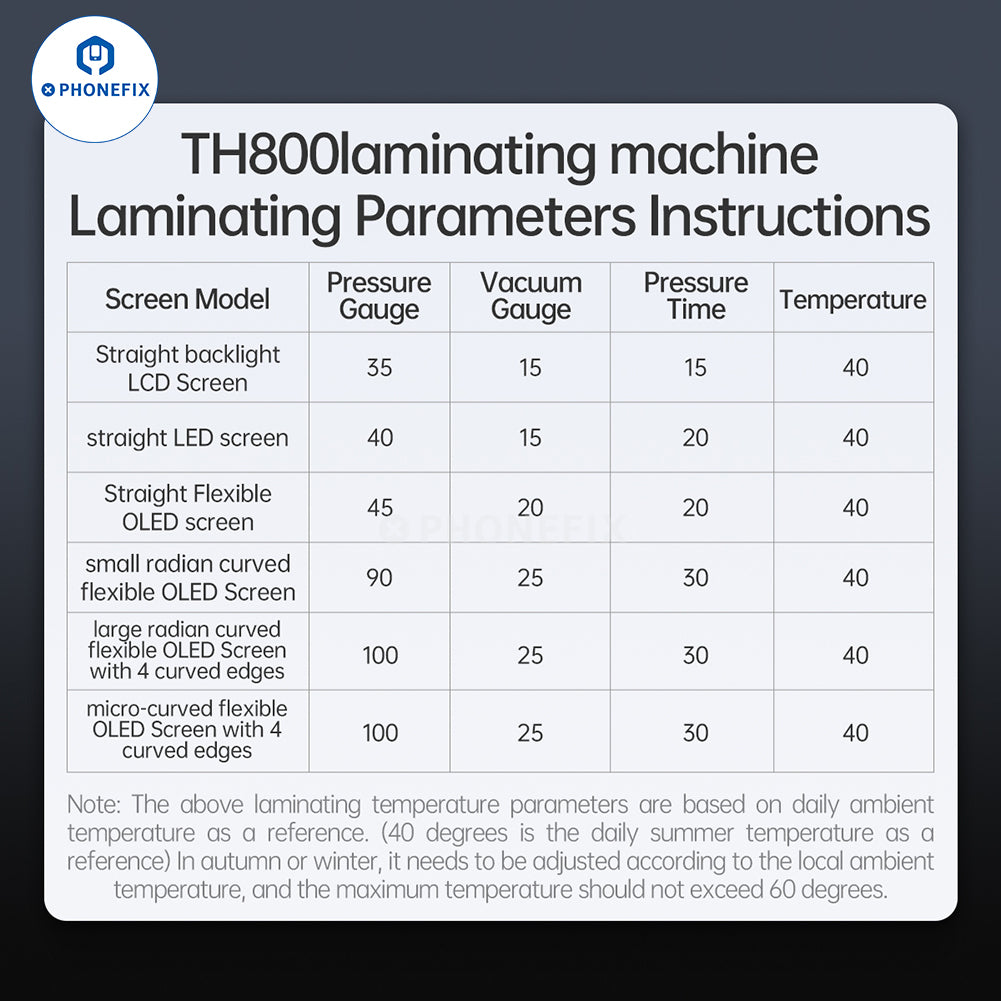

3. Set the laminating parameters. Close the lid and then set the tem-perature,vacuum time, and pressure time for laminating according to different requirements.
4. Lamination is done. After setting the parameters,click to start and wait for the pressure time to zero. After the pressure gauge and vacuum gauge values return to zero, the whole laminating operation is completed. Take out the display.
Note: Be careful that the machine heating lid is hot when the lamination is completed.
