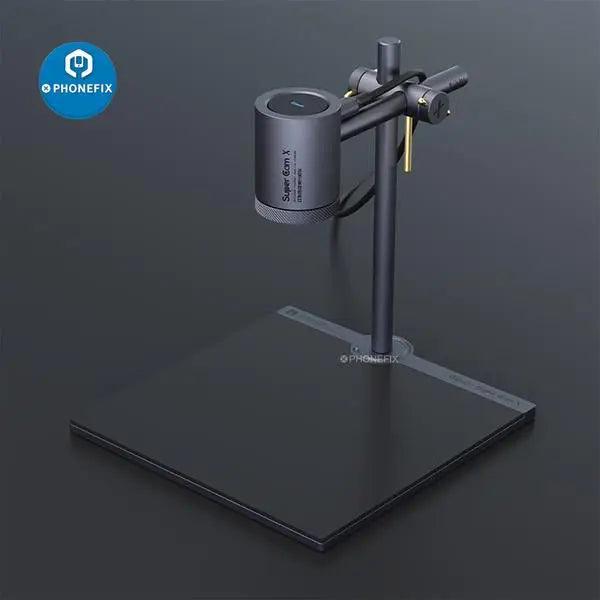

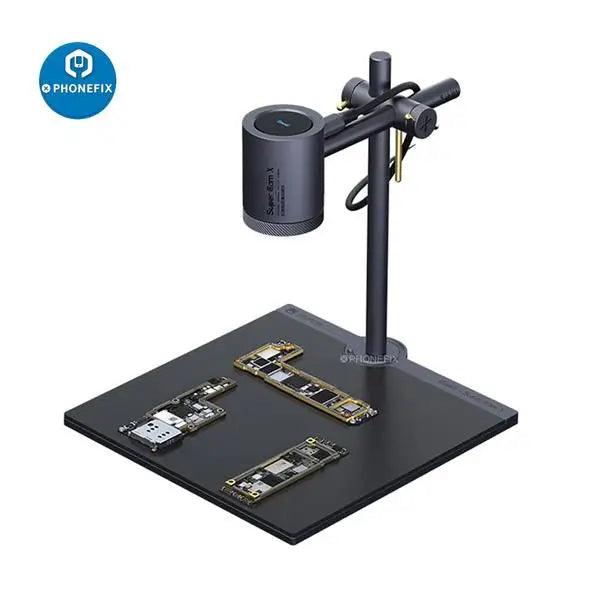

Qianli SuperCam X 3D Thermal Camera Available In 384 And 256 resolutions For PCB Motherboard CPU Chips Components Short Circuit Fault Diagnosis. Upgraded Qianli ToolPlus SuperCam X 3D Thermal Imaging Camera Mobile Phone Logic Board IC Fault Detection Tool.
Use QIANLI one-button power cord to supply power to the motherboard, adjust the display mode to thermal imaging mode, and enable the software quick check function to detect faulty parts.

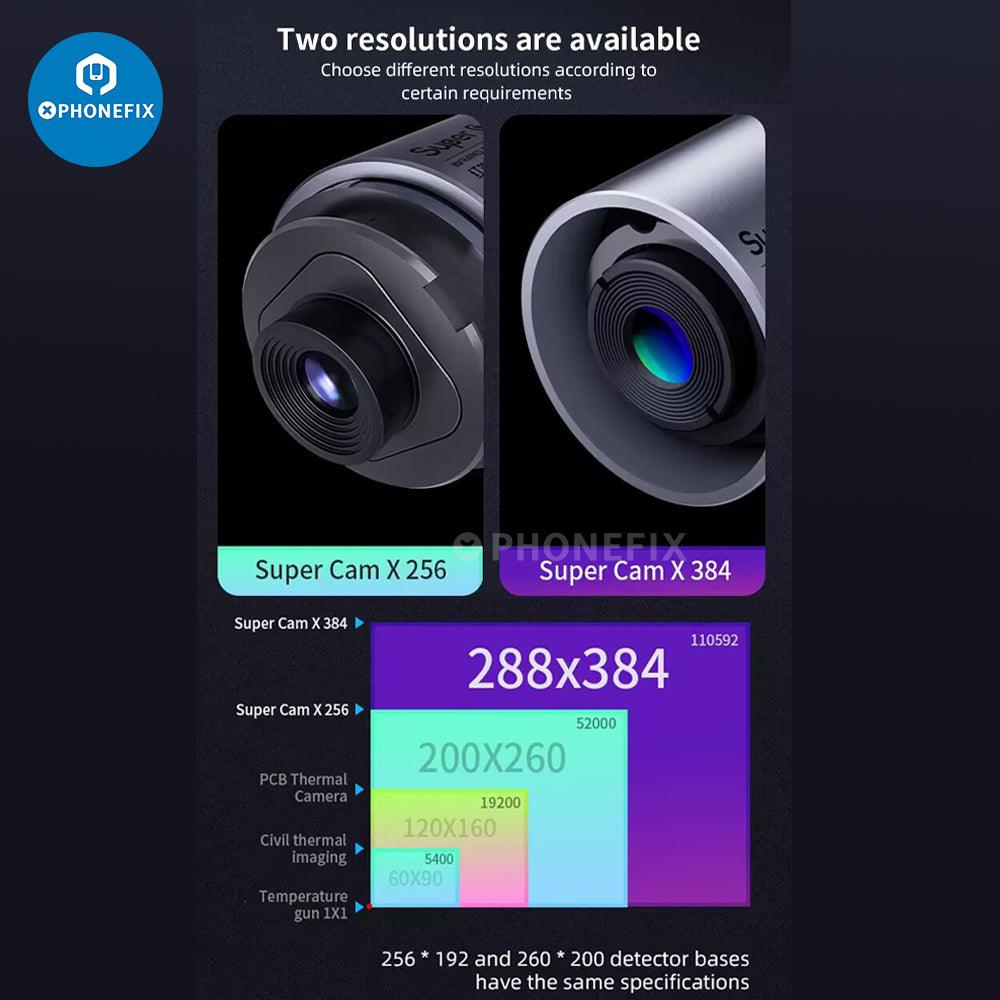

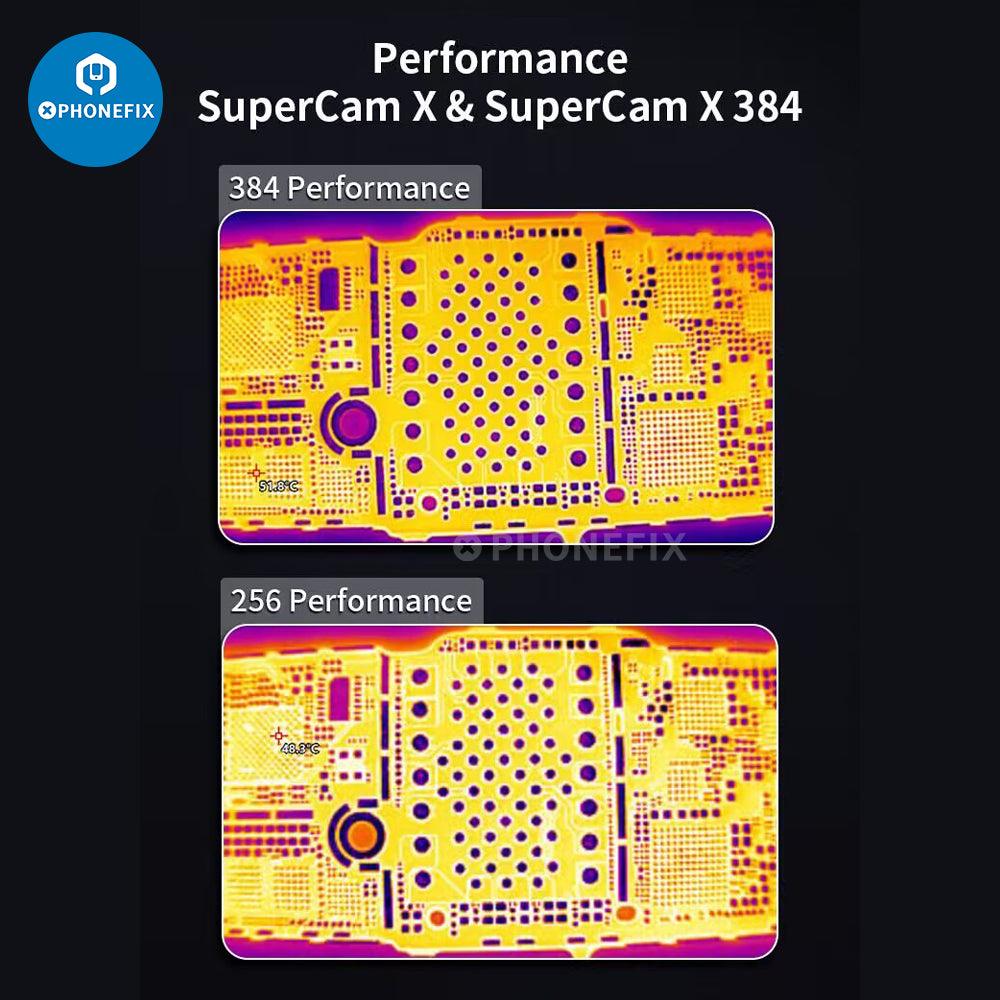

Option:
1. 256 Resolution: 200*256.
2. 384 Resolution: 288*384.
Motherboard detection:
1. Optional network cable to USB interface adapter.

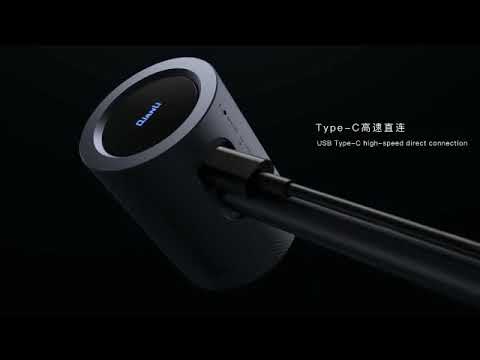

2. It can be connected to the computer USB interface through the adapter, which is more convenient to use and avoids the network cable interface being occupied.
Feature:
1. Maximum temperature range.
2. Test area maximum temperature.
3. Test area minimum temperature.
4. Minimum temperature range.

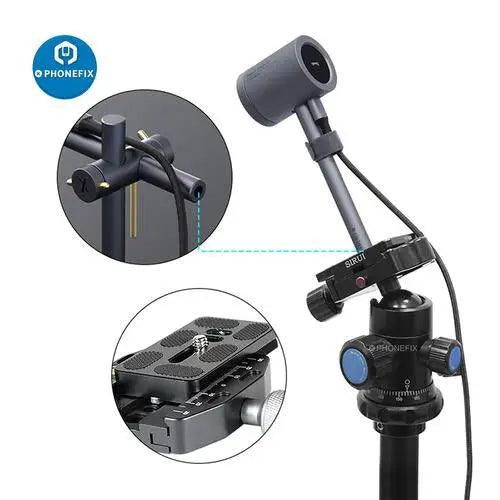

5. Can adjust the angle of the visible light camera.
6. Adjustable fusion of infrared thermal imaging and visible light image is clearer image.
7. Switchable display mode.
8. You can capture pictures taken by PCB and save the data of infrared imaging.
9 can record images taken by PCB and save data of infrared thermography.

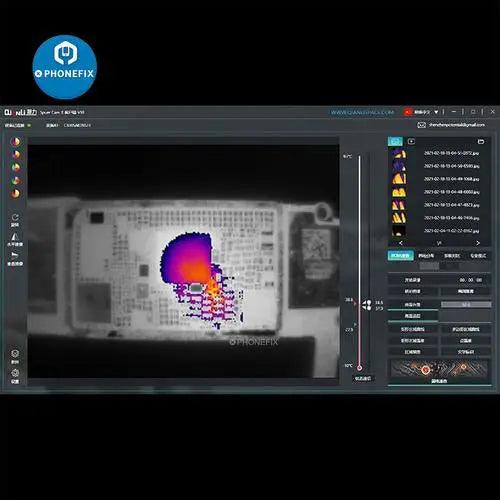

10. Turn on quick check to quickly find the hottest place.
