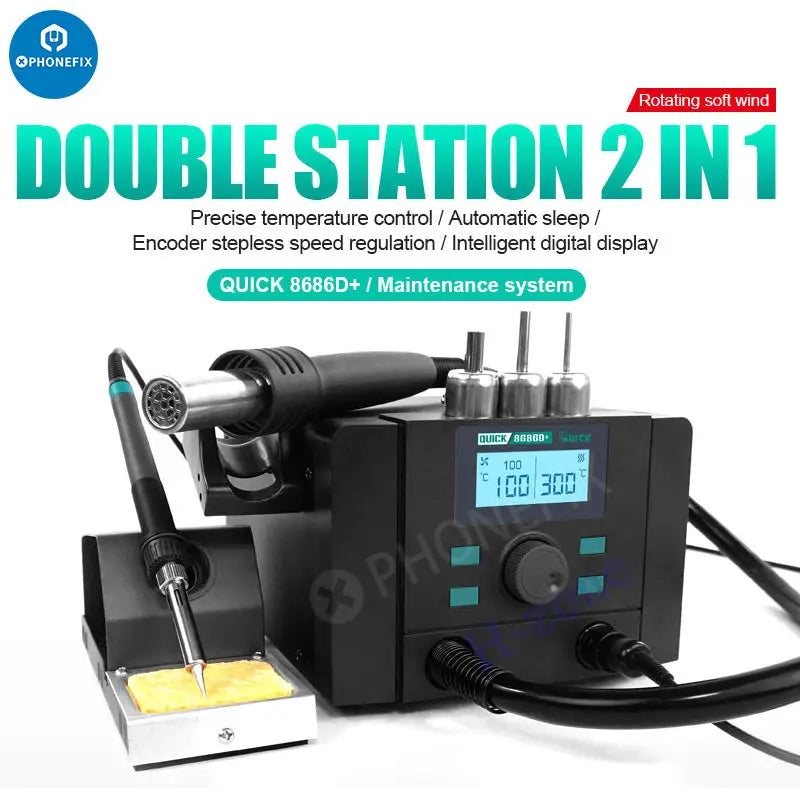

1. K8 and TS1100 air gun welding station 2 in 1 design, one machine for multiple purposes.
2. Suitable for the desoldering of a variety of packaged components, suitable for maintenance/R&D electronic engineers.

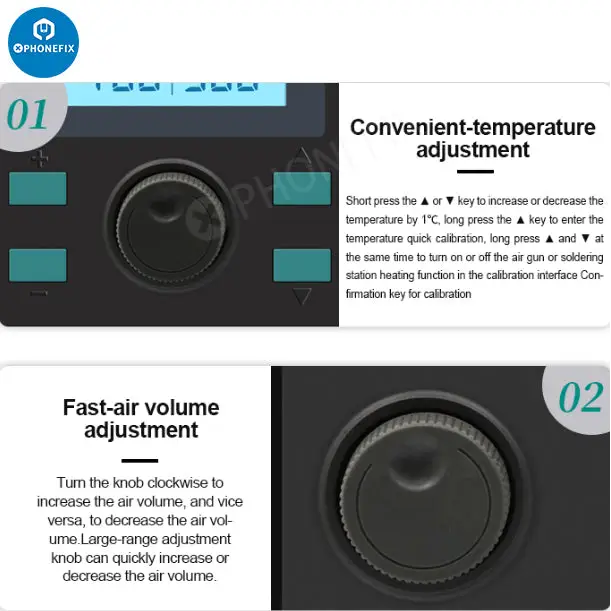

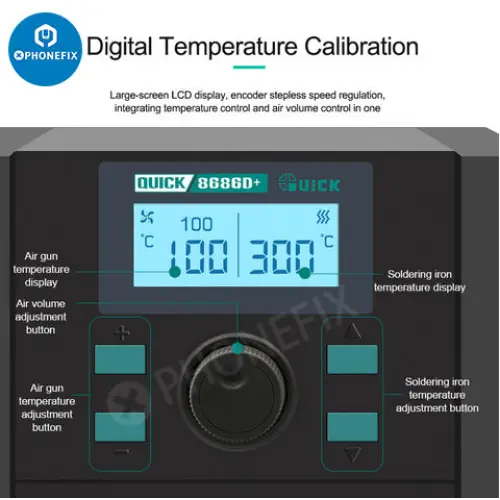

3. Digital temperature calibration, using large-screen LCD display, encoder stepless speed regulation, integrating temperature control and air volume control in one.

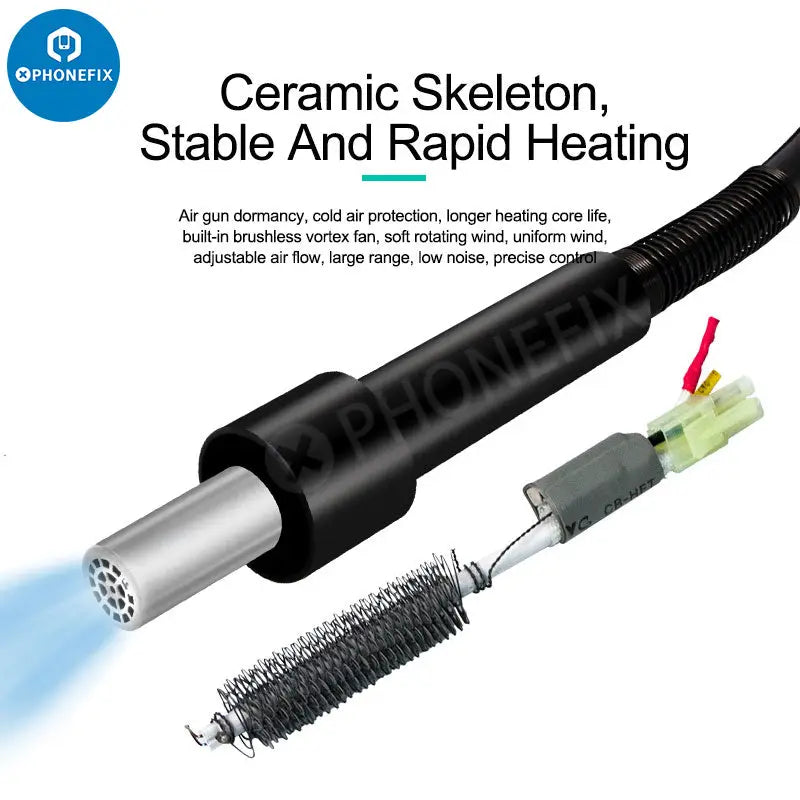

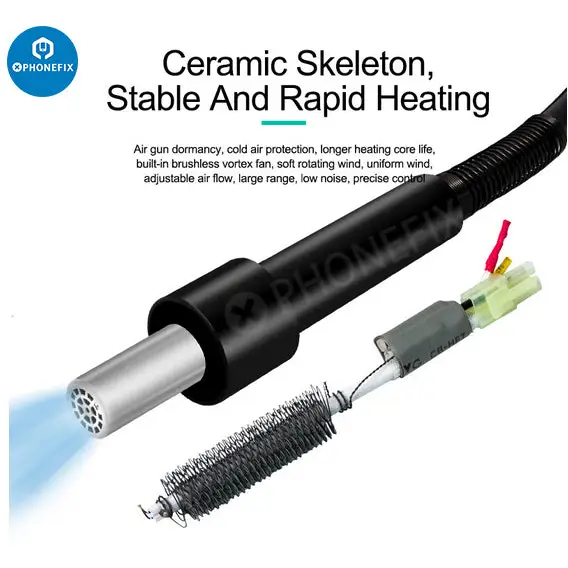

4. The brushless vortex flow is soft, and the brushless vortex fan is adopted, with super high power, adjustable rotating air flow, large range, and suitable for various purposes.

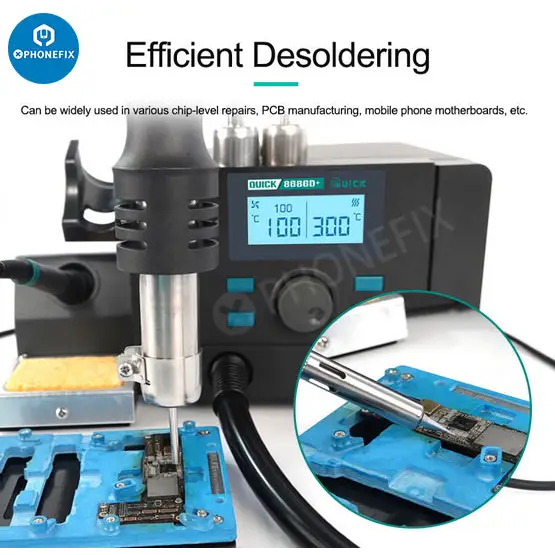

5. Efficient desoldering, can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboards, etc.

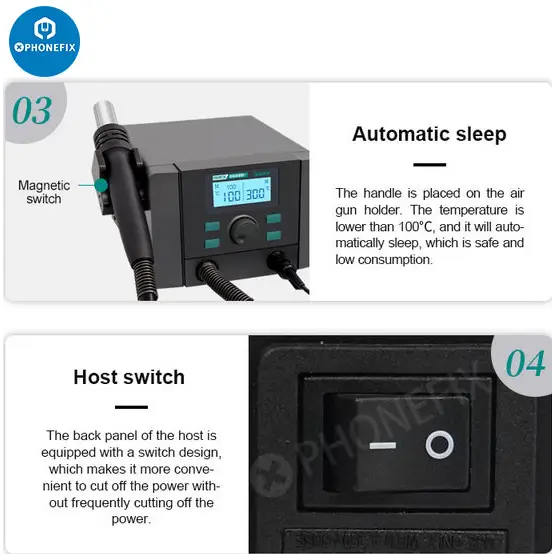

6. Digital calibration, three-level data storage function. Smart sleep, energy saving and environmental protection.Automatic cold air design, automatic anti-burn.

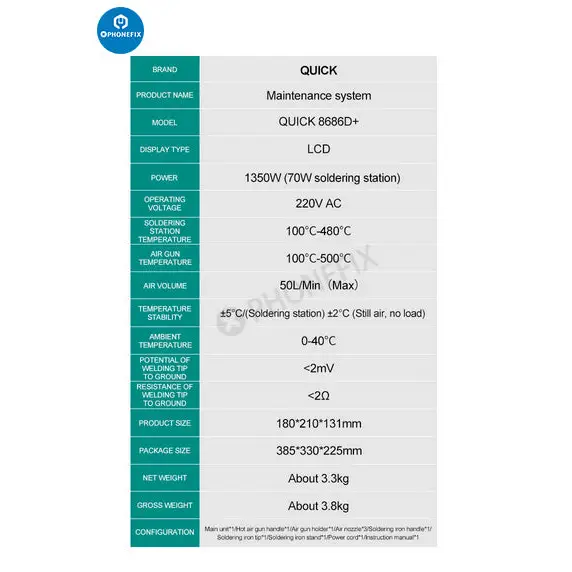

Product name: Maintenance system
Model: Quick 8686D+
Display Type: LCD
Power: 1350W (70W soldering station)
Operating voltage: 110V/220V
Soldering station temperature: 100℃—480℃
Air gun temperature: 100℃-500℃
Air volume: 50L/min (Max)
Temperature stability: ±5℃/(soldering station) ±2℃(still air, no load)
Ambient temperature: 0-40℃
Potential of welding tip to the ground: <2mV
Resistance of welding tip to the ground: <2Ω

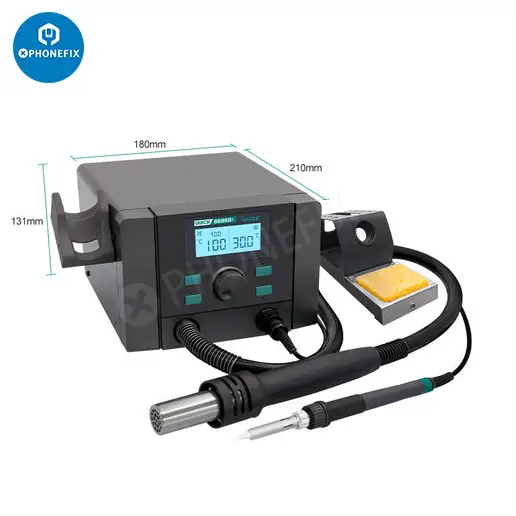

Product size: 180*210*131mm
Package size: 385*330*225mm
Net weight: About 3.3kg
Gross weight: About 3.8kg
1 x Main unit
1 x Hot air gun handle
1 x Soldering iron tip
1 x Soldering iron tip handle
1 x Soldering iron tip handle holder
1 x Power cord
1 x Air gun holder

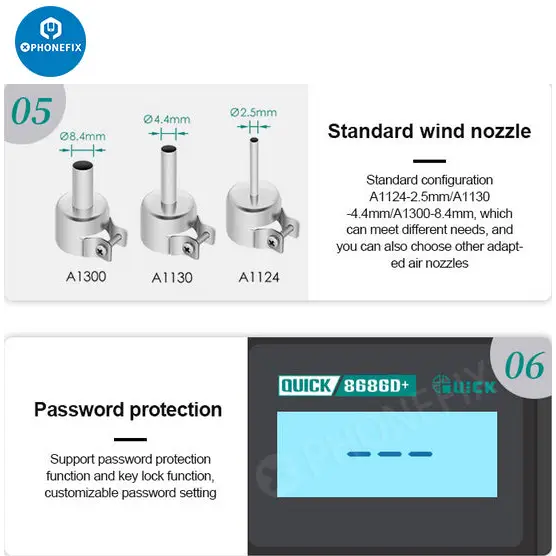

3 x Air nozzle
