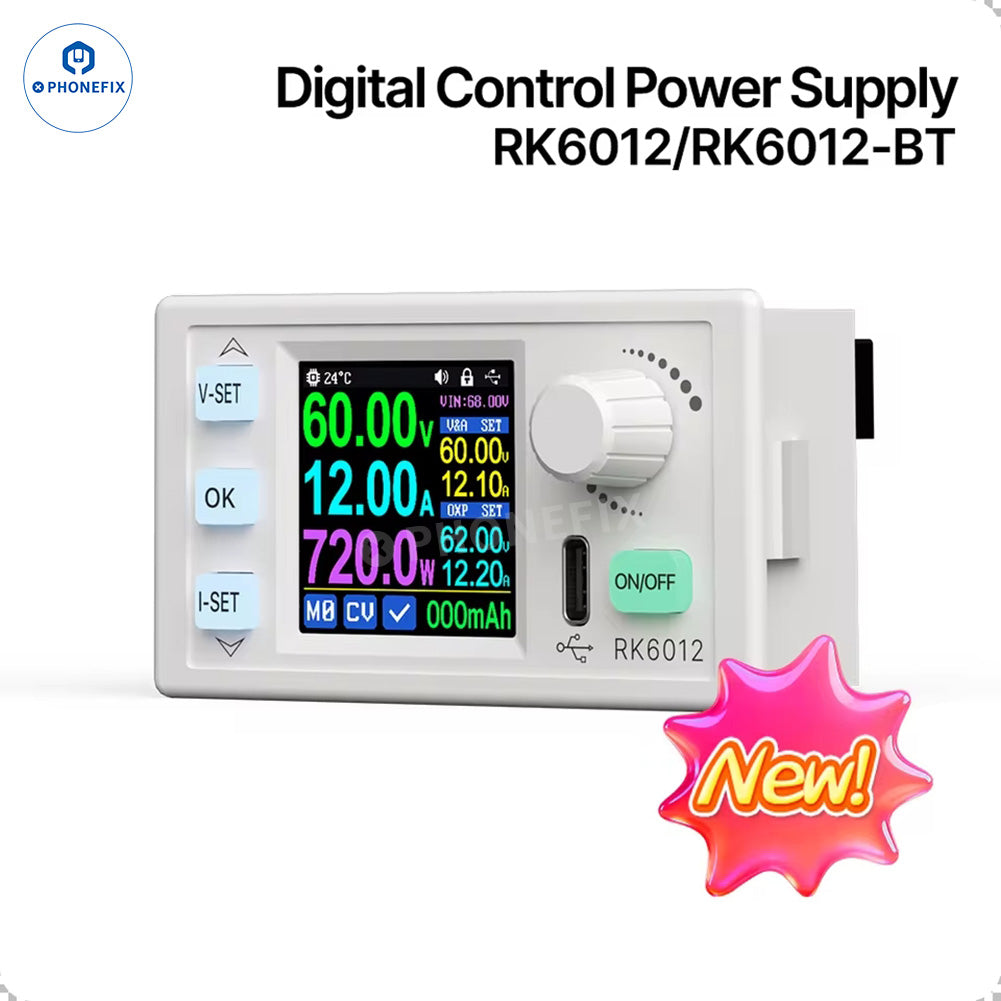

RIDEN RD RK6012 RK6012-BT 720W 60V 12A step-down DC regulated adjustable power supply for mobile phone and electronics repair. Featuring a 1.54-inch HD color display with adjustable brightness and four-digit resolution (0.01V/0.01A), it can provide accurate voltage and current measurements in mobile phone repair. PC software, and mobile app control. Four-digit resolution, OVP/OCP/OTP protection, and firmware upgradeable. Suitable for phone repair, bench testing, battery charging, electronic repair, and hobbyist projects.
Option:

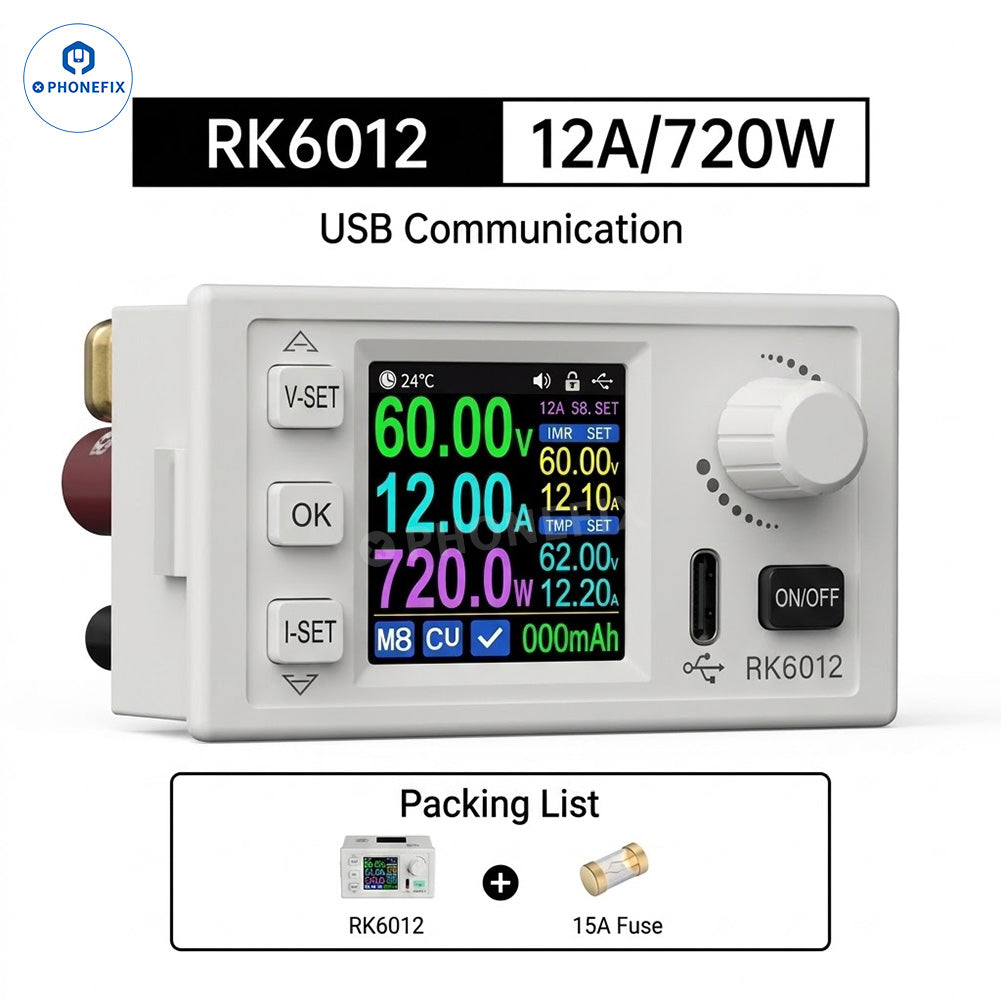

1. RK6012: USB, not includes Bluetooth.

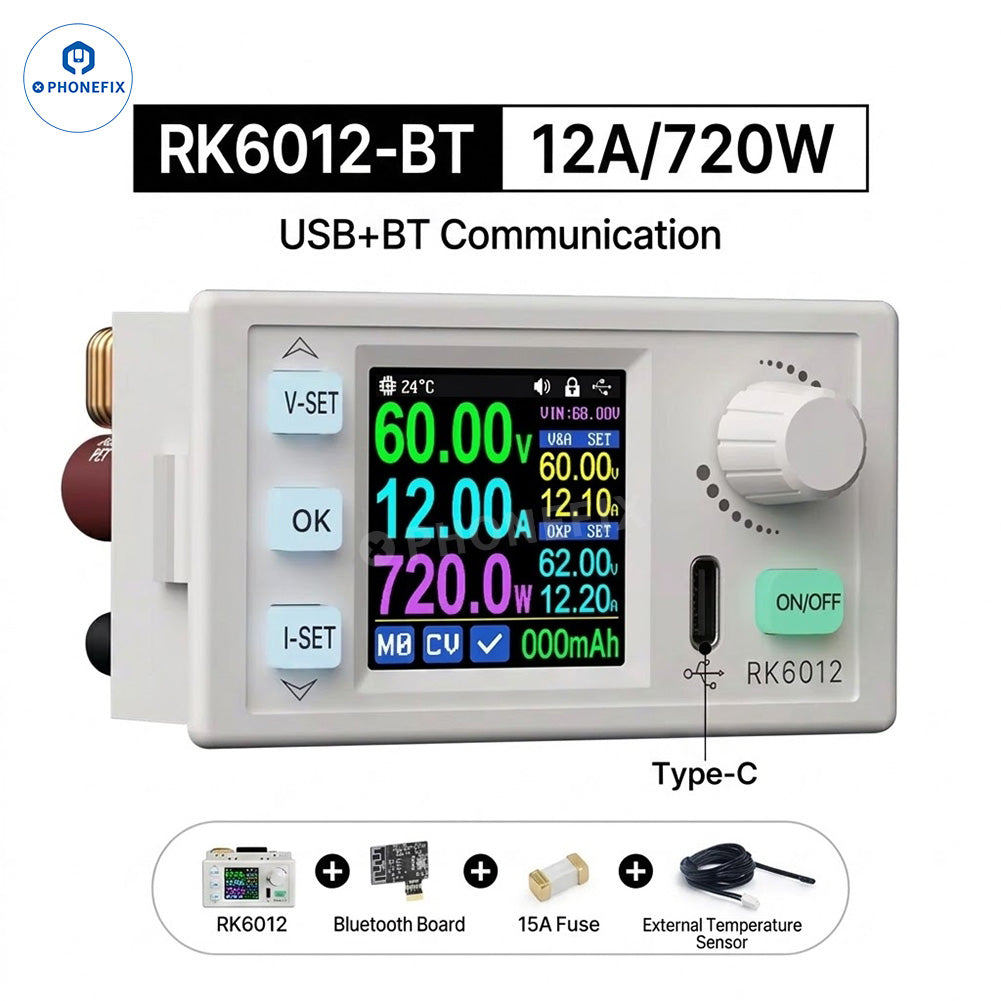

2. RK6012-BT: USB+Bluetooth

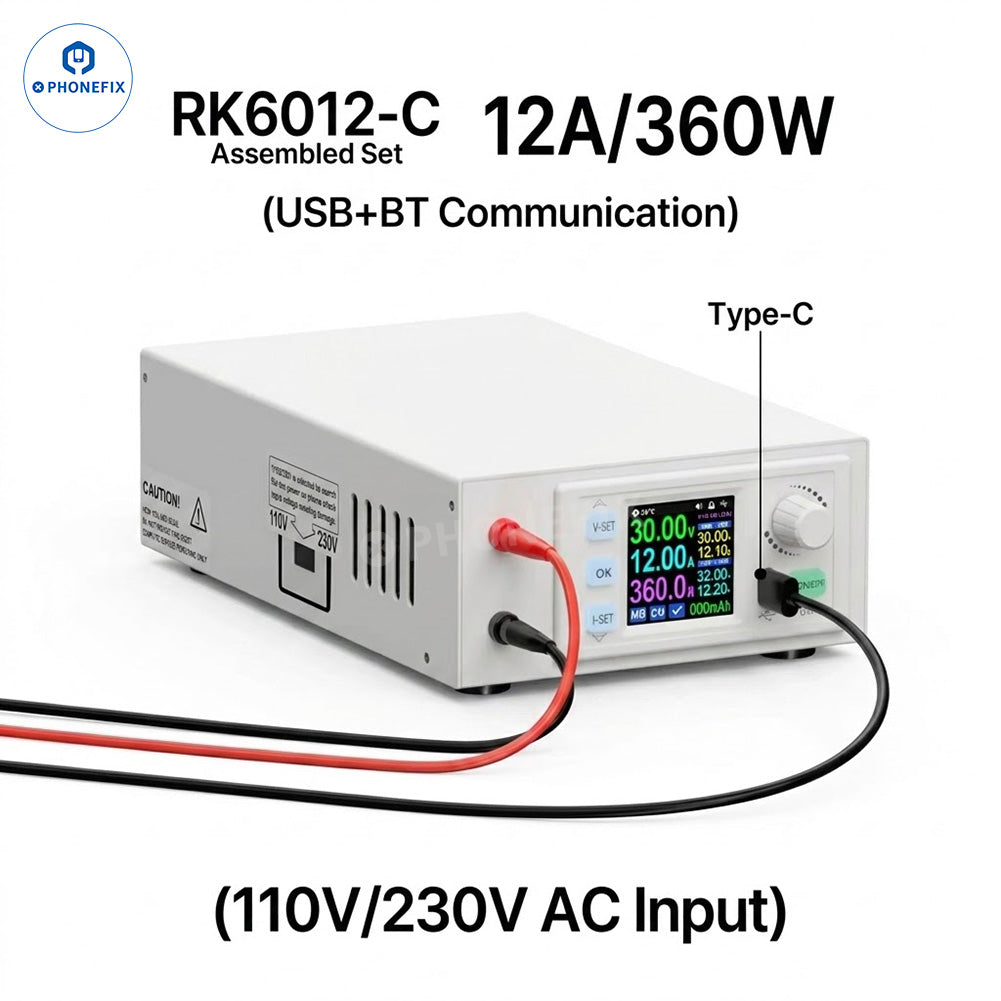

3. RK6012-C: 360W Max: USB+Bluetooth.
Features:
1. High-power output of 60V/12A: Maximum output power up to 720W, meeting the needs of high-load applications.
2. Wide input voltage range: Supports 12–70V input, compatible with various DC power supplies.
3. Adjustable output voltage/current: Output voltage 0–60V, output current 0–12A, suitable for the power supply needs of different devices.

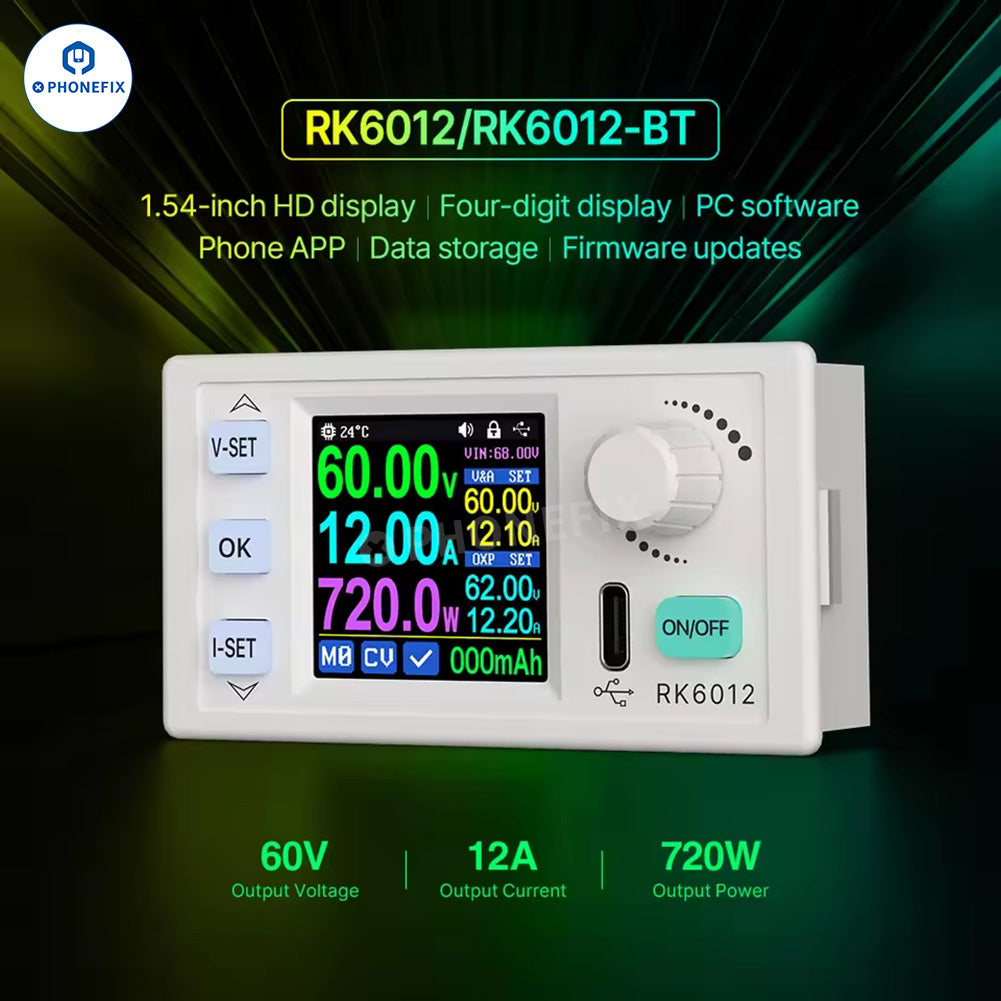

4. High-definition color display: 1.54-inch 240×240 display for real-time viewing of key electrical parameters.
5. Fast dynamic response: Constant voltage mode response time approximately 2ms (0.1A–5A load).
6. USB communication function: Supports USB connection to a computer for data communication.
7. Capacity and energy statistics: Supports Ah and Wh data statistics for easy recording of testing and power supply processes.
8. External temperature detection: Supports external sensor temperature monitoring.

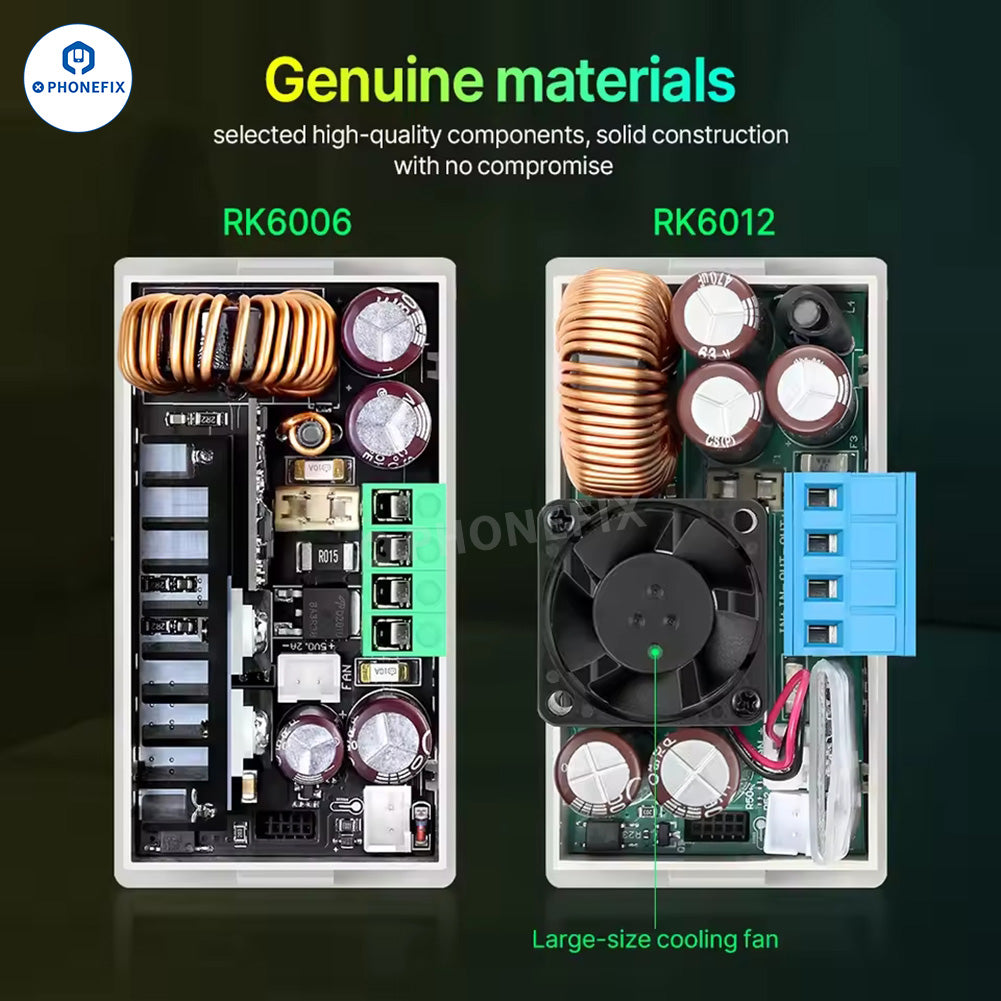

9. Intelligent fan cooling: Automatically starts and stops the fan based on output current and system temperature.
10. Over-temperature protection: Over-temperature protection is triggered when the system temperature exceeds 85°C.
Product Specifications
Brand: RD
Model: RK6012 / RK6012-BT
Input Voltage: 12–70V
Output Voltage: 0–60V
Output Current: 0–12A
Maximum Power: 720W
Resolution (Voltage): 0.01V
Resolution (Current): 0.01A
Voltage Accuracy: ±(0.3%+3 digits)
Current Accuracy: ±(0.5%+2 digits)
Typical Ripple: 100mV VPP
CV Mode Response Time: 2ms (0.1A–5A load)
Capacity Measurement: 0–9999.99Ah
Energy Measurement: 0–9999.99Wh
Working Temperature: -10°C-40°C
Display: 1.54" 240×240 Color HD Screen
Communication Method: USB; RK6012-BT supports Bluetooth
Operating Temperature: -10°C～40°C
Product Dimensions: 79×43×55mm
Weight: ≈0.32kg
Functions: DC step-down, constant voltage/constant current, temperature monitoring, capacity/energy statistics, over-temperature protection
