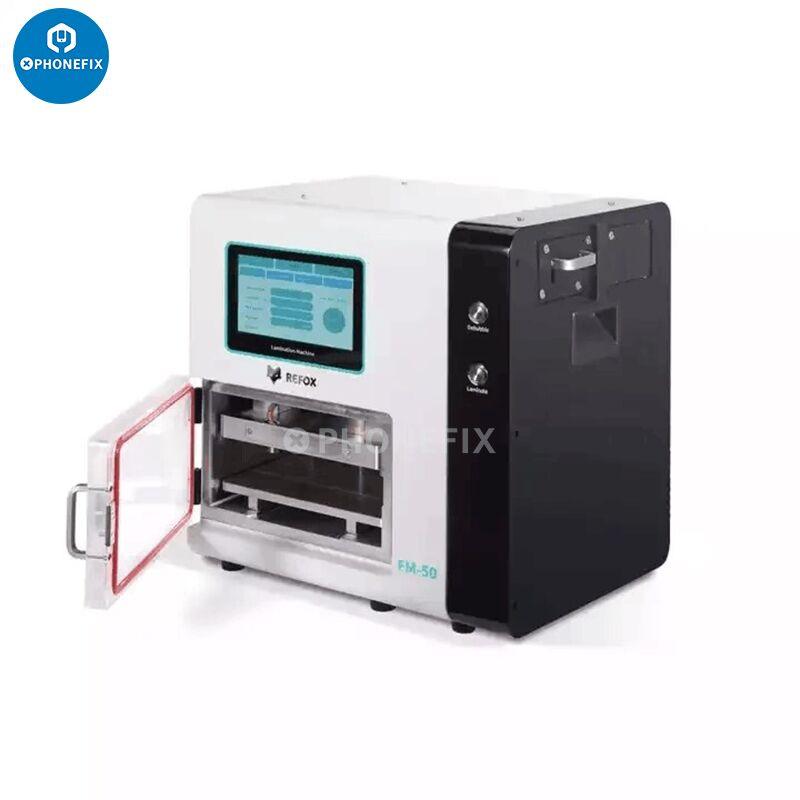

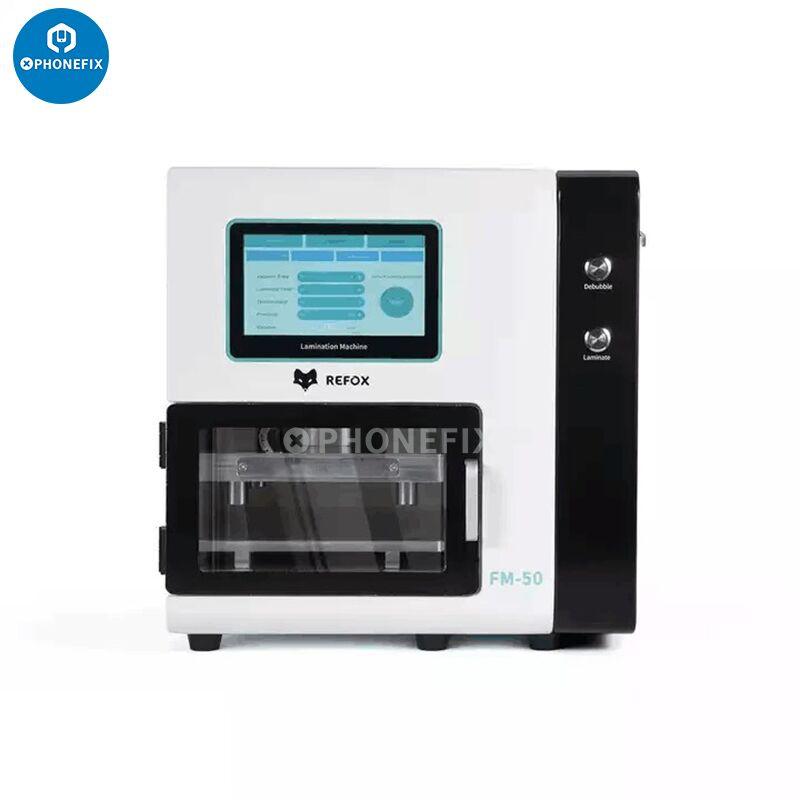

REFOX FM-50 Screen OCA Lamination Defoaming 2-in-1 Machine for Phone Flat Screens, Curved Screens and Large Tablets, supports Screens Up to 12.9-inch. REFOX FM50 600W fully CNC intelligent large size laminating and debubbling machine is applied to the mobile phone and tablet's front screen, back cover, OCA lamination, and bubble removal, ect.
Features:
1. Lamination and defoaming 2 in 1 functions.
2. Curved and flat mobile phone LCD lamination, OCA lamination is completed in one machine.
3. Supports up to 12.9 inches of lamination and defoaming.
4. Inserted with a large cylinder and fully numerical control electronic pressure regulating valve. Large pressure range, adjustable and accurate.
5. Stable and reliable performance.
6. Smart touch operating system, no experience required, one key to start, low noise.
7. High compatibility for its match with various lamination tools.
Note:
1. Air compressor, vacuum pump and mold are not included in the FM-50 machine, and they need to be purchased separately. FM-50 requires an external air compressor (recommended: 30L) and vacuum pump (recommended: ≥4L) to be used.
2. Before laminating, the oil, dust, water, etc. on the surface of the object should be cleaned.
3. Do not set the pressure value of laminating too high to prevent the screen from bursting; if the parameter is too high or if it is too low, it may affect the lamination quality of the mobile phone screen.
4. Do not set the temperature in the defoaming machine too high, as the temperature is too high, and the probability of foaming back is greater.
5. Before defoaming, pay attention to check whether the door of the defoaming machine is locked. Because the defoaming machine works under high pressure, it is necessary to pay attention to the safety of use.
Parameters:
Model: REFOX FM-50 12.9 inch Curved Screen Laminating Machine.
Voltage: 110v/220v.
Power: 600W.

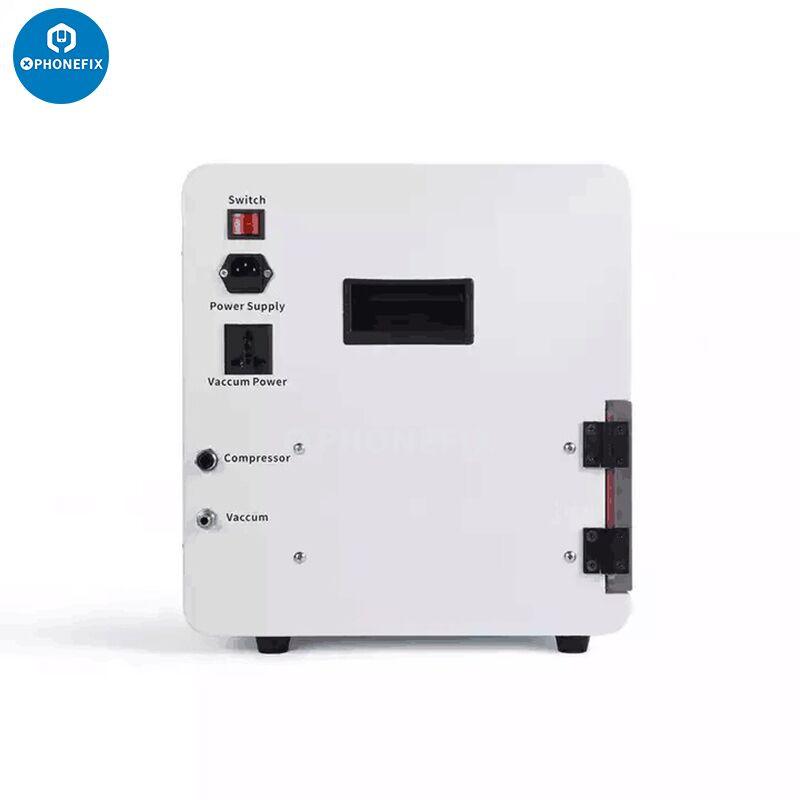

External air compressor (optional): Recommended 30L air storage capacity.
External vacuum pump (optional): Recommended that the gas storage capacity be no less than 4L.

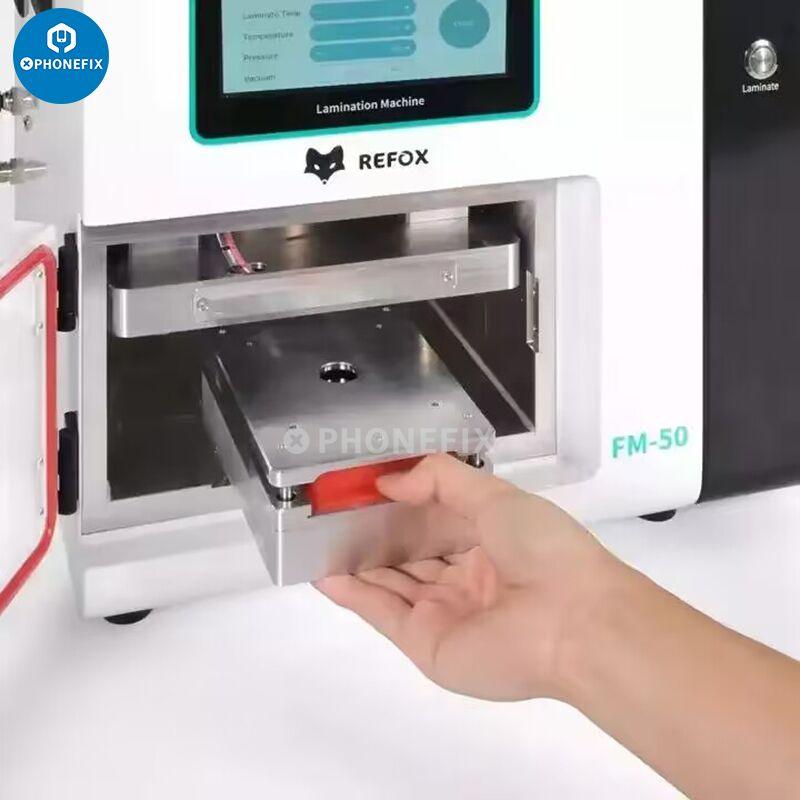

Laminating bin size: 228*310 mm (Maximum support 12.9 inch).
Debubbling bin size: 235*310*40 mm (Maximum support 12.9 inch).
Product Size: 380*385*400 mm.
Packing Size: 460*460*480 mm.
Gross Weight: 55kg.
Certification: CE.
After-sale warranty: 1 year.
