REFOX RM26 UV Glue Fast Curing Lamp box and REFOX RM22 mini UV curing box for different scenarios in phone screen OCA glue curing/waterproof glue curing. REFOX RM26 UV Glue Curing Machine With high power, fast curing speed, and wide irradiation area, multiple phone screens or waterproof molds are cured simultaneously.

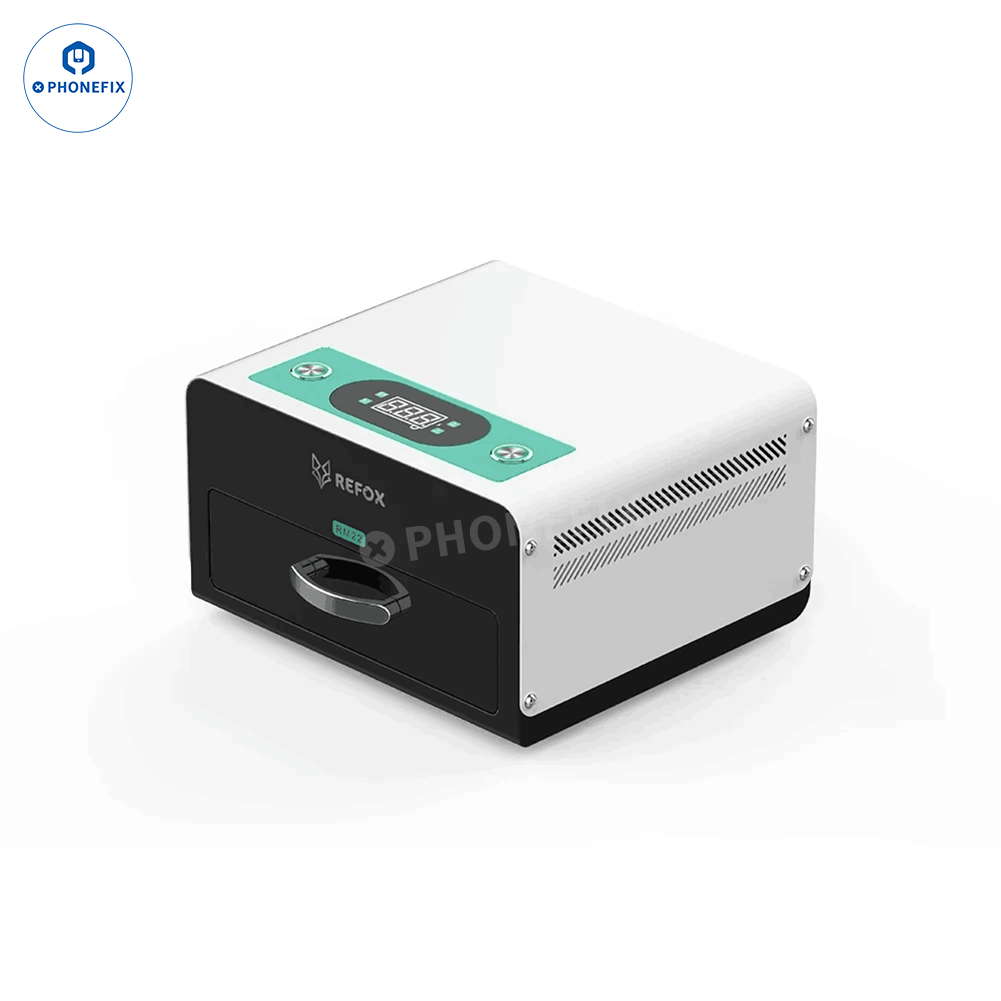

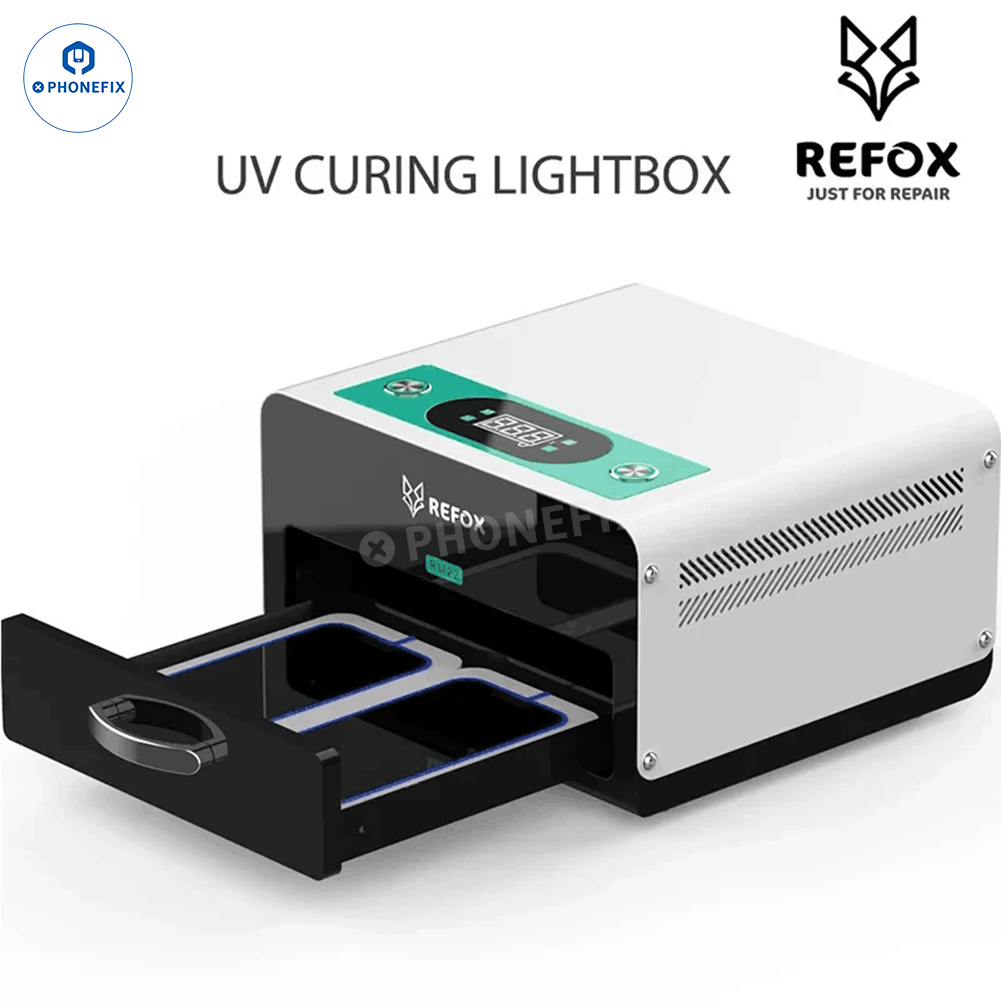

REFOX RM22 mini UV curing box with high-quality LED beads can quickly cure the phone screen waterproof glue, accelerates curing of waterproof adhesive sealants and screen bonding. REFOX RM22 UV curing box supports solidifying two waterproof molds or two mobile phone screens simultaneously, which improves the efficiency of phone screen polishing repair and mobile phone LCD screen refurbishment.

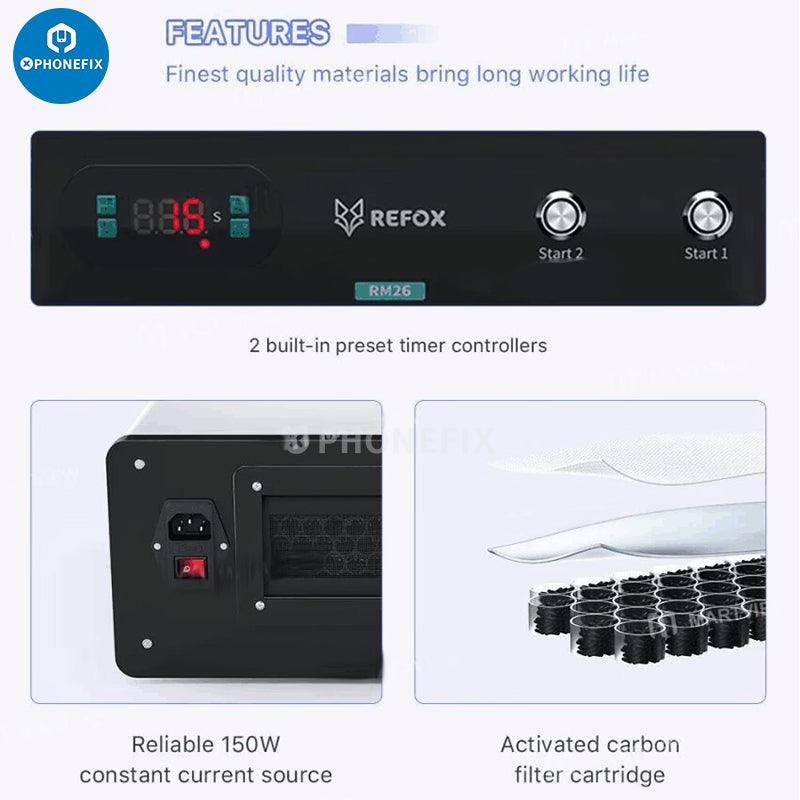

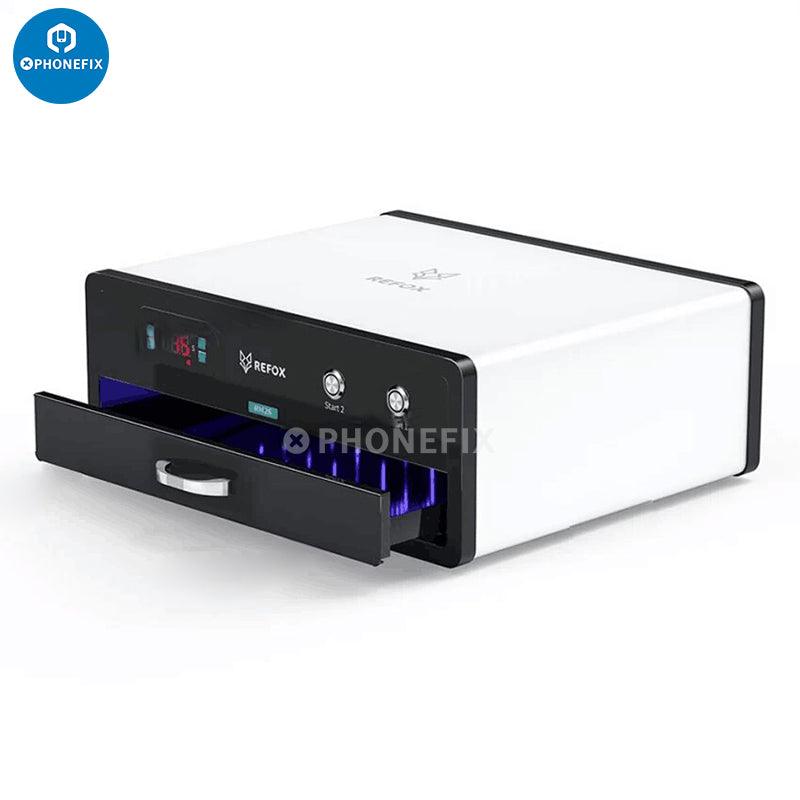

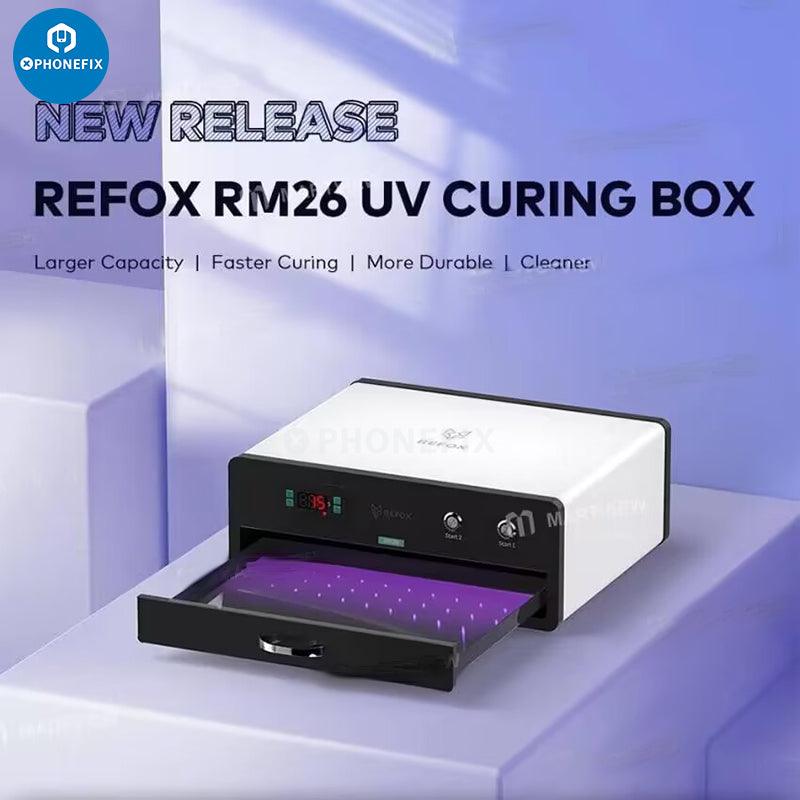

REFOX RM26 UV Curing Box Features:
- REFOX RM26 is a UV glue curing equipment consisting of a light source system, a control system, a ventilation filter system, and a cabinet.
- The LED lamp in the equipment produces ultraviolet rays and irradiates the UV glue to produce a polymerization reaction, so as to achieve the purpose of curing.
- The product has high power, fast curing speed, wide irradiation area, and long service life, and can cure multiple mobile phone screens at the same time.

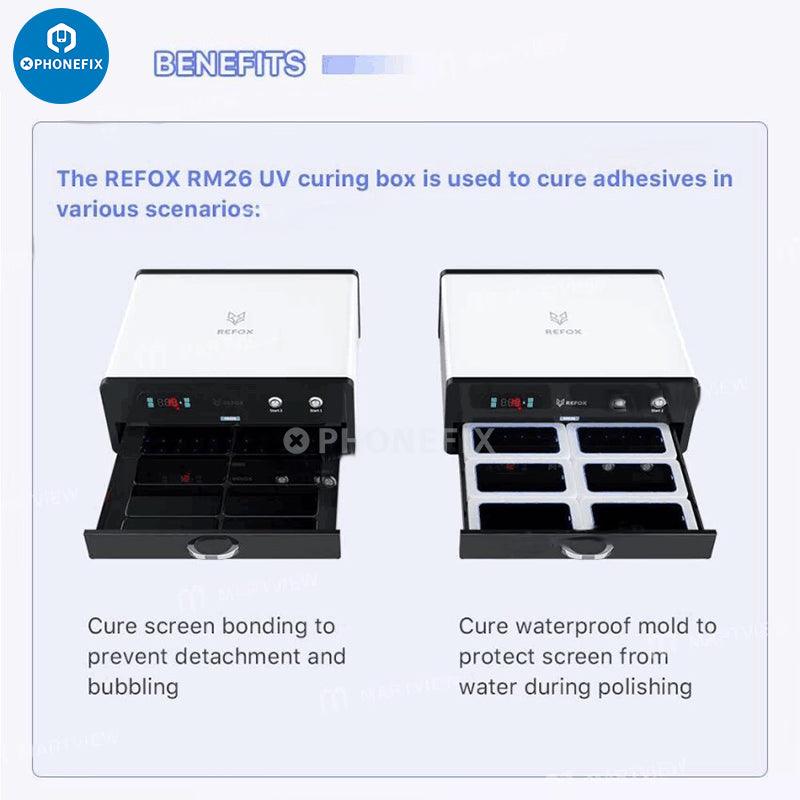

- The products are widely used in mobile phone LCD screen refurbishment, mobile phone polishing and curing of waterproof glue, and other scenarios.

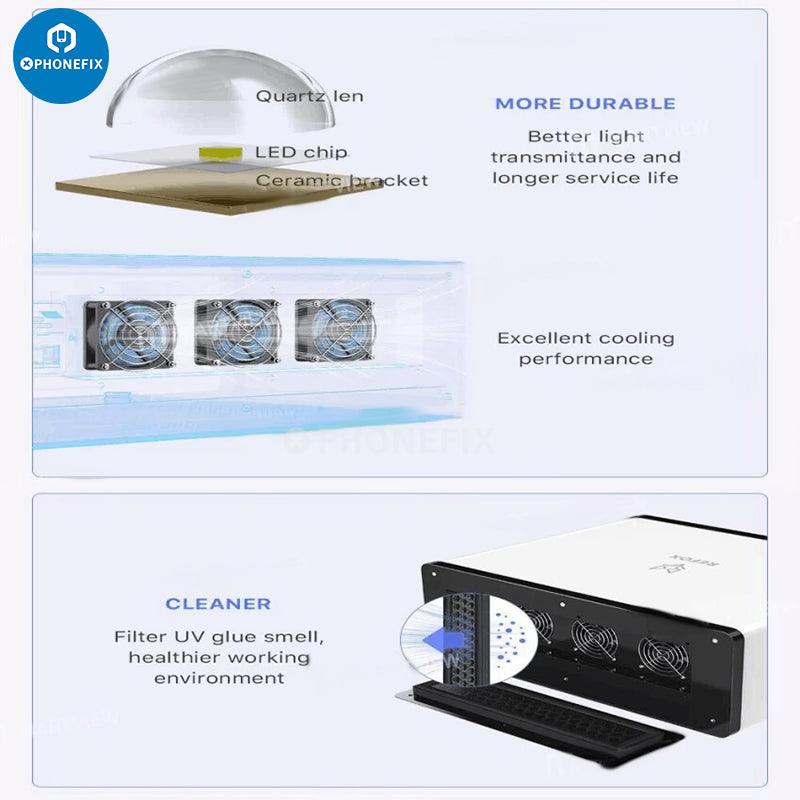

- Longer service life: Tceramic bracket, quartz lens package, process lamp beads, longer service life.
- Three cooling fans and a large integrated cooling aluminum plate for better cooling performance.
- Deodorization, environmentally friendly: Air filtration cartridge, filtering UV glue odor, safeguarding human health, anti-bubble.

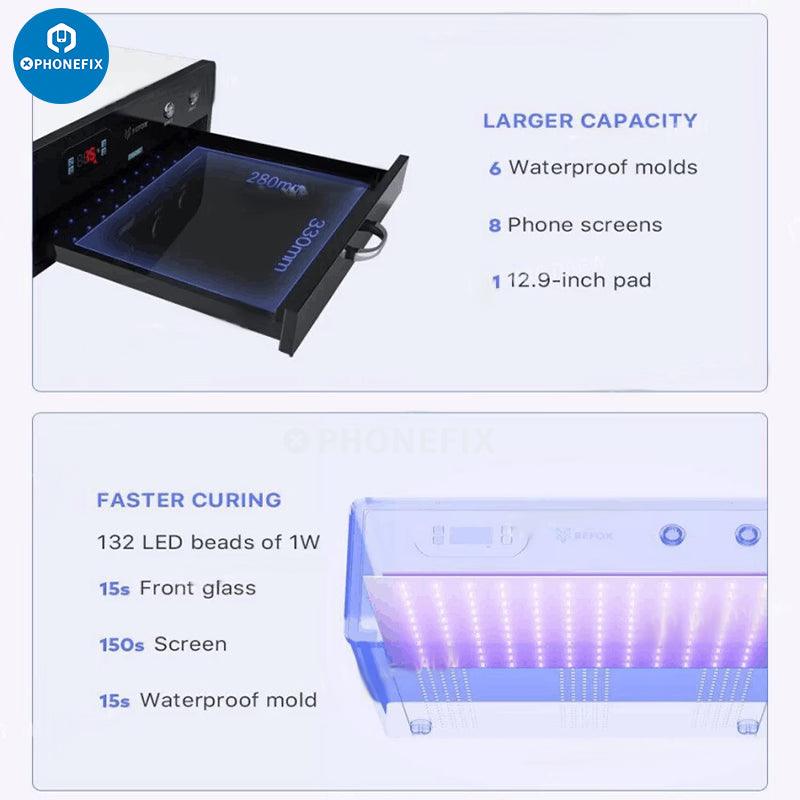

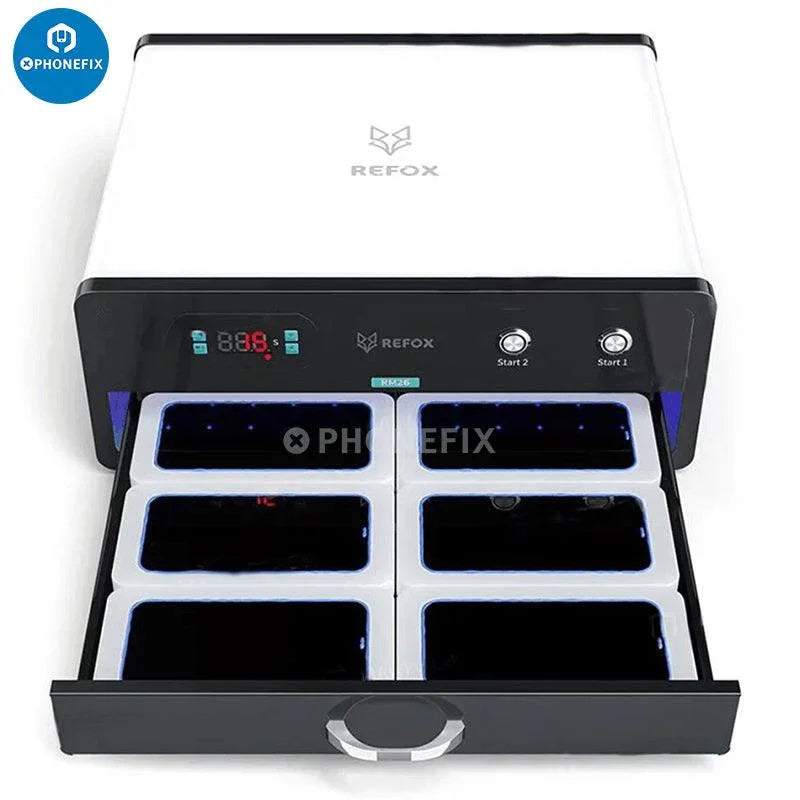

- Larger lighting area: The effective lighting area is 330*280MM, capable of curing 6 waterproof molds at the same time, and compatible with a 12.9-inch tablet.

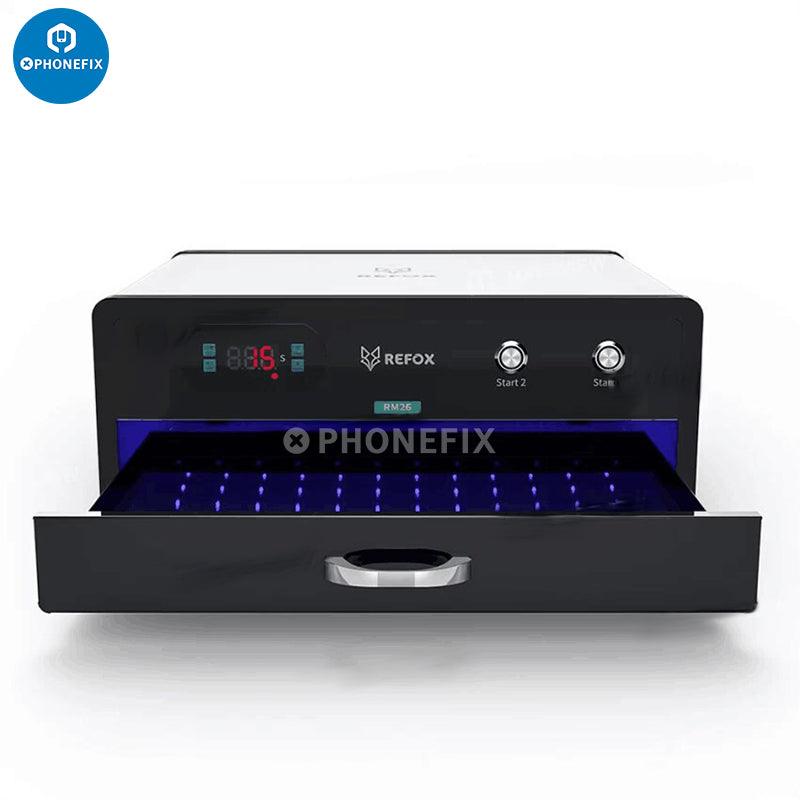

- Fast curing efficiency: 132 high-quality lamp beads, 15 seconds, fast curing, improved efficiency significantly.
Applications:
UV Glue (Waterproof Glue) Curing.
Phone Screen OCA Glue Curing.
Solder Mask Ink Curing.

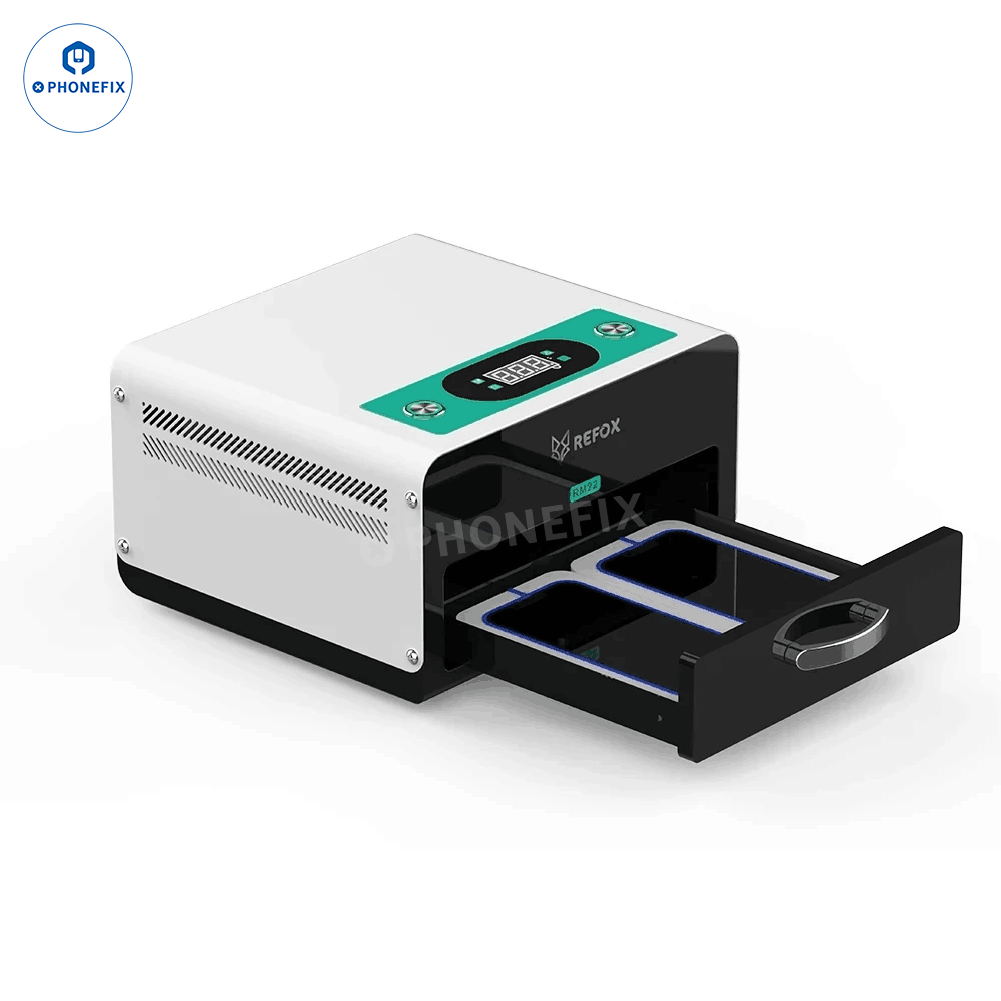

REFOX RM22 UV Curing Box Specification:
Model: REFOX RM22 Small UV curing lightbox.
Working voltage: 110V-220V.
Power: 80W.
Wavelength: 365nm.
Product Size: 253*252*147mm
Package size: 320*320*210mm
Gross weight: 7KG
REFOX RM26 UV Curing Box Specification:
Model: REFOX RM26 UV curing box.
Working voltage: 110V-220V.
Power: 150W.
Wavelength: 365nm.

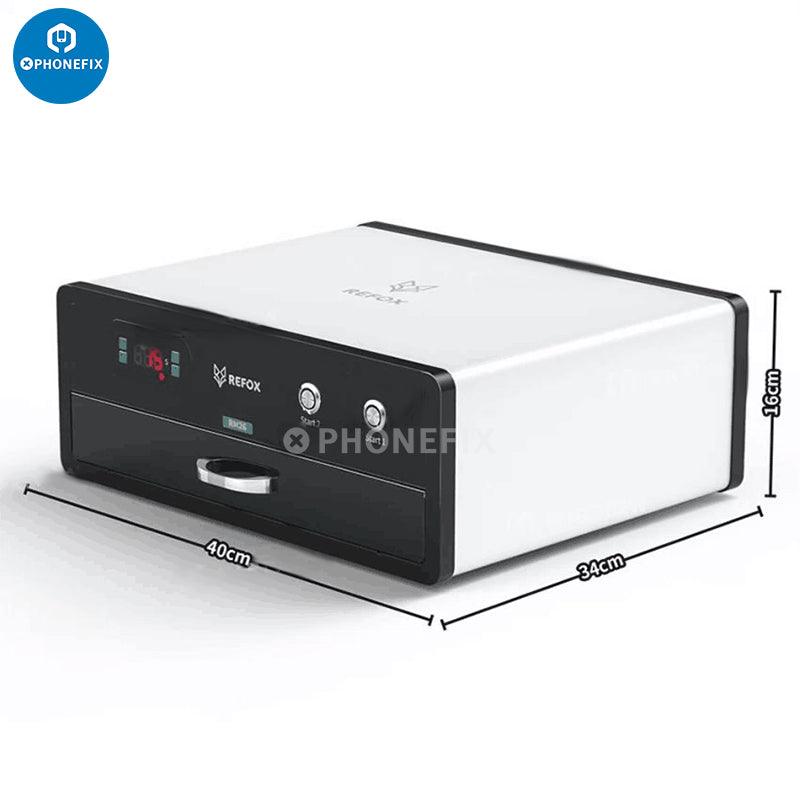

Product Size: 400*340*160mm
Package size: 480*420*235mm
Gross weight: 13KG
Package includes:
1 x Curing Lamp Machine
1 x Black Rubber Pad
1 x Power Cable
