RELIFE MC5, MC4, MC3 Pro, MC2, MC1 4K Ultra HD Cameras are used with trinocular stereo microscopes or C-mount lens for mobile phone repair, motherboard soldering, BGA CPU chip micro-soldering, and electronic circuit board repair, etc. 4K HDMI, 60FPS, 30FPS, 1080P resolutions, ideal for phone repair technicians, PCB assembly, and quality control inspection.
Option:
RELIFE MC5 4K 60fps HD Microscope Camera.
RELIFE MC4 4K HD Camera.
RELIFE MC2 Multi-function Multimeter 4K Camera: 4K Camera + Multimeter.
RELIFE MC3 Pro HD Autofocus Microscope Camera.
RELIFE MC1 4K HD Microscope Camera.

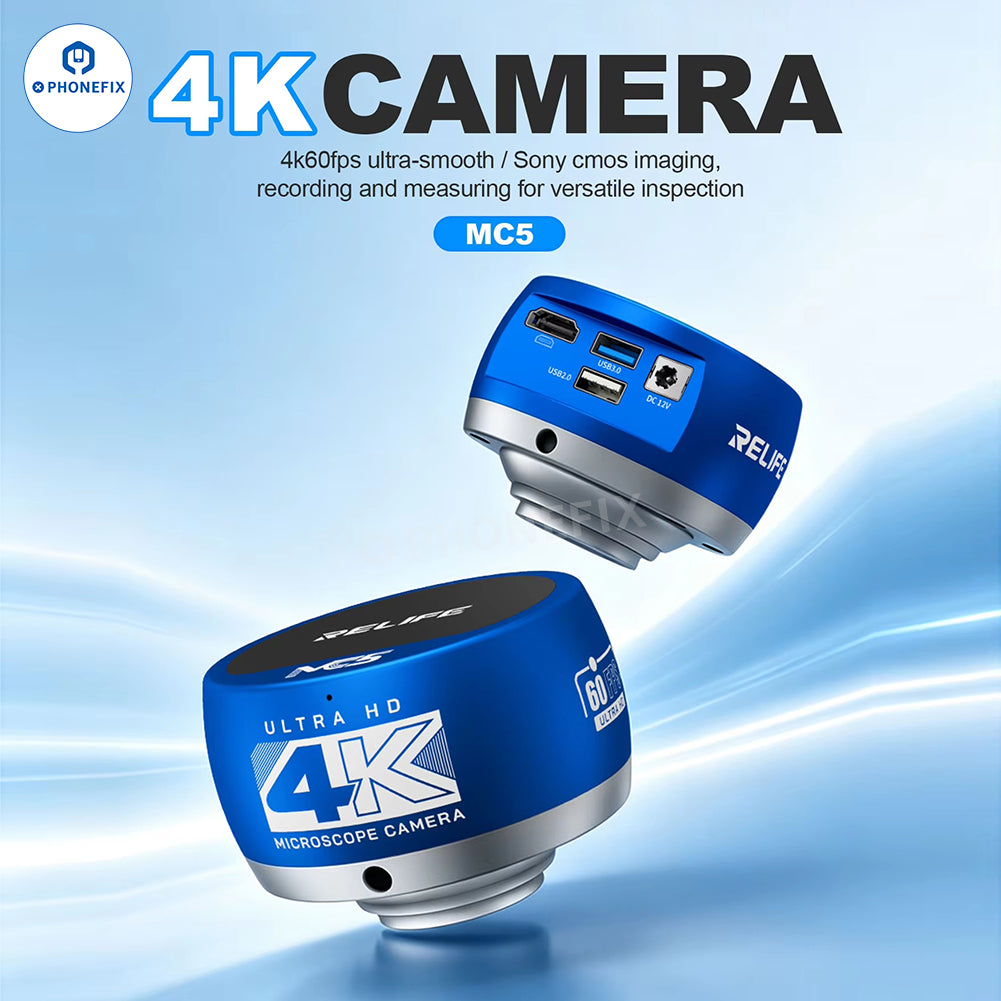

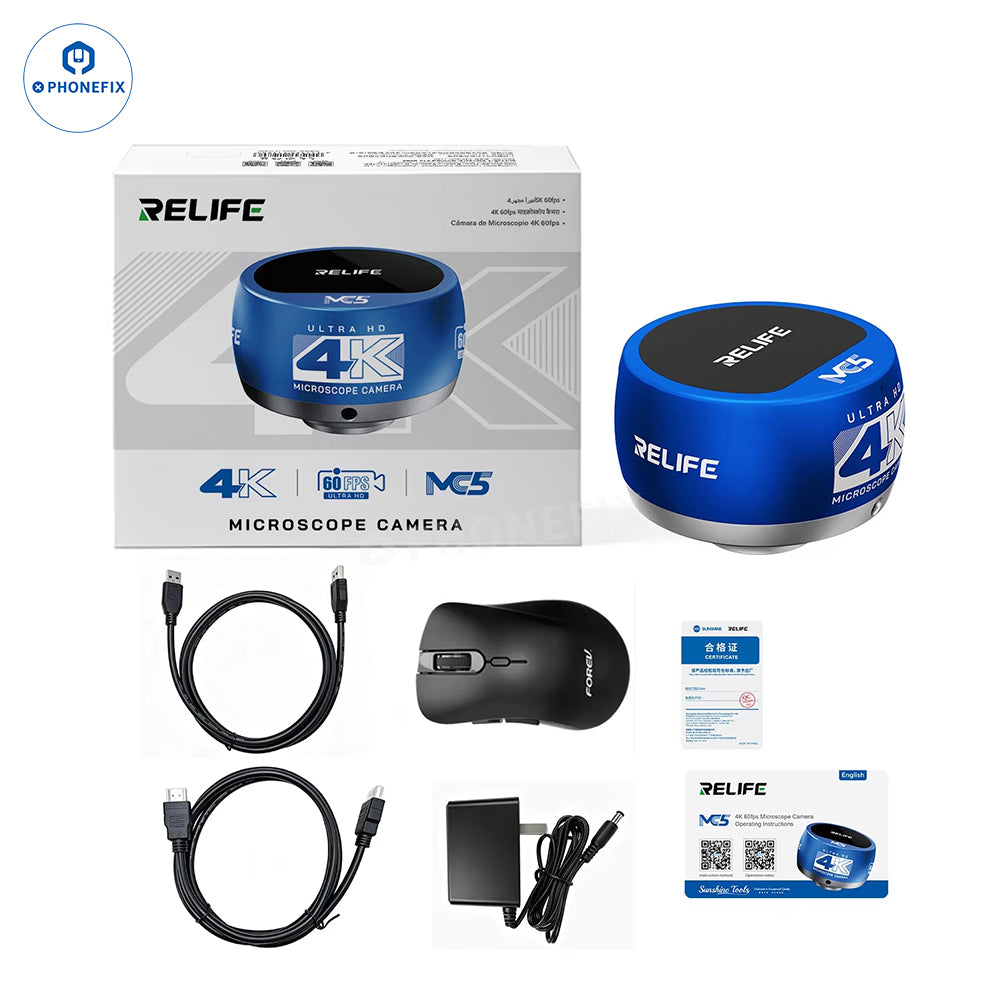

RELIFE MC5 4K Camera Features:
1. 4K@60fps High Frame Rate – Ultra-smooth real-time output via HDMI (4K@60fps/1080p@60fps) and USB 3.0; eliminates motion blur.

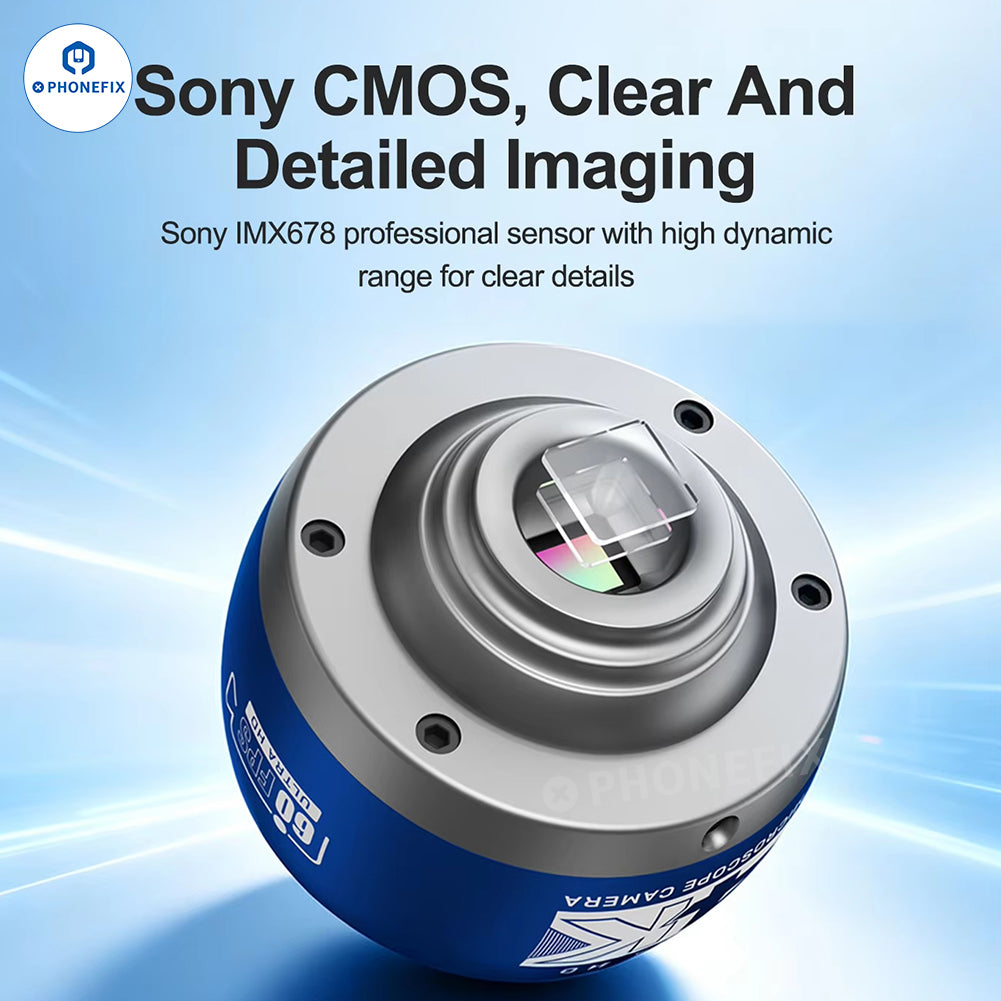

2. 8.29MP IMX678 HDR Sensor – High dynamic range for clear, detailed imaging — captures subtle details on PCBs and components.

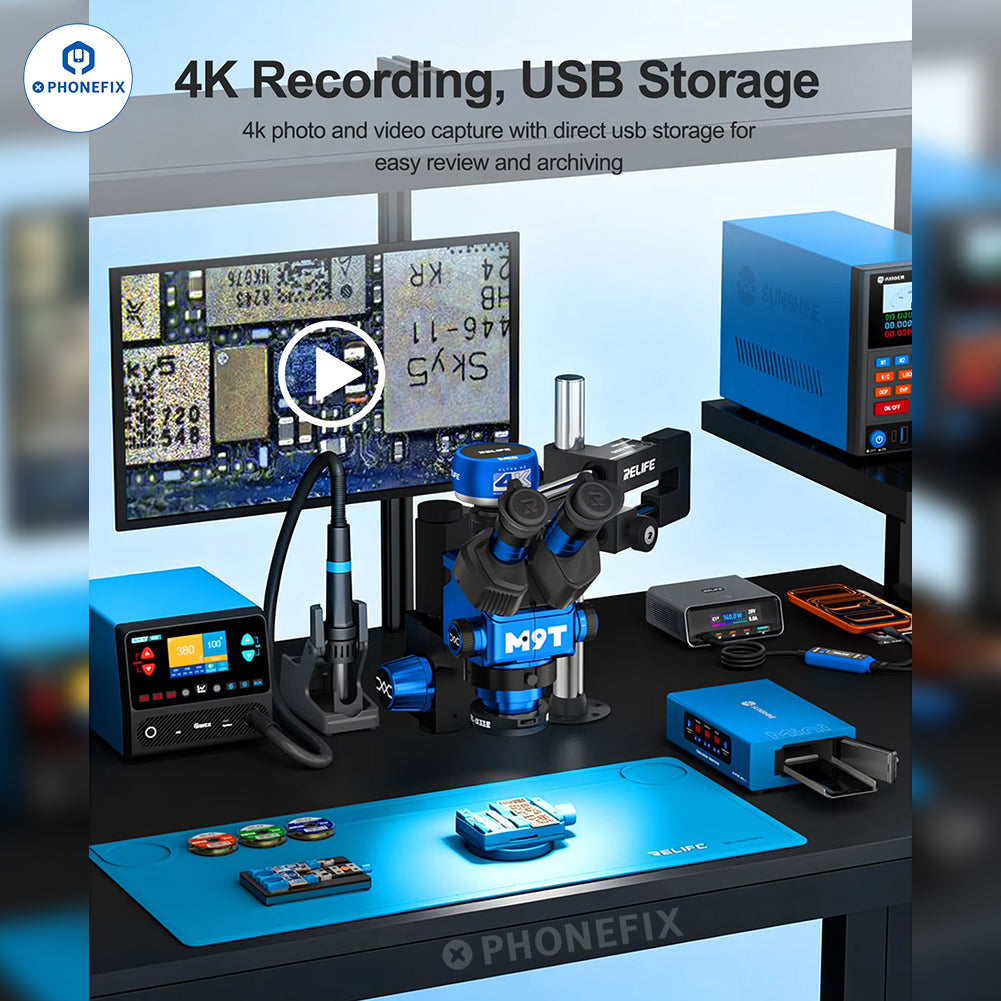

3. 4K Photo & Video Recording – Capture high-resolution images and video directly to USB storage for easy archiving and sharing.
4. Smart Exposure & White Balance – Auto/manual exposure and white balance with mouse control; settings saved on shutdown.
5. Plug-and-Play USB 3.0 – Simple connection to computers and monitors; no complex driver installation required.

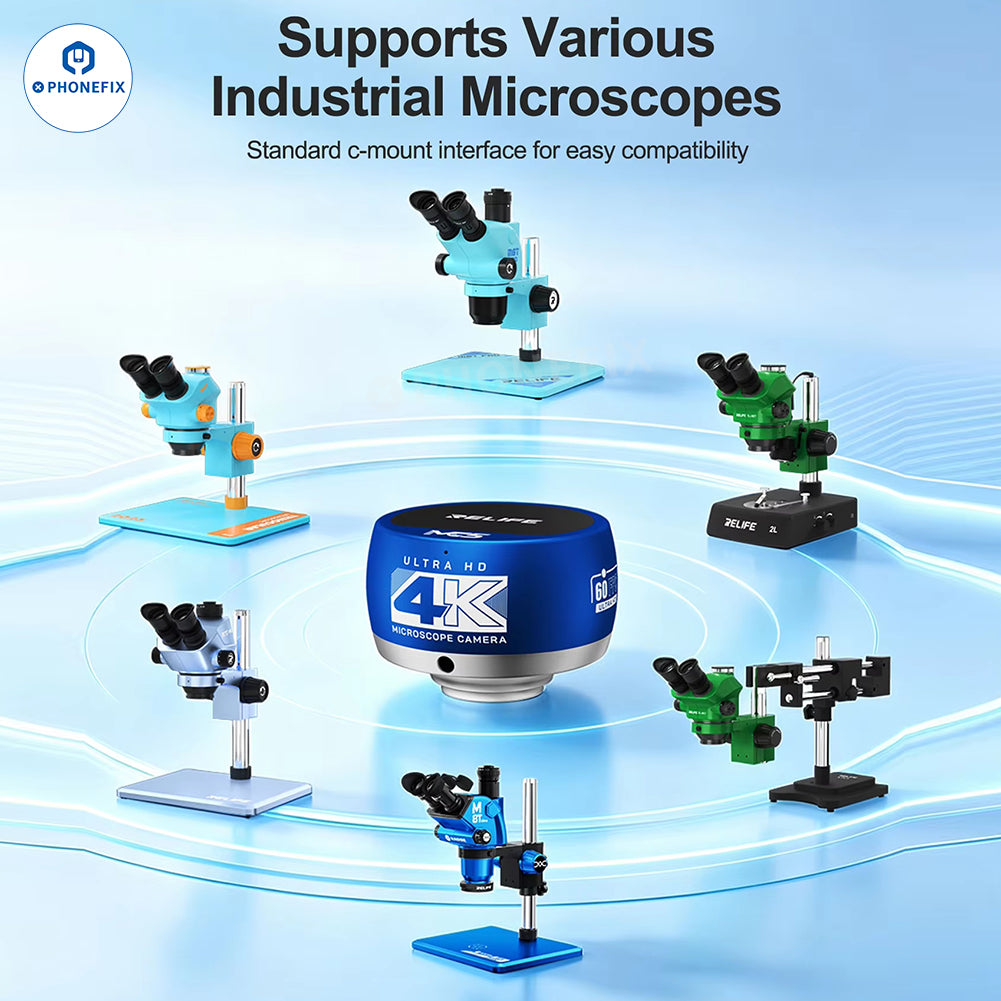

6. C-Mount Interface – Standard C-mount for wide compatibility with industrial microscopes.
7. Multilingual Menu – Supports English, Simplified Chinese, and Traditional Chinese.
8. Versatile Applications – Ideal for PCB inspection, soldering work, phone repair, and quality control.

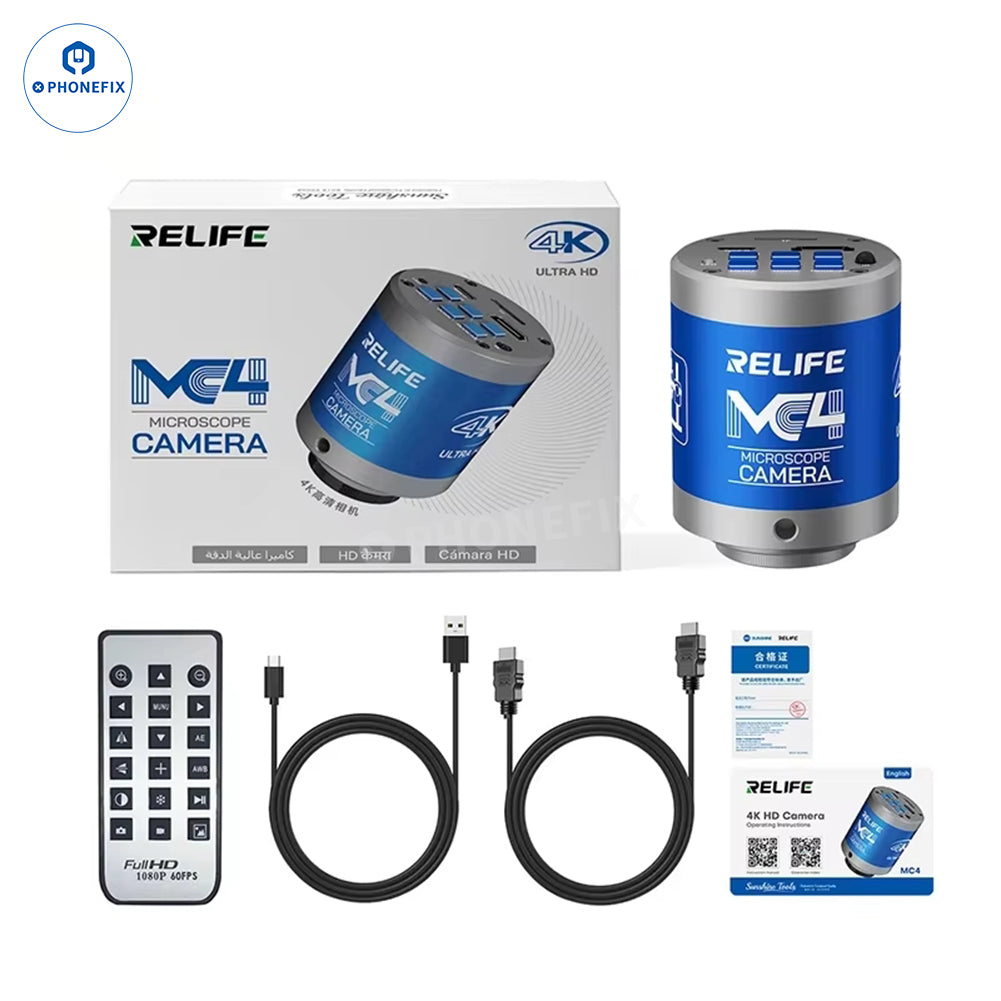

RELIFE MC4 4K Camera Features:
1. 8MP Back-Illuminated CMOS Sensor. 1/2.7-inch sensor delivers 4K ultra-clear imaging, revealing fine defects on PCBs and components,
2. HDMI + Type-C Dual Output. Plug-and-play connectivity to monitors, TVs, and computers; supports 4K/1080p resolutions,

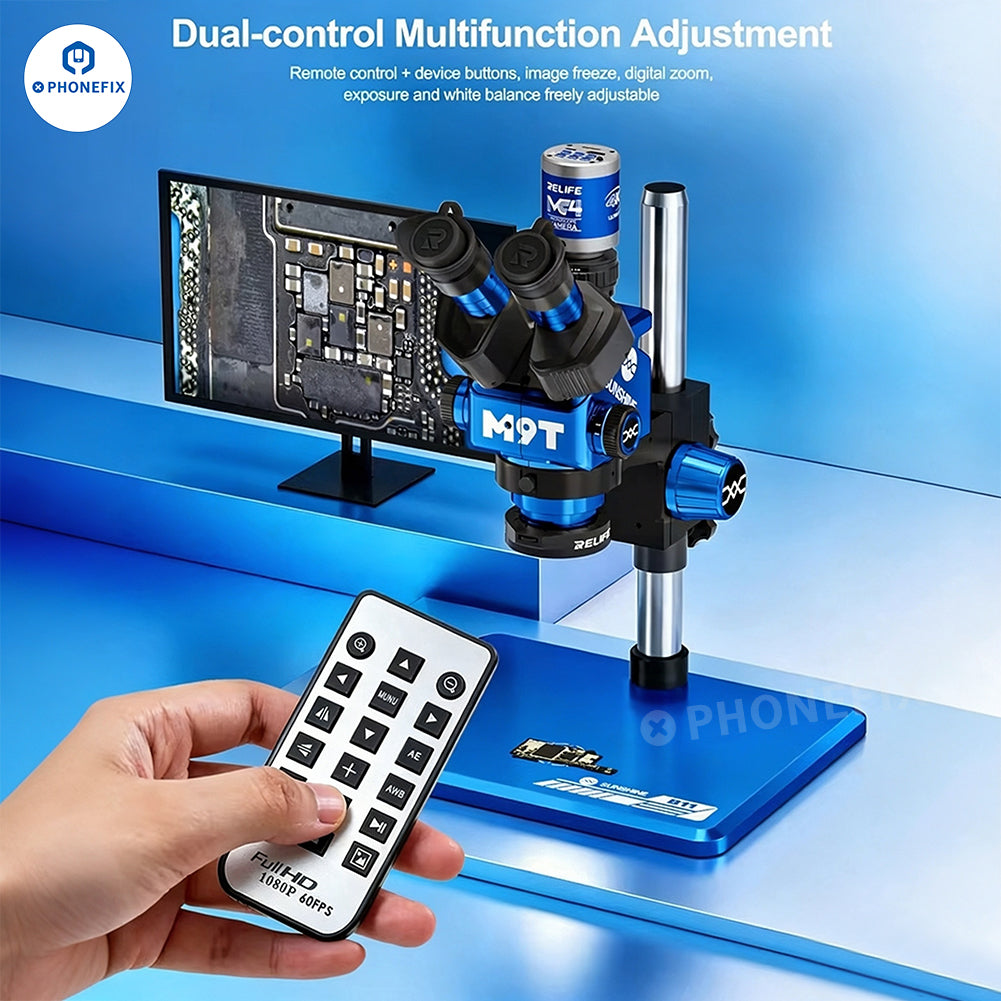

3. Remote Control Included. One-touch freeze, digital zoom, exposure, and white balance adjustments without touching the camera,
4. 4K Photo & Video Recording. Capture high-resolution images and videos directly to TF cards (supports up to 64GB),
5. 16 Crosshair Lines. Adjustable color, thickness, and position for precise alignment and measurement,
6. Auto/Manual Exposure & White Balance. Flexible control with adjustable R, G, B values for accurate color reproduction,
7. Wide Compatibility. Standard C-mount fits most stereo and trinocular microscopes,
8. Multilingual Menu. Supports English, Chinese, Traditional Chinese, and more.

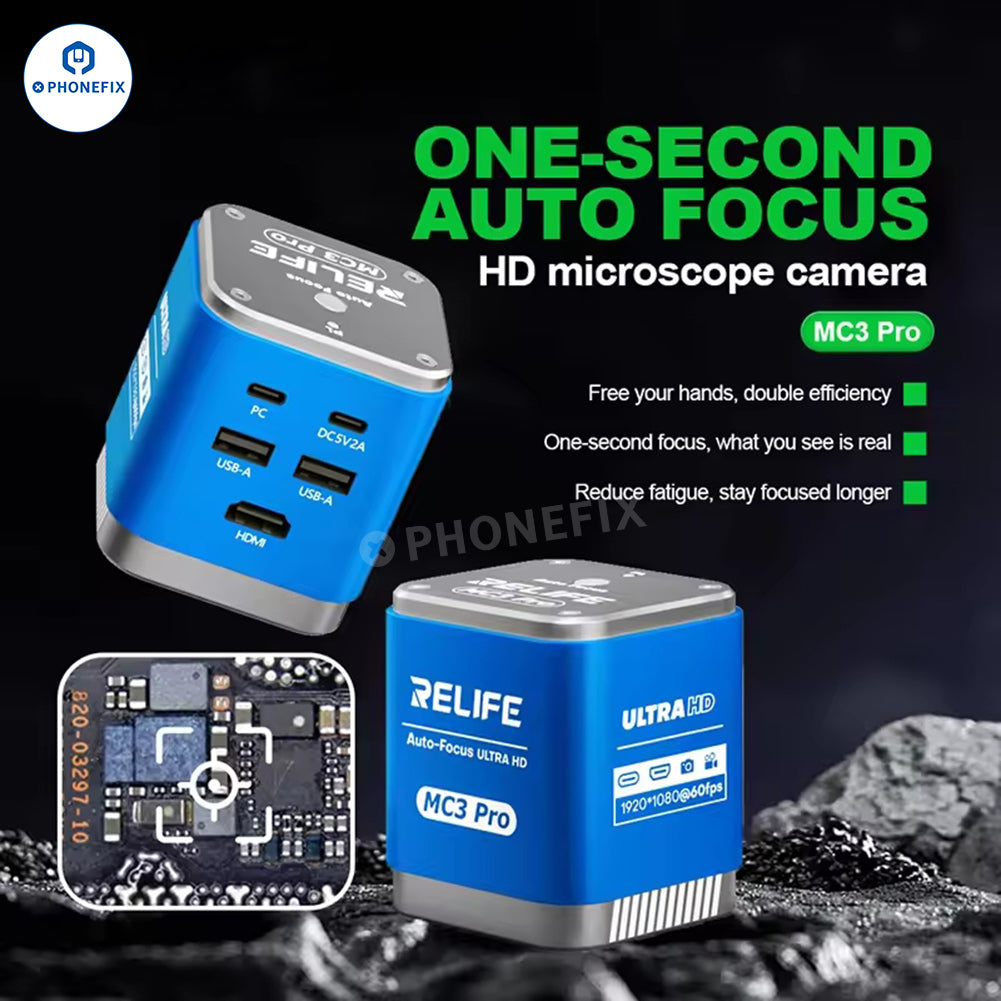

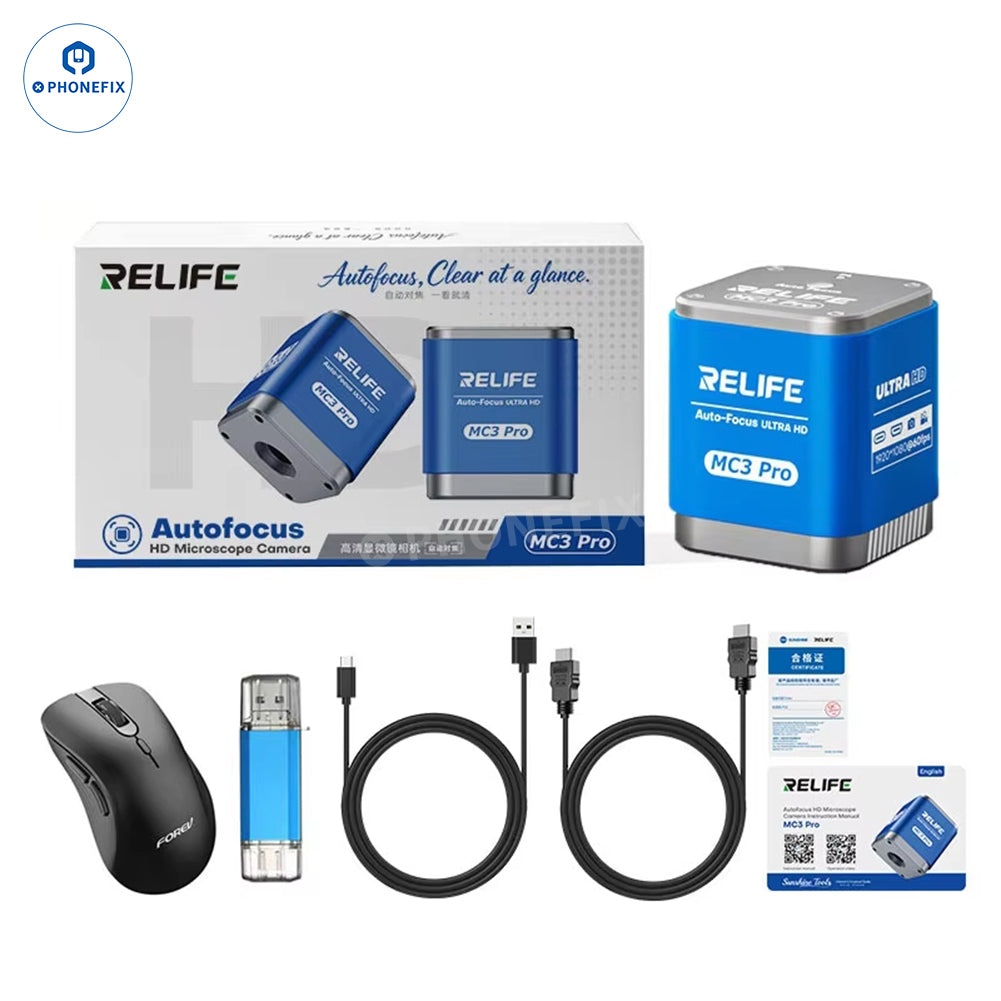

RELIFE MC3 Pro 4K Camera Features:
1. One-Second Auto Focus – Lens automatically tracks and locks optimal focus instantly; reduces manual adjustments and improves workflow efficiency.
2. Sony IMX307 Sensor – 1080p 60fps high-sensitivity sensor with true HDR for clear, detailed imaging.
3. Hands-Free Operation – Auto focus keeps the image clear while both hands are occupied with soldering or chip removal.

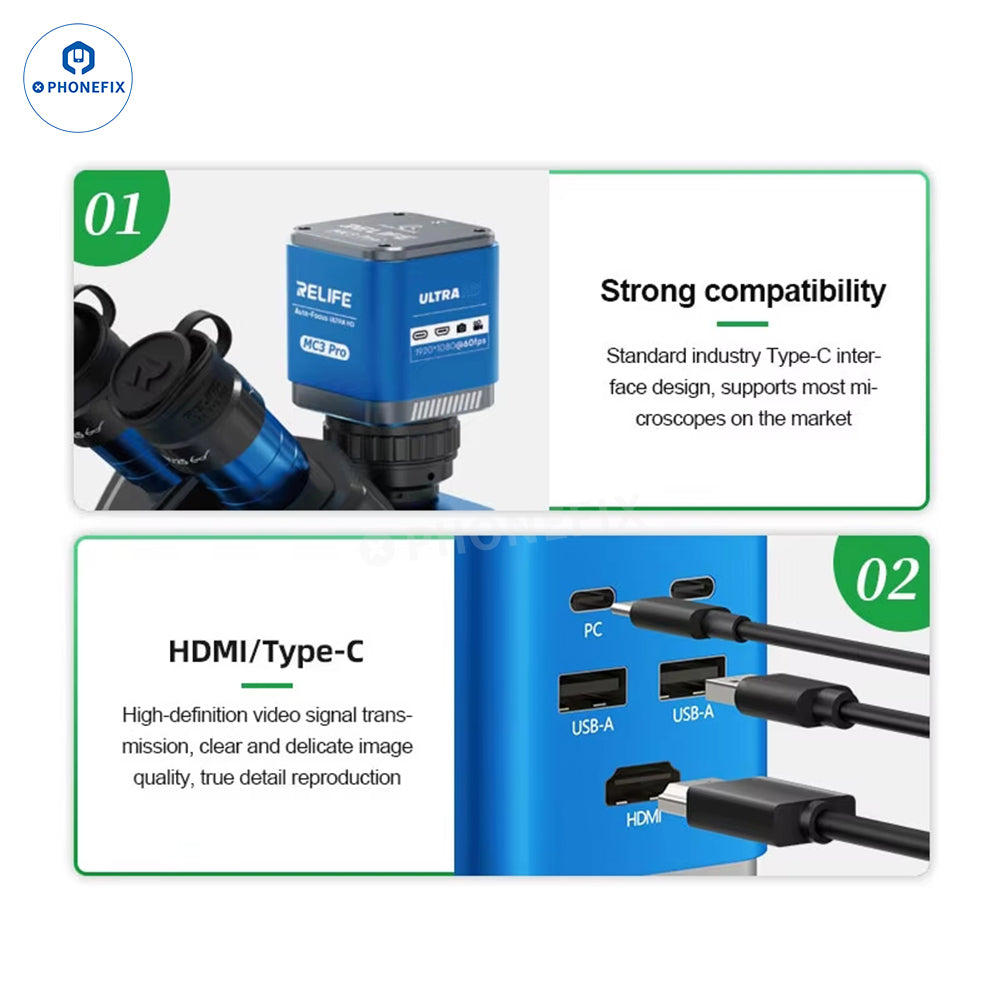

4. HDMI + Type-C Dual Output – Plug-and-play high-definition video output for monitors and computers; clear image quality with true detail reproduction.
5. 5x Digital Zoom – Enables close-up inspection of tiny components and solder joints.
6. USB Drive Storage – Supports photo and video capture with direct USB storage for easy archiving.
7. Multi-Language Support – 8 languages including English, Chinese, Russian, German, French, Japanese, and Italian.
8. Standard Type-C Interface – Compatible with most microscopes on the market.

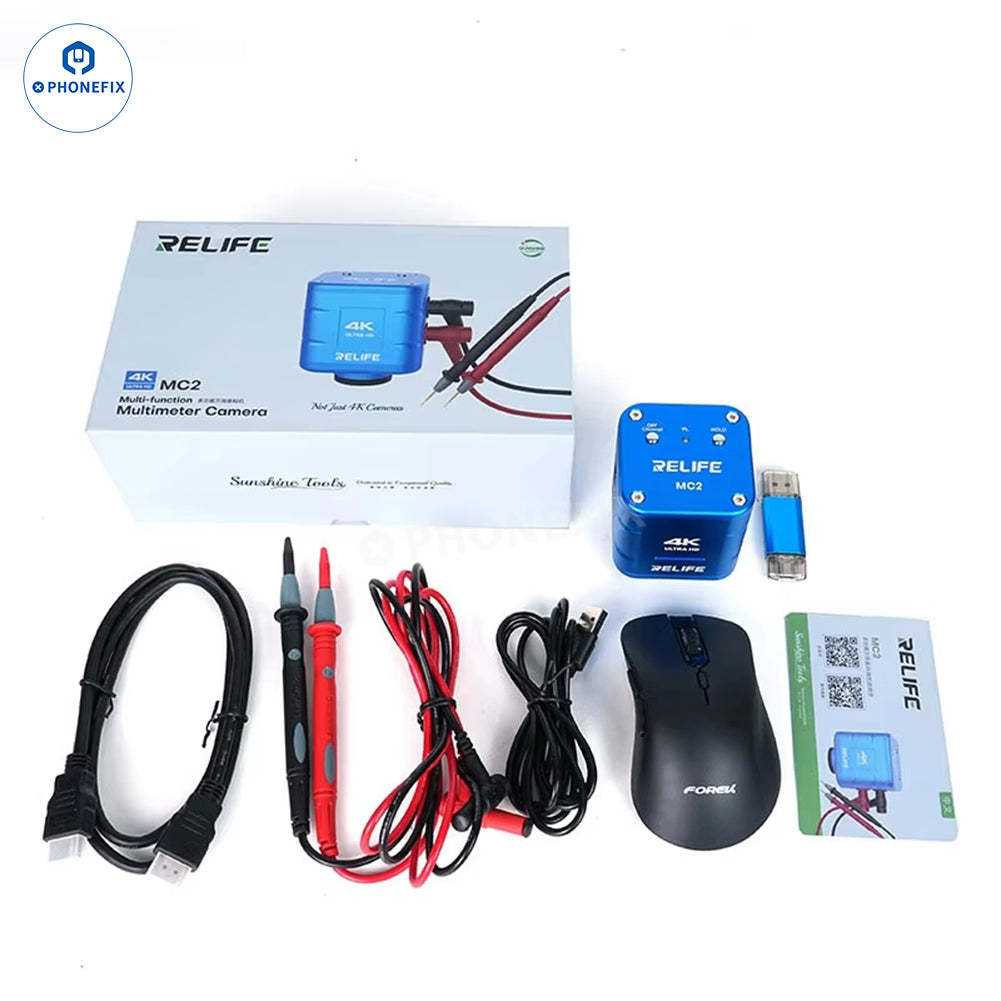

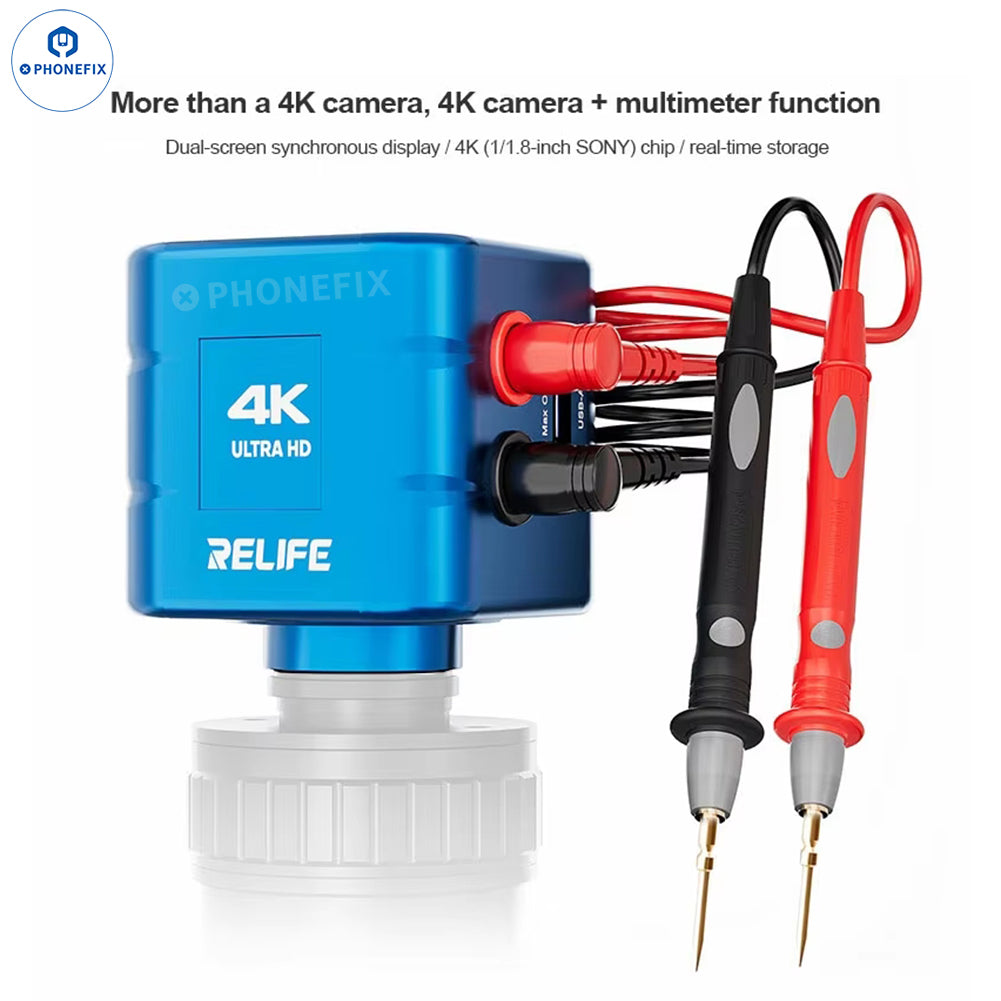

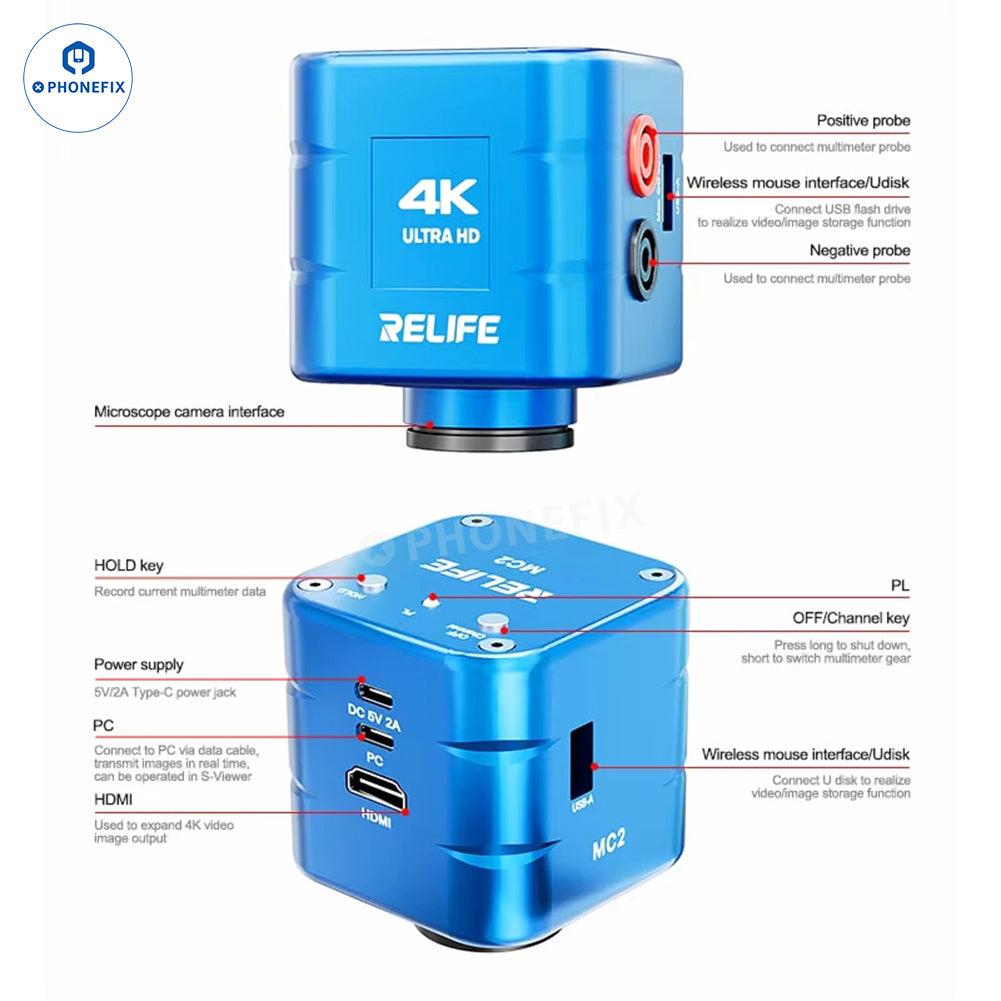

RELIFE MC2 4K Camera with a digital multimeter features:

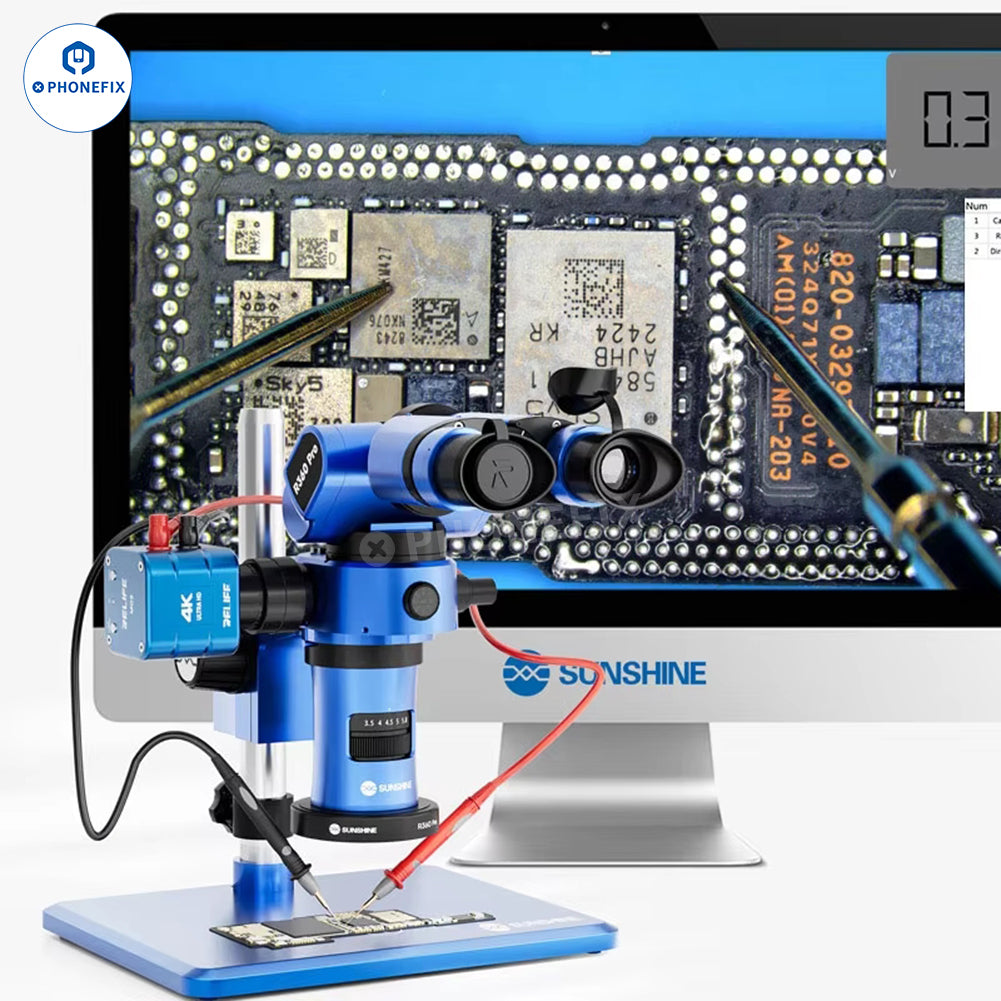

1. 4K Microscope Camera + Multimeter. Combines high-resolution inspection with circuit testing in one device; displays multimeter data alongside live video,
2. Sony IMX678 4K Sensor. 1/1.8-inch sensor delivers 4K ultra-clear imaging with high sensitivity and dynamic range,
3. Multimeter Functions. Measures capacitance, resistance, and DC voltage with gold-plated stainless steel probes for precise, low-error contact,
4. Dual-Screen Synchronous Display. Multimeter readings and live microscope image appear on the same screen for efficient workflow,
5. HDMI + Type-C Output. Plug-and-play 4K video output to external monitors and PC with S-Viewer software support,
6. USB Drive Storage. Supports 4K photo and video recording for easy documentation and archiving,
7. 5× Digital Zoom. Enables close-up inspection of tiny components and solder joints,
8. Gold-Plated Probes. φ2mm, 22mm reinforced stainless steel probes with gold plating for high precision and oxidation resistance,
9. Multi-Language Support. Supports English, Chinese, Russian, German, French, Japanese, and Italian,
10. Standard C-Mount. Compatible with most industrial microscopes on the market.
RELIFE MC1 4K Camera Features:
1. 60MP Ultra-HD Image Quality – High-resolution 4K dynamic imaging for clear, sharp, and vivid detail reproduction.
2. Sony 1/2.7-inch Image Sensor – High-quality Sony sensor with high sensitivity for rich, realistic picture effects.
3. 4K@30fps HDMI/Type-C Output – High-definition video signal transmission with clear, delicate picture quality and true detail restoration.
4. Standard C-Mount Interface – Industry unified standard interface for easy compatibility with most microscopes.
5. Multi-Function Button – Simple, intuitive operation with all essential functions at your fingertips.
RELIFE MC5 4K Camera Parameters:
Brand: RELIFE
Product Name: 4K 60FPS Microscope Camera
Model: MC5
Sensor: Sony IMX678 CMOS Image Sensor (1/1.8-inch, 8.29MP)
Photo Resolution: 3840 × 2160
Video Recording: 4K Video Recording
USB Output: 3840 × 2160 @ 60fps / 1080P @ 60fps
Output Interfaces: HDMI, USB 3.0
Storage: USB Drive Storage
Lens Interface: C-Mount
White Balance: One-touch White Balance / Auto White Balance
Operating Voltage: DC 12V
Language Settings: English / Chinese / Traditional Chinese

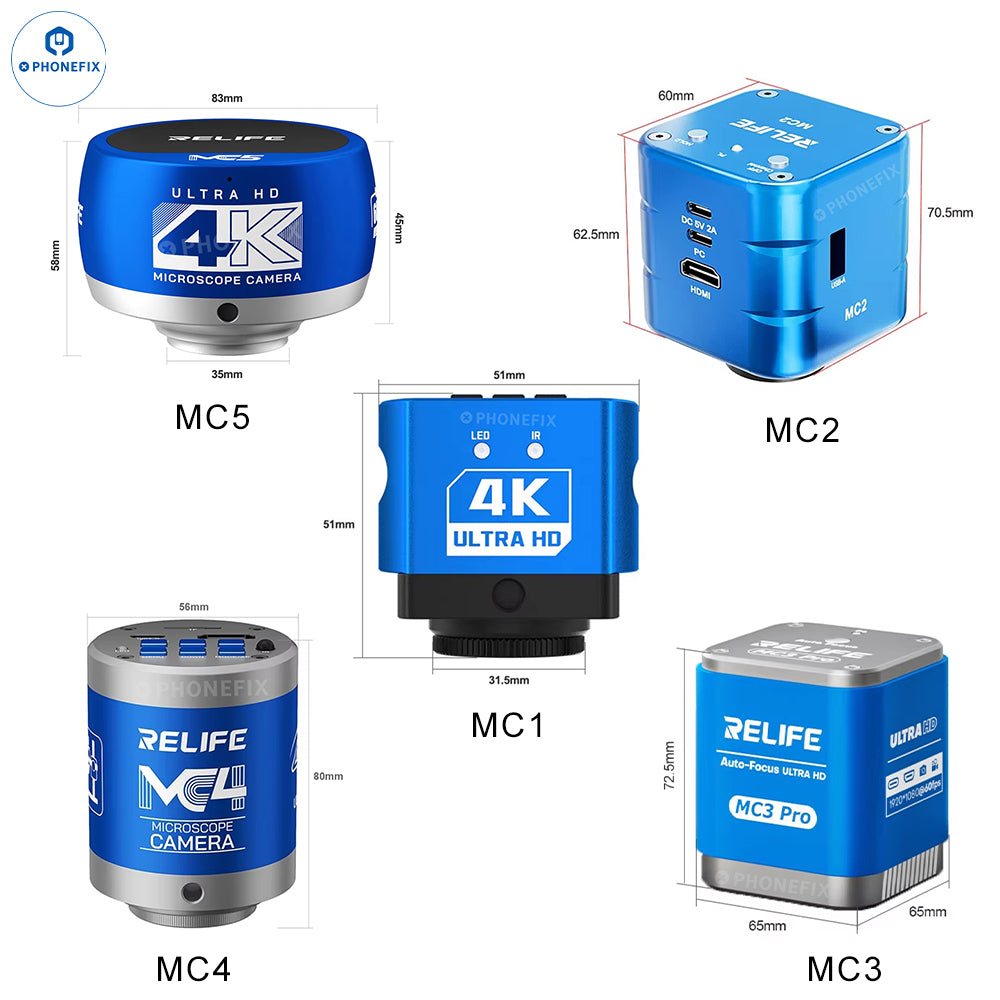

Product Dimensions: 83mm × 83mm × 58mm
Package Dimensions: 185mm × 175mm × 85mm
Net Weight: ≈ 260g
Gross Weight: ≈ 655g
PC Support: Yes
RELIFE MC4 4K Camera Parameters:
Brand: RELIFE
Product Name: 4K HD Camera
Model: MC4
Sensor: 1/2.7-inch 8-megapixel Back-illuminated CMOS Image Sensor
Pixel Size: 1.5μm × 1.5μm
HDMI Output: 3840×2160 @ 30fps / 1920×1080 @ 30fps
USB Output (Type-C): 3840×2160 / 2560×1440 / 1920×1080 / 1280×720 / 640×480 / 424×240 / 320×240 (MJPG)
Lens Mount: C/CS Mount
Exposure: Auto/Manual (Exposure Compensation Supported)
White Balance: Auto/Manual (Adjustable R, G, B Values Supported)
Storage: TF Card Supported, Up to 64GB
Crosshair Lines: 16 Straight Lines, Adjustable Color, Thickness, and Position
Center Line: Supported
Menu Languages: English / Chinese / Traditional Chinese / Multiple Languages
Remote Control: Supported
Input Voltage: DC 5V
Product Dimensions: 56mm × 56mm × 80mm
Package Dimensions: 131mm × 109mm × 65mm
Net Weight: ≈ 178g
Gross Weight: ≈ 398g
RELIFE MC2 4K Camera Parameters:
Brand: RELIFE
Product Name: Multi-function Multimeter 4K Camera
Model: MC2
Sensor: Sony IMX678 (1/1.8-inch)
Pixel Size: 2.0μm × 2.0μm
Photo Resolution: 3840 × 2160
Video Recording: 1920×1080 @ 30fps / 3840×2160 @ 30fps
USB Output: 1920×1080 @ 30fps / 3840×2160 @ 15fps
Output Interfaces: HDMI, Type-C
Storage: USB Flash Drive
PC Support: Yes (S-Viewer Software)
Digital Zoom: 5x
Spectral Response: 400-1000nm
Language Settings: Chinese / Traditional Chinese / English / Russian / German / French / Japanese / Italian
Product Dimensions: 70.5mm × 60mm × 60mm
Package Dimensions: 218mm × 128mm × 80mm
Net Weight: ≈ 260g
Gross Weight: ≈ 695g
Input Voltage: DC 5V 2A (Type-C)
RELIFE MC3 4K Camera Parameters:
Brand: RELIFE
Product Name: High-Definition Microscope Camera
Model: MC3 Pro
Sensor: Sony IMX307
Pixel Size: 2.9μm × 2.9μm
Photo Resolution: 1920 × 1080
Video Recording: 1920×1080 @ 30fps / 1920×1080 @ 60fps
USB Output: 1920×1080 @ 60fps
Output Interfaces: HDMI, Type-C
Storage: USB Flash Drive
PC Support: Supported
Digital Zoom: 5x
Spectral Response: 400-1000nm
Language Settings: Chinese / Traditional Chinese / English / Russian / German / French / Japanese / Italian
Product Dimensions: 65mm × 65mm × 72.5mm
Package Dimensions: 228mm × 129mm × 78mm
Net Weight: ≈ 292g
Gross Weight: ≈ 735g
RELIFE MC1 4K Camera Parameters:
Brand: RELIFE
Product Name: 4K HD Camera
Model: MC1
Sensor: Sony 1/2.7-inch Image Sensor
Effective Pixels: 4K (3840×2160), Photo Interpolation 60MP (10368×5888)
HDMI Output Resolution: 4K @ 30fps / 1080P @ 60fps
USB-PC Output Resolution: 4K @ 30fps / 1080P @ 30fps
Photo Resolution: 4K
Video Resolution: 4K / 1080P / 720P
Output Interfaces: HDMI, Type-C, TF Card Slot
Lens Interface: CS Interface
Crosshair Lines: 32 Lines (16 Horizontal + 16 Vertical), Adjustable Color and Line Width
Operating Current: 600mA
Power Supply: Type-C Interface (5V)
Scanning Mode: Progressive Scan
Shutter Type: Electronic Shutter
Dynamic Range: 69dB
Signal-to-Noise Ratio: 40dB
White Balance Modes: One-shot White Balance / Manual / Auto
Supported Functions: Reflection Reduction, Black & White, Negative Film, Mirror Image, Freeze/Thaw, Adjustable Image Parameters
Menu Languages: Chinese / English / Traditional Chinese / Japanese / French / Spanish / German / Italian / Portuguese / Russian / Arabic
Product Dimensions: 51mm × 42mm × 51mm
Package Dimensions: 130mm × 100mm × 60mm
Net Weight: ≈ 120g
Gross Weight: ≈ 275g

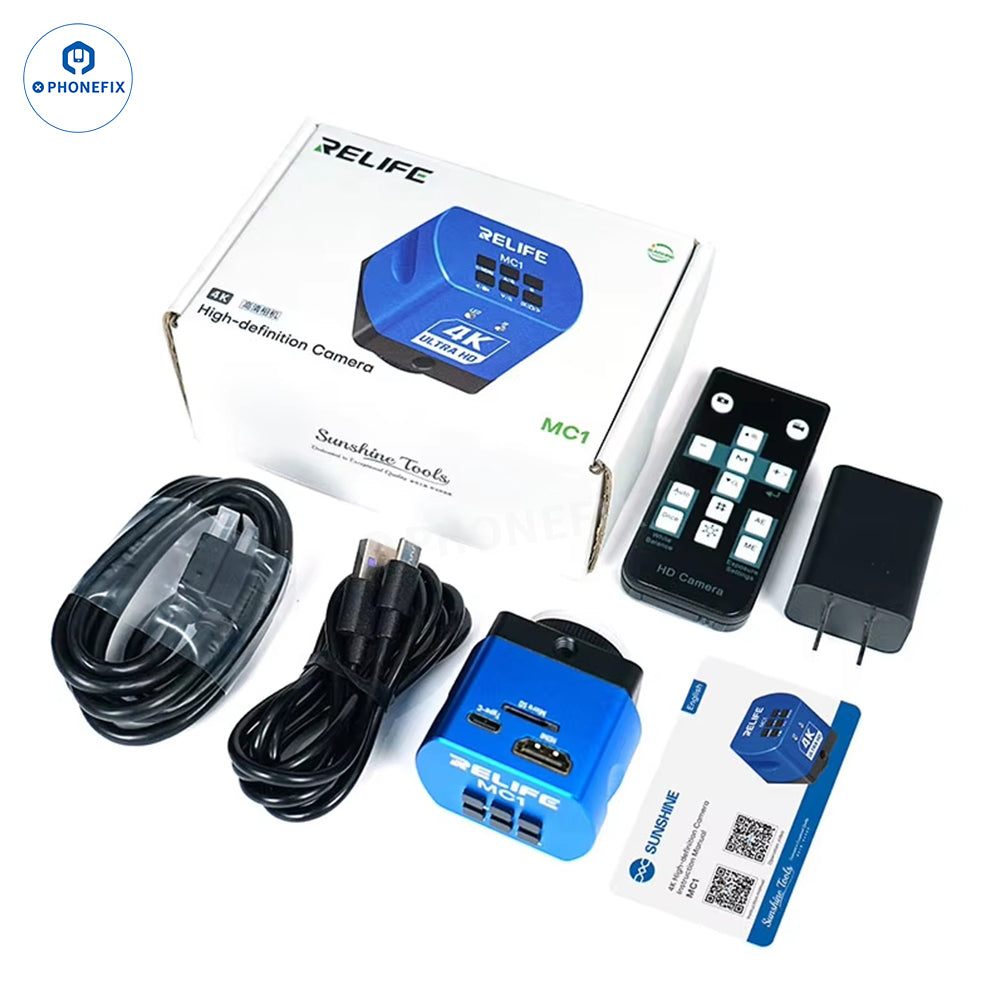

Configuration: Main Unit×1 / HDMI Cable×1 / Type-C Cable×1 / Charging Plug×1 / User Manual Card×1 / Remote Control×1
