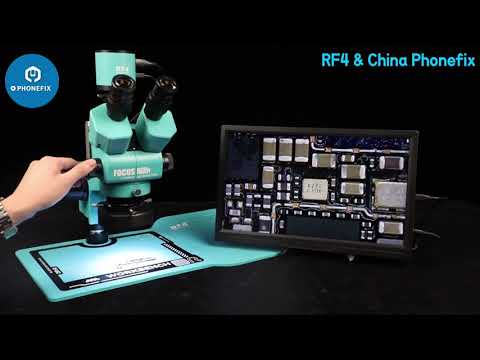

RF4 2K 4K HD Microscope Camera: RF-2KC2PRO 2K Ultra HD camera and RF4-4KC1 4K ULTRA HD camera for stereo trinocular microscope. RF4 RF-2KC8 1080P HD industrial camera used with a trinocular stereo microscope or C-mount lens, supports HDMI USB output interface, and can be connected to a monitor and computer for mobile phone PCB soldering repair. 2K 4K Ultra HD Output High-Resolution Adjustable Digital Camera for mobile phone, tablet repair tool.
Option:
1. RF4 RF-4KC1 4K camera.
2. RF4 RF-2KC2PRO 2K camera: RF4 Upgrades RF-2CK2 to RF-2CK2PRO with Computer Connection Function.
3. RF4 RF-2KC8 2K camera.

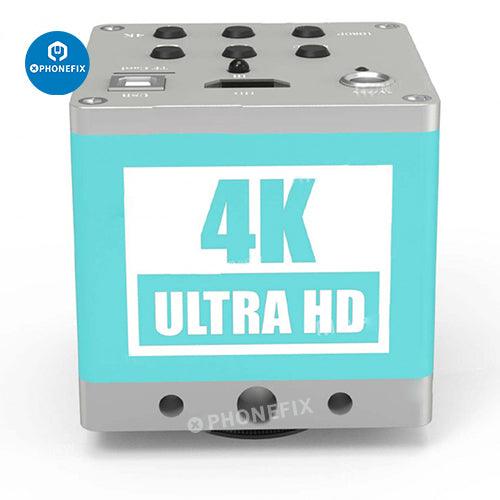

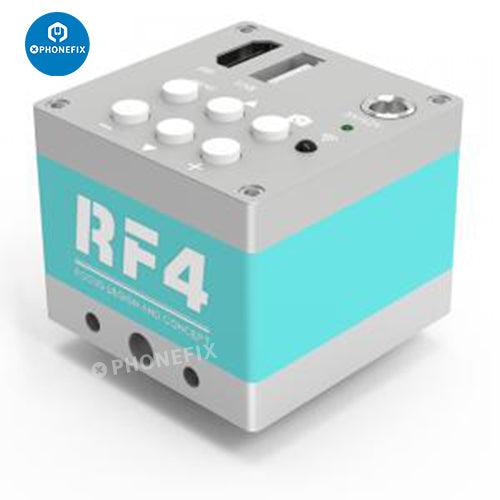

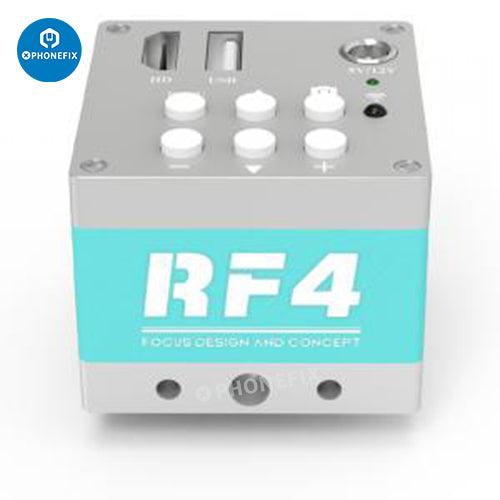

RF4 RF-4KC1 4K ULTRA HD Microscope Camera Parameters:
Lens type: Supports C/CS interfaces.
Imaging element: 4K 1/2.8 inch CMOS.
Sensor Target surface size: 1/2.8″.
Sensor resolution: 4k/3840*2160@30fps.
Output interface: HDMI 4k@30fps, 3840x2160 4K Ultra HD/1080P.
Storage: TF Card Reader. Taking photos, video recording, playback, etc. (USB disk, capacity<=64GB).
HD: Monitor HD cable interface.
USB: USB drive port.
Photograph: 8 million, JPG.
Video: 3840*2160 avi.
HDMI connection to monitor: The display should support 3840*2160/1920*1080 resolution.
Output: USB+HDMI.
Power input: +5V to +12V DC.
+5V Maximum working current 400m
+12V maximum working current 200mA.
Use a USB interface to connect the computer to the UVC camera.

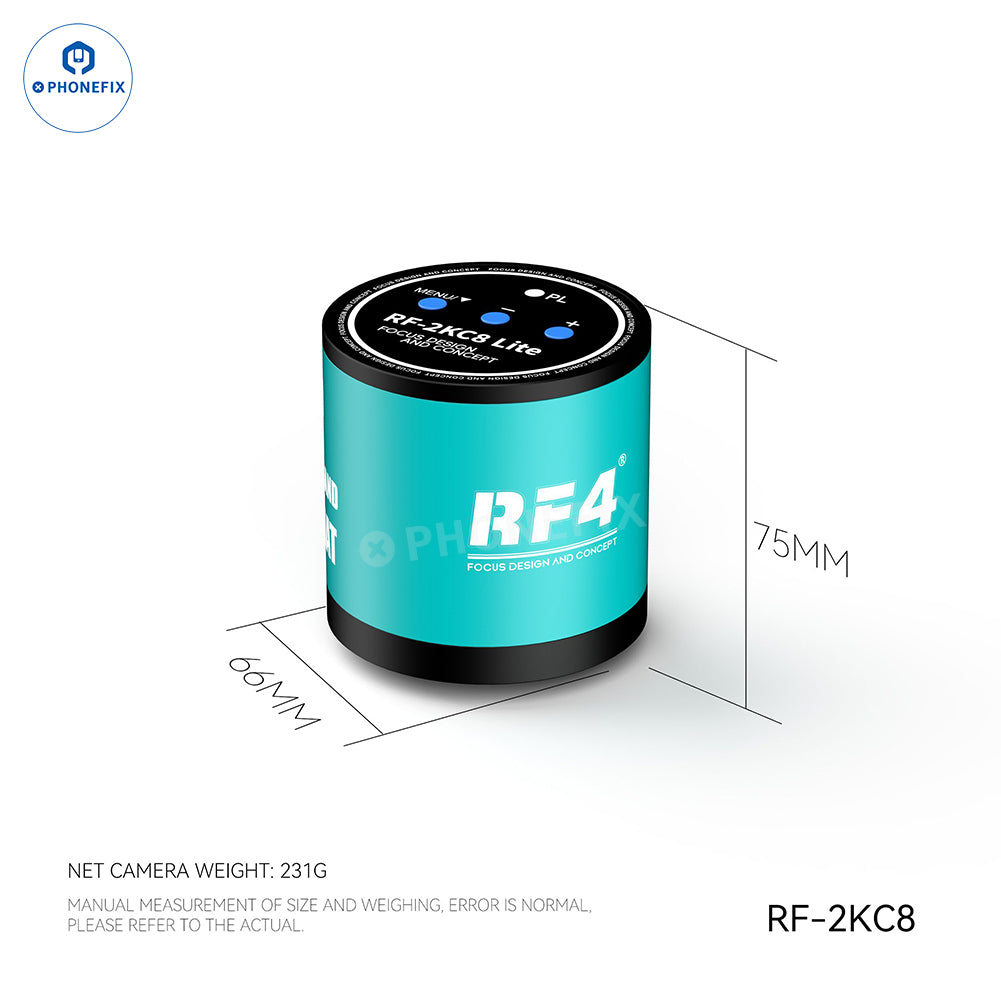

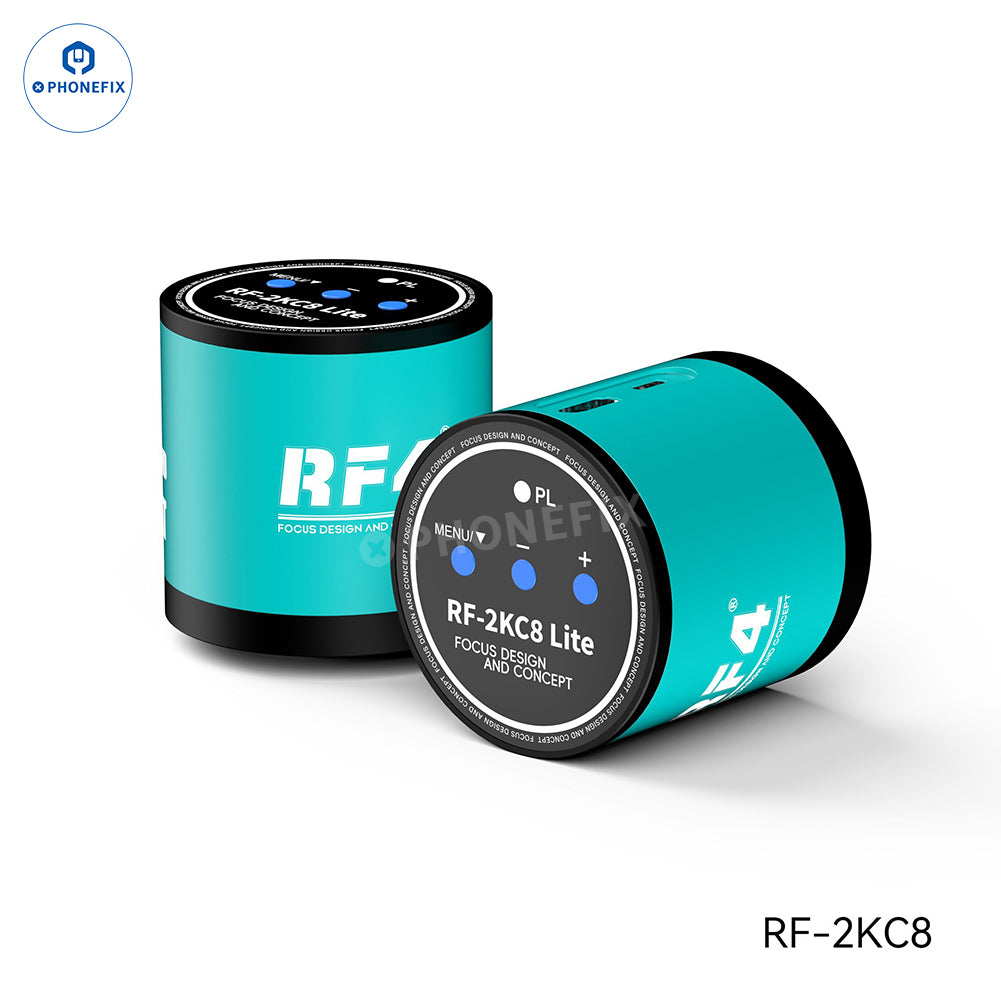

RF4 RF-2KC8 Parameters:
2K1/2.8, 1/2 (optional) inch CMOS.
Effective pixels: 6000*8000.
Frame rate: 60FPS.
Clear graduation: 900 lines.
Resolution: 1920*1080(16:9), 1920*1080(16:10), 1280*720(16:9), 1024*768(4:3).
Power supply: +5V allows 10% deviation, current not less than 0.5A.
Net weight: 231G.
Adoption CS/C lens interface can be used to select any CS/C interface lens.

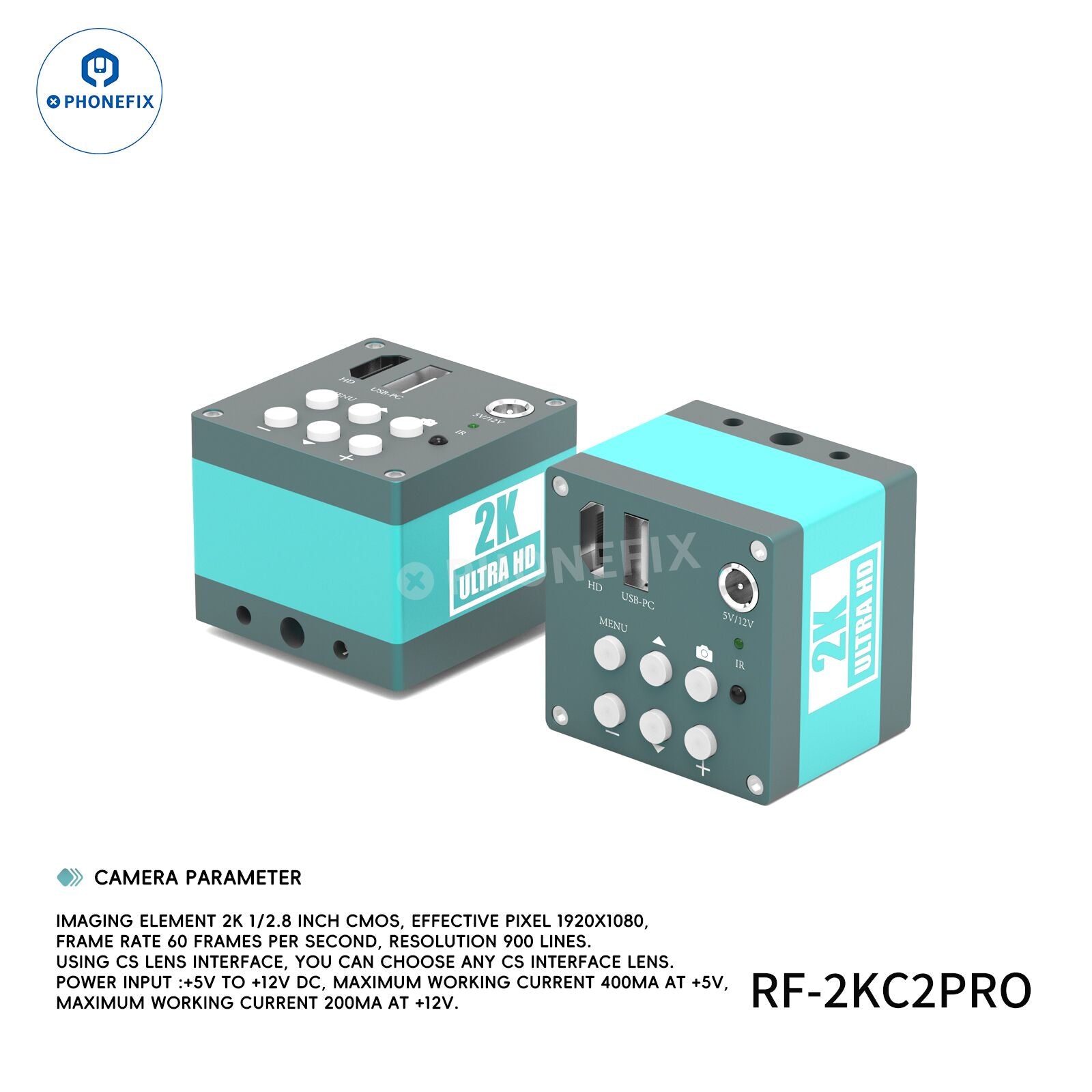

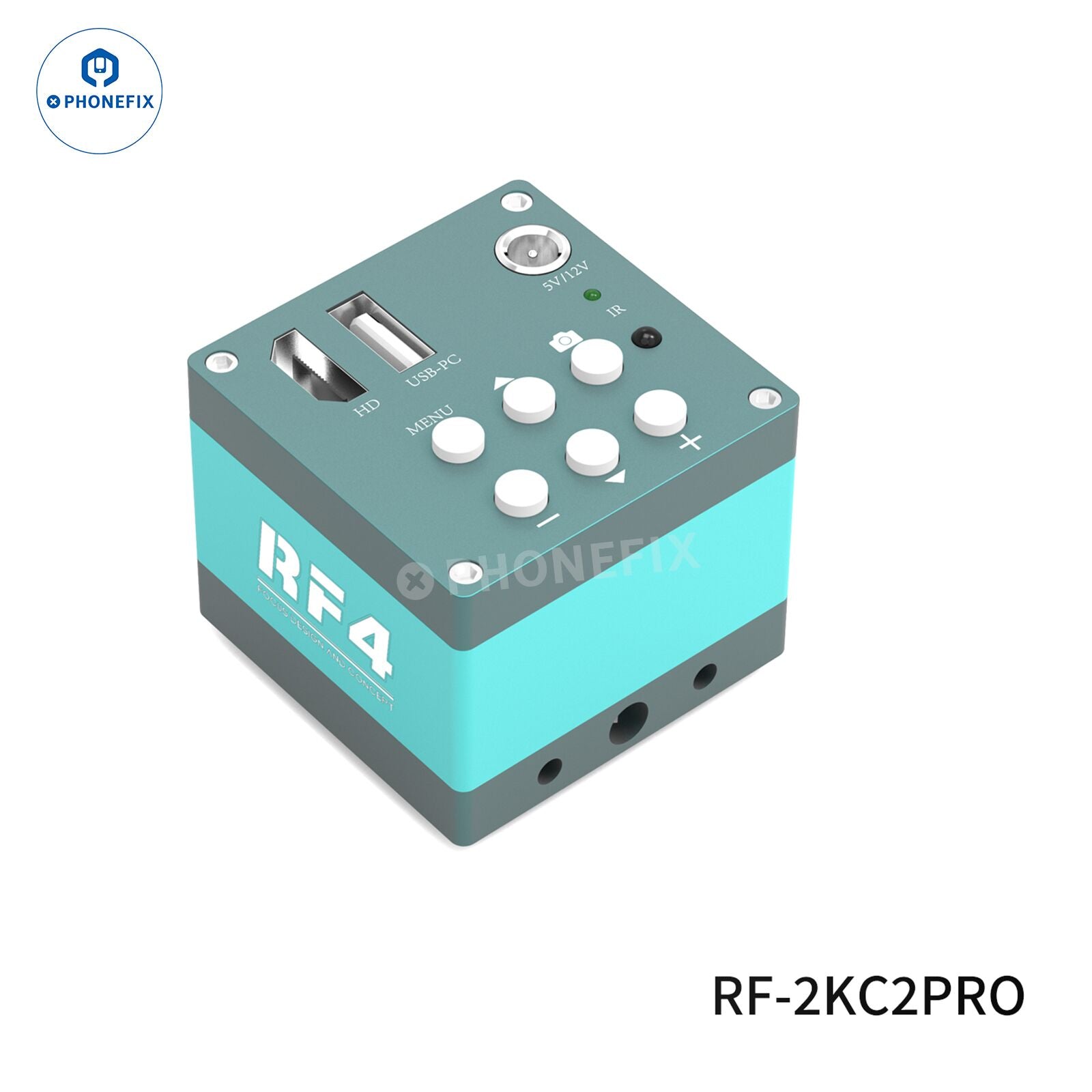

RF4 RF-2KC2PRO 2K Full HD Microscope Camera Parameters:
Imaging element: 2K 1/2.8 inch CMOS.
Effective pixel: 1920X1080.
Frame rate: 60 frames/SEC, resolution 900 lines.
HD: Monitor HD cable interface
USB: USB drive port.
Output: USB.
HD: Monitor HD cable interface.
USB: USB drive port.
Power input: +5V to +12V DC.
+5V Maximum working current 400mA,
+12V maximum working current 200mA.
Using the CS lens interface can choose any CS lens interface.
It has the function of taking pictures and recording videos.
Adds computer connection function.
The difference between RF-2KC2 and RF-2KC8 cameras: RF-2KC8 camera can't take photos, have no video recording function, no storage function, and no operating system. And the RF-2KC2 camera has these features.

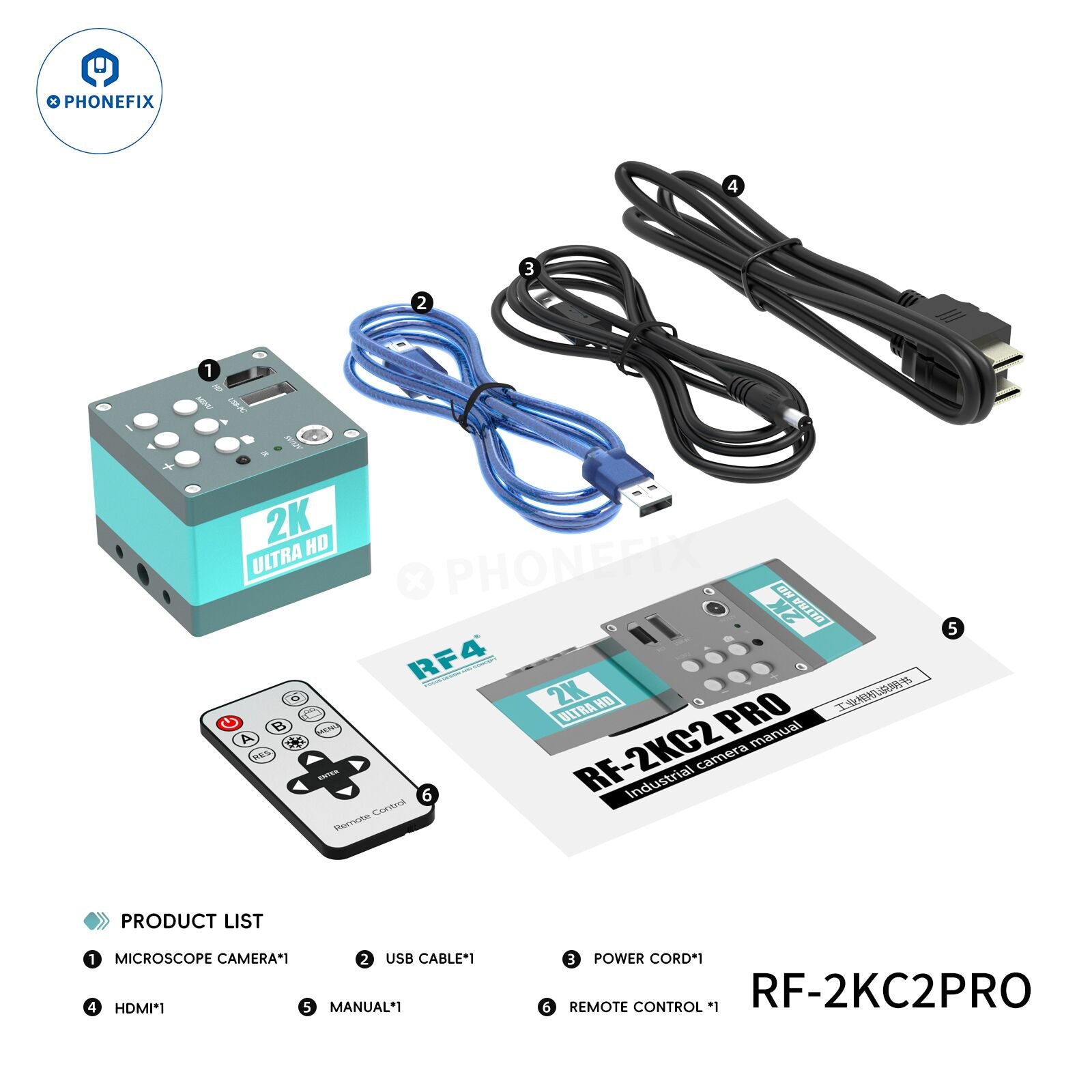

Package Includes:

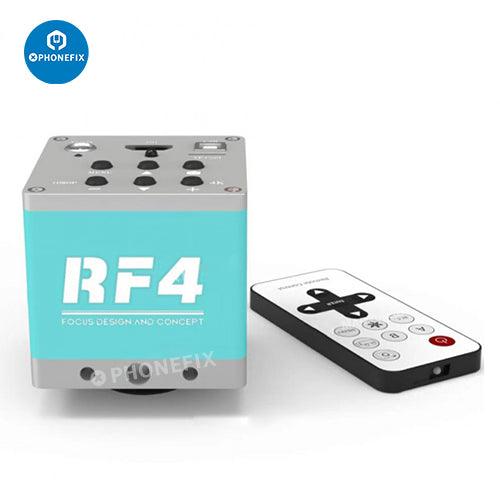

- 1x Microscope Digital Camera

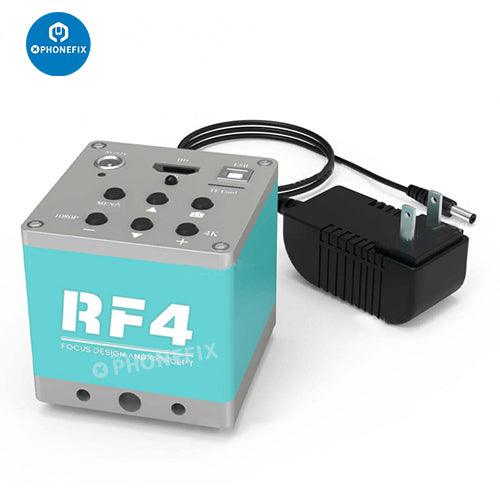

- 1x Power Supply (EU Adaptor)
- 1x Remote controller
