RF4 2K 4K Ultra HD Microscope Camera for Mobile Phone Repair. RF4 RF-4KC1 PRO, RF-2KC2 Pro, RF-4KC7, RF-4KC5, RF-2KC3 and RF-2KC8 lite microscope cameras are compatible with most trinocular microscopes and C-mount lens and support HDMI USB output interfaces for connecting to monitors and computers, providing ultra-high-definition images or videos, suitable for mobile phone motherboard repair, precision electronic board component repair, BGA chip soldering repair, etc.
Option:
1. RF-4KC1 PRO 4K Camera.
2. RF-2KC2 Pro 2K Camera.
3. RF-2KC3 2K Camera.
4. RF-4KC7 4K Camera.
5. RF-2KC8 lite 2K Camera.
6. RF-4KC5 4K Camera.

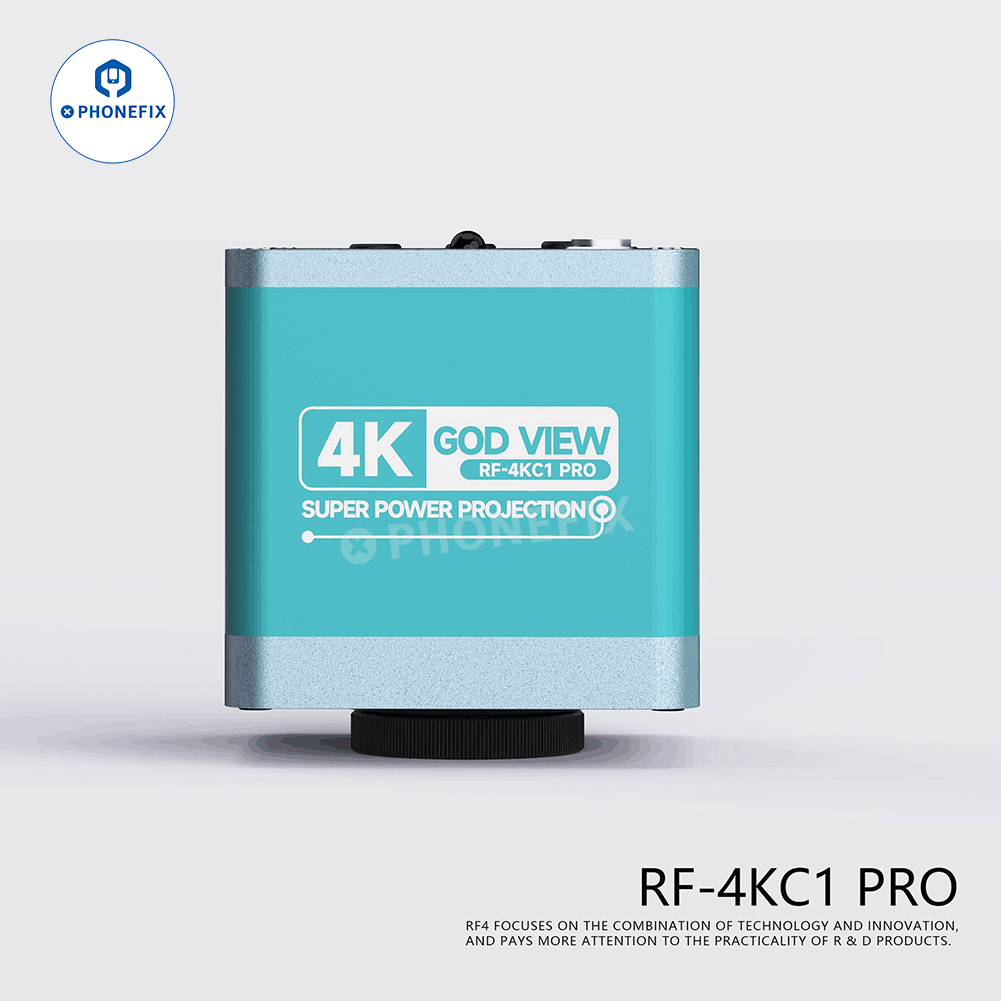

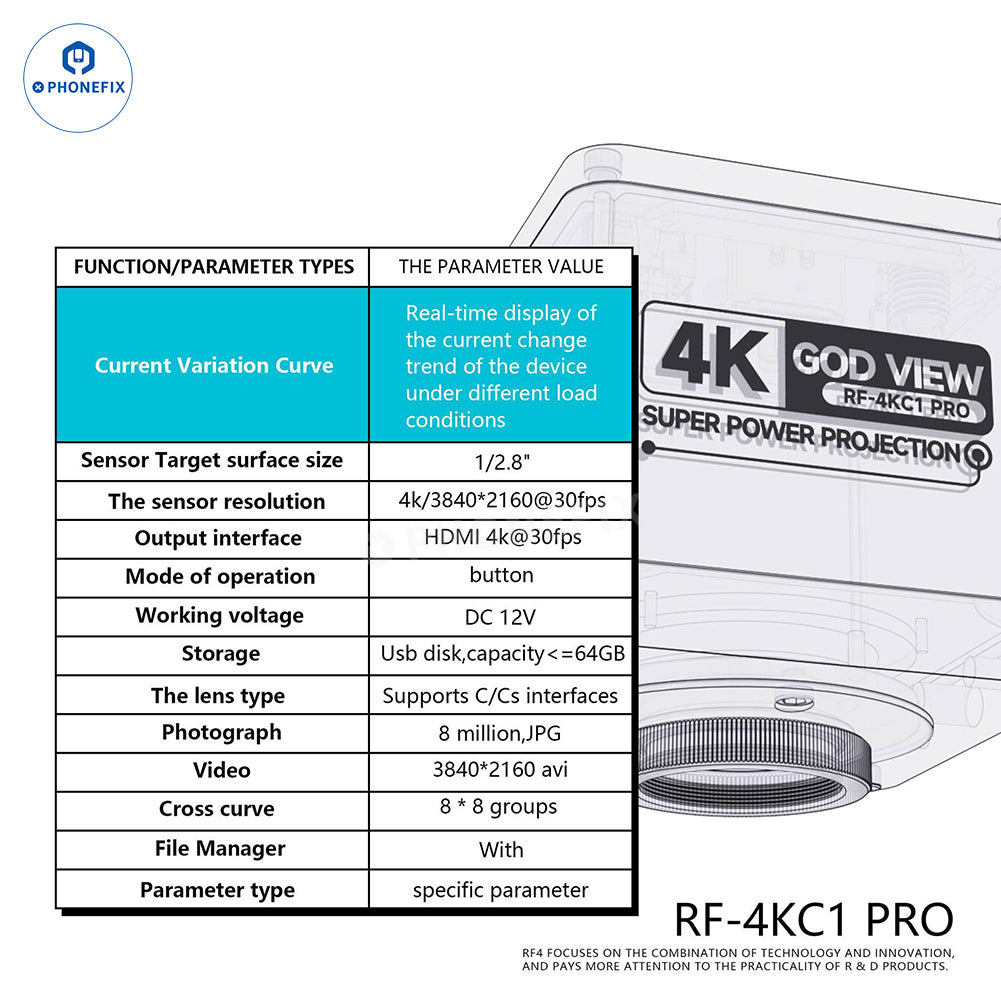

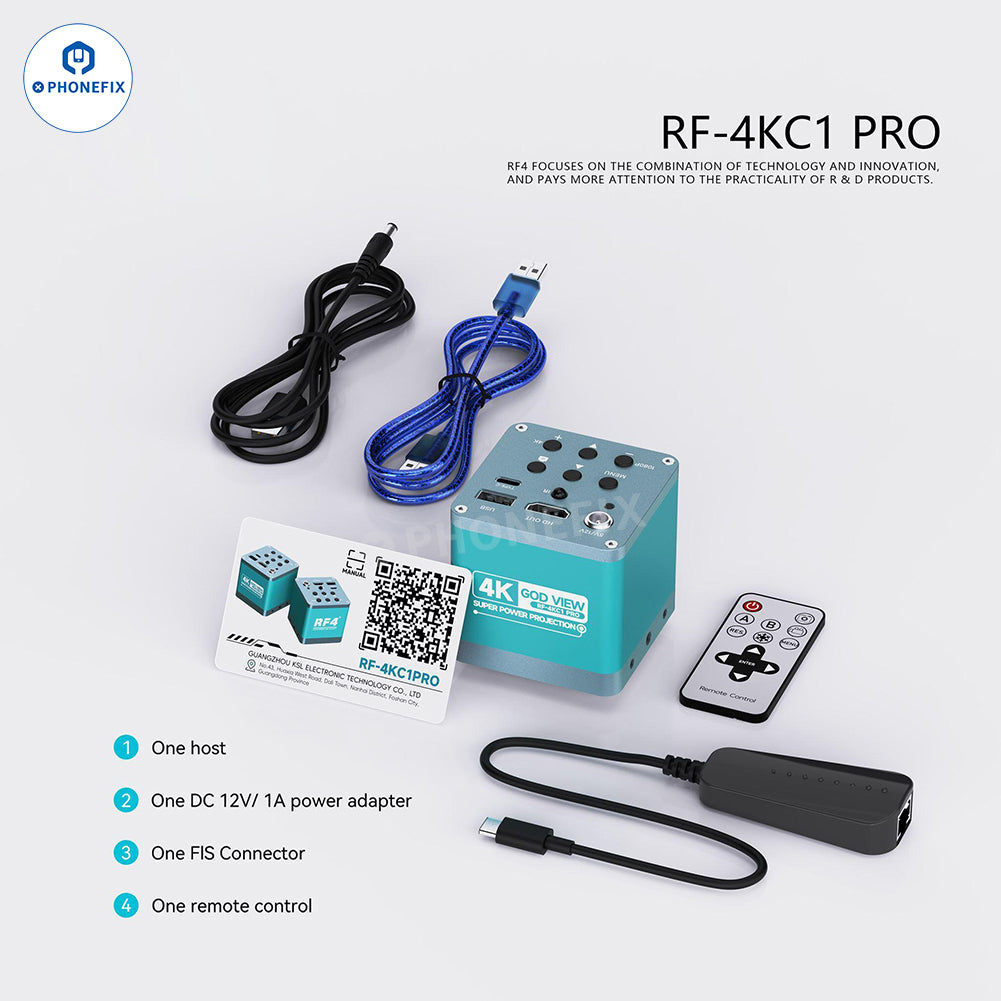

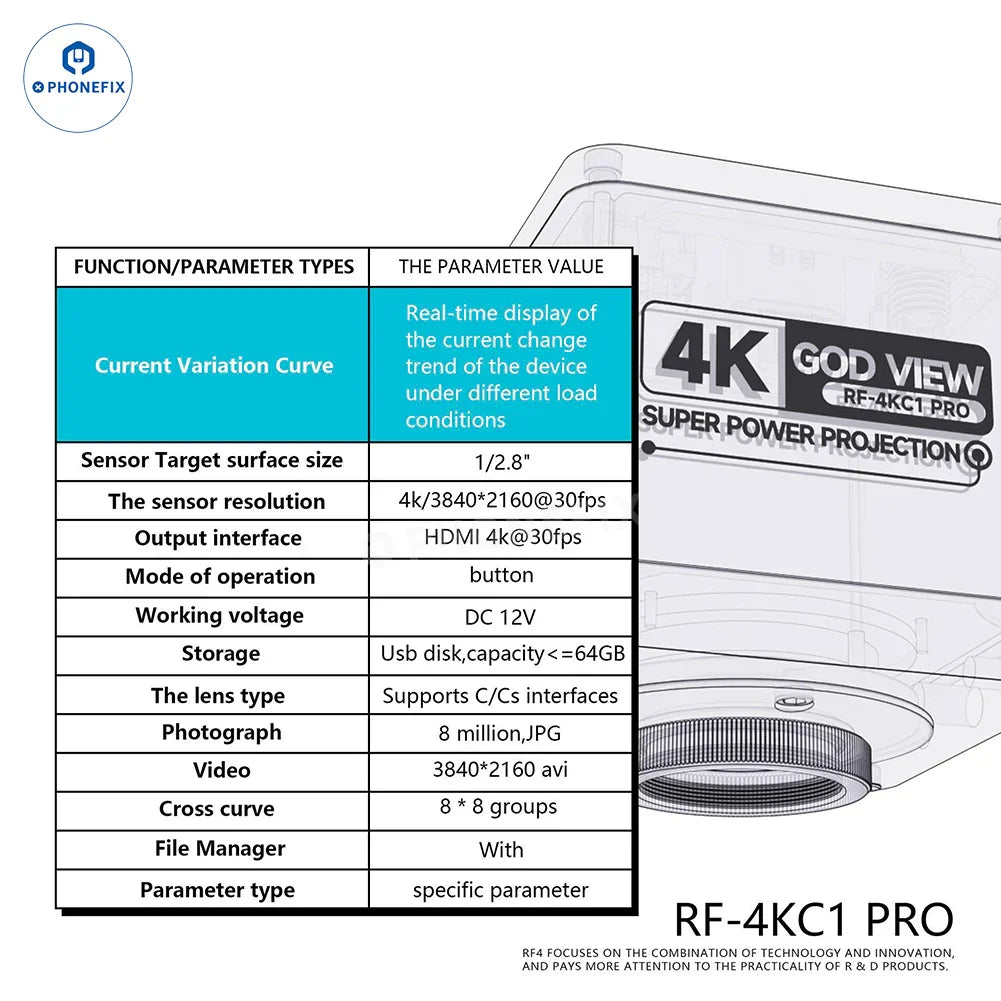

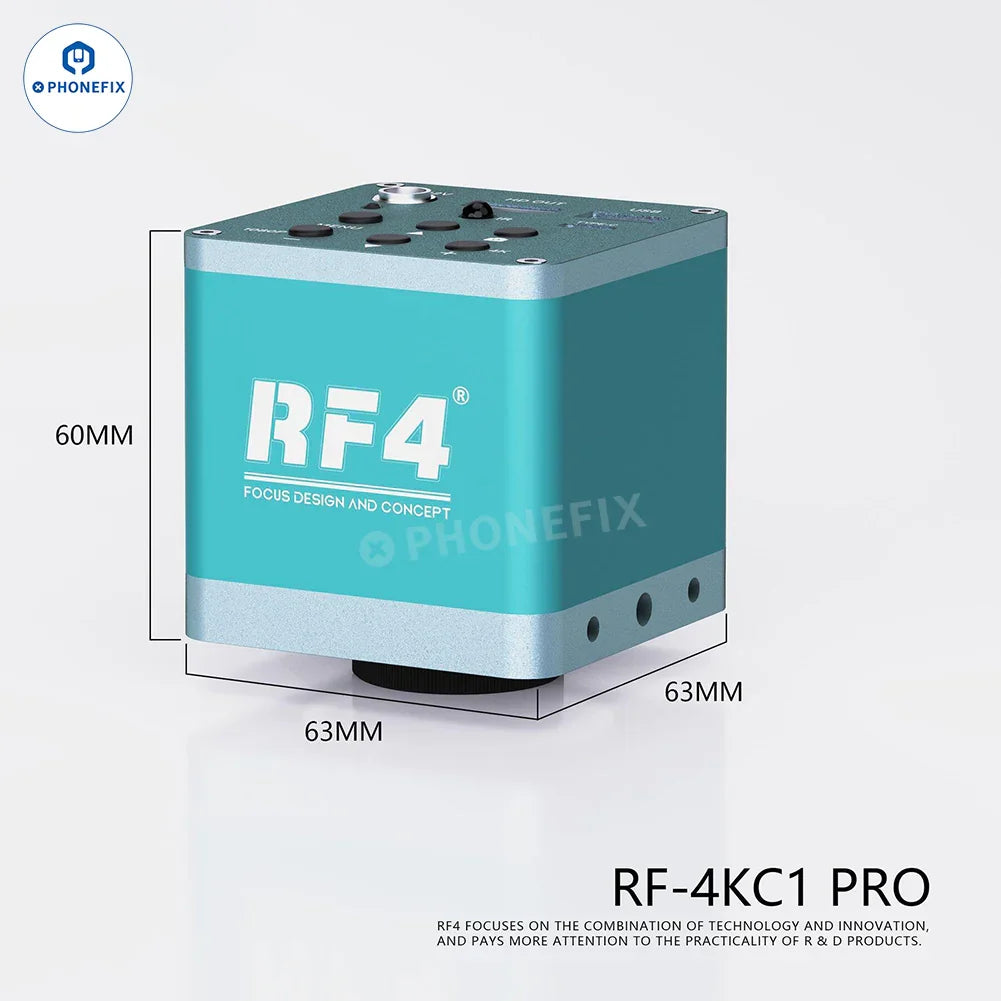

RF4 RF-4KC1 Pro 4K Ultra HD Camera Specification:
Sensor: 1/2.8"
Pixels: 4K ULTRA HD
Sensor resolution: 4K/3840*2160@30fps
Output interface: HDMI 4K@30fps
Output: USB+HDMI
Remote control: YES
Photo: YES
Video: YES
Mode of operation: Button
Working voltage: DC 12V
Storage: USB disk, capacity <=64GB
The lens type: Supports C/CS interfaces
Photograph: 8 million, JPG
Video: 3840*2160 avi
Cross curve: 8*8 groups
File Manager: With
Parameter type: specific parameter
Current Variation Curve: Real-time display of the current change trend of the device under different load conditions

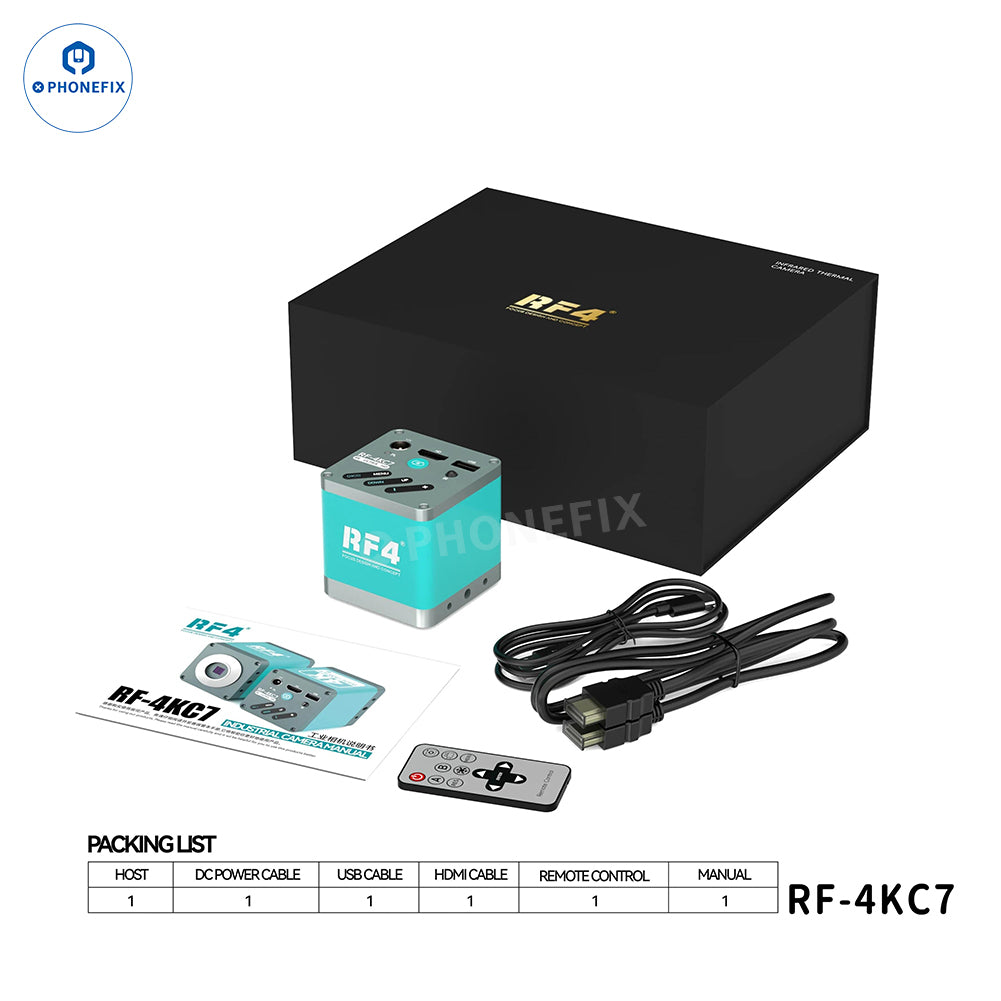

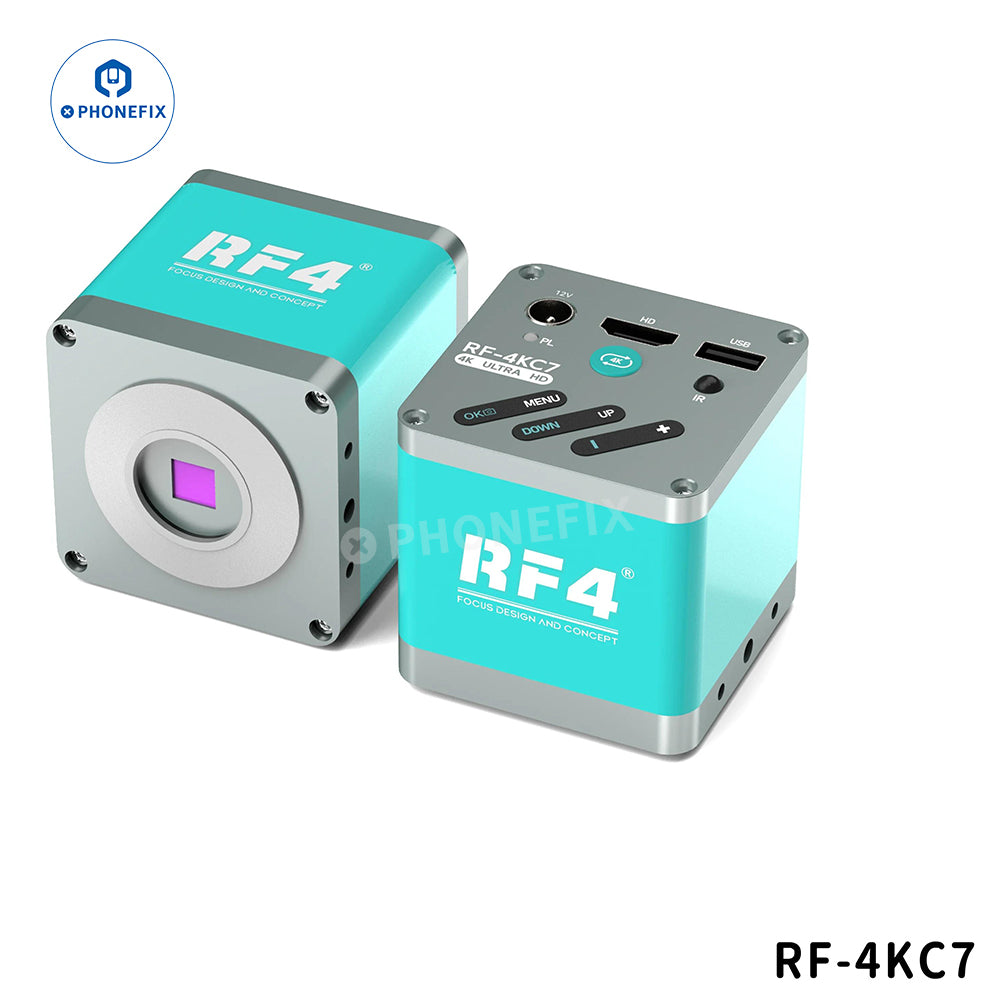

RF4 RF-4KC7 4K HD Camera Specification:
Pixels: 4k ULTRA HD
Output: USB+HDMI
Remote control: YES
Photo: YES
Video: YES
Sensor: 8 million 1/1.8" Sony color
Resolution: 3840*2160/4K
Frame rate: 30 frames per second
Mode of operation: Key
Operating voltage: DC 12V
Store: USB flash drive, capacity ≤32G
Shot type: Supports c/cs interfaces
Video interface: Standard HDMI interface,usb2.0 uvc interface
Take a picture: 3840*2160 JPG
Video recording: 1920*1080 AVI
Reticle: 1-8 Groups
File management: Picture and video playback
Dimension: 63*63*63mm
Features: Wide field lens, wide field of view. A USB interface, can be connected to the U-disk, can be connected to the computer for UVC camera use; Shoot the picture, save the video to the U-disk, you can also play back the picture in the U-disk, video.

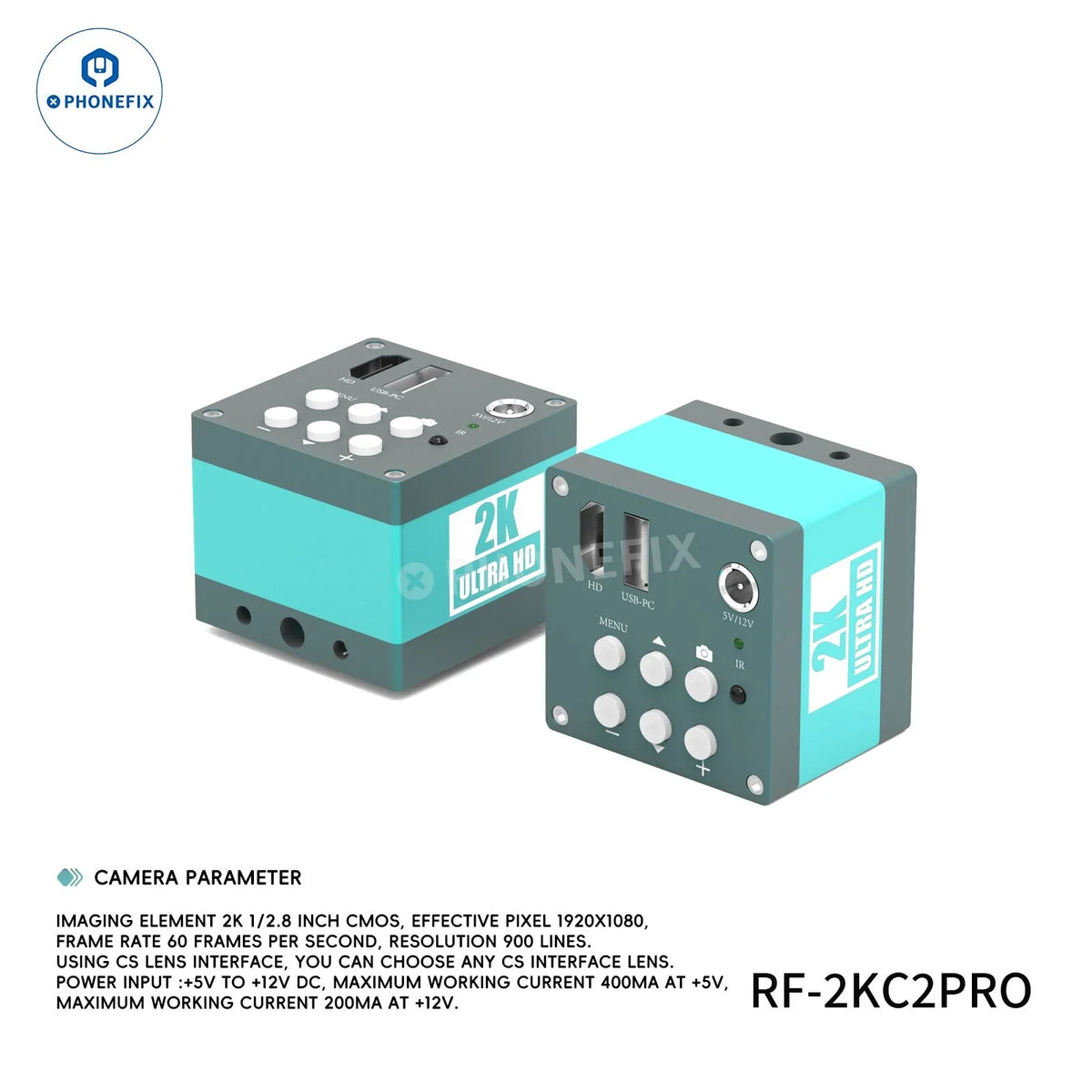

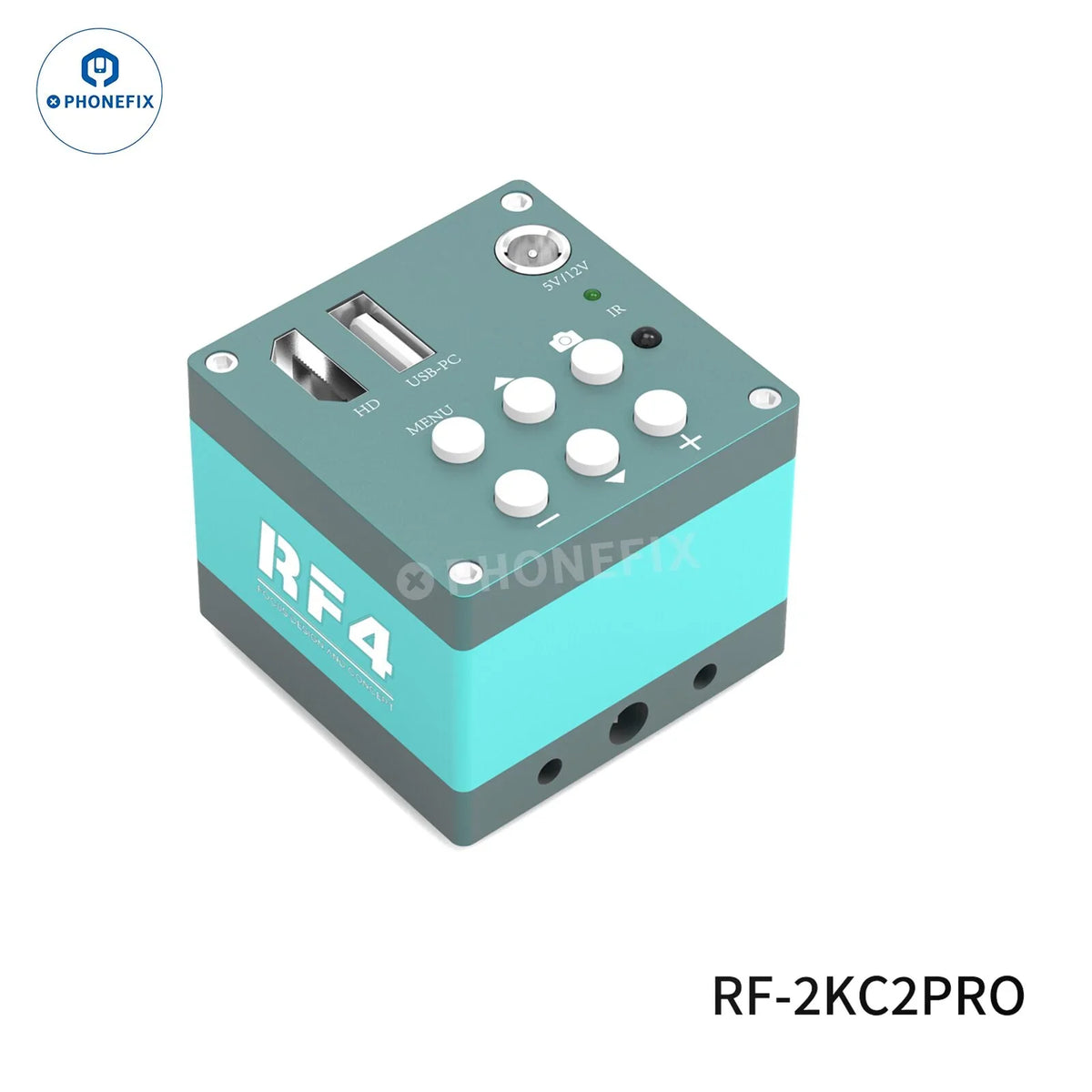

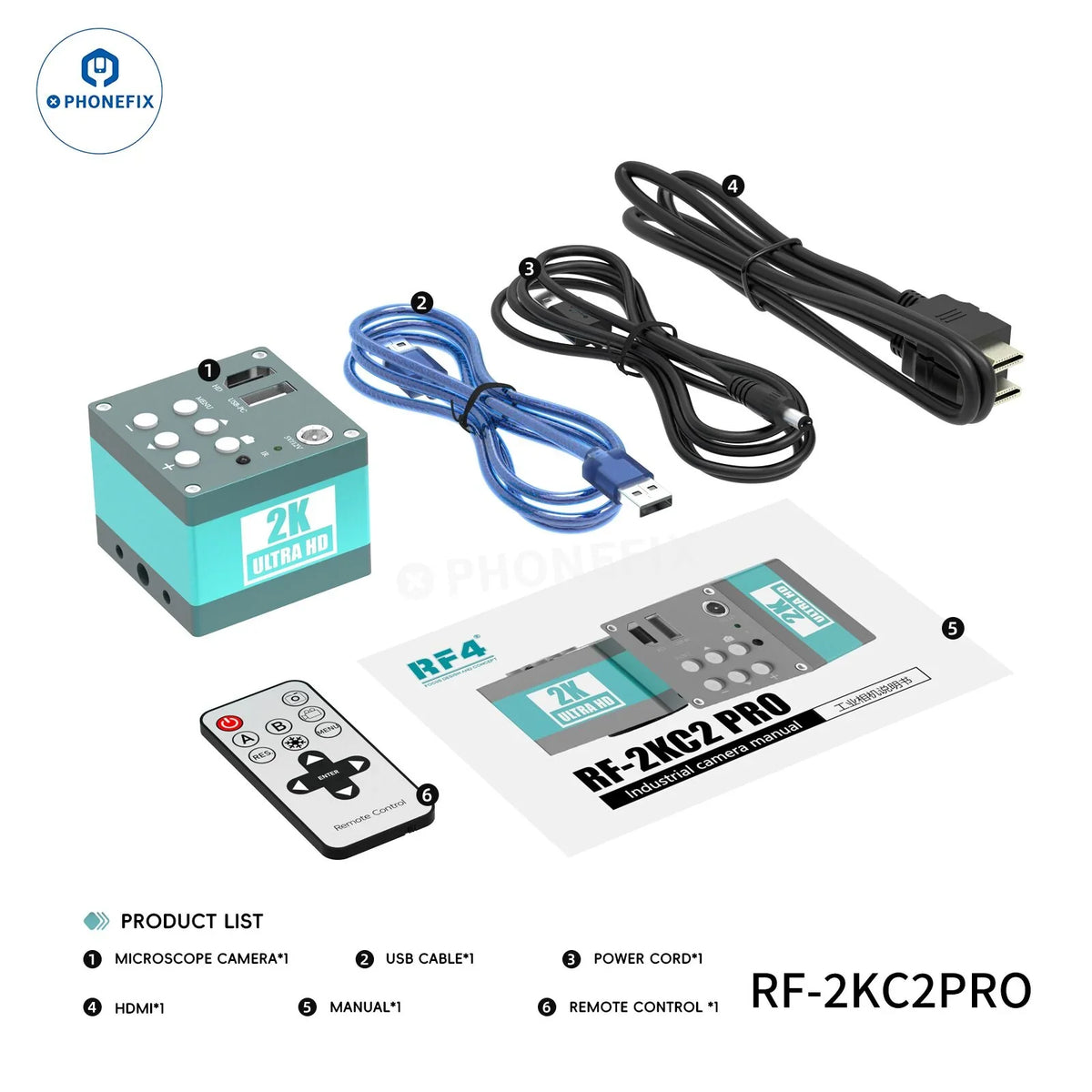

RF4 RF-2KC2 PRO 2K Full HD Microscope Camera Parameters:
Imaging element: 2K 1/2.8 inch CMOS.
Pixels: 2K FULL HD
Output: USB+HDMI
Remote control: YES
Photo: YES
Video: YES
Effective pixel: 1920X1080.
Frame rate: 60 frames/SEC, resolution 900 lines.
HD: Monitor HD cable interface
USB: USB drive port.
HD: Monitor HD cable interface.
USB: USB drive port.
Power input: +5V to +12V DC.
+5V Maximum working current 400mA,
+12V maximum working current 200mA.
Using the CS lens interface can choose any CS lens interface.
It has the function of taking pictures and recording videos.
Adds computer connection function.

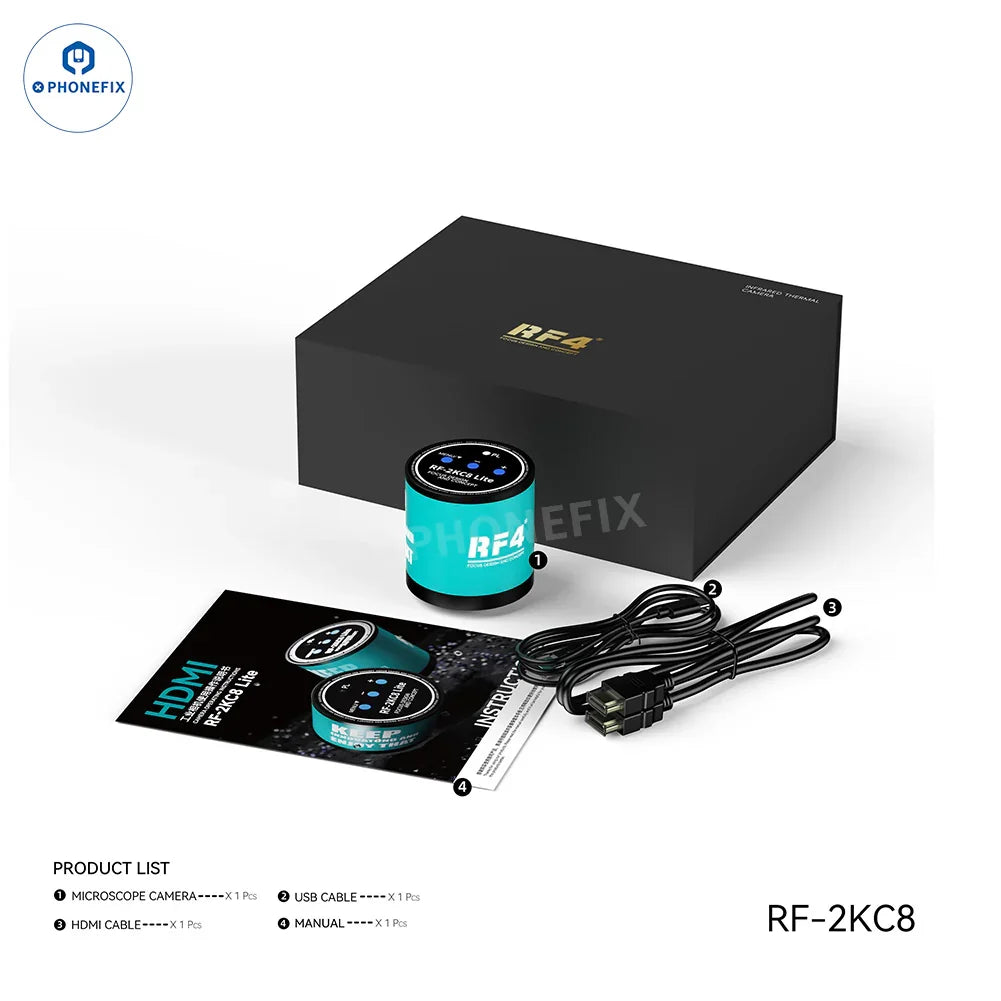

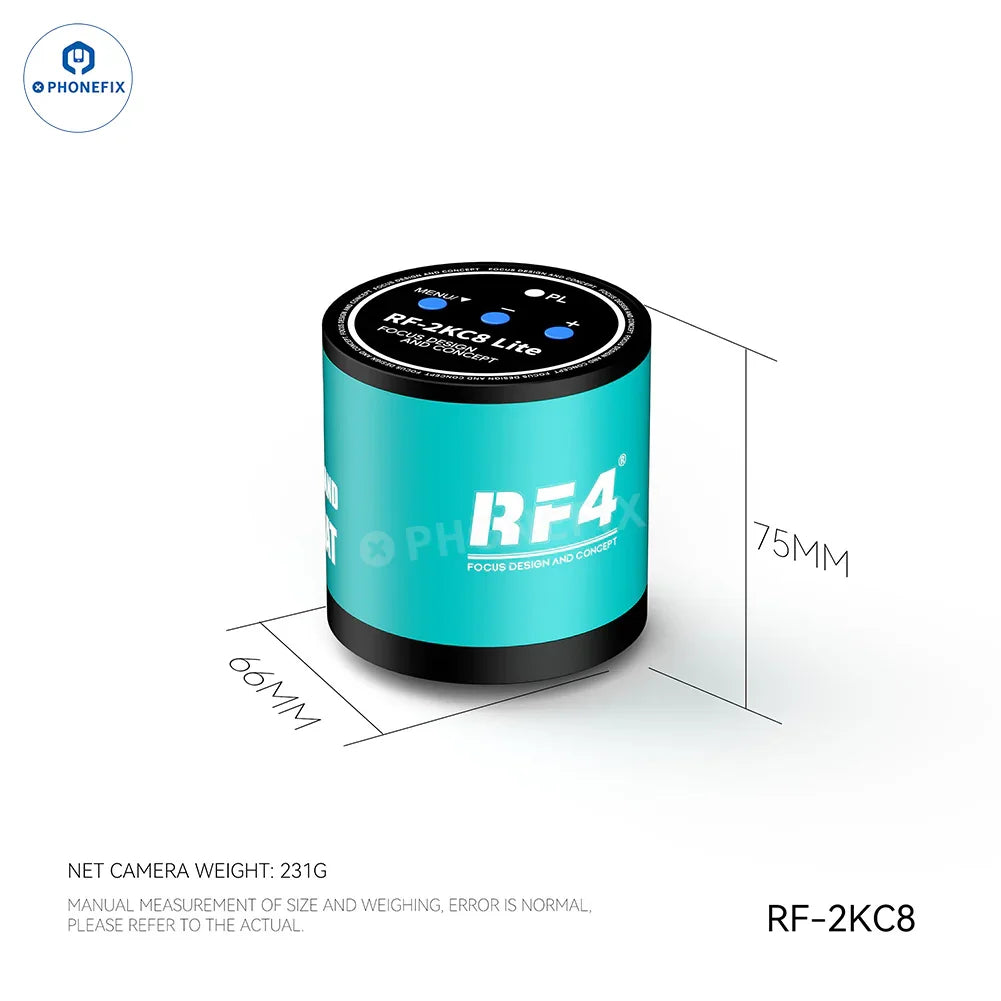

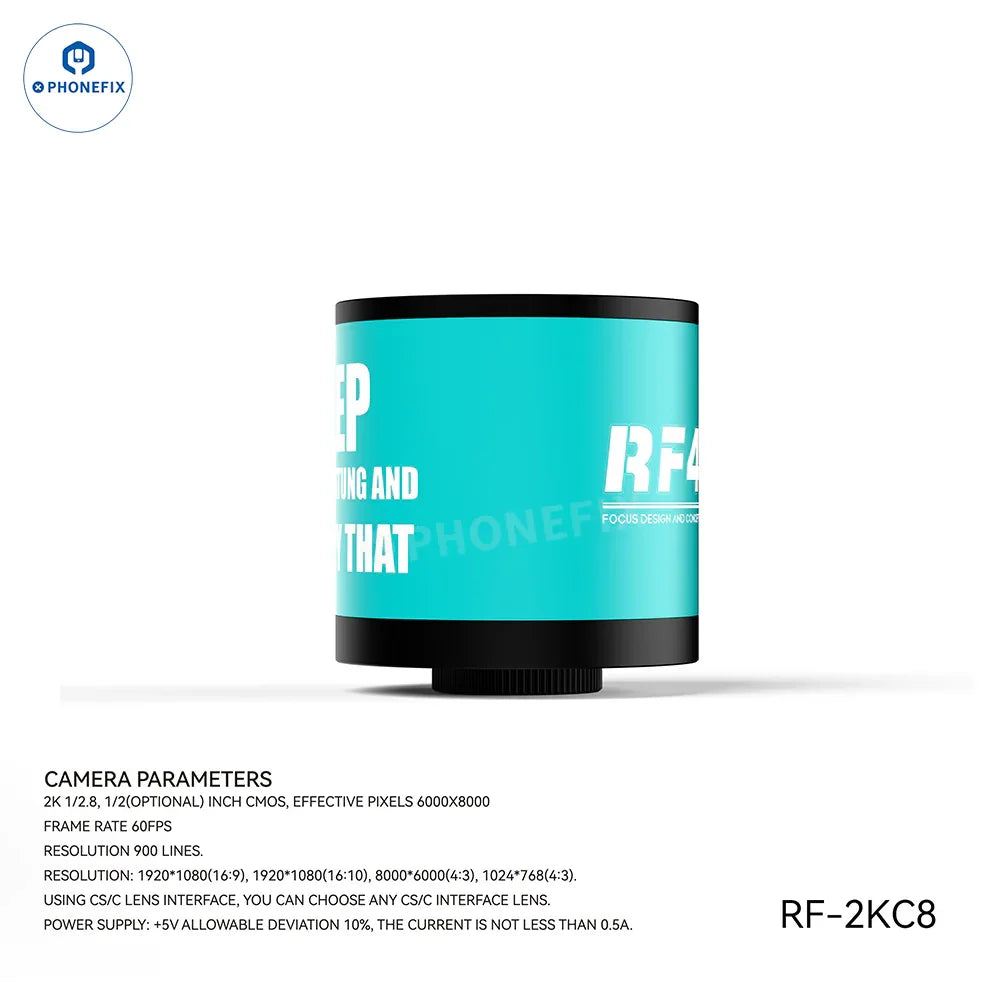

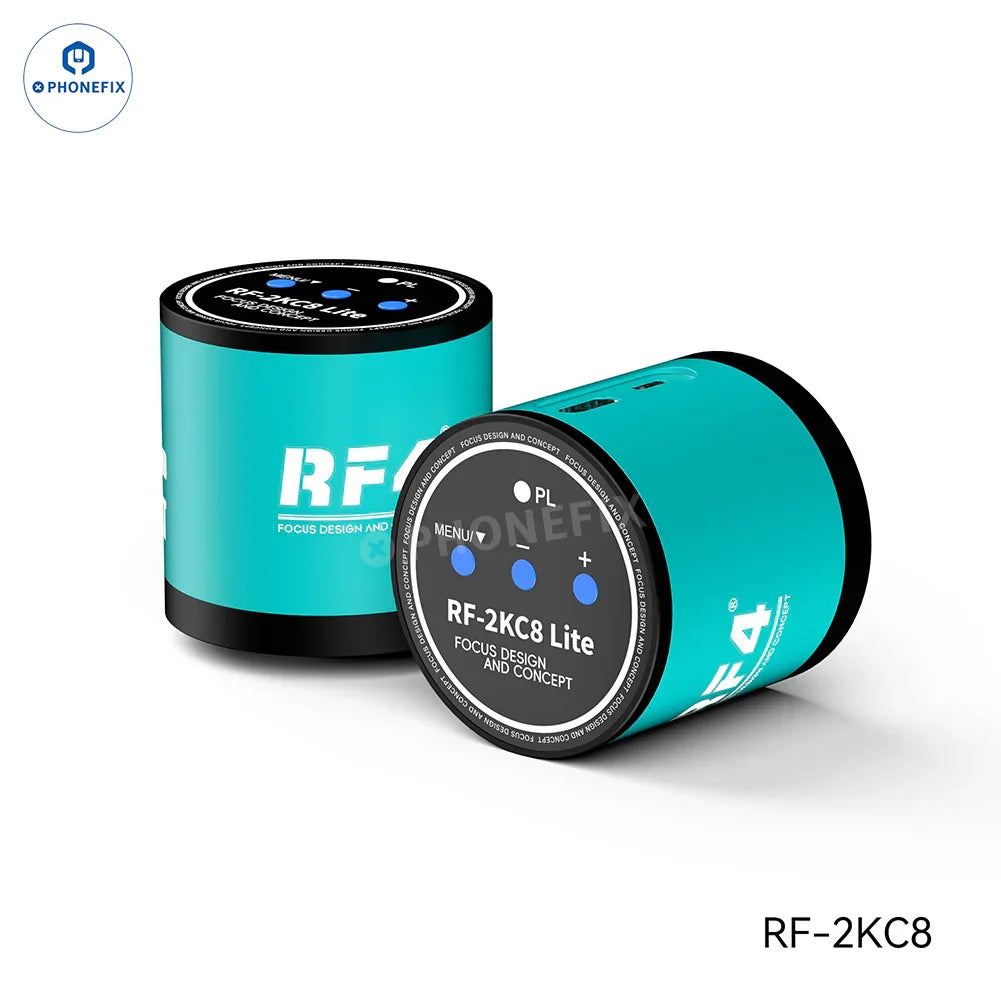

RF4 RF-2KC8 Parameters:
Pixels: 2K HD, 2K1/2.8, 1/2 (optional) inch CMOS
Output: HDMI
Remote control: NO
Photo: NO
Video: NO
Effective pixels: 6000*8000.
Frame rate: 60FPS.
Clear graduation: 900 lines.
Resolution: 1920*1080(16:9), 1920*1080(16:10), 1280*720(16:9), 1024*768(4:3).
Power supply: +5V allows 10% deviation, current not less than 0.5A.
Net weight: 231G.
Adoption CS/C lens interface can be used to select any CS/C interface lens.
The difference between RF-2KC2 and RF-2KC8 cameras: RF-2KC8 camera can't take photos, have no video recording function, no storage function, and no operating system. And the RF-2KC2 camera has these features.

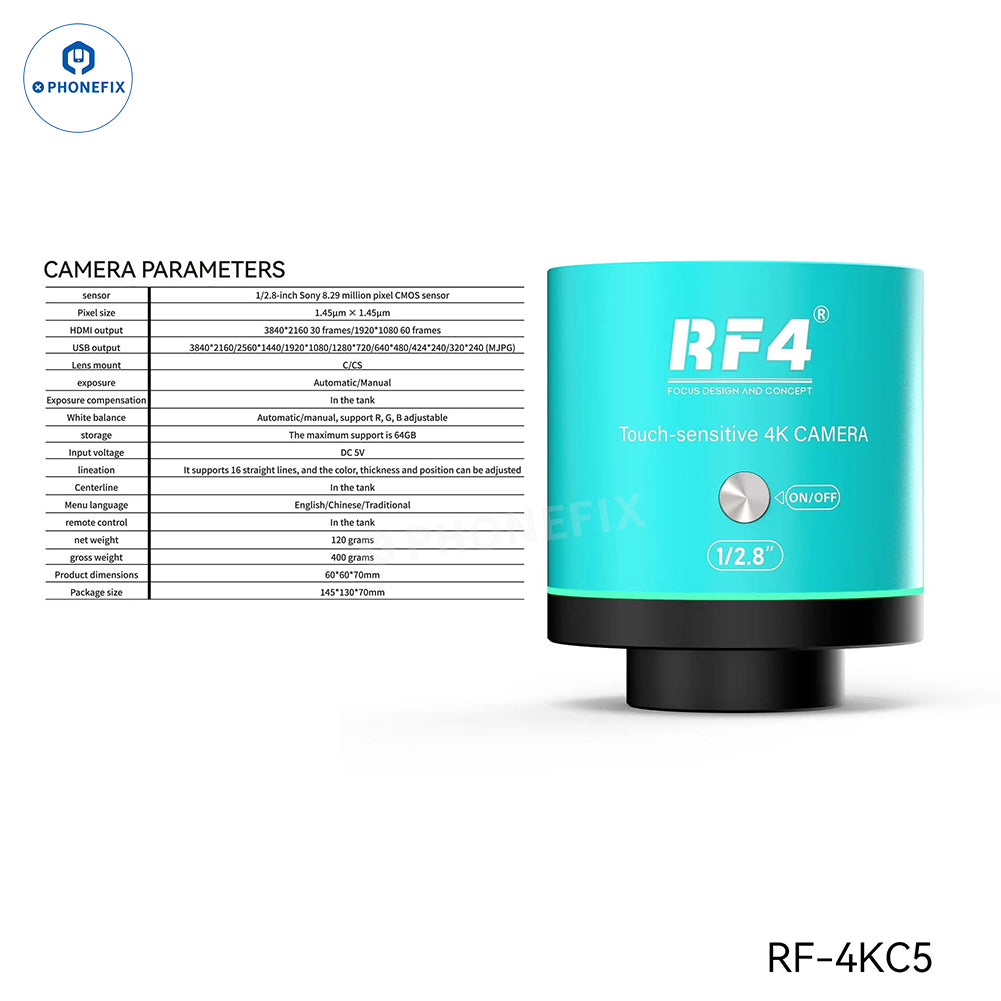

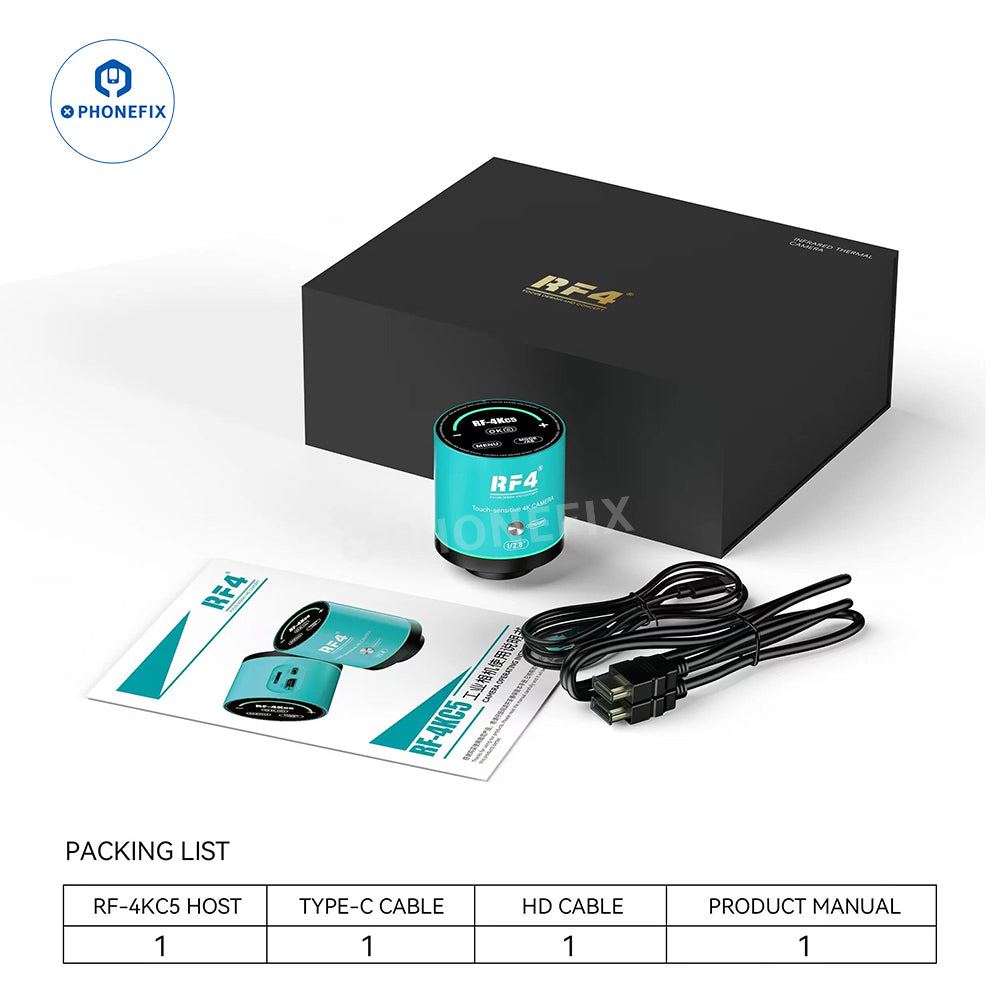

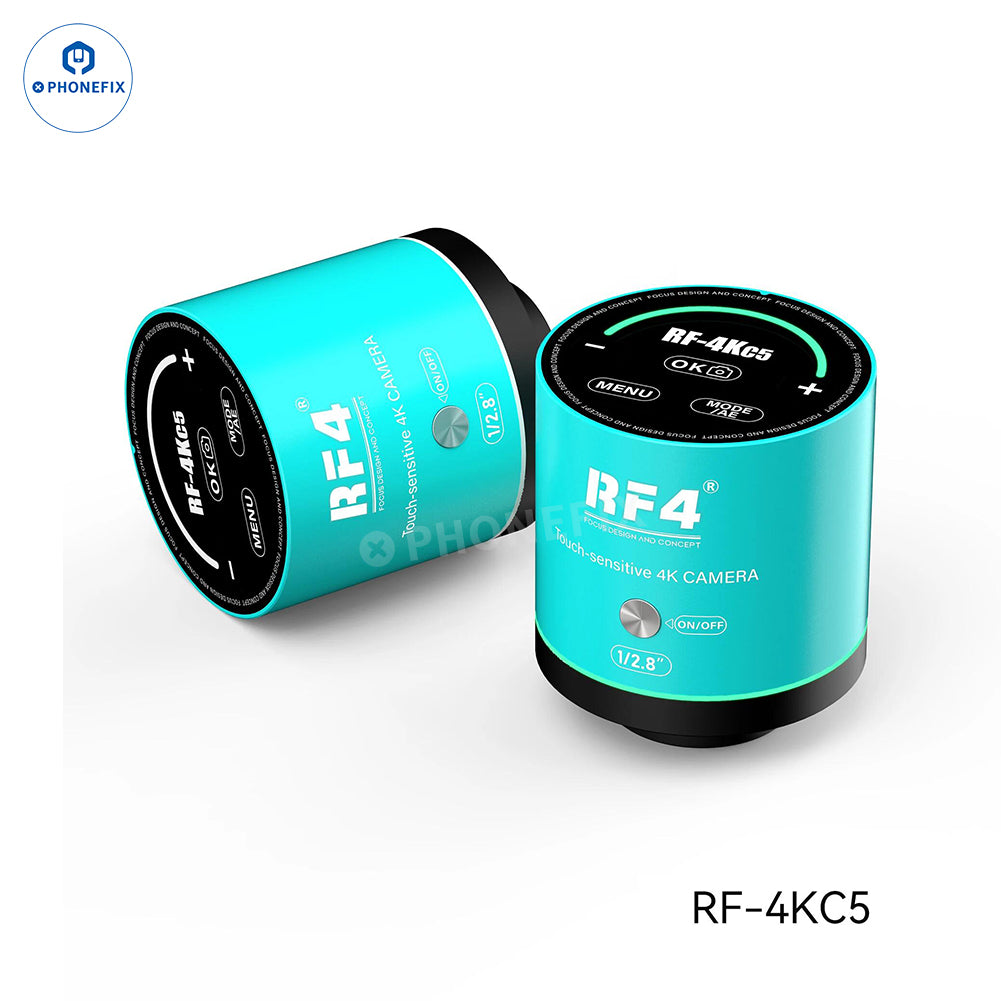

RF4 RF-4KC5 4K Ultra Camera (Touch operation) Specification:
Sensor: 1/2.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 1.45μm×1.45μm
Pixels: 4K HD
Output: HDMI
Remote control: NO
Photo: YES
Video: YES
HDMI output: 3840*216030 frames/1920*108060 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240(MJPG)
Lens mount: C/CS
Exposure: Automatic/Manual
Exposure compensation: In the tank
White balance: Automatic/manual, support R, G, B adjustable
Storage: The maximum support is 64GB
Input voltage: DC 5V
lineation: It supports 16 straight lines, and the color, thickness, and position can be adjusted
Centerline: In the tank
Menu language: English/Chinese/Traditional
Remote control: In the tank
Net weight:120g

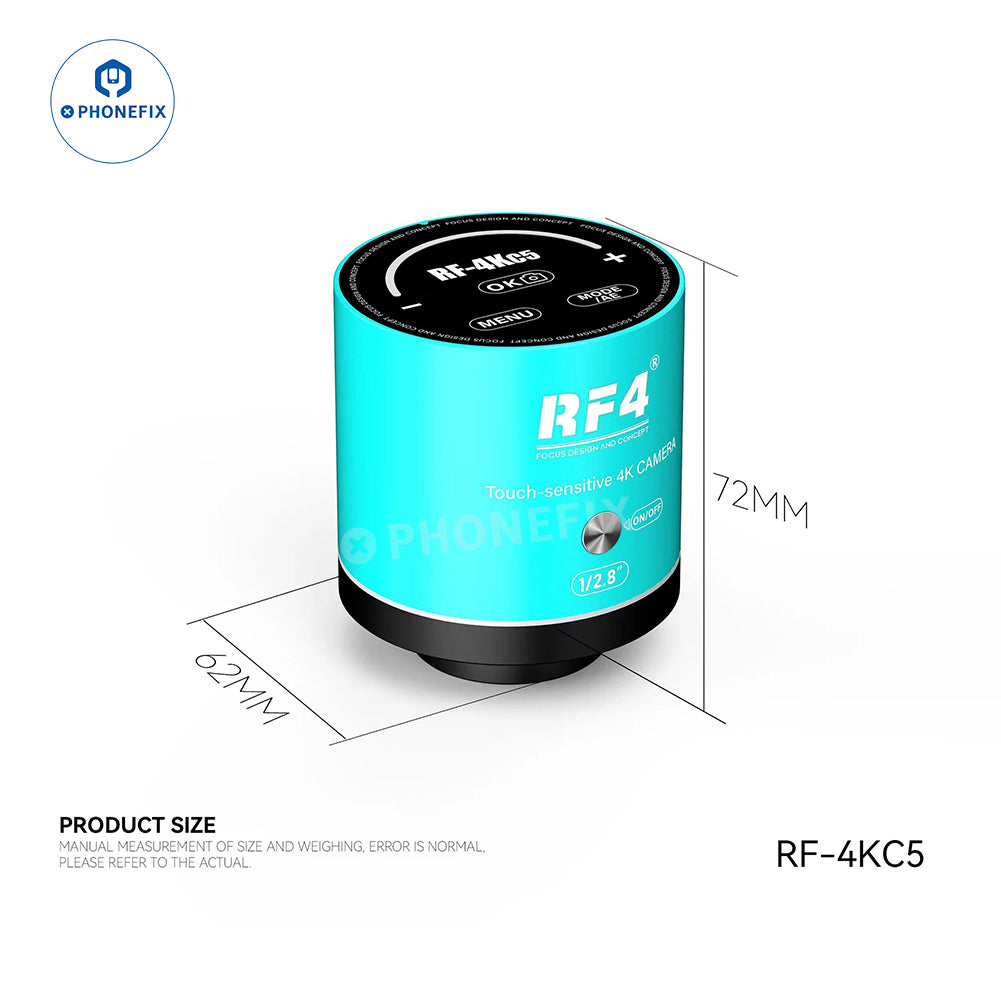

Product size: 60*60*70mm

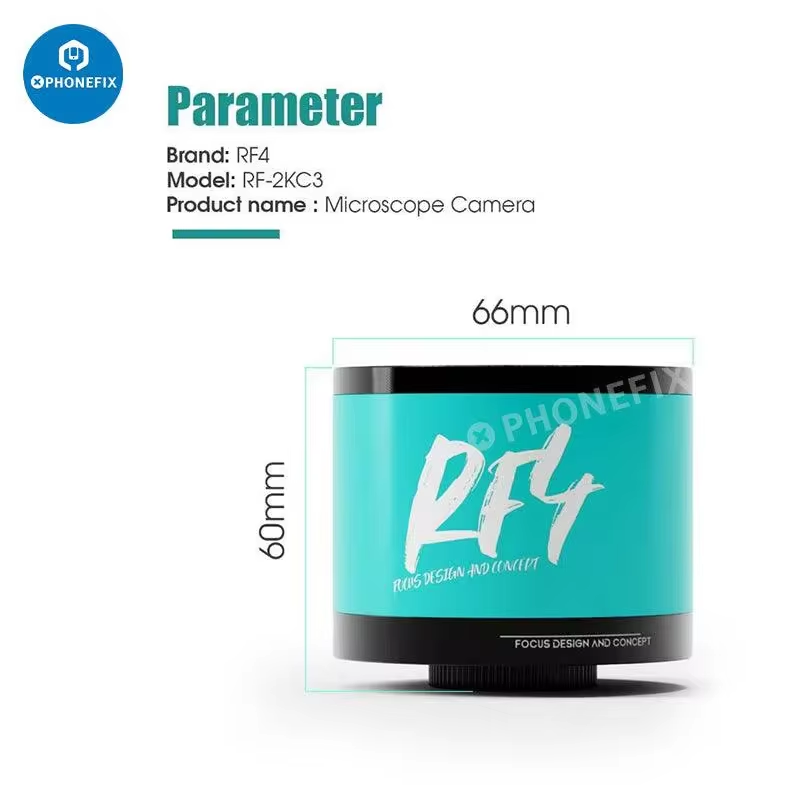

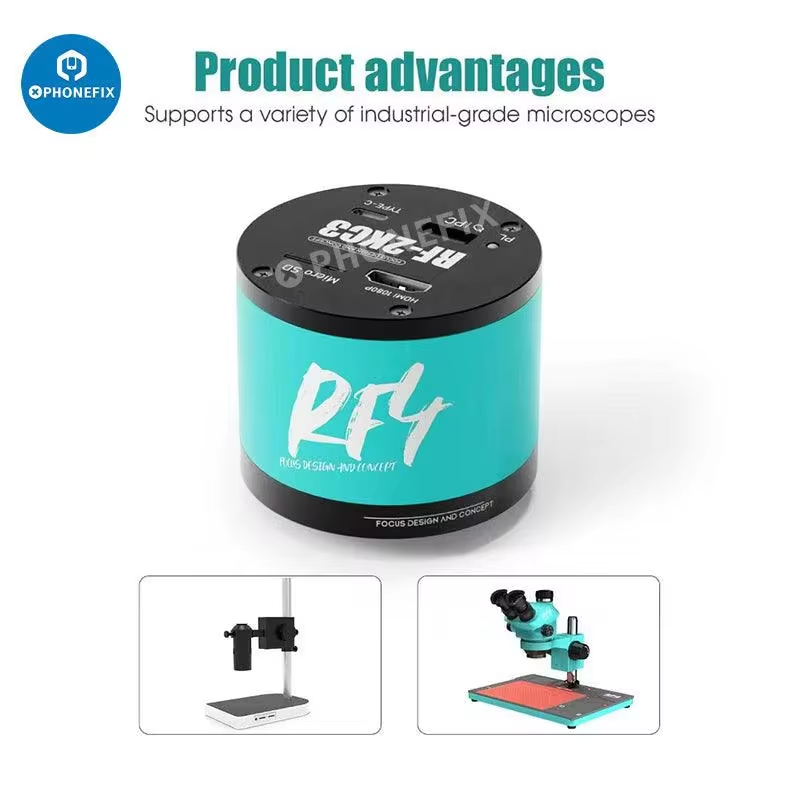

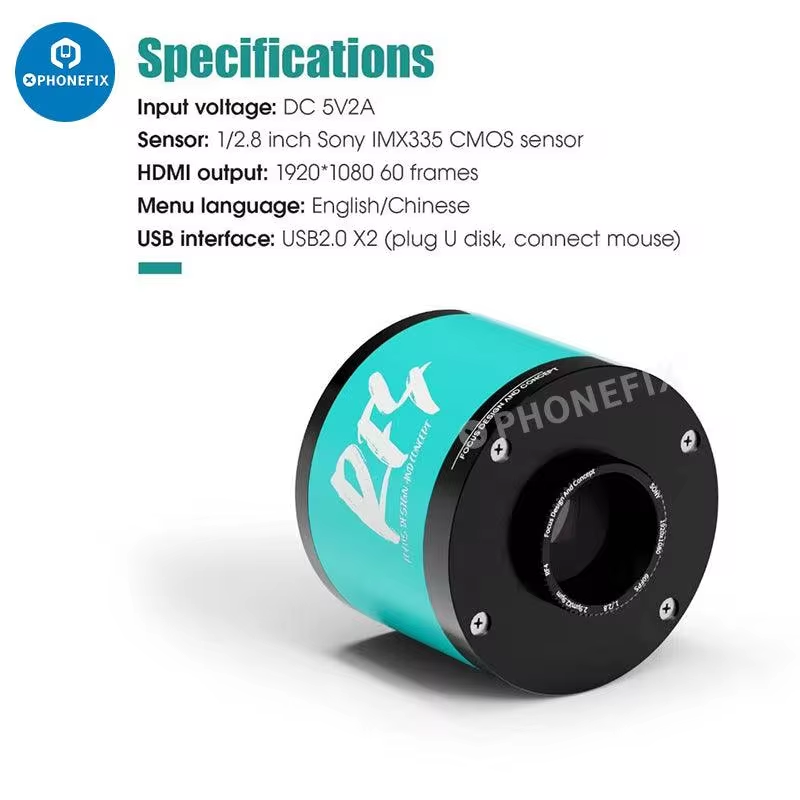

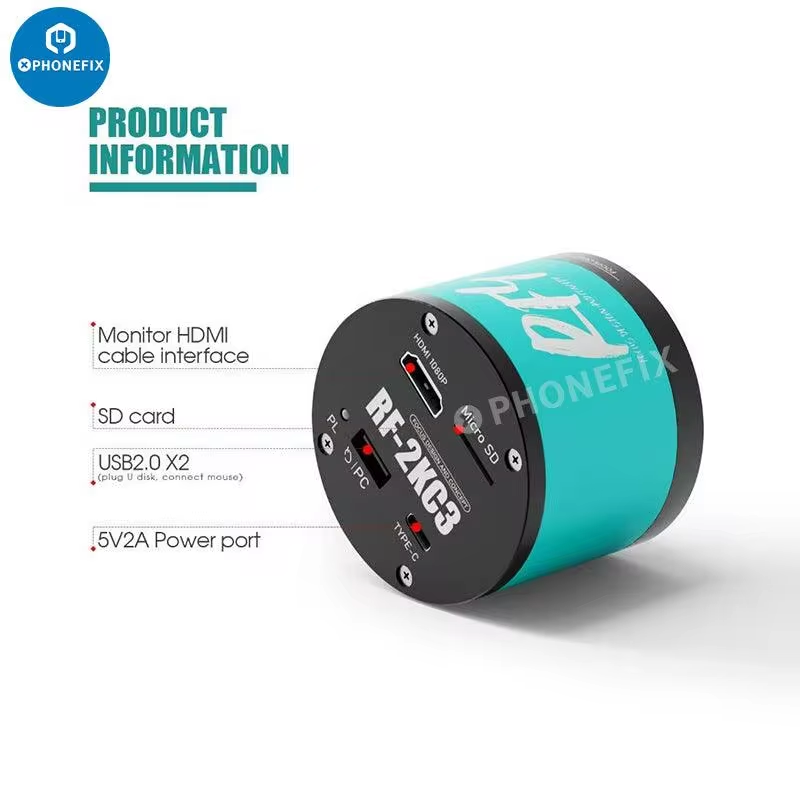

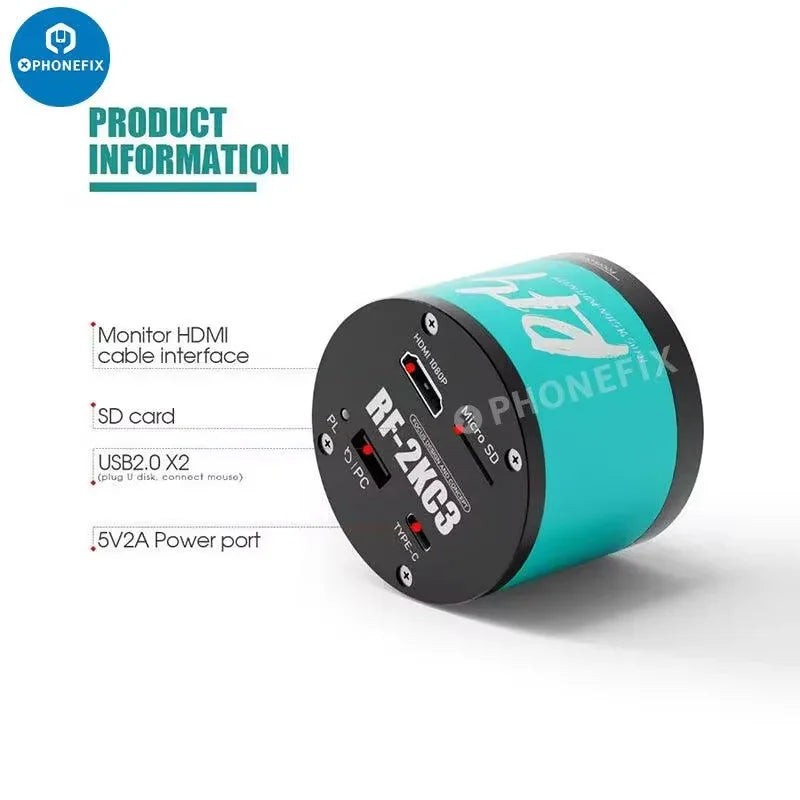

RF4 RF-2KC3 2K HD Camera Specification:
Sensor: 1/2.8 inch Sony IMX335 CMOS sensor
Pixels: 2K FULL HD
Output: USB+HDMI
Mouse control: YES
Photo: YES
Video: YES
HDMI output: 1920*1080 60 frames
Menu language: English/Chinese
USB interface: USB2.0 X2 (plug U disk, connect mouse)
Input voltage: DC 5V2A
