RF4 RF-6565TV-2KC1-S010 6.5-65X Electronic Trinocular, RF7050TVD2-4KC2-M156 7-50X trinocular Stereo zoom industrial microscope with 2K/4K camera and monitor for smart phone repair tool.

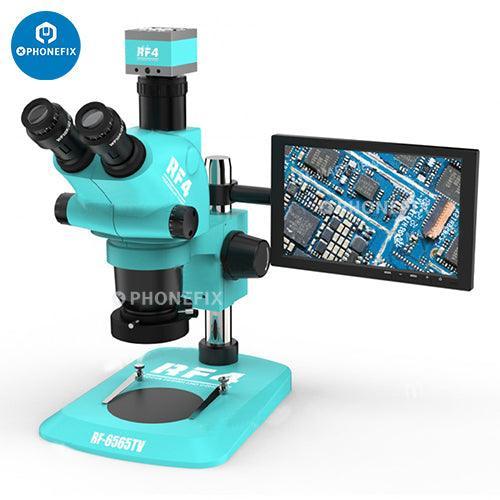

1. RF4 RF-6565TV-2KC1-S010
- 6.5X-65X trinocular microscope
- Magnification: big continuous zoom 6.5X to 65X
- Head: 45-degree inclined 360-degree swiveling trinocular
- Eyepiece: WF10X/22MM Adjust the focal
- Barlow Lens: 0.5X & 0.7&2.0X(optional)
- Objective: 0.65-6.5X
- Camera connector: 1/2CTV
- Monitor and eyepiece. Synchronous zoom
- Camera: 2K FullHD Camera
- Accessories: 144 adjustable led light & dust-proof Lens
2K Full HD Camera:
- Sensor Target Surface Size: 1/2.8-inch
- The Sensor Resolution: 2K/1920X1080@30fps
- Output Interface: HDMI 2K@30fps
- Mode of Operation: Button
- Working Voltage: DC 12V
- Storage: USB disk, Max 64GB
- The Lens Type: Supports C/CS interfaces
- Photograph: 8 million, JPG
- Video: 3840*2160 avi
- Cross Curve: 8*8 groups
- File Manager: With
Monitor:
- Brand Name: RF4
- Model: YS101W
- Theory: Video Microscope
- Drawtube: Monocular
- Product name: 16 MP Display monitor Smart Industrial microscope WIFI Camera
- Application: Microscope
- Output: USB/HD
- Screen Resolution: 1024X600@30fps
- WIFI distance: Ten meters
LED Ring Light:
- Input: AC 100~240V
- Output: DC 12V
- Max Output: 4.5W~6W
- LED: 144 LEDs
- Illumination: Over 30000~35000Lux
- Color Temperature: 6000~7000K
- Light Color: Black
- Inside Diameter: 60mm
- Package: 144-LED Lamp Ring
Package includes:
- 1 x Microscope
- 1 x LED Ring Lamp
- 1 x Microscope Base
- 1 x 2K Full HD Camera
- 1 x Monitor
- 1 x Synchronous Adapter
- 1 x Dustproof Len

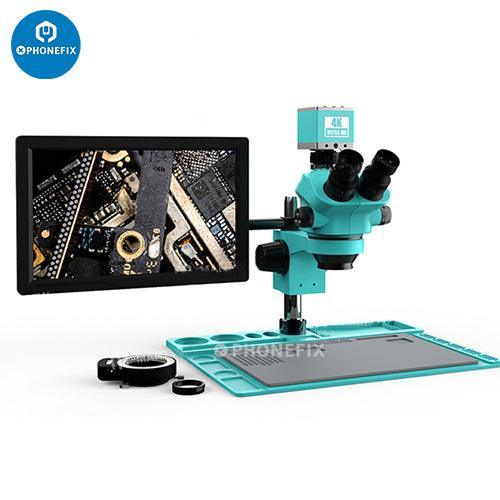

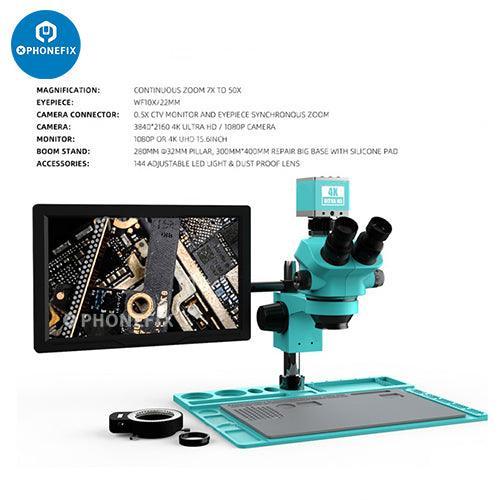

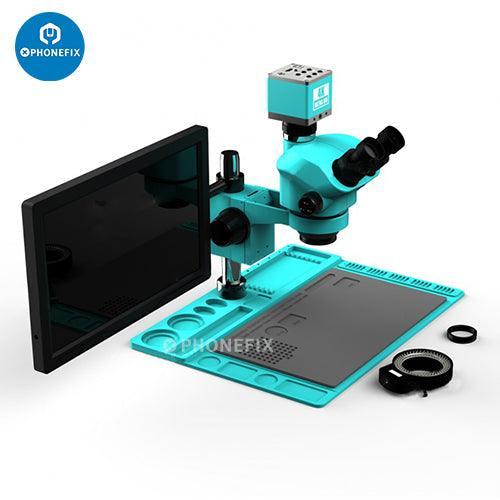

2. RF4 RF7050TVD2-4KC2-M156
- Magnification: Continuous zoom 7X to 50X
- Head: 45-degree inclined 360-degree swiveling trinocular
- Eyepiece: WF10X/22MM
- Objective: 0.7-5.0X
- Camera connector: 0.5X
- Camera: 4K camera
- Monitor and eyepiece: Synchronous zoom
- Stand: 410*300mm
- Accessories: 144 adjustable led light & dust proof Lens
- Monitor: 15.6-inch 4K ultra HD monitor
Support Parameters:
- Column aperture: Φ32mm
- Lens aperture: Φ76mm
- Center distance: 155mm
- Lifting range: 50mm
Base Parameters:
- Base size: 410*300mm
- Pillar: 240mm φ32mm
- Silicone pad size: 330*198mm
Wide-angle Eyepieces 10X/22:
- Magnification: 10X
- Wide field of view 22mm
- Matching size : 30mm
- Applicable models: Stereoscopic, fixed and continuous magnification microscopes
0.5X CTV Len:
- The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet
- The adapter ring can use LCD to focus, this kind of focus method is manual focus

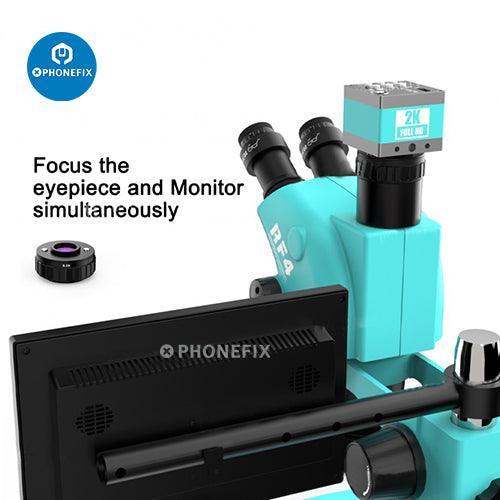

- The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming
Monitor:
- 15.6-inch 4K ultra HD monitor
- Resolution ratio:3840*2160 30Hz
- Support for input resolution: 3840*2160@30Hz; 1920*1080@60Hz
- Proportion of the screen: 16 : 9
144 LED Ring Light:
- Input: AC 100~240V 50/60Hz
- Output: DC 12V, Max 700mA
- Light color: White
- Number of lights: 144 LEDs
- Inside diameter: 60mm
Package includes:
- 1 x Microscope
- 1 x Aluminum alloy plate
- 1 x 144 LED light
- 1 x Dustproof len
- 1 x 0.5X CTV lens
- 1 x 4K CCD Camera
- 1 x Display
- 1 x Silicone pad
