RF-7050TVP-YS010W 7-50X Zoom Trinocular Microscope HD Monitor

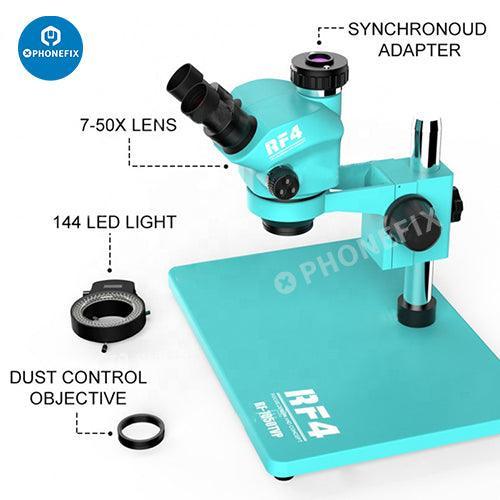

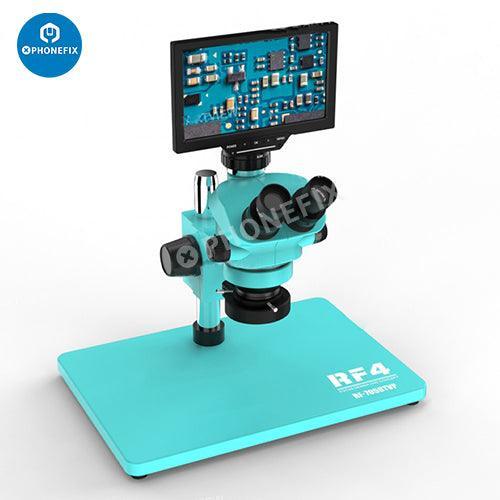

RF4 RF-7050TVP-YS010W 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Base and HD Monitor

Features:

1. Continuous zoom trinocular simultaneous observation, clear image/easy operation.
2. Large wide-angle lens/continuous zoom/adjustable LED/diopter adjustment
3. 10x high-definition wide-angle eyepiece, large diameter, wide field of view, long-term use is not easy to fatigue.
4. The total magnification is 7X-50X, the standard working distance is up to 100mm, and the optical components are coated with a special film for clearer observation
5. Adjustable ring LED light, adjustable brightness, and strong focusing type do not affect the operating space.
6. Comes with dust-proof, oil-proof, and high-temperature lenses to prevent eyepiece pollution, and safe and durable.
7. Both eyes support diopter adjustment, adapt to people with different eye distances, and can observe even if you take off your glasses, which is in line with the ergonomic design

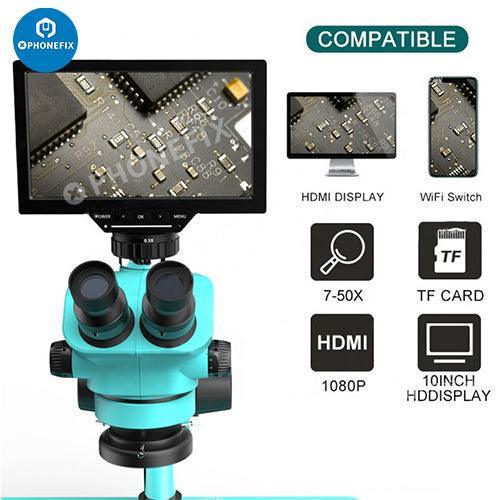

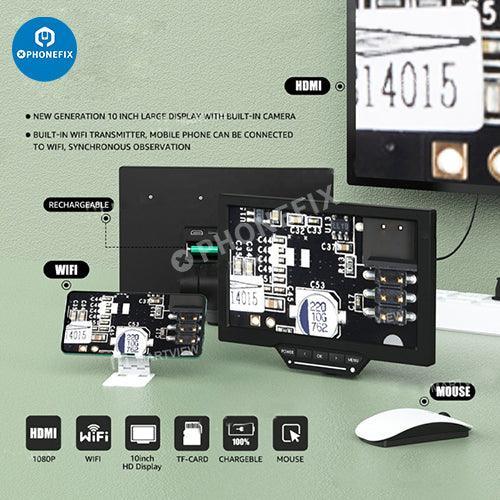

8. New generation 10-inch large display with a built-in camera, built-in wifi transmitter.
9. The mobile phone can be connected to WiFi, synchronous observation.
10. You can rotate it by 90 degrees.And the ultra-long working distance is conducive to spot welding by mobile phone maintenance, circuit board inspection, etc.

Specification:

• Product name: Stereo microscope
• Model: RF-7050TVP
• Lens magnification: 0.7-5X adjustable
• Eyepiece: WF10X/22MM
• Diopter adjustment: +/-5DP
• Number of lens barrels: Trinocular
• Lighting: 144 adjustable LED lights

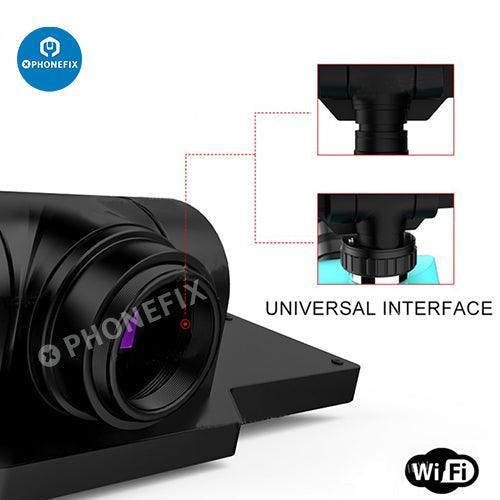

• Camera Adapter: 0.5XCTV

Monitor:

• Brand Name: RF4
• Product name: 16 MP Display monitor Smart Industrial microscope WIFI Camera
• Application: Microscope
• Output: USB/HD
• Resolution: 1080P
• Monitor size: 10-inch
• Aspect ratio: 16:10
• IPS display resolution: 1280*800
• Output port: HDMI
• Panel brightness: 400cd/m2
• Contrast: 1300:1 (Min.)(transmission)
• Viewing angle: IPS full view
• Display area: 215*121mm
• WIFI distance: Ten meters
• Display mode: IPS, always black display, transmissive

Package includes:

• 1 x Microscope
• 1 x Pillar
• 1 x Base
• 2 x Eyepiece
• 1 x Dustproof lens
• 1 x Sync adapter
• 1 x Ring light
• 1 x Monitor
