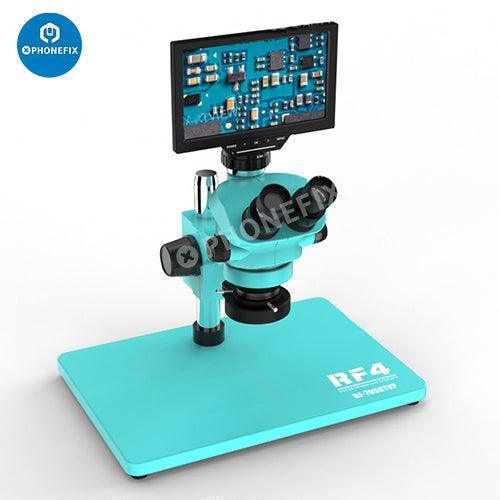

RF4 RF-7050TVP-YS010W 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Base and HD Monitor
Features:
- Continuous zoom trinocular simultaneous observation, clear image/easy operation.
- Large wide-angle lens/continuous zoom/adjustable LED/diopter adjustment
- 10x high-definition wide-angle eyepiece, large diameter, wide field of view, long-term use is not easy to fatigue.
- The total magnification is 7X-50X, the standard working distance is up to 100mm, and the optical components are coated with a special film for clearer observation
- Adjustable ring LED light, adjustable brightness, and strong focusing type do not affect the operating space.
- Comes with dust-proof, oil-proof, and high-temperature lenses to prevent eyepiece pollution, and safe and durable.
- Both eyes support diopter adjustment, adapt to people with different eye distances, and can observe even if you take off your glasses, which is in line with the ergonomic design

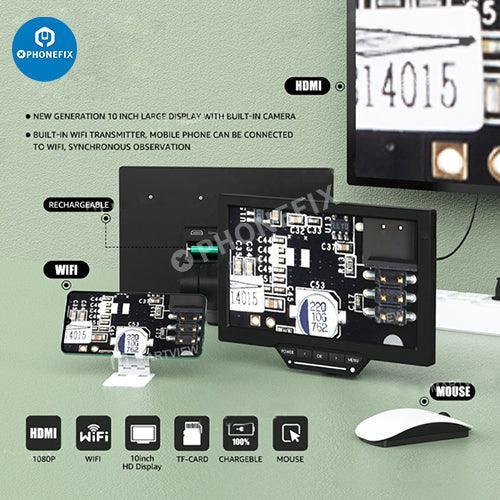

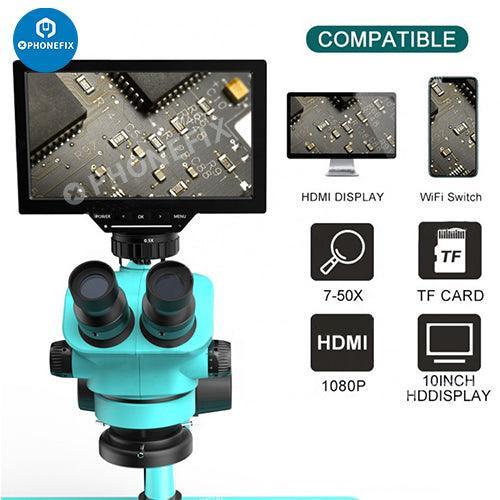

- New generation 10-inch large display with a built-in camera, built-in wifi transmitter.
- The mobile phone can be connected to WiFi, synchronous observation.
- You can rotate it by 90 degrees.And the ultra-long working distance is conducive to spot welding by mobile phone maintenance, circuit board inspection, etc.
Specification:
- Product name: Stereo microscope
- Model: RF-7050TVP
- Lens magnification: 0.7-5X adjustable
- Eyepiece: WF10X/22MM
- Diopter adjustment: +/-5DP
- Number of lens barrels: Trinocular
- Lighting: 144 adjustable LED lights

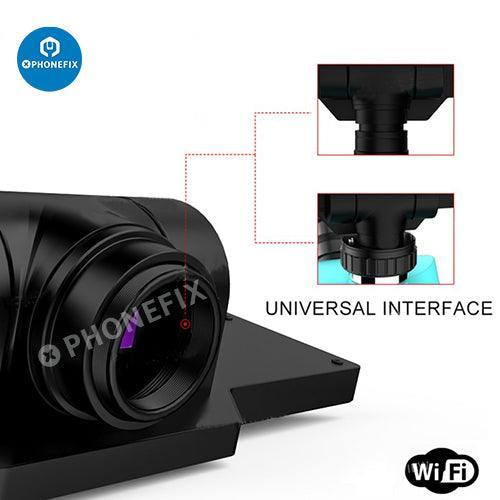

- Camera Adapter: 0.5XCTV
Monitor:
- Brand Name: RF4
- Product name: 16 MP Display monitor Smart Industrial microscope WIFI Camera
- Application: Microscope
- Output: USB/HD
- Resolution: 1080P
- Monitor size: 10-inch
- Aspect ratio: 16:10
- IPS display resolution: 1280*800
- Output port: HDMI
- Panel brightness: 400cd/m2
- Contrast: 1300:1 (Min.)(transmission)
- Viewing angle: IPS full view
- Display area: 215*121mm
- WIFI distance: Ten meters
- Display mode: IPS, always black display, transmissive
Package includes:
- 1 x Microscope
- 1 x Pillar
- 1 x Base
- 2 x Eyepiece
- 1 x Dustproof lens
- 1 x Sync adapter
- 1 x Ring light
- 1 x Monitor
