RF4 RF PEACE is a powerful LCD screen separator with a built-in vacuum pump, suitable for separating mobile phone LCD screens up to 7 inches. RF4 RF-PSP1 Separator Repair Reverse Suction Pad for Flat/Curved LCD Screen Glass Removal. Suitable for most mobile phone screen separation, like iPhone, Samsung, Huawei, etc.

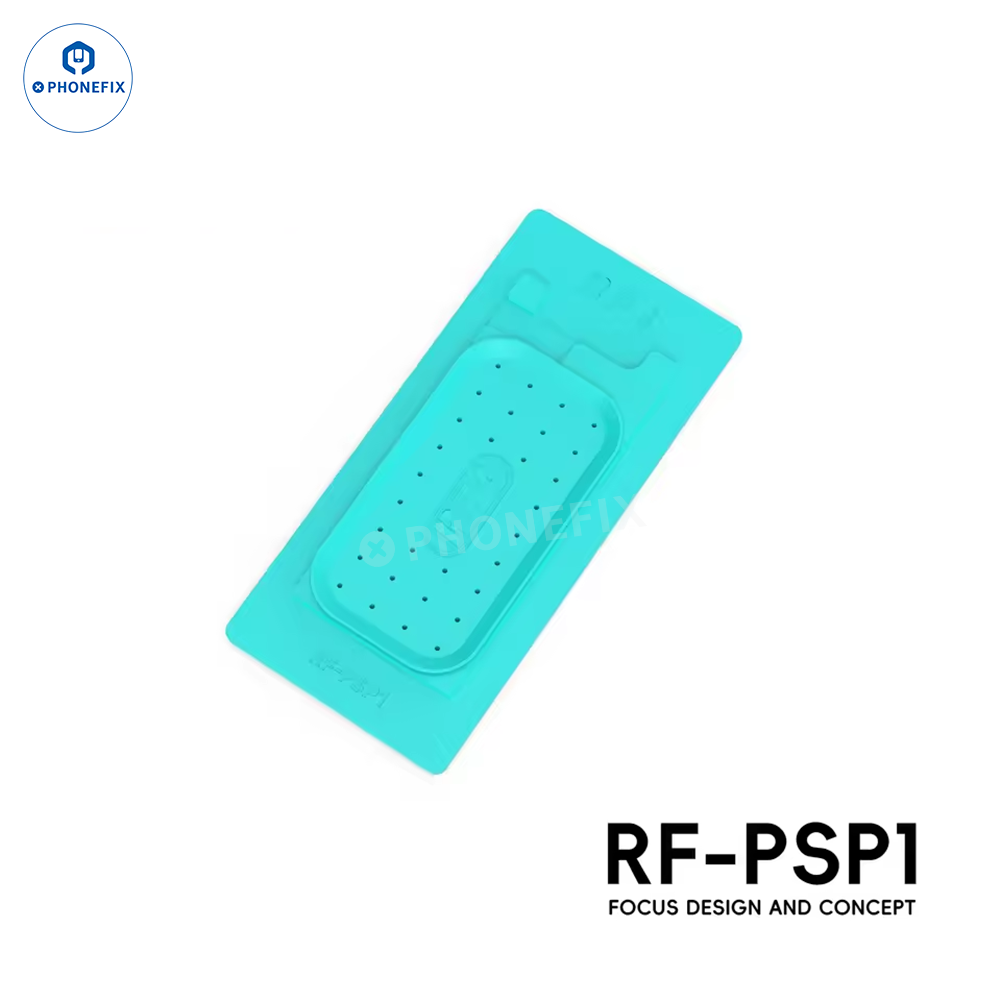

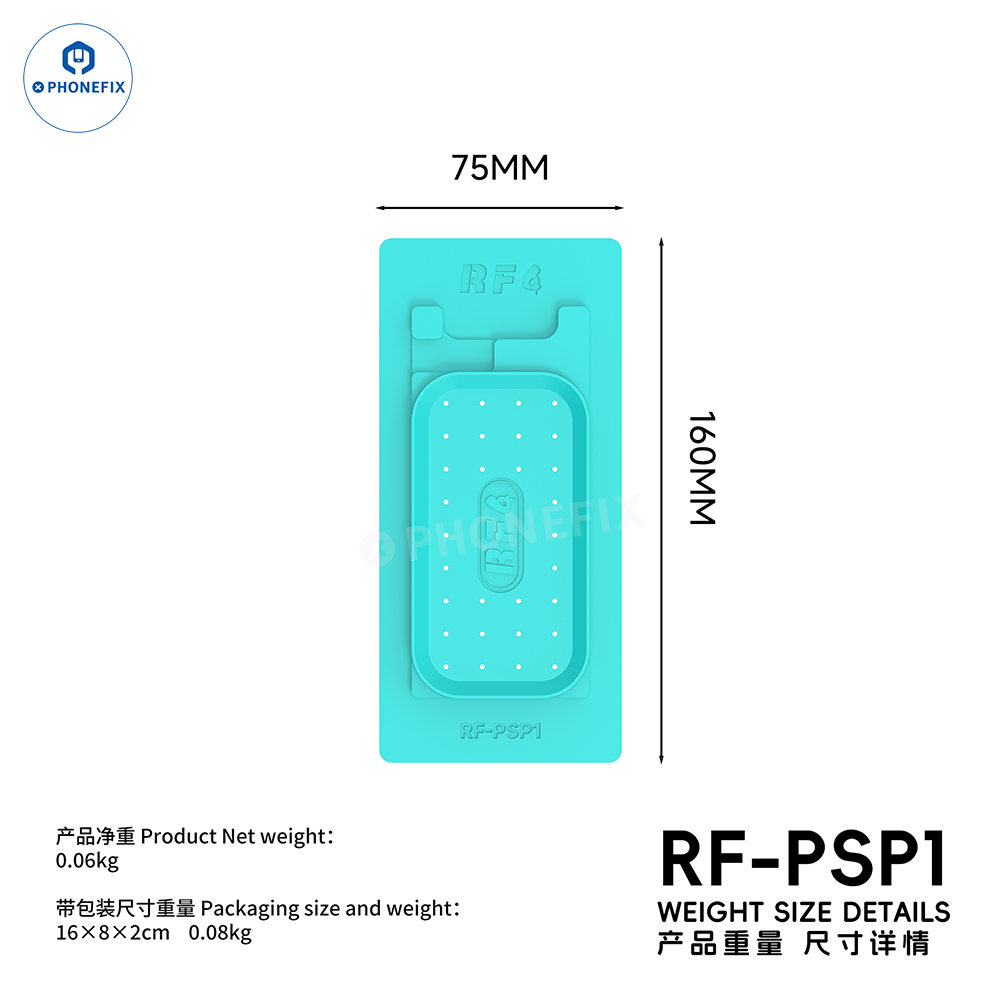

RF4 RF-PSP1 LCD Glass Separation Silicone Pad Features:

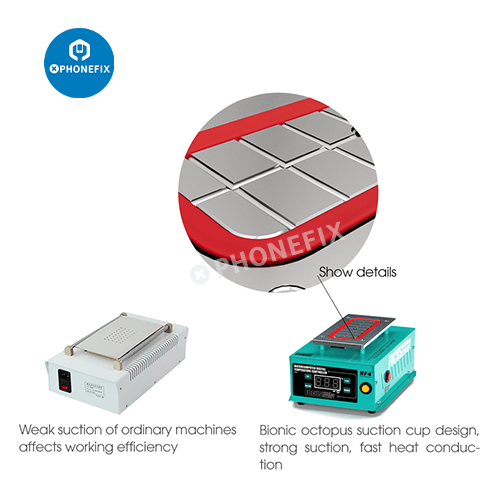

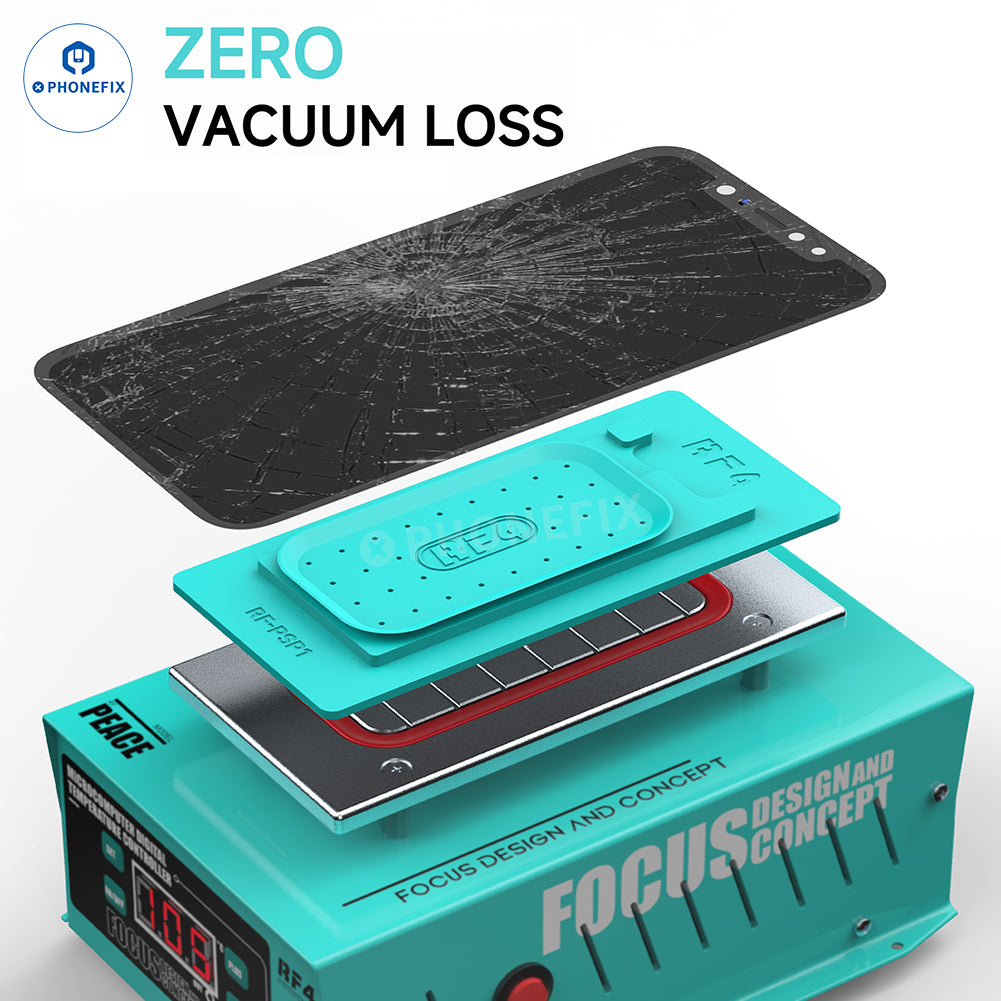

1. Precision Microporous Design: The separation cover effectively prevents liquid leakage. The microporous design ensures the flexible LCD screen remains flat during adsorption, preventing liquid crystal detachment, delamination, or deformation.
2. Strong Adsorption: Eliminates adsorption points, preventing screen damage. Say goodbye to blind operation; screen-up for clear visual separation. Every step is clearly visible, enabling precise control without blind spots.
3. Upgraded Support Structure for Smoother Adsorption: The internal support structure has been completely revamped and upgraded, evenly supporting the screen. No more central depressions; adsorption is more stable and reliable.
4. Suitable for Flat and Curved Screens: Designed for easy adsorption of curved screens. Adsorption is firm and stable, compatible with 99% of displays, including flat and curved screens.
RF4 RF PEACE Screen Separator Features:

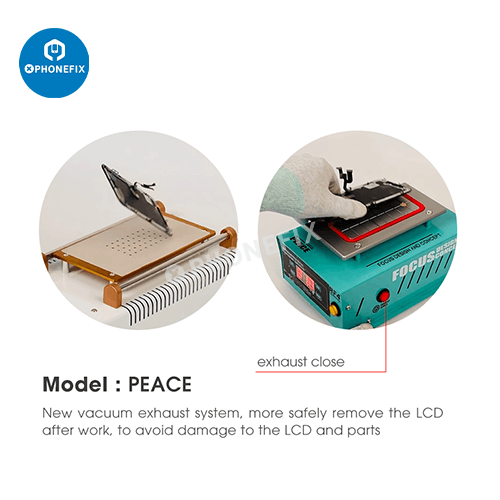

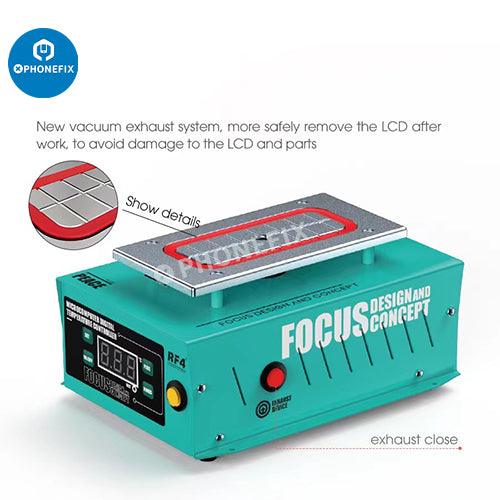

- Easy to operate, semi-automatic separating, Build-in air Vacuum Pump, low noise, no need clamps;
- Safety power system inside, avoiding the electric leakage problem;
- Anti-static body material, prevent the LCD and the flex cable being damaged from the static;
- Power supply: AC 110 V to AC 220 V 50 Hz, universal for all over the world;
- Temperature should be set to 80 centigrade to 100 centigrade;
- Large heating platform, compatible for LCD or LED screen assembly <=7 inches;
- Easy to operate, can provide operation instruction, picture and video for new user.
- Multiple application: This vacuum pump has multiple functions, such as a normal speaker, removing the phone, and then it will leave you with a new body.
- Telescoping handle: The ergonomic handle provides a comfortable grip and minimizes hand fatigue, making it easy to work with you. The mini vacuum pump has a compact body and is easy to store, and it takes up very little space with portable design.
- Various occasions: It has a variety of color and stylish appearance; the vacuum cleaner can meet your different needs.
- Strong material: The vacuum cleaner is made of high-quality abs material, which can ensure maximum strength and flexibility.
- Compatibility: The handheld vacuum has strong adsorption, which is compatibility with all types of mobile phones.
Tips: for serious crushed glass, please stick a tape on glass for safety and good for machine
The Use Method

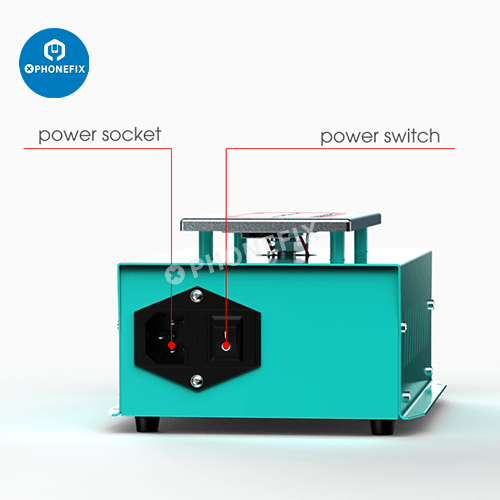

- Turn on the power switch and check that the adsorption platform is there foreign body, pad and suction plate hole on the good;
- Clean the surface of the broken phone screen and place it on Suction plate, to ensure that the temperature rise at 90 degrees, guaranteed Mobile phone / tablet screen cannot be free to move around;
- Press the Start button;
- Slowly pull the alloy wire, and then split the phone screen.
Operation Notes:
- When the phone screen is placed on the suction plate, it needs to be preheated for 10-20 seconds;
- In advancing the platform, be sure to ensure that the alloy wire into the cover and the liquid crystal intermediate layer;
- Place the cover of the LCD screen facing down.
